Kenwood NX-5300E2 User manual

.
NX-5000 series
USER MANUAL
.
.
B5A-1906-00/05

CONTENTS
BASIC OPERATIONS ................................................................................................................. 3
SWITCHING POWER ON/ OFF ................................................................................................ 3
ADJUSTING THE VOLUME ...................................................................................................... 4
SELECTING A ZONE AND CHANNEL ..................................................................................... 4
TRANSMITTING ....................................................................................................................... 5
RECEIVING ............................................................................................................................. 12
PROGRAMMABLE FUNCTIONS .............................................................................................. 14
FUNCTIONS OVERVIEW .......................................................................................................... 26
FUNCTION DETAILS ................................................................................................................ 38
SCAN ...................................................................................................................................... 38
DTMF (DUAL TONE MULTI FREQUENCY) CALLS ............................................................... 41
TRUNKING CALLS ................................................................................................................. 42
EMERGENCY CALLS ............................................................................................................. 44
SCRAMBLER (ANALOG/ LTR)/ ENCRYPTION (P25/ NXDN/ DMR) ...................................... 45
SIGNALING ............................................................................................................................. 47
CLOCK .................................................................................................................................... 49
COLOR SCHEME ................................................................................................................... 50
BATTERY INFORMATION DISPLAY ...................................................................................... 51
MULTI LANGUAGE ................................................................................................................. 53
FleetSync: ALPHANUMERIC 2-WAY PAGING FUNCTION ................................................... 54
5-TONE SIGNALING (For E Type Only) ................................................................................. 57
VOICE OPERATED TRANSMISSION (VOX) ........................................................................... 59
BACKGROUND OPERATIONS ................................................................................................ 60
Bluetooth .................................................................................................................................. 63
microSD CARD & BUILT-IN MEMORY .................................................................................... 74
INDICATOR LIST ...................................................................................................................... 81
This manual has been prepared based on basic settings. Depending on the setting,
the descriptions provided may be different from the actual operations.
Automatic Injury Detection (AID) is a registered trademark of Select Engineering
Services, LLC.
2

BASIC OPERATIONS
SWITCHING POWER ON/ OFF
Turn the Power switch/ Volume control clockwise to switch the transceiver power
ON.
●The following screen appears if the Custom Start-up Screen has not been set.
Turn the Power switch/ Volume control counterclockwise to switch the transceiver
power OFF.
o
Transceiver Password
If the transceiver is password protected, “Input Password” will appear on the display
when the power is turned on. To unlock the transceiver, enter the correct password.
1Press the key programmed as [Transceiver Password] to enter Transceiver
Password Mode.
Alternatively, press the key programmed as [Menu] to enter Transceiver Password Mode
using the Menu Mode.
●If a password has been registered and the [Transceiver Password] function has not
been programmed to a key or configured to the menu, the transceiver enters
Transceiver Password Mode when the power is turned on.
2Enter a number using the [J] and [K] keys.
●On full key model transceivers, you can enter the password directly by pressing the
keypad.
3

3Press the [ ] or [ ] key to accept the number.
4Repeat steps 2 and 3 to enter the entire password.
●Press the [ ] or [#] key to delete an incorrectly entered number. Press and hold the
[] or [#] key to delete all numbers.
5Press the [ ] or [ ] key to confirm the entry.
●If you enter an incorrect password, an error tone sounds and the transceiver remains
locked.
●The password can contain a maximum of 6 digits.
ADJUSTING THE VOLUME
Rotate the Power switch/ Volume control to adjust the volume.
Rotate clockwise to increase the volume and counterclockwise to decrease the
volume.
SELECTING A ZONE AND CHANNEL
1Select the desired zone using the keys programmed as [Zone Up]/ [Zone
Down]. Each zone contains a group of channels.
2Select the desired channel using the keys programmed as [Channel Up]/
[Channel Down]. Each channel is programmed with settings for transmitting and
receiving.
●The transceiver may have names programmed for zones and channels. The zone
name and channel name can contain up to 16 and 14 characters respectively.
4

TRANSMITTING
1Select the desired zone and channel using the keys programmed as [Zone Up]/
[Zone Down] and [Channel Up]/ [Channel Down].
2Press the PTT switch and speak into the microphone. Release the PTT switch to
receive.
●The LED indicator lights red while transmitting and green while receiving a signal. This
indicator can also be disabled by your dealer.
●For best sound quality at the receiving station, hold the microphone approximately 1.5
inches (3 cm to 4 cm) from your mouth.
o
Making Group Calls (P25 Conventional)
You can select a Talkgroup ID from the list to make a call to those parties on a
Conventional channel.
1Press the key programmed as [Group], [Group + Short Message] or [Group
+ Status] to enter Talkgroup ID Select Mode.
Alternatively, press the key programmed as [Menu] to enter Talkgroup ID Select Mode
using the Menu Mode.
●The Talkgroup ID List appears on the display.
5

2Press the [J] and [K] keys to select a Talkgroup ID/ name from the list that has
been pre-entered into your transceiver.
3Press the [ ] or [ ] key to confirm the Talkgroup ID.
4Press and hold the PTT switch to make the call.
●Speak into the transceiver as you would during a normal call.
o
Making Individual Calls (P25 Conventional)
You can make calls to specific persons on a Conventional channel.
1Press the key programmed as [Individual], [Individual + Short Message] or
[Individual + Status] to enter Individual Call Mode.
Alternatively, press the key programmed as [Menu] to enter Individual Call Mode using
the Menu Mode.
●The Individual ID List appears on the display.
2Press the [J] and [K] keys to select a unit ID from the list that has been pre-
entered into your transceiver.
Alternatively, on full key models, you can enter a unit ID directly by pressing the keypad.
●Press the [ ] key to enter the manual input mode.
To delete the code entered, press the [ ] key to delete one digit, or press and hold
the [ ] key to delete all digits.
6

3Press and hold the PTT switch to make the call.
●The “ ” icon blinks. “Individual” and the ID name of the target transceiver are
displayed.
●Speak into the transceiver as you would during a normal call.
o
Making Group Calls (P25 Trunking)
You can select a channel with the Talkgroup ID you wanted to call to make a call to
those parties on a Trunking channel.
●If the traffic channel is busy, a busy message appears and the busy tone sounds. Release
the PTT switch and wait for the channel to become free. When the traffic channel becomes
free, a proceed tone sounds.
1Select the configured Talkgroup channel using the keys programmed as
[Channel Up]/ [Channel Down].
2Press and hold the PTT switch to make the call.
●“Calling” appears on the display while the call is being made, and disappears once
the call is established.
●Speak into the transceiver as you would during a normal call.
7

o

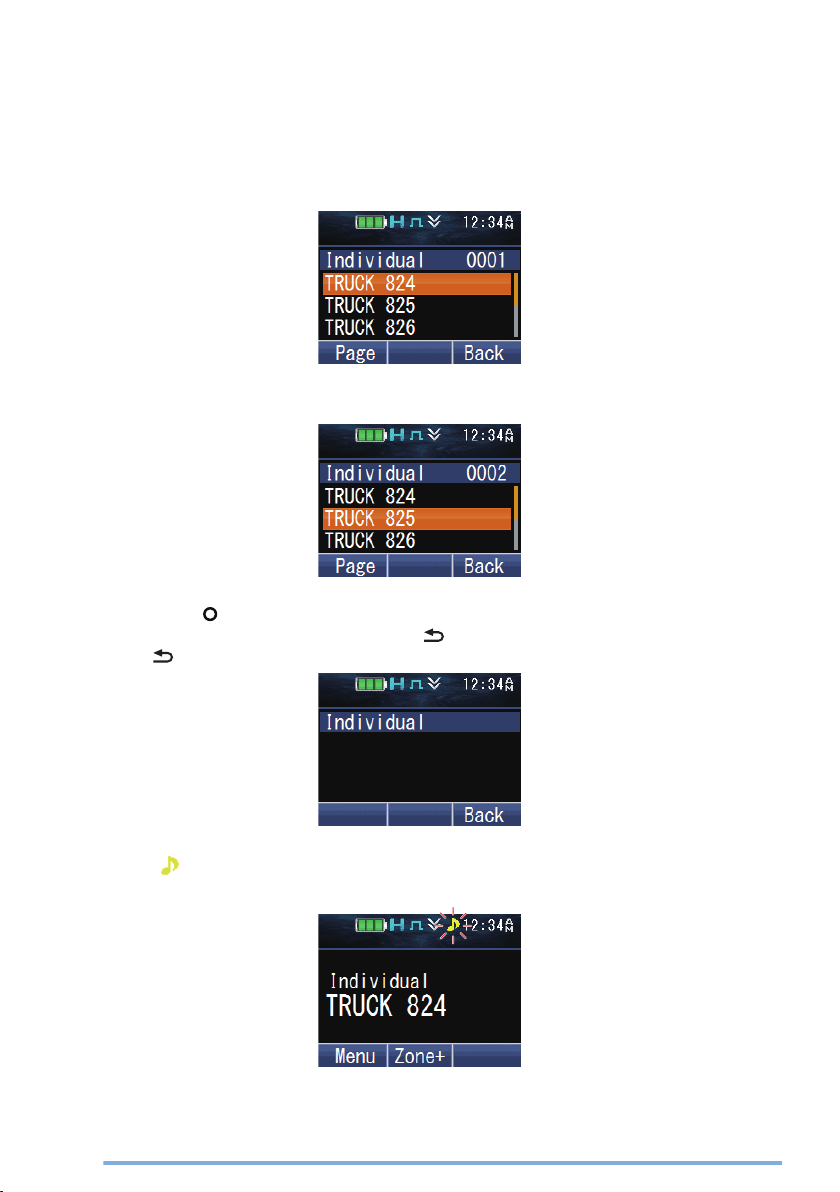

Making Individual Calls (P25 Trunking)
You can make calls to specific persons on a Trunking channel.
1Press the key programmed as [Individual], [Individual + Short Message] or
[Individual + Status] to enter Individual Call Mode.
Alternatively, press the key programmed as [Menu] to enter Individual Call Mode using
the Menu Mode.
2Press the [J] and [K] keys to select a unit ID from the list that has been pre-
entered into your transceiver.
●The target unit ID/ name appears on the display.
Alternatively, on full key models, you can enter a unit ID directly by pressing the keypad.
●Press the [ ] key to enter the manual input mode.
To delete the code entered, press the [ ] key to delete one digit, or press and hold
the [ ] key to delete all digits.
3Press and hold the PTT switch to make the call.
●The called ID and “Calling” appear on the display. “Calling” disappears once the call
is established.
●Speak into the transceiver as you would during a normal call.
4To end the call, press the key programmed as [Clear].
●The LCD display will return to the zone and channel screen after call ends.
8

o
Making Group Calls (NXDN Conventional/ DMR Conventional)
You can select a group ID from the list to make a call to those parties on a
Conventional channel.
1Press the key programmed as [Group], [Group + Short Message] or [Group
+ Status] to enter Group Call Mode.
Alternatively, press the key programmed as [Menu] to enter Group Call Mode using the
Menu Mode.
●The group ID list appears on the display.
2Press the [J] and [K] keys to select a Group ID/ name from the list that has been
pre-entered into your transceiver.
3Press and hold the PTT switch to make the call.
●The “ ” icon blinks. “Group” and the Group name of the target transceiver are
displayed.
●Speak into the transceiver as you would during a normal call.
9

o

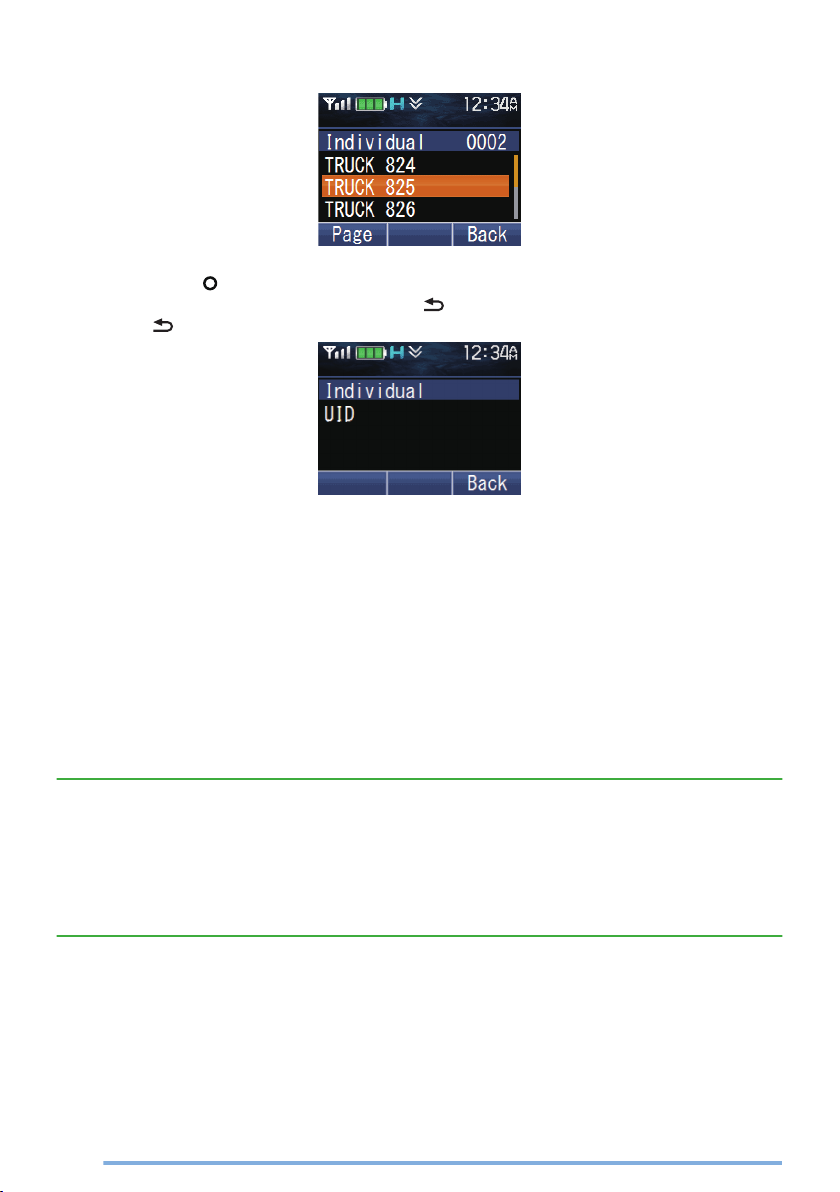

Making Individual Calls (NXDN Conventional/ DMR Conventional)
You can make calls to specific persons.
1Press the key programmed as [Individual], [Individual + Short Message] or
[Individual + Status] to enter Individual Call Mode.
Alternatively, press the key programmed as [Menu] to enter Individual Call Mode using
the Menu Mode.
●The ID list appears on the display.
2Press the [J] and [K] keys to select a unit ID from the list that has been pre-
entered into your transceiver.
Alternatively, on full key models, you can enter a unit ID directly by pressing the keypad.
●Press the [ ] key to enter the manual input mode.
To delete the code entered, press the [ ] key to delete one digit, or press and hold
the [ ] key to delete all digits.
UID
3Press and hold the PTT switch to make the call.
●The “ ” icon blinks. “Individual” and the ID name of the target transceiver are
displayed.
●Speak into the transceiver as you would during a normal call.
10

o
Making Group Calls (NXDN Trunking/ DMR Trunking)
You can select a channel with the Group ID you wanted to call to make a call to those
parties on a Trunking channel.
●If the traffic channel is busy, a busy message appears and the busy tone sounds. Release
the PTT switch and wait for the channel to become free. When the traffic channel becomes
free, a proceed tone sounds.
1Select the configured Group channel using the keys programmed as [Channel
Up]/ [Channel Down].
2Press and hold the PTT switch to make the call.
●“Calling” appears on the display while the call is being made, and disappears once
the call is established.
●Speak into the transceiver as you would during a normal call.
o
Making Individual Calls (NXDN Trunking/ DMR Trunking)
You can make calls to specific persons on a Trunking channel.
1Press the key programmed as [Individual], [Individual + Short Message] or
[Individual + Status] to enter Individual Call Mode.
Alternatively, press the key programmed as [Menu] to enter Individual Call Mode using
the Menu Mode.
●The ID list appears on the display.
11

2Press the [J] and [K] keys to select a unit ID from the list that has been pre-
entered into your transceiver.
Alternatively, on full key models, you can enter a unit ID directly by pressing the keypad.
●Press the [ ] key to enter the manual input mode.
To delete the code entered, press the [ ] key to delete one digit, or press and hold
the [ ] key to delete all digits.
3Press and hold the PTT switch to make the call.
●“Individual” and the ID name of the target transceiver are displayed. “Calling” appears
on the display while the call is being made, and disappears once the call is established.
●Speak into the transceiver as you would during a normal call.
RECEIVING
1Select the desired zone and channel using the Selector knob and the [Zone
Up]/ [Zone Down] or [Channel Up]/ [Channel Down] keys. (If the Scan function
has been programmed, you can switch it on or off as desired.)
2When you hear the caller’s voice, readjust the volume as necessary.
●If signaling has been programmed on the selected channel, you will hear a call only if
the signal tone matches the tone set up on your transceiver.
Note:
●Signaling allows your transceiver to code your calls. This will prevent you from listening
to unwanted calls. It does not make calls private, it only prevents them from being heard
by transceivers set with a different signaling code. Refer to “SIGNALING” {p. 47} for
details.
●A ringing tone will sound when receiving a call if the alert tone has been enabled in the
Alert Tone setting. For details, consult your dealer.
12

o
Receiving Group Calls (P25)
When you receive a group call on a Conventional channel and the received group ID
matches the ID set up on your transceiver, you can hear the caller’s voice.
When you receive a group call on a Trunking channel, the transceiver automatically
switches to the traffic channel to receive the call.
o
Receiving Individual Calls (P25)
When you receive an individual call on a Conventional channel, a ringing tone will
sound and the display will show the caller’s ID. To respond to the call, press and hold
the PTT switch and speak into the transceiver as you would during a normal call.
When you receive an individual call on a Trunking channel, a ringing tone will sound
and the caller’s ID appears on the display. To receive the call, press the PTT switch.
To deny the call, press the key programmed as [Clear]. After receiving the call, you
can respond to the call by pressing and holding the PTT switch and speaking into the
transceiver as you would during a normal call. After the call is finished, press the key
programmed as [Clear] to end the call.
o
Receiving Group Calls (NXDN)
When you receive a group call on a Conventional channel and the received group ID
matches the ID set up on your transceiver, you can hear the caller’s voice.
When on a Trunking channel, if the Group ID of a received call matches your Group
ID, you will hear the call.
o
Receiving Individual Calls (NXDN)
When you receive an individual call on a Conventional channel, a ringing tone will
sound and the display will show the caller’s ID. To respond to the call, press and hold
the PTT switch and speak into the transceiver as you would during a normal call.
When you receive an individual call on a Trunking channel, a ringing tone will sound
and the caller’s ID and “Individual” appear on the display. After receiving the call, you
can respond to the call by pressing and holding the PTT switch and speaking into the
transceiver as you would during a normal call.
o
Receiving Group Calls (DMR)
When you receive a group call on a Conventional channel and the received group ID
matches the ID set up on your transceiver, you can hear the caller’s voice.
When on a Trunking channel, if the Group ID of a received call matches your Group
ID, you will hear the call.
o
Receiving Individual Calls (DMR)
When you receive an individual call on a Conventional channel, a ringing tone will
sound and the display will show the caller’s ID. To respond to the call, press and hold
the PTT switch and speak into the transceiver as you would during a normal call.
When you receive an individual call on a Trunking channel, a ringing tone will sound
and the caller’s ID and “Individual” appear on the display. After receiving the call, you
can respond to the call by pressing and holding the PTT switch and speaking into the
transceiver as you would during a normal call.
13

PROGRAMMABLE FUNCTIONS
Refer to the tables in this section to determine which functions are available for
appropriate channels. Function descriptions start on page 26. Please contact your
dealer for further details on these functions.
MENU MODE
Many functions on this transceiver are selected or configured through the Menu
instead of physical controls. Once you become familiar with the Menu system, you
will appreciate the versatility it offers.
Some transceiver keys may already be programmed with functions listed in the Menu.
Those functions can be accessed directly by pressing the key. All other functions can
still be accessed using the transceiver Menu. Refer to “FUNCTION LIST” {p. 15}
for the available Menu items.
o

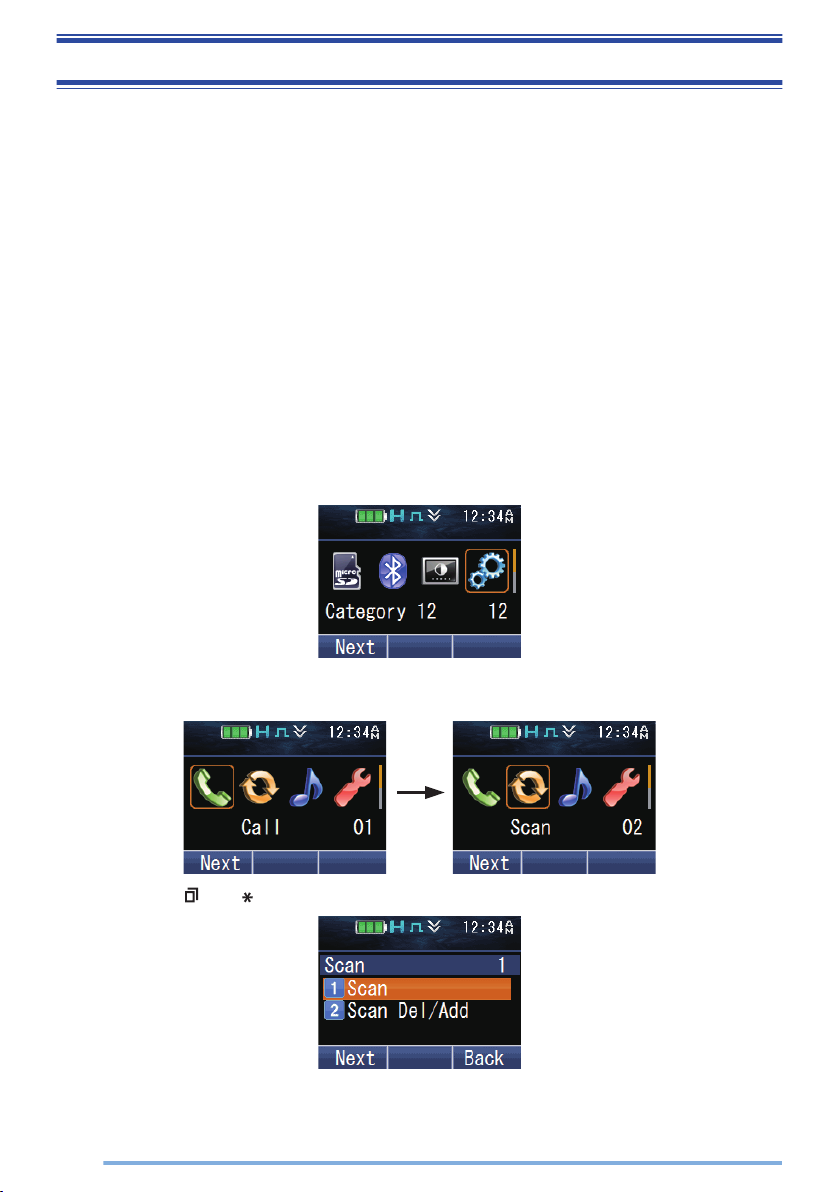

MENU ACCESS
1Press the key programmed as [Menu].
●The category list is shown.
●When there is only one category, the function list is shown (proceed to step 4).
2Press [J]/[K]/[H]/[I] to select a category item.
●On full key models, you can enter a category number directly.
[ I]
3Press the [ ] or [ ] key to view the function list.
14

4Press [J]/[K] to select a function item.
●On full key models, you can enter a function number directly.
5Press the [ ] or [ ] key to set up the selected function item.
●Press the [ ] or [#] key to return to the category list.
6Press [J]/[K] to select your desired setting.
●For settings with more than one level, repeat steps 5 and 6.
7Press the [ ] or [ ] key to set the selected setting and exit Menu mode.
●Press the [ ] or [#] key at any time to return to the previous display.
●Press the [ ] key at any time to exit Menu mode.
KEY MODE
Your transceiver operations vary according to the functions that your dealer has
programmed onto the transceiver keys. Refer to “FUNCTION LIST” {p. 15} for the
available programmable functions.
FUNCTION LIST
PF Key: Functions that can be programmed to the transceiver keys
Menu: Functions that can be accessed using the transceiver Menu
Analog Conv.: Channels set up for Analog Conventional Operation
NXDN Conv.: Channels set up for NXDN Conventional Operation
P25 Conv.: Channels set up for P25 Conventional Operation
DMR Conv.: Channels set up for DMR Conventional Operation
LTR Trunking: Channels set up for LTR Trunking Operation
NXDN Trunking: Channels set up for NXDN Trunking Operation
P25 Trunking: Channels set up for P25 Trunking Operation
DMR Trunking: Channels set up for DMR Trunking Operation
p: Available
N/A: Not Available
o
Conventional Operation
Function Menu Display
PF Key
Menu
Analog
Conv.
NXDN
Conv.
P25
Conv.
DMR
Conv.
None - pN/A p p p p
2-tone 2-tone p p p p p N/A
Activity Detection Activity Det p p p p p p
Activity Reset - pN/A p p p p
ANR Preset ANR Preset N/A p p p p p
Audio Profile Audio Profile N/A p p p p p
15

Function Menu Display
PF Key
Menu
Analog
Conv.
NXDN
Conv.
P25
Conv.
DMR
Conv.
Auto Telephone Auto Telephone p p N/A N/A N/A N/A
Autodial Auto Dial p p p p N/A N/A
Autodial Programming Auto Dial Prog p p p p p p
AUX AUX p p p p p p
Backlight - pN/A p p p p
Battery Information Battery Info N/A p p p p p
Battery Status Battery Status p p p p p p
Bluetooth Bluetooth p p p p p p
Bluetooth Connect/ Disconnect - pN/A p p p p
Bluetooth Device BT Device N/A p p p p p
Bluetooth Discoverable Discoverable N/A p p p p p
Bluetooth Headset Connection
Type BT Headset Typ N/A p p p p p
Bluetooth Information Bluetooth Info N/A p p p p p
Bluetooth Speaker BT Speaker p p p p p p
Broadcast Broadcast p p N/A N/A N/A p
Call 1 ~ 6 - pN/A p p p p
Call Interruption - pN/A N/A N/A N/A p
Call Response - pN/A p p N/A N/A
Channel Down - pN/A p p p p
Channel Entry - pN/A p p p p
Channel Information - pN/A p p N/A N/A
Channel Recall - pN/A p p p p
Channel Select *1 -pN/A p p p p
Channel Up - pN/A p p p p
Clear - pN/A p p p p
Clock Clock p p p p p p
Clock Adjustment Clock Adjust p p p p p p
Color Scheme Color Scheme N/A p p p p p
CW Message - pN/A N/A pN/A N/A
Dialing Dialing p p N/A N/A N/A N/A
Digit 10x Down *2 -pN/A pN/A N/A N/A
Digit 10x Up *2 -pN/A pN/A N/A N/A
Digit 1x Down *2 -pN/A pN/A N/A N/A
Digit 1x Up *2 -pN/A pN/A N/A N/A
Direct Channel 1 ~ 5 - pN/A p p p p
Direct Channel 1 ~ 5 Select Direct Ch 1 Sel ~
Direct Ch 5 Sel p p p p p p
Display Format Display Format p p p p p p
16

Function Menu Display
PF Key
Menu
Analog
Conv.
NXDN
Conv.
P25
Conv.
DMR
Conv.
Eject SD Card Eject Card p p p p p p
Emergency *3 -pN/A p p p p
External Mic Sense Ext Mic Sense N/A p p p p p
External Speaker External SP p p p p p p
Fixed Volume Fixed Volume p p p p p p
Format SD Card Format Card p p p p p p
Front Panel Programming Panel Program p p p p p p
Function - pN/A p p p p
GPS GPS p p p p p p
GPS/ Bluetooth Reset GPS/BT Reset N/A p p p p p
GPS Position Display GPS Pos Disp p p p p p p
Group *4 Group p p p p p p
Group + Short Message *4 Group+SDM p p p p p p
Group + Status *4 Group+Status p p p p p p
Group ID/ Channel Entry - pN/A p p p p
High Transmit Power High TX Power p p p p p p
Home Channel - pN/A p p p p
Home Channel Select Home Ch Sel p p p p p p
Individual *4 Individual p p p p p p
Individual + Short Message *4 Indiv+SDM p p p p p p
Individual + Status *4 Indiv+Status p p p p p p
IP Address IP Address N/A pN/A N/A N/A N/A
Key Delete Key Delete p p p p p p
Key Lock - pN/A p p p p
Keyset *5 Keyset p p N/A N/A pN/A
Language Language N/A p p p p p
LCD Brightness LCD Brightness p p p p p p
Lone Worker Lone Worker p p p p p p
Low Transmit Power Low TX Power p p p p p p
Maintenance Maintenance p p p p p p
Manual Site Hunt Manual Hunt p p N/A N/A N/A p
Medium Transmit Power Med TX Power N/A p p p p p
Menu - pN/A p p p p
Mic Sense Mic Sense N/A p p p p p
Microphone Type Mic Type N/A p p p p p
Monitor Monitor p p p p p p
Monitor Momentary - pN/A p p p p
Operator Selectable Tone OST p p p N/A N/A N/A
17

Function Menu Display
PF Key
Menu
Analog
Conv.
NXDN
Conv.
P25
Conv.
DMR
Conv.
OST Down - pN/A pN/A N/A N/A
OST List OST List p p p N/A N/A N/A
OST Up - pN/A pN/A N/A N/A
OVCM OVCM p p N/A N/A N/A p
Playback Playback p p p p p p
Playback (Last Recording) - pN/A p p p p
Priority-channel Select Pri Ch Select p p p p p p
Redial Redial p p N/A N/A N/A N/A
Radio Check Radio Check N/A p p N/A N/A N/A
Radio Inhibit Inhibit N/A p p N/A N/A N/A
Radio Uninhibit Uninhibit N/A p p N/A N/A N/A
Receive Entry *2 Receive Entry p p p N/A N/A N/A
Regroup Request Regroup Req p p N/A N/A N/A N/A
Rekey Request *5 Rekey Request p p N/A N/A pN/A
Remote Control Remote Control p p N/A pN/A p
RX Audio Equalizer (High) RX EQ High N/A p p p p p
RX Audio Equalizer (High
Midrange) RX EQ High Mid N/A p p p p p
RX Audio Equalizer (Midrange) RX EQ
Midrange N/A p p p p p
RX Audio Equalizer (Low
Midrange) RX EQ Low Mid N/A p p p p p
RX Audio Equalizer (Low) RX EQ Low N/A p p p p p
RX Auto Gain Control RX AGC N/A p p p p p
Save GPS Data Save GPS Data p p p p p p
Save Log Data Save Log Data p p p p p p
Scan Scan p p p p p p
Scan Delete/ Add Scan Del/Add p p p p p p
Scan Normal Scan Normal p p p p p p
Scan Program Scan Program p p p p p p
Scrambler/ Encryption Scram/Encryp p p p p p p
Scrambler/ Encryption Code Scram/Enc
Code p p p p p p
Send the GPS Data Send GPS Data p p p p p p
Short Message Short Message p p p p N/A p
Site Down - pN/A N/A N/A N/A N/A
Site Lock Site Lock p p N/A N/A N/A N/A
Site Number Site No. N/A pN/A N/A N/A N/A
Site Select *1 Site p p N/A N/A N/A N/A
18

Function Menu Display
PF Key
Menu
Analog
Conv.
NXDN
Conv.
P25
Conv.
DMR
Conv.
Site Up - pN/A N/A N/A N/A N/A
Speaker Attenuation - pN/A p p p p
Speaker Type Speaker Type N/A p p p p p
Squelch Level Squelch Level p p p N/A N/A N/A
Squelch Off Squelch Off p p p p p p
Squelch Off Momentary - pN/A p p p p
Stack Stack p p p p p p
Status Status p p p p N/A p
Surveillance Surveillance p p p p p p
System Down - pN/A N/A N/A N/A N/A
System Lock System Lock p p N/A N/A N/A N/A
System Search System Search p p N/A N/A N/A N/A
System Select *1 System p p N/A N/A N/A N/A
System Up - pN/A N/A N/A N/A N/A
Tactical Zone - pN/A pN/A pN/A
Talk Around Talk Around p p p p p p
Talkgroup Reset Talkgroup Rst p p N/A N/A pN/A
Task Request Confirmation Task p p N/A pN/A p
Telephone Disconnect - pN/A N/A N/A N/A N/A
Transceiver Password Password p p p p p p
TX Audio Equalizer (High) TX EQ High N/A p p p p p
TX Audio Equalizer (High
Midrange) TX EQ High Mid N/A p p p p p
TX Audio Equalizer (Midrange) TX EQ
Midrange N/A p p p p p
TX Audio Equalizer (Low
Midrange) TX EQ Low Mid N/A p p p p p
TX Audio Equalizer (Low) TX EQ Low N/A p p p p p
TX Auto Gain Control TX AGC N/A p p p p p
Vibrator Vibrator p p p p p p
Voice Memo Voice Memo p p p p p p
VOX VOX Level p p p p p p
VOX Function VOX p p p p p p
Zeroize Zeroize p p p p p p
Zone Delete/ Add Zone Del/ Add p p p p p p
Zone Down - pN/A p p p p
Zone Select *6 -pN/A p p p p
Zone Up - pN/A p p p p
19

o
Trunking Operation
Function Menu Display
PF Key
Menu
LTR
Trunking
NXDN
Trunking
P25
Trunking
DMR
Trunking
None - pN/A p p p p
2-tone 2-tone p p N/A p p N/A
Activity Detection Activity Det p p p p p p
Activity Reset - pN/A p p p p
ANR Preset ANR Preset N/A p p p p p
Audio Profile Audio Profile N/A p p p p p
Auto Telephone Auto Telephone pppN/A N/A N/A
Autodial Auto Dial p p p p p p
Autodial Programming Auto Dial Prog p p p p p p
AUX AUX p p p p p p
Backlight - pN/A p p p p
Battery Information Battery Info N/A p p p p p
Battery Status Battery Status p p p p p p
Bluetooth Bluetooth p p p p p p
Bluetooth Connect/ Disconnect - pN/A p p p p
Bluetooth Device BT Device N/A p p p p p
Bluetooth Discoverable Discoverable N/A p p p p p
Bluetooth Headset Connection
Type BT Headset Typ N/A p p p p p
Bluetooth Information Bluetooth Info N/A p p p p p
Bluetooth Speaker BT Speaker p p p p p p
Broadcast Broadcast p p N/A pN/A p
Call 1 ~ 6 - pN/A p p N/A p
Call Interruption - pN/A N/A N/A N/A N/A
Call Response - pN/A N/A p p p
Channel Down - pN/A p p p p
Channel Entry - pN/A p p p p
Channel Information - pN/A N/A N/A N/A N/A
Channel Recall - pN/A p p p p
Channel Select *1 -pN/A p p p p
Channel Up - pN/A p p p p
Clear - pN/A p p p p
Clock Clock p p p p p p
Clock Adjustment Clock Adjust p p p p p p
Color Scheme Color Scheme N/A p p p p p
CW Message - pN/A N/A N/A N/A N/A
Dialing Dialing p p N/A N/A N/A p
20
