Kettler SWING User manual

Assembly instructions
Swing
Item # 08382-700
Printed on 100% recycled paper.
USA

2
Read these instructions carefully before assembling the product or using it for the
first time. They contain important information for your safety and for the correct
use and maintenance of this KETTLER product. Keep the instructions in a safe pla-
ce for information or for ordering spare parts.
Assembly Instructions
USA
This KETTLER product has been designed in accordance with the latest standards of safety and
subjected to constant quality monitoring. The data gained from this quality process is then in-
corporated in the development of our products. For this reason, we reserve the right to make
changes in design and technology in order to offer our customers products of the highest stan-
dard of quality at all times. In spite of this, should you have any grounds for complaint, please
contact your KETTLER dealer.
For your safety
■Observing the following statements and warnings reduces the likelihood of serious or fatal in-
jury.
■This apparatus is to be used for its intended purpose only, that is: as a child’s play appara-
tus, for use by maximum one child per seating place or per individual play apparatus (ex-
ception: the surfboard may be used by maximum two children concurrently). All other use is
inadmissible and potentially dangerous. The manufacturer may not be held responsible for
any damages caused as a result of any use other than as directed.
■This product is intended for use by children from ages 3 to 10.
■Mounting of the apparatus is permitted only in a private household outdoor environment. Any
use in public or semi-public playgrounds or in schools is inadmissible.
■In choosing the location of the apparatus, ensure a sufficient safety distance (at least 7 ft/2m)
from any obstacles (walls, fences, trees). The apparatus must not be mounted in the immedi-
ate vicinity of main passageways (paths, doorways, corridors). Observe the illustration con-
cerning the safety area!
■Please bear in mind that there is always a potential danger of children injuring themselves
while using swings, climbing frames, toy vehicles or similar equipment.
■The ground in the play and safety area should be level and consist of unbound, shock-ab-
sorbing ground material. A fall onto a hard surface can result in serious injury to the user.
■Pay attention to a sufficient distance to the ground of at least 16 inches of swing elements.
■The apparatus must stand firmly, safe from tilting or tipping. Pay particular attention: the ap-
paratus must be set in concrete using the included ground anchors, strictly according to our
illustration. The anchoring devices must be placed below the level of the playing surface to
prevent tripping or injury resulting from a fall.
■Damaged components can endanger children and reduce the product life. Inspect all com-
ponents in regular intervals twice a month during usage season, against possible damages
and loose connections. Also check all coverings of bolts, sharp edges twice a month during
usage season to be certain that they are in place.
■Before use always check that all screws and plug-in connections and respective safety devices
fit correctly. It is particularly important at the beginning of the season.
■Damaged or worn parts must be replaced immediately and the apparatus is not to be used until

3
restored. In case of need, exclusively Original KETTLER replacement parts should be used.
■The device is safety tested.
■Improper repair or constructional changes (disassembly of original parts, attachment of un-
approved parts, etc.) can result in danger to the user. Modifications to the apparatus, in par-
ticular to the suspension arrangement, are prohibited.
■Use of the apparatus is permitted for children of up to 110 lbs (ca. 14 years of age).
■Small children (up to about 36 months) must not use use the seesaw alone; take care since it
is possible that the child's strength is not sufficient to keep its own body weight in balance
while he is playing.
■Please take care that the toy is only used by children with the appropriate abilities. Do not
forget that you must ensure that it is operated safely.
■During extreme weather conditions, please check whether children can use the apparatus. If
the solar radiation is very strong, the equipment may heat up, and at temperatures below the
freezing point, it is possible that skin may freeze to the surface.
■Also check the equipment for foreign materials that could be potentially hazardous to the user.
■Verify that suspended climbing ropes, chains, etc. are secured at both ends and that they can-
not be looped back on itself.
■Dress your children appropriately; sturdy shoes should be worn. Loose-fitting clothing is po-
tentially hazardous while using this equipment.
■Instruct your children:
- not to walk in front, between, behind or close to moving items;
- not to twist swing chains, ropes, etc. over the top support bar;
- to avoid swinging empty seats;
- to sit always in the center of the seats;
- not to get off equipment while it is in motion;
- not to climb/use when the equipment is wet;
- not to attach items to the playground equipment that are not specifically designed for use with
this apparatus. Ropes, chains, etc. may cause risk of strangulation hazard!
■Remove plastic swing seats and take indoors or not to use when temperatur drops below 32° F.
How to handle the swing
■Attention: Make sure that usage does not commence until the apparatus has been proper-
ly assembled and subsequently controlled by an adult.
■Instruct children on the proper handling of the apparatus and advise them of possible dangers.
■Remember that the children's natural play instinct and temper may lead to unforeseeable sit-
uations excluding a responsibility of the manufacturers.
■Although dangers to children during proper use of the apparatus are highly
unlikely, all play on the apparatus should be monitored by an adult.
■For cleaning and care the swing only use environmentally friendly and no aggressive orcor-
rosive agents. If repaint is needed only use lead-free paint.
■Regularly grease the moving parts with some drops of oil.
Instructions for Assembly
■Ensure that you have received all the parts required (see check list) and that they are undam-
aged. Should you have any cause for complaint, please contact your KETTLER dealer.

4

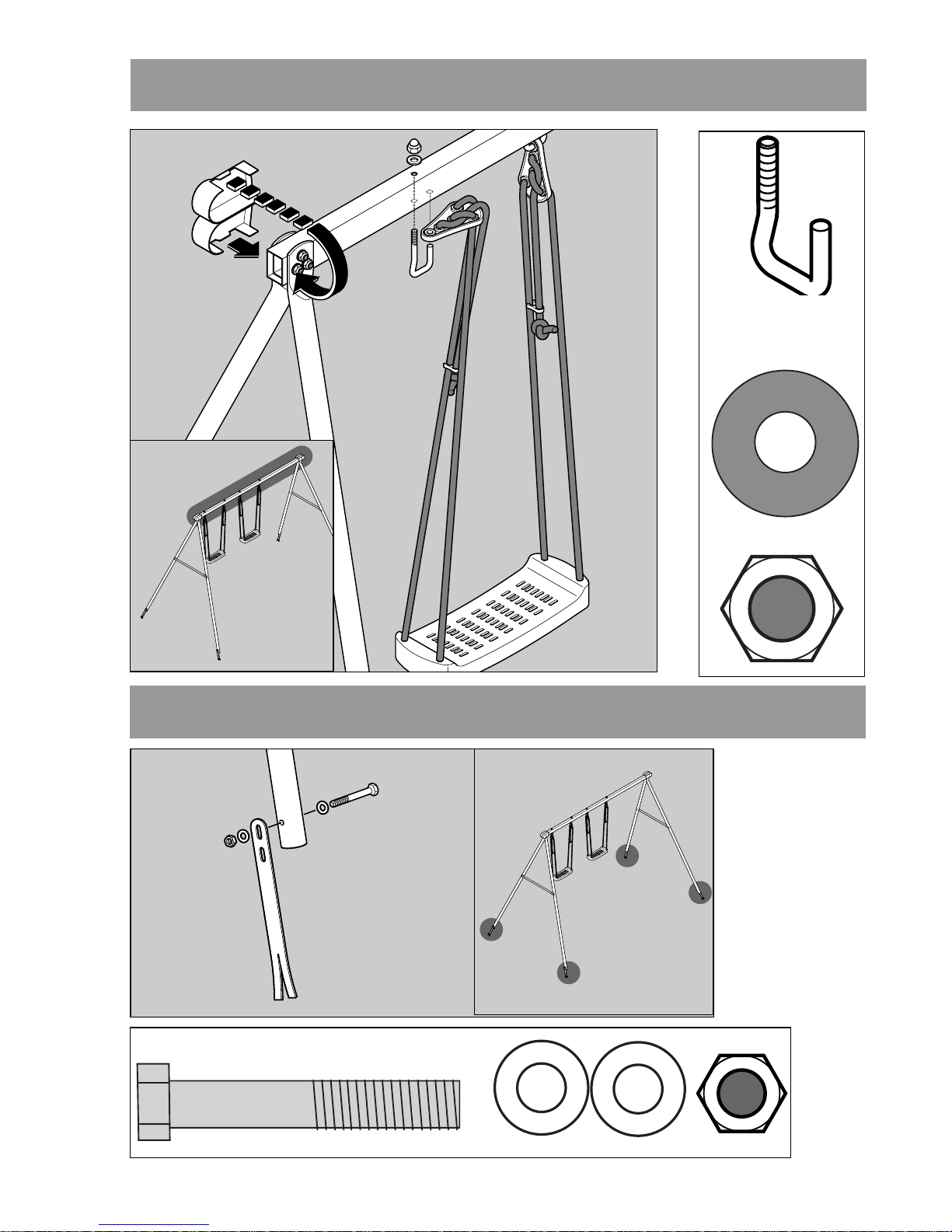

■Before assembling the equipment, study the drawings carefully and carry out the opera-
tions in the order shown by the diagrams. The correct sequence is given in capital letters.
■The fastening material required for each assembly step is shown in the diagram insert. Use
the fastening material exactly as instructed. The required tools are supplied with the equip-
ment.
■The equipment must be assembled with due care by an adult person. If in doubt call upon
the help of a second person, if possible mechanically talented.
■Please note that there is always a danger of injury when working with tools or doing man-
ual work. Therefore please be careful when assembling this apparatus.
■Ensure that your working area is free of possible sources of danger, for example don’t leave
any tools lying around. Always dispose packaging material in such a way that it may not
cause any danger. There is always a risk of suffocation if children play with plastic bags!
■Bolt all the parts together loosely at first, and check that they have been assembled cor-
rectly. Tighten the locknuts by hand until resistance is felt, then use wrench to finally tight-
en nuts completely against resistance (locking device). Then check that all screw connec-
tions have been tightened firmly. Attention: once locknuts have been unscrewed they no
longer function correctly (the locking device is destroyed), and must be replaced.
■For technical reasons, we reserve the right to carry out preliminary assembly work (e.g.
addition of tubing plugs).
List of spare parts
When ordering spare parts, always state the full article number, spare-part number, the
quantity required and the S/N of the product.
Example order: Art. no. xxxx-xxx / spare-part no. 10100016 / 2 pieces / S/N......
Important: spare part prices do not include fastening material; if fastening material (bolts,
nuts, washers etc.) is required, this should be clearly stated on the order by adding the
words „with fastening material“.
KETTLER International Inc.
P.O. Box 2747 · Virginia Beach, VA 23450-2747
http://www.kettlerusa.com
For parts and service ONLY call:
1-866-804-0440 or email
[e-mail]
USA

5
Checklist (contents of packaging)
1
4
2
✓
2
M6x50 4
M8x60 6
M8x50 4
M6 4
M10
M8
PVC ø16
ø16
PVC ø25
4
10
4
14
4
2
24
4

2
6x
A
B
1
4x

7
3
4
nnoottaaccttuuaallssiizzee
4x
4x

8
5
185 cm
300 cm
200 cm200 cm
S*
S*
S*
200 cm200 cm
min. 40 cm
20°
20°
35x35 cm
40 cm
30 cm

9
1610 9115
2
3
4
8
7

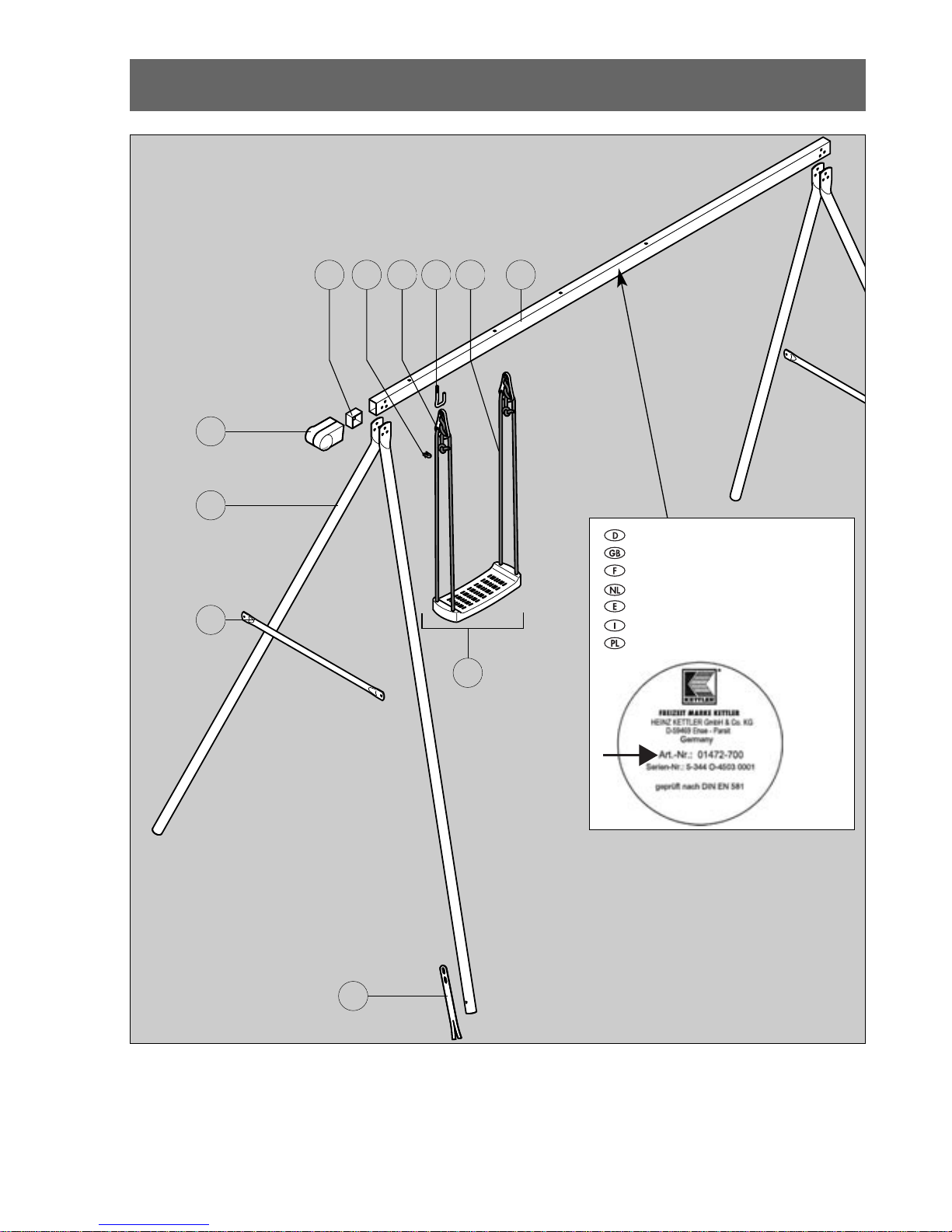

Spare parts drawing
T y p e n s c h i l d - S e r i e nn u mm e r
T y p e l a b e l - S e r i a l n u m b e r
P l a q u e s i g n a l

10
docu 1438/03.05
Spare parts list
pos. description qty spare part #
for 08382-700
1main base tube 1 94211098
2frame tube 4 94211111
3main base tube covering 2 70130030
4support tube 2 94210124
5support tube for main base tube 2 97200975
6L-hooks (ø10mm) w/fastening material 2 94281770
7ground anchors (set) 2 94281114
8swing seat (complete) 2 94280300
9swing rope (complete) 4 73701035
10 rope bearing 4 70132194
11 clamp 4 70132195
12 hardware bag 1 94280123
Accessory assembly
