1Introduction
Overview of the Guide / 6
Document History / 7
USB Link Training Suite - Overview / 8

6Keysight N5991U32E USB3.2 Link Training Suite User Guide
1 Introduction
Overview of the Guide
This guide provides a detailed description of the Keysight N5991U32E
USB3.2 Link Training Suite.

Keysight N5991U32E USB3.2 Link Training Suite User Guide 7
Introduction 1
Document History
First Edition (March 2020)
The first edition of this user guide describes functionality of software
version 1.0.

8Keysight N5991U32E USB3.2 Link Training Suite User Guide
1 Introduction
USB Link Training Suite - Overview
The USB (Universal Serial Bus) Link Training Suite software (also known in
short as “USB LTS” or “software”) is a stand-alone software utility. It
provides semi-automatic control of USB generator hardware for physical
layer tests, based on Keysight Technologies M8020A J-BERT or M8040A
J-BERT (Jitter Bit Error Ratio Tester). It is a flexible tool for
trouble-shooting and debugging. The USB LTS complements the full Test
Automation Software, which provides automated physical layer
compliance tests and device characterization. It generates the data
sequences and allows pattern changes as well as the control of signal
levels, frequency, and timing parameters. The software runs on a standard
Windows PC and controls the hardware test resources through
appropriate interfaces, such as a LAN (Local Area Network).

Keysight N5991U32E USB3.2 Link Training Suite
User Guide
2Test Instrument Setup
M8020A J-BERT Setup / 10
M8040A J-BERT Setup / 16
Prior to using the USB Link Training Suite software for connecting
instruments, Keysight recommends that you set up the test instruments
and establish the required connections.
1 Connect the instruments to the controller PC by LAN.
2 Establish all required cable connections between the instruments and
the DUT (device under test).
3 Switch on the PC and instruments.
4 Start Keysight “IO (Input Output) VISA (Virtual Instrument Software
Architecture) connection Expert” and check the connections for the
instruments.
5 Set the correct IP addresses for the instruments.

10 Keysight N5991U32E USB3.2 Link Training Suite User Guide
2 Test Instrument Setup
M8020A J-BERT Setup
Table 1 shows the specific instruments and accessories for the M8020A
configuration:
Table 1 Instruments and Accessories for the M8020A configuration
The connection setup depends on the DUT Type, Connector, Test Method
and fixture selected. Figure 1 to Figure 8 show some of the possible
connection setups for the M8020A configuration.
Figure 1 M8020A Setup. Non Type C connector. Warm Reset (Device)
Instrument / Accessory name Qty.
Keysight M8020A High Performance Serial BERT
(alongwith two [multi-channel] M8041A modules)
1
NetIo 230B Power Distribution Unit (optional) 1
Agilent U7242-66501 FIXTURE (for non Type-C testing) 1
Keysight N7015A Fixture (For Type-C testing) 1
Keysight N7018A or N7016A Type-C Controller (for Type-C testing) 1

Keysight N5991U32E USB3.2 Link Training Suite User Guide 11
Test Instrument Setup 2

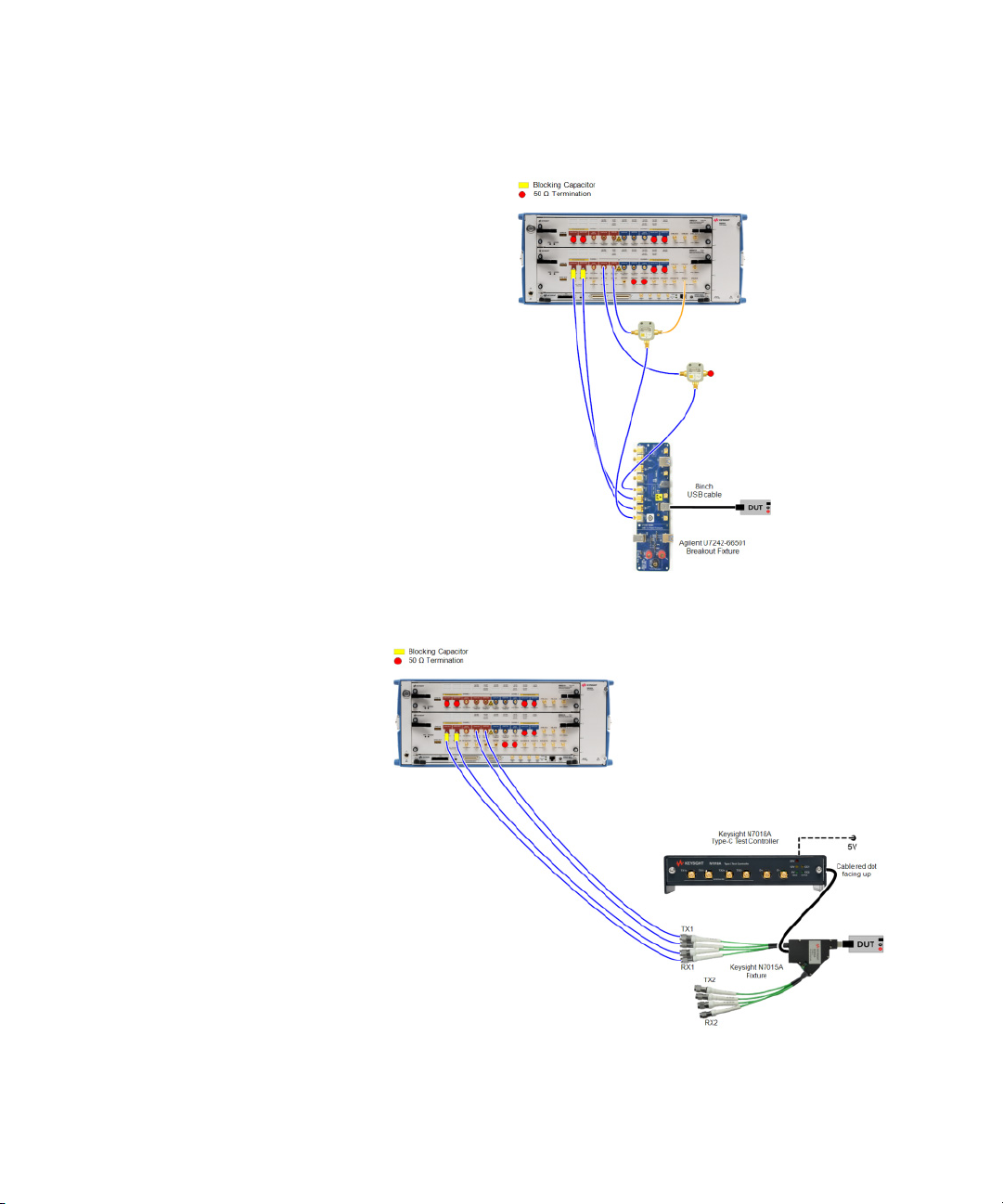

Figure 2 M8020A Setup. Non Type C connector. PowerOn Reset (Host)
Figure 3 M8020A Setup. Type C connector. Warm Reset (Device)

12 Keysight N5991U32E USB3.2 Link Training Suite User Guide
2 Test Instrument Setup

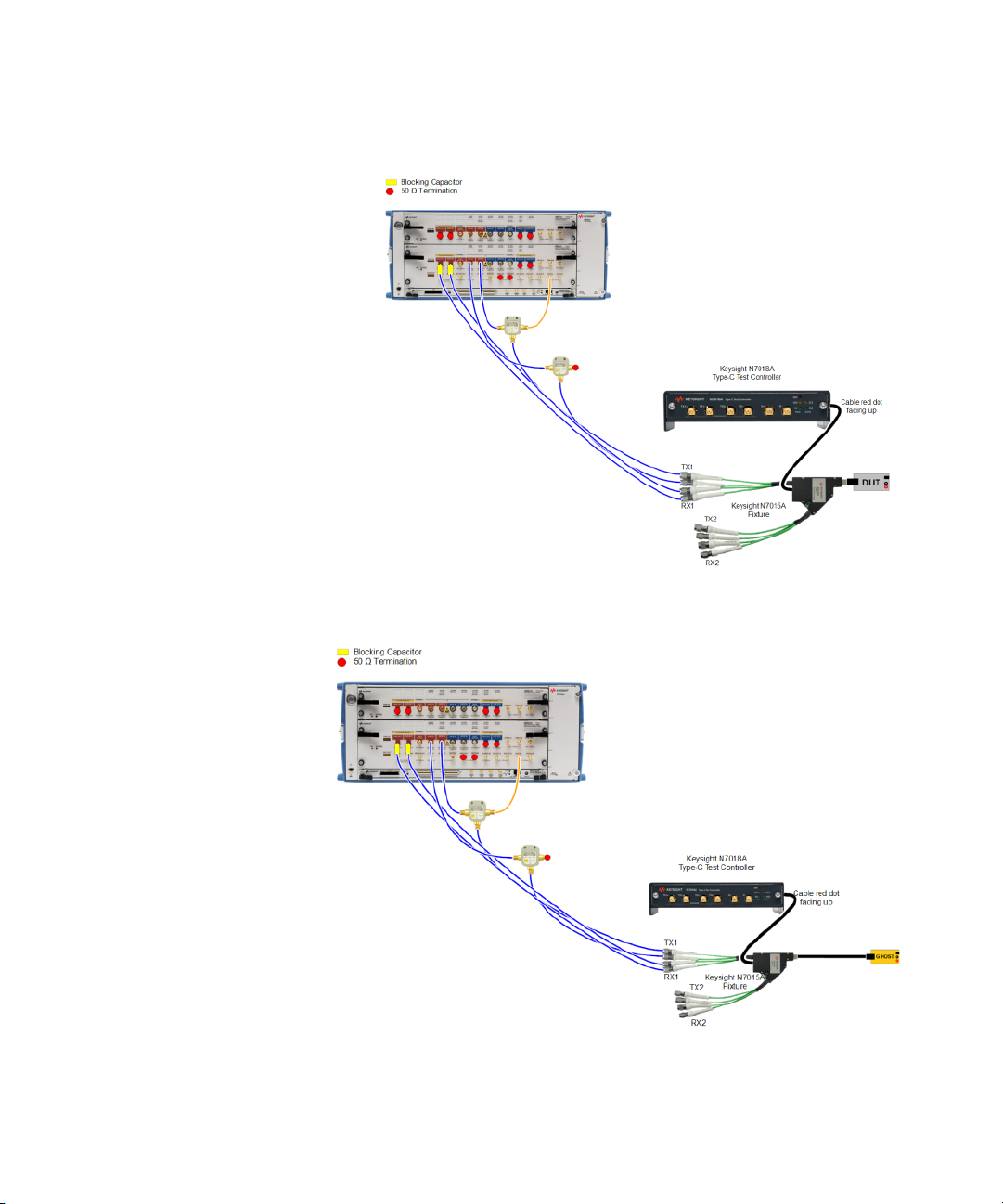

Figure 4 M8020A Setup. Type C connector. PowerOn Reset (Host)
Figure 5 M8020A Setup. Type C connector. PowerOn Reset (Active Cable – Golden
Host)

Keysight N5991U32E USB3.2 Link Training Suite User Guide 13
Test Instrument Setup 2
Figure 6 M8020A Setup. Type C connector. Warm Reset (Active Cable–
Passthrough)

14 Keysight N5991U32E USB3.2 Link Training Suite User Guide
2 Test Instrument Setup
Figure 7 M8020A Setup. Type C connector. PowerOn Reset (Comp. Retimer –
Golden Host)

Keysight N5991U32E USB3.2 Link Training Suite User Guide 15
Test Instrument Setup 2

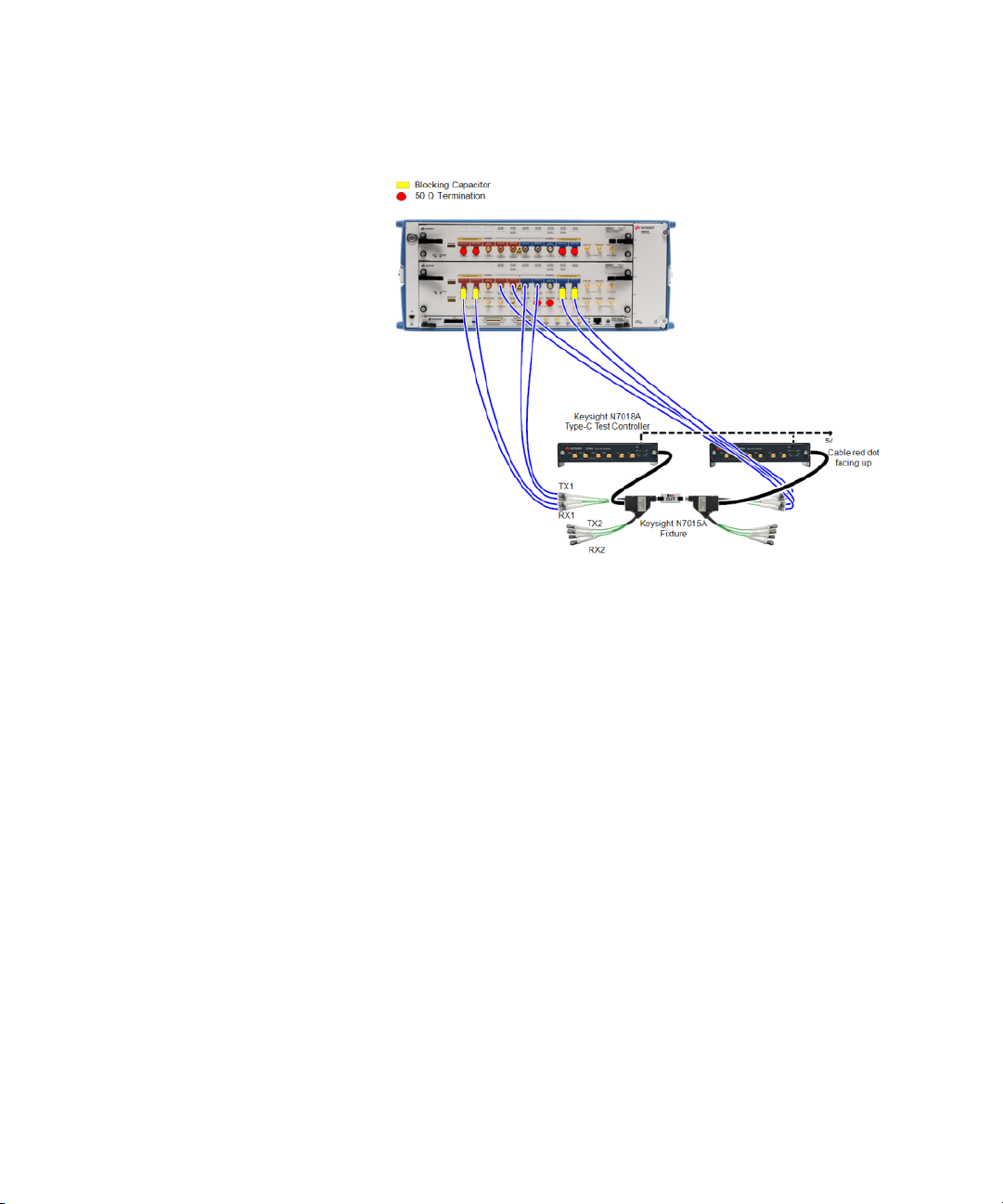

Figure 8 M8020A Setup. Type C connector. Warm Reset (Active Cable –
Passthrough)

16 Keysight N5991U32E USB3.2 Link Training Suite User Guide
2 Test Instrument Setup
M8040A J-BERT Setup
Table 2 shows the specific instruments and accessories for the M8040A
configuration:
Table 2 Instruments and Accessories for the M8040A configuration
Figure 9 to Figure 16 show some of the possible connection setups for the
M8040A configuration.
Instrument / Accessory name Qty.
Keysight M8040A High Performance Serial BERT
(alongwith one M8045A module and two M8046A modules)
1
NetIo 230B Power Distribution Unit (optional) 1
Agilent U7242-66501 FIXTURE (for non Type-C testing) 1
Keysight N7015A Fixture (For Type-C testing) 1
Keysight N7018A or N7016A Type-C Controller (for Type-C testing) 1

Keysight N5991U32E USB3.2 Link Training Suite User Guide 17
Test Instrument Setup 2

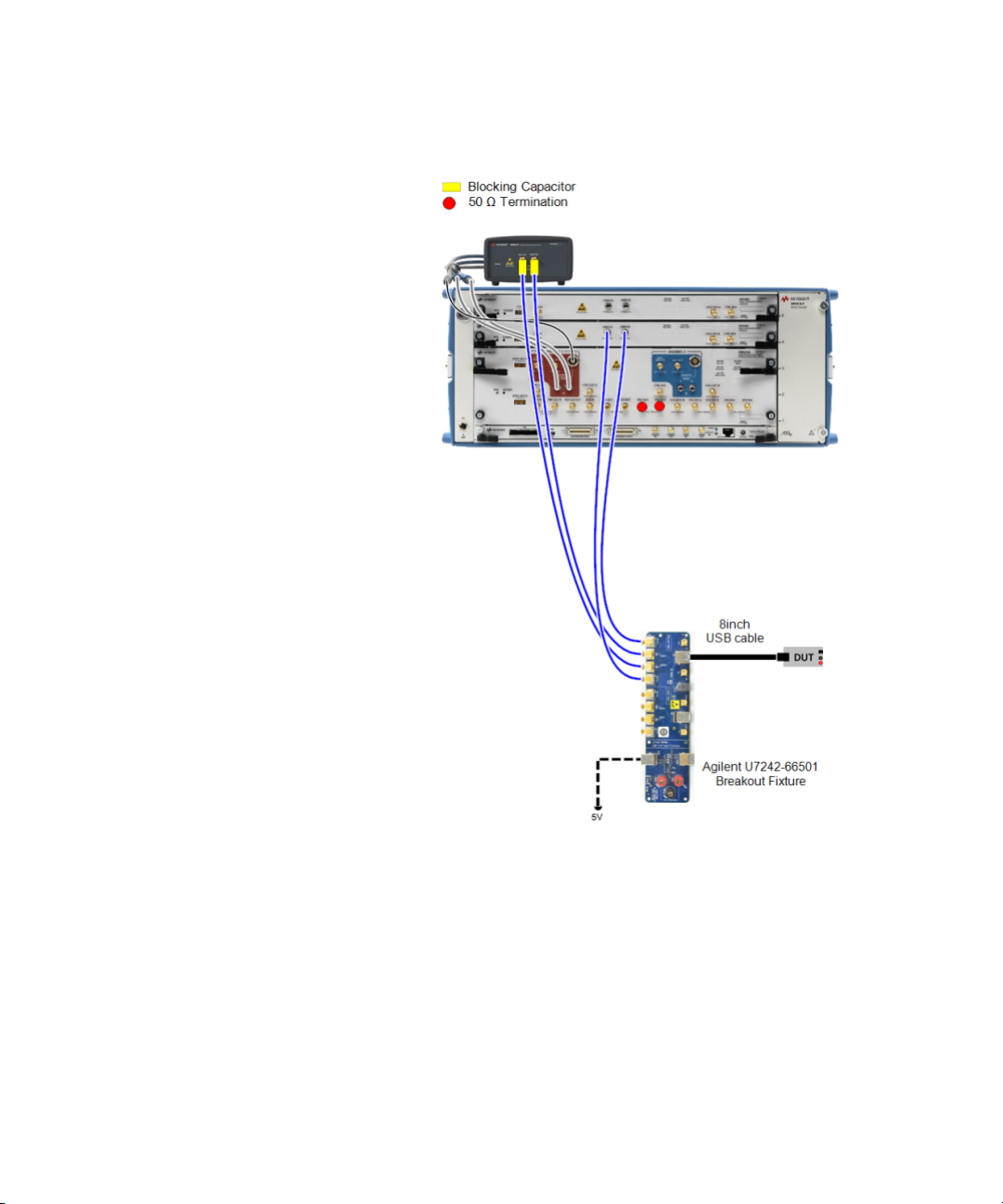

Figure 9 M8040A Setup. Non Type C connector. Warm Reset (Device)

18 Keysight N5991U32E USB3.2 Link Training Suite User Guide
2 Test Instrument Setup

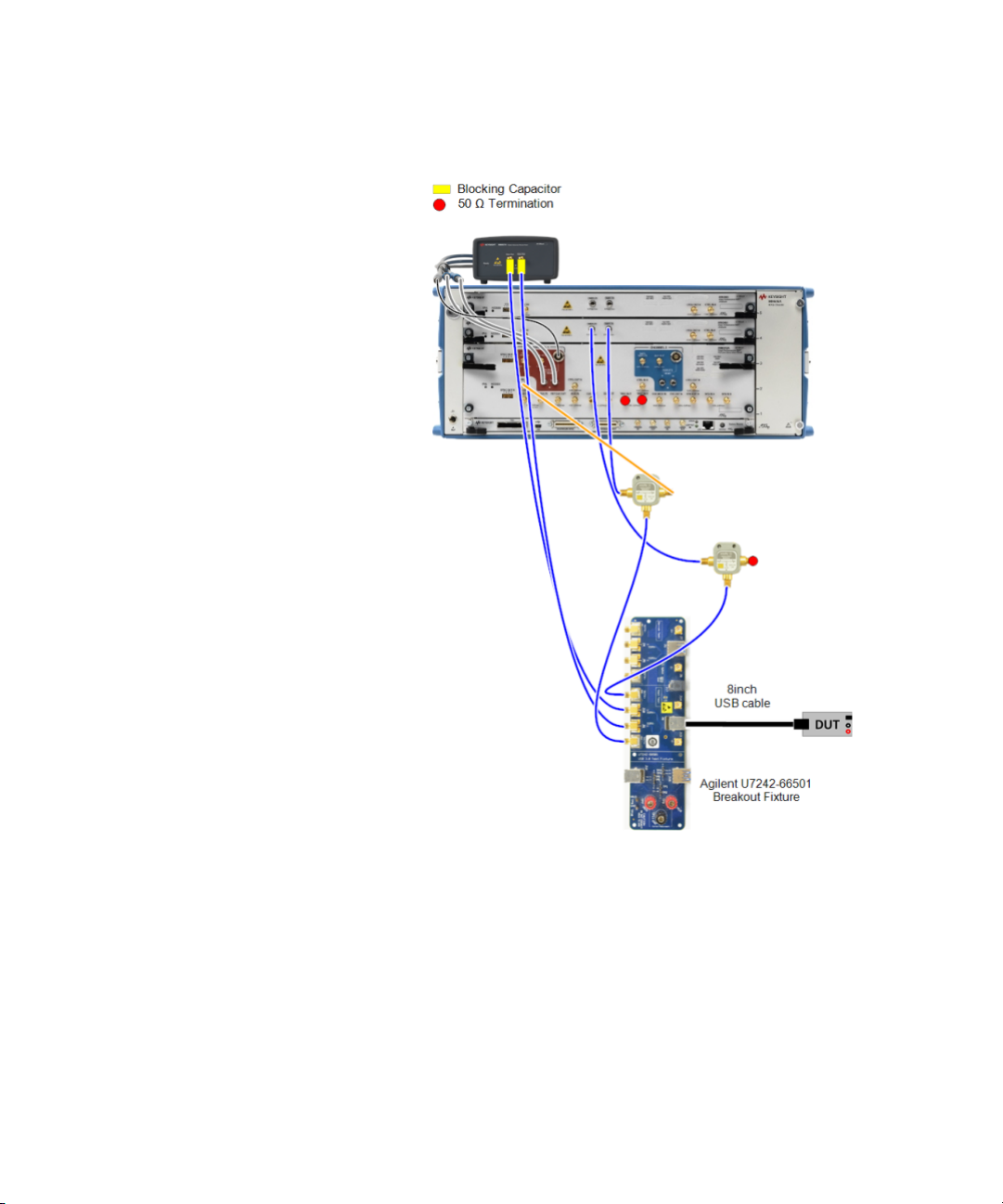

Figure 10 M8040A Setup. Non Type C connector. PowerOn Reset (Host)

Keysight N5991U32E USB3.2 Link Training Suite User Guide 19
Test Instrument Setup 2
Figure 11 M8040A Setup. Type C connector. WarmReset (Device)

20 Keysight N5991U32E USB3.2 Link Training Suite User Guide
2 Test Instrument Setup

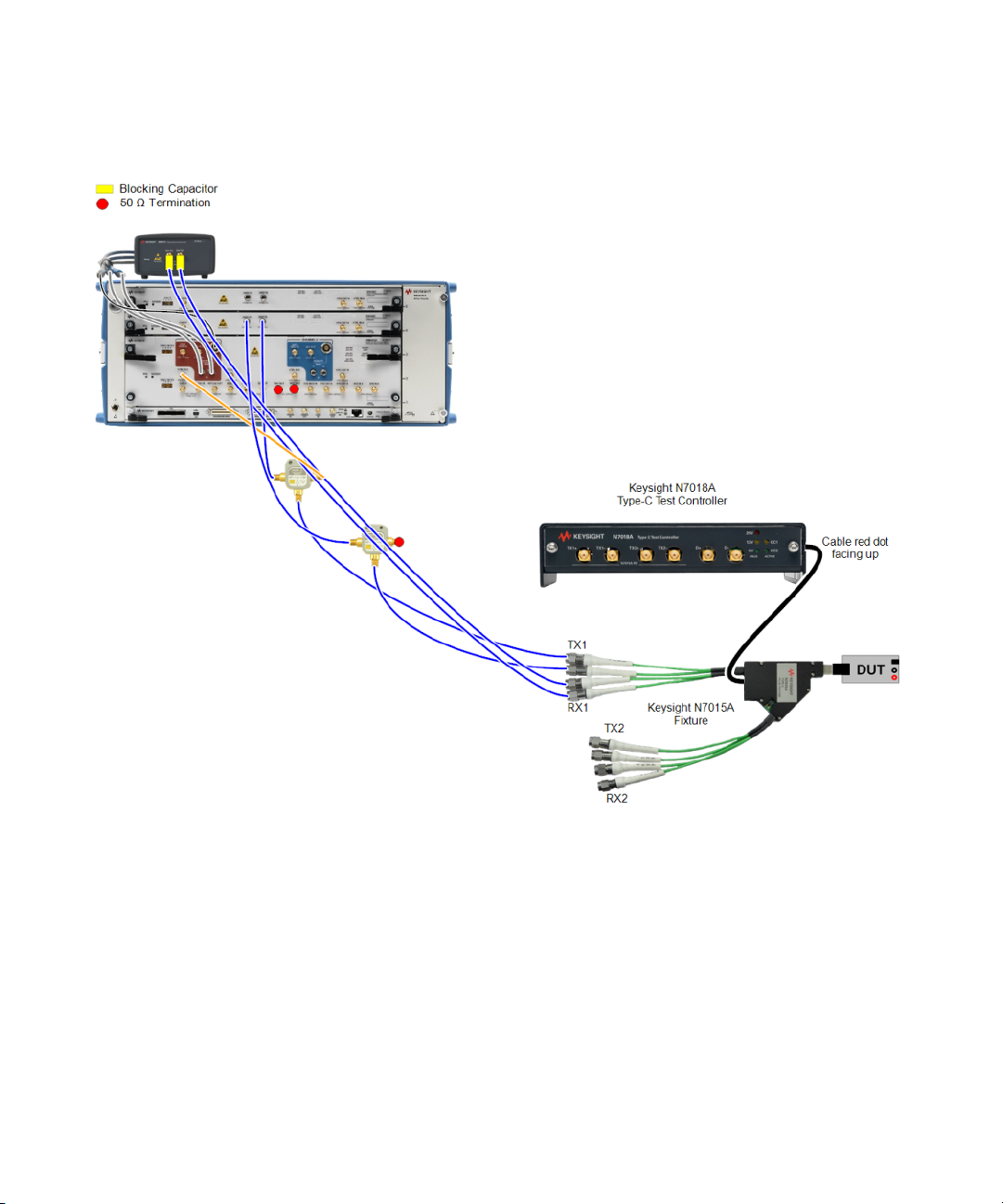

Figure 12 M8040A Setup. Type C connector. PowerOnReset (Host)
