Keysight 16117C Operation manual

Keysight 16117C
Low Noise Test Lead
Operation and
Service Manual

Notice
The information contained in this document is subject to change without notice
.
This document contains proprietary information which is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of the Agilent T
echnologies.
Agilent T
echnologies Japan, Ltd.
Component T
est PGU-Kobe
1-3-2, Murotani, Nishi-ku, Kobe-shi,
Hyogo
,651-2241 Japan
W
arranty
This Agilent T
echnologies instrument product is warranted against defects in material and
workmanship for aperiod of one year from the date of shipment, except that in the case of
certain components listed in this manual, the warranty shall be for the specied period. During
the warranty period, Agilent T
echnologies will, at its option, either repair or replace products
which prove to be defective
.
F
or warranty service or repair
,this product must be returned to aservice facility designed by
Agilent T
echnologies
.The Buyer shall prepay shipping charges to Agilent T
echnologies and
Agilent T
echnologies shall pay shipping charges to return the product to the Buyer
.However
,
the Buyer shall pay all shipping charges
,duties
,and taxes for products returned to Agilent
T
echnologies from another country
.
Agilent T
echnologies warrants that its software and rmware designed by Agilent T
echnologies
for use with an instrument will execute its programming instruction when property installed on
that instrument. Agilent T
echnologies does not warrant that the operation of the instrument,
or software
,or rmware will be uninterrupted or error free
.
Limitation of W
arranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate
maintenance by the Buyer, Buyer-supplied software or interfacing, unauthorized modication
or misuse, operation outside of the environmental specications for the product, or improper
site preparation or maintenance
.
No other warranty is expressed or implied. A
gilent T
echnologies specically disclaims the
implied warranties of merchantability and tness for a particular purpose
.
Certication
The Agilent T
echnologies certies that this product met its published specications at the
time of shipment from the factory
. Agilent T
echnologies further certies that its calibration
measurements are traceable to the United States National Institute of Standards and
Technology, to the extent allowed by the Institute's calibration facility, or to the calibration
facilities of other International Standards Organization members.

Exclusive Remedies
The remedies provided herein are the buyer's sole and exclusive remedies. Agilent Technologies
shall not be liable for any direct, indirect, special, incidental, or consequential damages,
whether based on contract, tort, or any other legal theory
.
Assistance
Product maintenance agreements and other customer assistance agreements are available for
Agilent Technologies products.
If you need assistance, contact your nearest Agilent T
echnologies Sales and Service Oce
.
A
ddresses are provided at the back of this manual.
c
 Copyright 1991, 1999, 2000, 2001 Agilent Technologies Japan, Ltd.

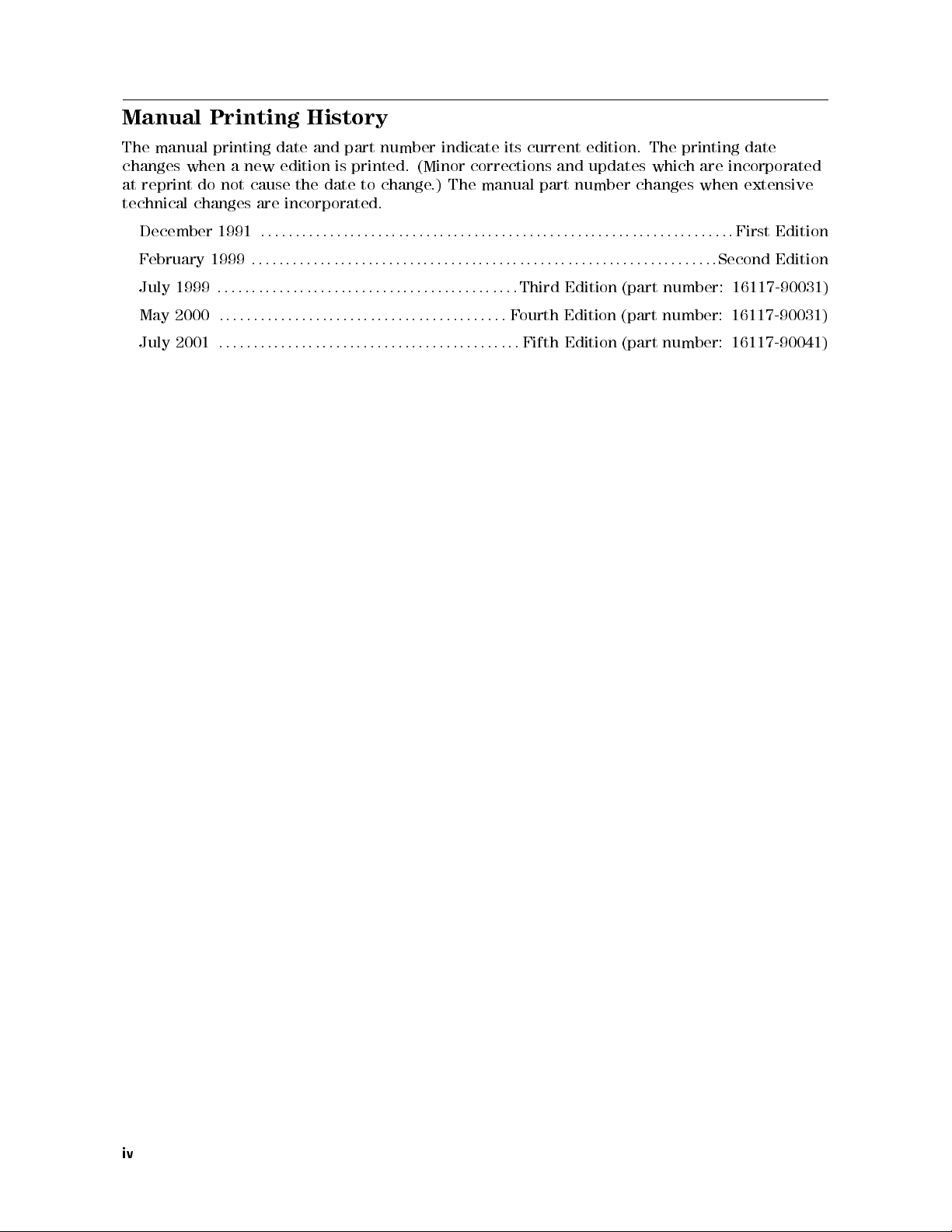

Manual Printing History
The manual printing date and part number indicate its current edition. The printing date
changes when anew edition is printed. (Minor corrections and updates which are incorporated
at reprint do not cause the date to change.) The manual part number changes when extensive
technical changes are incorporated.
December 1991
::::::
::
::
::::::::::::::::::::: ::::
::::::::::::::::::::: :: :: :::::::::
First Edition
F
ebruary 1999
:::::::
::
::::::::::::::::::::::: ::::::::::::::::::::::: :: :: :::::::::
Second Edition
July 1999
::::::::::
::::::::::::::::::::::: :: :::::::::
Third Edition (part number: 16117-90031)
May 2000
::::::::
::
::
::::::::::::::::::::: ::::
:::::
F
ourth Edition (part number: 16117-90031)
July 2001
::
::
::
::
:::::::::::::::::::::::
::
:::::::::::
Fifth Edition (part number: 16117-90041)
iv

Safety Summary
The following general safety precautions must be observed during all phases of operation,
service
,and repair of this instrument. F
ailure to comply with these precautions or with specic
W
ARNINGS
elsewhere in this manual may impair the protection provided by the equipment.
In addition it violates safety standards of design, manufacture, and intended use of the
instrument.
The A
gilent T
echnologies assumes no liability for the customer's failure to comply with these
requirements
.
Note
16117C is designed for use in INST
ALLA
TION CA
TEGORY Iaccording to IEC
61010-1 and POLLUTION DEGREE 1according to IEC 61010-1 and IEC 60664-1.
16117C is an INDOOR USE product.
Do NOT operate in an Explosive Atmosphere
Do
not
operate the instrument in the presence of ammable gasses or fumes
.Operation of any
electrical instrument in such an environment constitutes asafety hazard.
K
eep A
way from Live Circuits
Operating personnel must not remove instrument covers
.Component replacement and
internal adjustments must be made only by qualied maintenance personnel. Do not replace
components with the power cable connected. Under certain conditions
,dangerous voltages
may exist even with the power cable removed. T
oavoid injury
,always disconnect power and
discharge circuits before touching them.
Do NOT Service or Adjust While Alone
Do
not
attempt internal service or adjustment unless another person, capable of turning o
power and capable of rendering rst aid and resuscitation, is present.
Do NOT Substitute Parts or Modify Instrument
Because of the danger of introducing additional hazards, do
not
substitute parts or perform
unauthorized modications to the instrument. Return the instrument to aAgilent
T
echnologies
Sales and Service Oce for service and repair to ensure the safety features are maintained.
Dangerous Procedure W
arnings
Warnings, such as the example below
, precede
POTENTIALLYD
ANGEROUS PROCEDURES
throughout this manual. Instructions contained in the
warnings must be followed.
Warning
Dangerous voltages
, capable of causing death, are present in this
instrument. Use extreme caution when handling, testing, and adjusting
this instrument.
v

Safety Symbols
General denitions of safety symbols used on equipment or in manuals are listed below
.
Instruction manual symbol: the product is marked with this symbol when it is
necessary for the user to refer to the instruction manual.
Alternating current.
Direct current.
On (Supply).
O (Supply).
This
W
arning
sign denotes ahazard. It calls attention to aprocedure, practice,
condition or the like
,which, if not correctly performed or adhered to,could
result in injury or death to personnel.
This
Caution
sign denotes ahazard. It calls attention to a procedure
, practice
,
condition or the like
,which, if not correctly performed or adhered to,could
result in damage to or destruction of part or all of the product.
Note
denotes important information. It calls attention to a procedure
,
practice
,condition or the like, which is essential to highlight.
Axed to product containing static sensitive devices use anti-static handling
procedures to prevent electrostatic discharge damage to component.
Caution, risk of electric shock :T
erminals which may be supplied from the
interior of the equipment at avoltage exceeding 1kV
,or allow connection to a
voltage exceeding 1kV are marked with this symbol.
vi

Contents
1. General Information
Introduction ....................
..
..
.........1-1
Using the 16117C ..................
..
..
..
......1-1
Product Description .....................
..
..
....1-1
Accessories Supplied ..................
..
..
..
.....1-1
Operating and Safety Precautions ................... .. .. 1-2
Service ................
..
..
..
............1-2
Specications ................
..
..
..
..........1-2
2. Preparation for Use
Introduction . .... .....................
..
..
...2-1
Initial Inspection ................... .. ..........2-1
Ambient Environmental Considerations .................. .. 2-3
Operating and Storage ..................
..
.......2-3
Connecting the A
dapter for Use ................. ......2-3
P
ackaging the A
dapter ................
..
..........2-4
3. Operation
Introduction .................................3-1
Making aCustom T
est Fixture ...........
.............3-2
Conguration ...............................3-2
Interlock Circuit ......... .....................3-3
Example Conguration of Custom T
est Fixture .... ............3-5
Checking Procedure ......... ....................3-6
4. Service
Introduction ..
..
....................... .. ....4-1
Replaceable Parts .. .. ...................
..
..
..
.4-1
Contents-1

Figures
2-1. Product Overview ....................
..
..
.....2-2
2-2. Floating DUT Measurement ................... .. .. .2-3
2-3. Grounded DUT Measurement ................... .. .. 2-4
3-1. A
dapter F
eatures ..................
..
..
..
.....3-1
3-2. Floating DUT Measurement Conguration .................. 3-2
3-3. Interlock cable Assignment (Wiring Side View) ............
..
.. 3-3
3-4. Example Conguration of Custom T
est Fixture ............. .. . 3-5
T
ables
1-1. Furnished A
ccessories ...... .....................1-1
2-1. Contents ......
..
......................... 2-2
3-1. Pin Assignment of Interlock Connector ...................3-3
3-2. ID Signal Condition .......................
.....3-4
4-1. Replaceable P
arts List ...........................4-1
Contents-2

1
General Information
Introduction
The purpose of this manual is to enable you to use your 16117C Low Noise T
est Lead eciently
and condently
.This manual contains both general and specic information. T
ouse the 16117C
to perform a specic function (without having to read the entire manual), follow the directions
in \Using the 16117C".
Using the 16117C
The 16117C has been designed to operate specically with the 4339B High Resistance Meter
.
T
oinstall the 16117C,turn to Chapter 2.
T
ooperate the 16117C,turn to Chapter 3.
T
oorder replaceable parts for the 16117C
,turn to \Replaceable P
arts" in Chapter 4.
Product Description
The 16117C has been designed to operate specically with the 4339B High Resistance Meter
.
The 16117C is used to measure insulation resistance
.The 16117C has the following features:
Prepared exclusive connector for the 4339B.This allows easy to make original test xture
for the 4339B
High-voltage safety designed using an interlock circuit
Accessories Supplied
The accessories listed in Table 1-1, are supplied with the 16117C:
Table 1-1. Furnished A
ccessories
Description Part Number Quantity
Operation and Service Manual P/N 16117-90041 1
General Information 1-1

Operating and Safety Precautions
Service
The voltage levels (up to 1000 V) in this adapter warrants extreme care for operator safety
.
Service must be performed only by qualied personnel.
Specications
This section lists the complete 16117C specications
. These specications are the performance
standards and limits against which the 16117C is tested. When shipped from the factory
,the
16117C meets the specications listed in this section.
Applicable T
est V
oltage
:::: :: :: :::::::::::::::::::
::
:::: :::::::::::::::::::
::
::
1000 V maximum
Applicable T
est Current
1
:::::
:::::::::::::::::::::::::
::
:::::::::::::::::::::::
10 mA maximum
Applicable Instrument
:::::::::::::::::::::::::::::::::: :::::::::::::::::::::::::
::::::::::
4339B
Interlock Circuit
:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
furnished
Cable Length
:::::::::::::::::::::::: ::::::::::::::::::::::: :: :: :::
1m(connector to connector)
Operating Temperature
::
:::::::::::::::::::::::
::
::::::::::::::::::::: :: ::::::::::::::
0to 55

C
Operating Humidity
::::::::::::::::
::
:::::::::::::::::::::::::
:::::::::::::::

70% RH (@40

C)
Non-operating T
emperature
:::::::::::::::
::
:::::::::::::::::::::::::
::::::::::::::
0
40 to 70

C
Non-operating Humidity
::::::::::::::::
::
::::::::::::::::::::::::::::::::::::

95% RH (@40

C)
1
.Maximum measurable current of the 4339B is 100

A.
1-2 General Information

2
Preparation for Use
Introduction
This chapter explains how to install the 16117C Low Noise T
est Lead. The topics covered
include initial inspection, ambient environmental considerations, connecting the adapter for
use
, and repackaging the adapter for shipment.
Initial Inspection
The adapter has been carefully inspected electrically and mechanically before being shipped
from the factory
.It
should be in perfect physical condition, no scratches
,dents or the like
,and
it should be in perfect electrical condition. V
erify this by carefully performing an incoming
inspection to check the adapter for signs of physical damage and missing contents
.If any
discrepancy is found, notify the carrier and Agilent T
echnologies
.Y
our Agilent T
echnologies
sales oce will arrange for repair and replacement without waiting for the claim to be settled.
1. Inspect the shipping container for damage
,and keep the shipping materials until the
incoming inspection is completed.
2. V
erify that the shipping container contains everything shown in Figure 2-1 and listed in
T
able 2-1.
3. Inspect the exterior of the 16117C for any signs of damage
.
Preparation for Use 2-1

Figure 2-1. Product Overview
Table 2-1. Contents
Description Agilent P
art Number Quantity
1  Low Noise T
est Lead 16117C 1
2  BNC F
emale-Connector 1250-2317 1
3  Triaxial F
emale-Connector 1250-2228 1
4  Operation and Service Manual
1
16117-90041 1
1 Operation and Service Manual is not shown in Figure 2-1.
2-2 Preparation for Use

Ambient Environmental Considerations
Operating and Storage
The 16117C must be operated within an ambient temperature range of 0

Cto +55

Cand
relative humidity up to 70% RH at 40

C(non-condensing).
The 16117C may be stored within atemperature range of
0 40

Cto +70

,and at arelative
humidity up to 95% at +40

C(non-condensing).
Connecting the A
dapter for Use
The 4339B connection with 16117C has two congurations: oating and grounded DUT
measurement congurations
.The connections are dierent for each conguration. The
connections are as shown in Figure 2-2 and Figure 2-3.
W
arning
Do NOT touch the electrode and UNKNO
WN connector while the High
V
oltage indicator is lit which shows the 4339B 's output is ahigh voltage
of up to 1000 Vdc maximum. You must operate after turning o the
voltage source output and you have conrmed the high voltage indicator
is turned o.
Figure 2-2. Floating DUT Measurement
Preparation for Use 2-3

Figure 2-3. Grounded DUT Measurement
P
ackaging the A
dapter
If shipment to aAgilent T
echnologies service center is required, each adapter should be
repackaged using the original factory packaging materials.
Alteratively
,comparable packaging materials may be used. Wrap the adapter in heavy paper
and pack in anti-static plastic packing material. Use sucient shock absorbing material on
all sides of the 16117C to provide athick, rm cushion and to prevent movement. Seal the
shipping container securely and mark it
FRA
GILE
.
2-4 Preparation for Use

3
Operation
Introduction
This chapter describes the features of the 16117C (see Figure 3-1 ), and the connection to the
4339B and DUT
.

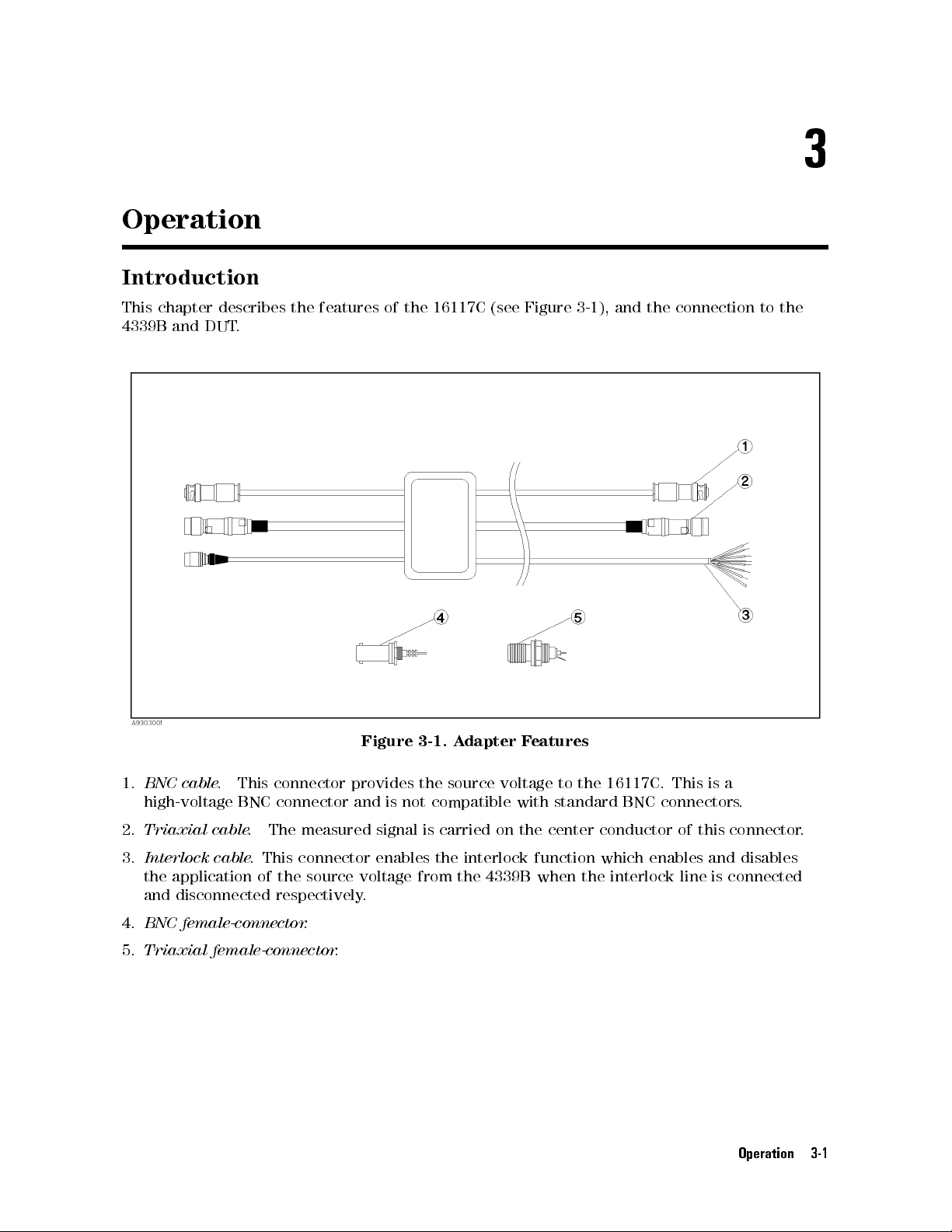

Figure 3-1. A
dapter F
eatures
1.
BNC cable
. This connector provides the source voltage to the 16117C.This is a
high-voltage BNC connector and is not compatible with standard BNC connectors
.
2.
Triaxial cable
.
The measured signal is carried on the center conductor of this connector
.
3. Interlock cable
. This connector enables the interlock function which enables and disables
the application of the source voltage from the 4339B when the interlock line is connected
and disconnected respectively
.
4. BNC female-connector
.
5. Triaxial female-connector
.
Operation 3-1

Making a Custom T
est Fixture
This section describes how to make a custom test xture for the 4339B.
Note
When you make acustom test xture using the 16117C,you must observe the
usage guidelines described in this section.
Conguration
The 16117C is provided so the user can make custom test xtures for the 4339B.Figure 3-2
shows an simplied conguration of test xture in oating DUT measurement with the 16117C.
Figure 3-2. Floating DUT Measurement Conguration
The BNC connector provides source voltage up to 1000 V
.Atriaxial connector is used for the
measured signal path. The triaxial connector's center conductor carries the signal. The inner
shield is aGuard, and the outer shield is the ground. Using a guard circuit eliminates the
external noise to the center conductors
. The Guard must extend as close as possible to the DUT
contact, but not connected.
For information about the Grounded DUT measurement conguration, refer to
4339B High
Resistance Meter Operation Manual
.
3-2 Operation

Interlock Circuit
The interlock circuit automatically enables interlocking the source voltage and current limit
function. T
oenable this function in your custom test xture, the 16117C provides an interlock
cable
.This section describes how to use interlock circuit to meet your custom test xture
requirements
.
Figure 3-3 shows pin assignments for the interlock cable
.
Figure 3-3. Interlock cable Assignment (Wiring Side View)
The interlock cable has six lines. The 4339B changes some settings: V
oltage Output, Current
Limit, and Resistivity Mode, depending on the interlock status
.T
able 3-1, describes the role of
each line:
T
able 3-1. Pin Assignment of Interlock Connector
Pin Name Description
Interlock Interrupt signal Disable or enable Voltage Output
1
ID1 State signal
2
Identicate T
est Fixture
ID2
ID3
Special Signal State signal used for 16008B
switching 
sand
 v
3
GND Ground Connected to Chassis
1 When Interlock line is grounded, voltage output is enabled.
2 Refer to Table 3-2.
3 When the special signal line is grounded, the  v( RV ) mode is selected.
Operation 3-3

The ID signals are used by the 4339B to identify the current limit and the output voltage
performance requested by the test xture
.The 4339B is programmed beforehand to change the
current limit and output voltage settings according to the ID line status
.The ID status
, test
xture identication, and the 4339B current limit and output voltage correspondence is listed
in Table 3-2 .
T

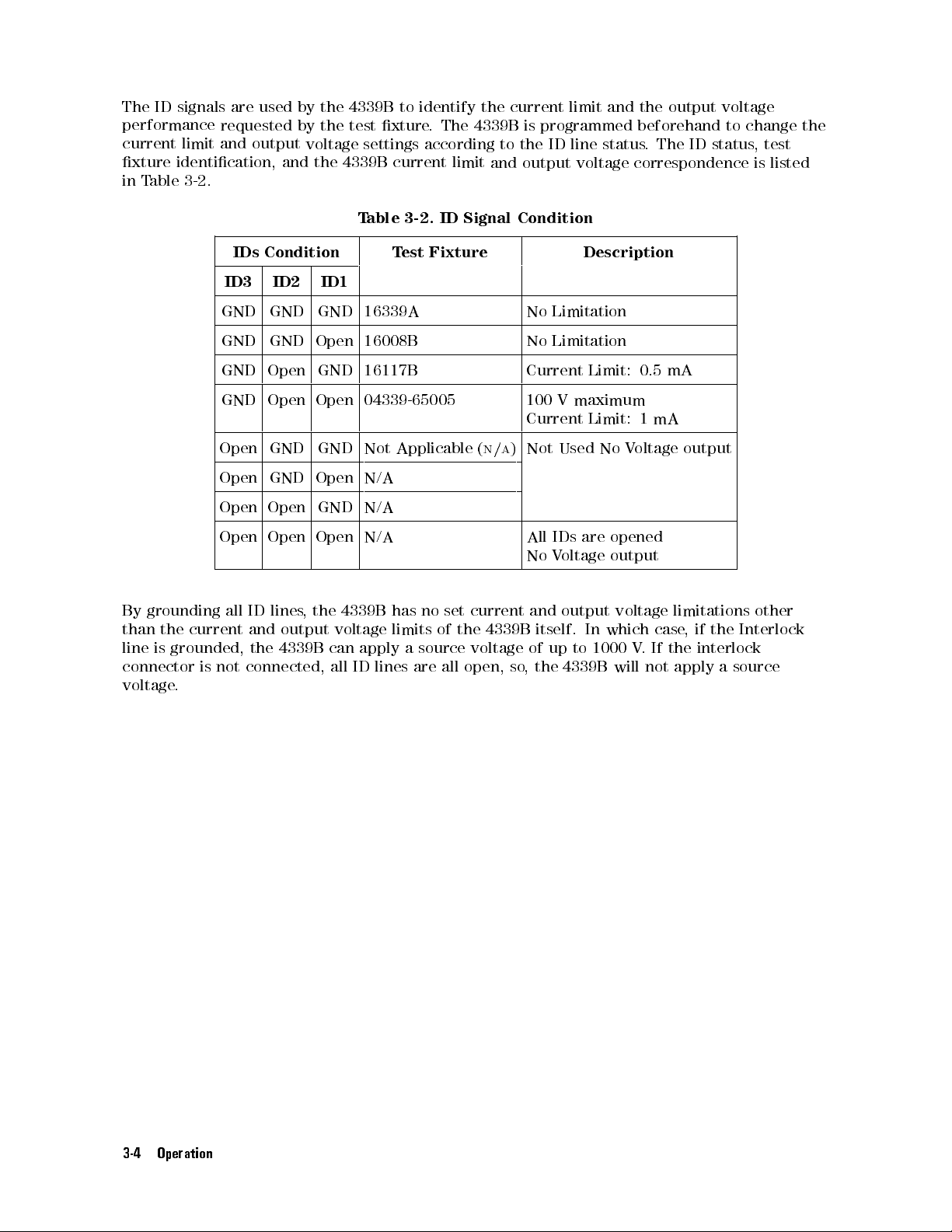

able 3-2. ID Signal Condition
IDs Condition T
est Fixture Description
ID3 ID2 ID1
GND GND GND 16339A No Limitation
GND GND Open 16008B No Limitation
GND Open GND 16117B Current Limit: 0.5 mA
GND Open Open 04339-65005 100 Vmaximum
Current Limit: 1mA
Open GND GND Not Applicable (
n/a
)Not Used No V
oltage output
Open GND Open N/A
Open Open GND N/A
Open Open Open N/A All IDs are opened
No V
oltage output
By grounding all ID lines
,the 4339B has no set current and output voltage limitations other
than the current and output voltage limits of the 4339B itself. In which case
,if the Interlock
line is grounded, the 4339B can apply asource voltage of up to 1000 V
.If the interlock
connector is not connected, all ID lines are all open, so
,the 4339B will not apply asource
voltage
.
3-4 Operation
