Kichler Lighting 35152 User manual

2
ITEM #0747613, 31885139
MODEL #35152
CEILING FAN
1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-554-6504, 8 a.m. - 4:30 p.m, EST, Monday - Friday.
kichler.com/customer-care/contact-us
Français p. 16
Español p. 31

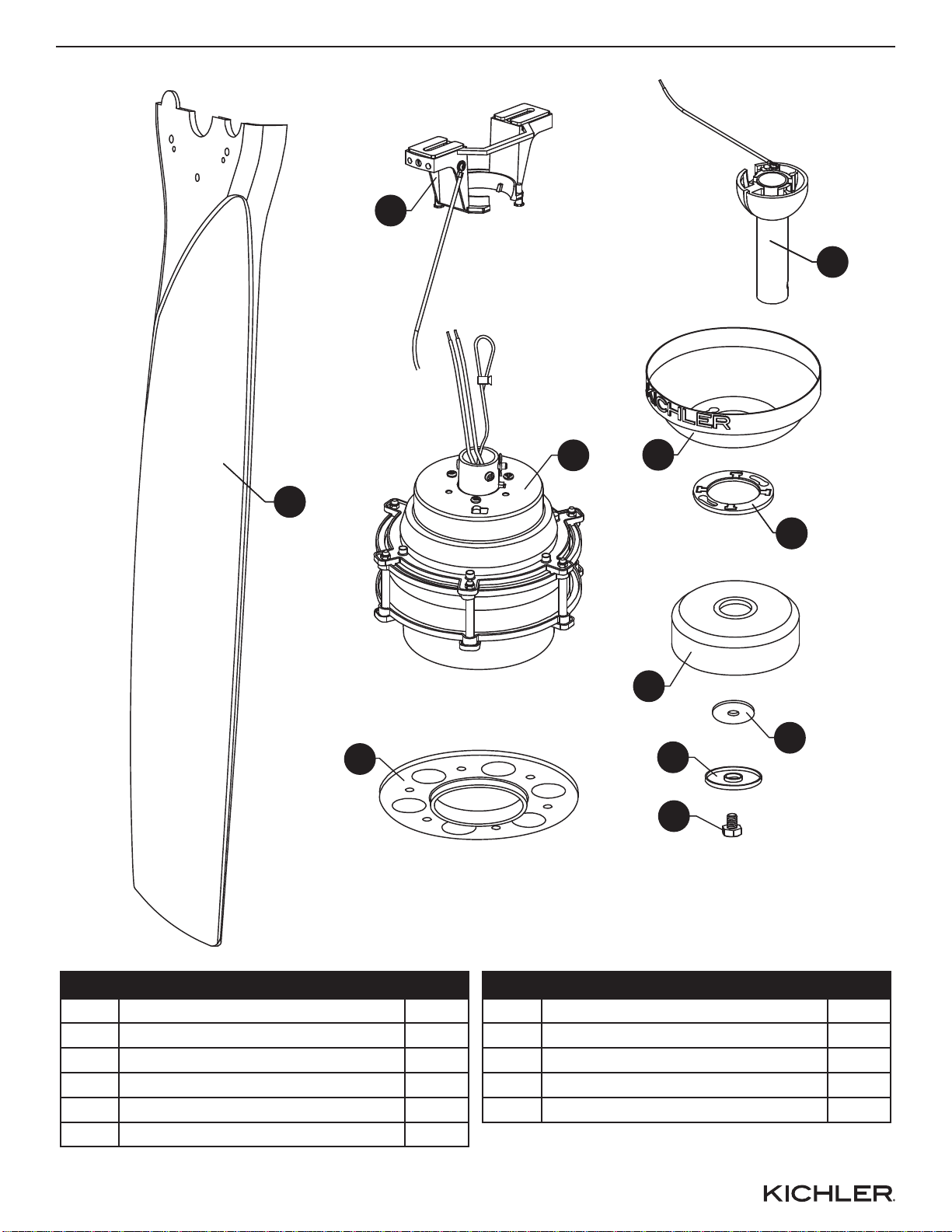

PACKAGE CONTENTS
231
A
Hanging Bracket
Down Rod
Canopy
Blade Plate
Motor Coupling Cover
Motor Assembly
B
C
D
E
F
1
1
1
1
1
1
PART DESCRIPTION QTY
Finial
Rubber Washer
Canopy Hole Cover
Metal Washer
Blade
H
G
I
J
K
1
1
1
1
2
PART DESCRIPTION QTY
A
KK
C
II
E
J
G
B
D
F
H

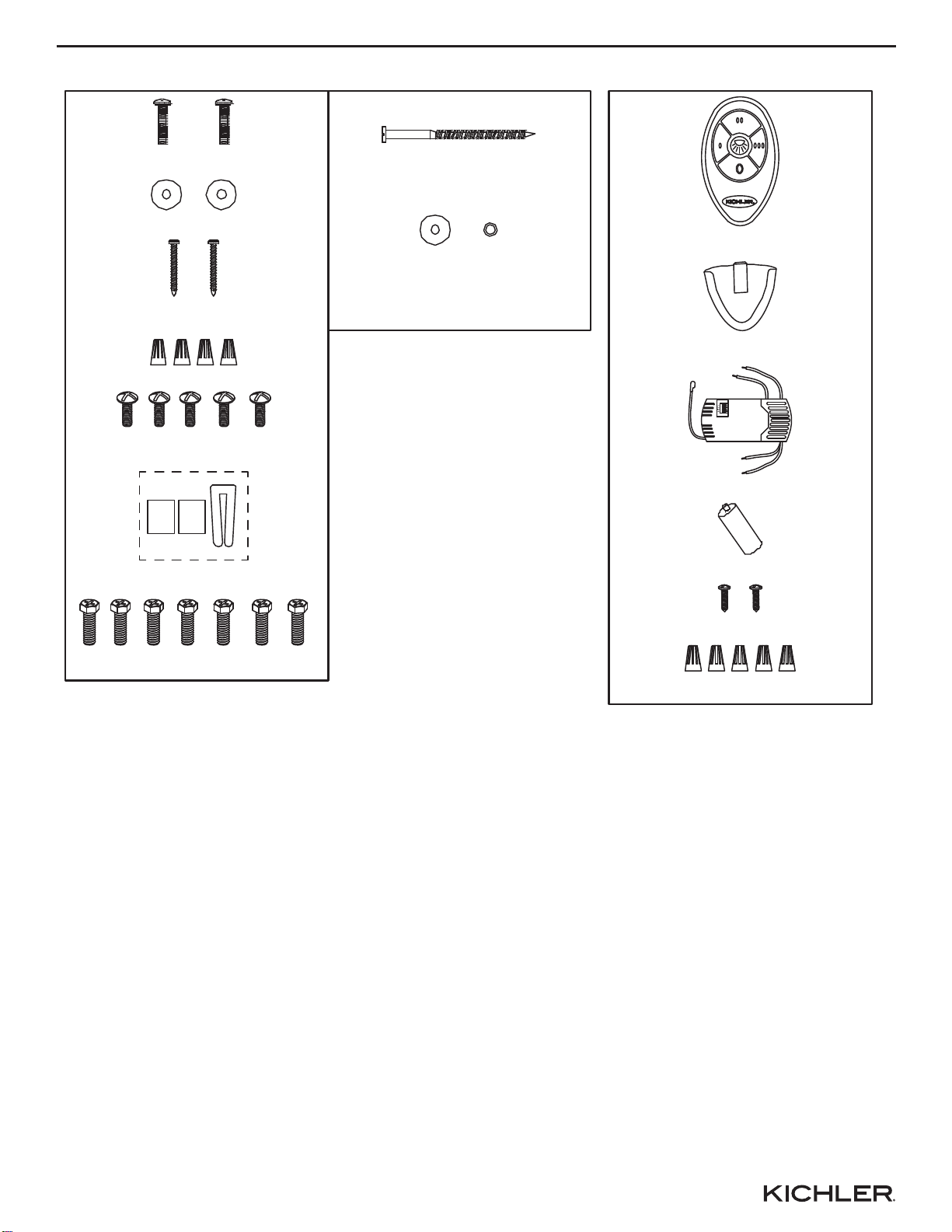

HARDWARE CONTENTS
2 3
Hanging bracket Screw
Hanging bracket Washer
Wire Connector
Blade Screw
Balance Kit
HARDWARE BAG REMOTE CONTROL
Remote Control
Remote Control Holder
Battery
Receiver
Wood Screw
Wood Screw
Lag Screw
Wire Connector
4
Flat Washer + Spring Washer
Blade Plate Screw

3 5
SAFETY INFORMATION
4
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at
1-800-554-6504, 8 a.m. - 4:30 p.m., EST.
WARNING:
• Important: When using an existing outlet box, be sure the box is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury or
death.
• Turn off circuit breakers and wall switch to the fan supply wire leads. Warning: Failure to
disconnect power supply prior to installation may result in serious injury or death.
• Warning - Connecting this fan to a light switch (on/off) has been known to cause damage to the
receiver. This fan must be wired to continually receive power. Failure to do so will drastically
reduce the lifespan of this fan.
• Do not install fan on a ceiling with a pitch greater than 20°.
• WARNING – To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box
Marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less' And Use Mounting Screws
Provided With The Outlet Box and/or Support Directly From Building Structure. Most Outlet Boxes
Commonly Used For The Support of LuminairesAre NotAcceptable For Fan SupportAnd May
Need To Be Replaced. Consult A Qualified Electrician If In Doubt."
• Important: Be sure wiring box is properly grounded or that a ground (green) wire is present.
WARNING
• CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main fusebox before starting and
during the installation.
• WARNING:
This fixture is intended for installation in accordance with the National Electrical Code
(NEC) and all local code specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
• Do not use bulbs with wattage greater than specified on this fixture.
• California Proposition 65
WARNING: This product can expose you to chemicals including lead, which is known to
the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, go to http://www.P65Warnings.ca.gov

CAUTION
PREPARATION
5 6
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram. If any part is missing or damaged, do not attempt to assemble the product.
Contact customer service for replacement parts.
Estimated assembly time: 30 minutes to 1 hour.
Tools Required for Assembly (not included): Phillips screwdriver, flathead screwdriver, wire strippers,
electrical tape, ladder, safety glasses, wrench, pliers.
A B C
ASSEMBLY INSTRUCTIONS
• WARNING-To reduce risk of fire, electric shock, or personal injury, mount to outlet box marked
“Acceptable for Fan Support of 15.9kg (35lbs) or less” and use mounting screws provided with the
outlet box and/or support directly from building structure. Most outlet boxes commonly used for
the support of luminaries are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.

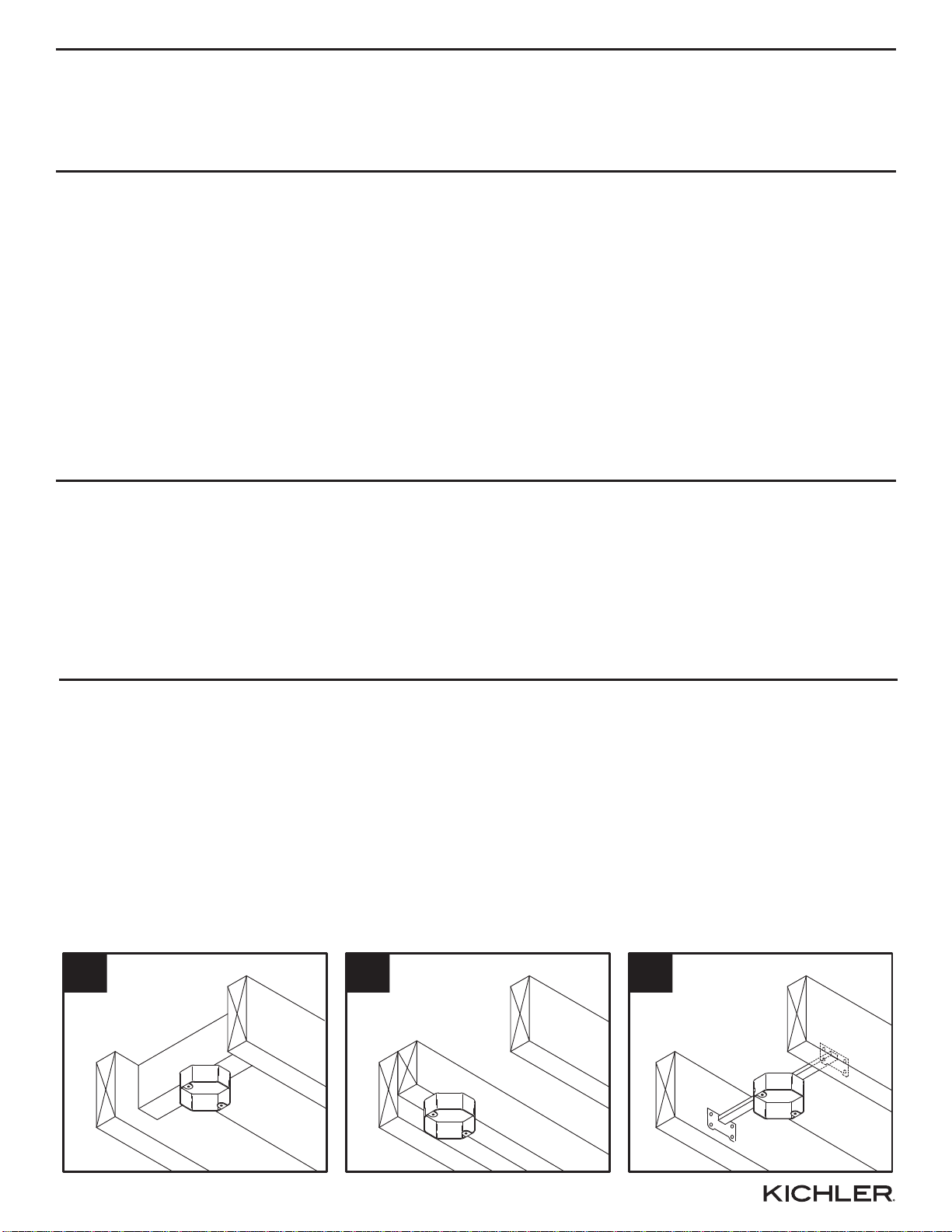

• Warning-Risk of fire, electric shock, or personal injury. Ceiling fans may be either directly
supported from a structural framing member of a building and (see examples in figures A & B) or
may be mounted to an outlet box marked acceptable for fan support of 31.8 kg (70 lbs) to 15.9kg
(35 lbs) (see example in figure C).
4
• Read and understand all instructions and illustrations completely before proceeding with assembly
and installation of this fixture.
• If you have any doubts about how to install this lighting fixture, or if the fixture fails to operate
completely, please contact a qualified licensed electrical contractor.
• All parts must be used as indicated in these instructions. Do not substitute any parts, leave parts
out, or use any parts that are worn out or broken. Failure to obey this instruction could invalidate
the UL listing, C.S.A. certification, and/or ETL listing of this fixture.
• This fixture is intended for installation in accordance with the National Electric Code (NEC) and all
local code specifications.
• This fixture is for indoor use only.
WARNING (continued)
• Make sure the installation site you choose allows a minimum of 7 feet from the floor to the end of
the blades.
• To reduce the risk of fire or electrical shock, do not use this fan with any solid state fan speed
device or variable speed control.

ASSEMBLY INSTRUCTIONS
5 6
1. Secure the hanging bracket (A) to the ceiling outlet
box using hanging bracket screws and hanging
bracket washers.
Important: If attaching the fan to a sloped ceiling,
make sure open end of mounting bracket is installed
facing the roof. Do not install fan on a ceiling with a
pitch greater than 20°.
1
A
Outlet Box
2. Loosen the set screws found on coupling on top of the motor assembly (F). Then remove the hair
and clevis pin that will be used on a later step.
Hair Pin Safety Cable
Clevis Pin
2
F
Coupling

7
ASSEMBLY INSTRUCTIONS
6
3. Insert down rod (B) through canopy (C), canopy hole cover (I), and motor coupling cover (E).
Feed wires from the motor assembly (F) through the down rod (B), then insert the down rod (B)
into the coupling found on top of the motor assembly (F).
4. Pass the clevis pin through the down rod (B) and coupling found on the motor assembly (F) then
secure with the hair pin. Tighten set screws found on the coupling on the motor assembly (F).
Hair Pin
Clevis Pin
Coupling
B
F
4
F
I
C
E
B
3

7 8
ASSEMBLY INSTRUCTIONS

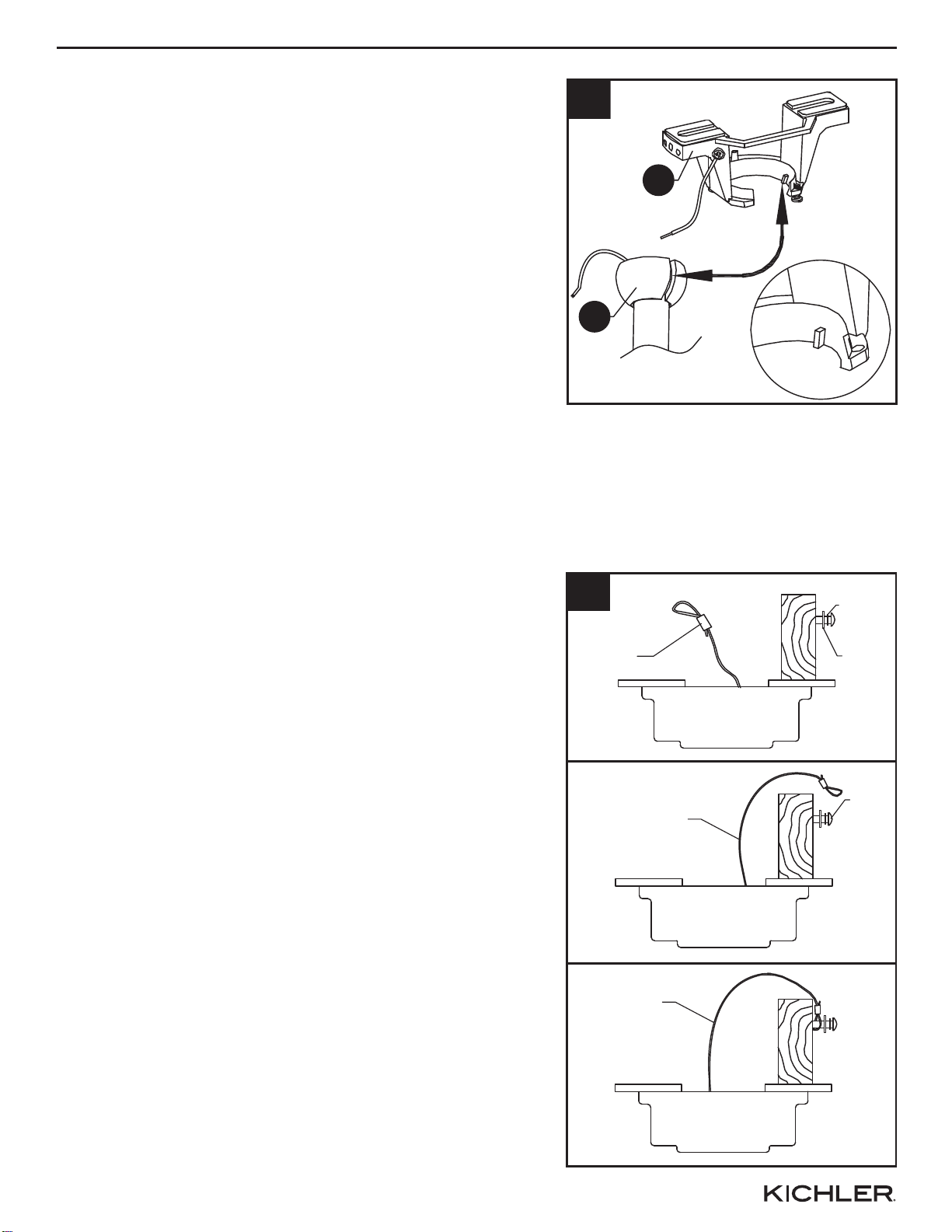

5. Carefully lift the fan and seat the downrod (B)/hanger
ball assembly on the hanging bracket (A). Be sure
the groove in the ball is lined up with the tab on the
hanging bracket (A).
B
A
5
6. For Canadian installation and for USA fans over 35
lbs, the safety cable must be installed into the house
structure beams using a 3” lag screw. Make sure
that when the safety cable is fully extended the lead
wires are longer than the cable and no stress is
placed on the lead wires.
Safety
Cable
Lag
Screw
Safety
Cable Flat
Washer
Spring
Washer
6
Safety
Cable

ASSEMBLY INSTRUCTIONS
8 9
7. Wiring the fan per wiring diagram and securely connect wires with wire connectors: Wrap electrical
tape (not included) around each wire connector and make sure no bare wire or wire strands are
visible after making connections.
• Connect WHITE wire from the fan to WHITE wire marked TO MOTOR N from the receiver.
• Connect BLACK wire from the fan to BLACK wire marked TO MOTOR L from the receiver.
• Connect BLACK wire from the outlet box to BLACK wire marked AC IN L from the receiver.
• Connect WHITE wire from the outlet box to WHITE wire marked AC IN N from the receiver.
• Connect GROUND (GREEN) wires from hanger bracket and downrod ball, to GROUND (GREEN
or BARE COPPER) from house.
7
OUTLET BOX
BLACK
(LIVE)
WHITE
(NEUTRAL)
BLACK
(AC
INPUT)
WHITE
(AC
INPUT)
BARE COPPER
(GROUND)
GREEN (BRACKET)
GREEN (DOWN ROD)
WHITE
(NEUTURAL)
BLACK (MOTOR) BLACK
WHITE

ASSEMBLY INSTRUCTIONS
9 10 11

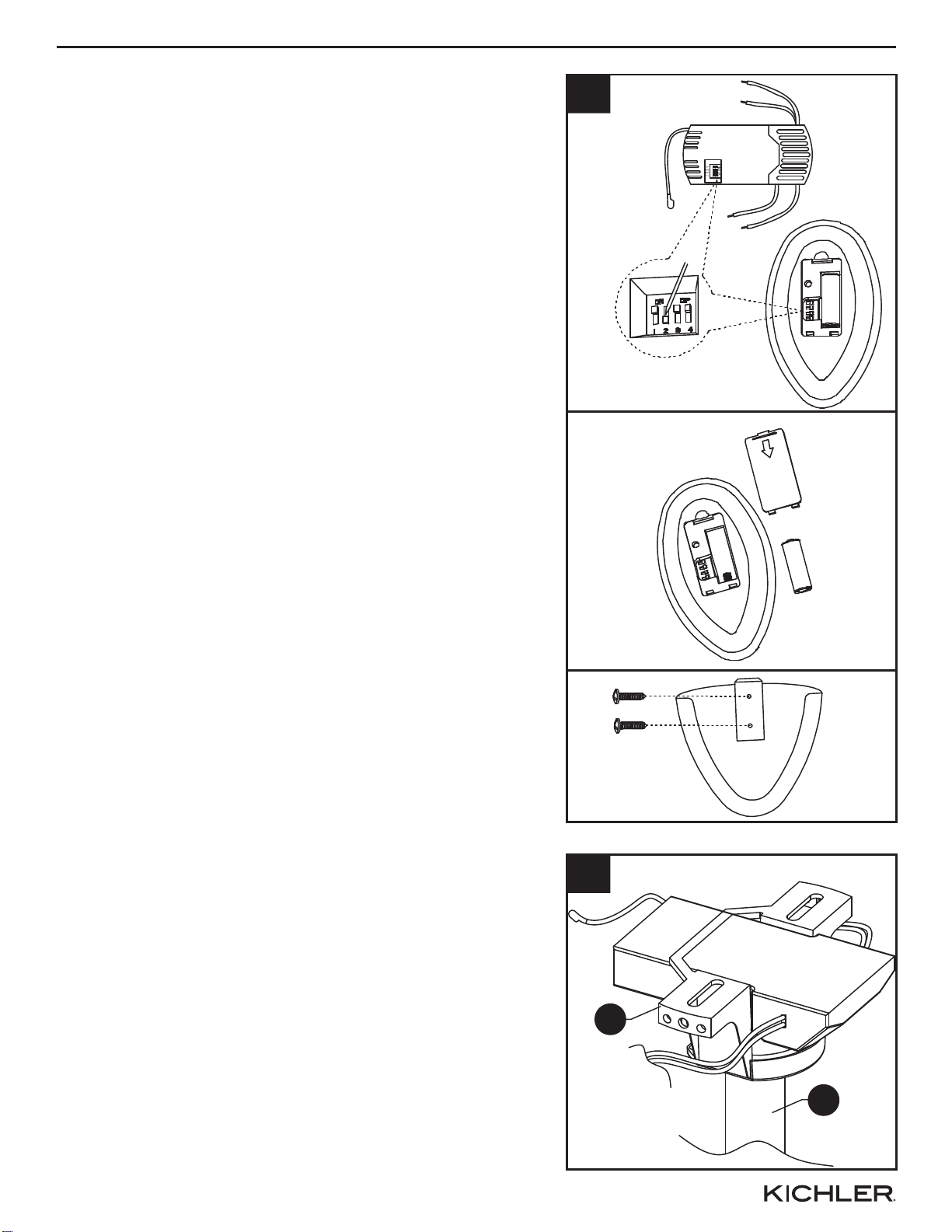

8. In order to use this remote control the dip switches
must match on both the remote control and the
receiver. Make sure they both have the same
configuration.
There are 16 combinations of code for setting up the
remote control. If you do not use the dip switch
combination set up by the manufacture then you will
need to use the set up procedures listed below.
Remove the battery cover from the remote control.
Slide dip switches up or down using a small screw
driver (not included). Then match the dip switches
on the receiver to the same position as the remote
control.
Install the battery (included) and replace the battery
cover you previously removed.
The remote control comes with a cradle that may be
attached to the wall with the included screws.
9. Once wiring step has been completed, slide the
wired remote receiver in between the hanging
bracket (A) and the top of the downrod ball (B) with
the flat side of the receiver facing the ceiling. Turn
lead wires upward and carefully push them into the
outlet box, with the white and green wires to one
side of the box and the black wires toward the other
side.
9
A
B
REMOTE
CONTROL
8
RECEIVER

ASSEMBLY INSTRUCTIONS
10 11 12
11.Raise blade (K) to the flywheel located on the motor assembly (F). Align the center hole on the
blade (K) with the hole on the flywheel marked with a red dot. Fit the two protrusions on the blade
(K) into the holes on the flywheel. Install the blade screws into the two small holes on the blade
(K). Tighten all screws.
Repeat for the remaining blade.
10.Loosen the two shoulder screws without fully
removing the hanging bracket (A). Assemble canopy
(C) by rotating keyhole slot in canopy over shoulder
screws in hanging bracket (A). Tighten shoulder
screws. Securely attach and tighten the canopy hole
cover (I) over the shoulder screws in the hanging
bracket (A) utilizing the keyhole slot twist-lock
feature.
11
Blade Screw
Flywheel
K
F
10
A
C
I
Shoulder
Screw

ASSEMBLY INSTRUCTIONS
11 12 13
12.Raise the blade plate (D) to the assembled blades (K) and secure with blade plate screws using a
Phillips head screwdriver (not included).
13.Raise rubber washer (H) and metal washer (J) over the post found in the middle of the blade plate
and secure using finial (G).
13
D
G
H
J
Post
12
Blade Plate Screw
Phillips
Screwdriver
DK

Remove remote battery door, connect battery (included) with plug pressing the battery inside and
replace the battery door. If not used for long periods of time, remove the battery to prevent
damage to the transmitter.
Fan control :
Low speed
Medium speed
High speed
To turn off the fan
This remote has a memory function. The remote stores the fan speed when the fan is turned off.
When the fan is turned on again, it starts with the most recent setting.
Use the fan reversing switch found on the motor assembly to optimize your fan for seasonal
performance.
Note: Wait for fan to stop before reversing the switch.
• In warmer weather, counterclockwise movement of the fan will result in downward airflow
creating a wind chill effect. Push switch left.
• In cooler weather, clockwise movement of the fan will result in upward airflow that can help move
stagnant hot air off the ceiling area. Push switch right.
12 13 14
OPERATION
Reverse
Switch

STEPS TO BALANCING THE CEILING FAN
13 14 15
Balancing Weight
Plastic Clip
5G
• Tighten screws on the mounting bracket, outlet box, the downrod , fan blades to blade holders,
and blade holders to the motor housing.
• Measure the distance from the tip of each blade to the ceiling. All blades should have the same
vertical distance from the ceiling. Adjust any bent blade holder, by gently pressing up or down on
the brackets, until all blades are at an equal distance from the ceiling.
If wobbling persists, you may need a blade balancing kit to stabilize the ceiling fan. A blade
balancing kit consists of a plastic clip and two balancing weights.
Determining the blade that needs to be balanced is a trial-and-error task.
1. Place a numbered piece of masking tape on each blade so you don't lose track of which blade is
which.

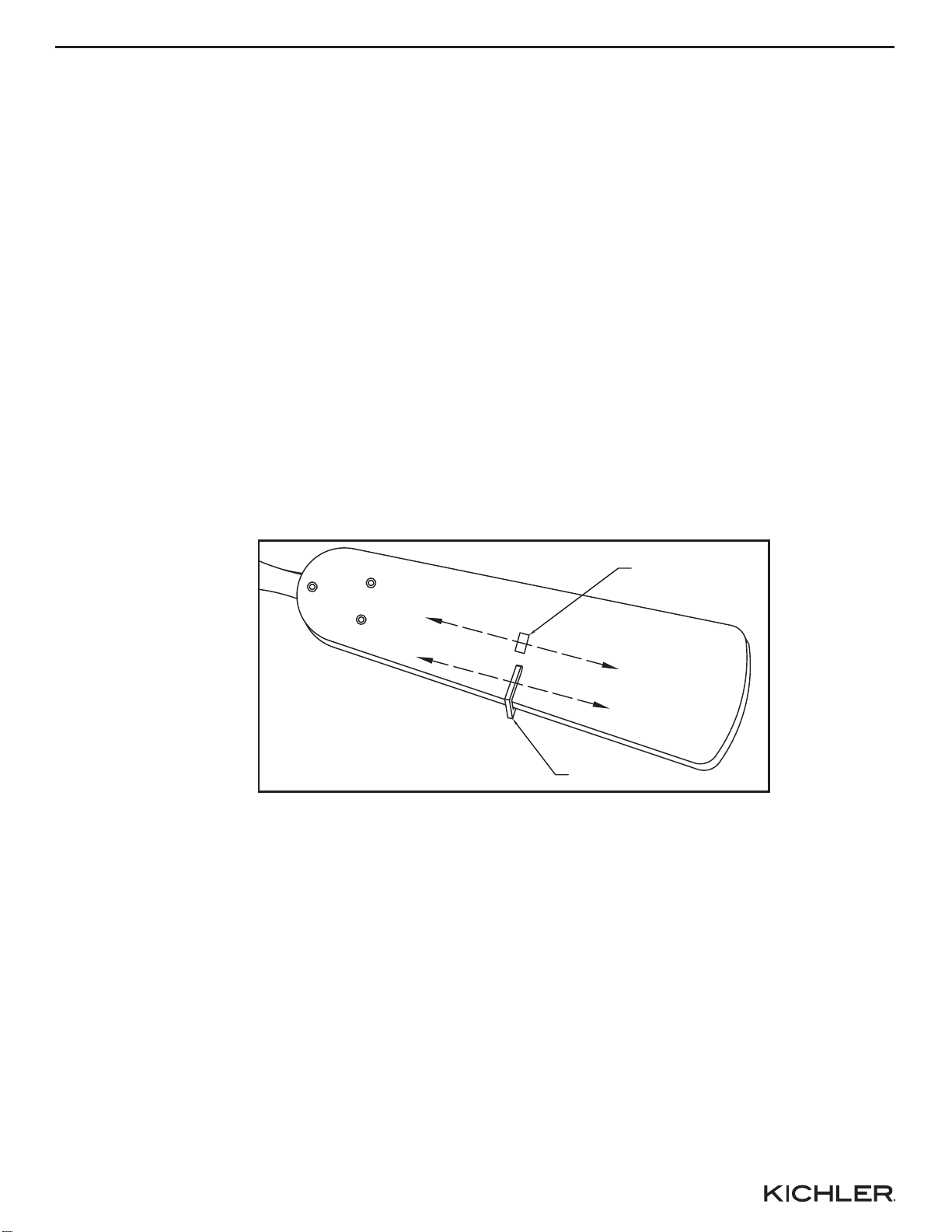

2. One blade at a time, attach the slotted plastic clip over the center of the blade edge and turn the
fan on. Observe which blade has the clip on when the ceiling fan wobbles the least.
3. Place the plastic clip on the edge of the blade, halfway between the blade holder and the blade
tip. Turn fan on and determine improvement.
4. If there is no improvement, turn off the fan again. Slide the clip along the length of the blade to
locate the source of instability.
5. Once you've found the faulty blade, press a balancing weight on the centerline. The weight
should be parallel to the clip.

FCC WARNING
14 15
CARE AND MAINTENANCE
At least twice a each year tighten all screws and lower canopy to check mounting bracket screws
and downrod assembly. Clean fan housing with only a soft brush or lint free cloth to avoid
scratching the finish. Clean blades with a lint free cloth. Shut off main power supply before
beginning any maintenance. Do not use water or a damp cloth to clean the ceiling fan.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver,
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
REV 29-SEP-2021 Printed in China
Distributed by:
Kichler Lighting LLC
7711 E. Pleasant Valley Rd.
Cleveland, OH 44131

17
ARTICLE #0747613, 31885139
MODÈLE #35152
VENTILATEUR DE PLAFOND
16
Des questions, des problèmes, des pièces manquantes? Avant de retourner le produit à
votre détaillant, appelez notre service à la clientèle au 1-800-554-6504, entre 8 h et 16 h 30
(HNE) du lundi au vendredi. kichler.com/customer-care/contact-us
JOIGNEZ VOTRE REÇU ICI
Numéro de série Date d’achat

CONTENU DE L’EMBALLAGE
17 1816
A
Support de suspension
Tige
Pavillon
Plaque de pale
Cache raccord du moteur
Ensemble moteur
B
C
D
E
F
1
1
1
1
1
1
PIÈCE DESCRIPTION QT É
Fleuron
Rondelle en caoutchouc
Cache-trou du pavillon
Rondelle métallique
Pale
H
G
I
J
K
1
1
1
1
2
PIÈCE DESCRIPTION QT É
A
KK
C
II
E
J
G
B
D
F
H

QUINCAILLERIE INCLUSE
17 18
Vis du support de suspension
Rondelle du support de suspension
Capuchon de connexion
Vis de pale
Ensemble d'équilibrage
SACHET DE QUINCAILLERIE TÉLÉCOMMANDE
TÉLÉCOMMANDE
Support de la télécommande
Pile
Récepteur
Vis à bois
Vis à bois
Tire-fond
Capuchon de connexion
19
Rondelle plate + rondelle ressort
Vis de plaque de pale

AVERTISSEMENT
• ATTENTION – RISQUE DE DÉCHARGES ÉLECTRIQUES –
Couper le courant au niveau du panneau du disjoncteur du circuit principal ou de la boîte à
fusibles principale avant de procéder à l’installation.
• ATTENTION:
Ce luminaire doit être installé conformément aux codes d’électricité nationaux (NEC) et
satisfaire toutes les spécifications des codes locaux. Si vous ne connaissez pas les
exigences de ces codes, il est recommandé de confier l’installation à un électricien certifié.
• N’utilisez pas d’ampoules dont la puissance dépasse la puissance nominale indiquée sur
ce luminaire.
• Proposition 65 de la Californie
AVERTISSEMENT: cet article peut vous exposer à des produits chimiques, notamment
les composés de plomb identifiés par l'État de la Californie comme cause de cancer,
malformations congénitales ou autres troubles de l'appareil reproducteur.
Pour de plus amples informations, consultez le site http://www.P65Warnings.ca.gov
18 2019
CONSIGNES DE SÉCURITÉ
Veuillez lire et assurez-vous d'avoir compris l’intégralité du présent guide avant d’assembler, d’utiliser ou d’installer ce
produit. Si vous avez des questions concernant ce produit, veuillez appeler le service client au [phone], entre 8h
et 16h30, HNE.
AVERTISSEMENT :
• Important : Lorsque vous utilisez une boîte de sortie existante, assurez-vous que la boîte est fermement attachée à la
structure du bâtiment et peut supporter le poids total du ventilateur. Le non-respect de cette recommandation peut
entraîner des blessures graves ou la mort.
• Coupez les disjoncteurs et l'interrupteur mural qui contrôlent les fils d'alimentation du ventilateur. Avertissement : Si
l'alimentation électrique n'est pas coupée avant l'installation, il peut en résulter de graves blessures ou la mort.
• Avertissement – Connecter ce ventilateur à un interrupteur pour lampe (marche/arrêt) endommage le récepteur. Ce
ventilateur doit être câblé afin de recevoir du courant en continu. Le non-respect de cette recommandation réduira
considérablement la durée de vie de ce ventilateur.
• Ne pas installer sur un plafond incliné à plus de 20°.
• AVERTISSEMENT – Pour réduire le risque d'incendie, de choc électrique ou de blessures corporelles, installez le
ventilateur sur une boîte de sortie marquée "Convient pour supporter un ventilateur de 15,9 kg (35 lb) maximum" et
utilisez les vis de montage fournies avec la boîte de sortie et/ou fixez directement sur la structure du bâtiment. La
plupart des boîtes de sortie utilisées couramment comme support de luminaires ne conviennent pas au support d'un
ventilateur et devront être remplacées. Consultez un électricien qualifié de cas de doute.
• IMPORTANT :Assurez-vous que le boîtier de connexion est correctement mis à la terre ou qu'un fil de terre (vert) est
présent.

ATTENTION
PRÉPARATION
20 21
Avant de commencer l’assemblage du produit, assurez-vous que toutes les pièces sont présentes.
Comparez les pièces avec la liste du contenu de l’emballage et la liste de la quincaillerie. En cas de
pièces manquantes ou endommagées, ne tentez pas d’assembler le produit.
Temps d’assemblage approximatif : de 30 à 60 minutes.
Outils nécessaires pour l’assemblage (non inclus) : tournevis cruciforme, tournevis à tête plate,
pinces à dénuder, ruban isolant, escabeau, lunettes de sécurité.
A B C
INSTRUCTIONS POUR L'ASSEMBLAGE
• AVERTISSEMENT – Pour réduire le risque d'incendie, de choc électrique ou de blessures
corporelles, installez le ventilateur sur une boîte de sortie marquée "Convient pour supporter un
ventilateur de 15,9 kg (35 lb) maximum" et utilisez les vis de montage fournies avec la boîte de
sortie et/ou fixez directement sur la structure du bâtiment. La plupart des boîtes de sortie utilisées
couramment comme support de luminaires ne conviennent pas au support d'un ventilateur et
devront être remplacées. Consultez un électricien qualifié de cas de doute.
• Avertissement - Risque d'incendie, de choc électrique ou de blessures corporelles. Les
ventilateurs de plafond peuvent être fixés directement sur un élément porteur de la structure du
bâtiment (voir exemples sur les figures A et B) et/ou être montés sur une boîte de sortie marquée
"Convient pour supporter un ventilateur de 15,9 kg (35 lb) à 31,8 kg (70 lb)" (voir exemple sur la
figure C).
19
• Prenez soin de lire et de comprendre l'intégralité des instructions et des illustrations avant de
commencer l’assemblage et l’installation de cet appareil.
• Si vous avez des doutes à propos de l’installation, ou si le luminaire ne fonctionne pas
correctement, veuillez contacter un électricien qualifié agréé.
• Toutes les pièces doivent être utilisées tel qu’indiqué dans ces instructions. Ne remplacez pas les
pièces, n'en laissez pas de côté et ne les utilisez pas si elles sont usées ou brisées. Le
non-respect de ces instructions peut annuler les homologations UL, CSA et/ou ETL de cet
appareil.
• Cet appareil est conçu pour une installation en conformité avec le code électrique national des
États-Unis (National Electric Code - NEC) et avec toutes les spécifications du code électrique
local.
• Cet appareil est conçu pour une utilisation en intérieur uniquement.
AVERTISSEMENT (suite)
• Assurez-vous que le site d'installation choisi offre une hauteur minimum de 2,13 m (7 pi) entre le sol et le dessous
des pales.
• Pour réduire les risques d'incendie ou de choc électrique, n'utilisez pas ce ventilateur avec une commande de vitesse
à semi-conducteurs ou une commande de variation de vitesse.
