60" FERRONTM
INSTRUCTION MANUAL
Product images may vary slightly from actual product.

TABLE OF CONTENTS
SAFETY RULES...........................................................................4
5
5
6
7
10
11
12
13
TOOLS REQUIRED....................................................................
PACKAGE CONTENTS.............................................................
MOUNTING OPTIONS.............................................................
HANGING THE FAN..................................................................
INSTALLATION OF SAFETY SUPPORT...........................
ELECTRICAL CONNECTIONS..............................................
FINISHING THE INSTALLATION........................................
ATTACHING THE FAN BLADES...........................................
INSTALLING THE DECORATIVE
COVER AND DECORATIVE NUT.........................................
CONTROL SYSTEM SET-UP...................................................
13
14
16
17
18
19
20
INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE.....................................
INSTALLING THE TRANSMITTER......................................
OPERATING INSTRUCTIONS...............................................
OPERATING INSTRUCTIONS...............................................
TROUBLESHOOTING..............................................................
60" FERRONTM | 3

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: Not suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support
of light fixtures are not acceptable for fan support and may need
to be replaced. Due to the complexity of the installation of this fan,
a qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only CUL Listed outlet boxes marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7. To operate the reverse function on this fan, press the reverse
button while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
11. After marking electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION. DO
NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

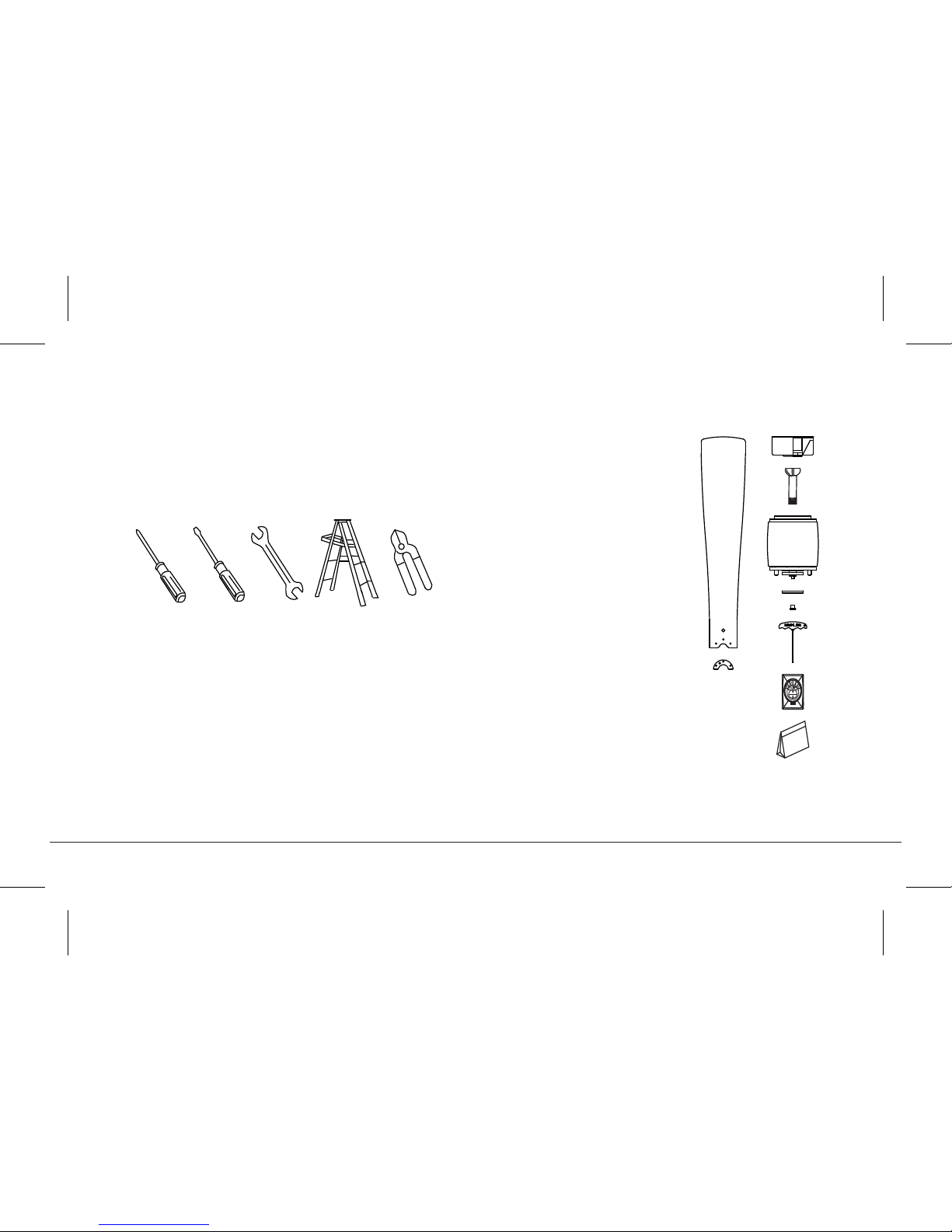

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
i
j
f
e
g
h
a
b
c
d
Unpack your fan and check the
contents. You should have the following
items:
a. Fan blades (2)
b. Blade support plates (2)
c. Canopy & Ceiling mounting bracket
d. Ball/downrod assembly
e. Fan motor assembly
f. Decrotive cover
g. Decrotive nut
h. Allen wrench
i. Basic Function CoolTouch™ Control
System
j. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
Allen screws (2), screws (8), fiber
washers (2)
3) Safety cable hardware:
wood screw, lock washer, flat
washer
4) Balance Kit
60" FERRONTM | 5

6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

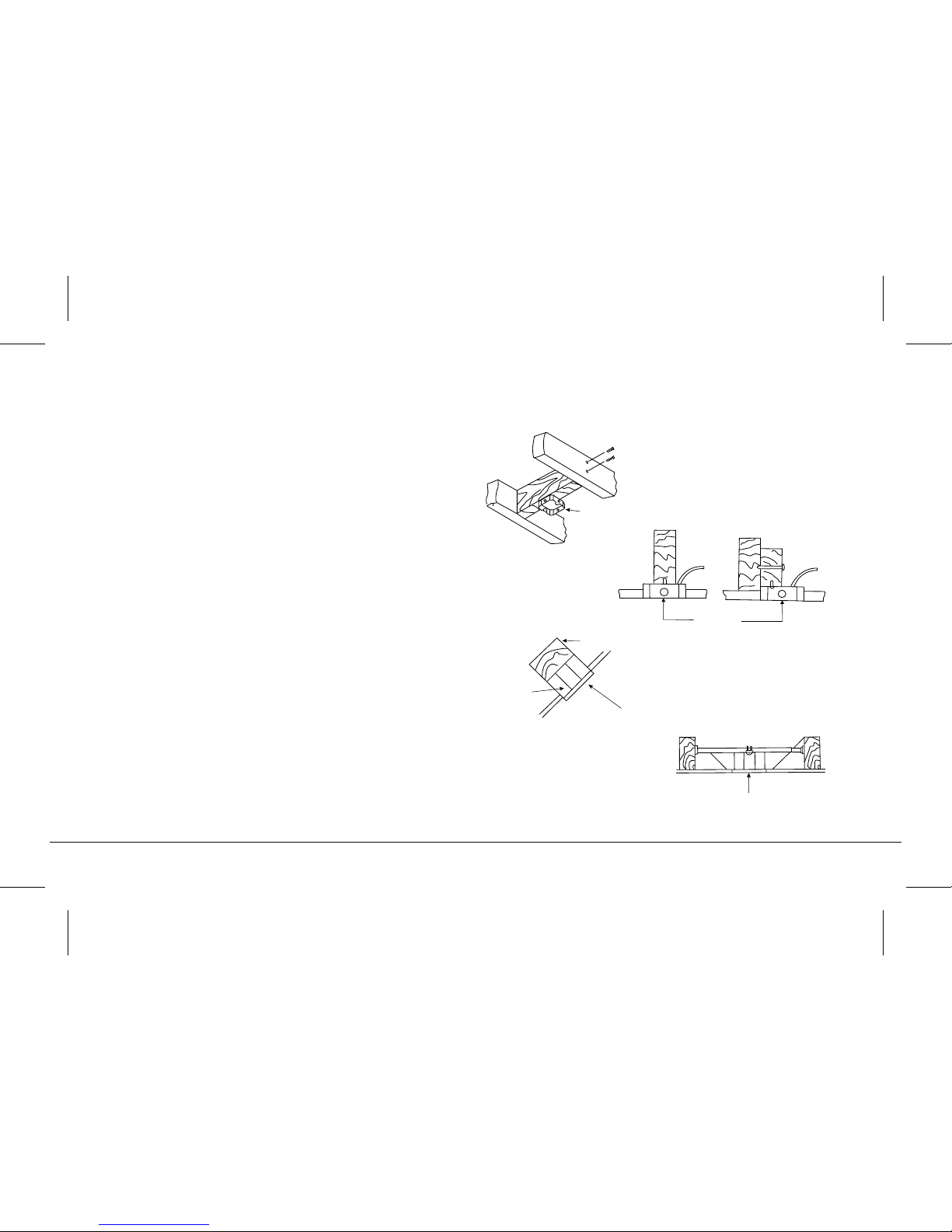

Figures 1, 2 and 3 are examples of dierent ways to mount the outlet
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
MOUNTING OPTIONS
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 20° ANGLE
Outlet box
Fig. 4

HANGING THE FAN
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.

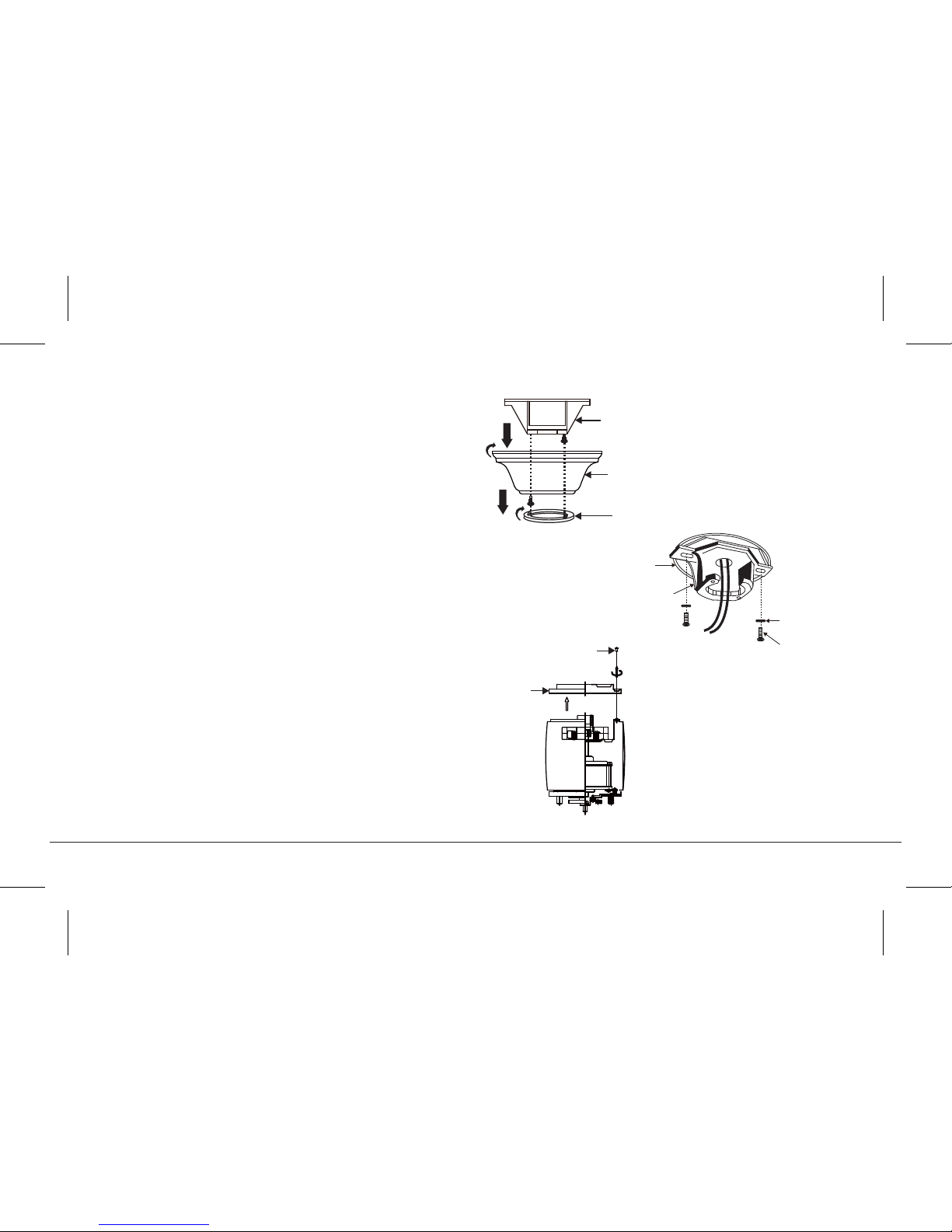

Step 1. Remove the decorative canopy bottom cover from the canopy
by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining screw
by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through
the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig.6)
Step 5. Step 5. Remove the coupling cover from the motor housing by
removing the two screws from the rim of coupling cover. (Fig. 7)
Fig. 5
Fig. 6
Fig. 7
Hanger bracket
Ceiling
canopy
Canopy
cover
Screws
Coupling
cover
Ceiling
hanger
bracket
Mounting screws (supplied
with electrical box)
UL Listed
electrial
box
120V Wires
Washers
60" FERRONTM | 7

8 | KICHLER.COM
Step 6. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing removing the cross
pin and unscrewing the ball o the rod. (Fig. 8)
Step 7. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig. 9)
Step 8. Carefully feed the electrical lead wires from the fan up through
the downrod. Thread the downrod into the coupling until the Hitch pin
holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws.
(Fig. 9)
HANGING THE FAN(continued)
Fig. 8
Fig. 9
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip
Set screws
Set screws

Fig. 10
Fig. 11
HANGING THE FAN(continued)

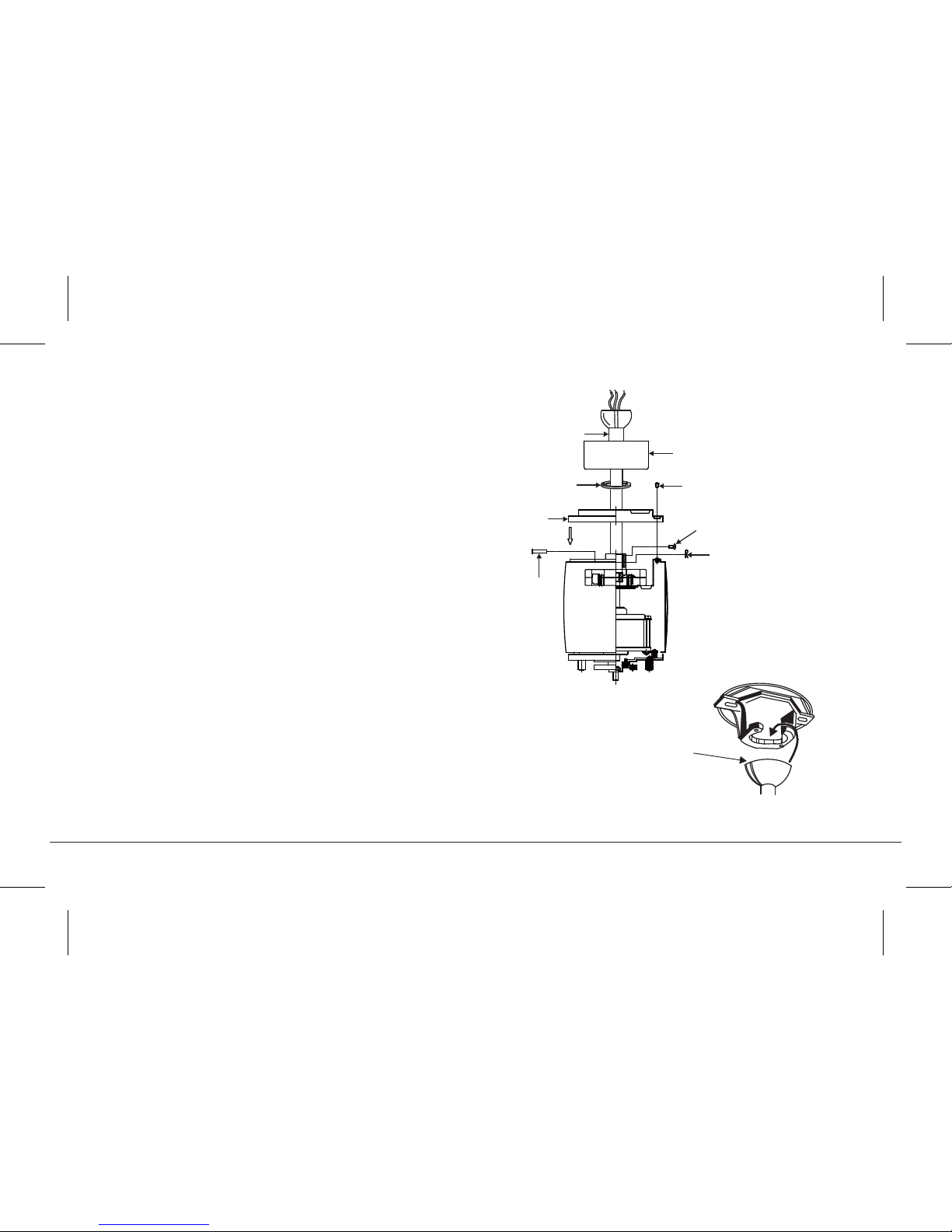

Step 9. Slip the coupling cover, secure ring , canopy cover and canopy
onto the downrod. (Fig. 10)
Secure the coupling cover to the motor housing using the two screws
previously removed.
Thread the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Now tighten the set screw. (Fig. 10)
Step 10. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 11)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab"
can cause the fan to fall from the ceiling during operation. Take special
care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin
Retaining clip
Coupling cover
Screws
60" FERRONTM | 9

10 | KICHLER.COM
A safety support cable is provided to help prevent the ceiling fan from
falling.
Step 1. Attach the provided wood screw and washers to the ceiling joist
next to the mounting bracket but do not tighten. (Fig. 12)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable
clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 12
Ceiling mounting
bracket Attach
safety cable
to ceiling joist
with screw and
washer

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned
o the power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use
the wire connecting nuts suppled with your fan. Secure the connectors
with electrical tape. Make sure there are no loose wire strands or
connections.
Step 1. Connect the fan supply (black) wire to the black household
supply wire as shown in Figure 13.
Step 2. Connect the neutral fan (white) wire to the neutral household
(white) wire.
Step 3. Connect the fan ground wire (green) to the household ground
wire.
Step 4. After connecting the wires, spread them apart so that the green
and white wires are on one side of the outlet box and the black and blue
wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the
outlet box.
Fig. 13
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Ground (green)
(Connect to ground wire
on hanger bracket if no
house ground wire exists.)
Outlet box
Black ("AC IN L")
Black (motor)
60" FERRONTM | 11

12 | KICHLER.COM
FINISHING THE INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of
the key hole slots over the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in place at the narrow
section of the key hole. See figure 14.
Step 3. Align the remaining circular hole on the canopy with the
remaining hole on the Ceiling Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the mounting screw from
Step 2 above. Now, attach the canopy cover to the mounting screw
heads by inserting the screw heads into the bottom side of the canopy
cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug. (Fig. 14)
WARNING: Make sure the "Check Tab" at the bottom of the hanger
bracket is properly seated in the "Registration Slot" on the side of the
hanger ball before attaching the canopy to the bracket. Failure to
properly seat the "Check Tab" could damage the electrical wires when
to ceiling fan blade direction is changed while the fan is running.
Fig. 14
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws

ATTACHING THE FAN BLADES
Step 1.Attach the blade to the blade bracket using the screws, blade
support plates, Allen screws, and fiber washers provided. To tighten
the Allen screw by using the Allen wrench provided. (Fig. 15)
Make sure the blade is straight when set on the blade bracket.
Tighten each mounting screw and then repeat this procedure for
each blade.
Fig. 15
Fig. 16
Blades
Allen screws
Allen
wrench
Fiber washers
Blade support
plate Screws
60" FERRONTM | 13
INSTALLING THE DECORATIVE
COVER AND DECORATIVE NUT
Step 1. Attach the decorative cover and decorative nut onto the fan
motor stem. DO NOT OVER TIGHTEN. (Fig. 16)
Decorative cover
Decorative nut

14 | KICHLER.COM
CONTROL SYSTEM SET-UP
Make sure the power is completely disconnected before you begin this
procedure.
SPECIAL NOTE:
Your new Kichler® Ceiling Fan is State of the Art and employs a High
Eciency DC (direct current) Motor with an advanced CoolTouch™
Remote Control System. The DC Motor uses 70% less energy than a
conventional ceiling fan AC Induction Motor. The DC motor is “Digitally”
controlled and operates dierently than conventional ceiling fans
motors. Please read this portion of the manual completely before
proceeding.
Our CoolTouch™ Control system includes an “Automatic Frequency
Selection” feature. To set the control frequency and program the
control system, follow these steps.
Open the back of the Transmitter (figure 18)
The Frequency Selector is a "Dip Switch Block" inside the Battery
compartment of the Transmitter. (See figure 19) You change
frequencies by arranging the small switches numbered 1 through 4 in an
up or down position. 16 possible frequencies or combinations are
possible.
The fifth switch, marked D and X sets the system for operation with
Incandescent or Fluorescent Lamps. It is essential to set this
switch correctly. If your ceiling fan is equipped with Incandescent
Lamps, set this switch to the D Position, for Fluorescent Lamps, set
the switch to the X Position. If these settings are reversed, the lighting
control system will operate erratically and could damage your
ceiling fan.
Fig. 17
Fig. 18
TM
TM
ON
1 2 3 4
D
X
ON
Dip switch

60" FERRONTM | 15
CONTROL SYSTEM SET-UP (continued)
System Programing: Read all of these steps BEFORE proceeding. Each step
must be followed exactly to properly program the control system.
1. You can leave the frequency switches at the factory setting or move them to
any combination of up or down. Use a small flat bladed screwdriver to move the
switches.
2. Insert both batteries and make sure they are seated correctly in each recess
with the Positive + sign facing up. Replace the battery cover. (Figure 17)

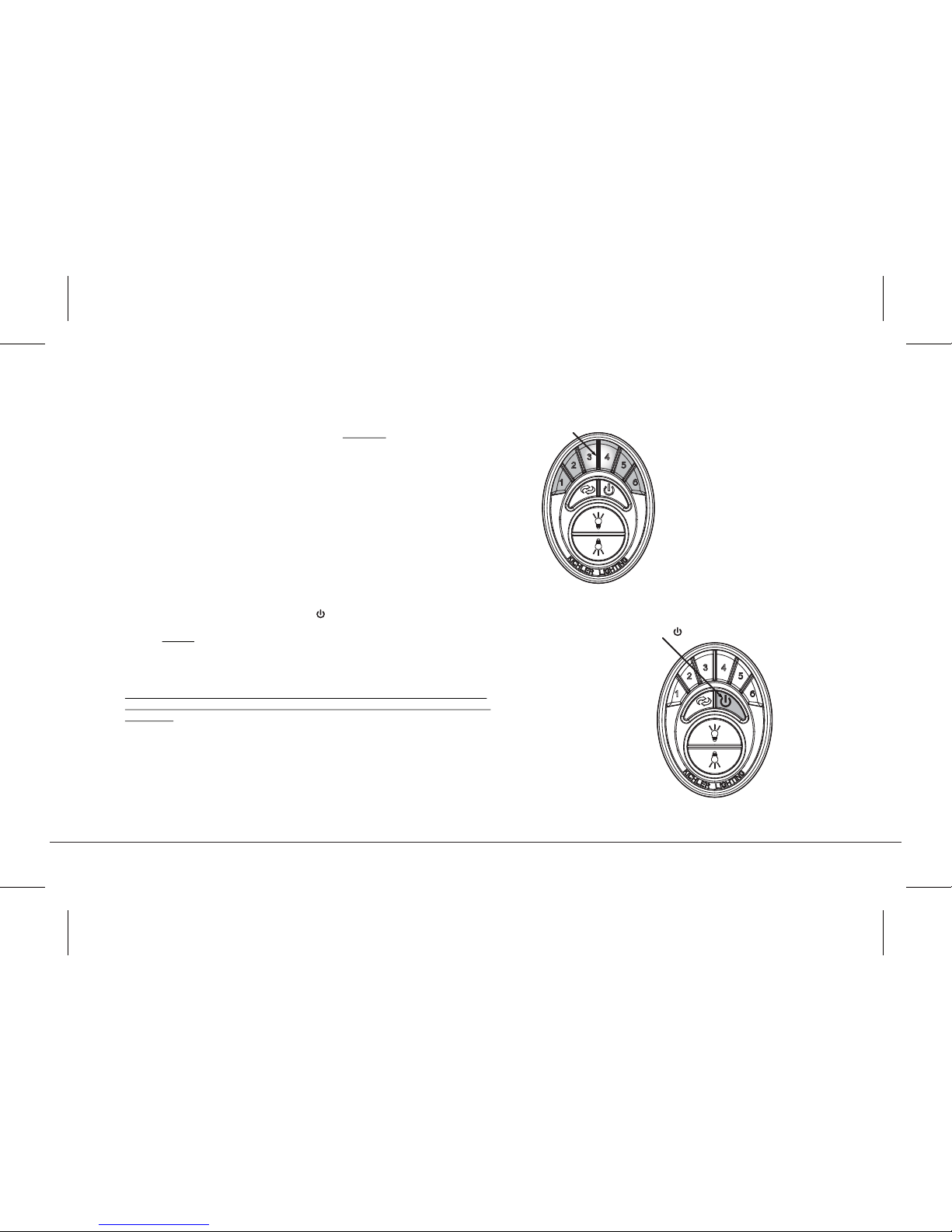

3. Test the transmitter by pushing and releasing ANY button briefly. A Blue
Light should illuminate under the 3-4 buttons. (Fig. 19) If not, check to make sure
the batteries are inserted and seated correctly.
Power Up and Programming:
4. Turn the power on, press and hold the button. (Figure 20)
NOTE: Do not press any other button during this procedure.
5. The transmitter just communicated with the ceiling fan, selected the
appropriate frequency, did a self check and signaled “complete”.
NOTE: This operation must be started WITHIN the first 120 seconds (2
minutes) of turning the power on. No other buttons can be push during
this time.
6. Let the ceiling fan run for a minimum of 90 seconds (1 ½ minutes). The control
system will do another self check, initialize all operational functions and
complete the programming process (Figure 20).
7. Your CoolTouch™ Control System is now programmed and ready for use.
Please see the following Operational Instructions.
#1 Press/hold Button
Blue Light
Fig. 19
Fig. 20

16 | KICHLER.COM
OPERATING INSTRUCTIONS
Figure 21
1. Buttons 1, 2, 3, 4, 5 and 6 are used to set the blade speed as follows:
1 = Low Speed
2 = Medium Low Speed
3 = Medium Speed
4 = Medium High Speed
5 = High Speed
6 = Extra High Speed
Figure 22
2. The " " button:
This button turns the fan motor o and is also used in the program procedure.
3. The " " and " " button:
The " " button turns the upper light ON or OFF and also controls the
brightness setting on some models. The " " button turns the bottom light
ON or OFF and also controls the brightness setting.
Press and hold either button to set the desired brightness level. The next time
you turn the light on, the system will remember this setting.
Press and release either button to turn the light ON or OFF.
Figure 23
4. The " " button is used to set the fan in forward or reverse operation.
Each time you press this button the fan blades will reverse direction. This
button functions ONLY when the fan blades are in motion.
OPERATIONAL NOTE: Each time you start the blades rotating, at any
speed or reverse the direction of the blades the Control System
will do a “Self Check” to insure operational integrity. The blades will rotate
slowly a short distance (¼ turn), pause, change directions, rotate ¼ turn, then
build up RPM'S to the selected speed. This is a perfectly normal procedure
and insures normal operating performance.
Motor Off Button
Light Control Buttons
Forward/Reverse
Button
Speed Buttons
Fig. 21
Fig. 22
Fig. 23

60" FERRONTM | 17
Fig. 24
Fig. 25
INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
NOTE: All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
Select a location to install your CoolTouch™ Control System
Transmitter. You can replace an existing wall switch or, install the
transmitter on ANY flat surface.
Option 1: Install the control system using an existing wall switch
outlet box. Make sure the electrical power is TURNED OFF at the
main panel before continuing.
NOTE: Switch installation must comply with all local and national
electric code.
Step 1. Remove the existing wall plate and the old switch from the
wall outlet box. Wire nut the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 24)
Step 2. Install the metal plate and CoolTouch™ wall plate to the
existing wall outlet box with 4 screws provided. Then place the two
plastic plugs into the wall plate. (Fig. 25)
Option 2: Install the control system on ANY flat surface.
Select the desired location and use the CoolTouch ™ wall plate to
mark the location for the mounting holes. Use the dry wall anchors
and/or screws provided and finish the installation.
Wall plate
Switch
Outlet box
Screws
Screws
Plastic plugs
CoolTouch™ wall plate
Outlet box Metal plate

18 | KICHLER.COM
INSTALLING THE TRANSMITTER

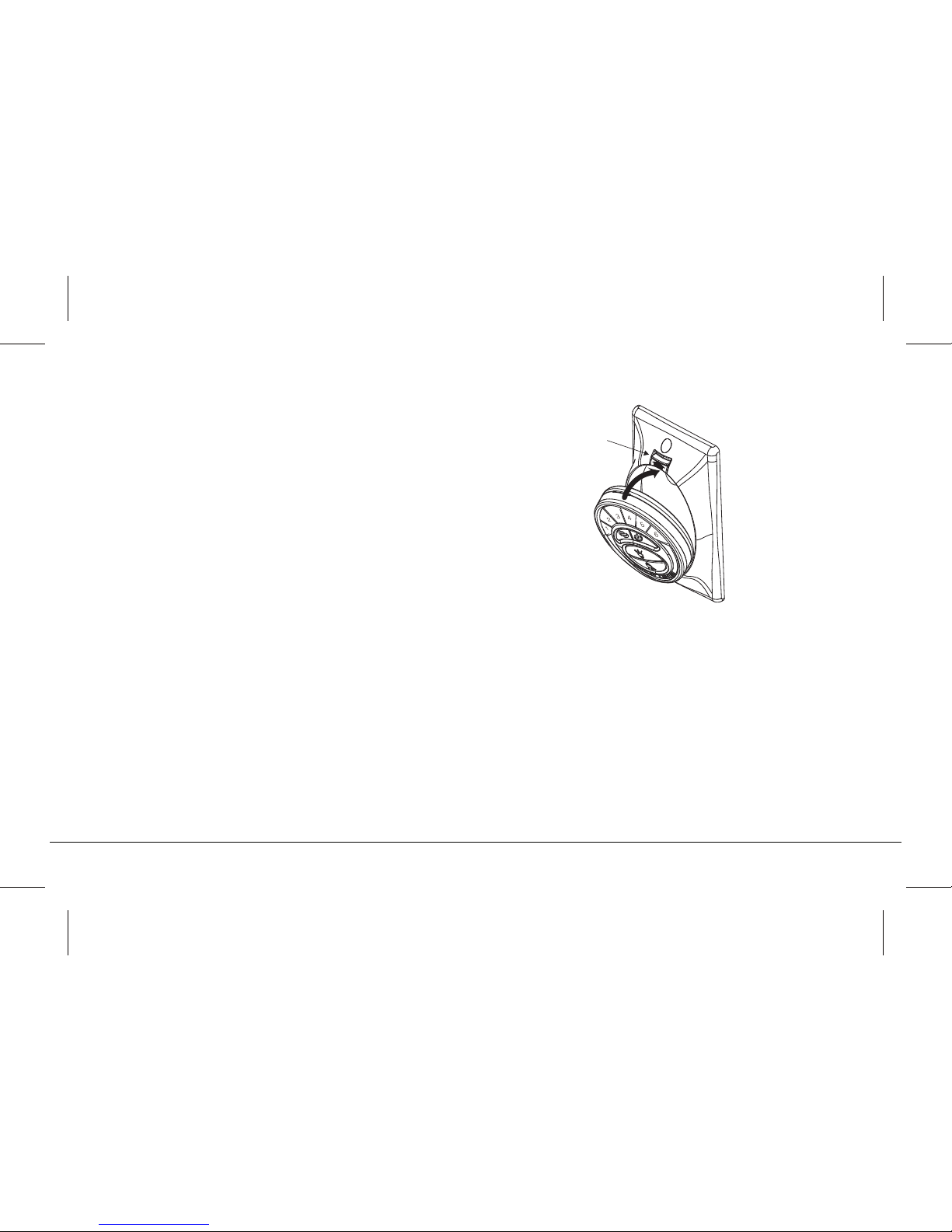

1. Insert the transmitter into the wall plate by inserting the bottom of the
transmitter first and then press the top of the transmitter into the
pocket. The transmitter will fully function from this location or you can
remove the transmitter and use as a "Hand Held" device. (Fig. 26)
2. To remove the transmitter from the wall plate, push the release
button and the transmitter will fall into your hand.
Release button
Fig. 26

Fig. 27
Fig. 28
NOTE: Please remember your control system is an RF (Radio
Frequency) control system. You may occasionally experience
control problems because of other radio frequency interference, i.e.
fan turns o, light turns o or won't turn on, speed changes, etc. If
this should happen, just change the “Control Frequency” by turning
the power o and repeating steps 1 through 6 under System
Programming.
Speed settings for warm or cool weather depend on factors such as
the room size. Ceiling height, number of fans and so on.

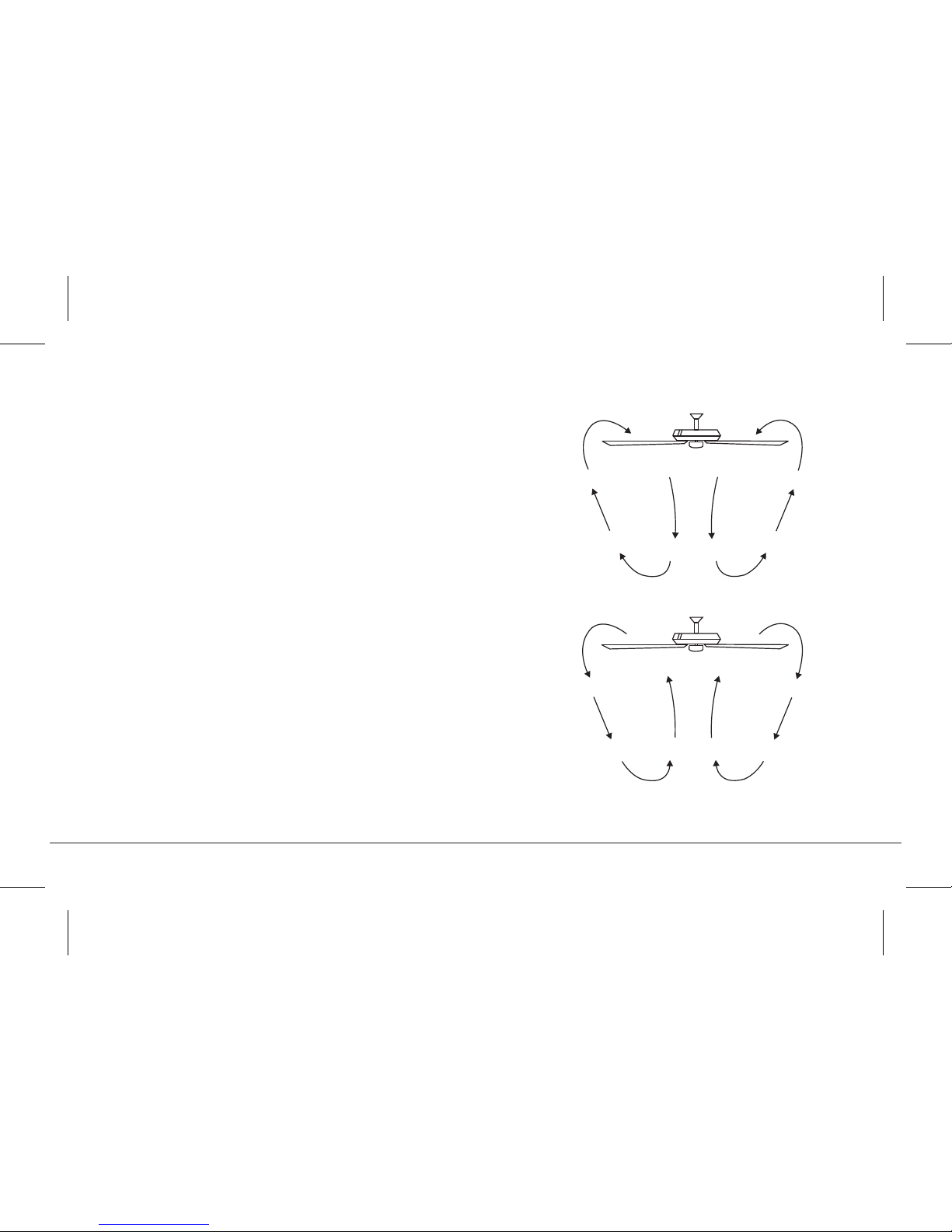

Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 27. This allows you to set
your air conditioner on a warmer setting without aecting your
comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
air o the ceiling area as shown in Fig. 28. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
OPERATING INSTRUCTIONS
60" FERRONTM | 19

20 | KICHLER.COM
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION:
Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are not compatible with ceiling fan motors or
remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a
basic On/O wall switch, if desired.
TROUBLESHOOTING
