Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
Sutter PlaceTM Select
A Kichler®Select™ ceiling fan

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.

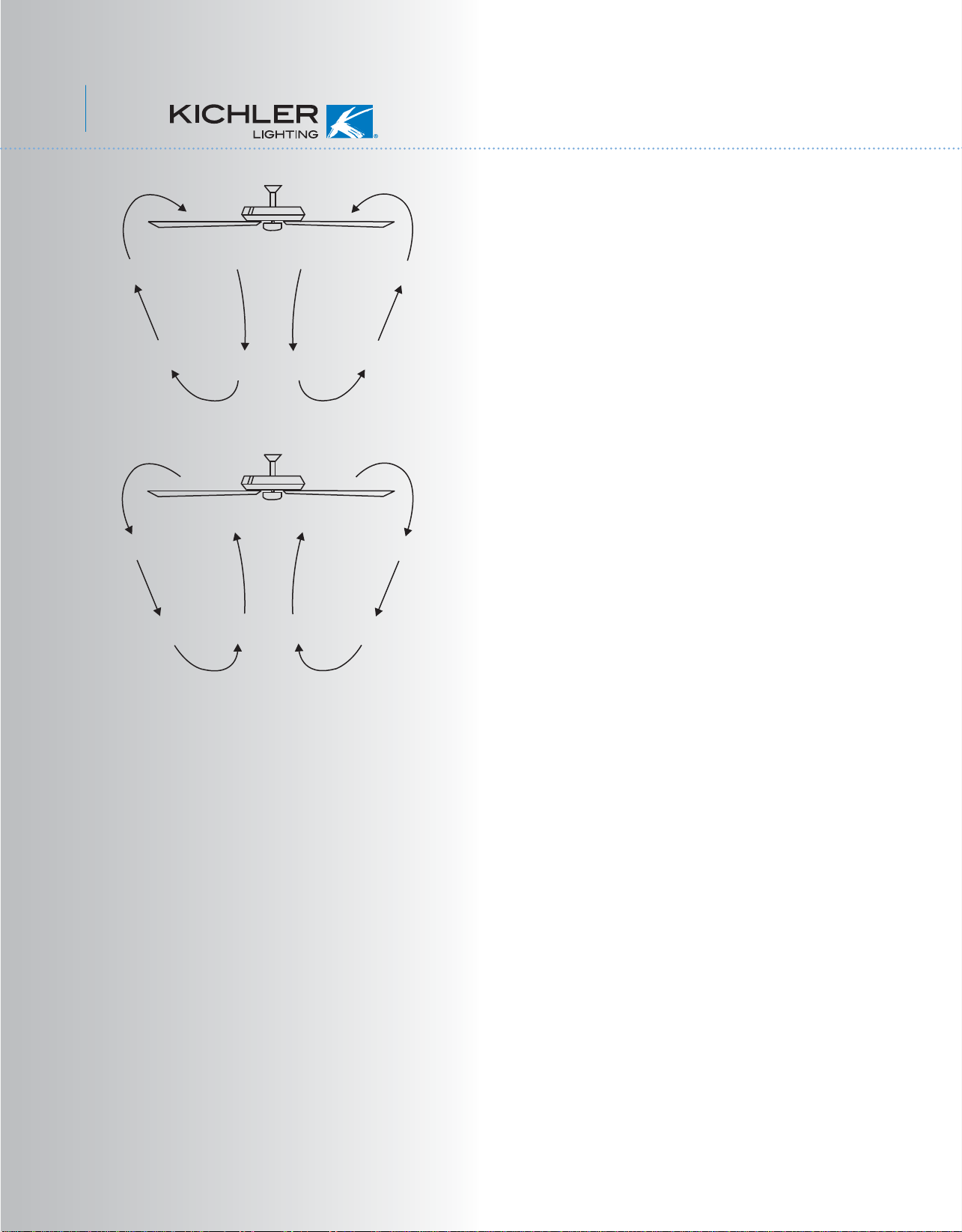

7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET
BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

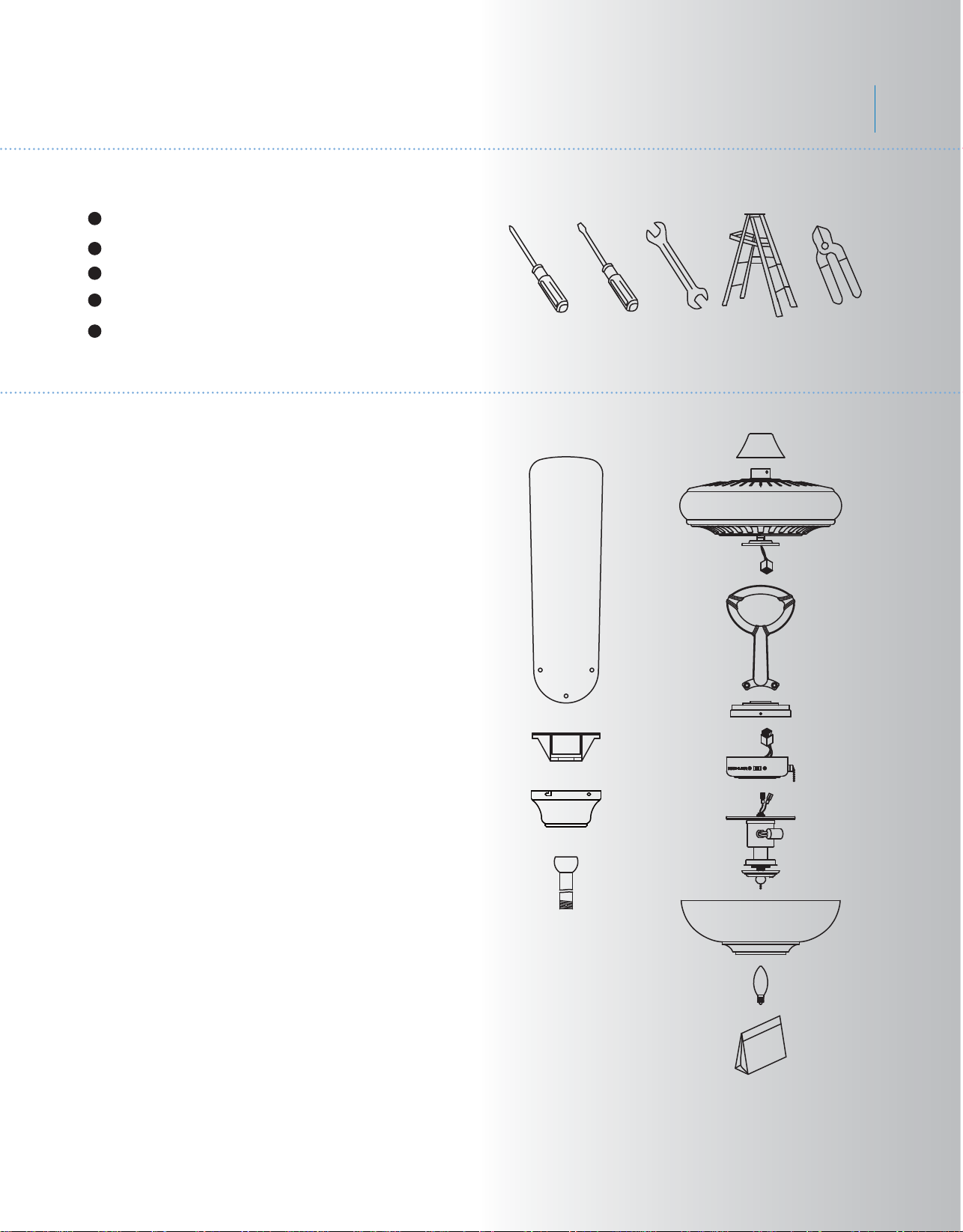

3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Ceiling mounting bracket
c. Canopy
d. Ball/downrod assembly
e. Coupling cover
f. Fan motor assembly
g. Set of 5 blade brackets and Pre-Installed
mounting screws
h. Mounting plate
i. Switch housing
j. Light kit
k. Glass shade
l. 3, 40 Watt E-12, B10 Candelabra lamps
m. Part bag contents
1) Mounting hardware :
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Blade attachment hardware:
screws (17), washers (17),
fiber washers (17)
3) Safety cable hardware:
wood screw, lock washer, flat washer
4) Pull chains and fobs (2)
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
f
g
h
i
j
k
l
m
2
Sutter PlaceTM Select

4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Fig 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE
3

4
Fig. 7
Fig. 6
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
UL Listed
outlet box
120V Wires
Washers
Fig. 5
Supply wires
Downrod
Retaining pinHitch pin
Set screws
Coupling
Set screws
Canopy
Coupling cover
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; a downrod and
canopy mounting system and a "close to
ceiling" Canopy ONLY system. The "close-to-
ceiling" installation is recommended in rooms
with less than 8-foot ceilings or in areas where
additional space is desired from the floor to the
fan blades. Once you have selected which
mounting system you will use, proceed with
the following instructions. Where necessary,
each section of the instructions will note the
different procedures to follow for the two types
of mounting.
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.

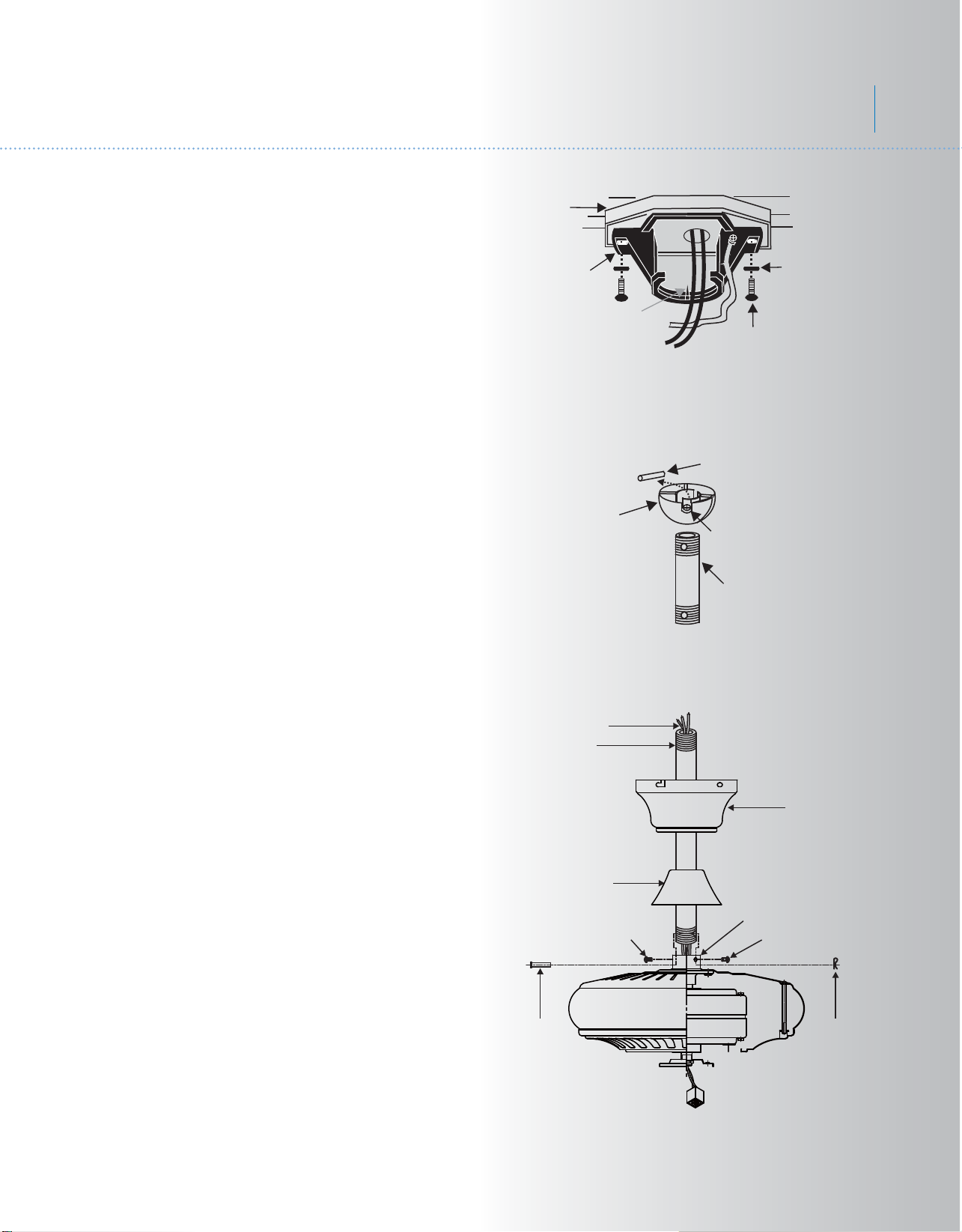

Step 1. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig. 5)
Step 2. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 5)
Step 1. Remove the hanger ball from the
downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off
the rod. (Fig. 6)
Step 2. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 7)
Step 3. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 7)
5. HANGING THE FAN
STANDARD CEILING INSTALLATION
Downrod
Cross pin
Hanger
ball Set screw
Sutter PlaceTM Select

5
Fig. 11
Fig. 10
Fig. 8
Fig. 9
Registration slot
Check tab
Step 4. Slip the coupling cover and the canopy
onto the downrod as Figure 7.
Thread the hanger ball onto the downrod,
insert the cross pin previously removed from
the ball/downrod assembly through the
downrod and tighten. Now tighten the set
screw previously loosened. (Fig. 6)

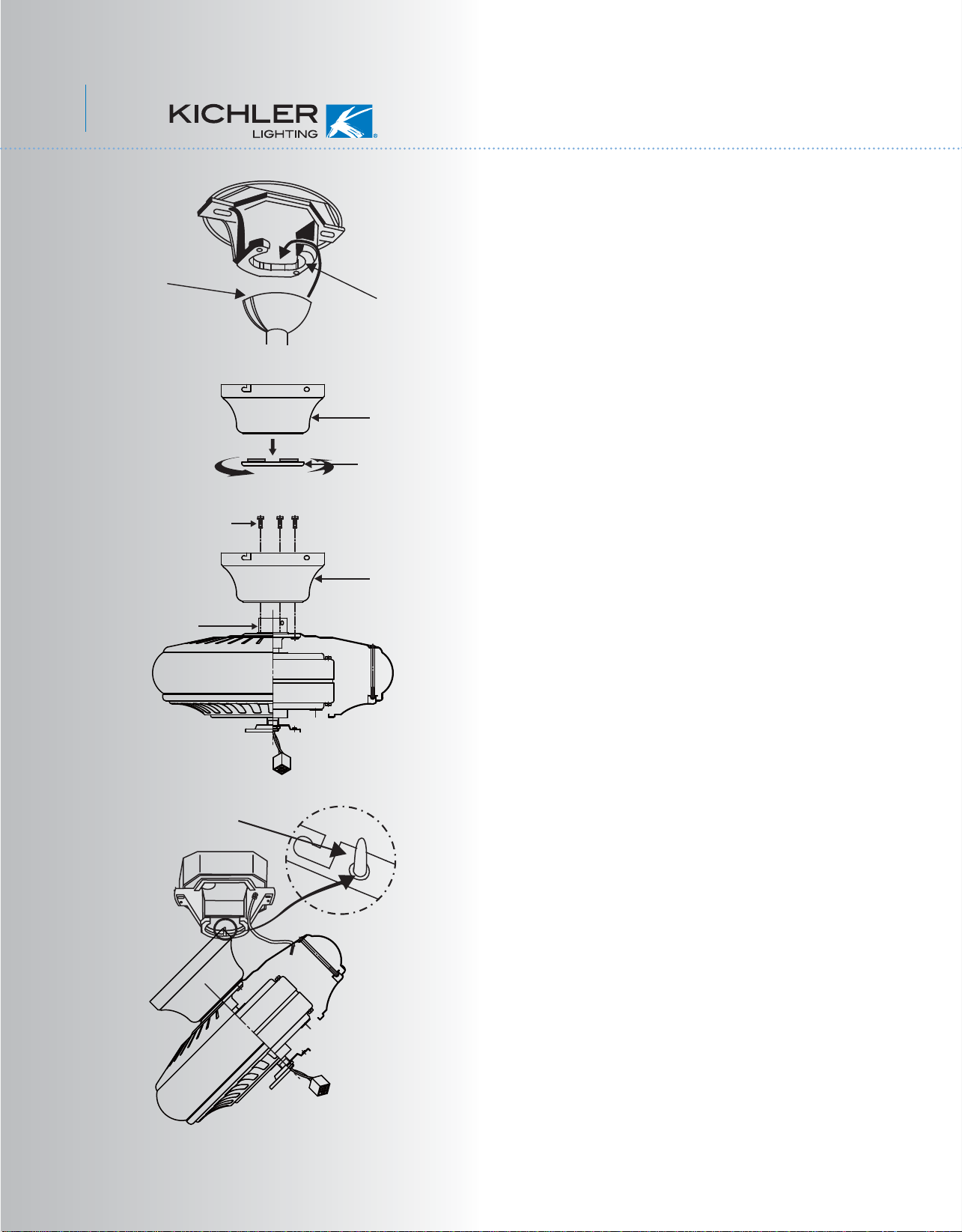

Step 5. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket. (Fig. 8)
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 8)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to properly seat the
"Check Tab" can damage the ceiling fan
during operation.
Step 1. Remove the decorative canopy cover
from the canopy. (Fig. 9)
Step 2. Remove three of the six screws and
lock washers (every other one) from the
coupler on top of the motor assembly. Place
the ceiling fan canopy over the coupler and
align the mounting holes with the holes in the
coupler. Attach the canopy with the three
screws and lock washers previously removed.
(Fig. 10)
WARNING: Failure to completely tighten the
three mounting screws in step 10 could result
in the fan possibly falling from the ceiling.
Step 3. Hang the fan on the ceiling mounting
bracket by inserting the hook on the inside
edge of the ceiling mounting bracket through
one of the screw holes in the ceiling canopy
(Fig. 11). This will allow you to have both
hands free to make the wiring connections.
Canopy
Canopy
Canopy cover
Screws and Lock washers
(3 of 6 places)
Coupling
CLOSE-TO-CEILING INSTALLATION
Hook

6
Fig. 12
7. ELECTRICAL CONNECTIONS
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please
install it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 12)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and
under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer
Fig. 13
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire connecting
nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there
are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown in Figure 13.
Step 2. Connect the neutral fan (white) wire to
the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to
the household ground wire.
Step 4. After connecting the wires, spread them
apart so that the green and white wires are on
one side of the outlet box and the black and
blue wires are on the other side.
Step 5. Turn the connecting nuts upward and
push the wiring into the outlet box.
BLK
BLUE
BLK
WH
WH
GRN
Wiring
box
Ground to
mounting
bracket
or downrod
Power lines 120v
Green ground
Sutter PlaceTM Select

Fig. 15
Fig. 14
Outlet box
Ceiling mounting
bracket
Canopy
Screws
Screws
Screws
Screws
Outlet box
Ceiling mounting
bracket Hook
Canopy
CLOSE-TO-CEILING INSTALLATION
CLOSE-TO-CEILING INSTALLATION
Step 1. Tuck all the wire connections neatly
above the receiver and into the ceiling outlet
box.
Step 2. Remove the fan from the hook on the
ceiling mounting bracket. Attach the fan
assembly to the ceiling mounting bracket
using 4 screws at the top edge of the
mounting bracket.
Align the keyhole slots on the canopy with the
mounting screw heads on the sides of the
mounting bracket. Lift up and turn the fan
assembly until the heads of the mounting
screws are in the narrow end of the keyhole
slots.
Step 3. Make sure all four mounting screws
are tight. (Fig. 15)
8. FINISHING THE INSTALLATION
STANTARD CEILING INSTALLATION
STANTARD CEILING INSTALLATION
Step 1. Tuck all the connections neatly into the
ceiling outlet box.
Step 2. Slide the canopy up to ceiling and
attach the canopy to the ceiling mounting
bracket using 4 screws at the top edge of the
mounting bracket. Insert each screw through
the canopy mounting hole and into the
mounting bracket. Tighten all screws securely.
(Fig. 14)
7

8

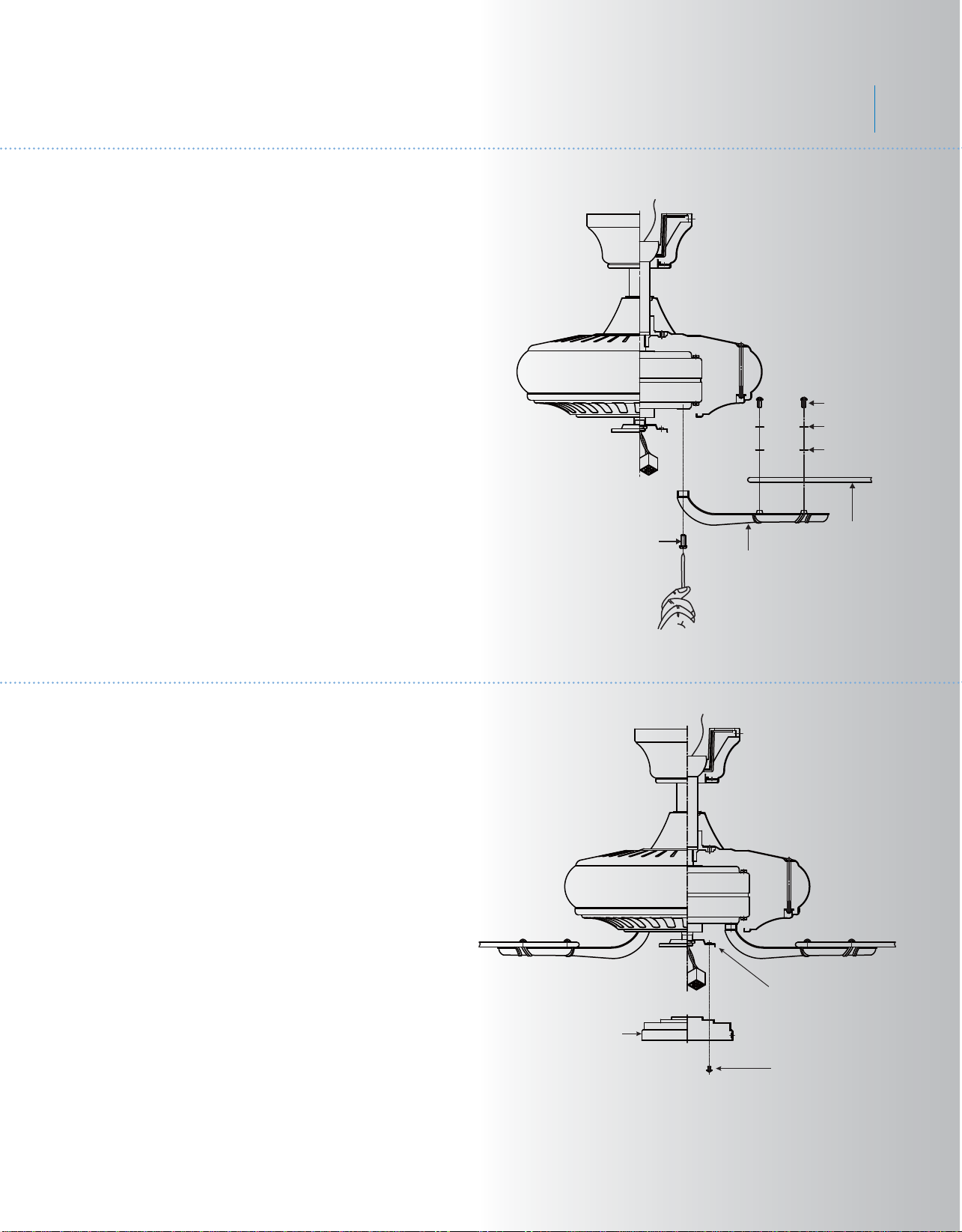

9. ATTACHING THE FAN BLADES
Fig. 16
Fig. 17
10. INSTALLING THE MOUNTING PLATE
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor.
These blocks keep the motor from shifting
during shipping and MUST be removed during
installation.
Step 1. Attach a blade to a blade bracket using
the screws, metal washers and fiber washers
provided. (Fig. 16)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw until the fiber washer is slightly
compressed. Repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using the "Pre-Installed" mounting
screws in the blade bracket. (Fig 16)
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 17)
Step 2. Place the key hole slots on the
mounting plate over the two screws previously
loosened on the mounting ring.
Turn the mounting plate until is locks in place
at the narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
Screws Blades
Blade brackets
Screws
Washers
Fiber
washers
Mounting plate
Mounting ring
Screws
Sutter PlaceTM Select

9
Fig. 18
Fig. 19
Light fixture
Wire connectors
Switch housing
Nut
Lock washer
Plug
11. INSTALLING THE LIGHT FIXTURE
1. Remove the plastic plug from the center of
the switch housing. Attach the light fixture to
the switch housing by feeding the light fixture
wires (black & white) through the hole in the
center of the switch housing, then screw the
light fixture stem into the center hole. On the
inside of the switch housing, place a lock
washer and a nut on the light fixture stem and
tighten. (Fig.18)
2. Locate the white and blue wires inside the
switch housing labeled FOR LIGHT.
Attach the wires from the light fixture to the
wires inside the switch housing by pushing the
polarized connections together. (Fig.18)
- White wire to White wire
- Black wire to Blue wire
3. While holding the light fixture/switch housing
assembly under your ceiling fan, push the
square wire connectors together. One from the
fan and one from the switch housing. (Fig.19)
NOTE: These connectors are color coded and
will ONLY engage when the colored strips are
matched (aligned).
4. Carefully push all the wires into the switch
housing on the light fixture/switch housing
assembly.
Attach the light fixture/switch housing
assembly to the mounting plate with the
screws provided. Make sure each screw is
tight. (Fig. 19)
Light fixture/
switch housing
assembly
Mounting plate
Wire connector
Screws

Fig. 20
10

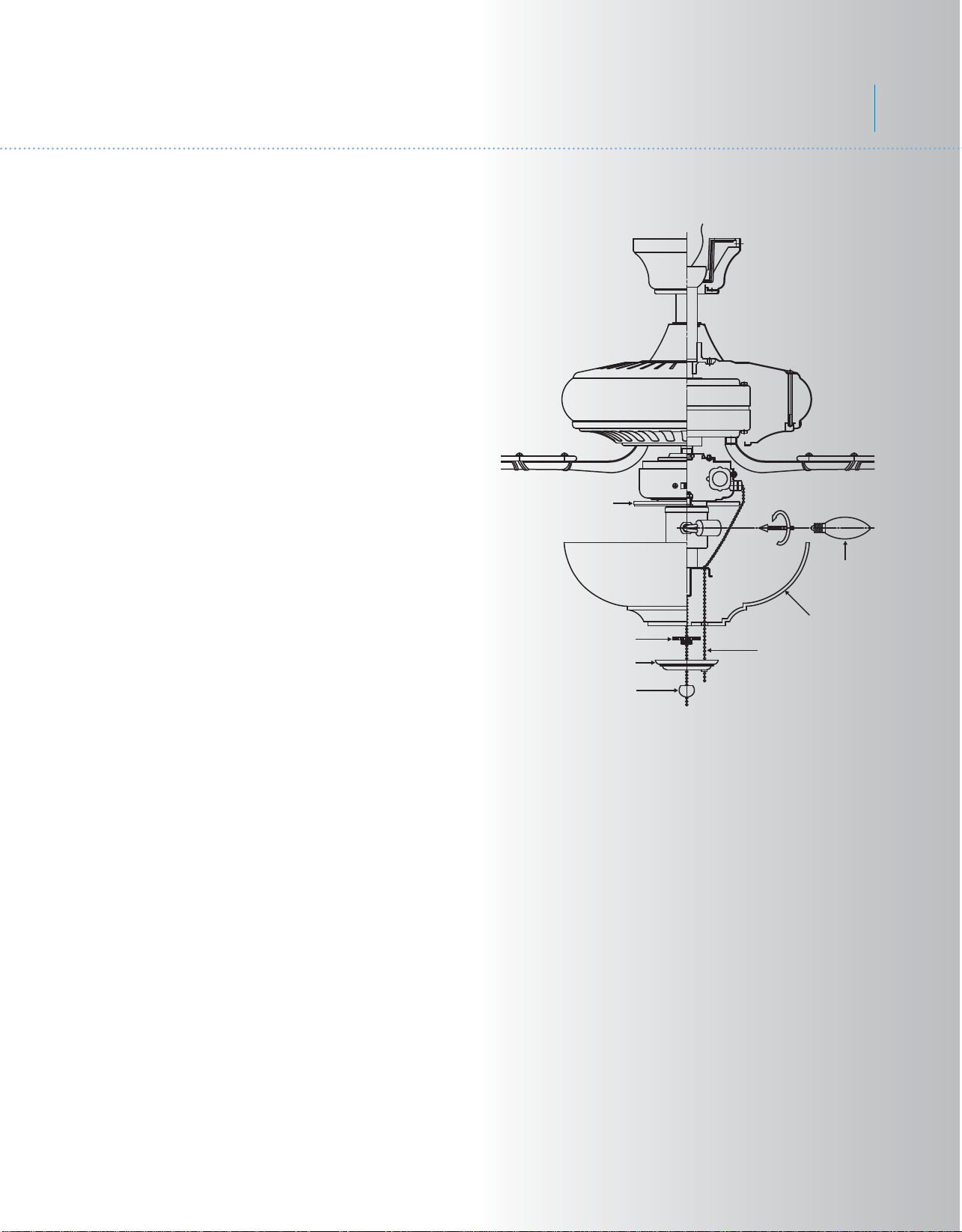

12. INSTALLING THE LAMPS AND
GLASS SHADE
1. Install 3, 40 Watt, E-12 Candelabra lamps
(included).
2. Remove the decorative nut, glass cap and
metal nut from the light fixture stem. Slip the
beaded pull chain into the outside hole in the
glass shade then feed the beaded pull chain
from thelight fixture stem through the eyelet in
the shade. Now place the glass shade over
the light fixture stem. Secure the shade with a
metal nut (rubber side touching the shade).
(Fig. 20)
3. Fit the decorative cap onto the light fixture
stem and then slip the beaded pull chain from
switch housing through the hole on the side of
the decorative glass cap. Feed the beaded pull
chain from the light fixture stem through the
hold in the decorative nut and thread the
decorative nut on securely. DO NOT OVER
TIGHTEN.
4. Attach two pull chain fobs to each of the
beaded pull chains. (Fig. 20)
Note: Make sure to leave enough space
between the fan pull chain and the lamps so
the chain doesn't rub against any of the lamps.
Sutter PlaceTM Select
Light fixture
lamps
Glass shade
Metal nut
Decorative glass cap Beaded pull chain
Decorative nut

Fig. 21
Fig. 22
13. OPERATING INSTRUCTIONS
Turn the power on and check the operation of
your ceiling fan.
The "center" pull chain turns the light fixture
On and Off.
The "outside" pull chain controls the 3 speeds
of your ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low
and the 4th pull turns the motor off.
The Black Slide Switch on the side of the
switch housing controls the direction of the
blades "Forward and Reverse".
Warm weather - Forward (counter clockwise)
A downward airflow creates a cooling effect as
shown in Fig. 21. This allows you to set your
air conditioner on a warmer setting without
affecting your comfort.
Cool weather - Reverse (clockwise)
An upward airflow moves warm air off the
ceiling area as shown in Fig. 22. This allows
you to set your heating unit on a cooler setting
without affecting your comfort.
11

15. SPECIFICATIONS
2.33'
8.45
kgs 9.45 kgs
0.49
0.35
0.20
59.0
28.0
9.50
160
113
62
4500
3196
1602
RPM CFM
76
114
169
CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts Amps Watts
High
Medium
Low
These are approximate measures. They do not include Amps and Wattage used by the light fixture.
14. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check that all fuses or circuit breakers are installed or in the ON position.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Make sure the light bulbs are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed
controls. If you have installed this type of control, choose and install another
type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO
INUSRE THE PROPER OPERATION OF YOUR CEILING FAN. NEVER
ATTACH THE BLADE ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN
MOUNTING ON THE CEILING. DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING OR CLEANING THE FAN. DO NOT INSERT
FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
12
Sutter PlaceTM Select
