Instruction Manual
A Kichler
®
Décor
™
ceiling fan
56” Ellys
HIGH
EFFICIENCY
DC
MOTOR

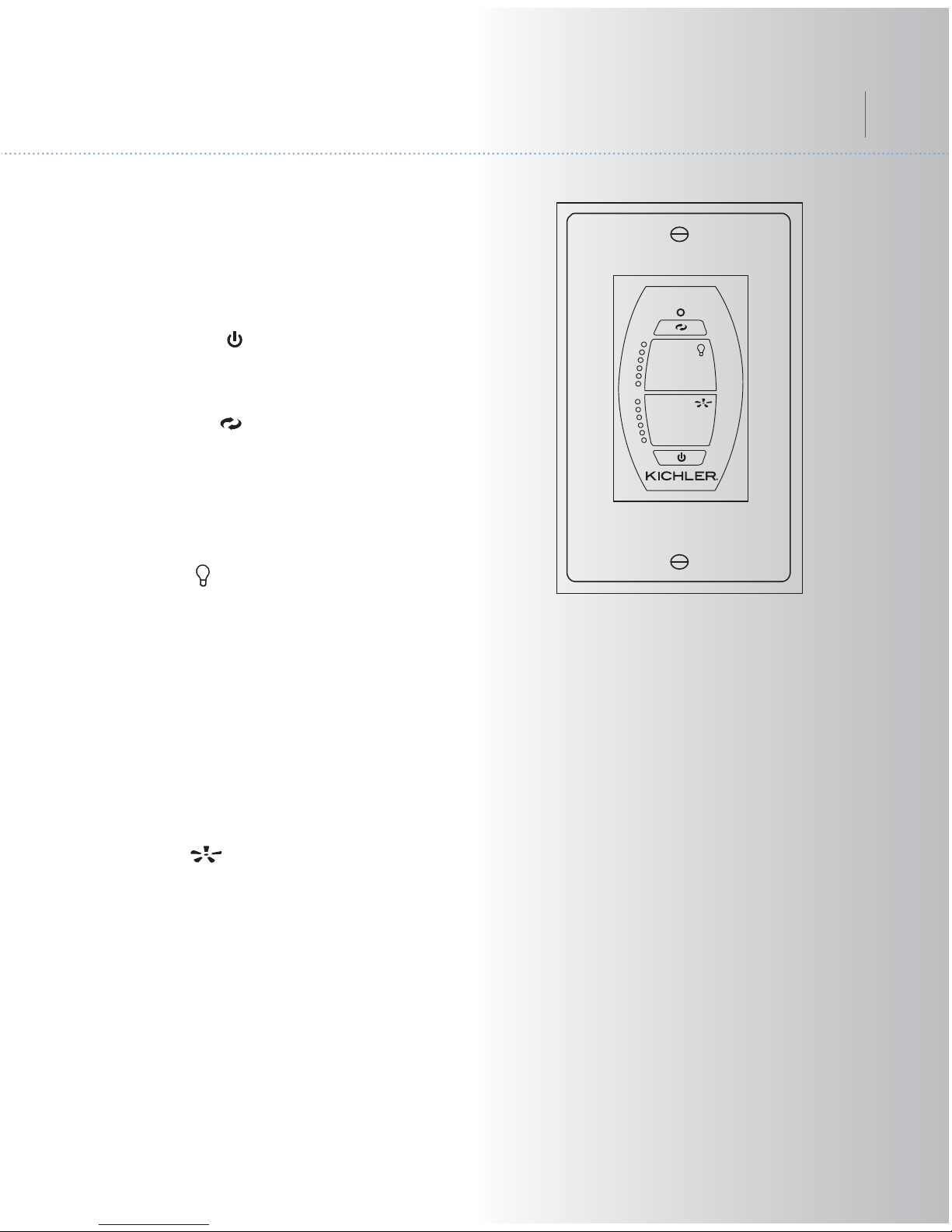

6 Speed DC Wall Control System

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.
1
1. SAFETY RULES

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (7)
b. Ceiling mounting bracket
c. Canopy
d. Ball/downrod assembly
e. Coupling cover
f. Fan motor assembly
g. Light plate
h. 16W LED light kit
i. Glass shade
j. Wall Transmitter
k. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
screws (23),
fiber washers (23)
3) Blade bracket attachment hardware:
screws (2)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
56" Ellys
j
k
g
h
i
a
b
c
d
e
f

3
4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE

4
56" Ellys
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set
screw, unscrewing and removing removing
the cross pin and unscrewing the ball off the
rod. (Fig.7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)
5. HANGING THE FAN
Fig. 6
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
CUL Listed
electrial
box
120V Wires
Washers
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
Fig. 5
Hanger bracket
Ceiling
canopy
Canopy
cover

5
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats rmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan
to fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Fig. 9
Fig. 10
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining
clip
Coupling cover

Fig. 11
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and
under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer
6
56" Ellys

7
Fig. 12
SUPPLY CIRCUIT
BLACK
BLACK
BLACK BLACK
Ground Conductor
Outlet Box
Green Ground Lead
Ground to Downrod
GREEN
WHITE WHITE
Fan RECEIVER
7. ELECTRICAL CONNECTIONS
WARNING: Carefully read and retain this
Instruction Manual for future reference.
WARNING:To avoid possible electrical shock,
be sure the electricity is turned off at the main
panel by removing the fuse or opening the
circuit breaker.
WARNING:This control switch is designed for
use with "DC Motor Ceiling Fans" ONLY. DO
NOT use with any other type of electrical
appliance.
WARNING:All wiring must conform to national
and local electrical codes. If you feel you do not
have enough electrical knowledge, have a
licensed electrician install the control.
WARNING:The amperage for your fan should
not exceed 1A. The total wattage for the lights
300W.
Make each of the wire connections illustrated
in Figure 3. Secure each with the wire nuts
provided. (Fig. 12)
Step 1. Black wire going to the fan (motor) to
the Black wire from the Switch. (Fig. 12)
Step 2. In the Ceiling Outlet Box, connect the
White (neutral) wire coming from the Fan to
the White (neutral) wire from the Household
Supply. (Fig. 12)
Step 3. Connect the Black (AC IN L) from the
switch to the Black wire going to the
Household Supply. (Fig. 12)
Step 4. If your ceiling outlet box has a ground
wire (green or bare copper) connect it to the
ground wire from the ceiling fan and/or the
ceiling mounting bracket. (Fig. 12)

8
56" Ellys
Fig. 13
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
8. FINISHING THE INSTALLATION
Step 1. Tuck all the connections neatly into the
ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots over
the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in
place at the narrow section of the key hole.
See figure 13.
Step 3. Align the remaining circular hole on the
canopy with the remaining hole on the Ceiling
Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the
mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting screw
heads by inserting the screw heads into the
bottom side of the canopy cover and rotating
the cover clockwise.
NOTE: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 13)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly seated
in the "Registration Slot" on the side of the
hanger ball before attaching the canopy to the
bracket. Failure to properly seat the "Check
Tab" could damage the electrical wires when to
ceiling fan blade direction is changed while the
fan is running.

9
9. ATTACHING THE FAN BLADES
Insert the blade through the blade slot in the
motor housing. Align the holes in blade and
blade bracket, making sure the holes are also
aligned and secure with the screws, fiber
washers and blade support plates provided.
Repeat process with other blades. (Fig. 14)
10. INSTALLING THE LIGHT PLATE
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 15)
Step 2. Place the key hole slots on the light
plate over the two screws previously loosened
on the mounting ring.
Turn the light plate until is locks in place at the
narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
Fig. 14
Fig. 15
Blades
Slot
Screws
Fiber
washers
Mounting ring
Screws
Light plate

10
56" Ellys
11. INSTALLING THE LED LIGHT KIT
AND GLASS SHADE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box.
Step 1. Loosen the three mounting screws on
the inside of the LED light kit. (Fig.16)
Step 2. While holding the LED light kit under
the fan motor, make the wire connections:
(Fig. 20)
- Red to white
- Black to black
Step 3. Tuck the connections neatly into the
mounting plate. Place the key holes on the
LED light kit over the 2 screws previously
loosened from the mounting plate, turn the
LED light kit until it locks in place at the
narrow section of the key holes. Secure by
tightening all three screws. (Fig.16)
Step 4. Raise the glass shade against the light
kit and turn clockwise until snug, DO NOT
OVERTIGHTEN. (Fig. 16)
Fig. 16
Screws
Mounting
plate
Wire connectors
LED light kit
Glass shade

11
Fig. 17
12. CONTROL SYSTEM SET-UP
Press the power button on wall control to
TURN THE POWER ON.The LED lights on the
wall control will blink thru the power up
process, approximately 3 seconds.
Within 60 seconds of powering the unit on,
Press and hold the REV/FOR button on the
wall control until the light kit blinks twice (or
for 5 seconds if no light kit). Fan will begin
operating on high speed.
DO NOT TOUCH ANY ADDITIONAL
BUTTONS FOR 5 MINUTES. The fan control
is performing the setup process necessary for
the wall control to communicate with the fan.
In approximately 5 minutes the ceiling fan will
shut off. This is your indication that the
programming process is complete and your
ceiling fan is ready for normal use.
NOTE: To purge unwanted frequency codes
in a fan receiver:
From the desired control, turn the power on to
the fan.
Within 60 seconds of powering the unit on,
press the REV/FOR button for 10 seconds.
This purges all codes in the fan receiver
leaving only one code from the control used
for this step.
DO NOT TOUCH ANY ADDITIONAL
BUTTONS FOR 5 MINUTES. The fan control
is performing the setup process necessary for
the wall control to communicate with the fan.
In approximately 5 minutes the ceiling fan will
shut off. This is your indication that the
programming process is complete and your
ceiling fan is ready for normal use.
Green Light
For/Rev switch
Light status indicator
Fan speed indicator
Power switch

12
Fig. 18
13. BUTTON INSTRUCTION
LED Indicator Red LED: Transmitter signal
indicator. When RF signal is sending, the red
light will illuminate.
Green LED: To show the Forward and
Reverse indicator.
ON/OFF button " "
ON: Turn on the power.
OFF: Turn off the power.
Reverse button " "
When the fan is running, press and release the
Reverse button one time, the fan will change
operating direction.
Downflow: Green indicator LED will be off.
Reverse: Green indicator LED will be on.
Light button " "
Press and release the Light button for light
ON/OFF control.
Light indicator LEDs will show current light
status. If the light kit is OFF, the Light
indicator LEDs are also all off. Press AND
HOLD the light button for more than 1 second
and the light kit will begin dimming. Light
indicator LED will show the change in light
level status. The light level cycles from bright
to dim and back to bright when the light
button is held.
Fan control " "
Press and release the Fan speed button for
Fan ON/OFF control.
Fan indicator LED will illustrate the current fan
speed. If the fan is OFF, the fan speed
indicator LEDs will also be OFF. Press and
hold Fans speed button for more than
1second to begin adjusting the fan speeds.
The indicator LEDs will shows the current
speed level. The fan speed adjustments adjust
in a repeat cycle when the speed button is
held down. The speeds adjust from High to
Low, then back up to High.
56" Ellys

13
14. INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE
Select a location to install the Wall Control
System Transmitter and Wall Plate.
REMEMBER also this should state that the
control is not to be mounted outdoors. You
can safely use the transmitter outdoors but it
should be mounted indoors away from excess
heat and away from contact with water or
humidity.
Install the wall plate using an existing wall
switch outlet box. Make sure the electrical
power is TURNED OFF at the main panel
before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 19)
Step 2. Install the wall plate on the existing
wall outlet box using the screws provided.
(Fig. 20)
After installing the wall anchors, attached the
wall plate with the mounting screws to finish
the installation.
Fig. 20
Fig. 19
Wall plate
Switch
Outlet box
Screws
Outlet box
Screws
Wall plate
Switch

14
Fig. 21
Fig. 22
15. OPERATING INSTRUCTIONS
Warm weather - Forward (counter clockwise)
A downward airflow creates a cooling effect
as shown in Fig. 21. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - Reverse (clockwise) An
upward airflow moves warm air off the ceiling
area as shown in Fig. 22. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.
NOTE: To change the airflow direction of your
ceiling fan use the FOR/REV button on the
wall control transmitter.
56" Ellys

15
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
16. TROUBLESHOOTING
17. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or fixtures
attached to the ceiling fan.
13
kgs
N.W.
14
kgs
G.W.
1.90'
C.F.RPM
160
135
115
91
70
50
CFM
5964.35
4905.94
4013.87
3284.10
2526.36
1206.94
CFM/W
189
240
300
357
443
345
Fan Size
56"
120
120
120
120
120
120
Volts
0.45
0.31
0.20
0.14
0.09
0.06
Amps
31.60
20.40
13.40
9.20
5.70
3.50
WattsSpeed
Extra-High
High
Medium High
Medium
Medium Low
Low
