Kichler Lighting Surrey Climates 60 User manual

60" Surrey Climates™

TABLE OF CONTENTS
SAFETY RULES ………………………………………………………. 3
TOOLS REQUIRED ……………………………………………… 4
PACKAGE CONTENTS …………………………………………. 4
MOUNTING OPTIONS ………………………………………… 5
HANGING THE FAN ………………………………………....... 6
INSTALLATION OF SAFETY SUPPORT ……………… 8
ELECTRICAL CONNECTIONS ……………………………… 9
2
HANGING INSTALLATION ………………………………….. 10
ATTACHING THE FAN BLADES …………………………… 11
INSTALLING THE SWITCH HOUSING ………………… 12
INSTALLING THE SWITCH COVER ………………………12
INSTALLING THE FOB ……………………………………………13
TROUBLESHOOTING ………………………………………….. 14

1. To reduce the risk of electric shock, insure electricity has
been turned o at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National
Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of fire or electric shock, use
only the control provided with the fan.
4. WARNING: To reduce the risk of personal injury, use
only the two steel screws (and lock washers) provided
with the outlet box for mounting to the outlet box. Most
outlet boxes commonly used for the support of lighting
fixtures are not acceptable for fan support and may
need to be replaced,consult a qualified electrician if in
doubt.
5. To operate the reverse function on this fan, slide the
reverse switch to the opposite position.
6. Avoid placing objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the
fan.
8. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
9. After making the electrical connections, spliced conductors
should be turned upward and pushed carefully up intooutlet box.
The wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
10. Electrical diagrams are reference only.Light kits that are not
packed with the fan must be ETL Listed and marked suitable
for use with the model fan you are installing. Switches must
be ETL General Use Switches. Refer to the Instructions
packaged with the light kits and switches for proper assembly.
SAFETY RULES
60" Surrey Climates™
3
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

4

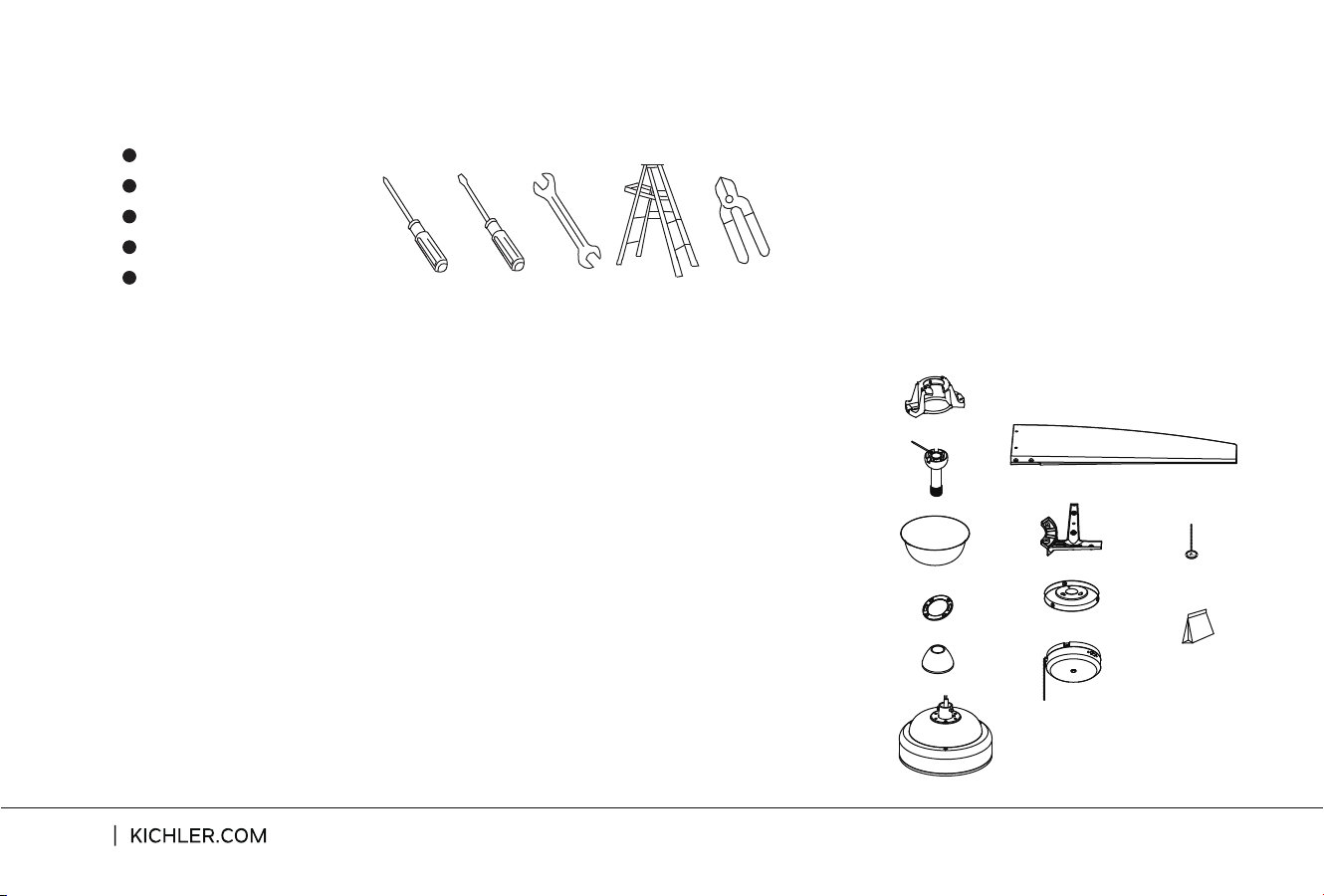

PACKAGE CONTENTS
Unpack your fan and check the contents . You should have the following items:
A. Mounting bracket
B. Downrod
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Motor Body
G. Blade (4)
H. Blade Holder (4)
I . Switch Housing
J. Switch Cover
K. Fob
Phillips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
TOOLS REQUIRED
L. Package hardware
1) Mounting hardware :
Wood screw (2) ,Flat Washer (2) , Screw (2) ,
Lock washer (2), Wire Connector (3)
2) Blade attachment hardware :
Pack AA: Screw (Long) (10), Washer (10)
Pack BB: Screw (Short) (10), Washer (10)
3) Safety cable hardware :
Wood screw (1) ,Spring washer (1), Flat washer (1)
4) Balance kit
5) Blade Holder Hardware: Screw (2)
6) Switch Housing Hardware: Screw (4)
A
B
C
D
E
F
G
H
I
J
K
L

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a “Joist Hanger” for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plane
Fig. 3
ANGLED CEILING
MAXIMUM 15° ANGLE
Outlet box
Fig. 4
60" Surrey Climates™
5

6
HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is necessary
for your safety and also the proper programming of the control system.To properly
install your ceiling fan, follow the steps below.

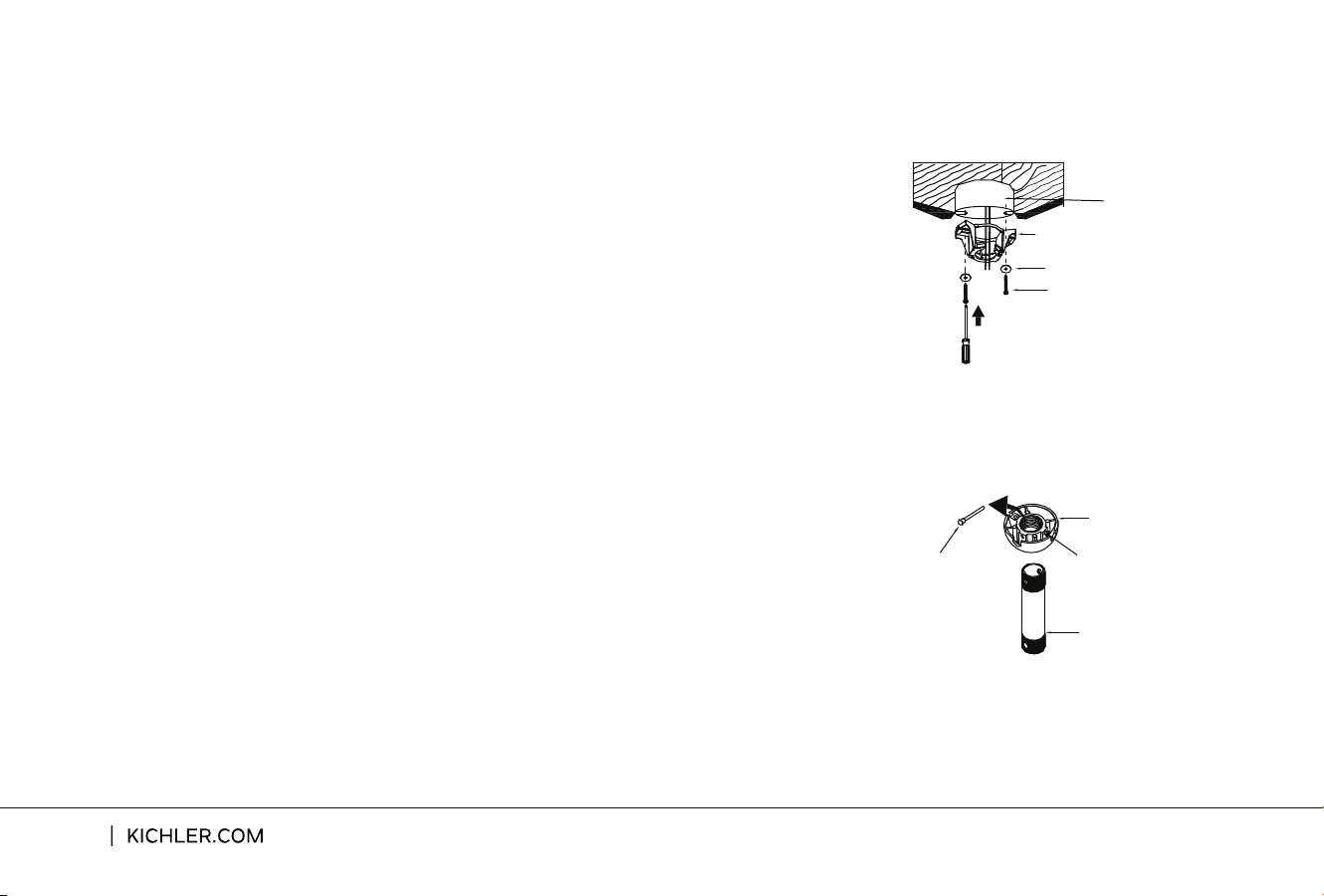

Step 1 . Before attaching fan to outlet box (not included), ensure the outlet box is
securely fastened to at least two points to a structural ceiling member (a loose box
will cause the fan to wobble). Pass the 120 volt supply wires from the ceiling outlet
box through the center of the ceiling mounting bracket. Install mounting bracket to
outlet box in ceiling using the screws and washers included with the outlet box or
screws and washers in the hardware bag. (Fig. 5)
Step 2. Remove the hanger ball from downrod assembly by loosening set screws ,
removing the cross pin, and sliding ball o the rod.( Fig. 6)
Fig. 5
Flat Washer
Screw
Ceiling Mounting Bracket
Outlet Box
Fig. 6
Downrod
Cross Pin Set Screw
Hanger Ball

Step 5
WARNING:
. Now lift the motor assembly into position and place the hanger ball into the
hanger bracket. Rotate until the "Check Tab" has dropped into the "Registration Slot "
and seats firmly. ( Fig. 9) The entire motor body should not rotate if this is done
correctly.
Failure to properly seat the "Check Tab" can damage the ceiling fan during
operation.
HANGING THE FAN

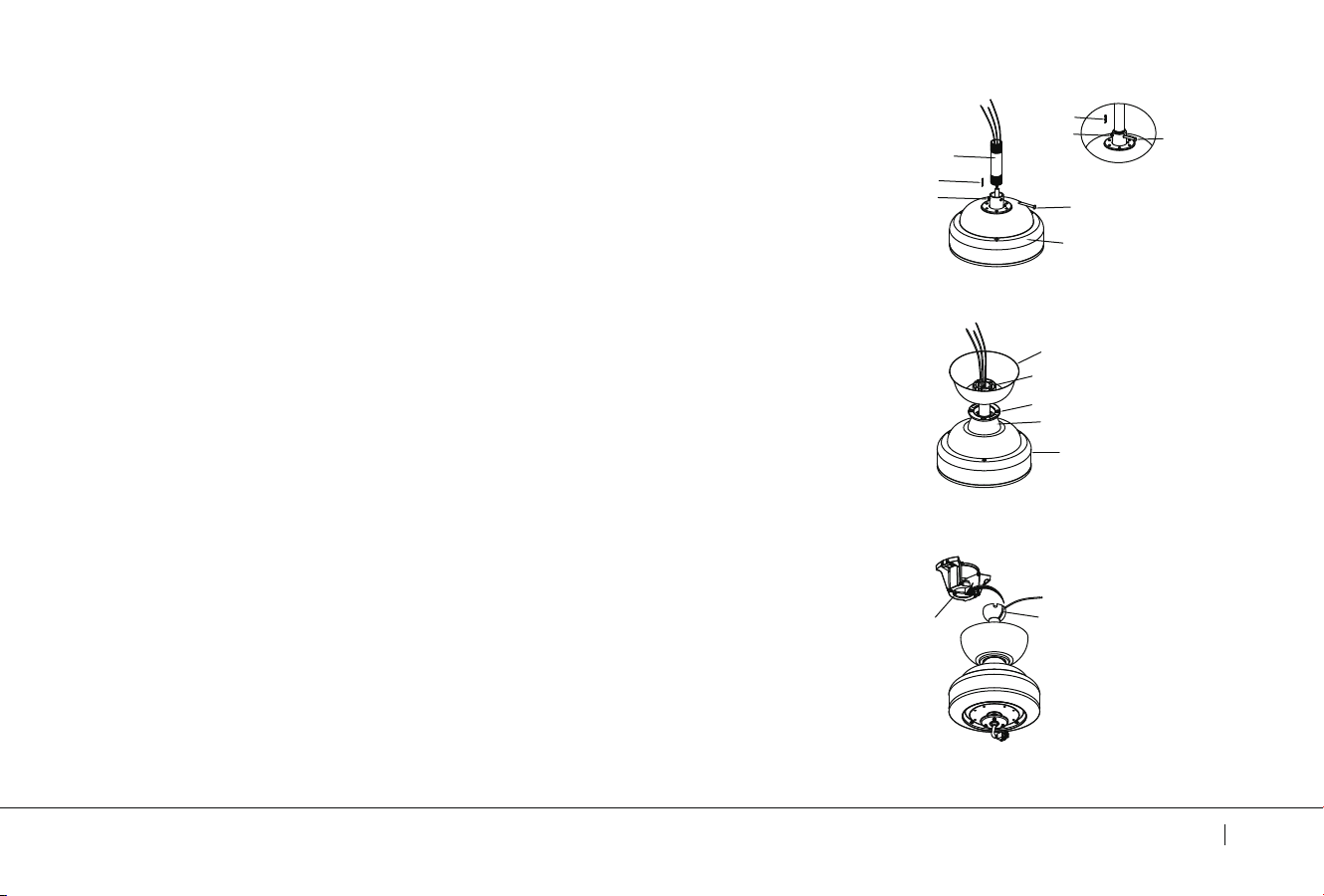

Step 4. Slip the coupling cover, canopy hole cover and canopy onto the downrod.
Carefully reinstall the hanger ball onto the downrod . Make sure the cross pin is in the
correct position and the set screw is tight and the wires are not twisted . ( Fig. 8)
Step 3. Loosen the two set screws and remove the cross pin and clip on the top
coupling of the motor body.Carefully feed the fan wires and safety cable through
the downrod. Thread the downrod onto the motor coupling until the cross pin holes are
aligned. Next, replace the cross pin and clip, and tighten both set screws. (Fig. 7)
Fig. 7
Fig. 8
Fig. 9
60" Surrey Climates™
7
Clip
Downrod
Set Screw Cross Pin
Motor Body
Set Screw
Clip
Cross Pin
Hanger Ball
Canopy Hole Cover
Motor Body
Coupling Cover
Canopy
Check Tab Registration Slot

8
Step 1.
NOTE:
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.
Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 10)
Insert the safety cable through the mounting bracket and one of the holes in the
outlet box into the ceiling. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely. (Fig. 11)
Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Step 2.
Fig. 10
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 11
Safety Cable Bolt
Wood Screw

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock,be sure you have turned o the power
at the main circuit panel before wiring. Follow the steps below to connect the fan to
your household wiring. Use the wire connecting connectors supplied with your fan. Secure
the connector with electrical tape. Make sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors other than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper wiring.
Step 1. Connect the fan supply BLACK wire and fan light supply BLUE wire to the BLACK
household supply wire.(Fig.12.)
Step 2. Connect the fan neutral WHITE wire to the household neutral WHITE wire.(Fig.12)
Step 3. Connect GROUND(GREEN) wires from mounting bracket and downrod ball, to
GROUND(GREEN) or BARE(COPPER) wire from house.(Fig.12) Fig. 12
60" Surrey Climates™
9
Green or bare copper (ground)
Blue(for light) White (Neutral)
Ground wire
Black (motor)
White (Neutral)
Black (hot)
Outlex box

10
Fig. 13
Fig. 14
NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.
Step 1. Remove one of the two shoulder screws in the mounting bracket. Loosen
the second shoulder screw without fully removing it. (Fig. 13)
Step 2. Assemble canopy by rotating key slot in canopy over shoulder screw
in mounting bracket. Reinstall the shoulder screw that was previously removed,
then retighten two shoulder screws securely.(Fig.14)
HANGING INSTALLATION
Mounting Bracket
Shoulder Screw
Shoulder Screw
Canopy

60" Surrey Climates™
11
ATTACHING THE FAN BLADES
NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.

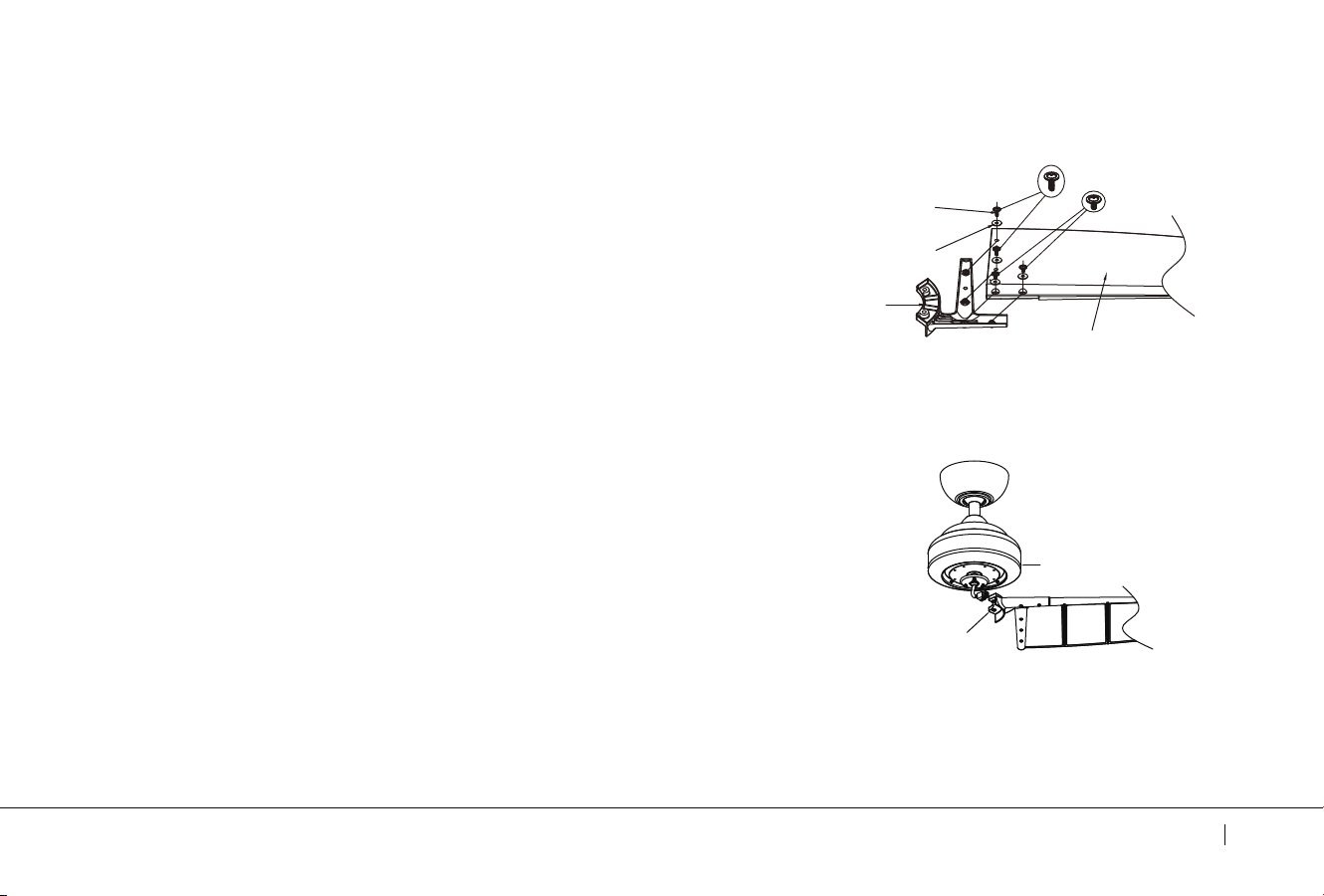

Step 1. Position one blade over one blade arm with threaded posts as shown.
Make sure the bottom edge of the blade is fully seated against the blade arm.
With a Phillips screwdriver, place (1) blade screw and (1) washer into the blade
and blade arm (do not tighten), repeat for remaining blade screws (3) and
washers (3). Tighten each screw securely. Make sure the blade installed flat.
Repeat steps for remaining blades. (Fig. 15)”
Remind: There are two kinds of blade screws (one is short and the other is long),
see Fig. 15 for details and make sure they are not misused.
Step 2. Attach one assembled blade arm to the motor hub by tightening the two
“pre-installed” motor screws in the blade arm. Repeat steps for the remaining
assembled blade arms. (Fig. 16)
Fig. 15
Fig. 16
Motor Body
Blade Assembly
Fiber Washer
Blade Screw
Blade
Blade Arm
Long(Pack AA)
Short(Pack AA)

12

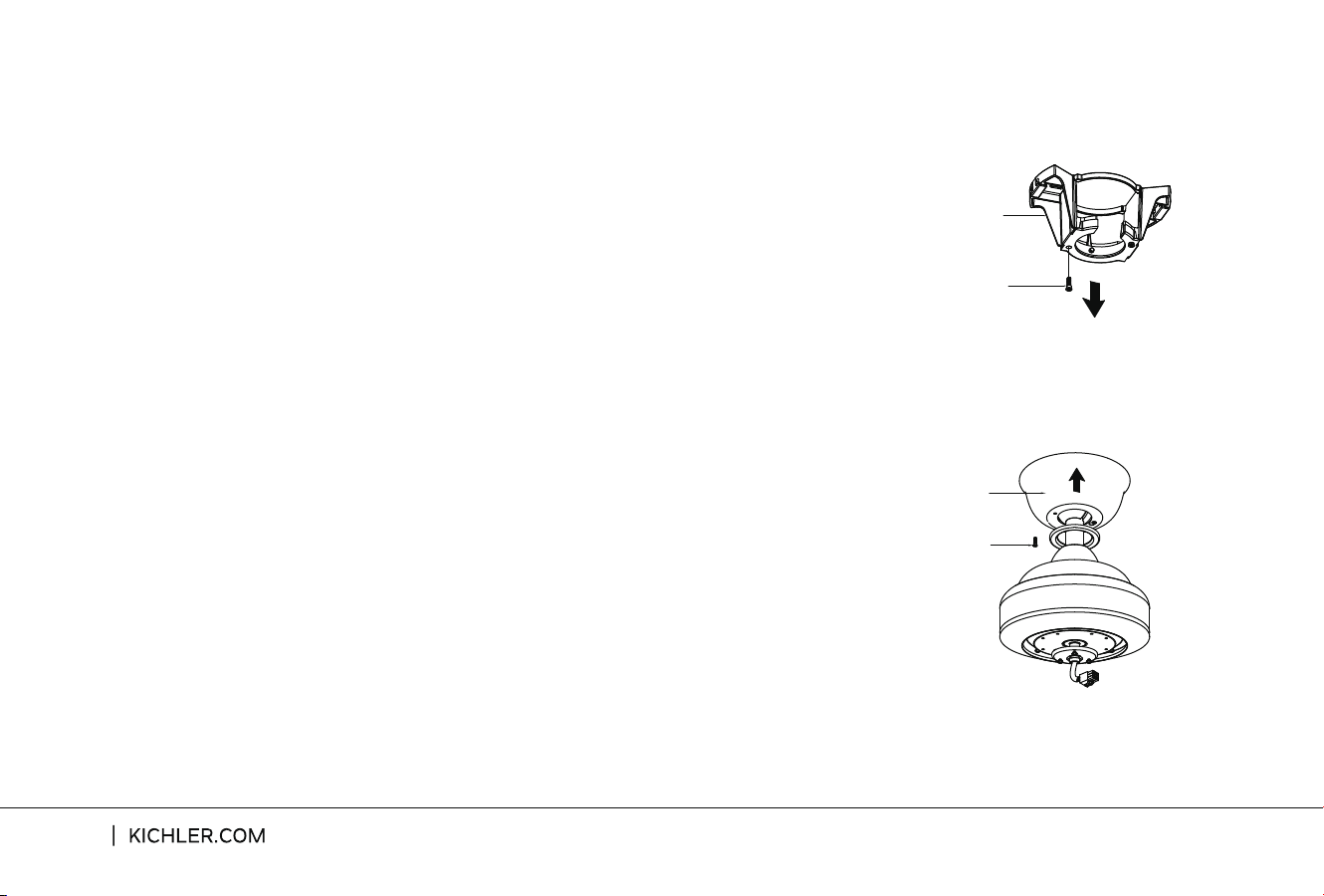

INSTALLING THE SWITCH HOUSING
Step 1. Remove one of the mounting screws preinstalled on mounting plate and keep
for later use. Loosen the other two (do not remove). Place the two slot holes on the
switch housing over the 2 screws previously loosened from the mounting plate.
Rotate the switch housing until it locks in place at the narrow end of the key holes.
Secure by tightening the 2 screws previously loosened and the one previously
removed. (Fig. 17)
Fig. 17
Screw
Switch Housing
Mounting Plate
Mounting Plate
INSTALLING THE SWITCH COVER
NOTE: Before continuing installation, confirm that the power is still turned o at the
main circuit breaker or by removing the circuit fuse. Turning the power o using a wall
switch is not sucient to prevent electrical stock.
Step 1. Hold the switch cover close to the switch housing and connect the 9-pin
connectors from switch cover and fan. (Fig. 18)
Note: The two connectors can only fit in one way with colors for identification. Match up
the colors on two connectors, then push them together until the snap engages. (Fig. 18)
Step 2. Tuck the connections neatly into the switch cover. Align three round holes on the
switch cover and switch housing. Securely tighten with 3 screws found in switch cover
hardware pack.(Fig.18) Fig. 18
Switch Cover
Screw
Switch Housing

60" Surrey Climates™
13
INSTALLING THE FOB

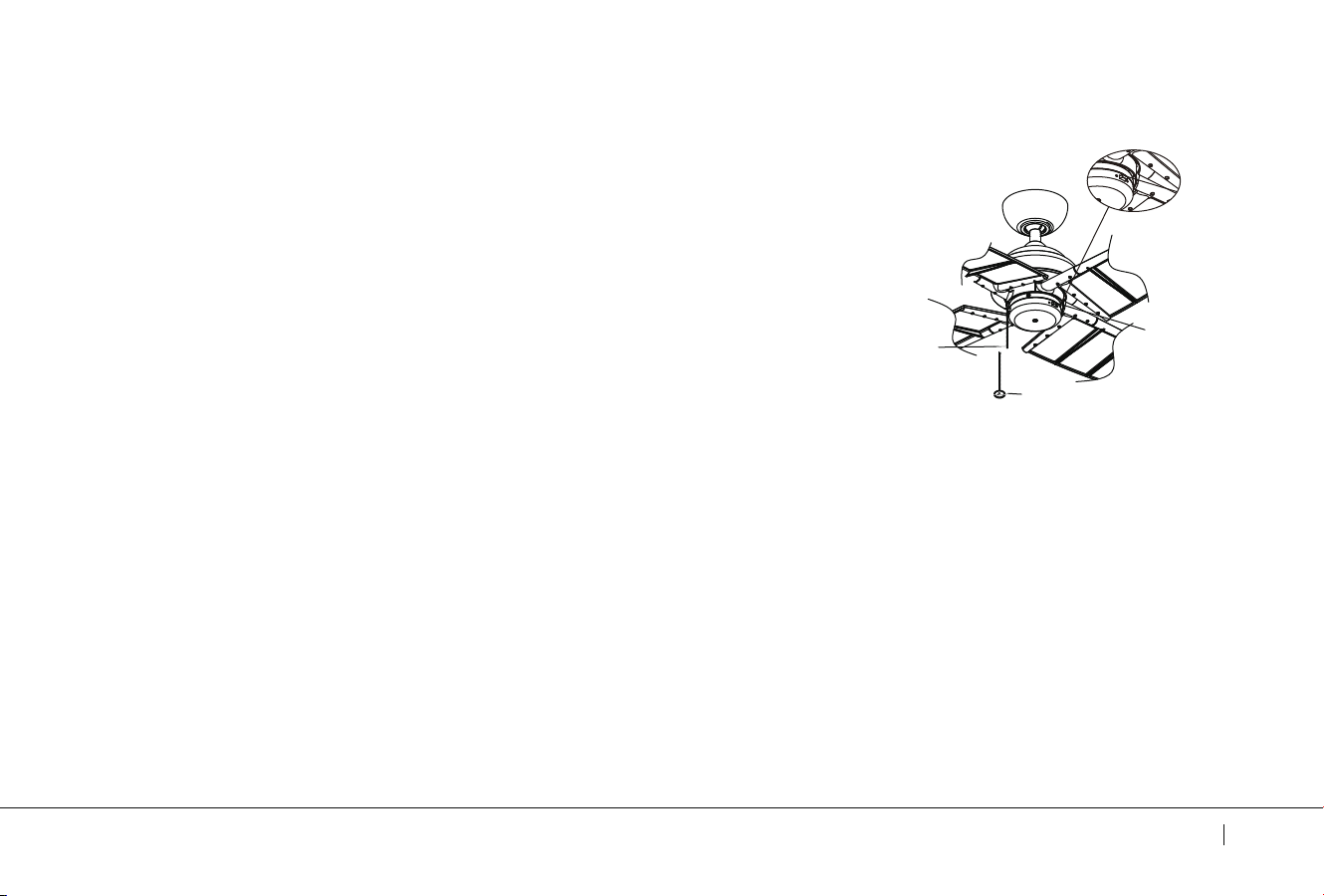

Step 1. Attach the fob to the pull chain from the switch cover.(Fig.19)
The operation sequence is as follows:
1st pull - High
2nd pull - Medium
3rd pull - Low
4th pull - OFF
Your fan is shipped from the factory with the reversing switch positioned to circulate air
downward. If airflow is desired in opposite direction, turn the fan o and wait for the blades
to stop running. then slide the reversing switch to the opposite position, and turn the fan on
again. The fan blades will turn in the opposite direction and reverse the airflow.
Your New Kichler Ceiling Fan is now ready to use. Remember to RESTORE all power.
Fig. 19
Fob
Pull Chain
Reverse Switch
Fob
Pull Chain
Reverse Switch

14
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1.Check circuit fuses or breakers.
2.Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF
when checking any electrical connection.
3.Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4.Insure the batteries have a good charge.
1.Make sure all motor housing screws are snug.
2.Make sure the screws that attach the fan blade brackets to the motor are tight.
3.Make sure wire nut connections are not rubbing against each other or the interior wall of theswitch housing.
CAUTION: Make sure main power is o.
4.Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5.If using an optional light kit, make sure the screws securing the glassware are tight.Make sure the light
bulbs are not touching any other component.
6.Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling
fan motors or remote controls.
7.Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1.Check that all blade and blade arm screws are secure.
2.Most fan wobbling problems are caused when blade levels are unequal.Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3.Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4.If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
TROUBLESHOOTING

60" Surrey Climates™
15
Problem Solution
TROUBLESHOOTING
Remote control
malfunction.
1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control
system EXCEPT a basic On/O wall switch, if desired.

60" Surrey Surrey Climates™
LES ILLUSTRATIONS DU PRODUIT PEUVENT DIFFÉRER DU PRODUIT ACTUEL.
MANUEL D’UTILISATION

TABLE DES MATIERES
INSTALLATION DU SUPPORT DE SÉCURITÉ…… 8
CONNEXIONS ÉLECTRIQUES …………………………… 9
2
INSTALLATION EN SUSPENSION ………………………………….. 10
INSTALLATION DU COUVERCLE DE COMMUTATEUR……12
INSTALLATION DE LA BRELOQUE……………………………………… 13
CONSIGNES DE SÉCURITÉ ………………………………… 3
OUTILLAGE REQUIS ………………………………………… 4
CONTENU DE L'EMBALLAGE …………………………… 4
OPTIONS D'INSTALLATION ……………………………… 5
SUSPENSION DU VENTILATEUR …………………….7
FIXATION DES PALES DU VENTILATEUR ……………………… 11
INSTALLATION DU BOITIER DE COMMUTATEU………………12
DÉPANNAGE …………………………………………………………………………14

60" Surrey Climates™
3
CONSIGNES DE SÉCURITÉ
1. Pour réduire les risques de choc électrique, s'assurer que
l'électricité a été coupée au niveau du disjoncteur ou de la
boîte de fusibles avant de procéder à l'installation.
2. Le câblage doit être installé conformément au code national
d'électricité américain (NEC) ou au code d'électricité local en
vigueur.
3. AVERTISSEMENT : Pour réduire les risques d'incendie ou
de choc électrique, utiliser uniquement la commande livrée
avec le ventilateur.
4. AVERTISSEMENT : Lors du montage sur la boîte à prises et
pour réduire le risque de blessures, utiliser uniquement les
deux vis en acier (et rondelles de blocage) fournies avec la
boîte à prises.
5. Pour utiliser la fonction inverse sur ce ventilateur, mettre le
bouton de marche arrière sur la position de marche inverse.
6. Éviter de placer des objets dans la trajectoire des pales.
7. Pour éviter des blessures ou des dommages au ventilateur
et autres objets, prendre toutes les précautions nécessaires
lors de travaux effectués près du ventilateur ou lors du
nettoyage du ventilateur.
8. Ne pas utiliser d'eau ni de détergents pour nettoyer le ventilateur
ou les pales du ventilateur.
9. Après avoir effectué les connexions électriques, les conducteurs
épissés doivent être tournés vers le haut et soigneusement
rentrés dans la boîte à prises.
10. Les schémas électriques sont indiqués à titre de référence
uniquement. Les kits d'éclairage qui ne sont pas emballés avec le
ventilateur doivent être homologués ETL et marqués compatible
pour une utilisation avec le modèle de ventilateur à installer.
AVERTISSEMENT
POUR REDUIRE LE RISQUE DE BLESSURES, NE PAS
PLIER LES SUPPORTS DE PALES (APPELÉS ÉGALEMENT
BRIDES) LORS DU MONTAGE OU APRÈS L'INSTALLATION

4
A. Support de montage
B. Ensemble boule/tige
C. Cache
D. Obturateur du trou du cache
E. Capot de l'accouplement
F. Moteur
G. Lame (4)
H. Porte-lame (4)
I . Couvercle de commutateur
J. Boîtier de commutateur
K. Fob
1) Matériel de montage :
Vis à bois (2) ,Rondelle plate (2) , Vis(2) , Rondelle
de blocage (2), Connecteur de fil (3)
2) Matériel de fixation des pales :
Sac AA : Vis (longue) (10), rondelle (10) C
Sac BB : Vis (courte) (10), rondelle (10)
3) Matériel pour câbles de sécurité : :
Vis à bois (1) , Rondelle à ressort (1), Rondelle
plate (1)
4) Kit d'équilibrage
5) Matériel pour porte-pales: Vis (2)
6) Matériel pour boîtier de commutateur : Vis(4)
A
B
C
D
E
F
G
H
I
J
K
L
OUTILS REQUIS
Tournevis Phillips
Tournevis à lame plate
Clé 11 mm
Escabeau
Coupe-fils
CONTENU DE L’EMBALLAGED
éballez votre ventilateur et vérifiez le contenu.
L. Sac de matériel
