Kichler Lighting Canfield User manual

1
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. WARNING: Use only with light kit marked
"Suitable for Use in Damp Locations".
9. Avoid placing objects in the path of the
blades.
10. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
11. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
12. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the grounded conductor and the
equipment-grounding conductor on one
side of the outlet box.
13. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO
OUTLET BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.
1. SAFETY RULES

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Hanger bracket and canopy
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Set of blades brackets (5)
g. Mounting plate
h. Switch housing
i. Part bag contents
1) Mounting hardware :
wood screws (2), flat washers (2),
star washers (2), wire nuts (3)
2) Blade attachment hardware:
screws (17), washers (17),
rubber washers (17)
3) Blade brackets hardware:
screws (10)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Close mount hardware:
screw with lock washers (3)
6) Pull chain and fob
7) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
f
g
h
i
CanfieldTM

3
4. MOUNTING OPTIONS
If there isn't an existing UL (CUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Fig 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE

4
CanfieldTM
Fig. 6
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
CUL Listed
electrial
box
120V Wires
Washers
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly. NOTE:
This ceiling fan is supplied with two types of
hanging assemblies; the standard ceiling
installation using the downrod with ball and
socket mounting and the "close-to-ceiling"
installation. The "close-to-ceiling" installation is
recommended in rooms with less than 8-foot
ceilings or in areas where additional space is
desired from the floor to the fan blades. When
using the standard 6" downrod, the distance
from the ceiling to the bottom of the fan blades
will be approximately 10 inches. The "close-to-
ceiling" installation reduce this distance to 8-
inches. Once you have selected which
mounting system you will use, proceed with
the following instructions. Where necessary,
each section of the instructions will note the
different procedures to follow for the two types
of mounting.
STANDARD CEILING INSTALLATION
1. Remove the canopy ring from the canopy.
(Fig. 5)
2. Remove the hanger bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws. This will enable
you to remove the hanger bracket. (Fig. 5)
Step 3. Secure the hanger bracket to the
ceiling outlet box using screws and washers
included with your outlet box. (Fig. 6)
Step 4. Remove hanger ball from downrod
assembly by loosening set screws, removing
the cross pin, and sliding ball off rod. (Fig. 7)
Step 5. Loosen the two set screws and
remove the hitch pin and lock pin from the top
coupling of the motor assembly. (Fig. 8)
Step 6. Carefully feed the fan wires up through
the downrod. Thread the downrod into the
coupling until the Hitch pin holes are aligned.
Next, replace the lock clip and hitch pin then
tighten the set screws. (Fig. 8)
Downrod
Cross pin
Hanger
ball Set screw
Fig. 5
Hanger bracket
Ceiling
canopy
Canopy
Ring
Supply wires
Downrod
Hitch pin
Lock pin Set screws
Set screws
5. HANGING THE FAN

5
Fig. 9
Fig. 10
Registration slot
Downrod Canopy
Canopy cover
Coupling cover
Step 7. Slip coupling cover, canopy ring and
canopy onto downrod. Carefully reinstall
hanger ball onto rod being sure that cross pin
is in correct position, the set screw on hanger
ball is tight and wires are not twisted. (Fig. 9)
Step 8. Now lift the motor assembly into
position and place the hanger ball into the
hanger bracket. Rotate until the "Check Tab"
has dropped into the "Registration Slot" and
seats firmly. (Fig. 10). The entire motor
assembly should not rotate if this is done
correctly.
Set screws
Hitch pin Lock pin

6
Fig. 11
Fig. 12
Fig. 13

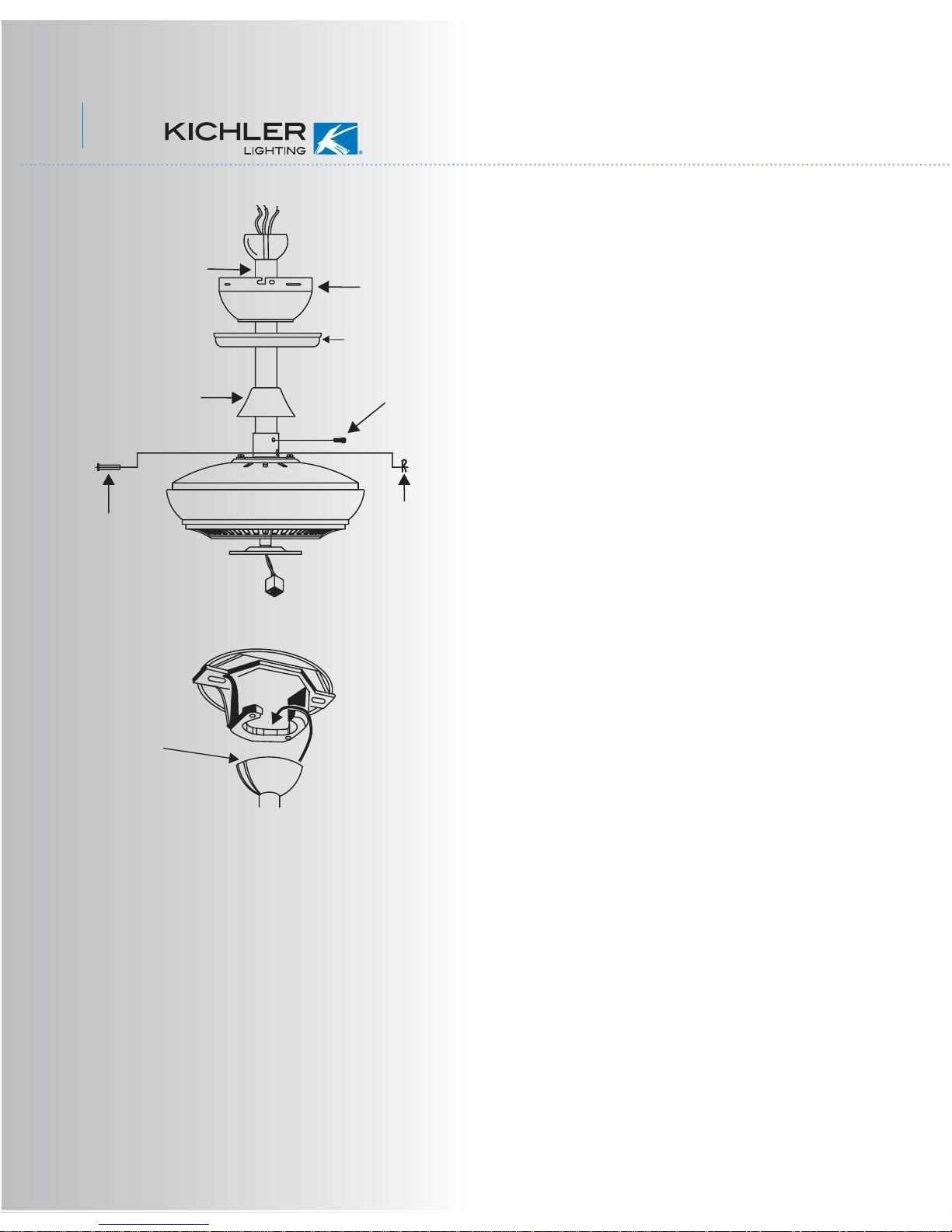

1. Remove the decorative canopy cover from
the canopy. (Fig. 11)
2. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as
shown in Fig. 6.
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Fig. 6)
4. Tighten the two screws on the outlet box
securely.
5. Place the rubber gasket over the remaining
three screws, route the wires exiting the top of
the fan motor through the canopy ring (make
sure the slot openings of the ring are on top).
then proceed to place the ceiling canopy over
the collar at the top of the motor. Align the
mounting holes with the holes in the motor and
fasten using the screws and lock washers
provided. (Fig. 12).
6. Tighten the mounting screws securely.
(Fig. 12)
WARNING: Failure to completely tighten the
three screws in step 6 could result in fan
loosening and possibly falling.
7. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is fully
locked into hook as shown in Fig. 13.
CanfieldTM
CLOSE-TO-CEILING INSTALLATION
Screw and
Lockwasher
Canopy
Collar Canopy ring
Canopy cover
Canopy
Hook

7
Fig. 14
Fig. 15
Fig. 16
7. MAKE THE ELECTRIC CONNECTIONS
Remember to disconnect the power.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1 Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown in Figure 15.
Step 2. Connect the neutral fan (white) wire to
the white neutral household wire.
Step 3 Connect the fan ground wire (green) to
the household ground wire.
Step 4 After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the black
and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and
push the wiring into the outlet box.
6. INSTALLATION OF SAFETY SUPPORT
(for Canadian Installation ONLY)
Wiring
box
Ground to
mounting
bracket
or downrod
Power lines 120v
WH
BLUE
BLK BLK
WH
FAN
LIGHT
BLK
BLUE WH
WH
Light
switch
Green ground
WH
BLUE
BLK BLK
WH
GRN
Wiring
box
Ground to
mounting
bracket
or downrod
BLUE
BLK WH
WH
FAN
LIGHT
Power lines 120v
Green ground
An additional safety support is provided to
prevent the fan from falling fan). Place the end
of cable through the loop of ceiling support
cable. Pull as much cable through loop as
possible. Feed end of cable into clamp hole
and fi rmly tighten screw (Fig. 14). Cut off
excess safety cable. Secure the safety cable
to the ceiling joist with screw and washer.
Hanger bracket Attach safety cable
to ceiling joist with
screw and washer

8
CanfieldTM
Fig. 17
Fig. 18
Fig. 19
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in Fig.
18. Make sure you place the wires safely into
the outlet box. Secure the canopy to the
hanger bracket with the four screws with your
fan. Raise canopy ring up against canopy and
secure it to canopy until snug.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the hanger
bracket. Secure the canopy to the hanger
bracket as shown in Fig. 19 with four screws
included with your fan. Secure the canopy to
the hanger bracket with the four screws with
your fan. Raise canopy ring up against canopy
and secure it to canopy until snug.
Figures 16 and 17 illustrate the wiring
connections for optional wall control (The wire
color out of wall control may vary, see wall
control's installation manual for correct wire
connections.)
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN
OUTLET BOX OR SUPPORTING SYSTEM
MARKED ACCEPTABLE FOR FAN
SUPPORT.
8. FINISHING THE INSTALLATION
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
WH
BLUE
BLK BLK
WH
FAN
LIGHT
WH
WH
BLUE
BLK
LIGHT FAN
Outlet box
Hanger
bracket
Screws
Outlet box
Hanger
bracket
Canopy
Screws
Ceiling canopy
Canopy ring
Canopy ring

9
9. ATTACHING THE FAN BLADES
Fig. 20
Fig. 21
Caution: Remove 5 rubber packing mounts
and discard before installation.
Step 1 Attach the blade to the blade bracket
using the screws, washers and rubber
washers as shown in Fig. 20. Start screw into
bracket. Repeat for the two remaining screws.
Step 2 Make sure the blade is straight and
tighten each screw.
Step 3 Fasten blade assembly to motor using
"Pre-Installed" mounting screws in the blade
bracket.
10. INSTALLING THE MOUNTING PLATE
1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
2. Place the key holes on the mounting plate
over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 21)
Screws Blade
Blades bracket
Screws
Washers
Rubber
washers
Mounting
plate
Mounting ring
Screws

10
CanfieldTM
Fig. 22

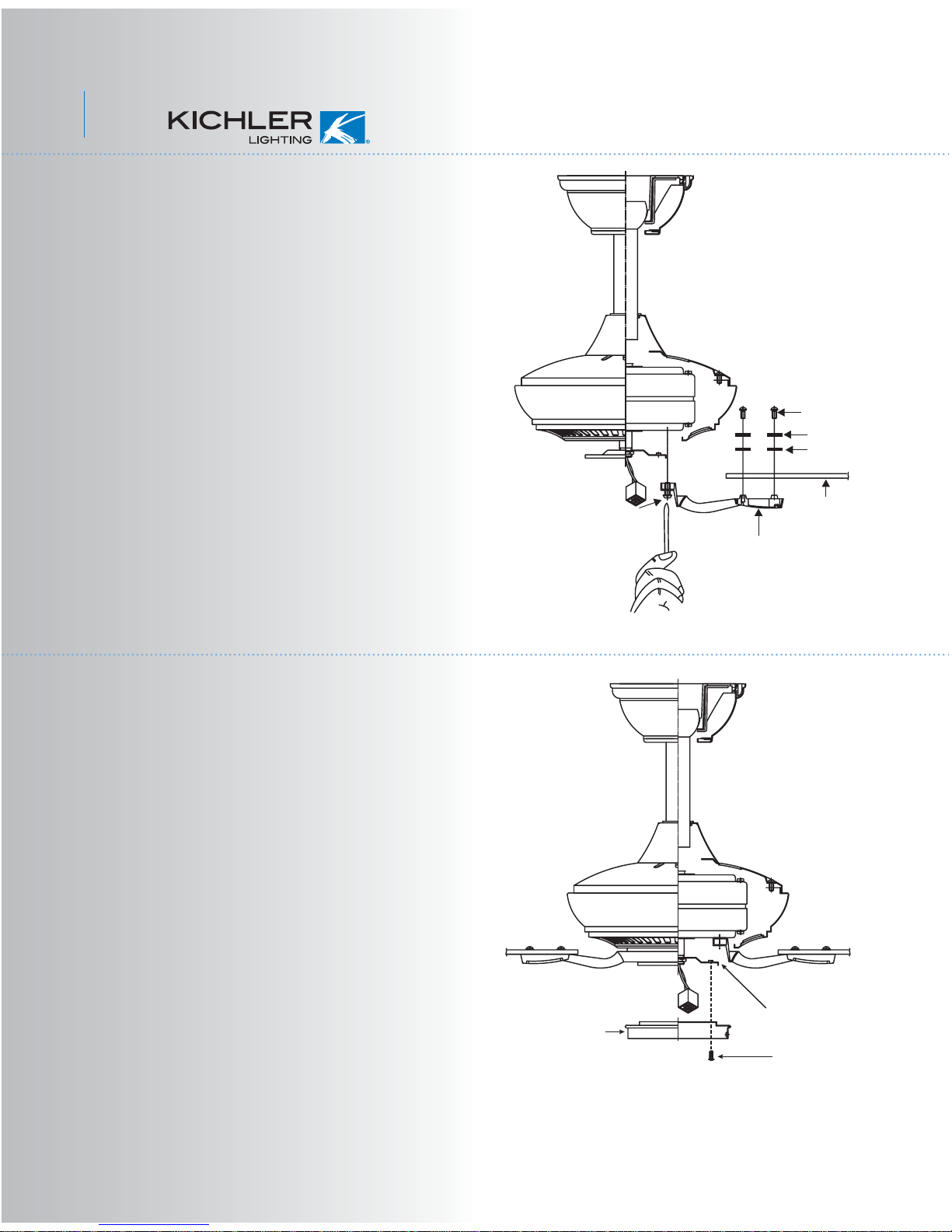

11. INSTALLING THE SWITCH HOUSING
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
1. While holding the switch housing under your
fan, snap together the wire connection plugs .
2. Carefully push all wires back into the switch
housing, then install the switch housing onto
the mounting plate with 3 screws provided. Be
sure to tighten all screws. (Fig. 22)
Switch
housing
Wire connector
Screws
Mounting plate

11
Fig. 23
Fig. 24
12. OPERATING INSTRUCTIONS
Turn on the power and check the operation of
your fan. The pull chain controls the fan speed
as follows:
1. 3-speed pull chain- it controls the fan speed
as follows: 1 pull- High, 2 pulls- Medium,
3 pulls- Low, and 4 pulls- Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
The slide switch controls directions: forward
(switch left) or reverse (switch right).
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Warm weather - (Forward) A downward airflow
creates a cooling effect as shown in Fig. 23.
This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 24. This allows you to set your heating
unit on a cooler setting without affecting your
comfort.

12
CanfieldTM
14. SPECIFICATIONS
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Check that the light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed
controls. If you have installed this type of control, choose and install another type
of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check
this level by selecting a point on the ceiling above the tip of one of the blades.
Measure this distance.(Fig. 21) Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be equal
within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
13. TROUBLESHOOTING
xxx'Xx
kgs Xx kgs
0.30
0.24
0.18
39
28
18
227
180
140
2920.53
2306.57
1798.77
74.89
82.38
99.93
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
30"
Speed Volts
Amps Watts
Low
Medium
High
