KID Trax KT1045WM User manual

Please retain these instructions
for future reference
Adult Assembly Required
www.kidtraxtoys.com
[email protected]
KidTrax Toys
PO Box 344, Olney, IL 62450
Toll-free [phone]
8 am to 5 pm Monday thru Friday CST
© 2007 Pacific Cycle Inc.
Styles and colors may vary
Made in CHINA to Pacific Cycle Inc. quality specif cations
Dodge is a trademark of Chrysler LLC. Dodge Viper and its trade dress are used under license by
Pacific Cycle Inc. © Chrysler LLC 2007
PN KT0M9 10.2007
Official Licensed Product
KT1045WM
User Guide
i

Table of Contents
About Your New Dodge Viper ........................................................................................1
Service and Repairs .......................................................................................................1
Parts List .......................................................................................................................2
Attach Rear Wheels ........................................................................................................3
Attach Front Wheels .......................................................................................................3
Install Dashboard Assembly ..........................................................................................4
Install Left and Right Mirrors .........................................................................................4
Install Steering Rod and Steering Wheel ........................................................................5
Charge 12-Volt Battery Prior to Final Assembly ..........................................................6-7
Recharging the Battery ..................................................................................................7
Install Seats ...................................................................................................................8
Using the Dodge Viper ...................................................................................................9
Dashboard .....................................................................................................................9
FM Radio and MP3 Port ...............................................................................................10
Install AA Batteries for FM Radio .................................................................................10
Cup Holder ...................................................................................................................11
Foot Pedal ....................................................................................................................11
Shifter ..........................................................................................................................11
Rules for Safe Riding ...................................................................................................12
Driving the Dodge Viper ...............................................................................................13
Approximate Riding Time with a Fully-Charged Battery ...............................................14
Battery Maintenance ....................................................................................................15
Replacing the Battery ...................................................................................................16
Maintaining Your Dodge Viper .....................................................................................17
Troubleshooting Guide ............................................................................................18-20
Replaceable Parts ........................................................................................................21
FCC Information ...........................................................................................................21
One-Year Limited Warranty/Six-Month Limited Warranty on Battery ...........................22

1
About Your New Dodge Viper
Thank you for purchasing the Kid Trax Dodge Viper. Kid Trax wants your child to enjoy
this product for years to come. Keep these points in mind as you read this guide:
• This Dodge Viper ride-on is recommended for children ages 3 years and up.
Maximum combined weight is 130 lbs. (59 kg).
• ADULT SUPERVISION REQUIRED!
• Battery must be charged prior to first use (see pages 6-7).
• All parts must be assembled properly (see pages 2-8).
• Batteries must be installed properly in the radio (see page 10).
• Children must follow safety rules for riding (see page 12).
• Read and explain operating instructions to your child (see pages 9-13).
• ADULTS ONLY: Recharge battery according to directions (see pages 6-7) and
maintain battery (see page 14-15).
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep small children away when assembling.
• Remove and dispose of all protective material and poly bags before assembly. Be
sure to remove all packing materials and parts from underneath the car body.
WARNING!
• Park the Dodge Viper indoors or cover it with a tarp to protect it from wet
weather. Do not leave vehicle in sun for long periods of time or fading may occur.
Store in shade or cover with tarp.
• Do not drive the Dodge Viper in loose dirt, sand or fine gravel, which could dam-
age moving parts, motors or the electric system, which could void the warranty.
• Do not wash the Dodge Viper with a hose. Do not wash the Dodge Viper with
soap and water. Do not drive the Dodge Viper in rainy or snowy weather. Water
will damage the motor, electric system and battery.
CAUTION!
Service and Repairs
• Do not return this product to the place of purchase.
• Lay out and identify all parts before assembly. If any parts are missing, call
Kid Trax Toys Consumer Relations toll-free at [phone], 8:00 am to 5:00 pm
Monday thru Friday CST, e-mail us at customerse[email protected]om, or visit our
web site at www.kidtraxtoys.com.
• Provide the serial number, found underneath the Dodge Viper’s seat on the car body
and a brief description of the part.
• If your Dodge Viper needs service or repairs, call Kid Trax Toys Consumer Relations
at [phone] for an authorized service center.
1

2
Vehicle Body
2 Mirrors (left and right)
Dashboard Assembly
Steering Wheel
Steering Rod
Charger
1 Machine Screw and 1 Screw
Nut for Steering Wheel
2 Screws for Dashboard
Assembly
2 Large Washers
2 Front Wheels (marked “FRONT”)
2 Rear Wheels (marked “REAR”)
4 Wheel Covers
4 Small Washers
4 Nuts
4 Hubcaps
Nut Wrench
Seats
12-volt Battery
Tools and batteries needed for assembly:
• Phillips screwdriver
• 4 AA alkaline batteries (for radio)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
A
B
C
E
D
F
G
H
J
K
L
O
P
Q
R

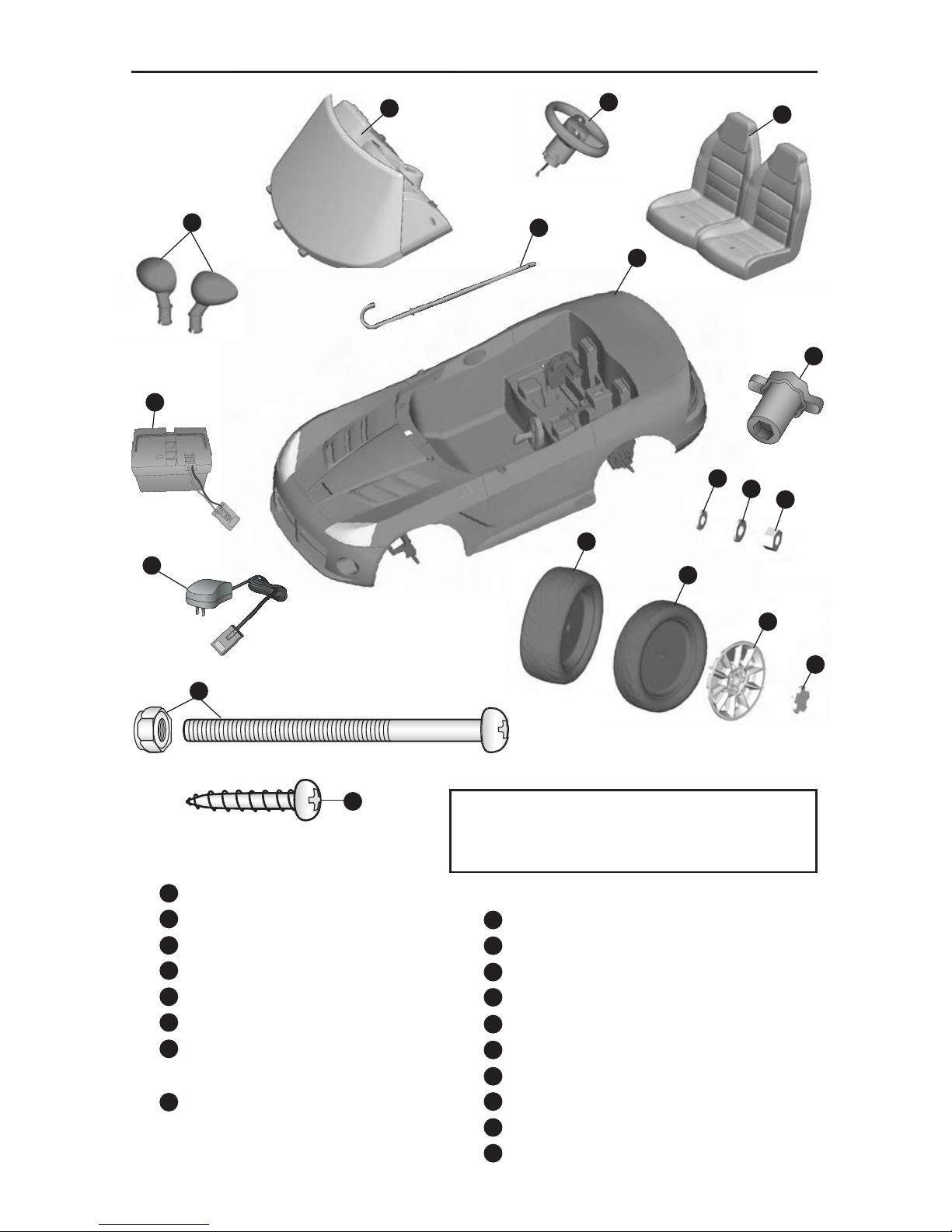

Parts List
MIN

Attach Rear Wheels
1. Locate a wheel marked “REAR”.
Slide a wheel onto the axle with
“REAR” facing toward vehicle.
Fit the protruding section of the
wheel into the gear box.
2. Slide a wheel cover onto the
axle, fitting the three locating
pins into the holes in the wheel.
3. Slide a small washer onto
the axle. Attach a nut onto the
axle and tighten snugly with the
nut wrench until you can see
about two threads on the axle.
Do not overtighten.
4. Align the pins in the hubcap
with the holes in the wheel
core. Press hubcap into place.
NOTE: Do not use a hammer.
Repeat steps 1-4 to attach the
other rear wheel.
1
2
Attach Front Wheels
1. Slide a large washer onto the
axle. NOTE: Washer may already
be on the axle.
Locate a wheel marked
“FRONT”. Slide a wheel onto
the axle with “FRONT” facing
toward vehicle.
2. Slide a wheel cover onto the
axle, fitting the three locating
pins into the holes in the wheel.
3. Slide a small washer onto
the axle. Attach a nut onto the
axle and tighten snugly with the
nut wrench until you can see
about two threads on the axle.
Do not overtighten.
4. Align the pins in the hubcap
with the holes in the wheel
core. Press hubcap into place.
NOTE: Do not use a hammer.
Repeat steps 1-4 to attach the
other front wheel.
1
2
3

4
Install Dashboard Assembly
1. Place the dashboard on the
hood of the Dodge Viper.
Locate the connector under the
dashboard. Firmly connect to
the connector/cable from the
body of the Dodge Viper.
2. Lower the front dashboard
assembly onto the body of the
Dodge Viper.
NOTE: Make sure the
connectors are not separated
and the cables are not crimped.
Slide the tabs on the dashboard
assembly into the slots in the
body.
3. Attach the dashboard assembly
to the body (located near each
mirror slot) with 2 screws,
using a Phillips screwdriver.
1a
2
3
Install Left and Right Mirrors
1. Press left and right mirror into
holes on body until they firmly
engage. Remove protective film
from the mirrors.
1

5
Install Steering Rod and Steering Wheel

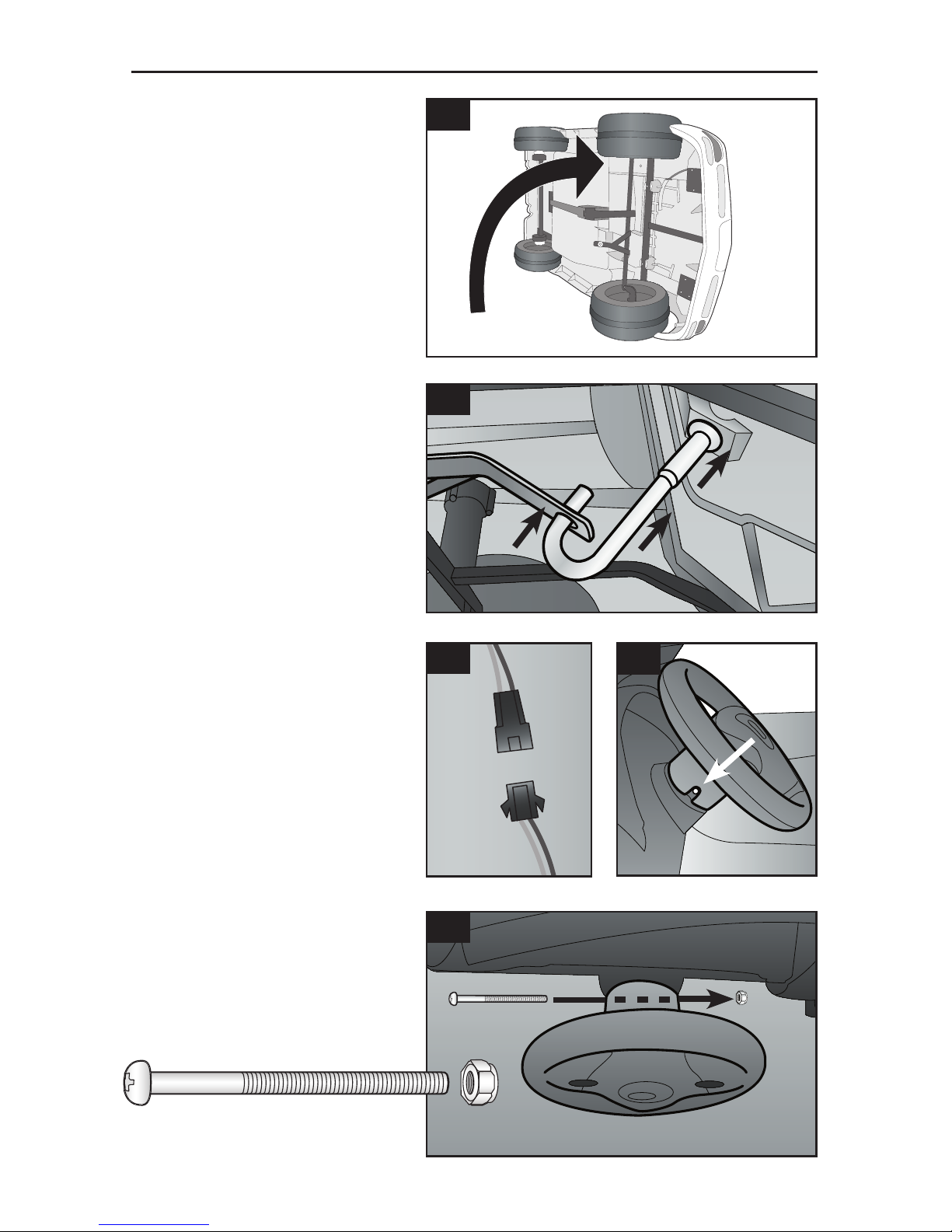

1. Gently turn the Dodge Viper
onto its side on a carpeted
surface or other soft material to
prevent damage to the side of
the car.
NOTE: It is helpful to have an
assistant during this section.
2. Insert the steering rod into the
bracket found underneath the
Dodge Viper, then up through
the dashboard.
Hold the steering rod in place
and turn the Dodge Viper right
side up.
3. Firmly plug the connector from
the steering wheel into the
connector in the dashboard.
4. Holding the steering rod, lower
the steering wheel onto the
dashboard, with the notch on
the column facing up. Align the
steering wheel holes with the
holes in the steering rod.
5. Insert the long screw into the
steering column and attach the
nut on the other side. Tighten
securely.
1
2
4
5
3

6
Charge 12-Volt Battery Prior to Final Assembly
YOU MUST CHARGE THE 12-VOLT BATTERY FOR A FULL 24 HOURS PRIOR TO FIRST
USE. FAILURE TO CHARGE THE BATTERY AS DIRECTED WILL CAUSE PERMANENT
DAMAGE TO THE BATTERY AND VOID YOUR WARRANTY. After each use, or once a
month minimum, charge the battery for a full 16 hours. Do not leave the battery on
the charger for more than 30 hours. Read the following warnings before charging
the battery.
• PREVENT FIRE AND ELECTRIC SHOCK:
- Use only the Kid Trax Toys 12-volt rechargeable battery and charger supplied
with your vehicle. NEVER substitute the battery or the charger with another
brand. Using another 12-volt battery or charger may cause a fire or explosion.
- Do not use the 12-volt battery or charger for any other product. Overheating,
fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system
may cause a shock, fire or explosion or may permanently damage the system.
- Do not allow direct contact between 12-volt battery terminals. Fire or explosion
can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gases are created during charging. Do not charge near heat or
flammable materials. Charge the 12-volt battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the
battery and may cause a fire. Pick up the battery by the case or handle ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts, terminals and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
• Do not open the 12-volt battery. Battery contains lead acid and other materials
that are toxic and corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause
electric shock.
• Only adults may handle or charge the battery. NEVER allow child to handle or
charge the battery. 12-volt battery is heavy and contains lead acid (electrolyte).
• Do not drop the 12-volt battery. Permanent damage to the 12-volt battery could
occur or cause serious injury.
• Before charging the 12-volt battery, check for wear or damage to the battery,
charger, its supply cord and the connectors. DO NOT charge the 12-volt battery
if any damage to parts has occurred. Replace with Kid Trax Toys parts ONLY.
• Do not allow the 12-volt battery to drain completely. Recharge the battery after
each use or once a month if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. 12-volt battery can fall out and injure
a child if vehicle tips over.
WARNING!

7
Charge 12-Volt Battery Prior to Final Assembly, Continued
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY. See page 15 for battery
maintenance.
NOTE: It is not necessary to remove the battery from the vehicle for charging.
However, if the adapter cord will not safely reach a 120-volt wall outlet, the battery
can be removed for charging. See page 16 for battery replacement.

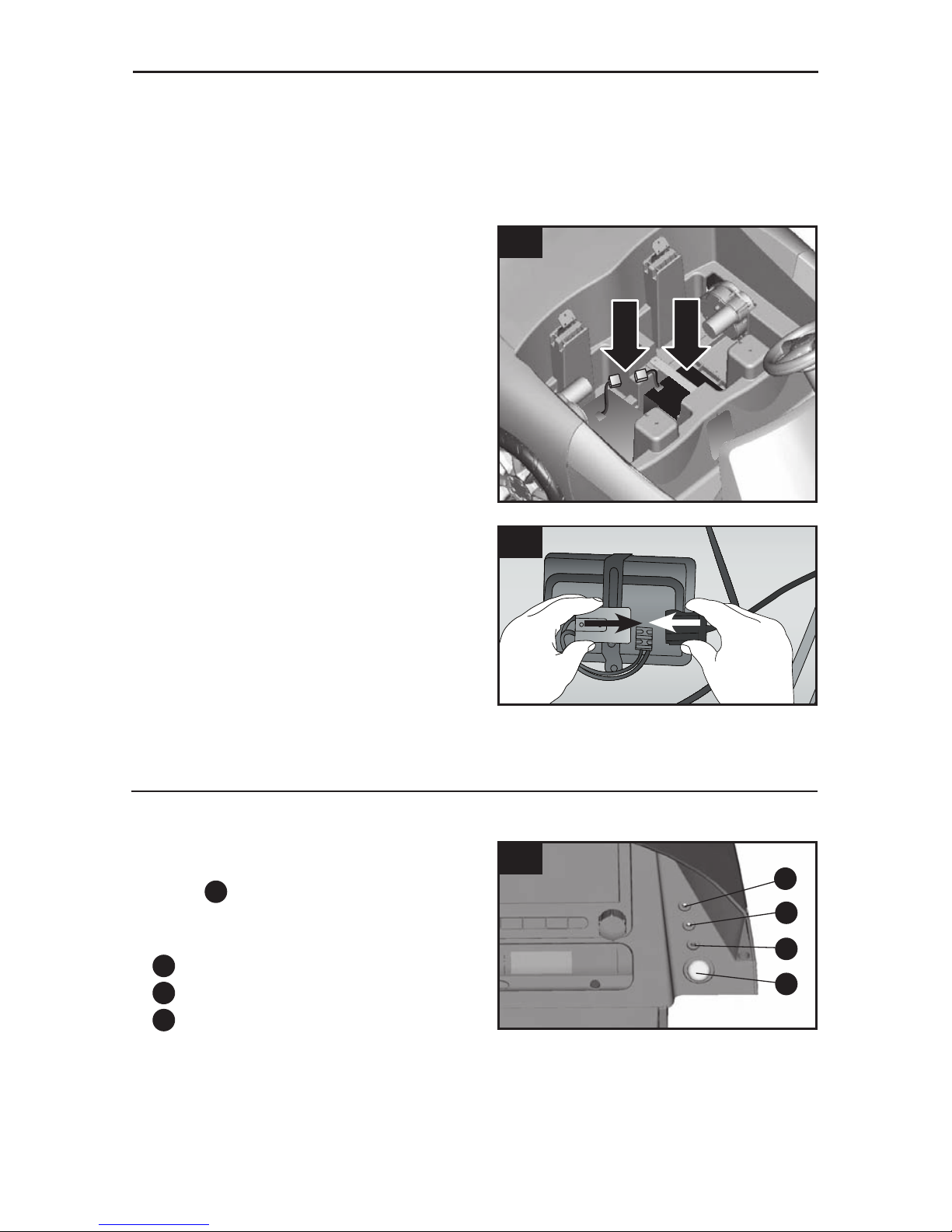

1. Locate the battery and connectors
under the seating area.
2. Firmly plug the charger connector into
the battery’s connector. Use ONLY the
Kid Trax Toys 12-volt charger included
with the Dodge Viper (Input: AC120V–,
0.5A, 60Hz Output: DC14.2V, 1.5A).
3. Plug the charger into a standard
120-volt wall outlet. Light on charger
will glow Orange, and then change to
Green if charging completed.
NOTE: The charger mayfeel warm
during charging. This is normal and
not a cause for concern.
4. After charging is complete (at least
24 hours, but not more than 30)
unplug the charger from the wall
outlet. Unplug the charger from the
battery’s connector.
5. Plug the connector into the battery
connector. Make sure the connection
is tight.
1
2
Recharging the Battery
SKIP THIS SECTION IF YOU ARE ASSEMBLING THE DODGE VIPER.
1.
To determine if the battery needs recharg-
ing, press and hold the Battery Indicator
Button to the right of the radio. One,
two or three lights will illuminate, indicat-
ing the level of power in the battery:
green, yellow, red = fully charged
yellow, red = partially charged
red = needs to be recharged
1B
C
D
A
A
B
C
D

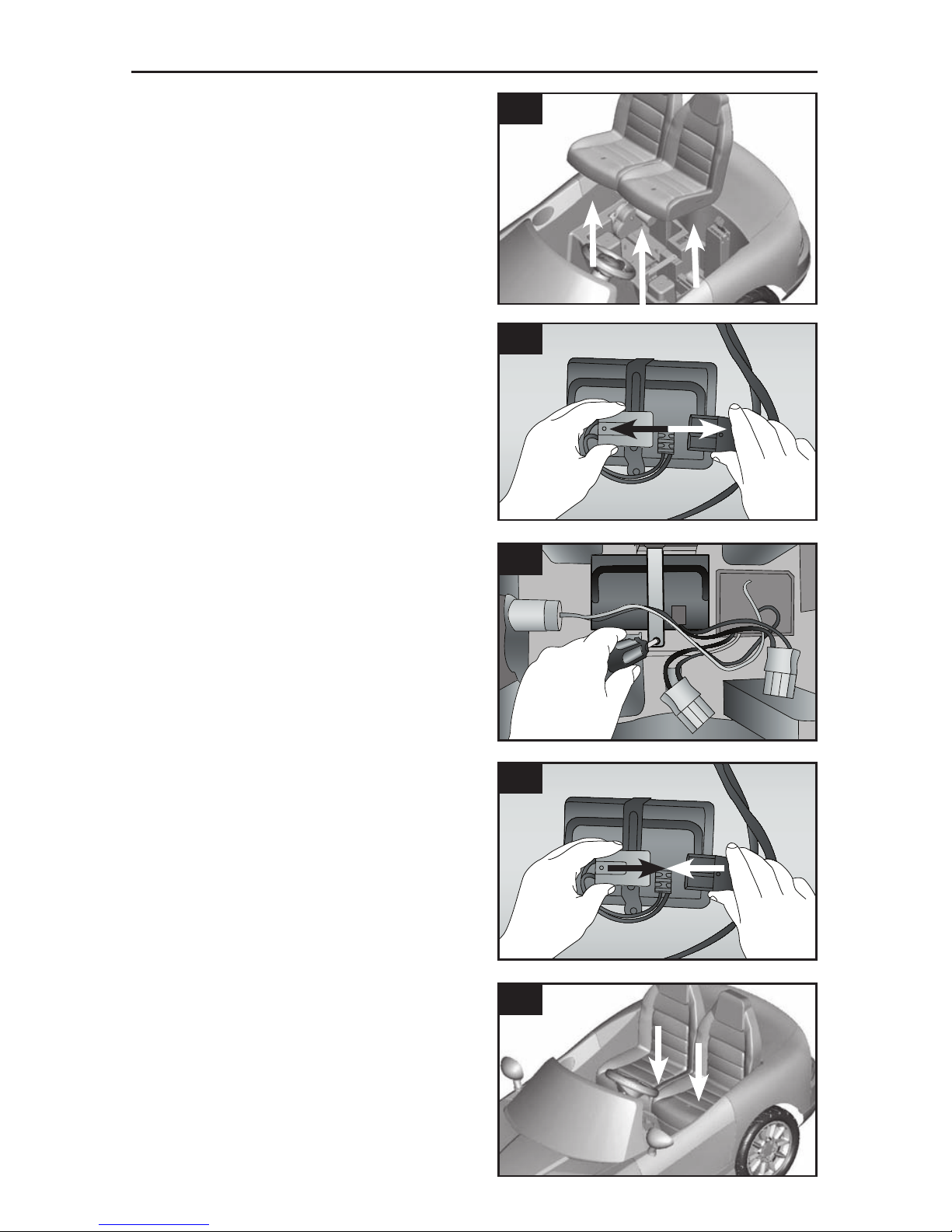

2. Use a coin to loosen the 2 plastic screws in the seats (see page 8). Lift the seats up
and set aside.
3. Unplug the battery connectors.
4. Follow steps 2–5 in “Charge 12-Volt Battery” above. charge the battery for a full
16 hours. Do not leave the battery on the charger for more than 30 hours.
5. Replace the seats and tighten the screws with a coin.

8
Install Seats

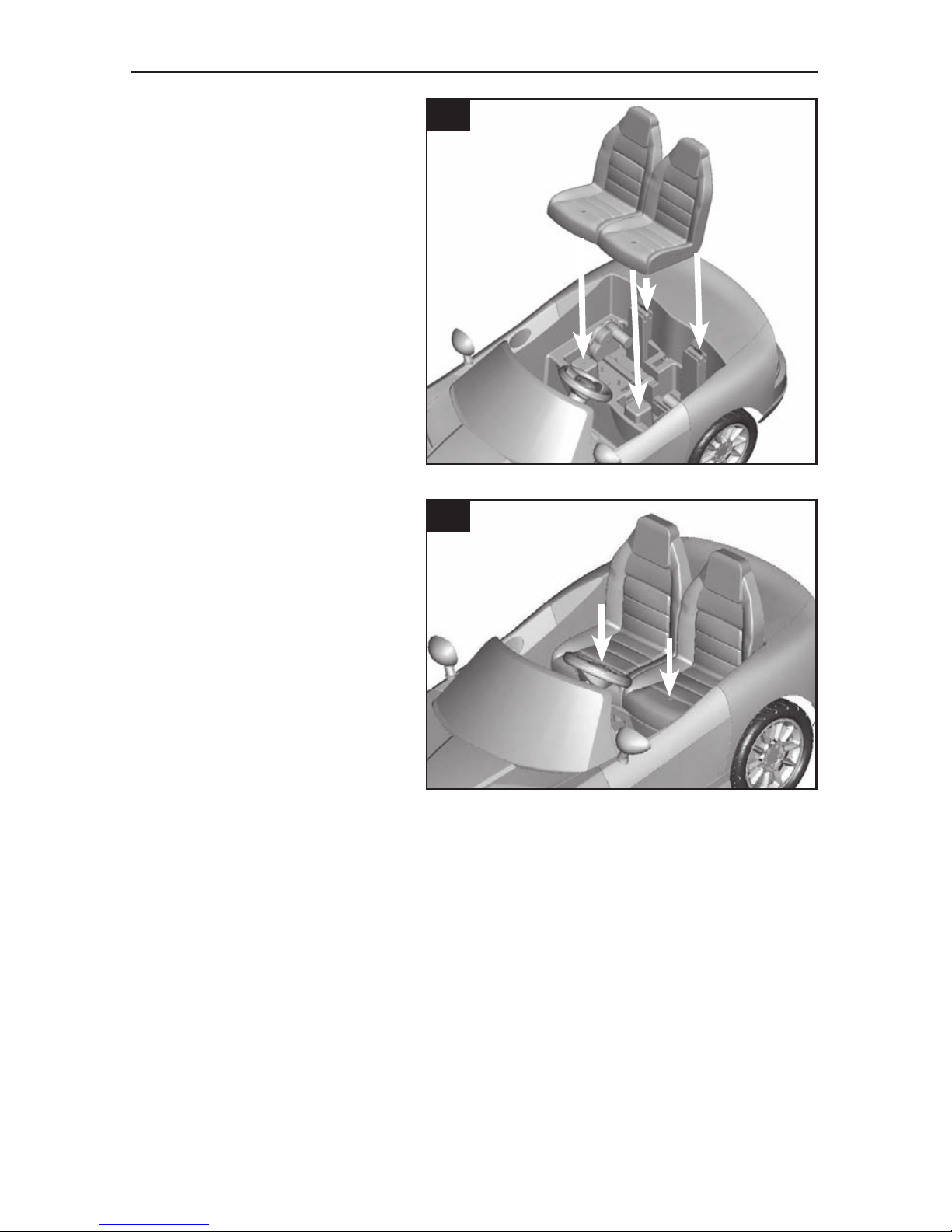

1. Locate hooks behind seats.
NOTE: There are two seat
positions; one for a smaller
child, and one for a larger child.
Install the seat so your child can
easily reach the foot pedal and
comfortably use the steering
wheel.
Lower seats so the hooks
insert into the desired slots in
the body.
NOTE: Make sure wires and
cables are not crimped.
2. Use a coin and turn the plastic
screw to lock the seats in place.
1
2

9
Using the Dodge Viper
• The Kid Trax Toys Dodge Viper is for children aged 3 years and up.
• MAXIMUM COMBINED WEIGHT IS 130 LBS. (59 KG). Do not overload the Dodge
Viper. Do not tow anything behind the Dodge Viper. Damage to the motor or gears
could occur, which could void the warranty.
• Your child will enjoy many happy hours riding the Kid Trax Dodge Viper. You, as the
responsible adult, must supervise your child riding in the Dodge Viper!
• Your young child’s judgment skills are still developing, and they may be tempted to
drive the Dodge Viper into unsafe areas or in an unsafe manner. Always watch to see
where your child is going, and that they handle the vehicle safely.
• Read the “Rules for Safe Riding” (page 12) out loud to your child and their
playmates, and insist they follow the rules.
• Point out all the parts of the dashboard, the foot pedal and the shifter to your child.
Use the diagrams on pages 9-11 to find the parts on the Dodge Viper.
• Show your child how to safely operate the Dodge Viper (pages 9-13).
• To prevent unsupervised riding in the Dodge Viper, disconnect or remove the battery
(see page 16).
WARNING!
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS
REQUIRED. Always keep child in view when child is in vehicle.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Never allow more than two (2) riders in the Dodge Viper.
Dashboard
Power Switch
Dashboard Lights
(light up when car is running)
Steering Wheel
Horn Button
Sound Effects Button
(peeling out)
A
B
C
D
A
E
B
C
D
E
1
• This unit has an auto shut off feature to conserve the battery if no input is received
after 10 minutes. After 10 minutes please turn the unit off and back on again to
restore operation.

10
FM Radio and MP3 Port
Battery Compartment
See below for battery installation.
Volume and On/Off Knob
To turn on the radio, turn the knob to
the right. Turn the knob to the right for
more volume. Turn the knob all the way
to the left to turn the radio off.
Scanner Buttons
Press the left or right scanner buttons to
find a radio station.
MP3 Port
1
A
A
B
C
D
D
C

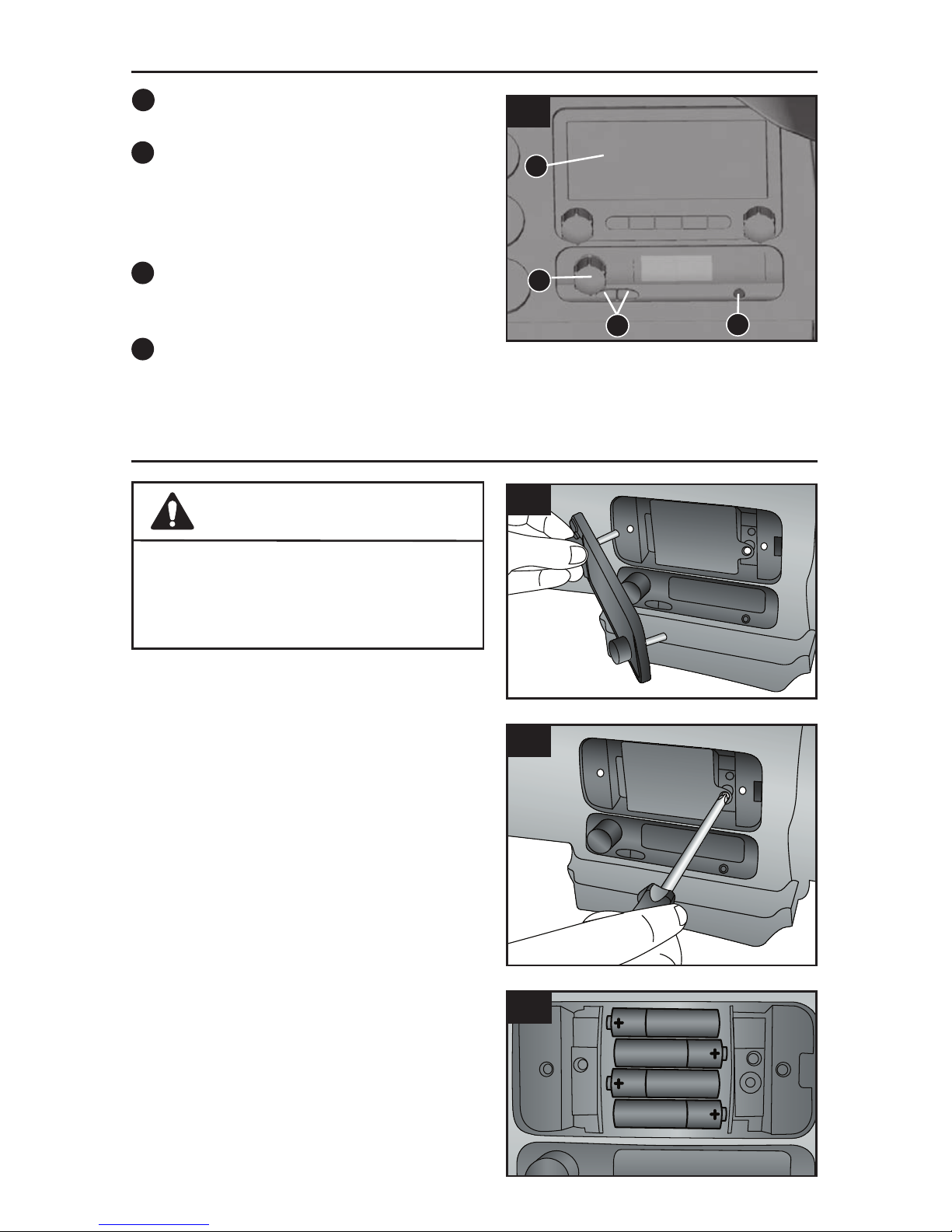

Install AA Batteries for FM Radio
1. ONLY AN ADULT MAY HANDLE THE
BATTERIES. Locate the battery
compartment above the radio in the
dashboard. Remove the GPS faceplate by
turning both knobs counter-clockwise. Lift
the faceplate off and set aside.
NOTE: The knobs stay in the faceplate.
2. Use a Phillips screwdriver to loosen the
screw on the battery cover. Open the
battery cover.
NOTE: The screw stays in the cover.
3. Insert (4) AA alkaline batteries (not
included) as shown.
Reattach the battery cover with the screw.
Do not overtighten. Reattach the faceplate
by turning the knobs clockwise.
1
2
3
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard
(carbon-zinc), or rechargeable
(nickel-cadmium) batteries.
WARNING!
B
Plug in an MP3 player and use the radio’s Volume and On/Off Knob. The MP3’s
music will override the radio.

11

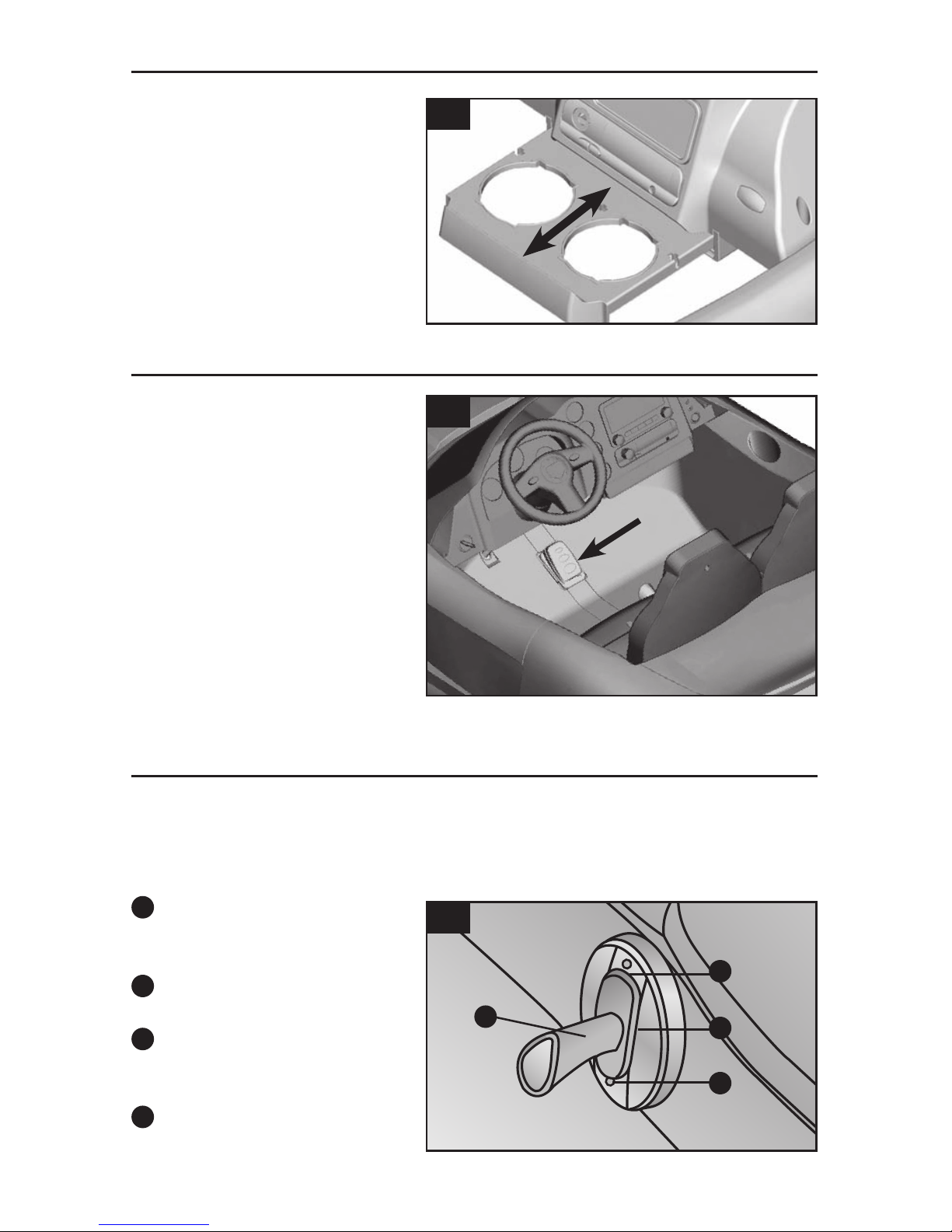

Cup Holder
1
The Dodge Viper features a slide-
out cup holder located under the
radio battery compartment. Push
in when not in use.
NOTE: Do not place a cup contain-
ing hot liquid in the cup holder. It
might spill, causing burns.
Foot Pedal
1
The foot pedal controls forward
motion, reverse and stopping.
Forward/Reverse
Push down on the foot pedal,
and the Dodge Viper will go
forward in high or low speed or
backward in reverse.
To Stop
Release the foot pedal, and the
Dodge Viper will stop. NOTE:
When the foot pedal is released,
the Dodge Viper will coast slightly
before coming to a complete stop.
Shifter
Shifter controls the Dodge
Viper’s speed and forward/
reverse.
Reverse, 2-1/2 mph (4 km/h),
is used for backing up.
Low Speed, 2-1/2 mph
(4 km/h), is for beginning
drivers.
High Speed, 5 mph (8 km/h),
is for more advanced drivers.
1
IMPORTANT! The Dodge Viper MUST come to a complete stop before shifting into
reverse and into low or high speed. Damage to the gears and motor WILL occur.
See page 13 for instructions on using the shifter and driving the Dodge Viper.
A
A
B
C
D
B
C
D

12
Rules for Safe Riding
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE SURE
THEY UNDERSTAND THEM!
• Always drive the Dodge Viper with an adult watching.
• Riders must be 3 years of age or older.
• Always sit in the seat.
• Always wear shoes.
• Only one or two riders in the Dodge Viper. If more children ride on the hood or the
trunk, they may fall off, block the driver’s view or cause the Dodge Viper to tip over.
Serious injury could occur! Also, the Dodge Viper may be overloaded, which could
damage the motor or gears (weight maximum of 130 lbs. [59 kg]).
• Do not drive near full-sized, motorized vehicles. It is dangerous to drive the Dodge
Viper on driveways, streets or alleys that are used by full-sized motorized vehicles.
The Dodge Viper is small and may be out of sight to the driver of a full-sized car.
• DRIVE ONLY ON LEVEL GROUND! The Dodge Viper will operate best on concrete or
other firm surfaces.
• Never drive near water! Do not drive toward a swimming pool, creeks or a pond!
Drowning could occur.
• Do not drive down a steep slope. The Dodge Viper may go too fast, causing it to tip
over or slip.
• Do not drive up a steep slope. The motor may stop and the Dodge Viper could roll
backward and go too fast, causing it to tip over.
• Do not drive near drop-offs, such as steps or decks. The Dodge Viper could
tip over.
• Keep hands, hair and clothes away from moving parts, such as the wheels or the
motor. Serious injury could occur.
• Do not drive near flammable vapors, such as gasoline, paint thinner or liquid wax
that are usually stored in the garage. The Dodge Viper’s electric switch will spark
when first turned on or when turned off and could cause an explosion or fire! Keep
flammable products tightly sealed and stored away from the Dodge Viper.
• Do not drive the Dodge Viper in rainy or snowy weather. Water will damage the
motor, electric system and battery. Poor traction may cause the Dodge Viper to slip
or the wheels to spin, which could cause the power to shut down (see thermal fuse
information in Battery Maintenance, page 15).
• Do not drive the Dodge Viper in loose dirt, mud, sand or fine gravel, which can
damage moving parts, motors or the electric system. Poor traction could cause
the Dodge Viper to slip or the wheels to spin, which could cause the power to shut
down (see thermal fuse information in Battery Maintenance, page 15).
• Do not play the radio too loudly, because it may distract the driver.
• Only experienced drivers may use “High” speed (8 km/h [5 mph]). The Dodge Viper
might go too fast for beginners.

13
Driving the Dodge Viper
IMPORTANT! The Dodge Viper MUST come to a complete stop before shifting into
reverse and into low or high speed. Damage to the gears and motor WILL occur.
■ Low Speed 2-1/2 mph (4 km/h) for Beginning Drivers
1. Turn the power switch to the right. You will hear an “ignition” sound then an “engine
running” sound which stays on until the power switch is turned off.
2. Push the shifter into “Low” speed (the center position). NOTE: The shifter comes
from the factory locked in the “Low” speed (4 km/h [2-1/2 mph]) position. The
shifter will not go into “High” speed until it is unlocked (see below).
3. Press down on the foot pedal, and the Dodge Viper will go forward at 2-1/2 mph
(4 km/h).
4. Release the foot pedal, and the Dodge Viper will stop. NOTE: When the foot pedal is
released, the Dodge Viper will coast slightly before coming to a complete stop.
■ Reverse
1. Release the foot pedal to stop the Dodge Viper.
2. Push the shifter all the way up into “Reverse” (the highest position).
3. Press down on the foot pedal, and the Dodge Viper will go in reverse at 2-1/2 mph
(4 km/h).
4. Release the foot pedal, and the Dodge Viper will stop. NOTE: When the foot pedal is
released, the Dodge Viper will coast slightly before coming to a complete stop.
■ High Speed, 5 mph (8 km/h) for Advanced Drivers
1. Only experienced drivers may use high speed 5 mph (8 km/h). The shifter will not go
into high speed until it is unlocked. ONLY AN ADULT MAY UNLOCK THE SHIFTER.
2. To unlock the shifter, use a Phillips
screwdriver to remove the screw at the
bottom of the shifter. Keep the screw in a safe
place in case you want to replace it for more
inexperienced drivers.
3. Push the shifter down into high speed (the
lowest position).
4. Press down on the foot pedal, and the Dodge
Viper will go forward at 5 mph (8 km/h).
5. Release the foot pedal, and the Dodge Viper
will stop. NOTE: When the foot pedal is
released, the Dodge Viper will coast slightly before coming to a complete stop.
1

14














 
 





 
 
 

Approximate Riding Time with a Fully-Charged Battery

15
Battery Maintenance
IMPORTANT! READ AND UNDERSTAND THE WARNINGS ABOUT THE 12-VOLT BATTERY
ON PAGE 6. ONLY ADULTS MAY HANDLE THE BATTERY!
• After each use, or once a month minimum, charge the battery for a full 16 hours.
Do not leave the battery on the charger for more than 30 hours. See pages 6-7 for
charging instructions.
• Low battery signal will sound when the battery is running low on power. A “beeping”
sound will interrupt the “engine running” sound until the battery is recharged. See
pages 9-10 for charging instructions.
• The Kid Trax Toys 12-volt battery will eventually lose the ability to hold a charge.
Depending on the amount of use, and varying conditions, the battery should operate
for one to three years.
• Do not leave the battery in the Dodge Viper for long periods of time unused. Battery
may drain completely, causing permanent damage. Disconnect the battery connector
from the battery.
• Handle the battery with care. Do not drop the battery. Permanent damage to the
battery could occur.
• If the battery is removed from the Dodge Viper and stored, do not store the battery
where temperatures are over 75° F (24° C) or under -10° F (-24° C). Do not place the
battery directly on concrete for extended periods of time.
• It is best to leave the battery in the battery compartment of the vehicle for long storage
periods. If you cannot do this or have a multiple batteries, please store the battery on
a wood surface to avoid cement floor surface discharge. Always wipe the battery clean
with a dry cloth prior to storage. You will still need to charge your battery once each
month (16 hours) during long storage periods to ensure battery life.
• If the battery leaks or has completely discharged, it is no longer usable. Remove the
battery according to the instructions on page 16 and place it in a plastic bag. See
page 16 for disposal directions. Replace the battery with a Kid Trax Toys 12-volt
battery ONLY. See page 21 to reorder parts.
• If the battery leaks, Do not allow acid from the battery to contact skin or eyes. If this
happens, call your physician immediately. Flush with cool water for 15 minutes.
• If the battery leaks, Do not ingest acid. If this happens, call your physician
immediately. Give water, milk of magnesia or egg whites. Do not induce vomiting.
• The Kid Trax Toys 12-volt battery features a thermal fuse with a reset fuse on the
circuit board that will automatically trip and cut all power to the Dodge Viper if the
motor, electric system or battery is overloaded. The fuse will reset and power will
be restored after the unit is turned off and turned on again. If the thermal fuse trips
repeatedly during normal use, your Dodge Viper may need repair. Call Kid Trax Toys
Consumer Relations at [phone] for an authorized service center. To avoid
losing power, follow these guidelines:
- Do not overload the Dodge Viper. Maximum weight allowed: 130 lbs. (59 kg).
- Do not tow anything behind the Dodge Viper.
- Do not drive up steep slopes.
- Do not drive into fixed objects, which may cause the wheels to spin, causing the
motor to overheat.
- Do not drive in very hot weather; components may overheat.
- Do not allow water or other liquids to come in contact with the battery or other
electric components.
- Do not tamper with the electric system. Doing so may create a short, causing the
fuse to trip.

16
Replacing the Battery
The Kid Trax Toys 12-volt battery will
eventually lose the ability to hold a charge.
Depending on the amount of use, and
varying conditions, the battery should
operate for one to three years. If the battery
will not recharge, you must obtain a new Kid
Trax Toys 12-volt battery.
1. Use a coin to loosen the 2 plastic screws
in the seats. Lift the seats up and set
aside.
2. Locate the battery and connectors under
the seating area. Unplug the battery
connectors.
3. Using a Phillips screwdriver, remove the
screw from the battery bracket and set
aside. Remove the battery bracket and
set aside.
4. Carefully lift the battery and set aside.
NOTE: Never handle the battery by its
connector or cables.
Recycle the dead battery responsibly.
The battery contains lead acid
(electrolyte) and must be disposed of
properly and legally. DO NOT throw
the battery away with your regular
household trash! It is illegal in most
areas to incinerate lead acid batteries or
dispose of them in landfills. Take it to
a federally or state-approved lead acid
battery recycler, such as a Kid Trax Toys
authorized service center or your local
automotive battery retailer.
5. Replace the battery with a Kid Trax
Toys 12-volt battery ONLY. Reconnect
the battery connectors. Make sure the
connection is tight.
6. Using a Phillips screwdriver, replace the
battery bracket and screw.
7. Lower seats so the hooks insert into the
desired slots in the body. NOTE: Make
sure wires and cables are not crimped.
8. Use a coin and turn the plastic screw to
lock the seats in place.
2
4
1
5
3

17
Maintaining Your Dodge Viper
• Periodically check to make sure the seat screws and wheel nuts are tight. To check
the wheel’s nuts, use a flat-head screwdriver to gently pry off the hubcap.
• Make sure the battery bracket is securely in place.
• Make sure the plastic parts of the Dodge Viper are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels and the
steering linkages.
• Park the Dodge Viper indoors or cover it with a tarp to protect it from wet weather.
• Keep the Dodge Viper away from sources of heat, such as stoves and heaters. Plastic
parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge
the battery at least once a month when the Dodge Viper is not being used. See pages
6-7 for instructions about recharging the battery.
• Do not wash the Dodge Viper with a hose. Do not wash the Dodge Viper with soap
and water. Do not drive the Dodge Viper in rainy or snowy weather. Water will damage
the motor, electric system and battery.
• Clean the Dodge Viper with a soft, dry cloth. To restore shine to plastic parts, use a
non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the Dodge Viper in loose dirt, sand or fine gravel, which could damage
moving parts, motors or the electric system.
• Kid Trax Toys recommends that you take your Dodge Viper to an authorized service
center for periodic maintenance and service. Call Kid Trax Toys Consumer Relations
at [phone] for an authorized service center.

18
Troubleshooting Guide
Having problems with your Dodge Viper? Read through this troubleshooting guide for
solutions to common problems. If you still experience problems, call Kid Trax Toys
Consumer Relations at [phone] for an authorized service center.
• Kid Trax Toys recommends that you take your Dodge Viper to an authorized service
center for periodic maintenance and service. Call Kid Trax Toys Consumer Relations
at [phone] for an authorized service center.
■ PROBLEM: The Dodge Viper does not run.
POSSIBLE CAUSE: The battery may be low on power.
After each use, or once a month minimum, charge the battery for a full 16 hours.
Do not leave the battery on the charger for more than 30 hours. See pages 6-7 for
recharging warnings and instructions.
POSSIBLE CAUSE: Thermal fuse has tripped.
The Kid Trax Toys 12-volt battery features a thermal fuse with a reset fuse on the circuit
board that will automatically trip and cut all power to the Dodge Viper if the motor,
electric system or the battery is overloaded. The fuse will reset after the unit is turned
off and then on again. See page 15 for tips to avoid tripping the thermal fuse.
POSSIBLE CAUSE: Wheel nuts are loose.
If the nuts are not tight, the wheels will not engage the forward gears. Use a flat-head
screwdriver to gently pry off the hubcap. Tighten the nut with the nut wrench.
POSSIBLE CAUSE: Battery connector or wires are loose.
Make sure the battery connectors is are firmly plugged into each other. If you
find loose wires around the motor, call all Kid Trax Toys Consumer Relations at
[phone] for an authorized service center.
POSSIBLE CAUSE: Battery is dead.
Have you properly maintained the battery according to the directions? Is the battery
old? Your battery may need to be replaced. Refer to the Battery Maintenance
instructions on page 15.
POSSIBLE CAUSE: Electric system is damaged.
Water may have corroded the system, or loose dirt, gravel or sand might have jammed
the switch. Call Kid Trax Toys Consumer Relations at [phone] for an authorized
service center.
POSSIBLE CAUSE: Motor is damaged.
The Dodge Viper needs professional repair. Call Kid Trax Toys Consumer Relations at
[phone] for an authorized service center.
