KID Trax KT1311 User manual

tWARNING!
12V DUNE BUGGY
OWNER’S MANUAL
KT1311, KT1312, KT1335, KT1415
Age: 3 - 7 yrs
Weight: Maximum 88 lbs (40 kg)
Maximum Speed: 4 MPH
Baery: 12V
This manual contains important safety
and use informaon. Keep this manual for
future reference.
• An adult must read this enre manual
• Adult supervision is required at
all mes

2
--
Safety
1
FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. The owner’s manual
contains assembly, use and maintenance instrucons.
WARNING!
Child Safety Warnings
• Adults supervising children must read and understand this enre
manual before allowing any child to use this product.
• Adults must evaluate their own children as to maturity, strength,
judgment and ability to follow safety rules. Published age
guidelines are not a substute for careful evaluaon of your own
child.
• Adults must teach children about thinking ahead while riding as
this may be the rst me a child has ever controlled a motorized
ride-on toy. While you supervise, see through the child’s eyes,
and verbally teach them about steering and avoiding obstacles in
the approved riding area.
• Riding a motorized ride-on toy toy can be a dangerous acvity,
even under the best of circumstances. Good choices regarding
where and when to ride, constant adult supervision of riding,
and pracce and careful riding by the child can all help to
minimize risk. However this ride-on toy is intended to move and
therefore it is possible to lose control, fall o and/or get into
dangerous situaons that no amount of care, instrucon or
experse can eliminate.
• If this inherent risk is not acceptable, adults should not allow
children to ride this ride-on toy.

3
--
Safe Riding Warnings
Before using the ride-on toy the child should understand the
controls and safety issues. They must also demonstrate the
capability to handle the ride-on toy and operate its controls. It is
the responsibility of the adult to educate the child and supervise
the use. Explain the following safety warnings to any child using the
ride-on toy before riding
• Adults must teach their children not to allow other children to
use this ride-on toy. Adults must communicate this message to
the adult supervisors of friends and neighbors who have children
that play with your children.
• Never leave child unaended. Connuous adult supervision
required.
• Body parts such as hands, legs, hair and clothing can get caught
in moving parts. Never place a body part near a moving part or
wear loose clothing while using the ride-on toy.
• Always wear shoes when using the ride-on toy.
• Not to be used by children under 3 years of age or over 7 years
of age.
• Do not exceed the maximum weight capacity of 88 lbs.
• Children must not have access to the charging equipment or
touch any part of the ride-on toy while it is charging.
• Always use common sense and safe pracces when using the
ride-on toy.
• Never use the ride-on toy in an unsafe manner. Examples include
but are not limited to:
• Pulling the ride-on toy with another ride-on or similar
moving product
• Allowing more than two riders
• Pushing the user from the back
• Traveling at an unsafe speed
• Any kind of stunt riding or other more risky use
• Going over jumps or other type of ramps
• Not riding in a seated posion
• Not riding with the baery or other covers fully closed
• ADULTS MUST SET UP PHYSICAL BARRIERS, SUCH AS GATES OR
FENCES, TO KEEP CHILDREN AWAY FROM HAZARDOUS AREAS.
• Always use the ride-on toy in a safe, secure environment with
connuous adult supervision.
• This ride-on toy does not have brakes or any braking capability.
Do not leave a child unaended while using this ride-on toy or
allow use of this ride-on toy in any locaon that requires braking
capability, as this could result in a roll away or loss of control,
which may cause serious injury or death.
WARNING!

4
-- WARNING! --
Baery and Charging Warnings
The following safety hazards may result in serious injury or
death to the user of the ride-on:
Corrosive Material Warnings
• Baery posts, terminals and related accessories contain lead
and lead compounds (acids) chemicals and are toxic and
corrosive. Never open the baery.
• Contact or exposure to baery leakage (lead acid) may cause
serious injury. If contact or exposure occurs with the skin or in
the eyes, or if the chemical is swallowed, immediately call 911.
WARNING!
Safe Riding Warnings (connued)
• Do not ride in wet condions such as rain and snow. Doing so
may result in unexpected acon such as p over and skidding,
as well as damage to the electrical system and baery.
• Do not ride near swimming pools or other bodies of water.
• Do not ride on roads, streets, near other ride-on toys or where
other types of moving objects are present.
• Do not ride at night or in condions of low visibility.
• Do not ride near drop-os such as steps, sloped surfaces or
hills.
• Do not ride into loose dirt, mud, sand, ne gravel, loose gravel
and rough surfaces.
• For best performance, ride-on at, hard surfaces.
• Never hitch (aach) on to another ride-on or pull anyone
or anything.

5
-- WARNING!
Electric Shock / Fire Warnings
• Liquids on the baery may cause re or electric shock.
Always keep all liquids away from the baery and keep the
baery dry.
• Tampering or modifying the electric circuit system may cause a
shock, re or explosion and permanently damage the system.
Exposed wiring, circuitry in the charger may cause electric shock.
Always keep the charger housing closed.
• Regularly check charger, supply cord and connector for wear and
damage. Look for frayed or kinked wires, any exposed inner
wires, any missing insulaon. If any damage is observed do not
plug in the charger and do not charge
the baery.
Flammable and Explosive Materials Warnings
• Use of a baery or charger other than the supplied rechargeable
baery and charger may cause a re or explosion. Only use the
supplied rechargeable baery and charger with the ride-on toy.
• Do not charge the baery near heat or ammable materials.
• Using the recharbeable baery and charger for any other
product many result in overheang, re or explosion. Never use
the rechargeable baery and charger with another product.
• Contact between the posive and negave terminals may result
in re or explosion. Avoid direct contact between the terminals.
Liing the baery by the wires or charger can cause damage to
the baery and may result in a re. Always li the baery by its
case or handles.
• Plug wall charger directly into a wall outlet. Do not use an
extension cord when charging as the use of an extension cord
can cause a re.
Baery and Charging Warnings (connued)

6
-- CAUTION!WARNING!
If you are unsure of any informaon in this manual or have a queson regarding assembly or use please call customer service. Always
keep this manual for reference and include it with resale of the ride-on toy.
Re-Charge Interval and Time
Important!
• Damage to the baery may occur if it is allowed to drain
completely. Do not allow the baery to drain completely.
• Check the baery and charger (supply cord, connector) for
wear and damage before charging. Do not charge the baery if
damage has occurred. Do not use an extension cord when
charging the ride-on toy.
• On average you will need to charge the baery for 12 hours
and no more than 24 hours. Failure to charge the baery as
directed could cause permanent damage to the baery and
void the warranty.
• Only an adult who has read and understands the safety
warnings should handle, charge and recharge the baery.
Product Warning
• This product contains or emits chemicals known to the state of
California to cause cancer or birth defects or other reproducve
harm.
Assembly Warnings
• The ride-on toy must be assembled by an adult who has read
and understands the instrucons in this manual.
• Choking hazard to children under the age of 3 years.
This ride-on toy contains small parts that are for adult assembly
only. Keep small children away when assembling.
• Remove and dispose of all protecve materials, plasc bags and
packaging before assembly.

7
PRE-RIDE SAFETY CHECKLIST
(To be performed by a supervising adult)
Before every ride, it is important to carry out the following
safety checks. Do not ride a baery powered ride-on toy that is
not in proper working condion! Replace any worn or broken parts
as needed.
Steering and Control
The steering wheel or handlebars are ghtened and secured in
the mount or dashboard.
The steering wheel or handlebars are posioned so that the
rider can easily operate and steer the ride-on. There must be
no diculty for the rider in turning and/or operang the
powered foot pedal or hand operated push buon.
The steering wheel or handlebars are aligned so that the
steering column and front wheels are oriented in the
same direcon.
Wheels
The wheels are securely aached to the baery powered
ride-on and are in good condion. It is acceptable to have slight
lateral movement in each wheel.
The wheels have no holes or are worn down in any one area
and that the tracon strips are intact and secured to the
wheels.
The drive wheel is securely fastened to the gear box, which
houses the motor.
Ride-on
For all electrical components, make sure:
• The baery is fully charged
• The charging cord is NOT aached to the ride-on in
any way
• All connectors are securely snapped in place and will not
come detached while riding
• No wiring is exposed, worn, or detached in any way; the
motor is not hot to touch
• All electrical buons, including the power buon,
accelerator foot pedal or hand operated buon, and any
buons for lights and sounds, work properly
• If the ride-on’s electrical components show any sign of
damage or missing parts DO NOT RIDE unl the condion
is corrected
Make sure the ride-on is:
• Clean, dry, and in good condion
• All plasc pieces, including fenders, seat, footrests,
steering wheel or handlebars, wheels, bumpers, and/or
hub caps are securely aached
• There are no cracks or structural problems on the
ride-on toy
• If the ride-on toy shows any sign of damage or missing
parts DO NOT RIDE IT unl the condion is corrected
Make sure all safety labels are in place and readable, and
understood by the rider.

8

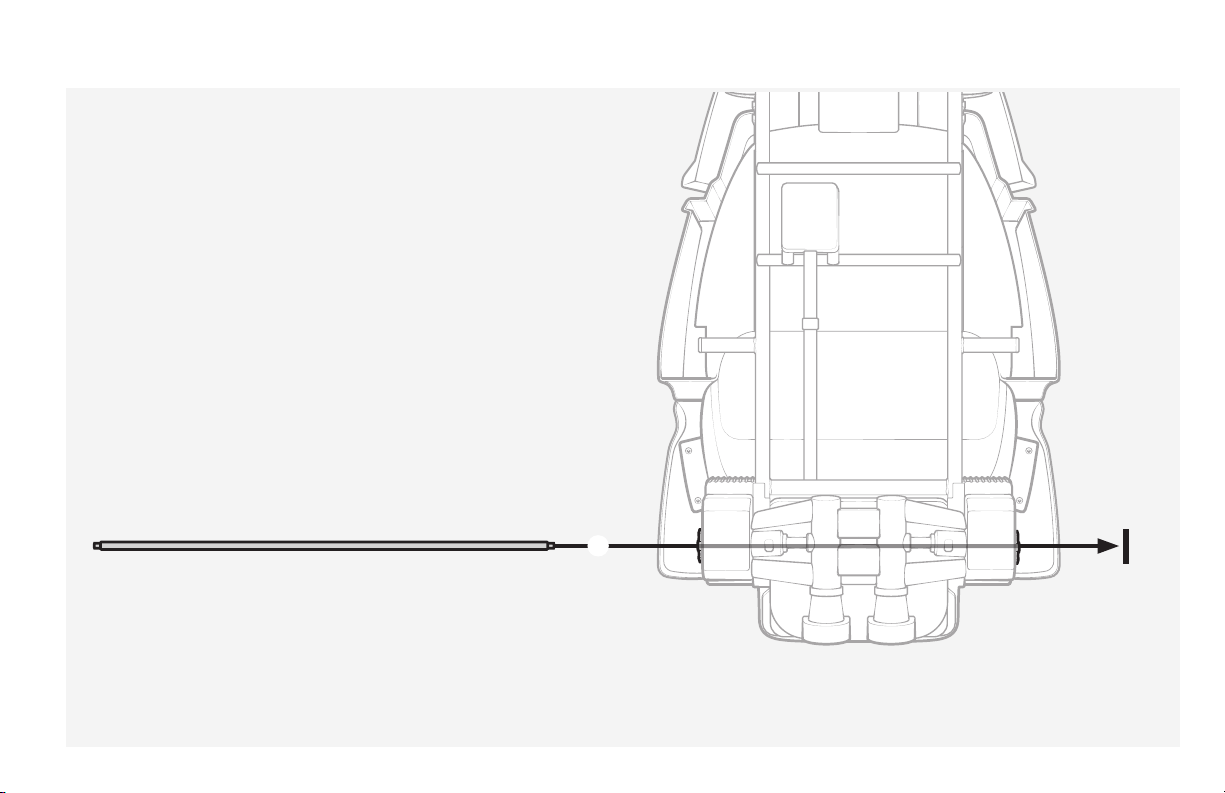

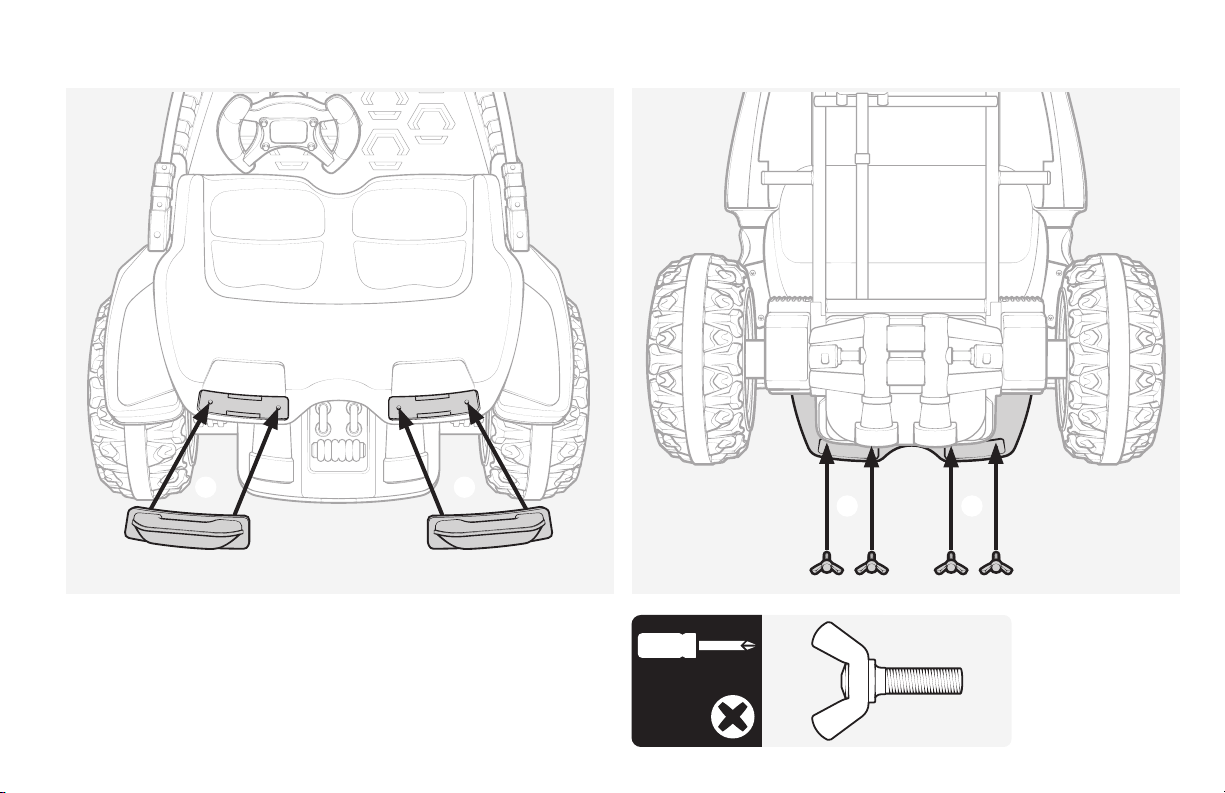

Parts
2
❶
❷
❸ ❹
❺
❻
❼
❽❾
⓬
⓭
⓮ ⓯
⓰
⓫
❿

9
Before beginning assembly, check to ensure that the parts listed are
present. Some hardware is aached to the sub assembly.
Hardware (actual size)
Tools Required
Parts List
#Part name Quanty
❶Headrests 2
❷ Steering Wheel 1
❸Fender 2
❹Fender Cap 2
❺Hood 1
❻ Rear Wheel 2
❼ Rear Wheel insert 2
❽ Rear Wheel Rim 2
❾ Wheel Snapcap 4
❿ Front Wheel Rim 2
⓫ Front Wheel Insert 4
⓬ Front Wheel 2
⓭Front Bumper 1
⓮Wrench 2
⓯Charger 1
⓰Rear Axle 1
x5 x7 x4
(included)
x7 x1 x1 x1

10

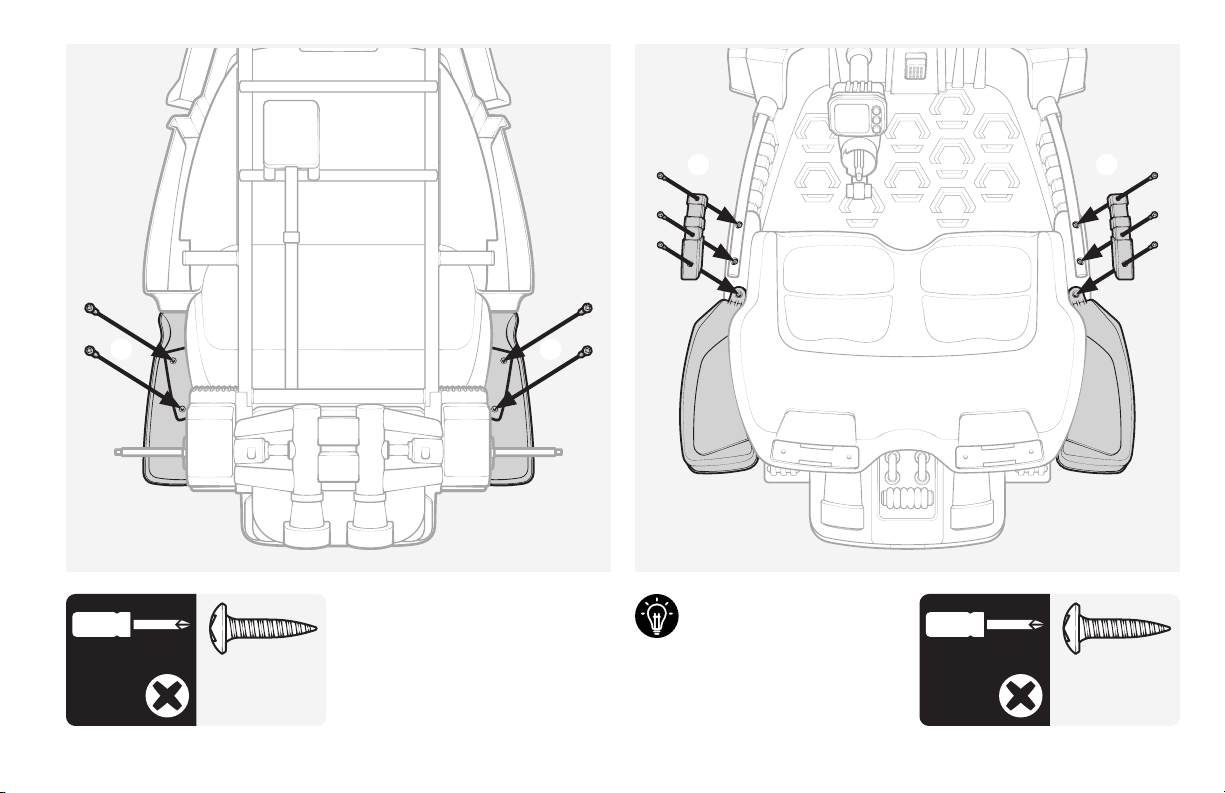

Fender Assembly
Assembly
3
❶ ❶
❷ ❷

11
TIP!
Reuse the screws removed from
the Dune Buggy (step 1) to
reaach the fender caps (step 4).
❹ ❹
❸❸

12

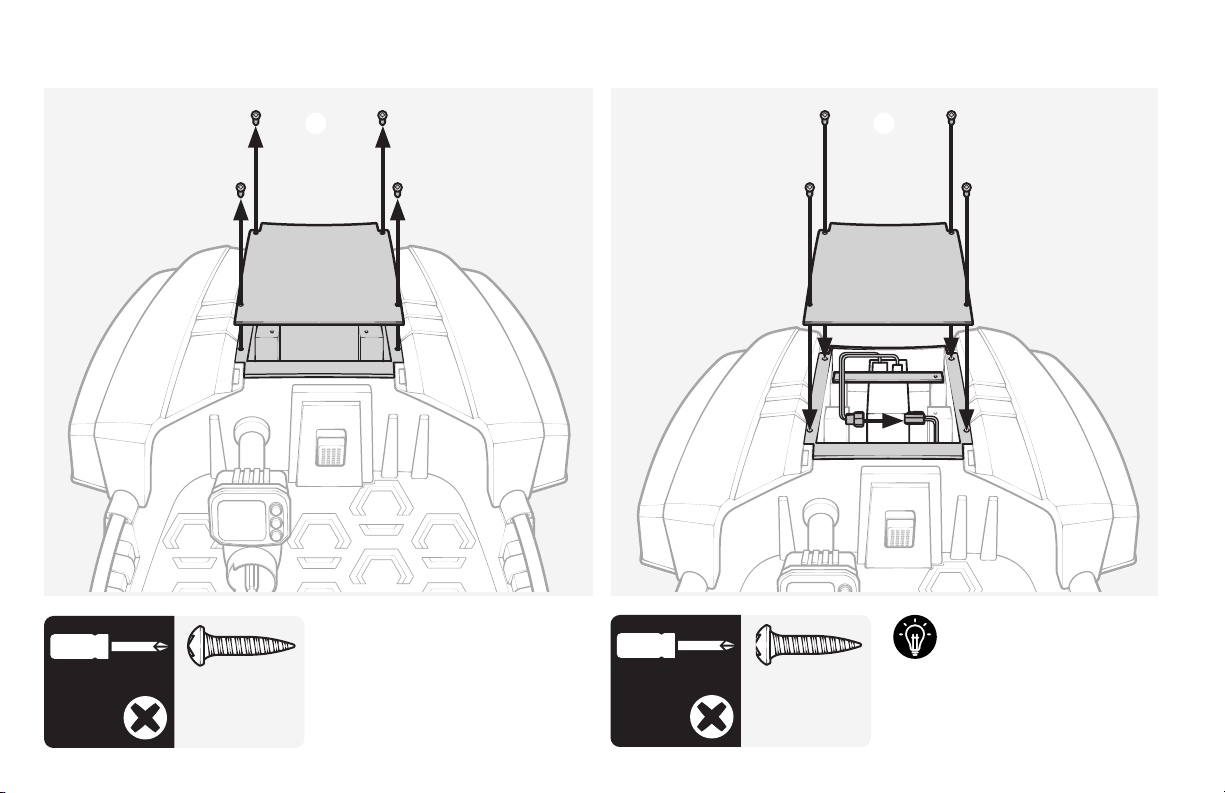

Connecng the Baery to the Motor
TIP!
Reuse the screws removed from
the Dune Buggy (step 1) to
reaach the baery cover
(step 3).
❶
❷
❸

13

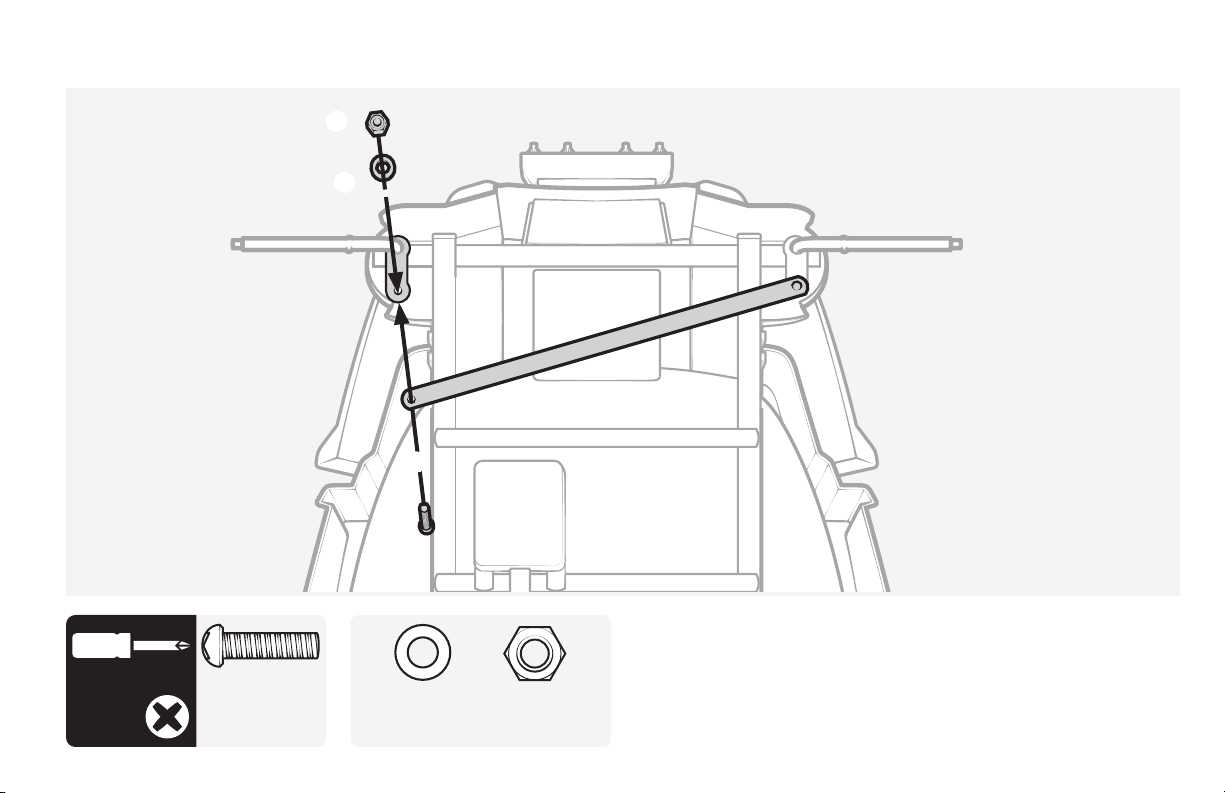

Steering Rod Assembly
❶
❸
❷

14
Front Wheel Assembly
• Place the insert (step 2& 4) into the wheel before sliding the wheel onto the axle.
• Ensure sure the tab on wheel rim (step 5) aligns with the slot in the wheel.
Note
❶❷
❸ ❸
❹ ❹
❺ ❺
❻ ❻❼ ❼❽❽ ❶❷

15
Rear Axle Assembly
❶

16
Rear Wheel Assembly
❶❶
❷ ❷
❸ ❸
❹ ❹❺ ❺❻❻
TIP!
When you ghten the nuts (step 5), if you aempt to ghten one
nut at a me the axle will spin prevenng the nut from properly
ghtening. Instead ghten both nuts simultaneously to ensure that
all hardware is locked into place.

17
Steering Wheel Assembly
Make sure the stoppers located on both sides of the steering rod
are in the horizontal posion, so that they align with the slots in the
steering wheel.
Note
❶
❷
❸
❹

18
Front Bumper Assembly Front Hood Assembly
❶❷❷

19
Headrest Assembly
❶ ❶ ❷ ❷

20
WARNING!
NOTICE
Charging the Baery
• A baery contains hazardous material that may cause serious
injury or death if handled, connected, or charged improperly.
Only an adult who has read and understands the warnings
and instrucons in this manual should handle, connect, or
charge the baery. Always contact Pacic Cycle at
1-877-741-6154 if you have any quesons or concerns
regarding handling, connecng, or charging the baery.
• Charging the baery more than 24 hours could cause the
baery to explode or ignite resulng in serious injury, death
or property damage. Do not charge the baery for more than
24 hours. Always disconnect the product from the charger
aer the baery is completely charged.
• A damaged supply cord, connector, or charger could cause
burns to the skin, an electrical re, serious injury, death, or
property damage. Always inspect the supply cord, connector,
and charger for damage. (e.g., frayed or kinked wires, exposed
inner wires, missing insulaon) before use. If damaged, do not
use the supply cord, connector or charger for any purpose and
properly dispose
• Connecng the baery and baery charger to an extension
cord(s) could result in overheang, explosion, re, serious
injury, death, or property damage. Never charge the baery
using an extension cord. Always plug the charger directly into
a wall outlet.
• See addional baery and charging warnings on p.4
• The baery may become damaged if allowed to drain
completely. Always keep the baery charged.
• The average me to charge the baery is between 10 and 12
hours. Failure to follow the instrucons regarding charging the
baery may result in permanent damage to the baery and void
the warranty.
