KID Trax Toddler Quad User manual

KT1161 / KT1162
OWNER’S MANUAL
Toddler Quad
Keep instrucons for future reference.

2
1Safety
WARNING!
• Using the vehicle near streets, motor vehicles, drop-os such
as: steps, water (swimming pools) or other bodies of water,
sloped surfaces, hills, wet areas, ammable vapors, in alleys, at
night or in the dark could result in an unexpected accident.
Always use the vehicle in a safe, secure environment with
connuous adult supervision.
• Using the vehicle in unsafe condions such as snow, rain, loose
dirt, mud, sand or ne gravel may result in unexpected acon
such as p over and skidding, and damage to the electrical
system and baery.
• Using the vehicle in an unsafe manner. Examples include but are
not limited to:
a. Pulling the vehicle with another vehicle or similar
device
b. Allowing more than one rider
c. Pushing the user from the back
d. Traveling at an unsafe speed
Always use common sense and safe pracces when using the
vehicle.
This product contains or emits chemicals known to the state
of California to cause cancer or birth defects or other reproducve
harm.
The owner’s manual contains assembly, use and maintenance
instrucons. The vehicle must be assembled by an adult who has
read and understands the instrucons in this manual. Keep the
packaging away from children and dispose of all packaging before
use. Note: For best performance use on at, hard surfaces.
The following safety hazards may result in serious injury or death
to the user of the vehicle:
• This product contains small parts that are for adult assembly
only. Keep small children away when assembling. Remove and
dispose of all protecve material and poly bags before
assembly. Be sure to remove all packaging materials and parts
from underneath the vehicle body.
• Baery posts, terminals and related accessories contain lead
and lead compounds (acids) chemicals known to the state of
California to cause cancer, reproducve harm, and are toxic and
corrosive. Never open the baery.
• Body parts such as hands, legs, hair and clothing can get caught
in moving parts. Never place a body part near a moving part or
wear loose clothing while using the vehicle. Always wear shoes
when using the vehicle.

3
BATTERY WARNINGS
• Contact or exposure to baery leakage (lead acid) may
cause serious injury. If contact or exposure occurs
immediately call your physician. If the chemical is on
the skin or in the eyes, ush with cool water for 15
minutes. If the chemical was swallowed, immediately
give the person water or milk. Do not give water or
milk if the paent is voming or has a decreased level
of alertness. Do not induce voming.
• Baery posts, terminals and related accessories
contain lead and lead compounds (acid), chemicals
known to the State of California to cause cancer,
reproducve harm and are toxic and corrosive.
Never open the baery.
• Tampering or modifying the electric circuit system may
cause a shock, re or explosion and permanently
damage the system. Exposed wiring, circuitry in the
charger may cause electric shock. Always keep the
charger housing closed.
• DO NOT mix old and new baeries
• DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) baeries
The following safety hazards may result in serious injury or death
to the user of the vehicle:
• Use of a baery or charger other than the supplied Kid
Trax Toys 6V rechargeable baery and charger may
cause a re or explosion. Only use the supplied Kid Trax
Toys 6V rechargeable baery and charger with the
vehicle.
• Using the Kid Trax Toys 6V rechargeable baery and
charger for any other product may result in overheang,
re or explosion. Never use the KidTrax Toys 6V
rechargeable baery and charger with another product.
• Explosive gases are created during charging. Charge the
baery in a well venlated area. Do not charge the
baery near heat or ammable materials.
• Contact between the posive and negave terminals
may result in re or explosion. Avoid direct contact
between the terminals. Picking up the baery by the
wires or charger can cause damage to the baery and
may result in a re. Always pick up the baery by it’s
case or handles.
• Liquids on the baery may cause re or electric shock.
Always keep all liquids away from the baery and keep
the baery dry.
WARNING!

4

Important!
• Damage to the baery may occur if it is allowed to drain
completely. Do not allow the baery to drain completely.
• Check the baery and charger (supply cord, connector) for wear
and damage before charging. Do not charge the baery if
damage has occurred. Only replace with a Kid Trax Toys 6V
rechargeable baery and charger.
On average you will need to charge the baery between 10 and 12
hours. Do not charge the baery for more than 18 hours. Failure to
charge the baery as directed could cause permanent damage to
the baery and void the warranty.
• Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
• Do not leave the vehicle in the sun for long periods of me or
fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap and water.


Before using the vehicle the child should understand the vehicle
controls and safety issues. They must also demonstrate the
capability to handle the vehicle and operate
its controls. It is the responsibility of the adult to educate the child
and supervise the vehicles use. Read the following safety warnings
to any child using the Vehicle before riding.
WARNING!
WARNING!
• Never leave child unaended. Always supervise the child.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed on the vehicle at a me
• Children under 18 months of age cannot use the vehicle.
• Only drive on level ground.
• Do not go near swimming pools or other bodies of water,
drop-os or up and down steep inclines.
• Do not drive the vehicle into loose dirt, mud, sand or ne gravel.
• Do not drive the vehicle on streets or near cars.
Age 18 months +
Max Weight 44 lbs (20 kgs)

5
2Parts
Close
Open

6

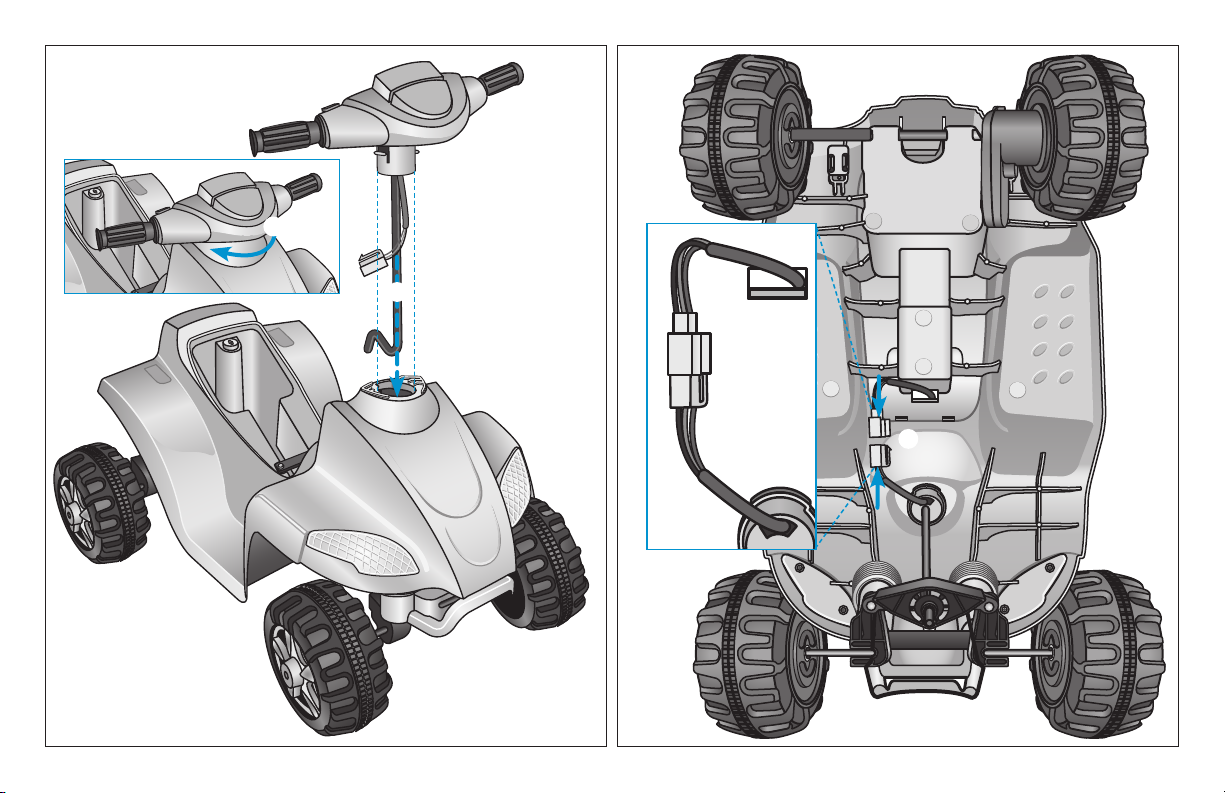

3Assembly

 

  

7
 




  

8




9
Close
Open
Close
Open






10
Close
Open
4Use

11
Close
Open


12+
18+



12
5Maintenance
The vehicle should be checked for damage, missing or badly worn parts before use.
• Check the ghtness of the fasteners before each use.
• Check the ghtness of the wheels.
• Ensure the baery is securely in place before use
• Occasionally use lightweight oil to lubricate moving parts such as wheels and steering linkage. Do not use oil on plasc or nylon parts.
No lubricaon is required.
• Store the vehicle indoors or cover it with a tarp to protect it from the wet weather. Keep it away from sources of heat, such as stoves
and heaters.
• Clean the vehicle with a so, dry cloth. To restore shine to plasc parts, use a non-wax furniture polish. Do not use car wax, abrasive
cleaners or wash the vehicle with soap and water. Water will damage the motor, electrical system and baery.
• KidTrax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call Kid Trax
Toys Consumer Relaons at 877-741-6154 for an authorized service center.

13
Close
Open







14
6
Problem  Remedy
Vehicle does not run Baery low on power Recharge baery (see Baery: Recharge Interval and Time)
Thermal fuse has tripped Let the vehicle rest for 5 to 10 minutes before connuing normal
operaon. (see Maintenance)
Baery connector or wires are loose Check that the baery connectors are rmly plugged into each
other. If wires are loose around the motor call Consumer
Relaons at 877-741-6154 for an authorized service center
Baery is dead Replace baery (see Baery: Replacement and Disposal)
Electrical system is damaged Call Consumer Relaons at
877-741-6154 for an authorized service center
Motor is damaged Call Consumer Relaons at
877-741-6154 for an authorized service center
Vehicle does not run very
long
Baery is under charged Check that the baery connectors are rmly plugged into each
other when recharging (see Baery: Recharge Interval and Time)
Loud grinding or clicking
noises coming from motor
or gear box
Motor or gears are damaged Call Consumer Relaons at 877-741-6154 for an authorized
service center
The following are examples of potenal problems. Completely read through this manual and the troubleshoong guide table before calling
Kid Trax Toys Consumer Relaons. If you sll need help resolving the problem please call 877-741-6154. Kid Trax Toys recommends that
you take the vehicle to an authorized service center for periodic maintenance and service. Call the number listed above for the closest
center to you.

15
Problem  Remedy
Vehicle runs sluggishly or
beeping occurs
Baery low on power Recharge baery (see Baery: Recharge Interval and Time)
Baery is old Replace baery (see Baery: Replacement and Disposal)
Vehicle is overloaded Reduce weight on vehicle (see User Requirements and Safety
Warnings)
Vehicle is being used in harsh
condions
Operate the vehicle level ground and rm surfaces (see User
Requirements and Safety Warnings)
Vehicle needs a push to
go forward
Poor contact of wires or connectors Check that baery connectors are rmly plugged into each other.
If wires are loose around the motor call Consumer Relaons at
877-741-6154 for an authorized service center
“Dead Spot” on motor A dead spot means the electric power is not being delivered to the
terminal connecon and the vehicle needs repair. Call Consumer
Relaons at 877-741-6154 for an authorized service center
6V Baery will not
recharge
Baery connector or adapter
connector is loose
Check that baery connectors are rmly plugged into each other
Charger not plugged in Check that baery charger is plugged into a working wall outlet
Charger is not working (lights not
glowing)
Call Consumer Relaons at 877-741-6154 for an authorized service
center
Baery bubbles or gurgles
when charging
This is normal and not a cause for
concern
Charger feels warm when
recharging
This is normal and not a cause for
concern

16
7Service
Do not return this product to the place of purchase. If your vehicle
needs service, repairs or replacement parts, call:

 8:00 am – 5:00 pm (CST) Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.kidtraxtoys.com
For service and repairs you will be directed to an authorized service
center. To order parts have the model and serial number, found
underneath the seat on the baery cover.
The following is a list of available replacement parts:
• Wheels
• Hardware bag for wheel assembly
• Steering assembly
• 6-volt KidTrax baery
• Baery Charger

17
8Warranty
One-Year Limited Warranty

Pacic Cycle, Inc. (PC) warrants this product to the original retail purchaser as follows: The vehicle (except for the 6-volt baery) is
warranted against defecve materials or workmanship for one year from the date of original purchase. The 6-volt baery is warranted
against defecve materials or workmanship for six months from the date of original purchase. An original receipt is required to validate
your warranty. PC will, at its opon, provide replacement parts or replace this product. PC reserves the right to substute if the part or
model has been disconnued. To make a claim under this warranty you may contact us at www.kidtraxtoys.com; fax us at 1-800-858-
2800, 24 hours a day; write to KidTrax Consumer Relaons Department, KidTrax Toys, P.O. Box 344 Olney, IL 62450 or call 1-877-741-
6154 from 8 a.m. to 5 p.m., Monday through Friday, CST. Proof of purchase is required, and shipping charges are the responsibility of
the consumer.

This warranty does not include damages which arise from accident, misuse, abuse, neglect or other causes not arising out of defects in
materials or workmanship, nor does it cover damages arising out of service by other than an authorized PC service center. For personal
use only. Not for commercial use. The original owner shall pay all labor charges connected with the repair or replacement of all parts.
Under no circumstances does this limited warranty include the cost of shipment or transportaon to or from an authorized Kid Trax
repair center or Kid Trax retailer.

The warranty and remedies as set forth are exclusive and in lieu of all others, oral or wrien, expressed or implied. In no event will PC
or the dealer selling this product be liable to you for any damages, including incidental or consequenal damages, arising out of the use
or inability to use this product. Some states do not allow limitaons as the exclusion or limitaon of incidental or consequenal
damages, so the above limitaon may not apply to you.

Any implied warranes, including implied warranes of the merchantability and tness for a parcular purpose, shall be limited to the
duraon and terms of the express wrien warranty. Some states do not allow limitaons as the exclusion or limitaon of incidental or
consequenal damages, so the above limitaon may not apply to you. This warranty gives you specic legal rights, and you may have
other rights, which vary from state to state. Neither PC nor the dealer selling this product authorized any person to create for it any
other warranty, obligaon or liability in connecon with this product.

18
In U.S.A.
© 2014 Pacic-Cycle Inc.
4902 Hammersly Rd.
Madison, WI 53711
Styles and colors may vary. Made in China
