TOS5200 1
DANGER
● Improper operation can lead to serious
accidents.
● To prevent accidents, be sure to read the
section “Safety Precautions during
Testing” in this setup guide.
● Keep this setup guide close to the
product so that the operators can read
the manual at any time.
This product generates high
voltage!
Thank you for purchasing the TOS5200 Withstanding Voltage
Tester.
Notes to the Supervisor
■If the operators cannot understand the language
used in this manual, translate the TOS5200 manu-
als1into the appropriate language.
■Make sure that the operators understand the infor-
mation in the TOS5200 manuals1before they oper-
ate the product.
■Keep the TOS5200 manuals1close to the product
so that the operators can read them at any time.
■If the tester will be used to repeatedly perform
tests with xed conditions, such as when being
used as part of a manufacturing line, attach the
protection cover to ensure safe operation of the
tester. This is useful in preventing incorrect opera-
tion of the tester.
1: See “About the TOS5200 Manuals” on page 2.
Dangerous Operations
You will receive a potentially fatal electric shock if:
■You touch an output terminal while output is being
generated.
■You touch a test lead that is connected to an out-
put terminal while output is being generated.
■You touch the device under test (DUT) while output
is being generated.
■You touch a location that is electrically connected
to an output terminal while output is being gener-
ated.
You may receive a potentially fatal electric shock if:
■You operate the tester without grounding it.
■You operate the tester without using rubber gloves
for electrical work.
■You come close to a location that is electrically
connected to an output terminal while output is
being generated.
PART NO. Z1-006-140, IB028003
Jul. 2016
TOS5200
Setup Guide
Withstanding Voltage Tester
KIKUSUI ELECTRONICS CORP.
1-1-3 Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
Tel: [phone] Fax: [phone]
http://www.kikusui.co.jp/en
Website
The newest version of the TOS5200 manuals can be
downloaded from Download service of Kikusui website.

2 TOS5200
The following manuals are provided for the TOS5200 With-
standing Voltage Tester.
■User’s Manual (PDF)
This manual is intended for first-time users of this product.
It provides an overview of the product, notes on usage, and
specifications. It also explains how to connect the product,
configure the product, operate the product, perform mainte-
nance on the product, and so on.
■Communication Interface Manual (PDF)
This manual explains how to control the product remotely using
SCPI commands.
The interface manual is written for readers with sufficient basic
knowledge of how to control measuring instruments using a
PC.
■Quick Reference
The quick reference briefly explains the control panel and the
basic operation of it.
■Setup Guide (this guide)
This manual is intended for first-time users of the product. It
gives an overview of the product, connecting procedures, safe-
ty precautions, etc. Please read this manual before you operate
the product.
■Safety Information
This document contains general safety precautions for this
product. Keep them in mind and make sure to observe them.
These manuals are intended for users of the Withstanding Volt-
age Tester and their instructors. Explanations are given under
the presumption that the reader has knowledge related to elec-
tricity.
PDF files are included in the accompanying CD-ROM.
You can view the PDF files using Adobe Reader.
Every effort has been made to ensure the accuracy of this
manual. However, if you have any questions or find any errors
or omissions, please contact your Kikusui agent or distributor.
If you find any misplaced or missing pages in the manuals,
they will be replaced. If the manual gets lost or soiled, a new
copy can be provided for a fee. In either case, please contact
your Kikusui agent or distributor. At that time, inform your agent
or distributor of the “Part No.” written on the front cover of this
manual.
After you have finished reading this manual, store it so that you
can use it for reference at any time.
Contents of the included CD-ROM
Load the included CD-ROM into the CD-ROM drive. In a few
moments, a start window will appear. If the start window does
not appear, open the CD-ROM folder in Windows Explorer, and
then double-click index.html to display the start window.
The CD-ROM contains the following items.
• KI-VISA driver
• User’s Manual (PDF)
• Quick Reference (PDF)
• Setup Guide (PDF)
• Communication Interface Manual (PDF)
• Description of the Safety Evaluation Test (PDF)
Notations used in this manual
• The TOS5200 Withstanding Voltage Tester is also referred to
as the TOS5200.
• Device under test is also referred to as DUT.
• The term “PC” is used to refer generally to both personal
computers and workstations.
• The following markings are used in the explanations in this
manual.
WARNING
Indicates a potentially hazardous situation which, if ig-
nored, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if ignored,
may result in damage to the product or other property.
—Note—
Indicates information that you should know.
SHIFT+key name (blue letters)
Indicates an operation that requires you to press a key indi-
cated in blue letters while holding down SHIFT.
About the TOS5200 Manuals

TOS5200 3
Features
zNewly developed constant-voltage output for stable testing
The TOS5200 is not affected by AC line interference. Be-
cause the output voltage is maintained at a fixed value even
if the AC line voltage or frequency changes, stable tests can
be performed even in locations where the power supply is
unstable.
The AC inlet is designed for worldwide use. The TOS5200
can be used without modification provided the nominal pow-
er supply voltage is within the range of 100 Vac to 240 Vac (90
Vac to 250 Vac) and the frequency is within the range of 47
Hz to 63 Hz.
zRise time control feature that gradually increases the test
voltage
Instead of immediately applying the specified test voltage to
the DUT after the test begins, this makes it possible to per-
form tests in which the voltage is raised gradually to the test
voltage. As required by withstanding voltage tests defined
by standards such as IEC and UL, this makes it possible to
perform tests in which no more than half of the test voltage is
applied at the start of the test, and the test voltage is gradu-
ally reached over the specified time.
zFall time control feature that gradually decreases the test volt-
age
The test voltage can be gradually decreased after a PASS
judgment occurs during an AC withstanding voltage test.
zWindow comparator feature for setting upper and lower judg-
ment limits
You can set not only the upper limit, but the lower limit as
well. This is useful in determining whether there are breaks in
test leads or whether there was a mistake during operations.
This leads to highly reliable tests.
zAbility to save three sets of test conditions
You can save three sets of test conditions.
zImproved safety
In addition to having features that enable you to view the out-
put voltage, the TOS5200 also enables you to set the voltage
limits, so you can prevent a voltage greater than what is nec-
essary from being generated unintentionally. This provides
protection for the DUT.
zStandard-equipped USB port
The TOS5200 is standard-equipped with a USB interface.
You can use a PC or sequencer to control test conditions and
read measured values and test results.
zLight-weight and easy to move
Even though the TOS5200 can generate 500 VA, which is
sufficient for performing withstanding voltage tests, it only
weighs 15 kg or less, so it can be moved by even a single
person.
zProtection against incorrect operations
In addition to the key lock feature, the TOS5200 has a protec-
tion cover for the part of its panel that is used to change test
conditions. This cover is useful in preventing incorrect opera-
tions when you want to perform tests with fixed conditions.
Checking the Package Contents
When you receive the product, check that all accessories are
included and that the accessories have not been damaged
during transportation. If any of the accessories are damaged or
missing, contact your Kikusui agent or distributor. We recom-
mend that you save all packing materials, in case the product
needs to be transported at a later date.

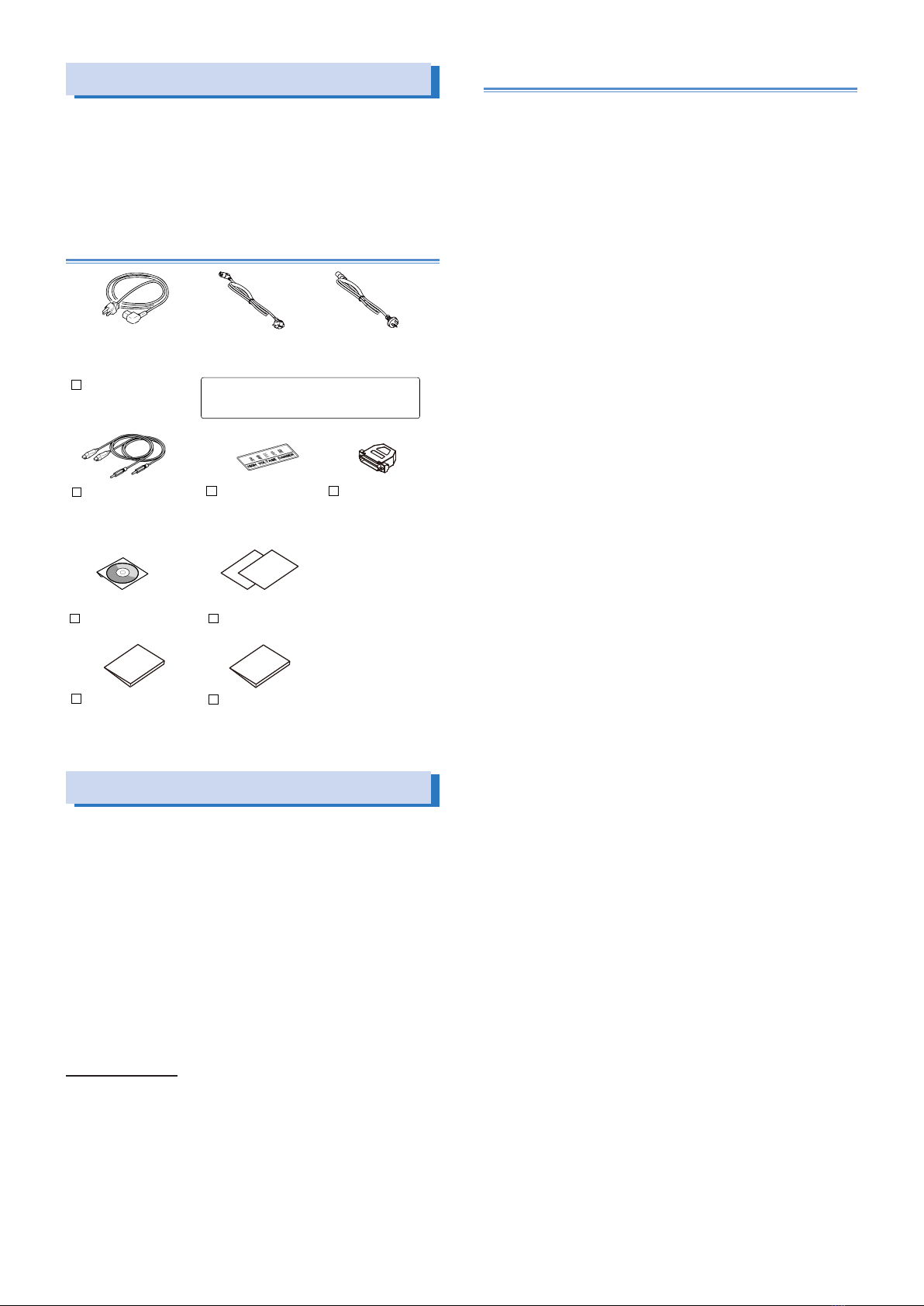

Accessories
Product Overview
The TOS5200 Withstanding Voltage Tester performs withstand-
ing voltage tests, which is one of the four types of tests2that
are required for ensuring the safety of electrical products.
This product can perform AC withstanding voltage tests on
electrical products and electrical components in accordance
with the requirements of safety and electrical standards and
ordinances such as IEC, EN, UL, VDE, and JIS.
It is suited to (1) research and development installations, (2)
test facilities for quality assurance testing and standard certifi-
cation, and (3) manufacturing lines.
The withstanding voltage tester is easy to use, safe, and reli-
able.
2: The four types of tests are the withstanding-voltage, insulation-resistance,
earth-continuity, and leakage-current tests.
High-voltage test lead
(1 set)
[TL31-TOS]
Setup Guide (1 pc.)
Power cord (1 pc.)
Length: Approx. 2.5 m
Rating: 125 Vac, 10 A
Plug: NEMA5-15
[85-AA-0003]
Rating: 250 Vac, 10 A
Plug: GB1002
[85-10-0790]
Rating: 250 Vac, 10 A
Plug: CEE7/7
[85-AA-0005]
SIGNAL I/O plug
(1 set)
Assembly type
(D-sub plug unit)
High-voltage warning
sticker (1 pc.)
[A8-210-203]
CD-ROM (1 pc.)
Japanese (1 pc.)
English (1 pc.)
Quick Reference
Safety information (1 pc.)
or or
The power cord that is provided varies
depending on the destination for the product at
the factory-shipment.

4 TOS5200
Precautions Concerning Installa-
tion Location
When installing this product, be sure to observe the pre-
cautions provided in “Precautions Concerning Installation
Location” and “Precautions to Be Taken When Moving the
Product” in the Safety information manual. The following
precautions pertain only to this product.
• When installing this product, be sure to observe the tempera-
ture and humidity ranges indicated below.
Operating temperature range: 0 °C to +40 °C (32 °F to
104 °F)
Operating humidity range: 20 %rh to 80 %rh (no condensa-
tion)
• When storing this product, be sure to observe the tempera-
ture and humidity ranges indicated below.
Storage temperature range: -20 °C to +70 °C (-4 °F to
158 °F)
Storage humidity range: 90 %rh or less (no condensation)
• Do not use the product in a poorly ventilated location.
The product uses forced air cooling. It sucks air through the
inlet holes on its right, and left panels, and then expels air
through its rear panel. Secure adequate space around the
product’s inlet and outlet holes to prevent the possibility of
fire caused by accumulation of heat.
Allow at least 20 cm of space between the inlet and outlet
holes on the side panels and the walls (or obstacles).
Hot air (approximately 20 °C, 68 °F, hotter than the ambient
temperature) is expelled from the outlet holes. Do not place
objects that are affected by heat near the air outlet.
• Do not use this product near highly sensitive measuring in-
struments or receivers.
Noise generated by this product may affect other devices.
At a test voltage of 3 kV or greater, the product may produce
corona discharge between its test lead clips. This will gen-
erate a significant amount of broadband RF emission. To
minimize this effect, keep the alligator clips away from each
other. Also, keep the alligator clips and test leads away from
conducting surfaces, especially sharp metal edges.
Left panel inlet holes
Right panel inlet holes
Using the Protection Cover
When the product is shipped from the factory, a protection cov-
er is attached to the front panel. This cover prevents uninten-
tional changes to the test conditions. Remove this cover when
you want to set the test conditions.
Even when the cover is attached, you can still recall settings
from memory, start and stop tests, perform remote operations,
and control the TOS5200 through its USB port. If the tester will
be used to repeatedly perform tests with fixed conditions, such
as when being used as part of a manufacturing line, attach the
protection cover to ensure safe operation of the tester. This is
useful in preventing incorrect operation of the tester.
If the cover is damaged or lost, contact your Kikusui agent or
distributor.
■Removing the protection cover
Loosen the screw, and then pull the tab at the bottom center of
the cover towards you to remove the protection cover from the
panel.
■Attaching the protection cover
Insert the tabs at the top of the cover into the slots in the panel,
push the bottom part of the cover until it is attached to the
panel, and then use the screw to fix the cover in place.
■Storing the protection cover
When you want to use the TOS5200 without the protection
cover attached, such as when you will repeatedly perform tests
with frequently changed test conditions, you can store the pro-
tection cover on the product’s bottom panel. This is useful in
preventing the cover from being lost.
Use the screw to fix the cover to the product’s bottom panel.
OUTPUT
CONFIG LIMIT ON /OFF ON/OFF KEY LOCK
SET
VOLTAGE
UPR/LW R
CURRENT
R/ T/ F
TIMER
LOCAL
SHIFT
Loosen the screw.
Pull the tab toward you.
TOS5200 bottom panel
Use the screw to fasten
the cover in place.

TOS5200 5
Connecting the Power Cord
WARNING
Risk of electric shock.
• This product conforms to IEC Safety Class I (equip-
ment that has a protective conductor terminal). Be
sure to earth ground the product to prevent electric
shock.
• Connect the protective conductor terminal to earth
ground.
—Note—
• Use the supplied power cord to connect to the AC line.
If the supplied power cord cannot be used because the rated
voltage or the plug shape is incompatible, have a qualied en-
gineer replace it with an appropriate power cord that is 3 m or
less in length. If obtaining a power cord is difcult, contact your
Kikusui agent or distributor.
• The power cord with a plug can be used to disconnect the prod-
uct from the AC power line in an emergency. Connect the plug
to an easily accessible power outlet so that the plug can be re-
moved from the outlet at any time. Be sure to provide adequate
clearance around the power outlet.
• Do not use the supplied power cord with other instruments.
This product conforms to IEC Overvoltage Category II (energy-
consuming equipment that is supplied from a fixed installation).
In addition to the supplied power cord, Kikusui also provides
other 200 V power cords with plugs (sold separately).
1
Check that the POWER switch is turned off.
2
Check that the AC power line meets the nominal
input rating of the product.
The product can receive a nominal power supply voltage
in the range of 100 Vac to 240 Vac (90 Vac to 250 Vac) that
has a frequency in the range of 47 Hz to 63 Hz.
3
Connect the power cord to the rear-panel AC inlet,
and then connect the power plug to an outlet that
has a ground terminal.
Turning the Power On
Checking indicators and the status of the in-
terlock feature
The first time that you turn the POWER switch on after you pur-
chase the TOS5200, the tester will be in PROTECTION mode
through the interlock feature. Connect the included SIGNAL I/O
plug to the SIGNAL I/O connector to release the interlock fea-
ture.
Only use the included SIGNAL I/O plug to easily release the
PROTECTION mode.
• For details, see “Interlock Feature” in the user’s manual con-
tained in the accompanying CD.
When you are actually performing tests, use the interlock fea-
ture to ensure safety.
During withstanding voltage tests in which you are using tools,
(1) placing a cover over the DUT so that output is turned off
whenever the cover is removed to prevent electric shock and (2)
placing a safety fence around the work area where withstand-
ing voltage tests are being performed so that output is turned
off whenever the fence is opened are both examples of effec-
tive safety measures.
—Note—
When the TOS5200 is turned on, a self-test is run, and all the
indicators on the front panel light. To ensure safety, check that all
the indicators light before you use the TOS5200. It is especially
dangerous to use the tester if its DANGER LED is broken.
When the power is turned on, the DANGER LED lights, but no
voltage is generated.
1
Check that the power cord and all cables are cor-
rectly connected.
2
Check that nothing is connected to the SIGNAL
I/O connector.
3
Press the ( ) side of the front-panel POWER switch
to turn the TOS5200 on.
Check that all the front-panel indicators light.
The firmware version screen will be displayed for a few sec-
onds, and then a message indicating that the TOS5200 is in
PROTECTION mode will be displayed.
Check that the tester is in PROTECTION mode through the
interlock feature.
A
kV
MΩ
mA
CONFIG
RISE TEST
RMS AVE MORE CAL RMT
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W CO MP
s
1
2
3
READY
TEST
PASS
FAIL
PROTECTION
A
kV
MΩ
mA
CONFIG
RISE TEST
RMS AVE MORE CAL RMT
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W CO MP
s
1
2
3
READY
TEST
PASS
FAIL
PROTECTION
A
kV
MΩ
mA
CONFIG
RISE TEST
RMS AVE MORE CAL RM T
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W CO MP
s
1
2
3
READY
TEST
PASS
FAIL
PROTECTION
4
Press the ( ) side of the front-panel POWER
switch to turn the TOS5200 off.
Firmware version screen
Interlock protection
screen

6 TOS5200
Turning the Power On (Continued)
Turning the POWER switch on
1
Connect the included SIGNAL I/O plug to the SIG-
NAL I/O connector.
Connecting the SIGNAL I/O plug will release the interlock
feature.
2
Press the ( ) side of the power switch to turn the
TOS5200 on.
3
Check the rmware version (Ver x.xx) that is dis-
played on the screen.
Check that the firmware version screen is displayed for a
few seconds, that the setup screen for setting the AC with-
standing voltage test conditions is displayed thereafter, and
that the tester is then in READY mode (that the READY LED
lights).
The first time that the POWER switch is turned on, the firmware
version is displayed, and then the setup screen for setting the
AC withstanding voltage test conditions is displayed (with the
factory default settings).
• For details, see appendix, “Default Settings” in the user’s
manual contained in the accompanying CD.
The product stores the settings that are in use before it is
turned off, so the next time that the POWER switch is turned on,
the TOS5200 starts with these settings.
Turning the POWER switch off
1
Press the ( ) side of the POWER switch to turn
the TOS5200 off.
The panel settings that were in use immediately before the
POWER switch was turned off are saved. If the POWER
switch is turned off immediately after the settings have been
changed, the last settings may not be stored.
A
kV
MΩ
mA
CONFIG
RISE TEST
RMS AVE MORE CAL RMT
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W CO MP
s
1
2
3
READY
TEST
PASS
FAIL
PROTECTION
A
kV
MΩ
mA
CONFIG
RISE TEST
RMS AVE MORE CAL RM T
MT
LIMIT
50Hz 60Hz
UPPER
LOWER W CO MP
s
1
2
3
READY
TEST
PASS
FAIL
PROTECTION
WARNING
Risk of electric shock.
• After you turn the POWER switch off, wait at least 10
seconds before you turn the POWER switch back on.
It is dangerous to do otherwise, because the protec-
tive features of the product may not work effectively.
This may cause the product to malfunction, and it may
reduce the life of the POWER switch and internal parts
such as the fuses.
• Except in an emergency, do not turn the POWER
switch off while output is being generated.
Using test leads
1
Check that the POWER switch is off and that the
DANGER LED is off.
2
Check that there are no tears or breaks in the test
lead insulation.
3
Raise the front-panel LOW VOLTAGE terminal’s
cable lock, and then connect the low-voltage test
lead (black).
WARNING
Risk of electric shock.
• During testing (while the TEST LED or DANGER LED
is lit), never touch the HIGH VOLTAGE terminal, test
leads, or DUT.
WARNING
Risk of electric shock.
• Parts of the included test leads near the alligator clips
protrude from the vinyl insulation when the wires are
connected. These parts are dangerous. Never come
close to these parts during testing.
• If connections are incom-
plete, the entire DUT may
be charged to a high volt-
age. This is dangerous,
so be sure to connect the
DUT correctly.
• Be sure to connect the
low-voltage test lead (black) rst.
Never come close to this area
during testing.
OUTPUT
DANGER
TOS5200
Off
Off
POWER
Low-voltage test lead (black)
Raise the cable lock.
Connecting to the Device under Test (DUT)

TOS5200 7
4
Lower the cable lock to secure the lead in place.
5
Connect the low-voltage test lead (black) to the
DUT.
6
Connect the high-voltage test lead (red) to the
DUT.
7
Connect the high-voltage test lead (red) to the
front-panel HIGH VOLTAGE terminal.
8
Check that the DANGER LED is turned off.
Low-voltage test lead (black)
Lower the cable lock.
Low-voltage test lead (black)
High-voltage test lead (red)
OUTPUT
DANGER
TOS5200
Off
Off
POWER
■Reducing the effect of noise
Noise may be generated if the outputs are shorted or if the
DUT insulation is damaged. Electronic devices in the surround-
ing area may malfunction due to the effect of this noise. To
reduce the effect of noise, connect a toroidal core or a resistor
of approximately 470 Ω between the tips of the high- and low-
voltage test leads and the DUT. Connect the toroidal core or
resistor as close to the DUT as possible.
If you are connecting a toroidal core, it is effective to wrap the
test leads two to three times around a type of core that can be
snapped on and that is often used with power cables. This type
of core is usually approximately 20 mm in diameter.
If you are connecting a resistor, pay close attention to the pow-
er rating of the resistor. When the upper limit is 10 mA or less,
connect a resistor of approximately 470 Ω (3 W, 30 kV impulse
withstanding voltage). Because this resistor causes the voltage
to fall, the voltage that is actually applied to the DUT is slightly
lower than the voltage that is generated from the product’s
output terminals (when a 10 mA current flows, the voltage falls
approximately 10 V).
These methods are extremely useful in reducing the effect of
noise.
Using the optional high voltage test probe
(model HP01A-TOS/HP02A-TOS)
If you use the optional test probe instead of the test leads, you
can use hands-on control to start tests.
• For details, see the “OPERATION MANUAL HIGH VOLTAGE
TEST PROBE HP01A-TOS/HP02A-TOS.”
Disconnecting test leads from the DUT
1
Check that the DANGER LED is off.
2
Disconnect the high-voltage test lead (red) from
the front-panel HIGH VOLTAGE terminal.
3
Disconnect the high-voltage test lead (red) from
the DUT.
4
Disconnect the low-voltage test lead (black).
You can disconnect the low-voltage test lead (black) first
from either the DUT or the TOS5200.
470 Ω, 3 W
470 Ω, 3 W
DUT
Toroidal core
Toroidal core
HIGH VOLTAGE
terminal
Connect the toroidal core or resistor as close to the DUT as possible.
LOW terminal
TOS5200
HIGH VOLTAGE
terminal
LOW terminal
TOS5200
DUT
Connecting to the Device under Test (DUT)

8 TOS5200
Safety Precautions during Testing
Pre-test inspection
Check the following items before you start testing, and always
follow the precautions.
• The power cord is connected to a properly grounded out-
let.
• There is no damage such as tears or breaks in the test
lead insulation.
• When the POWER switch is turned on, the DANGER LED
and the status indicators light.
• During testing, do not touch the items that are charged to
a high voltage: the DUT, the test leads, and the areas near
the output terminals.
• During testing, do not turn the POWER switch off except
in an emergency.
Testing precautions
During tests, the TEST and DANGER LEDs light. When these
LEDs are lit, the TOS5200 is generating a high voltage. Dur-
ing testing, be sure to wear rubber gloves for electrical work. If
obtaining these gloves is difficult, contact your Kikusui agent or
distributor.
Remote control precautions
When you are controlling the TOS5200 remotely, external sig-
nals are used to turn the high voltage on and off. To prevent ac-
cidents, follow the safety measures given below.
• Make sure that high voltages are not generated uninten-
tionally.
• Make it impossible to touch the DUT, test leads, test
probes, and the areas near the output terminals when
high voltages are being generated.
WARNING
Risk of electric shock.
• During testing, this product supplies a voltage of at
least 5 kVac to an external device. Handling this tester
improperly may lead to a fatal accident. To prevent
accidents, strictly follow the precautions and always
pay the utmost attention to safety concerns when you
operate the TOS5200.
• This product conforms to IEC Safety Class I (equip-
ment that has a protective conductor terminal). Be
sure to earth ground the product to prevent electric
shock.
• The product is grounded through the power cord
ground wire. Connect the protective conductor termi-
nal to earth ground.
• During testing, be sure to wear rubber gloves for elec-
trical work.
OUTPUT
DANGER Lit
Lit
The TEST and DANGER LEDs light.
The TEST LED lights in red.
TEST
Interrupting testing or operations
Before you change test conditions or other settings, press the
STOP switch, and then be sure to check the following items to
ensure safety. If you will not use the product for some time or if
the operator will be away from the product, be sure to turn the
POWER switch off.
• The TEST and DANGER LEDs are both off.
Emergency measures
There are two actions that you must carry out if, due to a mal-
function in the product or the DUT, there is a possibility of an
emergency occurring such as electric shock or damage to the
DUT.
• Turn the POWER switch off.
• Remove the power cord plug from the outlet.
Forbidden actions
zTurning the power on and off repeatedly
After you turn the POWER switch off, wait for at least 10 sec-
onds before you turn it back on. It is dangerous to do other-
wise, because the protective features of the product may not
work effectively. This may cause the product to malfunction,
and it may reduce the life of the POWER switch and internal
parts such as the fuses.
STOP
START
Off
POWER

TOS5200 9
About malfunctions
If the TOS5200 is in one of the states explained below, it may
be malfunctioning in a very dangerous manner—it may not be
possible to turn off the high voltage that is being generated. If
the tester is not operating properly, it may be generating a high
voltage irrespective of the settings made by the operator.
Immediately turn the POWER switch off, and disconnect the
power cord from the outlet. Stop using the product immediately,
and contact your Kikusui agent or distributor.
• Even when you press the STOP switch, the DANGER LED
remains lit.
• During tests, the DANGER LED does not light.
To use the product for a long time free of mal-
functions
Taking size, weight, and cost into consideration, the heat dis-
sipation capability of the voltage generator that is used for with-
standing voltage tests has been designed to be one half that of
the rated output. Use the TOS5200 within the following limits. If
you use the product in a manner that exceeds these limits, the
output section may overheat, and the internal protection circuits
may be activated. If this happens, stop testing, and wait until
the TOS5200 returns to its normal temperature.
zOutput limits during withstanding voltage tests
Ambient
temperature
Upper limit Pause time Output time
t ≤ 40 °C 50 mA < i ≤ 110 mA Greater than or equal
to the output time
30 min.
max.
i ≤ 50 mA Not necessary Continuous
output pos-
sible
(Output time = voltage rise time + test time + voltage fall time)
WARNING
Risk of electric shock.
• Until you get the product xed, make sure that nobody
can use it.
• For repairs, contact your Kikusui agent or distributor.
Safety Precautions during Testing

10 TOS5200
■Waste Electrical and Electronic Equipment (WEEE)
• Disposing of used Kikusui products in the EU
Under a law adopted by member nations of the
European Union (EU), used electric and electronic
products carrying the symbol below must be
disposed of separately from general household
waste.
This includes the power cords and other accessories
bundled with the products. When disposing of a product
subject to these regulations, please follow the guidance of
your local authority, or inquire with your Kikusui distributor/
agent where you purchased the product.
The symbol applies only to EU member nations.
• Disposal outside the EU
When disposing of an electric or electronic product in a
country that is not an EU member, please contact your local
authority and ask for the correct method of disposal.
■Trademarks
All company names and product names used in this manual
are trademarks or registered trademarks of their respective
companies.
■Copyrights
The contents of this manual may not be reproduced, in whole
or in part, without the prior consent of the copyright holder.
The specifications of this product and the contents of this
manual are subject to change without prior notice.
© 2014 Kikusui Electronics Corporation
该标记为适用于在中华人民共和国销售的电子信息产品的环境保护使用
期限。
只要遵守有关该产品的安全及使用注意事项，从制造年月起计算，在该
年度内，就不会对环境污染、人身、财产产生重大的影响。
产品的废弃请遵守有关规定。
产品的制造年月可以在以下网址中确认。
http://www.kikusui.co.jp/pi/
有毒有害物质或元素名称及含有標示
Name of hazardous materials and symbol of element
in the equipment and quantity
环境保护使用期限
Environment-friendly Use Period
部件名称
Name of part
有毒有害物质或元素
Hazardous material and symbol of element
铅
Pb
汞
Hg
镉
Cd
六价铬
Cr(VI)
多溴联苯
PBB
多溴二苯醚
PBDE
印刷电路板组装品     
内部接线 

    
    
外壳     
底盘组装品 （含变压器）     
辅助设备     
:
:
10
显示器
本表格依据SJ/T 11364 的规定编制。
该部件所有均质材料的有毒有害物质的含量不超过GB/T 26572标准
所规定的极限值要求。
该部件至少有一种均质材料的有毒有害物质的含量超过GB/T 26572
标准所规定的极限值要求。
