Kikusui PLZ-5W Series User manual

PLZ-5W 1
Checking the Package Contents
Check that all accessories are included and that the unit and
accessories have not been damaged during transportation.
If any of the unit and accessories are damaged or missing,
contact your Kikusui agent or distributor. We recommend that
you keep all packing materials, in case the product needs to be
transported at a later date.
Accessories
Rear-panel load
input terminal
cover (1 pc.)
Load input terminal
screw set (2 sets)
[M5-101-008]
[M4-100-008]
[M5-100-008]
[M1-100-119]
Front-panel load
input terminal
cover ( 1 pc.)
Front-panel load
input knob set (1 set)
External control
connector kit (1 set)
[83-20-0190]
CD-ROM（1 disk）
Setup Guide
(This manual, 1 pc.)
Quick Reference
(Japanese 1 sheet,
English 1 sheet)
Safety Information (1 pc.)
The attached power cord varies depending on the shipment destination.
Power cord (1 pc., length: 2.5 m)
Plug: NEMA5-15
Rating: 125 Vac/10 A
[85-AA-0004]
Plug: CEE7/7
Rating: 250 Vac/10 A
[85-AA-0005]
Plug: GB1002
Rating: 250 Vac/10 A
[85-10-0790]
or or
Cover
[Q1-500-161]
Screw [M8-600-021]
Top [Q1-500-156]
Bottom [Q1-500-157]
+(red)
[N8-000-003]
−(black)
[N8-000-002]
Screws for the
load input
terminal cover
(2 pcs.)
[M3-112-018]
Features
In addition to basic constant current, constant resistance, con-
stant voltage, and constant power modes, the PLZ-5W Series
offers a variety of other features. The PLZ-5W series also pro-
vides better performance than previous models.
• High-speed response
The rise time has been improved from 10 µs to 5 µs.
• Expanded voltage range
The minimum operating voltage has been improved from
1.5 V to 1.0 V, offering support of low voltage input.
• Arbitrary I-V characteristics mode
Arbitrary I-V characteristics mode that allows current to be set
arbitrarily in relation to voltage input. This mode can be used
for simulation of LED loads and the like.
• Color liquid crystal display (LCD)
Allows easy-to-see display in color. The voltage value, current
value, power value, current capacity value (Ah), and power
capacity value (Wh) at the load input terminal are indicated
on the display.
• Increased power capacity and current capacity
Power capacity and current capacity 1.2 times those of
previous models have been realized while keeping the size
unchanged.
• Larger capacity achievable
Larger capacity can be achieved by connecting optional
boosters (PLZ2405WB) to the PLZ1205W. Up to four booster
units can be operated in parallel using a PLZ1205W unit as
the master unit (up to 10.8 kW, 2 160 A).
• Support of synchronized operation
Load On/off control and the execution of sequences can be
synchronized for multiple PLZ-5W units.
• RS232C, USB, and LAN communication functions provided
as standard
These functions allow easy incorporation into various types of
inspection systems.
• GPIB function available as option*
Using the optional GPIB converter (p.126), the GPIB function
can be used via the RS232C or USB interface.
* Limitation apply to some of the functions.
PART NO. Z1-006-270, IB027762
Mar. 2016
PLZ205W
PLZ405W
PLZ1205W
Setup Guide
ELECTRONIC LOAD PLZ-5W Series
The newest version of the operation manual can be downloaded
from Download service of Kikusui website.
Website http://www.kikusui.co.jp/en
KIKUSUI ELECTRONICS CORP.
1-1-3, Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
TEL: [phone] Fax: [phone]

2 PLZ-5W
These manuals are intended for users of this product and their
instructors. The manual assumes that the reader has knowl-
edge about power supplies.
If you nd any misplaced or missing pages in the manuals,
they will be replaced. If the manual gets lost or soiled, a new
copy can be provided for a fee. In either case, please contact
your Kikusui agent or distributor. At that time, inform your agent
or distributor of the “Part No.” written on the front cover of this
manual.
Every effort has been made to ensure the accuracy of this
manual. However, if you have any questions or nd any errors
or omissions, please contact your Kikusui agent or distributor.
After you have nished reading this manual, store it so that you
can use it for reference at any time.
Manual construction
■Setup guide (this manual)
This document is intended for rst-time users of the product. It
gives an overview of the product, connecting procedures, safety
precautions, etc. Please read this manual before you operate
the product.
■User's manual (PDF)
This document is intended for rst-time users of this product.
It provides an overview of the product, notes on usage, and
specications. It also explains how to connect the product, con-
gure the product, operate the product, perform maintenance
on the product, and so on.
■Communication Interface manual (HTML)
This document describes remote control. The interface manual
is written for readers with sufcient basic knowledge of how to
control measuring instruments using a personal computer.
■Quick reference
This document briey explains the control panel and the basic
operation of it.
■Safety information
This document contains general safety precautions. Keep them
in mind and make sure to observe them.
PDF and HTML les are included in the accompanying
CD-ROM. You can view the PDF les using Adobe Reader 9.2
or later.
Microsoft Internet Explorer 11 or later is required to view the
HTML les.
Notation used in the guide
• In this manual, electronic loads PLZ205W, PLZ405W, and
PLZ1205W are sometimes referred to as “PLZ-5W”.
• The term “PC” is used to refer generally to both personal
computers and workstations.
• The illustrations used in this manual may differ from the
actual items.
• The following markings are used in the explanations in this
manual.
WARNING
Indicates a potentially hazardous situation which, if
ig-nored, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if ig-nored, may
result in damage to the product and other property.
─ Note ─
Indicates information that you should know.
Contents of the Included CD-ROM
Load the included CD-ROM into the CD-ROM drive. After a
moment, an AutoPlay window appears. Click Run rundll32.exe
to display the start window. You can also open the CD-ROM
folder in Windows Explorer and then double-click index.html to
display the start window.
Accompanying CD-ROM contains following the items.
• KI-VISA
• User's Manual (PDF)
• Setup Guide (PDF)
• Quick Reference (PDF)
• Communication Interface Manual (HTML)
• Safety Information (PDF)
• Instruction manual of the option (PDF)
• Option Manual (PDF)
About the Manuals

PLZ-5W 3
Connecting the Power Cord
WARNING
Risk of electric shock.
• The PLZ-5W conforms to IEC Safety Class I (equipment
that has a protective conductor terminal). Be sure to
earth ground the product to prevent electric shock.
• The PLZ-5W is grounded through the power cord
ground wire. Connect the protective conductor terminal
to earth ground.
─ Note ─
• Use the supplied power cord to connect to the AC line. If the
supplied power cord cannot be used because the rated voltage
or the plug shape is incompatible, have a qualied engineer
replace it with an appropriate power cord that is 3 m or less in
length. If obtaining a power cord is difcult, contact your Kikusui
agent or distributor.
• The power cord with a plug can be used to disconnect the
PLZ-5W from the AC power line in an emergency. Connect the
plug to an easily accessible power outlet so that the plug can be
removed from the outlet at any time.
• Secure adequate space around the power cord plug. Do not
insert the power cord plug into an outlet that is difcult to ac-
cess or place objects around the power cord plug that will make
plugging and unplugging difcult.
• Do not use the supplied power cord with other instruments.
The PLZ-5W conforms to IEC Overvoltage Category II
(energy-consuming equipment that is supplied from a xed
installation).
1
Turn the POWER switch off ( ).
2
Check that the AC power line meets the nominal
input rating of the PLZ-5W.
The PLZ-5W can receive a nominal line voltage in the range
of 100 Vac to 240 Vac at 50 Hz or 60 Hz.
3
Connect the power cord to the AC INPUT inlet on
the rear panel.
4
Connect the power cord plug to a properly
grounded outlet.
Safety Precautions
When using this product, be sure to observe the “Safety
Precautions” in the Safety information manual. The follow-
ing precautions pertain only to this product.
• The rear panel may become hot during operation. If you
touch it, you may burn yourself.
Precautions Concerning
Installation Location
When installing this product, be sure to observe the
“Precautions Concerning Installation Location” in the
Safety information manual. The following precautions per-
tain only to this product.
• When installing this product, be sure to observe the tempera-
ture and humidity ranges indicated below.
Operating temperature range: 0 °C to 40 °C
Operating humidity range: 20 %rh to 85 %rh (no
condensation)
• When storing this product, be sure to observe the tempera-
ture and humidity ranges indicated below.
Storage temperature range: -20 °C to 70 °C
Storage humidity range: 90 %rh or less (no condensation)
• Do not install the product vertically.
It may cause injury to the operator or damage to the product
when it falls down.

4 PLZ-5W
Checking Whether the Power Is
On or Off
Turning the power on
POWER switch
1
Check that the power cord is connected correctly.
2
Check that nothing is connected to the DC INPUT
(load input) terminals on the front and rear pan-
els.
3
Turn the POWER switch on ( ).
The display lights.
─ Note ─
If you notice strange sounds, unusual odors, re, or smoke
around or from inside the PLZ-5W, ip the POWER switch off, or
remove the power cord plug from the outlet.
Turning the power off
1
Press the ( ) side of the POWER switch to turn
the power off.
CAUTION
After you turn the POWER switch off, wait at least 5 seconds
after the fan stops before you turn the POWER switch back
on. Repeatedly turning the POWER switch on and off at short
intervals will shorten the service life of the POWER switch and
the internal input fuse.
Selecting the load cables
WARNING
• Risk of re. Use load cables whose capacity is adequate
for the PLZ-5W’s rated output current.
• Risk of electric shock. Use load cables with a voltage
rating that meets or exceeds the isolation voltage
(±500 V) of the PLZ-5W’s load input terminals.
CAUTION
Use load cables with a core diameter that is appropriate for the
amount of current being used and with sturdy, ame-resistant
insulation.
If the wiring that you use for the load has a high resistance,
the voltage will drop signicantly when current ows, and the
voltage at the load input terminals may fall below the minimum
operating voltage of the PLZ-5W. Using the following table as a
reference, select wiring whose nominal cross-sectional area is
as thick as possible.
Nominal
Cross-Sectional
Area [mm2]
AWG (Reference
Cross-Sectional
Area) [mm2]
Allowable Current*
[A](Ta = 30 °C)
14 6(13.3) 88
22 4 (21.15) 115
30 2 (33.62) 139
38 1 (42.41) 162
50 1/0 (53.49) 190
60 2/0 (67.43) 217
80 3/0 (85.01) 257
100 4/0 (107.2) 298
125 - - 344
150 - - 395
200 - - 469
250 - - 556
325 - - 650
* Excerpt from Japanese laws related to electrical equipment.
Connecting to the load input terminals on the
rear panel
WARNING
Risk of electric shock.
• Do not touch load input terminals when the output is
turned on.
• The load input terminals on the front panel are con-
nected internally to the load input terminals on the rear
panel. The voltage applied to the terminal on one side is
transmitted directly to the terminal on the other side.
• Be sure to use the load input terminal cover.
CAUTION
To avoid damaging the product, observe the following precau-
tions.
• Do not connect the DUT to the load input terminals while the
PLZ-5W’s load is turned on.
• Do not connect electronic loads to the load input terminals on
the front panel and those on the rear panel at the same time.
• Do not invert the polarity when connecting. An overcurrent
might ow when the load is turned on.
To avoid overheating, observe the following precaution.
• Attach crimping terminals to the cables, and use the supplied
screws to connect the cables.
Connecting to the Device Under Test

PLZ-5W 5

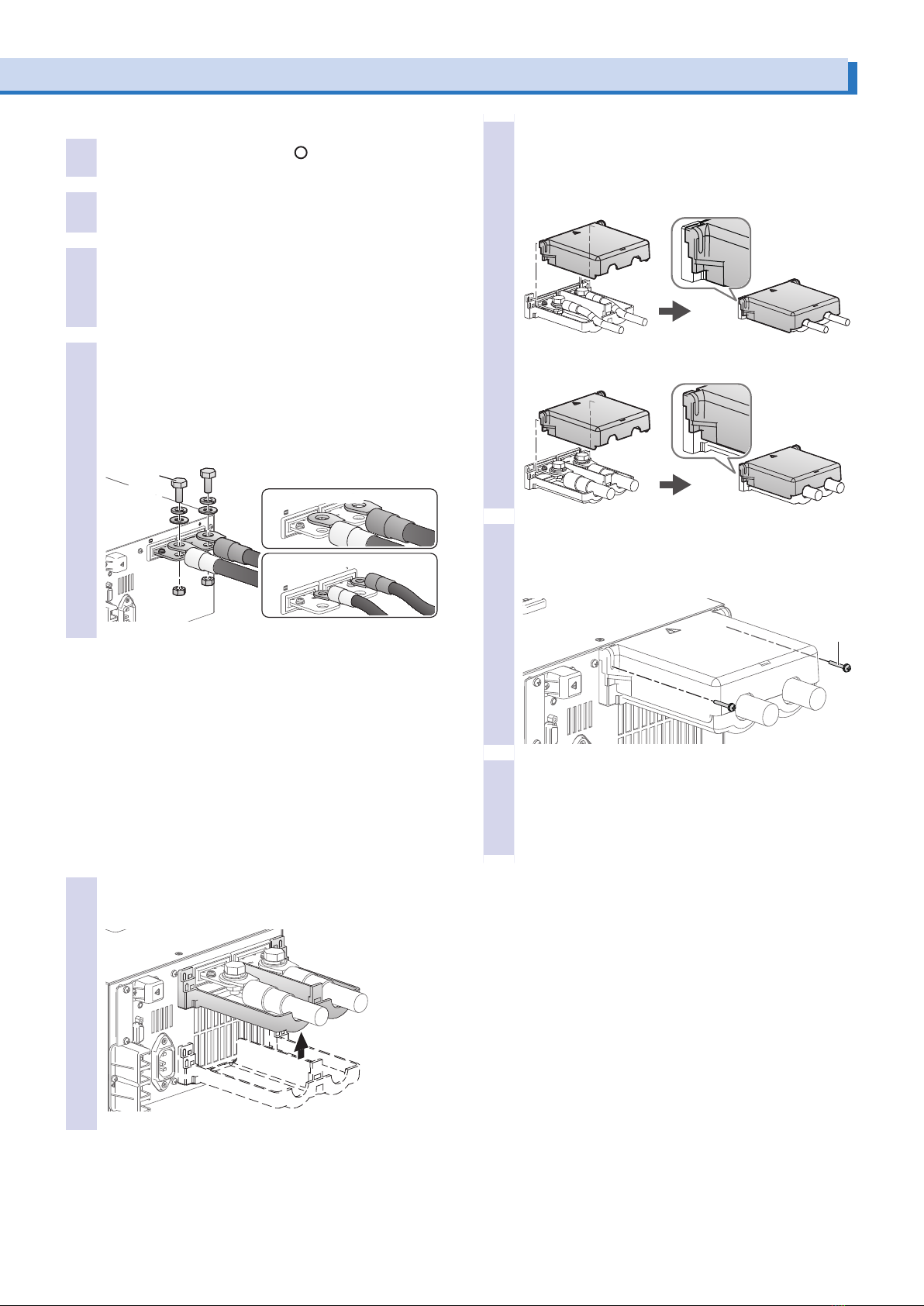

■Attaching the load cables
1
Turn the POWER switch off ( ).
2
Make sure that the output of the DUT is off.
3
Attach crimping terminals to the load cables.
The load input terminals on the rear panel have bolt (M10)
holes for connecting the load cables. Attach the appropriate
crimping terminals to the cables.
4
Connect the load cables to the load input termi-
nals on the rear panel using the included load
input terminal screw set.
To prevent interference with the load input terminal cover,
basically connect the crimping terminals in orientation (1) in
the gure. If the crimping terminals are small and cannot be
connected in orientation (1), connect them in orientation (2).
Orientation of crimping terminals
(1) Basic orientation
(2) If crimping terminal is small
Bolt
(M10)
■Attaching the load input terminal cover
You can adjust the diameter of the holes that the load cables
pass through by changing the positions in which the top and
bottom load input terminal covers are put together. There are
two available positions. Use the appropriate position for the load
cables that you are using.
• For cables up to ø10 mm: Put the top and bottom load input
terminal covers together so that the hole diameter is small.
• For cables that are between ø10 and 20 mm: Put the top and
bottom load input terminal covers together so that the hole
diameter is large.
1
Place the bottom half of the load input terminal
cover underneath the cables connected to the
load input terminals.
2
Align the tabs of the top load input terminal cover
with those of the bottom cover.
Align the tabs of the load input terminal cover according to
the load cable diameter.
For thin load cables (up to ø10)
For thick load cables (ø10 to ø20)
3
Push the load input terminal cover against the
rear panel, and fasten it with the included load
input terminal cover screws.
Make sure that the screws are securely fastened.
M3×18M3×18
4
Connect the load cables to the output terminals
of the DUT.
Connect the positive (+) polarity of the load input terminal on
the rear panel to the positive (+) polarity of the DUT, and the
negative (−) polarity of the load input terminal on the rear
panel to the negative (−) polarity of the DUT.
Connecting to the Device Under Test

6 PLZ-5W

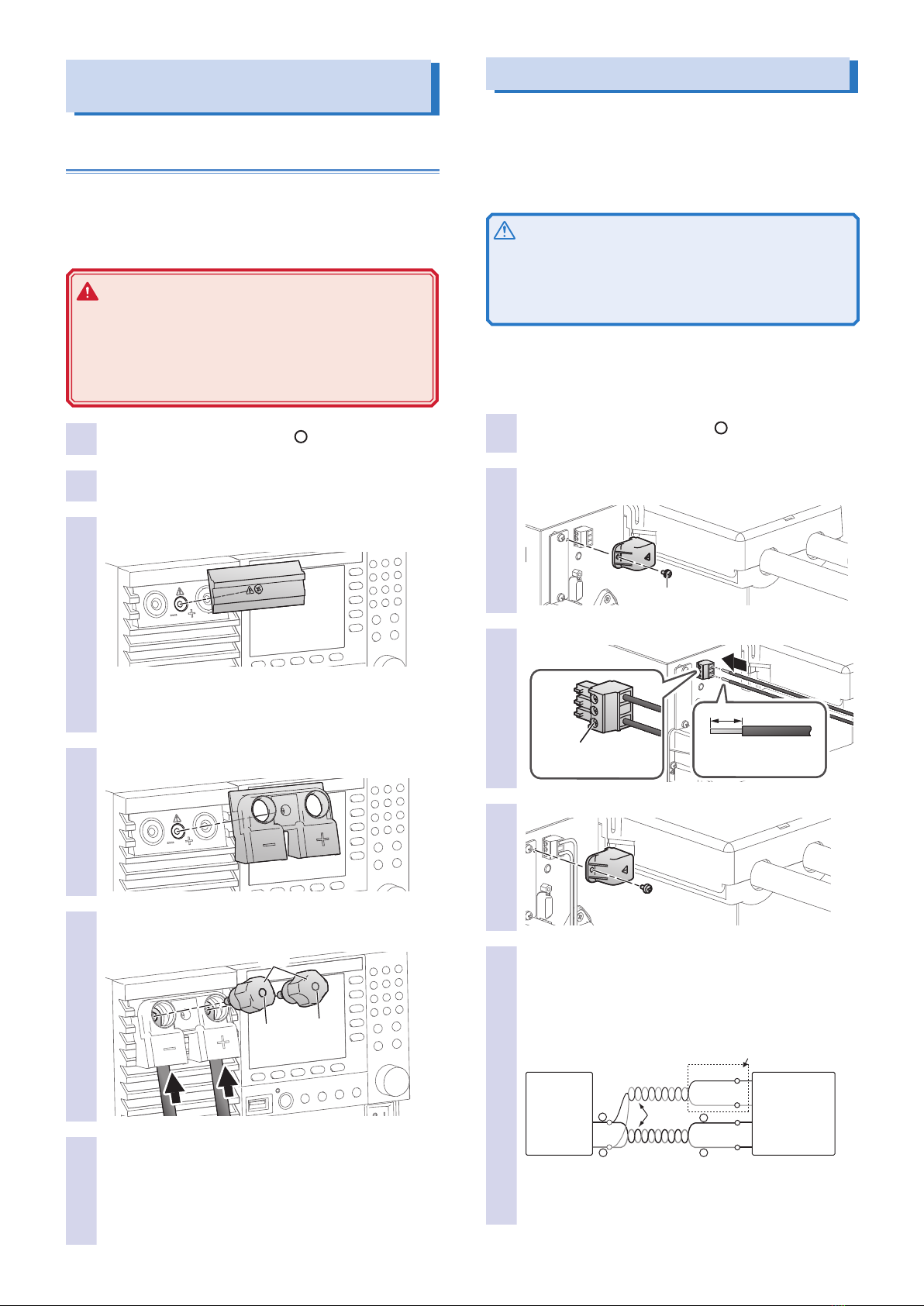

Connecting to the Device Under
Test (Cont 'd)
Connecting to the load input terminals on the
front panel
The load input terminals on the front panel enable you to
easily connect the device under test (DUT) to the PLZ-5W. The
specications of the PLZ-5W are for the load input terminals on
the rear panel and the load input terminals on the front panel
may not meet the specications.
WARNING
• Risk of electric shock. Attach insulation caps to the
crimping terminals.
• The rated current value of the load input terminals on
the front panel of the PLZ1205W is 80 A. When a current
of 80 A or more ows to the load input terminals on the
front panel, an alarm occurs and load off.
1
Turn the POWER switch off ( ).
2
Make sure that the output of the DUT is off.
3
Remove the protection plate of the load input
terminals on the front panel.
Keep the removed protection plate and screws in a safe
place. By attaching the protection plate when not using the
load input terminals on the front panel, the PLZ-5W can be
used in a safe and compact manner.
4
Attach the cover for the load input terminals on
the front panel.
5
Insert the load cables from the bottom and tight-
en the accessory knobs to x the cables in place.
knobknob
Black（－）Black（－） Red（＋）Red（＋）
6
Connect the load cables to the output terminals
of the DUT.
Connect the positive (+) polarity of the load input terminal on
the front panel to the positive (+) polarity of the DUT, and the
negative (−) polarity of the load input terminal on the front
panel to the negative (−) polarity of the DUT.
Connecting the Sensing Cables
To perform remote sensing, connect the sensing cables.
A voltage measurement point can be changed from a load input
terminal to an arbitrary sensing point by executing remote sens-
ing. By setting sensing points to a DUT end, inuences such as
voltage drops caused by the resistance of the load cables can
be reduced and the load current can be stabilized.
CAUTION
• Risk of damage to the internal circuitry. Never wire the sensing
terminals while the POWER switch is turned on.
• If the remote sensing cables come loose while remote sensing
is in use, the PLZ-5W and DUT may be damaged. Be sure to
connect the cables securely.
Unlike the load cables, there is no need to consider the cur-
rent capacity for the sensing cables. However, for adequate
mechanical strength, use wires whose nominal cross-sectional
area is 0.5 mm2 or greater.
1
Turn the POWER switch off ( ).
2
Remove the sensing terminal cover on the rear
panel.
M3×6M3×6
3
Connect the sensing cables to the PLZ-5W.
Use the screws to fix the
wires in place.
We recommend stripping
7 mm of the insulation
from the wires.
7 mm
+
−
4
Attach the sensing terminal cover.
5
Connect the sensing cables to the DUT.
Connect the positive (+S) polarity of the SENSING terminal
to the positive (+) polarity of the DUT, and connect the neg-
ative (−S) polarity of the SENSING terminal to the negative
(−) polarity of the DUT. Connect the cables as close to the
EUT as possible.
DUT PLZ-5W
+S
−S
Remote sensing terminal
++
−−
Red
White
Twist
To use remote sensing, you need to enable the remote
sensing feature. For details, see the User’s Manual on the
included CD-ROM.

PLZ-5W 7
Remote Control
In addition to using the front panel, you can also control the
PLZ-5W remotely by sending commands.
For details on remote control, see the Communication Interface
Manual on the included CD-ROM.
The following environment is required to view the
Communication Interface Manual.
Browser: Internet Explorer 11 or later
PDF Reader: Adobe Reader 10 or later

8 PLZ-5W
环境保护使用期限
Environment-friendly Use Period
该标记为适用于在中华人民共和国销售的电子信息产品的环境保
护使用期限。
只要遵守有关该产品的安全及使用注意事项，从制造年月起计
算，在该年度内，就不会对环境污染、人身、财产产生重大的影
响。
产品的废弃请遵守有关规定。
产品的制造年月可以在以下网址中确认。
http://www.kikusui.co.jp/pi/
有毒有害物质或元素名称及含有標示
Name of hazardous materials and symbol of element in the
equipment and quantity
部件名称
有毒有害物质或元素
铅
Pb
汞
Hg
镉
Cd
六价铬
Cr(VI)
多溴联苯
PBB
多溴二苯醚
PBDE
印刷电路板组装品 × ○ ○ ○ ○ ○
显示器 × ○ ○ ○ ○ ○
内部接线 ○ ○ ○ ○ ○ ○
外壳 × ○ ○ ○ ○ ○
底盘组装品 ( 含变压器 ) × ○ ○ ○ ○ ○
辅助设备 ○ ○ ○ ○ ○ ○
本表格依据 SJ/T 11364 的规定编制。
○: 该部件所有均质材料的有毒有害物质的含量不超过 GB/T 26572 标
准所规定的极限值要求。
×: 该部件至少有一种均质材料的有毒有害物质的含量超过 GB/T 26572
标准所规定的极限值要求。
10
■Trademarks
Microsoft and Windows are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or
other countries.
Other company names and product names used in this manual
are generally trademarks or registered trademarks of the
respective companies.
■Copyright
Reproduction and reprinting of this operation manual, whole or
partially, without our permission is prohibited.
Both unit specications and manual contents are subject to
change without notice.
© 2016 Kikusui Electronics Corporation
