kinetic T-2400 User manual
©2013 KINETIC BY KURT ALL RIGHTS RESERVED
MODEL
T-2400
REGISTER WARRANTY ONLINE: WWW.KURTKINETIC.COM/WARRANTY
(AND RECEIVE A FREE TRAINING VIDEO DOWNLOAD AND A DISCOUNT ON KINETIC ACCESSORIES)
ASSEMBLY MANUAL
MAGNETIC
RISER RING AND BIKE
NOT INCLUDED WITH
TRAINER
www.kurtkinetic.com
Page 2
T-2103
Slotted Cone Cup
(see www.kurtkinetic.com
for installation instructions)

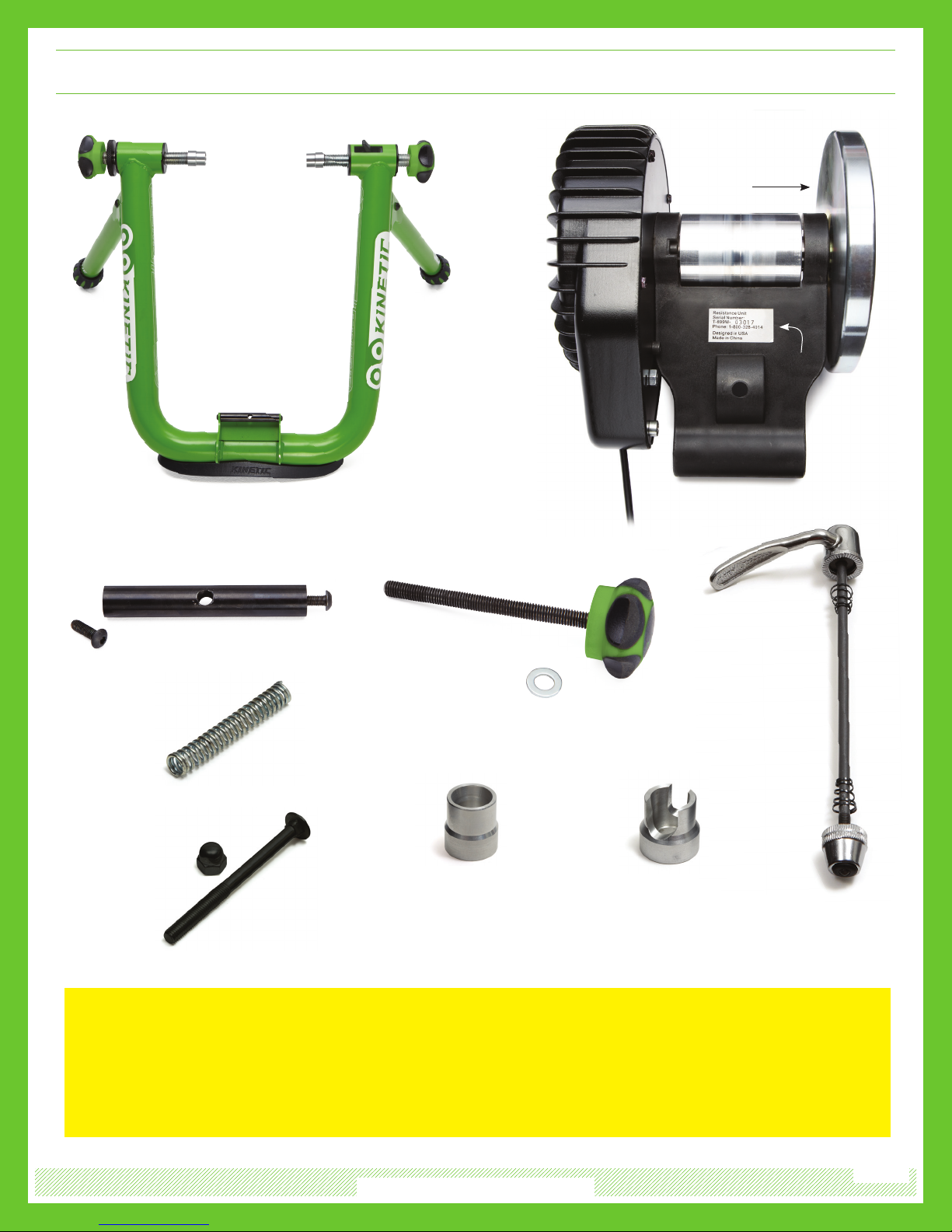

When unpacking, check that the following components are present
IN THE BOX
T-740
Skewer
FLYWHEEL
QUICK RELEASE
LEVER
LOCK RING
NON-DRIVE SIDE
CONE CUP
DRIVE SIDE
CONE CUP
LEG BOLT RESISTANCE UNIT

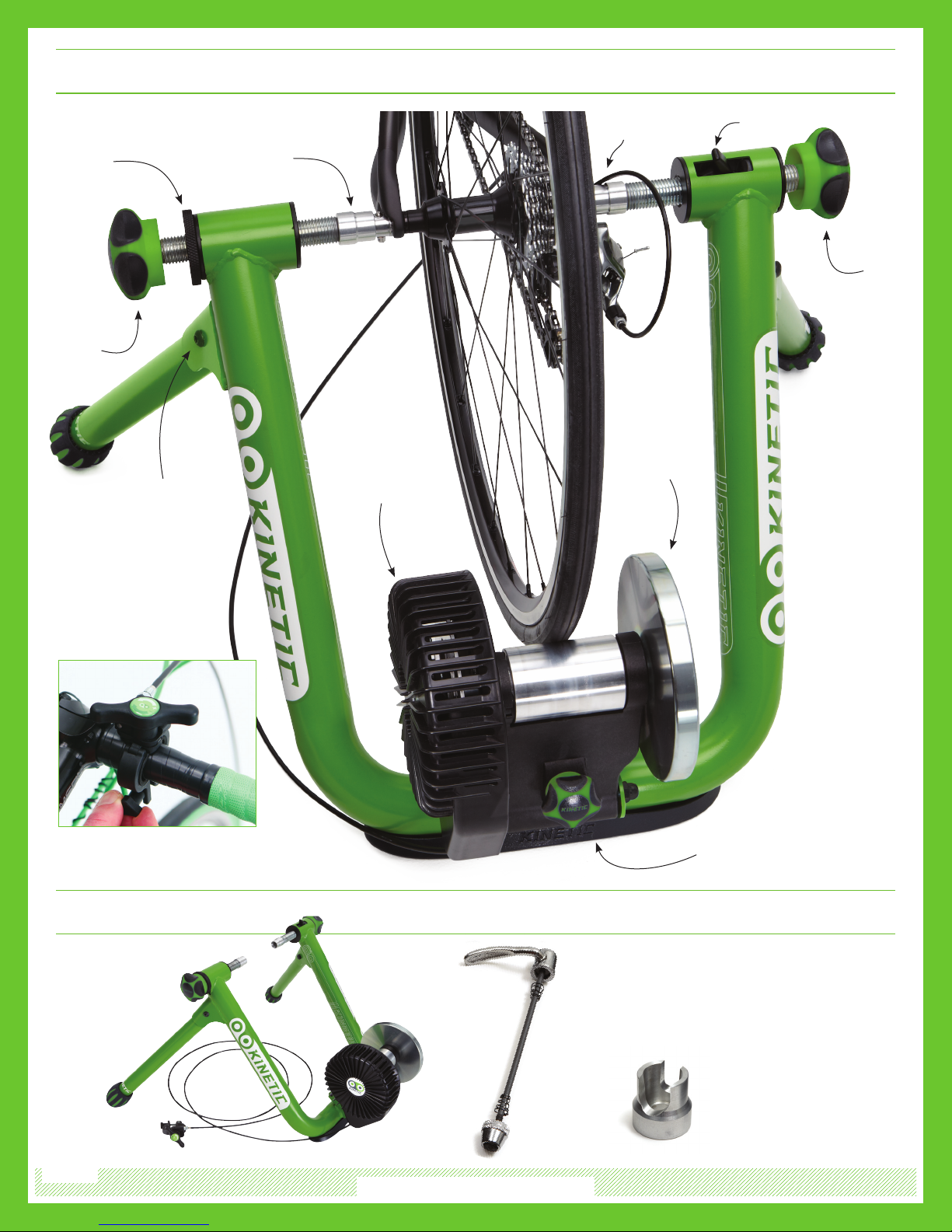

TRAINER DETAILS
LEFT
TENSIONING
KNOB
RIGHT
TENSIONING
KNOB
ROLLER TENSION KNOB
RESISTANCE UNIT THUMB CONTROLLER
T-2111
Small Cone
Cup
(Installed on trainer)
T-2202
Roller Tension Knob
and Washer
T-2201
Cross bar and
screws
T-2203
Spring
T-2204
Mounting Bolt
and Nut
T-740
Skewer
www.kurtkinetic.com
T-2103
Small Cone Cup
Skewer Adapter
(see www.kurtkinetic.com for installation instructions)
T-2210
Frame
TRAINER PARTS
Page 3
REGISTER YOUR TRAINER:
www.kurtkinetic.com/warranty
If any components listed here are missing, please contact Customer Service at
www.kurtkinetic.com/contact
ROLLER
FLY
WHEEL
YOKE
Because we
test each
trainer there
will be tire
marks on the
roller.
SERIAL
NUMBER
T-699R
Resistance
Unit
Page 4

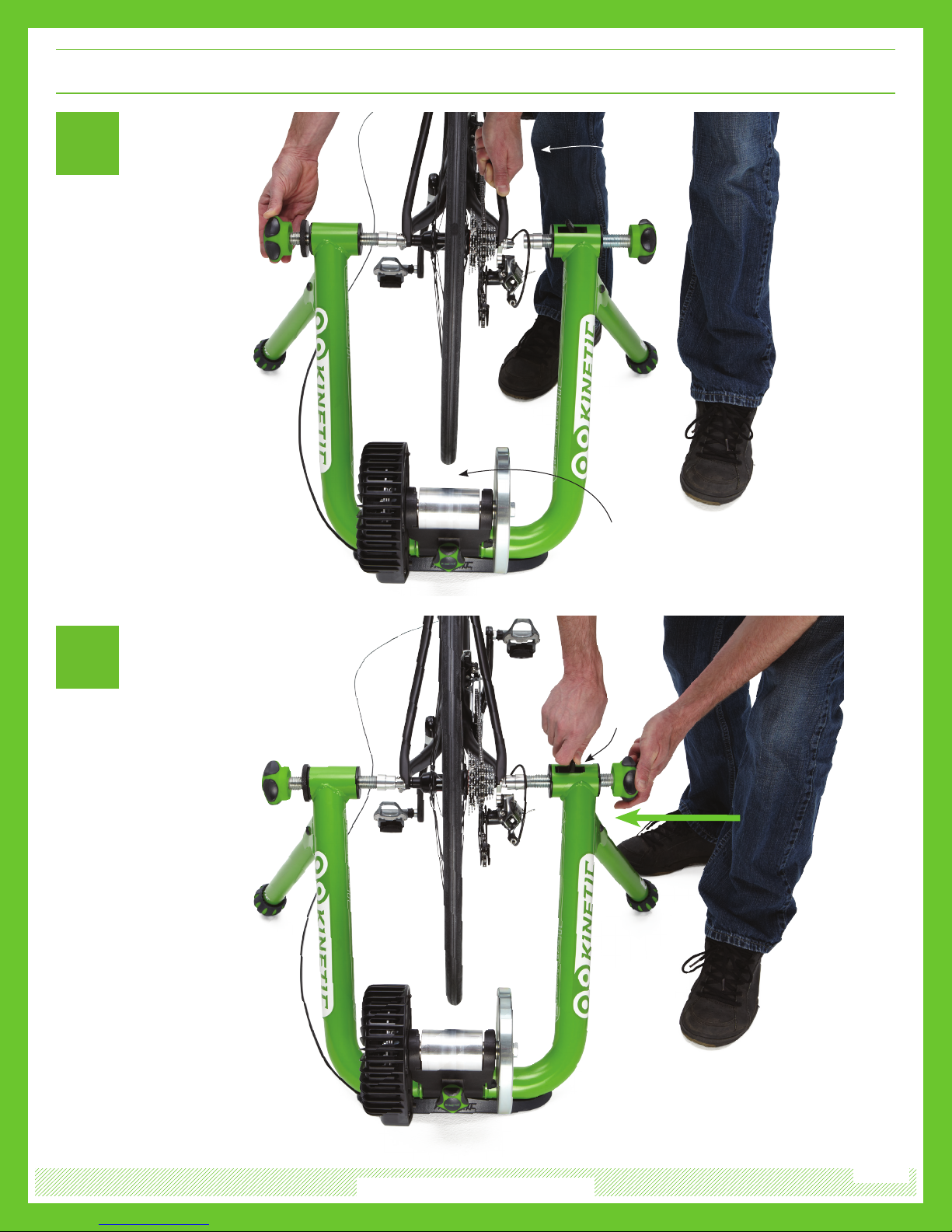

MOUNTING THE BIKE
Loosen lock ring and
turn left tensioning
knob to center bike
1
Push right
tensioning knob
tight against
skewer, close quick
release and tighten
right tensioning
knob until tire is
centered on roller
2
QUICK
RELEASE
Be sure that
resistance unit is
loosely tightened and
does not touch tirea
Grip
frame at
seat stay
www.kurtkinetic.com
Page 5

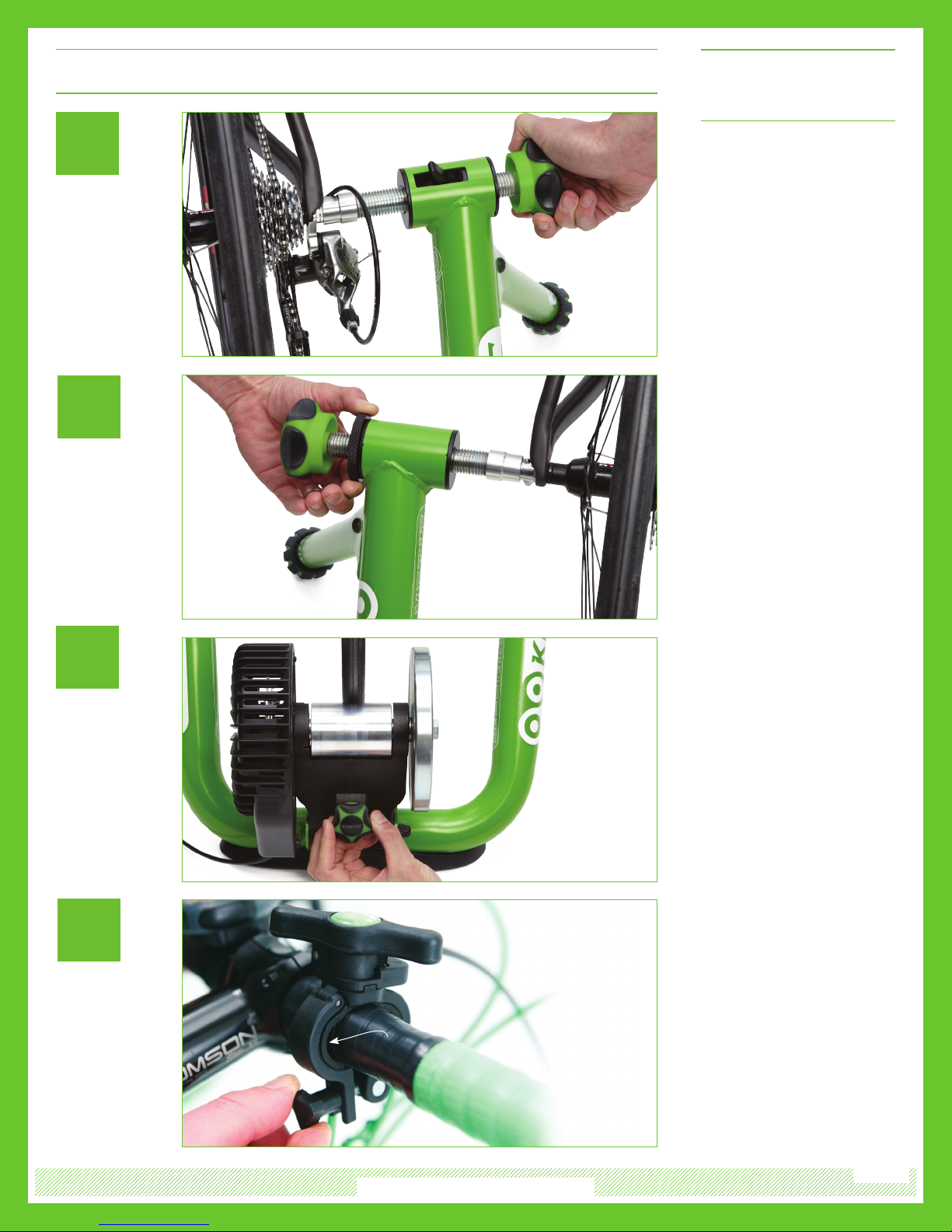

MOUNTING THE BIKE
1. Remove thumb controller from
handlebar
2. Loosen the adjustment knob
on the resistance unit to back
the roller away from the tire
until it no longer touches.
3. Reduce axle tension by
loosening the right axle knob
a minimum of two turns to
allow for disengagement of
the quick release.
4. Firmly grasp your bike seat
stay to stabilize the bike.
5. Disengage the quick release
on the right side of the trainer
and slide the axle knob to the
fully open position. The bike
can now be removed from the
left cone cup.
REMOVING
THE BIKE
Tighten right
tensioning knob on
quick release side of
trainer until wheel
is rmly centered
on resistance unit
roller
Tighten lock
ring when wheel
is centered on
resistance unit and
bike is rmly locked
in at the skewer
3
TENSION KNOB
SHIM PADS
SHIM PADS
Attach thumb
controller to
handlebar using
proper rubber shim
pad, tighten tension
knob
6
4
RIGHT
SIDE
LEFT SIDE
www.kurtkinetic.com
Turn roller tension
knob until roller
touches tire, then
add 2 to 5 full turns
5
TIP: Test tire
friction by sharply
moving tire a
1/4 turn back
and forth. apply
another 1/2 turn
on adjustment
knob if needed.

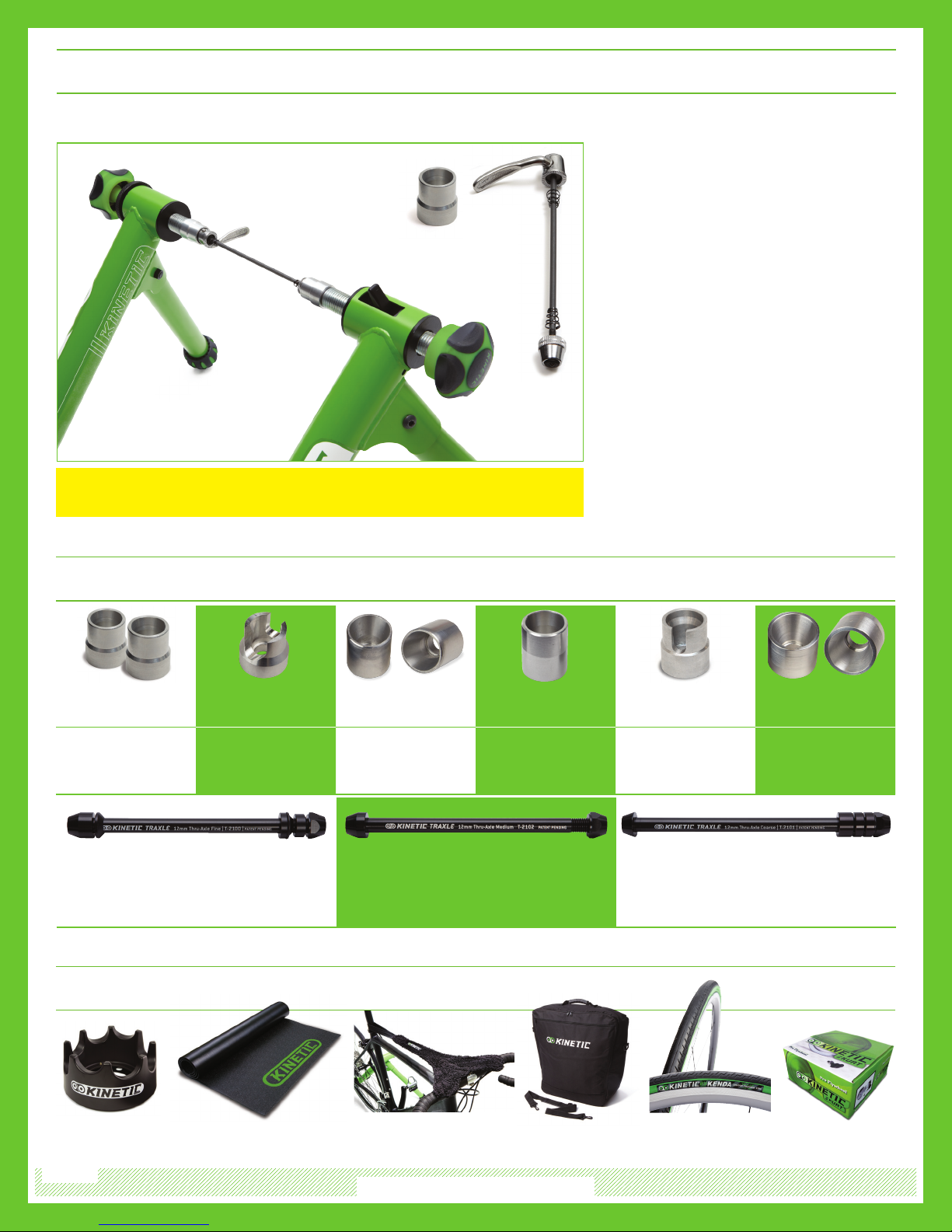

ADDITIONAL BIKE MOUNTING SOLUTIONS (Ordering & information: kurtkinetic.com)
KINETIC TRAXLE FINE
PART NO: T-2100
For ne-threaded 12mm thru-axle systems including:
Syntace X-12, DT SWISS (Tapered and Flat) and Specialized
KINETIC TRAXLE MEDIUM
PART NO: T-2102
For medium-threaded 12mm thru-axle systems including:
SHIMANO SM-AX75 and SM-AX65 142mm x 12mm
KINETIC TRAXLE COARSE
PART NO: T-2101
For coarse-threaded 12mm thru-axle systems including:
RockShox Maxle, Trek APB Maxle and others
STANDARD CONE CUP
PART NO: T-2111
SLOTTED CONE CUP
PART NO: T-2103
TRACK CONE CUP
PART NO: T-2104
SHALLOW CONE CUP
PART NO: T-2105
INTERNAL CA CONE CUP
PART NO: T-2106
BMX CONE CUP
PART NO: T-2107
Pre-installed on all Kinetic
trainers and ts most
nutted axles and track
bikes.
Comes in the trainer box
and works with many
non-Kinetic quick release
skewers.
An oversized version of the
Standard Cone Cup for track
axle nuts larger than 15mm.
Designed with a shallow
outside diameter to work on
any frame with a tight drive-
side dropout tolerance.
Works with chain-actuated
internal hubs like Sturmey
Archer. Great for Brompton
bikes.
For oversized 14mm bmx
axles with axle nuts 19mm
and larger.
www.kurtkinetic.com
Page 6
*FOR YOUR SAFETY
We recommend using the skewer that was included with your trainer.
»Be sure that your bike is correctly installed and
securely locked into the trainer before riding.
»Do not over-tighten the roller tension knob. Over-
tightening will cause both tire and unit damage.
Tighten only enough to avoid tire slippage.
»When using the trainer for normal use or for
extended periods of time, the resistance unit
will get hot. DO NOT touch the resistance unit
while it is in use or while it is hot.
»Always consult a doctor before beginning any
exercise routine or using any tness product
including the Kinetic Trainer. Should you become
ill, feel dizzy, light-headed or nauseous while
riding the trainer, stop riding immediately and
seek medical attention.
»While in use, the wheel of your bike and the
resistance unit may be spinning at high speeds.
For this reason keep children, pets and all items
safely away from your trainer while in use.
»Always use the trainer on a at surface.
SAFETY WARNINGS
RECOMMENDED SKEWER AND CONE COMBINATION*
T-2111
PREINSTALLED
ON THE TRAINER
T-740
SHIPS IN
TRAINER BOX
ACCESSORIES (Available at kurtkinetic.com and Kinetic dealers)
RISER RINGS TRAINER MATS SWEAT GUARDS TRAINER BAGS TRAINER TIRES PRO FLYWHEEL
WARRANTY
CRASH REPLACEMENT POLICY
CARING FOR YOUR TRAINER
By purchasing the Kinetic Trainer you’ve made an investment in a top-
quality piece of equipment. When used according to the manufacturer’s
instructions and cared for with common sense, your Kinetic trainer will
provide a lifetime of training. Store the trainer indoors, out of the rain
and away from temperature extremes. Since sweat is corrosive, you can
extend the life of your trainer by wiping it o after your workout.
Kinetic trainers come with a lifetime warranty on the frame and the
resistance unit to the original owner.
However, we understand that accidents can happen involving our
products, so we also oer a crash replacement policy for incidents
not covered by our lifetime warranty. Here is how it works: Kinetic will
replace any part or parts on your Kinetic Trainer that are damaged due
to an accident, regardless of the cause of that accident, and within
reason for a $50.00 cost plus the cost of parts and shipping charges.
We reserve the right to reject any product that has been so severely
damaged that it cannot be rebuilt. To be eligible, you must complete the
warranty registration process online. Crash replacement repairs require
warranty information and the serial number of your unit. This crash
replacement policy and its related charge may be subject to change
without notice.
To process a claim, please call our Customer Service Hotline at 877-
226-7824 or email us at kineticbykurt@kurt.com. You will be given
instructions for returning the product to us. In some cases replacement
parts may be shipped to you.
Kinetic by Kurt oers the original owner a lifetime warranty against
manufacturing defects for the frame and the resistance unit. This
warranty is not applicable to damage caused by misuse, abuse, neglect,
accident or unauthorized modication of materials or parts. If the unit is
disassembled by the consumer, this warranty is void. There are no other
warranties, expressed or implied.
It is the responsibility of the purchaser to le a warranty card via mail
or on-line with Kinetic in the event that repairs are needed. It is also the
responsibility of the purchaser to retain receipts for proof of purchase in
the event that repairs are needed. No warranty repairs will be accepted
without the warranty registration and the serial number of the trainer
located on the resistance unit.
WARRANTY REGISTRATION
Please complete the warranty within 30 days of purchase at
www.kurtkinetic.com.
WARRANTY CLAIMS/REPLACEMENT PARTS
If you experience problems with your trainer, please call our Customer
Service Hotline at 877-226-7824 or email us at kineticbykurt@kurt.
com. To help us handle your call as eciently as possible, please have
your trainer’s serial number ready to give to the customer service
representative.
After determining what repairs or replacement parts may be needed, you
will be provided with procedures for returning your product to Kinetic.
In some cases replacement parts may be shipped directly to you,
depending on the nature of the problem.
RECORD THE SERIAL NUMBER OF YOUR KINETIC TRAINER HERE
Page 7
www.kurtkinetic.com
5280 Main Street NE Minneapolis, MN 55421 • 1.877.226.7824
www.kurtkinetic.com
©2013 KINETIC BY KURT ALL RIGHTS RESERVED
