Kinetico Premier Compact User manual

visit www.kinetico.eu
Installation and User Manual
Installation et Guide d’utilisation
Installatie- en gebruikshandleiding
Manual de instalación y de usuario
Water Softener
Adoucisseur d’eau / Waterontharder
Descalcificador
ENG DUFR ES
PREMIER COMPACT HE INT

Kinetico Premier Compact Water Softener Installation and User Manual
2
For more information about Kinetico:
Pour plus de renseignements sur Kinetico:
Voor meer informatie over Kinetico:
Para obtener más información sobre Kinetico:
visit www.kinetico.eu
The Premier Compact HE INT Water Softener is Tested and Certified by
WQA under NSF/ANSI 61 for Materials Safety Requirements Only. Not
Certified for Contaminant Reductions or Structural Integrity by WQA.
L’adoucisseur d’eau Premier Compact est testé et certifié par WQA sous la
norme NSF/ANSI 61 seulement pour les exigences en matière de sécurité du
matériel. La réduction des contaminants ou l’intégrité structurelle ne sont
pas certifiées par la WQA.
De Premier Compact HE INT Waterontharder wordt getest en gecertificeerd
door WQA onder NSF / ANSI 61 voor enkel materiele veiligheidsvereiste.
Niet Gecertificeerd voor Verontreinigende Vermindering of structurele
integriteit door WQA.
El descalcificador de agua Premier Compact ha sido comprobado y
certificado por WQA con respeto al estándar NSF/ANSI 61 solamente para
los requisitos de seguridad del material. La reducción de los contaminentes
o la integridad estructural no están certificados por WQA.

www.kinetico.eu
3
Original Version
Contents
Safety information 4
Contents of box 6
Specifications 6
Getting to know the softener 7
Pre-installation check list 8
Installation instructions 10
Installation review 12
Commissioning instructions 13
Useful information 15
Sommaire
Informations de sécurité 18
Contenu de la boîte 20
Caractéristiques 20
Se familiariser avec l’adoucisseur 21
Vérifications préalables 22
Instructions d’installation 24
Inspection de l’installation 26
Instructions de mise en service 27
Informations utiles 29
ENG
FR
Inhoudsopgave
Veiligheidsinformatie 32
Inhoud verpakking 34
Specificaties 34
De ontharder leren kennen 35
Checklijst voorafgaand aan installatie 36
Installatie-instructies 38
Installatiecontrole 40
Instructies voor inbedrijfstelling 41
Nuttige informatie 43
DU
Contenido
Información de seguridad 46
Contenido de la caja 48
Especificaciones 48
Primeros pasos con el descalcificador 49
Lista de comprobación previa a la instalación 50
Instrucciones de instalación 52
Revisión de la instalación 54
Instrucciones de puesta en marcha 55
Información útil 57
ES

Kinetico Premier Compact Water Softener Installation and User Manual
4
Safety information
Read all information carefully prior to installing and using the
water softener.
Qualified Installer
Kinetico recommends that a qualified
installer performs the installation. Failure
to install the system as instructed could
invalidate the Limited Warranty.
Water Temperature
Do not install the Kinetico softener in
an area where the water temperature
can exceed 24°C or cause the unit
to freeze. Freezing temperatures will
damage the system.
Water Pressure
Do not install if the supply water pressure
exceeds 6 BAR (87 psi), unless a suitable
pressure regulating valve has been
installed on the softener water supply.
Overflow
VERY IMPORTANT:
Where a cabinet overflow could cause
damage, you must install a 1/2” I.D.
hose to the barbed fitting on the
cabinet and run to a suitable outlet
that is visible and capable of taking the
overflow (i.e. through the outside wall).
Make sure the hose does not go higher
than the barbed fitting as the water
will flow away using gravity.

www.kinetico.eu
5
Original Version
Copper/Plastic Pipework
Where copper/plastic pipework is
used, Kinetico advises adherence to
the regulatory requirements to ensure
adequate earth bonding is provided.
Intended Use
Not intended to be used for treating
water that is micro-biologically unsafe
or water that has an unknown quality,
without adequate disinfection before or
after the system.
Conform to Regulations
You must ensure that the installation
conforms to local plumbing codes and
regulations. Note: Refer to separate
instructions for important WQA
certification information.
Plumbing Schematic
Please refer to the plumbing schematic
on page 8 before commencing an
installation.

Kinetico Premier Compact Water Softener Installation and User Manual
6

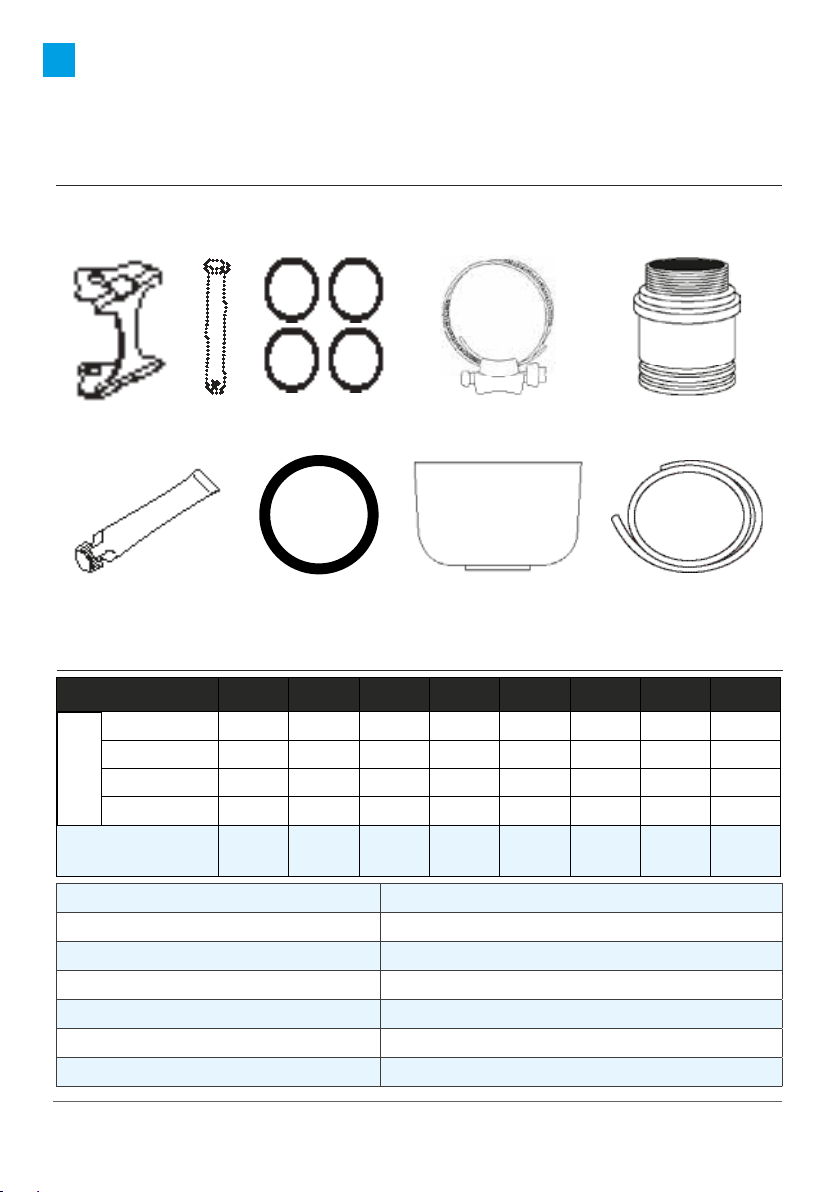

Contents of box
Identify the following parts before proceeding.
Meter Disc 1 2 3 4 5 6 7 8
gpg 4 9 13 17 21 25 28 30
PPM 77 152 226 300 370 440 490 528
˚dH 4 9 13 17 21 25 28 30
˚TH 8 15 23 30 37 44 50 52
Litres between
regenerations 1961 980 654 490 392 327 280 245
Cabinet dimensions (h x w x d) 498 x 219 x 468 mm
Salt used per regeneration 0.34 kg
Regeneration time 11 minutes
Flow rate @ 1 bar pressure drop 22.7 l/min
Pipe connections - in/out ¾” BSP
Min/max operating pressure 1.8 - 6 bar
Min/max operating temperature 2 - 24˚C
Specifications
Max
hardness
1 x in/out retaining
bracket and pin
Jubilee clip4 x o-ring
1 x 2cc silicone tube 2 x 3/4” washers 1 x blanking plate 1 x 2m of 5/8”
drain tubing
2 x 3/4” BSP
in/out adaptor

www.kinetico.eu
7
Original Version

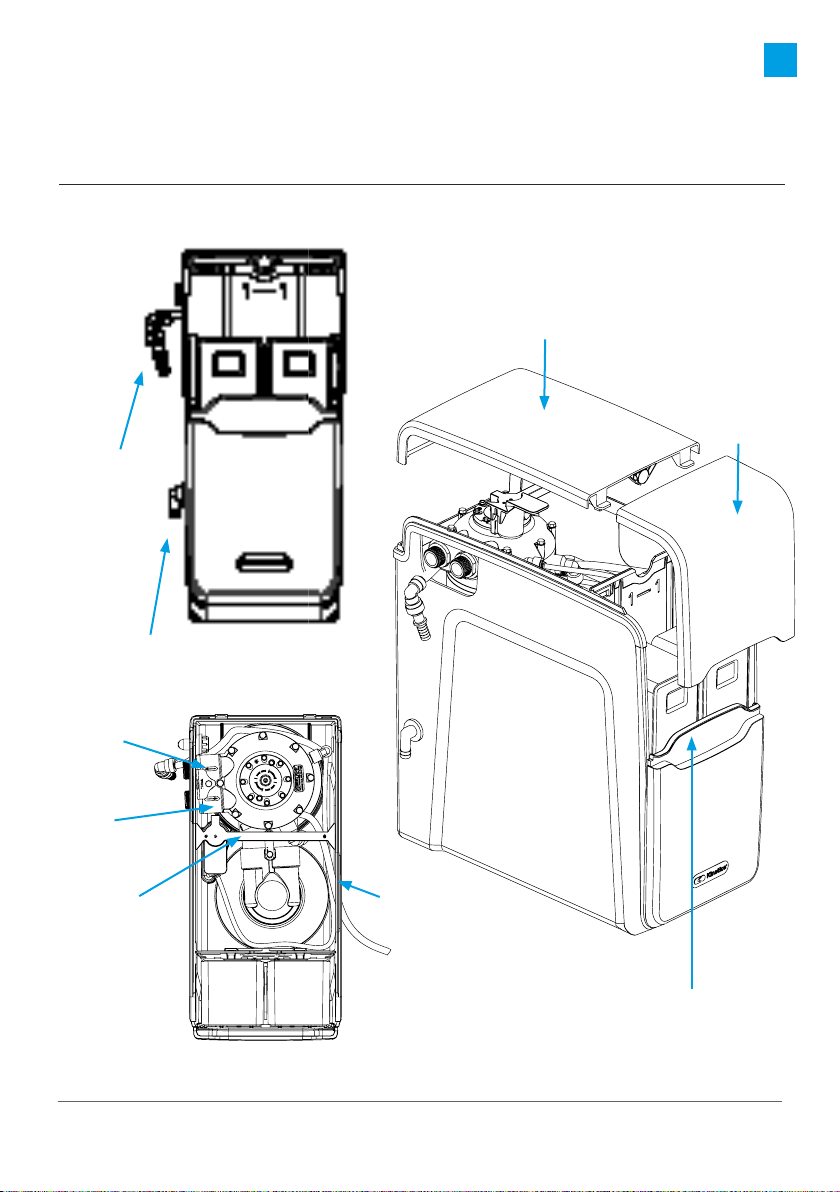

Getting to know the softener
Salt compartment
Outlet
Overflow
Drain
connection
Inlet
Support
bar
Top lid
Front lid
Blanking plate
(see page 10
for use and
installation of
blanking plate)

Kinetico Premier Compact Water Softener Installation and User Manual
8

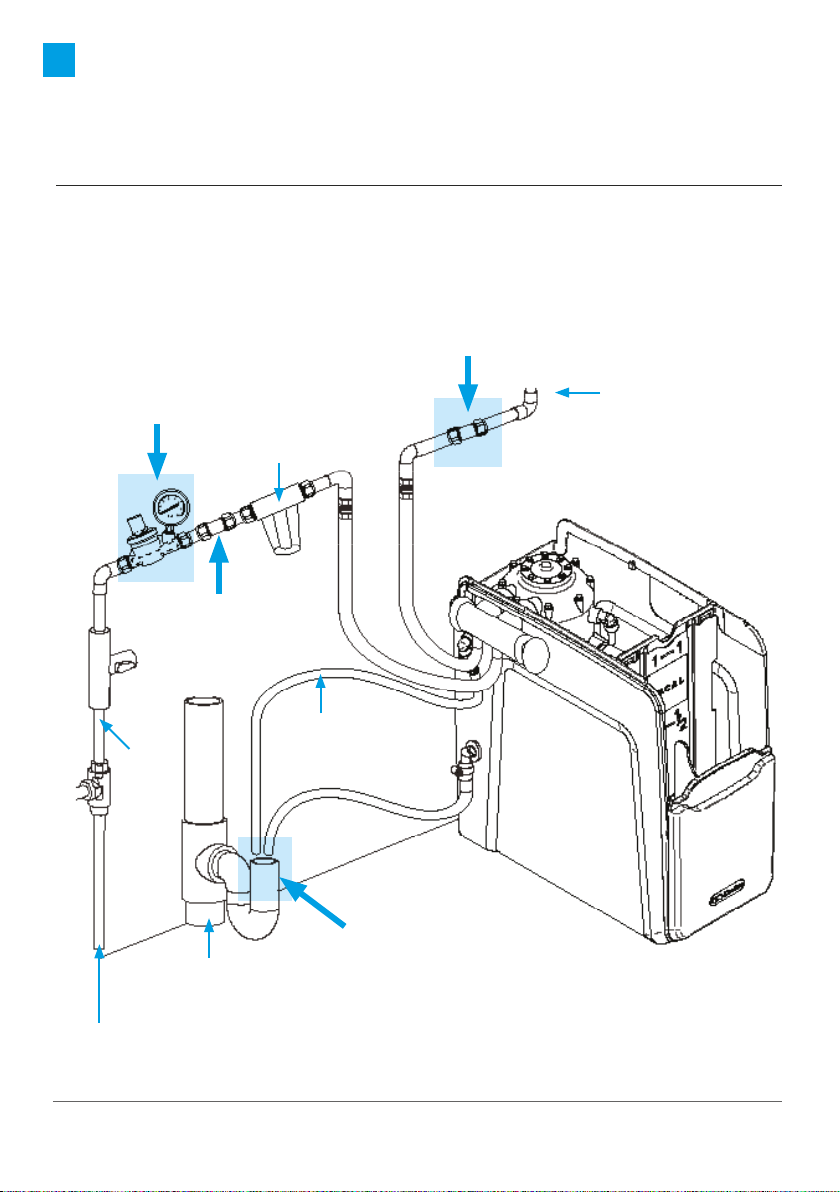

Pre-installation check list
When determining the location of the softener, the following
should be considered:
Mains
supply
To home
To drain
To drain
Cold water
supply
Optional extra:
Pressure regulating
valve.
Air gap:
Local regulations
must be adhered to.
Non-return valve:
Local regulations
must be adhered to.
Optional extra:
Non-return valve,
local regulations
must be adhered to.
Pre-filter

www.kinetico.eu
9
Original Version
Installation will vary but should consist of:
a: A pressure regulating valve on the water supply to the softener where the
incoming pressure exceeds 6 bar.
b: A non-return valve on the mains water supply to the softener. If using a Kinetico
supplied installation kit, a non-return valve is built into the inlet tee.
c: A by-pass assembly which enables the softener to be isolated from the water
supply for maintenance and service. This also maintains the water supply when
the system is disconnected.
d: A drain line from the softener to a waste pipe through an appropriate air gap.
The drain must comply with local plumbing codes.
e: An overflow run to a suitable outlet that is visible.

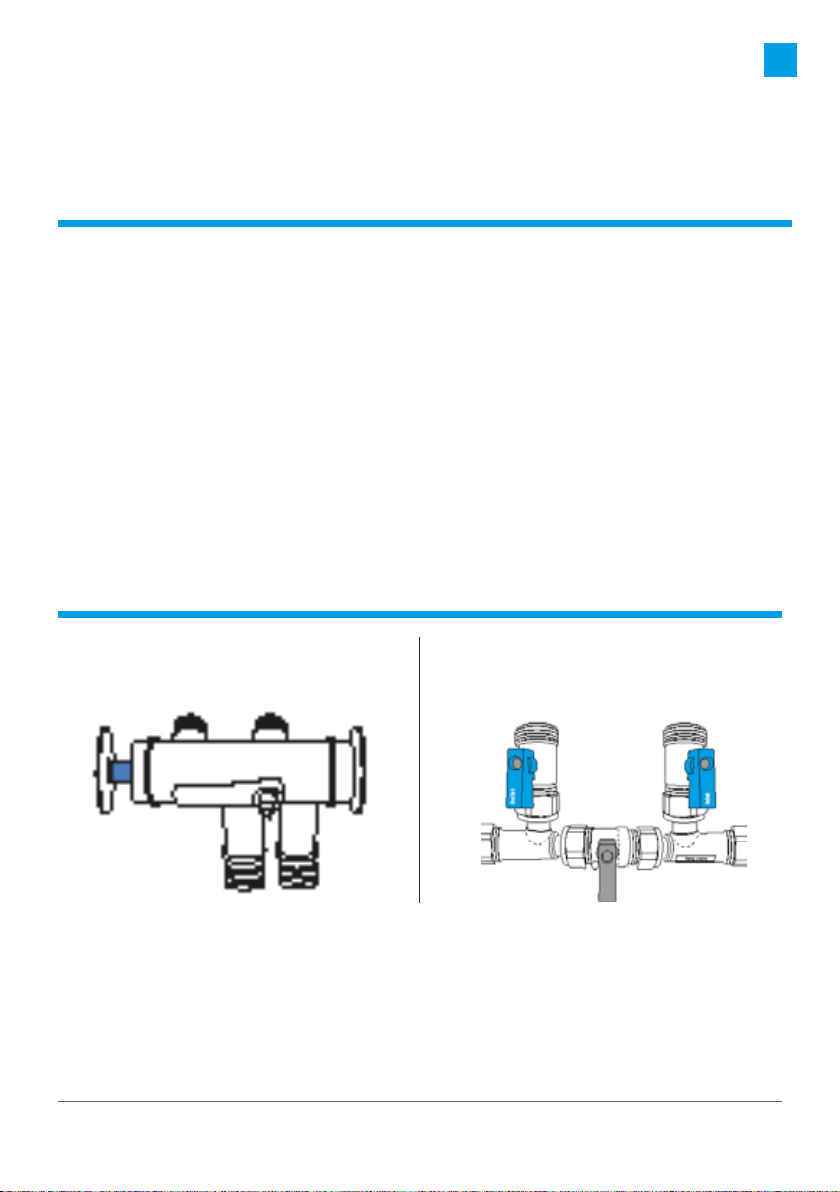

Ensure you have the following:
a: Kinetico blending by-pass valve
plus a single check valve.
b: Connections for the inlet and outlet, either by means of flexible pressure rated
hoses or by direct pipework. Connections on the softener and the Kinetico
blending by-pass valve are 3/4” BSP male threaded fittings.
c: 1/2” ID hose for both the overflow and the drain.
d: Jubilee clip for the drain line.
Or, a means of constructing a by-pass
which consists of:
3 valves, Tee pieces, Single check valve

Kinetico Premier Compact Water Softener Installation and User Manual
10
Installation instructions
Locate:
a: Ensure the unit can be
positioned on a flat surface.
b: If sand, silt or turbidity are
present in the water supply, a
pre-filter should be installed
before the water softener.
1
Please note: For ease of installation
the softener can be installed with the
connections on the left or right side of the
cabinet by reversing the components.
Test water pressure:
Test incoming pressure to the
unit. A pressure regulating valve
will be required if the pressure
is above 6 bar.
3
Install:
Plumb pipework as necessary to
accommodate a by-pass assembly,
h 105mm x w 194mm x d 80mm.
4
Insert blanking plate:
Insert the blanking plate into the
outlet which is not in use.
2
Lift up into position, then drop the
plate down into the slot.

www.kinetico.eu
11
Original Version
Caution: Do not solder any fitting while connected to the unit adaptors.
Care should be taken during the installation process to ensure solder and flux
do not come in contact with any of the components.
Flush:
After plumbing is complete, but
before connecting to water softener,
flush both inlet and outlet lines and
allow water to rinse out any debris.
5

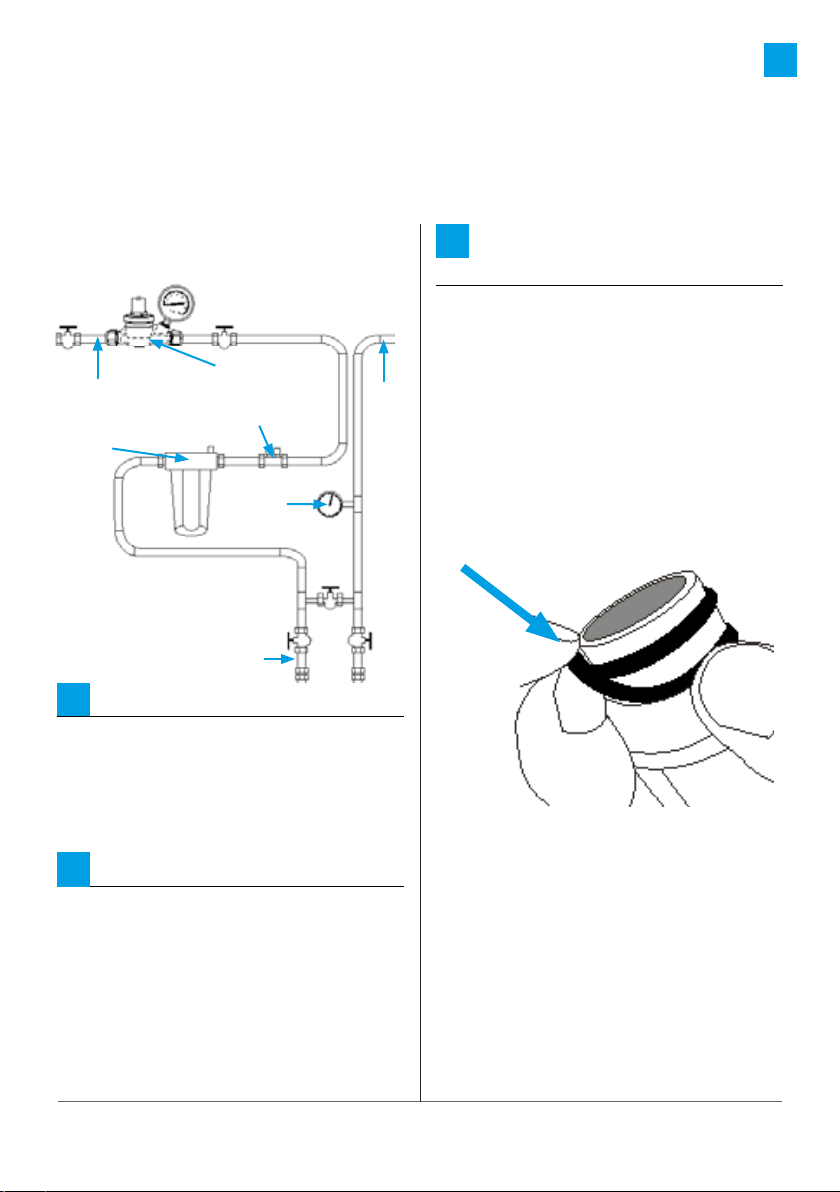

Or, establish a by-pass installation
based on the following diagram. Fit inlet/outlet
connection:
When using the Kinetico blending
by-pass valve, consult separate
installation instructions. Please
note, the orientation of the valve
will determine which connection
is used as the inlet. Or, follow the
process below:
a: Fit 2 o-rings to each in/out
adaptor then lubricate with the
supplied silicone grease.
b: Connect inlet/outlet adapters
to supply and return hoses
remember to use the washers.
c: Install adapters into control
valve in/out ports, ensuring that
they are fitted into the correct
ports (see flow arrows on valve
for reference).
d: Attach the retaining bracket and
pin to the control valve.
7

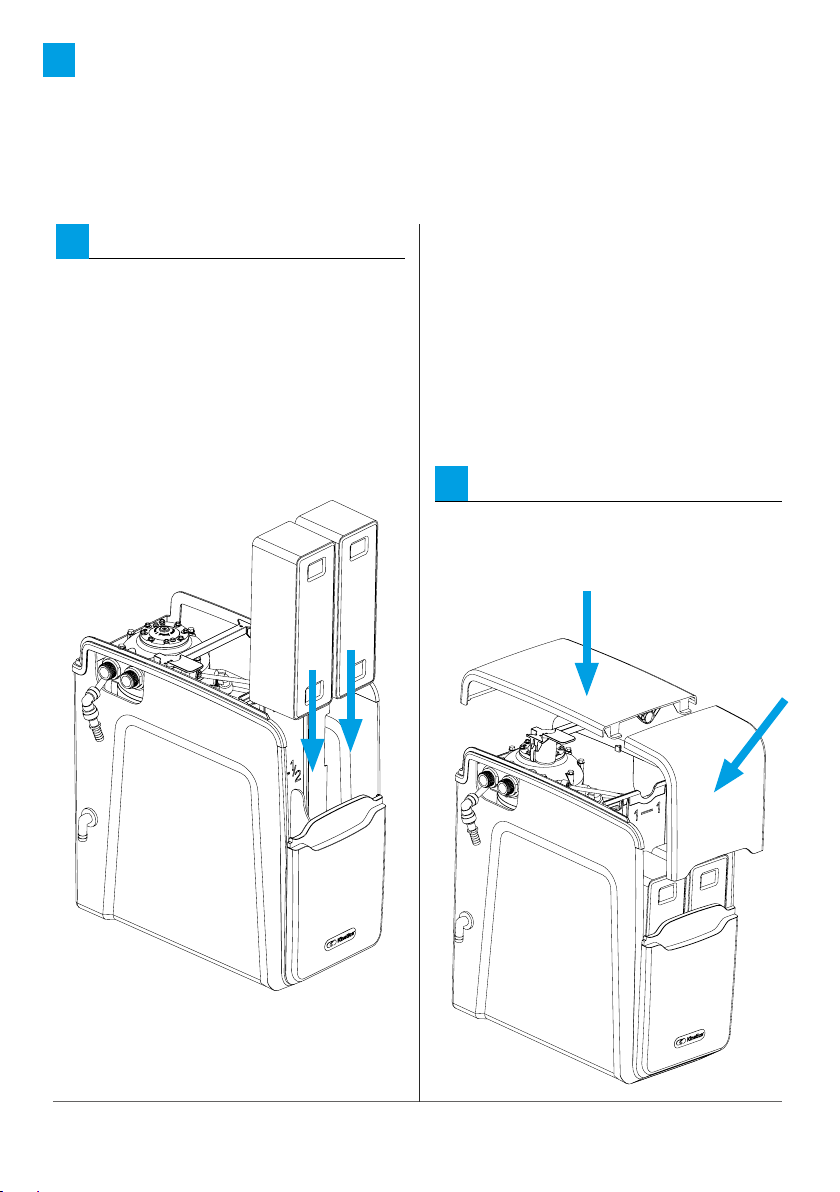

Remove cardboard:
Ensure all cardboard is removed
from the inside of the softener.
a: Remove top lid and support bar
(see page 7).
b: Carefully remove the two pieces
of cardboard, then replace the
support bar and lid.
6
Mains supply To
home
Pre-filter
To water softener
Gauge
Pressure
regulating valve
Non-return valve

Kinetico Premier Compact Water Softener Installation and User Manual
12
Review
By-pass assembly:
Ensure the assembly is in the
“by-pass” position.
5
Pressure:
If a pressure regulating valve
has been fitted, ensure it has been
correctly set to 6 bar.
1
Drain line:
Ensure the drain line is securely
attached, has no restrictions or kinks,
uses an airgap and is fully compliant.
2
Overflow:
Ensure the overflow has no kinks, is
securely attached and that water is
able to fall away with gravity.
3
Inlet/Outlet connections:
Ensure the hoses/plumbing are
attached securely, using the washers
provided, and are firmly held in place
using the retaining bracket and pin.
4
In Service PositionBy-pass Position
Run drain line:
a: Run a drain line to a
discharge point, checking for
any obstructions or possible
kinks.
FOLLOW LOCAL PLUMBING
CODES.
b: Before connecting the drain line
to the unit, slide on the stainless
steel jubilee clip.
c: Push the drain line onto the
barbed fitting and tighten the
jubilee clip securely.
8
Please note:
Drain lines must not run more than
2.4m up or exceed a total of 9m. The
drain line must not be restricted or
kinked.
✗

www.kinetico.eu
13
Original Version

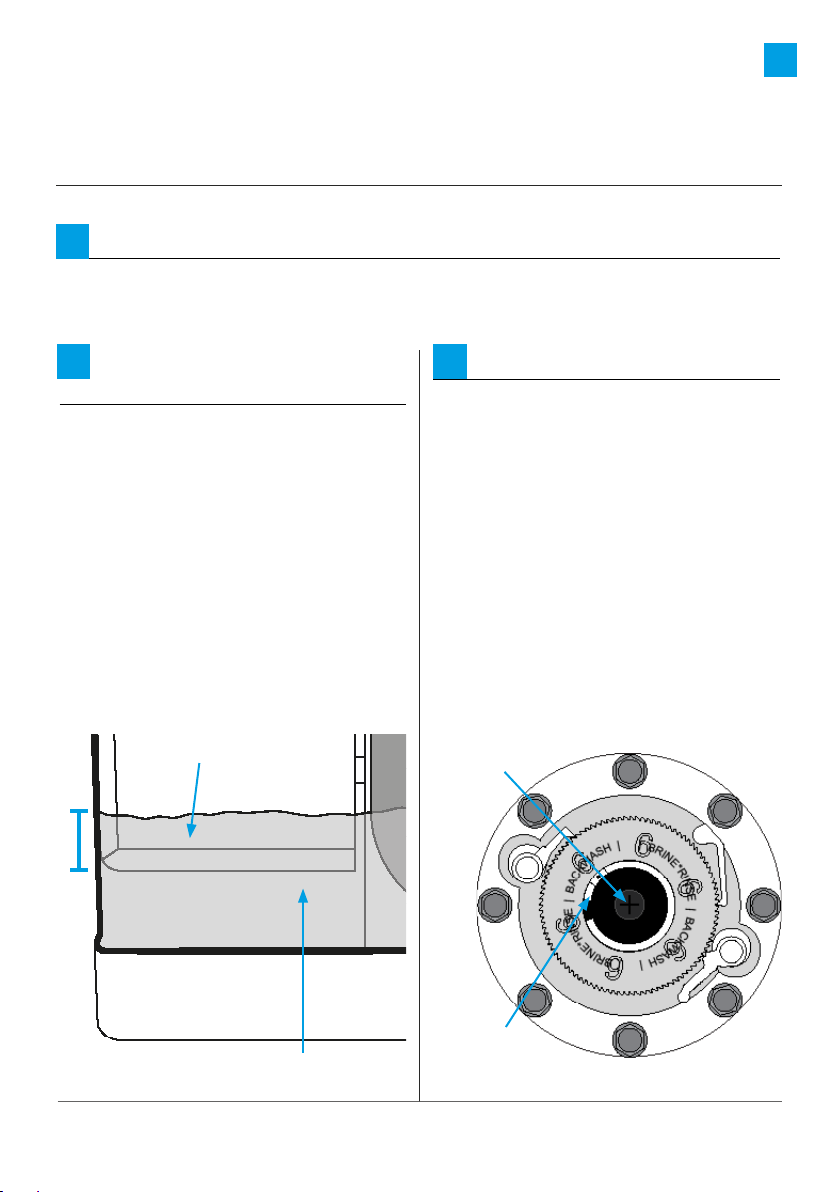

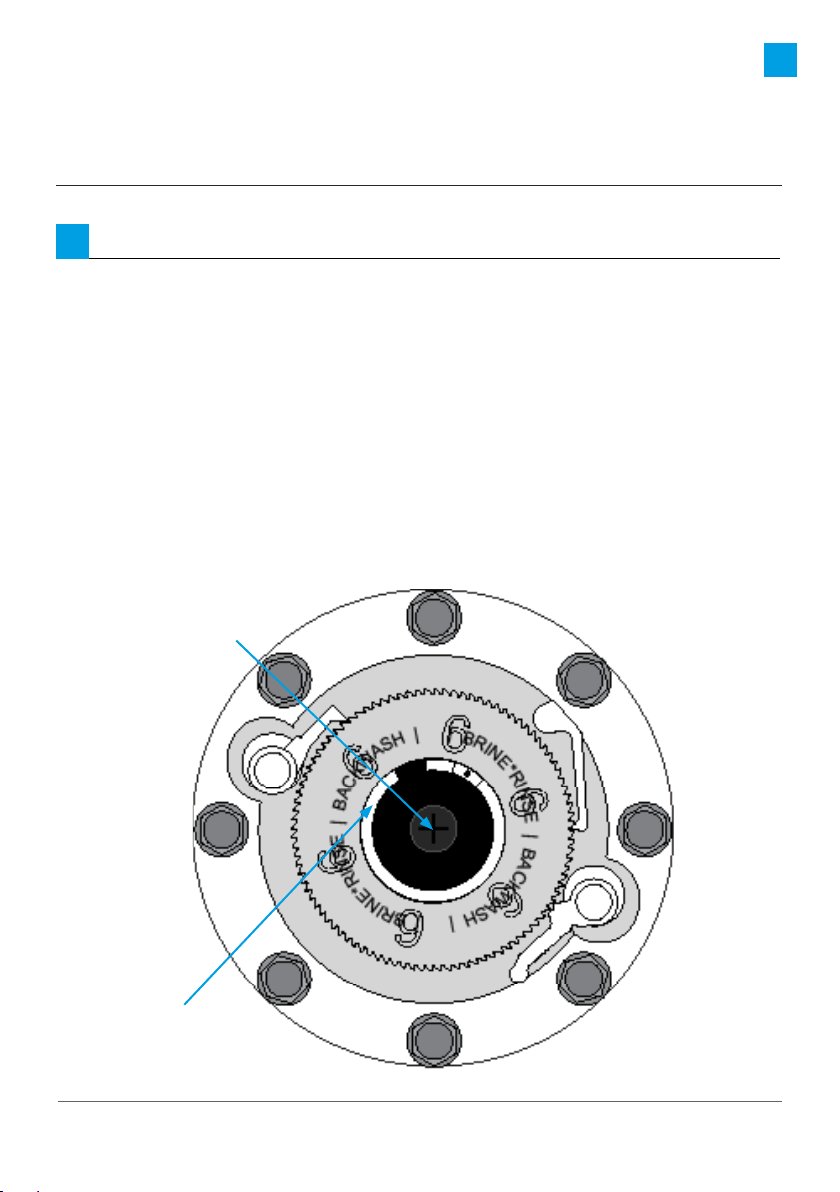

Initiate a backwash:
a: Using a Phillips head screwdriver
push down on the actuator, and
slowly turn CLOCKWISE until the
indicator dot reaches the letter
W in the word “BACKWASH” on
the clear cap.
b: You will hear a rush of water and
air going to the drain.
c: When the cycle has finished
(approx 4 mins), repeat the
procedure, turn the indicator dot
to the next backwash cycle and
allow to finish (approx 4 mins).
3
Pressurise:
With the water to the property restored, slowly move the assembly to the “in
service” position. Water may run to drain until the unit is fully pressurised.
1
Commissioning instructions
Fill the brine tank
with water:
Allow the brine tank to fill with
water until the brine valve shuts o.
The water level should be
approximately 25mm over the
grid plate.
TIP:
If the cabinet does not fill
with water please refer to the
“Useful Information” section
(page 15).
2
Actuator
Indicator
25mm
Grid plate
Water level

Kinetico Premier Compact Water Softener Installation and User Manual
14
Add salt:
For convenience, the water
softener has been designed to
accommodate both block and
tablet/pellet salt.
Block Salt:
To use salt blocks, simply place
them in the salt compartment
with the indents facing forwards.
Tablet and Pellet Salt:
Simply pour into the salt
compartment.
Fit the lid:
Replace the lids and check
plumbing for any leaks. The
installation is now complete.
5
4IMPORTANT:
Only use salt manufactured for use
in water softeners.
Do not use rock or granular salt
in your system. They contain
impurities that can interfere with
performance and could invalidate
the Limited Warranty.

www.kinetico.eu
15
Original Version
Useful information
Should water be present in the salt compartment?
Yes, it is normal to see water at a level of 25mm above the salt grid
(see page 13). If water is not present to this level:
a: Fill the salt bay with water until the level is 25mm above the salt grid. Then
conduct a manual regeneration.
b: To manually regenerate using a Phillips head screwdriver push down on
the actuator, and slowly turn CLOCKWISE ONLY until the actuator tab has
advanced the indicator dot to the word “BRINE”.
c: You will hear a rush of water and air going to the drain.
d: When the vessel has finished its cycle (approx 12 mins), repeat the procedure,
advance the indicator dot to the word “BRINE” in the next section and allow
to finish (approx 12 mins).
1
Actuator
Indicator

Kinetico Premier Compact Water Softener Installation and User Manual
16
How do I correct the water level if it sits higher than
the recommended 25mm above the salt grid?
Check that the brine valve is correctly held in place by the support bar and is
seated firmly on the base of the cabinet.
2

www.kinetico.eu
17
Original Version
Why am I experiencing varying levels of hardness?
The softener will provide soft water immediately; however, until mains water has
been displaced from the pipework, storage tanks and hot water system, you will
experience varying degrees of hardness.
Depending on your water system and water usage, this may take a few weeks
to clear.
It is also advisable to check that the by-pass valve is closed, when not using the
Kinetico blending by-pass valve.
3

Kinetico Premier Compact Adoucisseur d’eau Installation et Guide d’utilisation
18
Informations de sécurité
Veuillez lire attentivement toutes ces informations avant
d'installer et d'utiliser l'adoucisseur d'eau.
Installateur qualifié
Kinetico recommande de confier
l'installation à un installateur qualifié.
Le non respect des instructions
d'installation peut entraîner l’annulation
de la garantie limitée.
Température de l'eau
N'installez pas l'adoucisseur Kinetico
dans une zone où la température de l'eau
peut dépasser 24°C ou peut entraîner
le gel de l'appareil. Les températures
négatives endommagent le système.
Pression de l'eau
N’eectuez pas cette installation si la
pression d’installation est supérieure à
6 bar (87 psi), à moins qu’un régulateur
adapté ait été installé en amont de
l’adoucisseur.
Trop plein
TRÈS IMPORTANT:
Le trop plein du coret de
l’adoucisseur doit être raccordé
à une évacuation des eaux usées
avec un tuyau souple 1/2’’. Cette
recommandation importante permet
d’éviter d’éventuels dégâts en cas de
dépassement de la capacité du coret.
Il faut veiller à ce que le tuyau souple
ne soit pas plus haut que le trop plein
du coret.

www.kinetico.eu
19
Tuyauterie cuivre/plastique
Lorsqu'une tuyauterie mixte cuivre/
plastique est utilisée, Kinetico conseille
de se fier aux obligations réglementaires
afin d'assurer une mise à la terre
adéquate.
Utilisation abusive
Ne convient pas au traitement d'une eau
non sûre sur le plan microbiologique, ou
d'une eau dont la qualité est inconnue,
sans désinfection adéquate en amont ou
en aval du système.
Conformité à la réglementation
Vous devez impérativement veiller
à la conformité de l'installation aux
codes et règlements applicables en
matière de plomberie. Remarque :
Pour des informations importantes sur
la certification WQA, se référer aux
instructions séparées.
Schéma de plomberie
Veuillez consulter le schéma de
plomberie page22 avant de commencer
l'installation.

Kinetico Premier Compact Adoucisseur d’eau Installation et Guide d’utilisation
20
Contenu de la boîte
Repérez les pièces suivantes avant de commencer.
Caractéristiques
Disque indicateur 1 2 3 4 5 6 7 8
gpg 4 9 13 17 21 25 28 30
PPM 77 152 226 300 370 440 490 528
˚dH 4 9 13 17 21 25 28 30
˚TH 8 15 23 30 37 44 50 52
Litres entre les
régénérations 1961 980 654 490 392 327 280 245
Dimensions du boîtier @ base 498 x 219 x 468 mm
Sel consommé par régénération 0.34 kg
Durée de régénération 11 minutes
Débit pour une perte de charge à 1 bar 22.7 l/min
Raccords - entrée/sortie ¾” BSP
Pression de service min/max 1.8 - 6 bar
Température de service min/max 2 - 24˚C
Dureté
max
1 support de maintien
pour entrée/sortie et
goupille
Collier de serrage4 joints
toriques
1 tube de silicone 2cc 2 joints plats 3/4’’ 1 presse-étoupe 1 x 2m de tuyaux
d’évacuation 5/8”
2 x 1 connecteur
“entrée/sortie’’ 3/4”
