Kinetik Wellbeing JPD-FR409-BT User manual

Infrared Thermometer
Instruction Manual JPD-FR409-BT
0482
Kinetik JPD-FR409-BT EN IB 20221018
MedPath GmbH
Mies-van-der-Rohe-Strasse 8, 80807 Munich, Germany
Shenzhen Jumper Medical Equipment Co., Ltd
D Building, No. 71, Xintian Road, Fuyong Street,
Baoan, Shenzhen, Guangdong, P. R. China 518103
Authorized European Representative:
Made in China
0482
IP22

Product Name: Infrared Thermometer
Introduction
Thank you for purchasing this Infrared Thermometer. Please read the User
Manual carefully tomake sure safe and proper use of this thermometer.
Please read and fully understand the Safety Precautions before use.
Keep the Instruction Manual with this thermometer for future
reference.
Product Information
Model: JPD-FR409-BT
[phone]
Post:
Kinetik Medical Devices Limited
Unit 3, Perrywood Business Park, Honeycrock Lane,
Salfords, Redhill, RH1 5DZ
Our Customer Care team are available from 9am-5pm, Monday to
Friday (excluding bank holidays).
Support

Contents
Package Contents.................................................................
Safety Precautions................................................................
Warning............................................................................
Symbols............................................................................
Product Description...............................................................
Features............................................................................
Product Structure.................................................................
Display Description...............................................................
Sounds and indicator Colorinstructions.......................................
Display and Operating Instructions.............................................
Measuring Ear Temperature.....................................................
Measuring Forehead Temperature..............................................
Measuring Object Temperature.................................................
Replacing Batteries...............................................................
Body Temperature Basics........................................................
After a Measurement.............................................................
No. Name Quantity
1Infrared Thermometer 1
2Pouch1
3Battery (AAA)2
4Instruction Manual1
1
Package Contents
Connecting the Instrument to a Smartphone viaBluetooth.................
Cleaning............................................................................
Maintenance.......................................................................
Troubleshooting...................................................................
Specifications.......................................................................
Security Class......................................................................
Storage and Transportation.....................................................
EMC Information-Guidance and Manufacture’s Declaration.................
Warranty and After-Sale Service................................................
Disinfection........................................................................
Statement..........................................................................
1
2
4
5
6
7
8
9
9
10
11
18
20
21
23
22
24
24
25
26
27
28
28
29
35
25
35

Process" chapter and carefully operate the thermometer when
measuring children's temperature.
Do not immerse thethermometer in water or other liquid,as it is
not waterproof. Clean and disinfect thethermometer as described
in the "Cleaning and Disinfection" chapter.
Do not touch the tip of the temperature probe, on which aprecise
temperature sensor resides.
Keep the temperature probe clean tomake sure accurate readings.
Before measuring thetemperature from theear canal , cleanthe
Do not use the thermometer under an ambient temperature higher
Risk of pollution! The user is recommended tosend the overdue
thermometer tolocal garbage disposal site or send it back to us.
2 AAA batteries of 1.5V are the only replaceable accessories of the
thermometer. Please do not usethe batteries of other voltages or
specifications.
3
earwax, if any.
The ambient temperature must not be extremely high orlow.
To make sureaccurate readings,keep the thermometerunder room
temperature for more than 30minutes before use.
than 40°C (104°F) orlower than 10°C (50°F), which is beyond the
operating temperature range of the thermometer.
2
Read the following precautions carefully before using the
thermometer.
Attention
Dispose used batteries with care. To protect the environment,you
are recommended tosend the used batteries to adesignated
collection point.
Remove thebatteries if the thermometer will not be used formore
than two months.
Do not immersethethermometer in water or expose it to direct
Do not subject the thermometer tovibration or impact.
The normal body temperature varies from person toperson.
Tracking aperson's body temperature will help determine whether
they have fever.
do physical exercises or get excited.
Cleanthe thermometer probe aftereach use.
Do not use the thermometer on newborns or for continuous
temperature monitoring purposes.
Do not usethe thermometer for purposes that are not specified in
this User’s Manual.Followthe instructions in the "Measurement
Take care of the temperature probelens, which is fragile.
sunlight.
Do not take body temperature readings within 20 minutes after you
Safety Precautions

4
Warning
Warning
canal. Otherwise,the ear canal may get injured.
The result may beinaccurate if youusetheoverduethermometer.
The thermometer is not intended to diagnose or treat any health
only.
consult adoctor.
Do not charge an alkalinedry-cell battery or throw it infire.
Otherwise, thebattery may explode.
Do not disassemblethe thermometer or attempt to repair it.
Otherwise,the thermometer may bedamaged permanently.
Do not take temperature measurements onbody parts other than
forehead and ears.Otherwise, the temperature readings may be
inaccurate.
During measurement, do not use amobilephone or any other
device that may cause electromagnetic interference.
Do not force thetemperature probe of thethermometerintoan ear
Keep thethermometer out of the reachof children.
problem or disease. The measurement results are for reference
It is dangerous tomake a self-diagnosis orself-treatment based on
the obtained measurement results.For such purposes, please
Symbols
Do not use the thermometer in anenvironment where flammable
anestheticmixture withair orwith oxygen or nitrous oxide is
available.
5
Symbol Description
Apersonal injury or damage tothe thermometer may
occur if the thermometeris not used correctly.
Inaccuratereading or damage tothe thermometermay
occur if the thermometeris not used correctly.
TypeBF applied part
Attentionmust bepaid.
The action is prohibited.
Read the instructions (actual symbol colours are white
on a blue background)
The degree of protection against harmful ingress
of water and particulate matter
Date of Manufacture and Made in China
Wasteelectrical materials should be sent to a
dedicated collectionpoint for recycling.
Information about the manufacturer.
Authorized European Representative
This product complies with the MDD93/42/EEC
requirements
Warning
Attention
Lot Number
Symbol for "SERIAL NUMBER"

6
Generally,you can take a body temperature ontheforehead, in the ear
canal, underthe armpit,inthe mouth, orin the anus. The temperature
measured at different parts of the body may differ slightly.
Body Site Normal Temperature Range
Forehead
Eardrum
Mouth
Armpit
Rectal
The normal body temperature range slightly varies with age and gender.
Generally, newborns or children havehigher body temperaturethan adults,
and adults have higher body temperature than the elderly. Women's body
temperature are appropriately 0.3°C higher than men's.
Normal body temperature
fluctuates throughout the day
and is also affected by external
factors.The body temperature
of an individual is the lowest
between 2:00 a.m. and 4:00 a.m.
and the highest between 2:00
p.m. and 8:00 p.m. An individual's
body temperature typically
changes by less than 1°C (1.8°F)
each day.
34.7°C-37.3°C (94.5°F- 99.1°F)
35.8°C-38.0°C (96.4°F-100.4°F)
35.5°C-37.5°C (95.9°F- 99.5°F)
34.7°C-37.3°C (94.5°F- 99.1°F)
36.6°C-38.0°C (97.9°F-100.4°F)
Body Temperature Basics
Variation in body temperature
7
4) Intended use
Product Description
1) Overview
3) Operating principle
2) Structure
The thermometer consists of a shell, an LCD, a measure button, abeeper,
an infrared temperature sensor, and a Microprocessor.
The infrared temperature sensor collects infrared energy emitted by the
eardrum or theskinsurface. After being focused by alens, the energy is
converted into a temperature reading by the thermopiles and measurement
circuits.
The Smart Ear & Forehead Thermometer measures the body temperature
based on the infrared energy emitted from the eardrum or the forehead.
Users can quickly get measurement results after positioning properly the
temperature probe in the ear canal or forehead.
The Smart Ear & Forehead Thermometer is intended for themeasure-
ment of human body temperatures. The forehead mode is indicated
for use by people of all ages and the eardrum mode is indicated for use
by people above three months old.

8
Do not use the thermometer if the ear is infected with otitis or suppuration
5) Contraindications
.
01 Good safety
●Passive infrared receiving technology.
02 Easy operation
●Ergonomic design
●One button measurement
03 Quick measurement
●1-second measurement
04 High accuracy
●Advanced infrared temperature sensor, with high sensitivity
●High accuracy with automatic temperature calibration
05 Diverse functions
●20 reading recalled
●Fever alert
●Switching between °C and °F
●Automatic power-off, power saving
06 Extensive application scope
●Forehead temperature measurement applicable to all age groups
●Ear temperature measurement applicable to children older than
three months, adults, and the elderly
07 Child mode
●This mode is recommended for people under 12 years of age.
Features
9
(1) LCD display screen
(2) Indicator
(3) Power button / Measurebutton
(4) Adult mode/ Child mode
(5) Mode button (Forehead / Ear / Object)
(6) Probe (take off the cover when measuring the ear temperature)
(7) Unit switch button(°C/°F)
(8) Probe cover (put the cover on when measuring the forehead
temperature)
(9) Memory button/ Sound switch
(10) Battery cover
1. Object temperaturemode
2. Forehead temperature mode
3. Child mode
4. Eartemperature mode
5. Mute / un-mute
6. Fahrenheit / Celsius degrees
7. Lowbattery
8. Memory recall
9.Temperature value
Product Structure
Display Description

10
Range SoundsIndicator
color
Along beep Green
3 short double beeps Red
Along beep Green
3 short double beeps Red
Object temperature
Along beep Green
Note: When the forehead and the ear temperature is between
22.0°C/71.6°F and 37.6°C/99.5°F, the ear temperature is between
34.0°C/93.2°F and 37.5°C/99.5°F, there will be a long beep and a green
indicator.This indicates that your body temperature is normal.
When the forehead and ear temperature is between 37.6°C/99.6°F and
43°C/109.4°F, there will be 3 short double beeps and a red indicator. This
indicates that your body temperature is a little high. You may have a fever.
Please consult your doctor if you are not sure.
Forehead temperature(Adult /Child)
Ear temperature(Adult / Child)
Sounds and indicator Color instructions
11
Display and Operating Instructions
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator color
Measuring Ear temperature(Adult / Child)
Ear temperature
for adult
Ear temperature
for child
Take off the probecover, press and
release the Power button for 1
second to power onthe
thermometer. Press the Mode
button, the thermometer enters the
Earmode. The symbol “Ear” is
displayed on the screen.
Switchto the adult or child
measurement mode by dialing the
side adult/child switcheraccording
to your measurement needs.
Insert thetemperature probe intoa
properposition in theear canal.
Press the Measure button to start a
measurement.
See thetableinthe
“Sounds and
indicator color
instructions”
section.
Measuring Forehead temperature (Adult / Child)
22.0°C–37.5°C / 71.6°F–99.5°F
37.6°C–43°C / 99.6°F–109.4°F
34.0°C–37.5°C / 93.2°F–99.5°F
37.6°C–43.0°C / 99.6°F–109.4°F
0°C–100°C / 32.0°F–212°F

12
Screen Display
Operating Instructions
Displayed State
Sound and
Indicator color
Forehead
temperature for
adult
Forehead
temperature for
child
Put the cover onthe probe, press
and release the Power button for1
second to power onthe
thermometer. Press the Mode
button, the thermometerenters the
Forehead mode. The “Head”
symbol is displayed on the screen.
Switch to the adult or child
measurement mode by dialing the
side adult/child switcher according
to your measurement needs.
Point thethermometer to the sides
of the forehead.about 0” to 1 ” (1 -
3cm) away from the skin surface.
Press and releasethe Measure
button. The temperature will be
displayed on the screen.
See thetablein the
“Sounds and
indicator color
instructions”
section.
Measuring Object temperature
13
Screen Display
Operating Instructions
Displayed State
Sound and
Indicatorcolor
Press and release the Power button
for 1 second to poweron the
thermometer. Thenpress the Mode
button. The thermometer enters the
Object mode. The “House” symbol
is displayed on thescreen.
Point the thermometerto the center
of theobject.Press and release the
Measure button. The temperature
will be displayed on the screen.
See the table in the
“Sounds and
indicator color
instructions”
section.
Out of themeasuring rangedisplay
In Earmode, atemperature reading
of more than 43.0°C (109.4°F)
In Forehead mode, a temperature
reading of more than 43°C
(109.4°F)
In Object mode, a temperature
reading of more than 100°C
(212.0°F)
A long beeps, the
indicator light is
red.
In Earmode, atemperature reading
of less than 34.0°C (93.2 °F)
In Forehead mode,a temperature
reading of less than 22.0°C (71.6°F)
In Object mode, atemperature
reading of less than 0°C (32.0 °F)
A long beeps,the
indicator light is
red.
Recall 20 memories

15
Screen Display
Operating Instructions
Displayed State
Sound and
Indicatorcolor
When the memory data is queried,
when thereis no memory data
under the current serial number, the
display is as shown.
Remove2 dry batteries and re-
install the powerto clear all
memory data.
When thepower is
turned back on, a
long beep, the
indicator light is
green, then turnred.
Switching between muteand un -mute
In thepower-on state, press and
hold the sound switchbutton for
about 2 seconds to switchthesound
on or off.When the sound is turned
on, it will beep onceand the mute
symbol will bedisplayed whenthe
sound is off.
The symbol is displayed in Mute
mode and disappears in Un -mute
mode.
When thesound is
turned on, it sounds
a long beep and the
indicator light is
green.
Switching between object temperature and body temperature
14
ScreenDisplay
Operating Instructions
DisplayedState
Sound and
Indicator color
In a power -on state,press the
Memory button enterthe memory
mode.
When the Memory buttonis
released, 1will be shown, followed
by the recorded reading.
Press the Memory button again for
the next recorded data.
2 will be
shown, followed by the recorded
reading.
A maximum of 20temperature
readings can berecalled.
When the maximum number of
records is exceeded,the oldest
memory data will beoverwritten.
Note:
1represents the newest data.
Silent ,theindicator
light is green.
No memory data / Clear memory data

17
Screen Display
Operating Instructions
Displayed State
Sound and
Indicatorcolor
Error information & low battery
The ambient temperature is higher
than 40.0°C (104.0°F) or lower than
10.0°C (50.0°F).
A long beeps,the
indicator light is
red.
An error occurs when data is being
read from or written to the memory,
or the temperature correction is not
complete.
A long beeps,the
indicator light is
red.
When the battery voltage is lower
than 2.5V ± 0.1V, the low battery
symbol will appear on the display.
Pl ease replace the batteries.
Silent
ScreenDisplay
Operating Instructions
Displayed State
Sound and
Indicator color
Press the Mode button to switch
between object temperature and
body temperature.
Body temperature contains the
Forehead temperature and Ear
temperature.
In the power off state, remove the
battery cover, and toggle the
°C/°F unit in the battery
compartment to switch the toggle
device. Silent
Toggle switch for °C upwards and
downwards toggle switch as the °F
unit.
Switching between °F/°C
Silent, the indicator
light is green.
16

18
2. Take the probe coveroff from the thermometer before measuring the
ear temperature.
3. Press the Powerbuttonto power on the thermometer.
4. Press the Mode button, the thermometer enters the Ear mode.The
“Ear” symbol is displayed on the screen.
5. When measuring an adult, place the switching device in the "adult"
mode. When measuring children, place the switching device in the
"child" mode and the symbol is displayed on the screen.
6. Insert the temperature probe into the ear canal.
7. Press and release the
Measure button. The ear temperature reading
will be display on the screen instantly.
Note: Children under 1 year: Pull the ear straight back.
Children aged 1 year to adult: Pull the ear up and back.
19
Do not force the thermometer into the ear canal. Otherwise, the ear
canal may get injured.
When taking the temperature on an adult, gently pull the ear up and
back to make sure the ear canal is straight, so that the temperature
probe can receive an infrared ray from the eardrum.
Be careful when taking temperature on a child, whose ear canal is
small.
1. When using the thermometer for the first time, move the battery cover
and install the batteries.
Measuring Ear Temperature

20
6. Press and release the Measure button for 1 second. The
temperature reading will be displayed on the screen instantly.
7. If no activity is detected, the thermometer will power off
automatically in 10 seconds.
1. Put the cover on the probe of thermometer.
2. Press the Powerbutton to power on the thermometer.
3. Press the Mode button, the thermometer enters the Forehead
mode
. the “Head” symbol is displayed on the screen.
4. When measuring adults, place the switching device in the "adult"
mode. When measuring children, place the switching device in
"child" mode and the symbol is displayed on the screen.
5. Point the thermometer probe to thesides of the forehead, about 0”
to 1 ” (1 -3cm) away from the skin surface.
Measuring Forehead Temperature
21
1. Put the cover on the probe of thermometer.
2. Press the Power button to power on the thermometer.
3. Press the Mode button, the thermometer enters the
The “House” symbol is displayed on the screen.
4. Point the thermometer probeto the center of theobject, about 0” to
1 ” (1 -3cm) away from the object surface.
5. Press and release the Measure button for 1 second. The
temperature reading will be displayed on the screen instantly.
6. If no activity is detected, the thermometer will power off
automatically in 10 seconds.
Object mode.
Measuring Object Temperature

23

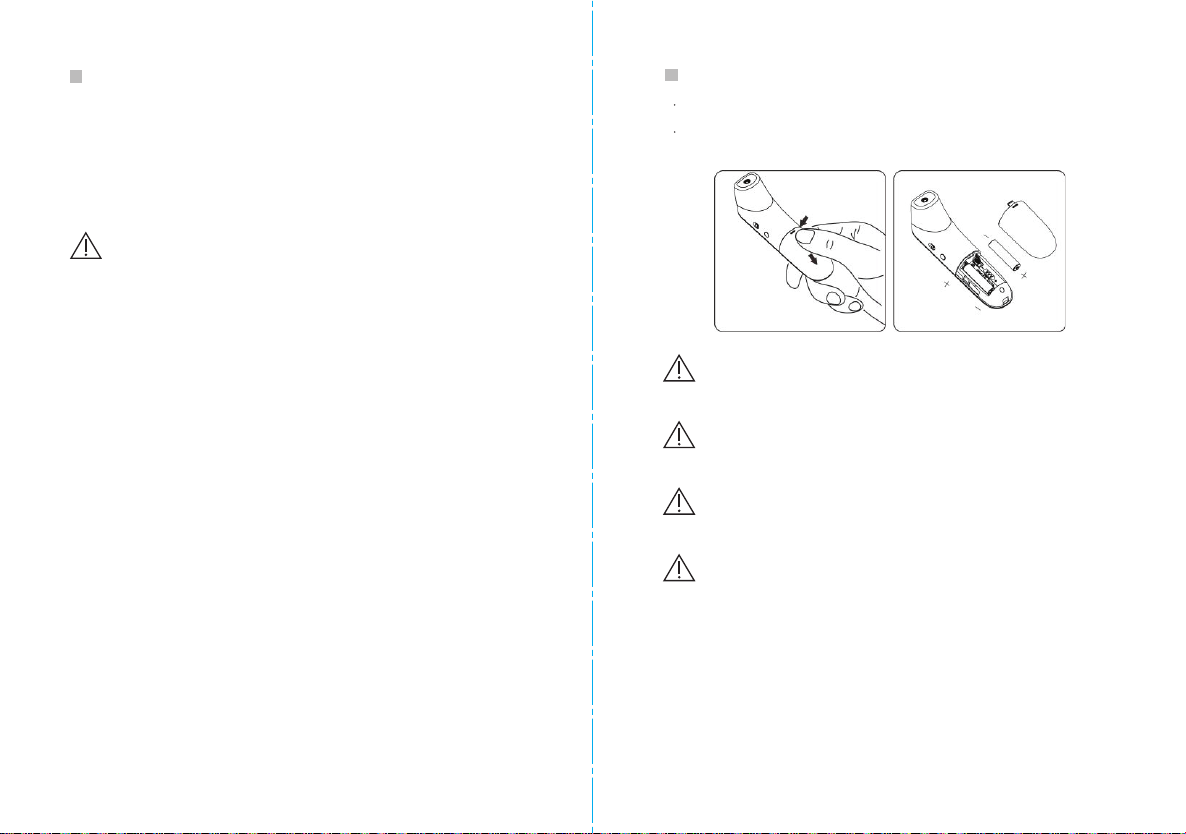

1 Slide the battery cover off along the marked direction and take it off.
2Insert the two AAA batteries into the compartment according to the
stated polarities.
Make sure that the batteries are installed correctly.Otherwise, the
thermometer may be damaged.
If the low -battery symbol is displayed on the screen, replace the
batteries.
Batteries of a same type should be used. Dispose the used batteries
in accordance with the local environmental policies.
The thermometer is shipped with batteries.
cover, then remove the insulating piece .
First open the battery
Replacing Batteries
(1) After each measurement, you can enter the recall mode and query
earlier temperature readings. For more details, see " Recall 20
memories" in the preceding table.
(2) After each measurement, clean the temperature probe with a soft cloth,
and put the thermometer in a dry and well-ventilated place.
It is dangerous to make a self-diagnosis or self-treatment based on
the obtained measurement results.For such purposes, please consult a
doctor.
Notes:
(1) The thermometer is suitable for an indoor env ironment without strong
air convection (for example, winds from a fan, an air -conditioner, or a
heater) between the thermometer and the person.
(2) Make sure that the ear canal is clean and dry before starting a
measurement. It is recommended to clean the ear canal with a cotton
swab if any dirt exists. Otherwise, the temperature probe may be
polluted and temperature readings may be inaccurate.
(3) Do not hold the thermometer for a long time, because it is sensitive to
the ambient temperature.
After a Measurement
22
(4) Make sure the sense head is free of foreign matters before use;
(5) Make sure the forehead has no sweat and no hairs covered before
measure the forehead temperature; otherwise, the result could be
incorrect;
(6) No intense emotion or strenuous exercises before measuring;
(7) After measuring the data once, you should wait for the indicator to
turn off and measure the next data.

24
Recommended detergents:
Medical detergents;
Home use mild detergents;
Cleaning steps:
(1) Take the batteries out before cleaning.
(2) Clean the temperature probe with a soft
cloth. Clean the lens of the temperature probe
with a cotton swab.
(3) Wipe the thermometer body with a slightly damp soft cloth .
lens may be damaged.
result in inaccurate readings.
cleaning process, do not immerseany part of the thermometer into liquid,
or allow liquid to penetrate the thermometer.
Keep water out off the lens during the cleaning process. Otherwise, the
The lens may bescratched if it is cleaned withahard object , which might
Do not clean thethermometerwith corrosive cleansers. During the
Connecting the Instrument to a Smartphone via Bluetooth
Download the Temperature Diary by MedMapp or the MedM Healthapp
from the App store or Google Play.
Install the app and register anaccount.
EnableBluetooth and the MedM app on your smart device. Make sure both
Bluetooth and app are ON whenpair-up is proceeding.
In the app,select the menu in thetop left corner of the screen. Thenselect
My Devices.
At the bottom of this screen,select Add New.The app will automatically start
scanning for a new device.
Whilethe scan is underway turn on your thermometer.
Ensure that batteries havebeen inserted intothermometer before doing so.
When detected select the Kinetik Thermometer.
Once selected you will be asked if you would like toreceivedata automatically.
To transmit and store eachreading automatically you will need toselect
Yeson this screen. If you select No you will need to manually input your results.
Cleaning
Sodium hypochlorite solution (concentration: 3%)
Disinfecting steps:
1) Wet the clean soft cloth with a small quantity of disinfectant, wipe the
thermometer and quickly dry it.
2) Disinfect the thermometer body and the area around the temperature
probe with a cloth slightly moistened with 75% medical alcohol.
Do not use hot steam or ultraviolet radiation for disinfection.
Otherwise, the thermometer may be damaged orquickly aged.
+10°C~+40°C (50°F-104°F), the relative humidity of 15%~85%RH (no
condensation) and the barometric pressure of 86kPa~106kPa.
Preventive inspection & maintenance period
1) Ensure the safety of thermometer, and check whether it has potential
safety hazards in normal use each week, e.g. whether the lens is
broken, the shell has cracks and the sensing head is polluted. Do not
use the thermometer with potential safety hazard. Clean the
thermometer if not used for a long time.
2) After each use, clean the temperature probe as described in the
"Cleaning and Disinfection" chapter.
3) Store the thermometer in a dry, dust-free, and well -ventilated place.
Make sure that the thermometer is not exposed to sunlight.Make sure
that the storage and transportation environments meet the
requirements.
25
Maintenance
Clean and disinfect the thermometer under the temperature of
Disinfection
Medicinal alcohol (concentration: 75%)
Recommended disinfectants:
Isopropyl alcohol solution (concentration: 70%)

4) Check regularly whether safety risks exist.
5) Remove the batteries if the thermometer will not be used for more
than two months.
Problem Possible Cause Solution
The
thermometer
fails to power
on.
Low battery Change the batteries.
Polarities of the
batteries are reversed.
Make sure that the batteries
are installed correctly.
The thermometer is
damaged.
Contact the manufacturer.
"Er1" is
displayed.
The ambient
temperature is lower
than 10°C (50.0°F) or
higher than 40°C
(104°F) .
Take a measurement under
an ambient temperature
between 10°C (50.0°F) and
40°C (104°F).
The temperature
reading is lower
than the typical
body
temperature
range.
The lens of the
temperature probe is
dirty.
Clean the lens using a
cotton swab.
The thermometer
probe is not aligned to
the eardrum.
Reposition the thermometer
probe so that it is aligned to
the eardrum.
The thermometer is
used within 30
minutes after being
taken from a cold
environment.
Wait for more than 30
minutes after the
thermometer is moved into
the measurement
environment.
The temperature
reading is higher
than the typical
The temperature
probe is damaged.
Contact the manufacturer.
26
Troubleshooting
Product Name
Product Model
Power Supply Mode
Operating Voltage
Battery Model
Battery Life
Operating Mode
body
temperature
range.
Infrared Thermometer
JPD-FR409-BT
Internal power supply
DC 3V
AAA x 2
Alkaline dry battery for around 20,000 measurements
Continuous operating
Segment LCD
About 1 second
About 3 second
Forehead mode:22.0°C–43.0°C (71.6°F–109.4°F)
Ear mode:34.0°C–43.0°C (93.2°F–109.4°F)
Object mode:0.0°C–100.0°C (32.0°F–212.0°F)
0.1°C (0.1°F)
20 temperature readings
The low-battery symbol is displayed if the power
The thermometer automatically powers off if it is not
155.2x39.6x49.1mm
Thermometer (with batteries): 101 g
Temperature: 10°C~40°C (50°F-104°F)
Display
Measure time
Latency Time
Measuring Range
Accuracy
(Laboratory)
Resolution
Memory
Low-battery Alert
Automatic Power-off
Weight (g)
Operating
Outer dimensions
(mm)
used in 10 1 seconds.
-
+
voltage is lower than 2.5V 0.1V
-
+
Ear mode: ±0.2°C (36.0°C-39.0°C) ;
±0.3°C (22.0°C-36.0°C / 39.0°C~43.0°C);
Object mode: ±1.0°C/ ±2.0°F
±0.3°C (34.0°C-36.0°C / 39.0°C~43.0°C);
Forehead: ±0.2°C (36.0°C-39.0°C) ;
27
Specification

29
CAUTION:
The Smart Ear & Forehead Thermometer needs special precautions
regarding EMC and needs to be installed and put into service according to
the EMC informationprovided for in theACCOMPANYING
DOCUMENTS.
Portable and mobile RF communications equipment can affect The Smart
should not be used adjacent to or
stacked with other equipment.
Guidance and manufacturer’s declaration – Electromagnetic emission
–for all equipment and systems
Guidance and manufacturer´s declaration – Electromagnetic emission
The Smart Ea r & F orehead Thermometeris intended for usein the
electromagnetic environment specified below. The customer or the user of the
Smart Ear & Forehead Thermometershould assure that it is used insuch an
environment.
Emissions
test
Compliance Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1
The Smart Ear & Forehead Thermometer
uses RF energy only for its internal
Declaration
EMC Information-Guidance and Manufacture’s
Ear & Forehead Thermometer
The Smart Ear& Forehead Thermometer
Security Class
Storage and Transportation
The thermometer can be transported using general transportation tools.
Severe vibtation, shock, or rain must be avoided during transportation.
The thermometer must be packaged and then stored in a well-ventilated
room without corrosive gas. The ambient temperature must be between-
–20°C and +50°C（-4°F–122°F）, the relative humidity must be 15%-95%R.H.
(non-condensing), and the atmospheric pressure must be 50–106 kPa.
Environment Humidity: 15%- 95% RH, non-condensing
Atmospheric pressure: 86 - 106 kPa
The infrared thermometer has been tested and conforms to the standard
ASTM E1965-98. ASTM laboratory accuracy requirements in the display
range of 96.8°F to102.2°F (36°C-39°C) for ear canal IR thermometers is
0.4°F ( 0.2°C). Note that for mercury-in-glass and electronic
thermometers, the requirement per ASTM Standards E667-86 and E1112-
86 is 0.2°F ( 0.1°C).
Type of protection against electric shock: internally powered equipment.
Degree of protection against ingress of water: IP22
Degree of protection against electric shock: Type BF applied part.
Safety degree of using in flammable anesthetic gas blending with air
No application parts of the thermometer prevents defibrillation charge
effect.
No application parts pf the thermometer output signal.
The thermometer is impermanent installed device.
oxygen or nitrous oxide: Non-AP/APG
28

function. Therefore, its RF emissions are
very low and are not likely to cause any
interferencein nearby electronic
equipment.
RF emissions
CISPR 11
Class B
The Smart Ear & Forehead Thermometer is
suitable foruse in all establishments,
including domestic establishments and
those directly connected to the public low-
voltage powersupply network that supplies
buildings used for domestic
purposes.
Guidance and manufacturer´s declaration - Electromagnetic immunity
electromagnetic environment specified below. The customer or the user of the
environment.
Immunity testIEC
60601
test level
Compliance
level
Electromagnetic
environment-guidance
Electrostatic
discharge
(ESD)
±
contact
±
±
Floors should be wood,
concrete or ceramic tile. If
floors are covered with
Guidance and manufacturer's declaration - Electromagnetic
immunity - for all equipment and systems
Smart Ear & Forehead Thermometer should assure that it is used insuch an
The Sm art Ear &Forehead Thermometeris intended for use in the
6 kV contact
8 kV air
6kV
30
IEC 61000 -4-2 ± synthetic material, the
relative humidity should be
at least 30 %.
Power
frequency
(50/60Hz)
magnetic
field
IEC 610 00-4-8
3 A/m3 A/m
Power frequency magnetic
fields should be at levels
characteristicof a typical
location in a typical
commercial or hospital
environment.
Guidance and manufacturer´s declaration - Electromagnetic
Guidance and manufacturer´s declaration - Electromagneticimmunity
The Smart E a r & Forehead Thermometer is intended for usein the
electromagnetic environment specified below. The customer or the user of the
Smart Ear & Forehead Thermometer should assure that it is used insuch an
environment.
Immunity testIEC
60601
test level
Compliance
level
Electromagnetic
environment - guidance
Radiated RF
3 V/m
80 MHz
to 2.5
GHz
3 V/m
Portable and mobile RF
communications equipment
should be used no closer to
any part of the
JPDFR409,including cables,
than the recommended
8 kV air
immunity - for equipment and systems that are not life-supporting
IEC 61000-4-3
31

separation distance
calculated from the equation
applicable to the frequency
of the transmitter.
Recommended separation
distance
where p is the maximum
output power rating of the
transmitter in watts (W)
according to the transmitter
manufacturer and d is the
recommended separation
distancein metres (m).
b
Field strengths from fixed
RF transmitters, as
determined by an
Electromagneticsite survey,a
should be less than the
compliance level in each
frequency range.
b
Interference may occur in the
vicinity of equipment
marked with thefollowing
32
symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagneticis
affected by absorption and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM and
FM radio broadcast and TV broadcast cannot bepredicted theoretically with
accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the
measured field strengthinthelocation in which the JPD-FR409-BTis used exceeds
to verify normal operation. If abnormal performance is observed, additional
b. Over the frequency range 150 kHz to 80 MHz, field strengths should beless
than 3 V/m.
Recommended separation distances between portable and mobile RF
communications equipment and the EQUIPMENT or SYSTEM - for
EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING
electromagnetic environment in which radiated RF disturbances are controlled.
prevent electromagneticinterference by maintaining a minimum distance
The Smart Ear & Forehead Thermometer is intended for use in an
The customer orthe user of the Smart Ear &Forehead Thermometer can help
33
measures may be necessary, such as re-orienting orrelocating the JPD-FR409-BT
the applicable RF compliance level above, the JPD-FR409-BT should be observed

between portable and mobile RF communications equipment (transmitters) and
maximum output power of the communications equipment.
Rated
maximum
output
power
of
transmitter
W
Separation distance according to frequency of transmitter
m
80 MHz to800 MHz 800MHz to 2,5 GHz
0.01 0.12 0.23
0.10.38 0.73
1 1.2 2.3
10 3.8 7.3
10012 23
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in metres (m) can be estimated using the
equationapplicable to thefrequency of the transmitter, where Pis the maximum
output power rating of thetransmitterin watts (W) according tothe transmitter
manufacturer.
NOTE 1 At 80MHz and 800 MHz,the separation distance for the higher
frequency rangeapplies.
NOTE 2 Theseguidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects and
people.
Smart Ear & Forehead Thermometer as recommended below, according to the
34
The device is under warranty for one year from the date of purchase.
The batteries, the packaging, and any damage caused by improper use are
not covered by thewarranty.
Excluding the following user-caused failures:
1.
2. Failure resulting from an unexpected dropping during application or
transportation.
3. Failure resulting from not following theinstructions in theuser’s
manual.
35
Warranty and After - Sale Service
Shenzhen Jumper Medical Equipment Co., Ltd. owns and reserves all of
the rights comprised in the copyright of this document. No part of this
document may be changed, excerpted, copied, reproduced, or imitated in
any form or by any means without theprior consent of Shenzhen Jumper
Medical Equipment Co., Ltd.
All statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied. Theinformation in this document is
subject to changewithout notice. Shenzhen Jumper Medical Equipment
Co., Ltd. reserves theright of final interpretation of this document.
Statement
Failure resulting from unauthorized disassembly and modification.
