INSTRUCTION MANUAL
COPYRIGHT © 2005 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
MODEL: 8210NS
2IN 1 18GA. NAILER/STAPLER KIT
plusplus
performanceperformance

IMPORTANT INFORMATION
2-YEAR
LIMITED WARRANTY
FOR THIS 18 GA. NAILER/STAPLER KIT
KING CANADA TOOLS
OFFERS A 2-YEAR LIMITED WARRANTY
FOR NON-COMMERCIAL USE.
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACEMENT PARTS
Replacement parts for this tool are available at our authorized KING CANADA service centers across Canada. For servicing, contact
or return to the retailer where you purchased your product along with your proof of purchase.
LIMITED TOOL WARRANTY
KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants to
the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free
from defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents,
repairs or alterations and lack of maintenance. KING CANADA shall in no event be liable for death, injuries to persons or property or
for incidental, special or consequential damages arising from the use of our products. Totake advantage of this warranty,the product
or part must be returned for examination by the retailer.Shipping and handling charges may apply. If a defect is found, KING CANADA
will either repair or replace the product.
KING CANADA TOOLS INC. DORVAL, QUEBEC, CANADA H9P 2Y4

SPECIFICATIONS
Model ........................................................................................................................................................................................8210NS
Air inlet ......................................................................................................................................................................................1/4” NPT
Compressed air:
Maximum permissible operating pressure ................................................................................................................120 PSIG (8.3 bar)
Recommended operating pressure range ............................................................................................................................60-100 PSI
Nail range ....................................................................................................................................3/4” to 2” 18ga. brad head finish nails
Staple range ..................................................................................................................3/8” to 1-5/8” 18ga. 1/4” narrow crown staples
Magazine capacity ........................................................................................................................................................100 nails/staples
Features:
•Powerful Nailer/Stapler drives standard:
18 ga. brad nails from 3/4˝ to 2˝
18ga. x 1/4” narrow crown staples from 3/8˝ to 1-5/8˝
•Special one piece hardened driver for long, trouble-free performance
•Nail view finder shows quantity of nails or staples in magazine
•Quick release latch for clearing jams
•Adjustable air deflector controls the direction of air exhaust
•Sequential and bump firing modes
•60-100 Psi operating pressure
•Comes with 1/4˝ air inlet, oiler,hex. keys and sturdy carrying case
GETTING TO KNOW YOUR NAILER/STAPLER

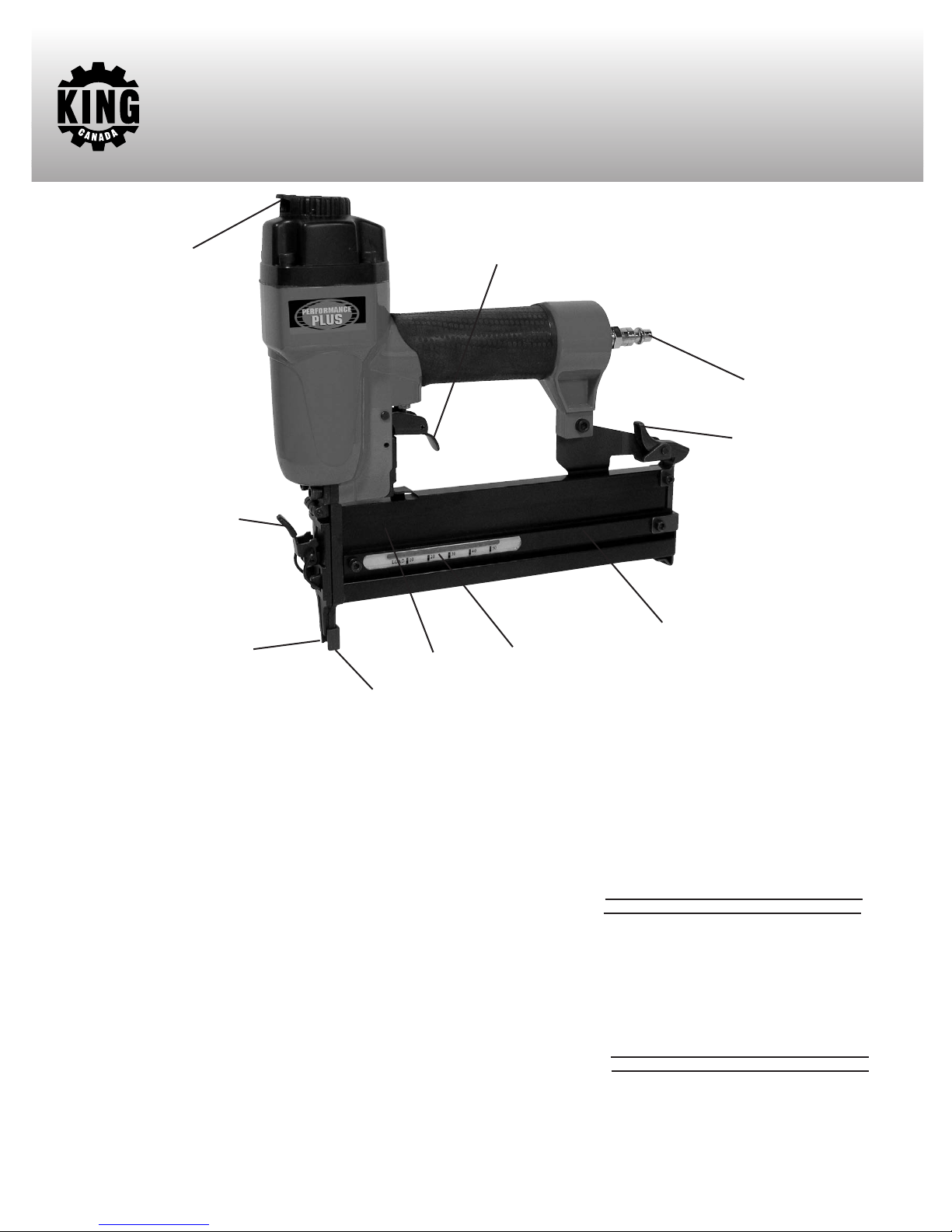

Nail/Staple loading area
Air inlet
Trigger
Quick clear latch
Magazine
Nail/Staple
discharge area Nail/Staple view finder
Air deflector
Magazine latch
Safety release
KING INDUSTRIAL
18 GA.X 1/4” NARROW CROWN STAPLES
NS-1812 1/2’’(12MM APPROX.)
NS-1815 5/8’’ (15MM APPROX.)
NS-1820 3/4’’ (18MM APPROX.)
NS-1822 7/8’’ (21MM APPROX.)
NS-1825 1’’ (25MM APPROX.)
NS-1828 1-1/8’’ (28MM APPROX.)
NS-1832 1-1/4’’ (32MM APPROX.)
NS-1838 1-1/2’’ (38MM APPROX.)
KING INDUSTRIAL
18 GA. - BRAD NAILS
BN-1820 3/4’’ (18MM APPROX.)
BN-1825 1’’ (25MM APPROX.)
BN-1830 1-3/16’’ (29MM APPROX.)
BN-1832 1-1/4’’ (30MM APPROX.)
BN-1838 1-1/2’’ (36MM APPROX.)
BN-1840 1-9/16’’ (38MM APPROX.)
BN-1845 1-3/4’’ (42MM APPROX.)
BN-1850 2’’ (49MM APPROX.)

SAFETY INSTRUCTIONS
•Read and understand this manual and all the safety instructions before operating this
nailer/stapler. If you have any questions, please contact our authorized service centres or
retailers for help.
•Never allow the use of flammable gases as a power source for this tool. Use filtered, lubricated
and regulated compressed air only.
•Never use gasoline or other flammable liquids to clean this tool. Vapors in the tool will ignite by
aspark and cause the tool to explode.
•Do not exceed the maximum permissible operating pressure of this tool (120 PSIG).
•Disconnect the tool from its air supply before clearing jams, servicing, adjusting and while the
tool is not in use.
•Do not keep the trigger pulled on contact safety trip mechanism when carrying or holding the
tool. Never carry the tool by the air hose or pull on the air hose to disconnect the tool.
•At the workplace, always wear protective equipment such as Z87 safety glasses, hearing and
head protection.
•Do not use a check valve or any other fitting which allows air to remain in the tool.
•Do not place your hand or any part of your body in the nail/staple discharge area of the tool
when connecting or disconnecting from the air supply.
•Never point any operational nail/staple driving tool at yourself or at any other person.

LUBRICATION
AIR SUPPLY AND CONNECTIONS
LUBRICATION AND MAINTENANCE
•Your nailer/stapler needs to be lubicated before and after the first time you use it.
•Disconnect the air supply from the nailer/stapler before lubricating.
•Turn the nailer/stapler so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil
without detergent into the air inlet. Never use detergent oil or additives. Operate the nailer/stapler
briefly after adding oil.
• Wipe off excessive oil at the exhaust. Excessive oil will damage O-rings of the nailer/stapler. If a in-line
oiler is used, manual lubrication through the air inlet is not required on a daily basis.
AIR SUPPLY AND CONNECTIONS
WARNING!
THE FOLLOWING ILLUSTRATION SHOWS THE CORRECT MODE OF CONNECTION TO THE AIR
SUPPLY SYSTEM WHICH WILL INCREASE THE EFFICIENCY AND USEFUL LIFE OF THE NAILER/STAPLER.
•Many air tool users find it convenient to use an oiler to help provide oil circulation through the tool and
it increases the efficiency and useful life of the tool. Check oil level in the oiler daily.
•Many air tool users find it convenient to use a filter to remove moisture and impurities which can rust
or wear internal parts of the tool. A filter also increases the efficiency and useful life of the tool. The
filter must be checked on a daily basis and, if necessary,drained.
•For better performance, install a 3/8” quick connector (1/4” NPT threads) with an inside diameter of
.315” on your tool and a 3/8” quick coupler on the air hose.
Quick couplers
Quick connector
Oiler
Air hose Quick
connector
Regulator
Filter
Compressor

CONTACT SAFETY TRIP MECHANISM
OPERATING A CONTACT SAFETY TRIP TOOL:
•The operator is required to have the finger off the trigger and the nose of the nailer/stapler to be placed
on the workpiece.
•The contact safety trip mechanism is then depressed against the workpiece and the trigger is pulled to
drive the nail or staple.
•The trigger is released after each nail or staple is driven.
•Move the nailer/stapler to the next location and repeat the above procedure.
VERIFICATION
•Disconnect the air supply from the air inlet.
•Empty all nails or staples from the magazine.
•Make sure the trigger and the contact safety trip mechanism moves up and down without sticking.
•Connect the air supply to the nailer/stapler air inlet.
•Depress the contact safety trip mechanism against the workpiece without pulling the trigger.The
nailer/stapler must not cycle. Never use the tool if a cycle occurs.
•Hold the nailer/stapler clear of the workpiece. The contact safety trip mechanism should return to its
original down position. Pull the trigger. The tool must not cycle. Never use the nailer/stapler if a
cycle occurs.
•Depress the contact safety trip mechanism against the workpiece and pull the trigger, the nailer/stapler
must cycle.

LOADING NAILER/STAPLER & CLEARING JAMS

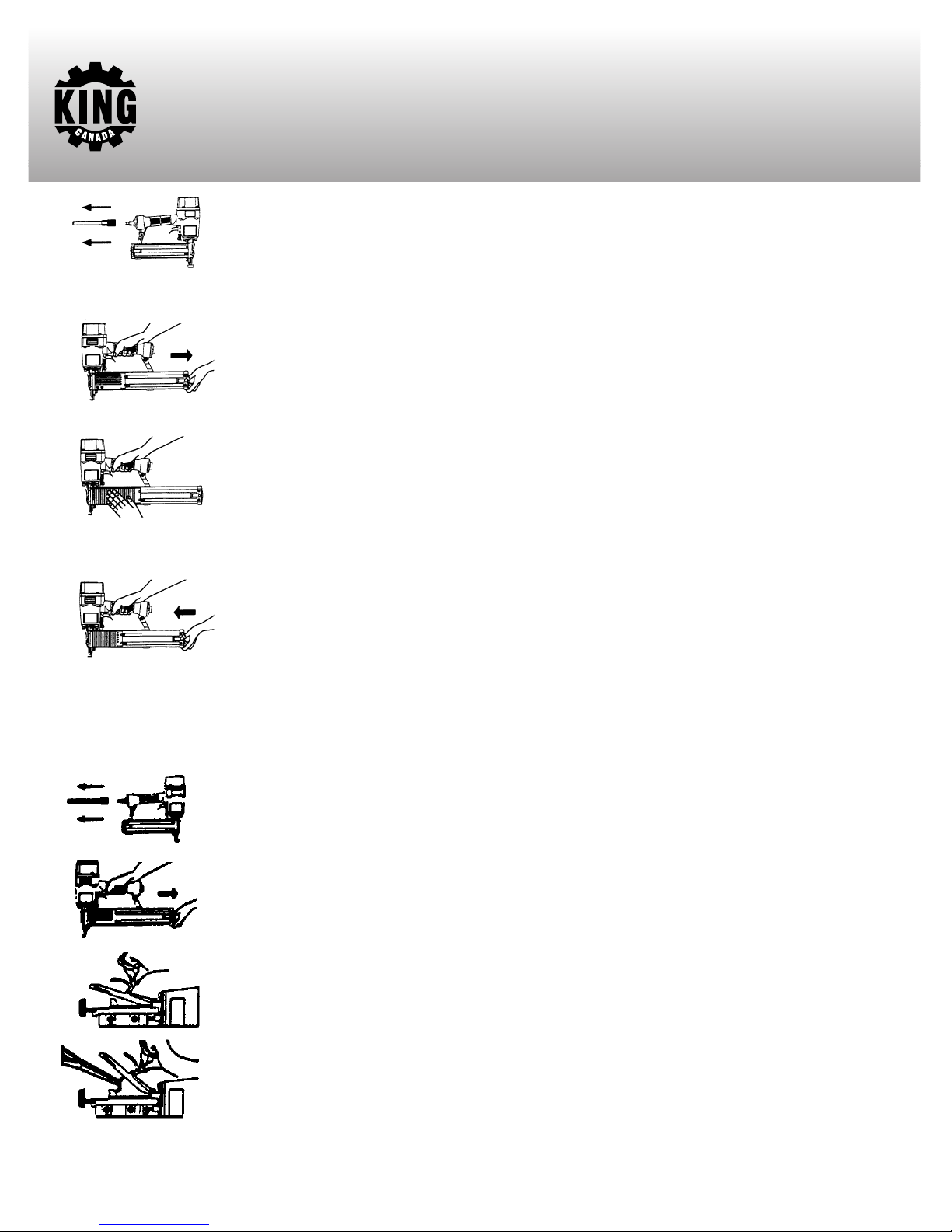

LOADING NAILER/STAPLER MAGAZINE
•Disconnect the air hose from the nailer/stapler air inlet.
•Depress the magazine latch, pull back on the magazine cover.
•Place nails or staples into the magazine. If you insert a stick of nails, make sure the pointed ends are
as close to the bottom edge of the magazine as possible, ensuring the head of the nail is aligned with
the appropriate machined groove in the magazine. If you place a stick of staples in the magazine,
make sure they are placed over the hanging rail so that the legs of the staples straddle.
•Push the magazine cover forward until the latch catches.
CLEARING JAMS
Disconnect the nailer/stapler from the air compressor before adjusting, clearing jams, servicing,
relocating and during non-operation.
•Disconnect the air hose from the nailer/stapler air inlet.
•Depress the magazine latch, pull back on the magazine cover and remove all nails or staples.
•Release the front mounted quick clear latch and remove cover.
•Remove jammed nail or staple, replace cover and latch securely.

OPERATING YOUR NAILER/STAPLER
OPERATING YOUR NAILER/STAPLER
WARNING! protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing
protection. Employers are responsible for ensuring the user or anyone near the nailer/stapler
wears the above mentioned safety protection.
WARNING! Check and replace any damaged or worn components.
•Add one/two drops of 30W oil for air tools into the air inlet.
•Install a quick connect fitting to the nailer/stapler.
•Connect the nailer/stapler to an air compressor using a 3/8” I.D. hose. Make sure the magazine does
not contain any nails or staples and that the air hose has a rated working pressure exceeding 200 psi
and a female quick coupler.
•Regulate the air pressure to obtain 85 psi. Check the operation of the contact safety trip mechanism
following the instructions in this manual.
•Load magazine with nails or staples following the instructions in this manual.
•Reconnect the air hose to the nailer/stapler air inlet.
•Test for proper nail penetration by driving nails or staples into scrap wood. If the nails or staples do not
achieve the desired penetration, regulate the air pressure to a higher setting until the desired
penetration is achieved. Do not exceed 100 psi.

MAINTENANCE & TROUBLESHOOTING
CLEANING YOUR NAILER/STAPLER
•Never use gasoline or other flammable liquids to clean the nailer/stapler. Vapors in the
nailer/stapler will ignite by a spark and cause the tool to explode and result in death or serious
personal injury.
•Disconnect the air supply from the nailer/stapler.
•Remove tar buildup with #2 kerosene fuel oil or diesel fuel. Do not allow solvent to get into the
cylinder or dammage may occur. Dry off the tool completely before use.
•Air leaking at trigger valve
area.
•Air leaking between
housing and nose.
•Air leaking bewteen
housing and cap assembly.
•Nailer/stapler skips a nail
or a staple.
•Nailer/stapler runs too
slowly or has loss of
power.
• Jammed nails/staples.
•O-rings in trigger valve are damaged.
•Loose screws in housing.
•Damaged O-rings.
•Bumper damage.
•Loose screws.
•Damaged seal.
• Worn bumper.
•Dirt in nailer/stapler nose.
•Dirt or damage prevents nails/staples
from moving freely in the magazine.
•Inadequate air flow to nailer/stapler.
•Worn O-ring on piston or lack of
lubrication.
•Damaged O-rings on trigger valve.
•Air leaks.
•Cap seal is leaking.
•Nailer/stapler is not sufficiently lubricated.
•Broken spring in cap assembly.
•Exhaust port in cap is blocked.
•Driver guide worn or damaged.
•Nails/staples are bent.
•Magazine or nose screws are loose.
•Damaged driver.
•O-rings must be replaced and safety trip
mechanism must be verified.
•Screws need to be tightened.
•O-rings must be replaced.
•Bumper needs to be replaced.
•Screws need to be tightened.
•Seal must be replaced.
•Bumper needs to be replaced.
•Clean.
•Magazine must be cleaned.
•Fitting hose and air compressor need to
be checked.
•O-rings must be replaced, lubricate.
•O-rings must be replaced.
•Screws and fittings need to be tightened.
•Seal needs to be replaced.
•Lubricate.
•Spring needs to be replaced.
•Damaged internal parts must be replaced.
•Replace driver guide.
•Replace with undamaged nails/staples.
•Screws need to be tightened.
•Replace driver.
Problem Cause Solution
TROUBLESHOOTING CHART
WARNING: Stop using this tool immediately if any of the following problems occur. Serious personal injury could occur. Any
repairs or replacements must be done by a qualified person or an authorized service centre only.
REPLACEMENT DRIVER, BUMPER & O-RING REPAIR KITS
After prolonged use of your Nailer/stapler, the internal O-rings, Bumper & Driver may have to be
replaced caused by wear & tear. To repair, a complete Driver, Bumper & O-ring Replacement
Accessory Kit is available for your Nailer/stapler (model: KW-080). Contact your local King
Canada distributor for more information.
KW-080
PARTS DIAGRAM & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and
