INSTRUCTION ANUAL
COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
ODELS: 8200BN & 8200BNC
2” X 18 GA. BRAD NAILER
08/2017

WARRANTY INFOR ATION
2-YEAR
LI ITED WARRANTY
FOR THIS 18 GA. BRAD NAILER KIT
KING CANADA TOOLS
OFFERS A 2-YEAR LI ITED WARRANTY
FOR NON-CO ERCIAL USE.
PROOF OF PURCHASE
Please keep your dated proof of purchase for warranty and servicing purposes.
REPLACE ENT PARTS
Replacement parts for this product are available at our authorized King Canada service centres across Canada.
LI ITED TOOL WARRANTY
King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the
original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from
defects in materials. Warranty does not apply to defects due directly or indirectly to misuse, abuse, normal wear and tear, negligence or
accidents, repairs done by an unauthorized service centre, alterations and lack of maintenance. King Canada shall in no event be liable
for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products.
To take advantage of this limited warranty, return the product at your expense together with your dated proof of purshase to an authorized
King Canada service centre. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized
service centres. In cooperation with our authorized serviced centre, King Canada will either repair or replace the product if any part or
parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period.
NOTE TO USER
This instruction manual is meant to serve as a guide only. Specifications and references are subject to change without prior notice.
PARTS DIAGRA & PARTS LISTS
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
KING CANADA INC. DORVAL, QUÉBEC, CANADA H9P 2Y4
www.kingcanada.com

SPECIFICATIONS
odel ....................................................................................................................................................................8200BN or 8200BNC
Air inlet ......................................................................................................................................................................................1/4” NPT
Compressed air:
aximum permissible operating pressure ................................................................................................................120 PSIG (8.3 bar)
Recommended operating pressure range ............................................................................................................................70-110 PSI
Nail range ..................................................................................................................................5/8” to 2” 18 Ga. brad head finish nails
Width ..........................................................................................................................................................................................1.25mm
Thickness ........................................................................................................................................................................................2mm
Nail capacity......................................................................................................................................................................100 brad nails
GETTING TO KNOW YOUR NAILER
Nail loading area
Air inlet
Trigger
agazine
Nail discharge area
AVAILABLE
KING INDUSTRIAL
18 GA. - BRAD NAILS
BN-1816 5/8’’ (16 APPROX.)
BN-1820 3/4’’ (18 APPROX.)
BN-1825 1’’ (25 APPROX.)
BN-1830 1-3/16’’ (29 APPROX.)
BN-1832 1-1/4’’ (30 APPROX.)
BN-1838 1-1/2’’ (36 APPROX.)
BN-1840 1-9/16’’ (38 APPROX.)
BN-1845 1-3/4’’ (42 APPROX.)
BN-1850 2’’ (50 APPROX.)
Air deflector
agazine latch
Quick release latch
Safety release

SAFETY INSTRUCTIONS
• Read and understand this manual and all the safety instructions before operating this nailer. If
you have any questions, please contact our authorized service centres or retailers for help.
• Never allow the use of flammable gases as a power source for the nailer. Use filtered, lubricated
and regulated compressed air only.
• Never use gasoline or other flammable liquids to clean this nailer. Vapors in the nailer will ignite
by a spark and cause the nailer to explode.
• Do not exceed the maximum permissible operating pressure of this nailer (120 PSI).
• Disconnect the nailer from its air supply before clearing jams, servicing, adjusting and while the
nailer is not in use.
• Do not keep the trigger pulled when carrying or holding the nailer. Never carry the nailer by the
air hose or pull on the air hose to move the nailer.
• At the workplace, always wear protective equipment such as Z87 safety glasses, hearing and
head protection.
• Do not use a check valve or any other fitting which allows air to remain in the nailer.
• Do not place your hand or any part of your body in the nail discharge area of the nailer when
connecting or disconnecting from the air supply.
• Never point any operational nail driving tool at yourself or at any other person.

LUBRICATION
AIR SUPPLY AND CONNECTIONS
LUBRICATION AND AINTENANCE
• Your nailer needs to be lubricated before and after the first time you use it.
• Disconnect the air supply from the nailer before lubricating.
• Turn the nailer so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without
detergent into the air inlet. Never use detergent oil or additives. Operate the nailer briefly after adding
oil.
• Wipe off excessive oil at the exhaust. Excessive oil will damage O-rings of the nailer. If an in-line oiler
is used, manual lubrication through the air inlet is not required on a daily basis.
AIR SUPPLY AND CONNECTIONS
WARNING!
THE FOLLOWING ILLUSTRATION SHOWS THE CORRECT ODE OF CONNECTION TO THE AIR SUPPLY
SYSTE WHICH WILL INCREASE THE EFFICIENCY AND USEFUL LIFE OF THE NAILER.
• any air tool users find it convenient to use an oiler to help provide oil circulation through the tool as it
increases the efficiency and useful life of the tool. Check oil level in the oiler daily.
• any air tool users find it convenient to use a filter to remove moisture and impurities which can rust
or wear internal parts of the tool. A filter also increases the efficiency and useful life of the tool. The
filter must be checked on a daily basis and, if necessary, drained.
• For better performance, install a 3/8” quick connector (1/4” NPT threads) with an inside diameter of
.315” on your tool and a 3/8” quick coupler on the air hose.
Quick couplers
Quick connector
Oiler
Air hose Quick
connector
Regulator
Filter
Compressor

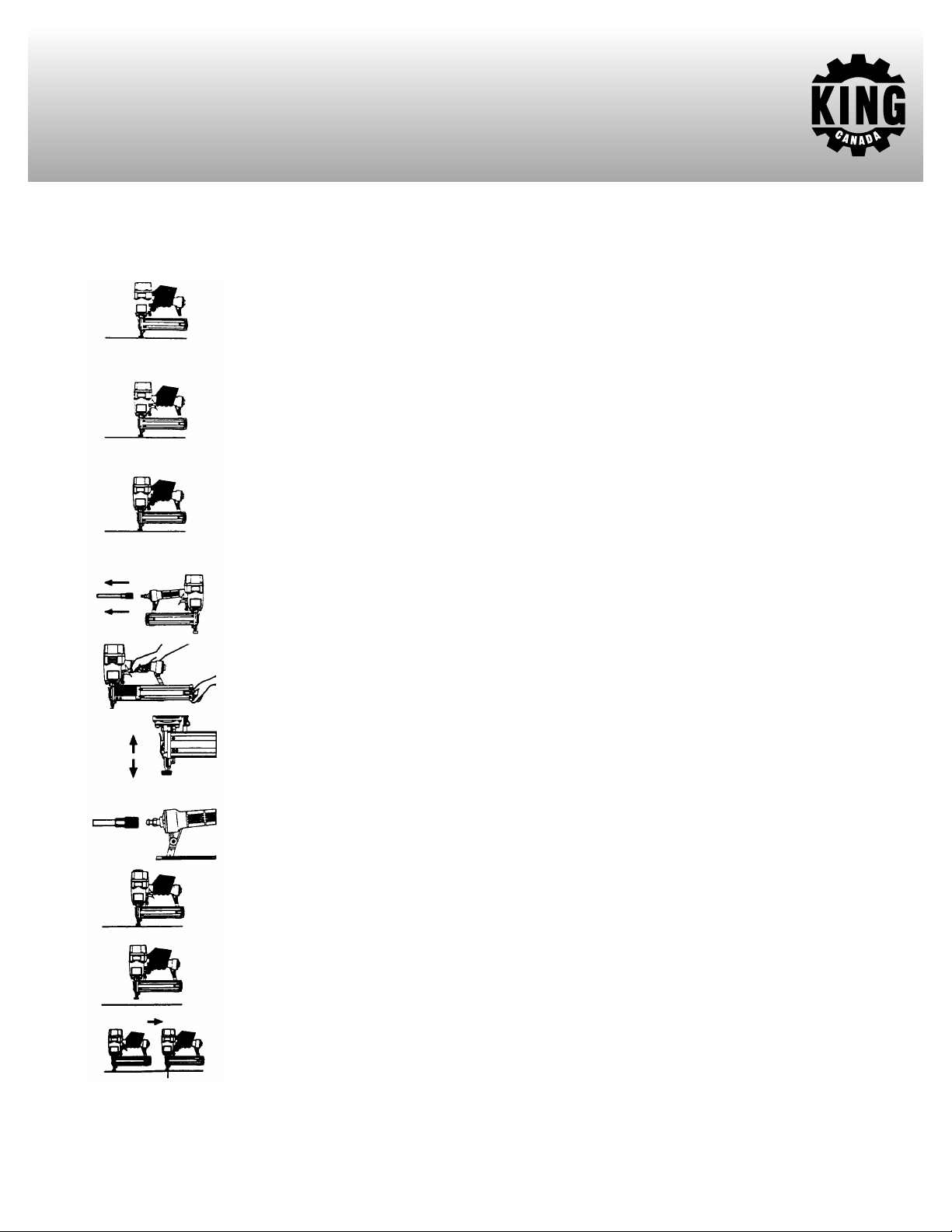

FIRING ODE &
VERIFICATION
OPERATING A CONTACT SAFETY TRIP NAILER (SEQUENTIAL ODE):
• The operator is required to have the finger off the trigger and the nose of the nailer to be placed on the
workpiece.
• The contact safety trip mechanism is then depressed against the workpiece and the trigger is pulled to
drive the nail.
• The trigger is released after each nail is driven.
• ove the nailer to the next location and repeat the above procedure.
VERIFICATION
• Disconnect the air supply from the air inlet.
• Empty all nails from the magazine.
• ake sure the trigger and the contact safety trip mechanism (nose) moves up and down without sticking.
• Connect the air supply to the nailer air inlet.
• Depress the contact safety trip mechanism against the workpiece without pulling the trigger. The nailer
must not cycle. Never use the tool if a cycle occurs.
• Hold the nailer clear of the workpiece. The contact safety trip mechanism should return to its original down
position. Pull the trigger. The tool must not cycle. Never use the nailer if a cycle occurs.
• Depress the contact safety trip mechanism against the workpiece and pull the trigger, the nailer must
cycle.
Sequential ode
In sequential mode, the nailer is actuated by depressing the nailer nose against the work surface, the trigger then needs to be pulled and released
each time a nail is driven.

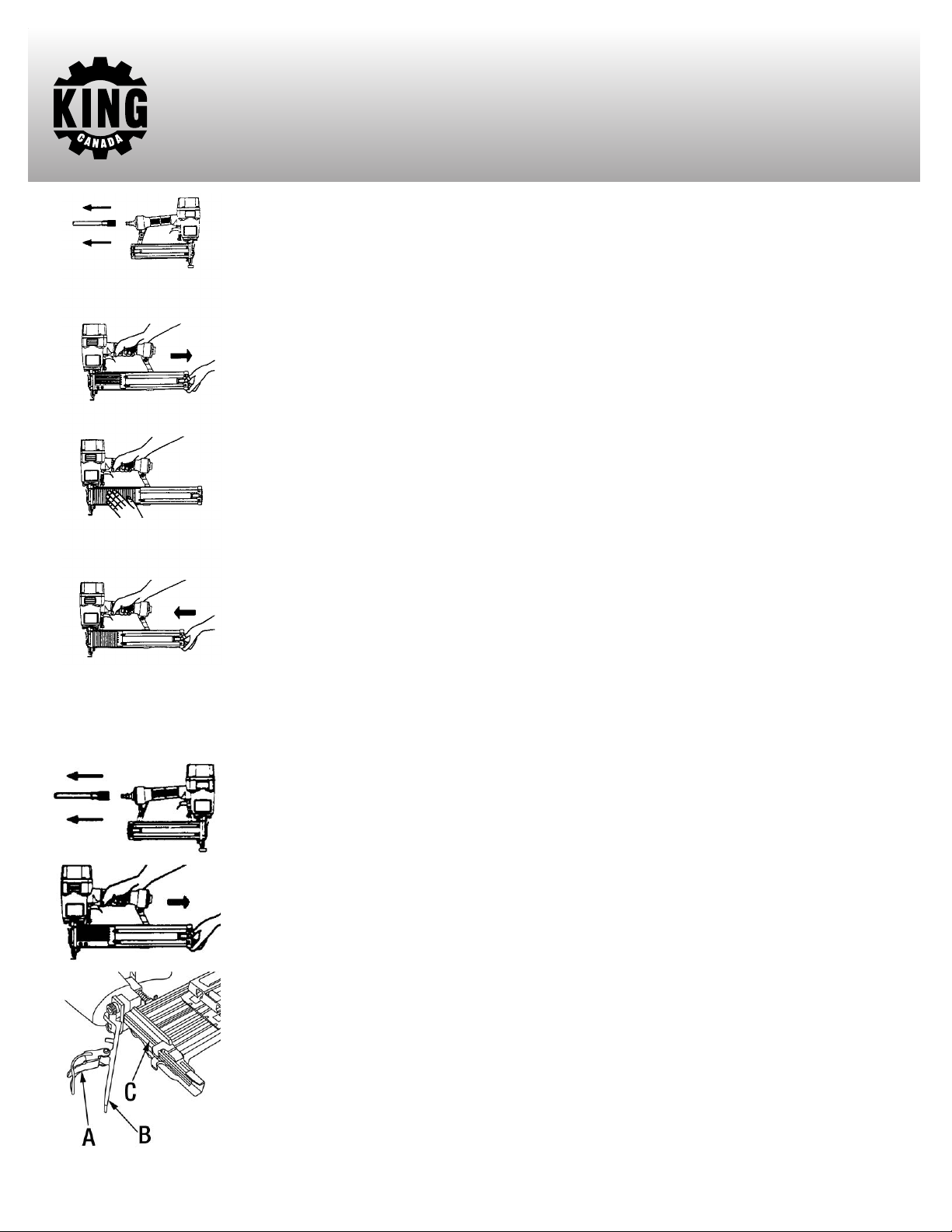

LOADING NAILER & CLEARING JA S
LOADING NAILER AGAZINE
• Disconnect the air hose from the nailer air inlet.
• Depress the magazine latch, pull back on the magazine cover.
• Insert a stick of nails into the magazine. ake sure the pointed ends of the nails are as close to the
bottom edge of the magazine as possible, ensuring the head of the nail is aligned with the appropriate
machined groove in the magazine.
• Push the magazine cover forward until the latch catches.
CLEARING JA S
Disconnect the nailer from the air compressor before adjusting, clearing jams, servicing,
relocating and during non-operation.
• Disconnect the air hose from the nailer air inlet.
• Depress the magazine latch, pull back on the magazine cover and remove all nails.
• Undo the quick release latch (A) and lift the front plate (B) as shown. Using pliers, remove the jammed
nail from nail discharge area (C). Once the jammed nail is removed, lower front plate and secure it in
place using the quick release latch.

OPERATING YOUR NAILER
OPERATING YOUR NAILER
WARNING! Protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing
protection. Employers are responsible for ensuring the user or anyone near the nailer wears the
above mentioned safety protection.
WARNING! Check and replace any damaged or worn components.
• Add one/two drops of high speed oil (non detergent) for air tools into the air inlet.
• Install a quick connect fitting to the nailer.
• Connect the nailer to an air compressor using a 3/8” I.D. hose. ake sure the magazine does not contain
any nails and that the air hose has a rated working pressure exceeding 200 PSI and a female quick
coupler.
• Regulate the air pressure to obtain 85 PSI. Check the operation of the contact safety trip mechanism
following the instructions in this manual.
• Load magazine with nails following the instructions in this manual.
• Reconnect the air hose to the nailer air inlet.
• Test for proper nail penetration by driving nails into scrap wood. If the nails do not achieve the desired
penetration, regulate the air pressure to a higher setting until the desired penetration is achieved. Do
not exceed 120 PSI (Operating pressure 70-110 PSI).

AINTENANCE & TROUBLESHOOTING
CLEANING YOUR NAILER
• Never use gasoline or other flammable liquids to clean the nailer. Vapors in the nailer will ignite
by a spark and cause the tool to explode and result in death or serious personal injury.
• Disconnect the air supply from the nailer.
• Remove tar buildup with #2 kerosene fuel oil or diesel fuel. Do not allow solvent to get into the cylinder
or dammage may occur. Dry off the tool completely before use.
• Air leaking at trigger valve
area.
• Air leaking between
housing and nose.
• Air leaking bewteen
housing and cap assembly.
• Nailer skips a nail.
• Nailer runs too slowly or
has loos of power.
• Jammed nails.
• O-rings in trigger valve are damaged.
• Loose screws in housing.
• Damaged O-rings.
• Bumper damage.
• Loose screws.
• Damaged seal.
• Worn bumper.
• Dirt in nailer nose.
• Dirt or damage prevents nails from
moving freely in the magazine.
• Inadequate air flow to nailer.
• Worn O-ring on piston or lack of
lubrication.
• Damaged O-rings on trigger valve.
• Air leaks.
• Cap seal is leaking.
• Nailer is not sufficiently lubricated.
• Broken spring in cap assembly.
• Exhaust port in cap is blocked.
• Driver guide worn or damaged.
• Nails are bent.
• agazine or nose screws are loose.
• Damaged driver.
• O-rings must be replaced and safety trip
mechanism must be verified.
• Screws need to be tightened.
• O-rings must be replaced.
• Bumper needs to be replaced.
• Screws need to be tightened.
• Seal must be replaced.
• Bumper needs to be replaced.
• Clean.
• agazine must be cleaned.
• Hose fitting and air compressor need to be
checked.
• O-rings must be replaced, lubricate.
• O-rings must be replaced.
• Screws and fittings need to be tightened.
• Seal needs to be replaced.
• Lubricate.
• Spring needs to be replaced.
• Damaged internal parts must be replaced.
• Replace driver guide.
• Replace with undamaged nails.
• Screws need to be tightened.
• Replace driver.
Problem Cause Solution
TROUBLESHOOTING CHART
WARNING: Stop using this tool immediately if any of the following problems occur. Serious personal injury could occur. Any repairs
or replacements must be done by a qualified person or an authorized service centre only.
REPLACE ENT DRIVER, BU PER & O-RING REPAIR KITS
After prolonged use of your Nailer, the internal driver, bumper and o-rings may have to be replaced
caused by wear & tear. To repair, a complete Driver, Bumper & O-ring Replacement Accessory Kit
is available for your Nailer (model: KW-159). Contact your local King Canada distributor for more
information.
KW-159
