King Tony 7DM1160 User manual

Please wear proper safety gear
while working.
[email protected] www.kingtony.com Made in Taiwan
897DM11-KT
210x148.5mm
Single
Distance
Measure
Continuous
Measure
Indirect
Measure I
Digital
Level
Unit
50 Records
Screen
Orientation
Measure
Reference
Area
Measure
Volume
Measure
Stake-out
a=a
Indirect
Measure II
Indirect
Measure III
Indirect
Measure IV
Indirect
Measure VI
Indirect
Measure V
GLOBAL
UNITS
8
s
⁰⁰
⁰
NO.7DM1160
FULL COLOR
LASER DISTANCE METERS 60M
43
2.612 m
2.039 m
2.012 m
2.484 m
81°
7DM1160

HI
A
B
D
E
G
C
F
Overview for device :
• A - LCD
• B - Single measure
• C - Addition
• D - Subtraction
• E - Clear / power
• F - Functions : Single measure,
continuous measure, area, volume,
six indirectly height measurements,
stake-out, level, unit and setting
• G - Reference
• H - Receiving lens
• I - Laser emitted window
123
4
5
6
LCD
1. Battery status
2. Measuring reference
3. Memory
4. Angle
5. Measuring function
6. Measuring
43
2.612 m
2.039 m
2.012 m
2.484 m
81°
1 2
● For the measurement from the rear edge of the measurer, 90% reflectivity
surface (e.g., a white painted wall), low background illumination, operation
temperature at 25°C. The tolerances apply from 0.5 meters to 10 meters
with a confidence level of 95%. The maximum tolerance must add ±0.15
mm/m between 10 meters to 30 meters and ±0.25 mm/m for distances
above 30 meters into the count.
● The measurement from the rear of the measurer, apply with a target with
18 to 100% reflectivity or intense ambient illumination, measuring within
temperature at 25°C. The tolerances apply from 0.5 meters to 10 meters
with a confidence level of 95%. The maximum tolerance may deteriorate
to ±0.4mm/m between 10 meters to 30 meters and ±0.5mm/m for
distances above 30 m and after.
● Apply with 100% reflective target, ambient light illumination is approxi-
mately 30,000 lux.
Battery & Power Management
1. This laser distance meter uses 2 x AAA Batteries.
2. Remove the battery lid and install the batteries with the correct polarity.
3. The full battery icon indicates that batteries are full.
4. If the battery icon appears with one slot left, the laser distance meter
can still measure approximately 600 times and prefer to place new
batteries.
5. Replace batteries when the empty battery icon flash on the screen.
7DM1160

3 4

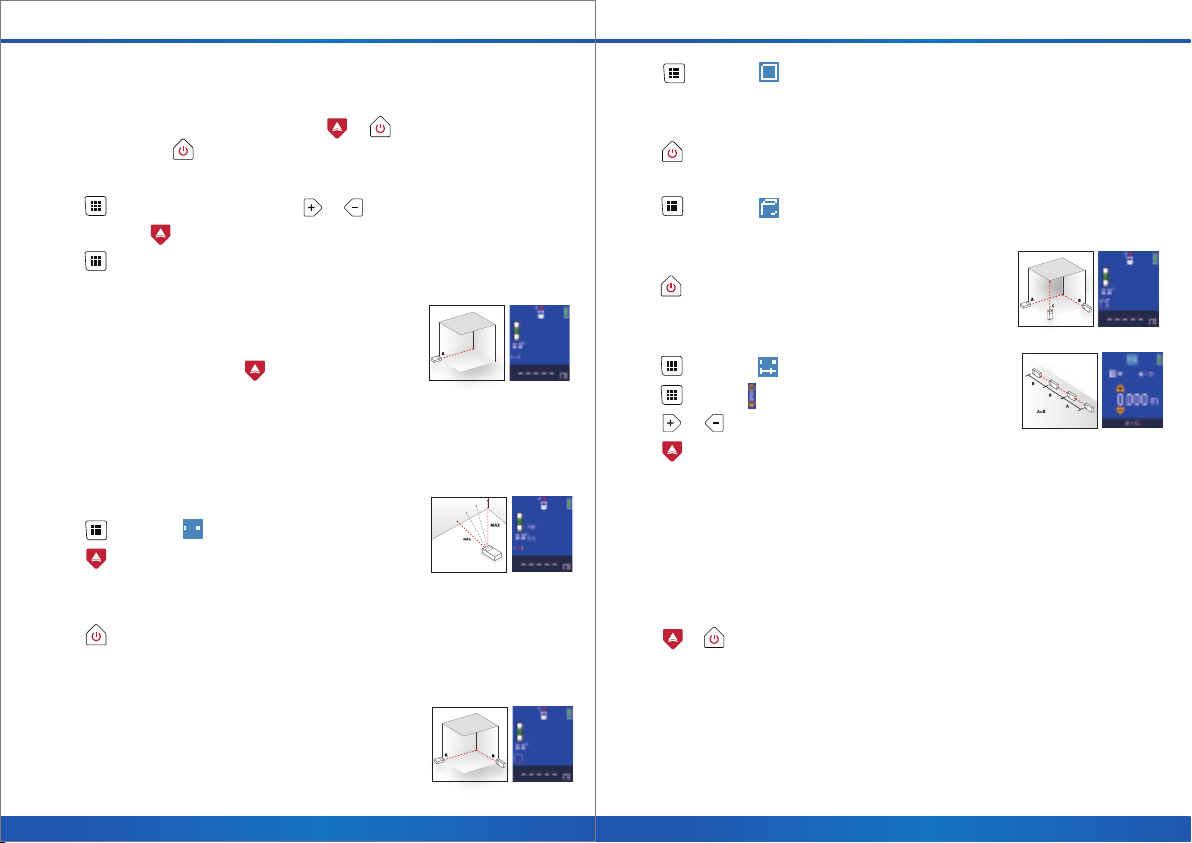

Measurement & Functions
●
Power On and Off
1. If the laser distance meter is off, tap the or to turn it on.
2. Tap and hold the for 3 seconds to turn the laser distance meter off.
●
Select Function Mode
Tap to enter mode selection, tap or to select
functions, tap to enter functions.
Tap to leave the mode.
●
Single Distance Measurement Mode
1. Move the laser onto the target and hold the laser
distance meter steady.
2. Hold your position and click to trigger the
measurement.
3. After a beep, the measured length shows on the screen.
●
Continuous Measurement Mode
When enter the mode, the laser distance meter keeps measuring.
Using this function to look for preferred distance quickly.
1. Tap to find the icon, then enter to the mode.
2. Tap to start the continuous measurement, the
max and min length display on the screen, on top
of the current distance.
3. Tap to clear the measurement.
●
Area Measurements Mode
In Area mode, the laser distance meter calculates the
result automatically after measuring all lengths.
1. Tap to find the icon, then enter to the mode.
2. Follow instructions on the screen to measure all necessary lengths; the area
shows on the screen with length and width.
3. Tap to return to the previous step.
●
Volume Measurements Mode
1. Tap to find the icon, then enter to the mode.
2. Follow instructions on the screen to measure all necessary lengths; the area
shows on the screen with length, width, and height.
3. Tap to return to the previous step.
●
Stake-Out Measurement Mode
Stake-Out splits a distance into several lengths in equal.
1. Tap to find the icon, then enter to the mode.
2. Tap to move to the desired set point.
3. Tap or to set the lengths.
4. Tap to start the measurement.
5. During the measuring.
a. The numbers on the top are the preset length.
b. The data in the middle is the multiple of the preset length.
c. The data at the bottom is the current distance.
d. There are two arrows on the top and bottom guide the moving direction to
the next stake.
6. Tap or to stop the measurement.

5 6

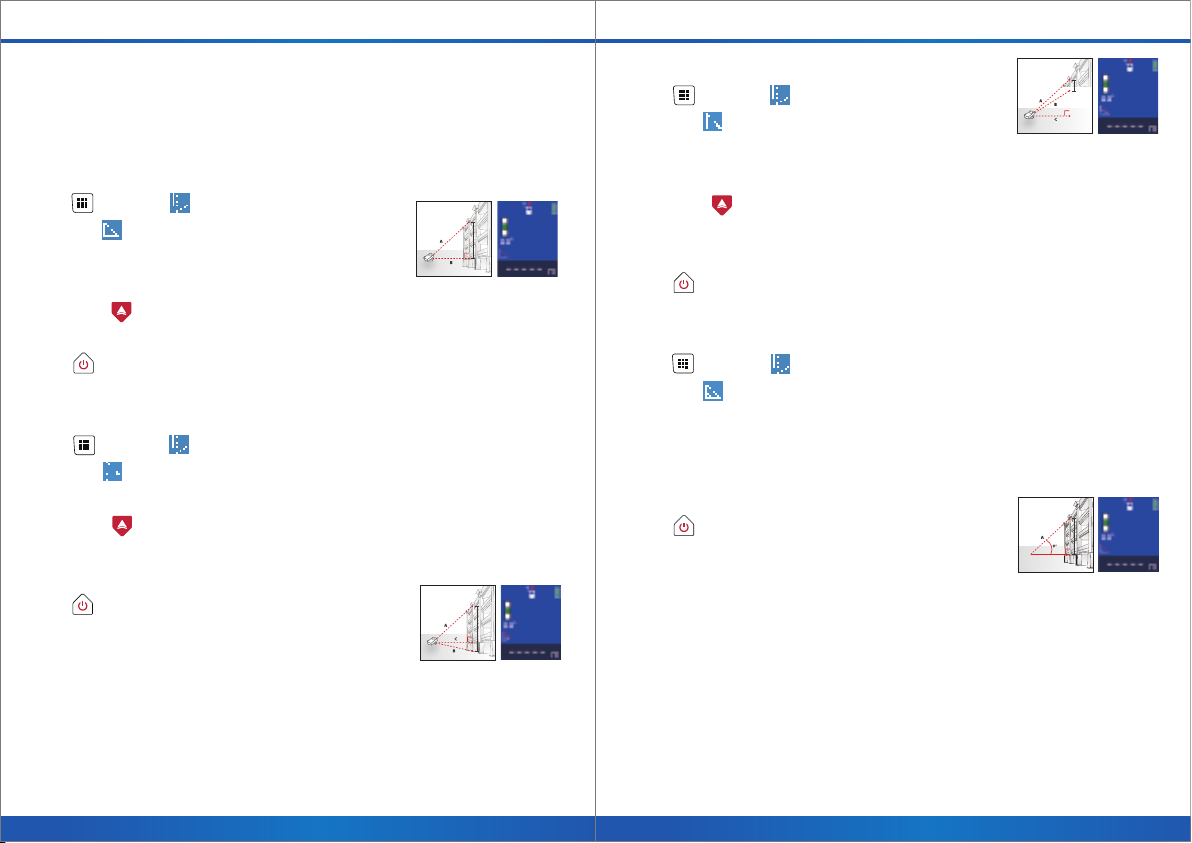

● Indirectly Height Measurement Mode
Indirectly height measurement mode has six types in this mode and is based
on pythagorean.
Indirectly Height Measurement 1
1. Tap to find the icon, then enter to the mode.
2. Find the icon to enable the indirectly height
Measurement mode 1, which measures the height of
The triangle.
3. Press the measure the length of the hypotenuse and length of the base.
The height shows on the screen with the length of the hypotenuse and base.
4. Tap to return to the previous step.
Indirectly Height Measurement 2
1. Tap to find the icon, then enter to the mode.
2. Find the icon to enter to the indirectly height measurement mode 2,
which measures the height summary of the two triangles with the same base.
3. Press the to measure the two lengths of the hypotenuse and length
of the base. The height summary shows on the screen with the length of the
hypotenuse and base.
4. Tap to return to the previous step.
Indirectly Height Measurement 3
1. Tap to find the icon, then enter to the mode.
2. Find the icon to enter to the indirectly height
measurement mode 3, which measures the height difference of the two
triangles with the same base.
3. Press the measure the two lengths of the hypotenuse and length of the
base. The height shows on the screen with the length of the hypotenuse and
base.
4. Tap to return to the previous step.
Indirectly Height Measurement 4
1. Tap to find the icon, then enter to the mode.
2. Find the icon to enter to the indirectly height measurement mode 4,
which measures the height of the triangle with angle.
3. Follow the instructions on the screen and measure the length of the
hypotenuse. The height shows on the screen with the length of the
hypotenuse and angle.
4. Tap to return to the previous step.

7 8

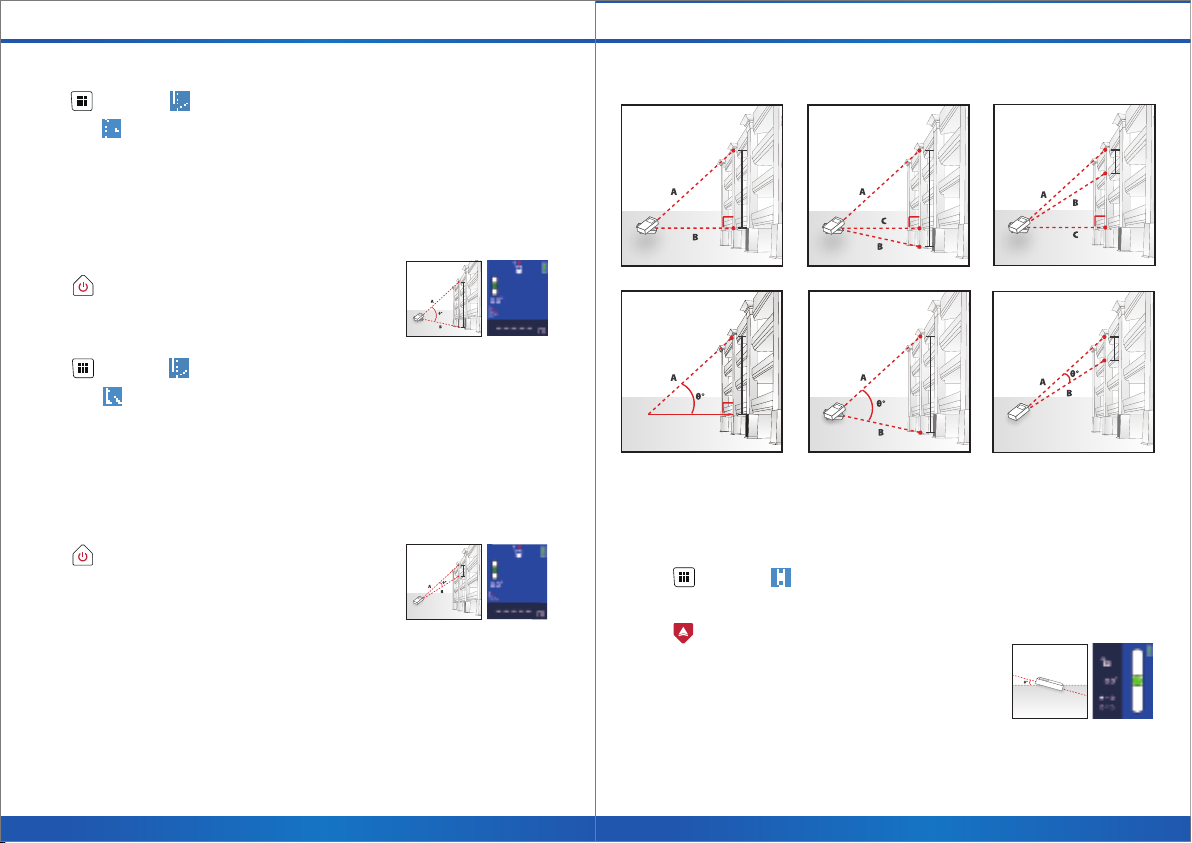

Indirectly Height Measurement 5
1. Tap to find the icon, then enter to the mode.
2. Find the icon to enter to the indirectly height measurement mode 5,
which measures the height summary of the two triangles with the same base
but calculate by angles.
3. Follow the instructions on the screen and measure the two lengths of the
hypotenuse. The height shows on the screen with the two lengths of the
hypotenuse and angle.
4. Tap to return to the previous step.
Indirectly Height Measurement 6
1. Tap to find the icon, then enter to the mode.
2. Find the icon to enter to the indirectly height measurement mode 6,
which measures the height difference of the two triangles with the same base
but calculate by angles.
3. Follow the instructions on the screen and measure the two lengths of the
hypotenuse. The height shows on the screen with the length difference of the
hypotenuse and angle.
4. Tap to return to the previous step.
New benchmark of measuring
●
Digital Level
1. With the built-in accelerometer, turns the laser distance meter into a
360-degree digital level.
2. Tap to find the icon, then enter to the mode.
3. The level sensor work in the same direction of the laser.
4. Tap to lock the angle reading.

910
OPERATION MANUAL
●
Unit Setting
1. There are 8 units in the laser distance meter, refer the units table below for
details of the 8 units.
● 50 Measurement Records
1. The laser distance measurer has 50 memories, and it automatically saves
every step during the measuring. You can always go back and see the
measurements you made.
2. Tap to find the icon, then enter to the mode.
3. Find the icon and press in the setting inside the application menu, tap
or to look for the measurements you need.
2. Tap to find the icon in the setting inside the application menu, tap
or to select the preferred unit and press to complete the setup.
●
Buzzer Volume
1. There are three sound volume, low, mid, and high to choose.
2. Tap to find the icon, then enter to the mode.
3. Find the icon and press in the setting inside the application menu,
tap or to select the sound volume.
meter
Length
Area
Volume
m
m²
m³
in 0'0"1/32 1/32in 1/16in 1/8in 10/33
P
m³
feet inch inch inch inch 尺0'0"1/32
Front Back Left Right
●
Calibrate the Digital Level
1. You can always re-calibration the accelerometer before use.
2. Tap to find the icon, then enter to the mode.
3. Find the icon then enter to the calibration mode.
4. Follow the on-screen images and place the laser distance meter in the correct
position.
5. Tap to activate the calibration in this direction.
6. Follow the four steps to complete the calibration.
7. After finishing the calibration, press to leave the mode.
43
2.612 m
2.039 m
2.012 m
2.484 m
81°
43
2.612 m
2.039 m
2.012 m
2.484 m
81°
43
2.612 m
2.039 m
2.012 m
2.484 m
81°
7DM1160
7DM1160
7DM1160

11 12
Error Code
Err01 Out of measuring range Measuring in a proper range
Err02 Reflected signal is too weak Select a better surface
Err03 Out of display range (Max Value: Divide caculation into
99999), e.g: result of area or intermediate steps
dimension is out of display range.
Err04 Pythagorean calculation error Check and verify values and
steps are correct
Err05 Low Battery Install new batteries
Err06 Out of working temperature Measure in an environment
within specified working
temperature
Err07 Ambient light is too strong Measure in a darker place
(shadow target)
Code Description Solution
● Screen Orientation
The laser distance meter rotates the screen between 0° and 90°.
1.Tap to find the icon, then enter to the setting mode.
2.Find the icon, tap to turn on/off auto rotation.
●
Measurement Reference
1. There are two reference positions. One is the front of the laser distance
meter, and the other is the rear of the device.
2. Tap to select the proper position.

13 14
Safety Information
1. This laser distance meter has a Class 2 laser inside, laser radiation is emitted
from this product and is manufactured to comply with IEC 60825-1: 2007, EN
60825-1:2007, EN 61326-1:2013 and CRF21, parts 1040.10 and 1040.11.
2. The product complies with EMC Test according to EN 61000-6-3:2001+A11:2004,
EN 61000-6-1:2001, EN 61326-1:2013, IEC 61326:2012 and FCC Test according
to PART 15.
3. Use of controls, adjustment procedures other than those specified herein may
result in laser radiation exposure.
4. Never stare directly into the beam or aim the laser beams at others.
5. The product contains semiconductor laser diodes with wavelengths of 650
nanometers.
6. The total continuous output of the beams never exceeds 1.0 milli-watts.
Technical data
Display Color LCD
Measuring Range 0.05 m ~ 60 m
Resolution 0.001 m
Accuracy ±1.5 mm
Laser Type 650 nm, Class II, < 1 mw
Unit(Selectable) m, ft, in, 0'0"1/32, 1/32in,
1/16in, 1/8in, 10/33
Battery Life Up to 6,000 measures
-5°C ~ 40°C
-20°C ~ 60°C
Operation Temperature
Storage Temperature
Memory 50 set
IP Code
54
Automatic Power-Off Laser-120 seconds
Device-180 seconds
Battery AAA x 2 PC. Included
