Congratulations
Congratulations and thank you for
choosing our KingsBottle refrigerators .
We are sure you will find your new
appliance a pleasure to use . Before
installing and operating the refrigerator,
we recommend that you read through
this manual which provides a
description of your refrigerator and its
functions .!
To avoid the risks that are always
present when you use an electric
appliance, it is important that the
appliance is installed correctly and that
you read the safety instructions carefully
to avoid misuse and hazards .!
We recommend that you keep this
instruction booklet for future reference
and pass it on to any future owners .!
After unpacking the appliance, please
inspect it to verify it is not damaged. If
in doubt, do not use the appliance but
contact us or your local customer care
centre!
CONTENTS
TABLE OF CONTENTS
Chapter
Contents
Page
Part I
Important Safety & Pre-Use Instructions
3
Part II
Diagram & Description of Refrigerator
4
Part III
Installation Instructions!
5-6
Part IV
Temperature Setting and Refrigerator Operating
7-8
Part V
Layout & Storage
9
PART VI
Maintenance
10
Part VII
Troubleshooting Guide
11
Part VIII
Technical Data
12
Part IX
Warranty Information
12
COMPRESSOR REFRIGERATORS
www.kingsbottle.com 3
SAFETY
!
PART I IMPORTANT SAFETY INSTRUCTIONS
Please read this user manual carefully and store in a handy
place for later reference . The symbols you will see in this
booklet have these meanings:!
This symbol indicates information concerning your personal safety
This symbol indicates information on how to avoid damaging the
appliance
This symbol indicates tips and information about use of the
appliance
This symbol indicates tips and information about economical and
ecological use of the appliance
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK,
OR INJURY WHEN USING YOUR APPLIANCE, FOLLOW
THESE BASIC PRECAUTIONS:
1. Read all instructions before using the refrigerator.
2. DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not only problems of the
past. Junked or abandoned appliances are still dangerous…
even if they will “just sit in the garage for a few days”.
3. Before you throw away your old refrigerator:
•Take off the door.
•Leave the Shelves in pieces so that children may not
climb inside easily.
4. Never allow children to operate, play with, or crawl inside
the appliance.
1. The refrigerator must be plugged into its own dedicated
110-115V, 50/60Hz AC electrical outlet .
2. The plug must be accessible when the cooler is in
position.
3. It is essential the power point is properly grounded .
Consult a qualified electrician if you are unsure .
4. Don’t use extension cords or adapter plugs with this
cooler .
5. If the power cord is damaged, have it replaced by a
qualified service technician .
6. Unplug the cooler before cleaning it, or changing the light
bulb to avoid electric shock .
7. Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
8. Never unplug the cooler by pulling the electrical cord as
this may damage it. Grip the plug firmly and pull straight
out .
9. Choose a location for your cooler that isn’t too cold . The
ambient room temperature should be above 50°F .
10. Stand your cooler in a dry place – avoid areas of high
moisture or humidity .
11. Don’t put the cooler in frosty or unprotected areas like a
garage or on the verandah .
12. Keep the cooler out of direct sunlight .
13. Don’t locate the cooler near stoves, fires or heaters .
14. Do not store in the vicinity of any other appliance. Do not
store near gasoline or any other flammable vapors. The
fumes can create a fire hazard or explosion.
15. When installed correctly, your cooler should:
•Have adequate space at the back and sides for air
circulation. (See Page 5)
•Be aligned to the surrounding cupboards .
•Have doors that will self-close from a partially open
position
16. Please inspect and clean the filter in front venting grill
every month. Failure to clean will void the warranty and
increase the running costs.
BEFORE USING YOUR REFRIGERATOR
1. Remove the exterior and interior packing.
2. Before connecting the refrigerator to the power source,
let it stand upright for approximately 24 hours. This will
reduce the possibility of a malfunction in the cooling
system from handling during transportation.
3. Clean the interior surface with lukewarm water using a
soft cloth.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
www.kingsbottle.com 4

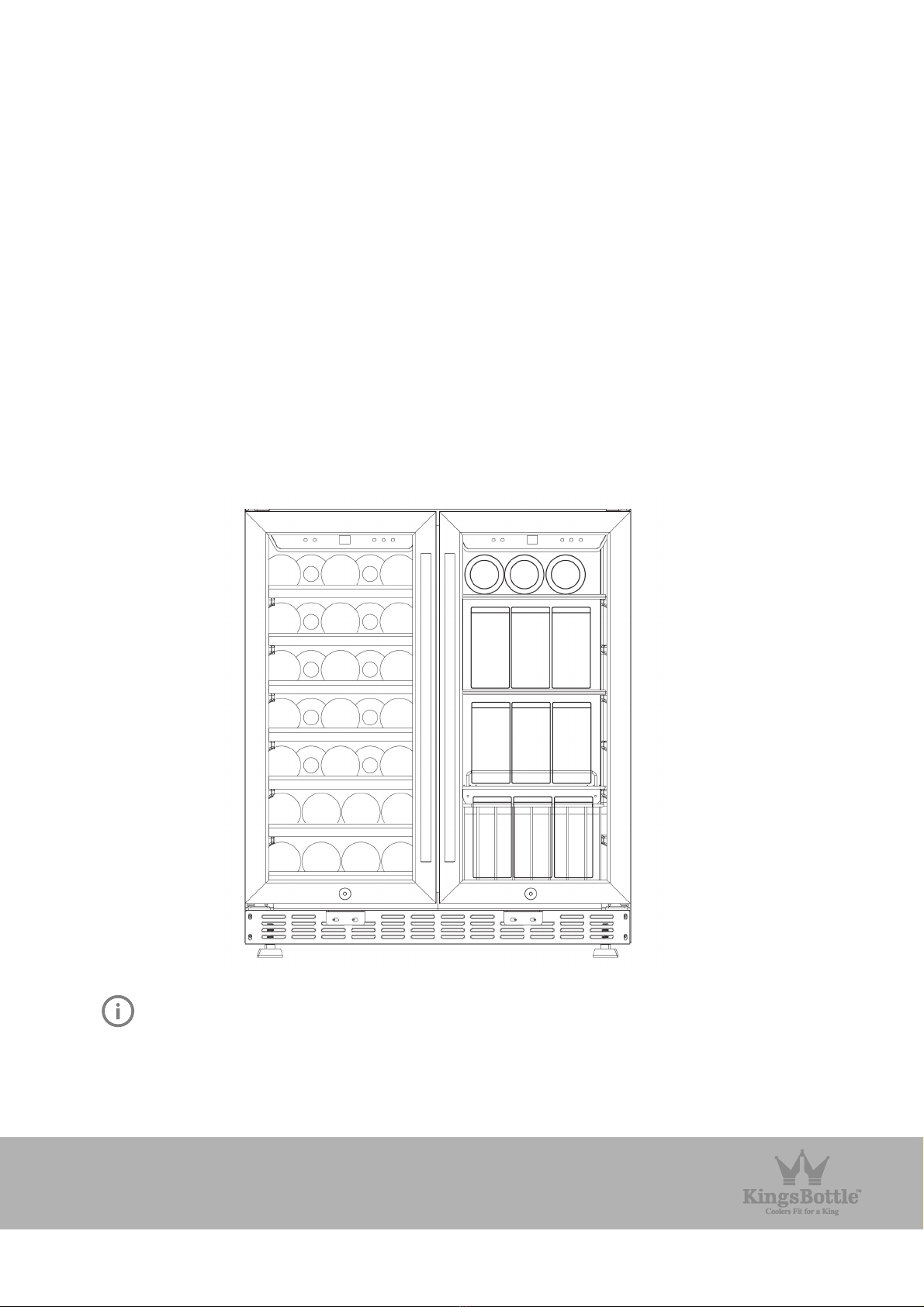

PART II"" DIAGRAM & DESCRIPTION OF REFRIGERATOR
FEATURES
COMPRESSOR REFRIGERATORS
YOUR REFRIGERATOR ALSO INCLUDES THE FOLLOWING:
•Instruction manual
•Keys
1 Left upper hinge!
2 Left control panel!
3 Large wooden shelf!
4 Left door with handle/lock!
5 Small wooden shelf!
6 Left lower hinge!
7 Front venting grille!
8 Right upper hinge!
9 Right control panel!
10 Glass shelf!
11 Wire Shelf!
12 Wire basket!
13 Right door!
14 Right lower hinge!
15 Lock hook!
16 Stand feet
BEER & WINE COMBO REFRIGERATOR MODEL: KBUSF66BW
www.kingsbottle.com 5
PART III"INSTALLATION INSTRUCTIONS
INSTALLATION
!

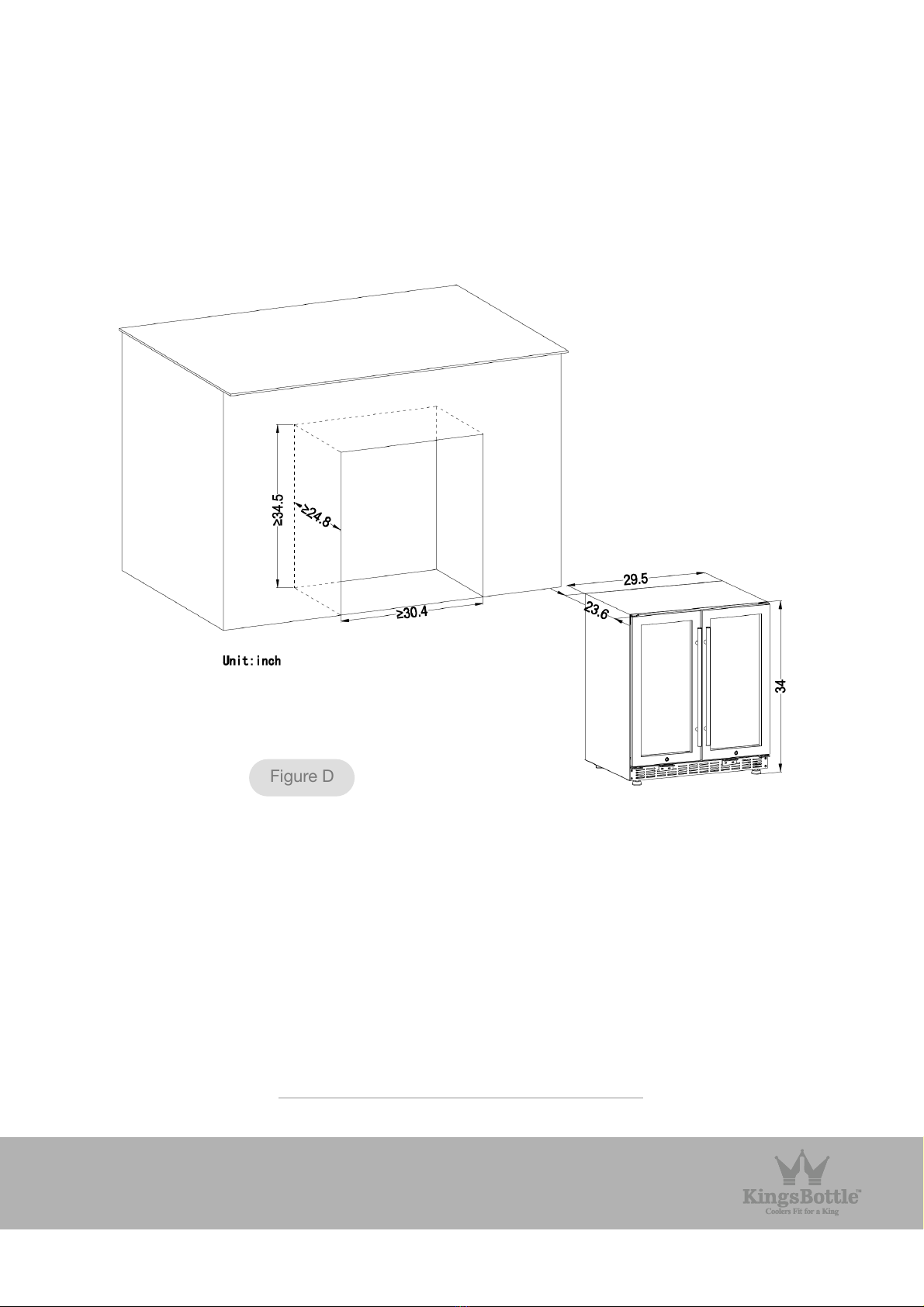

CUTOUT DIMENSION ILLUSTRATED (MINIMUM CAVITY SPACE REQUIRED)
The cutout dimension illustrated in figure (D) allows for door swing and access to the pull-out shelves when installed as a built-in appliance.
If installing between frameless cabinets, a 1⁄2” wide filler strip or side panel may be needed on hinge side.
The filler strip will act as a spacer between the appliance case and adjacent cabinet door swing.
Failure to allow minimum clearances will void all warranties
Figure D
www.kingsbottle.com 6
PART III"INSTALLATION INSTRUCTIONS
INSTALLATION
COMPRESSOR REFRIGERATORS
INSTALLING YOUR REFRIGERATOR
1. Move the unit into its final position .
2. If the unit is not tilting back, minor adjustments can be made to the leveling legs.
3. Compare the alignment of the appliance to the surrounding cupboard . The top of the appliance should be level from side to side
(see diagram below) .
4. If the unit now rocks from one corner to the opposite rear corner, this means that the floor is uneven. You may need to put some
packing under the ridge to the rear of the appliance . You could use thin pieces of solid material such as thin board, vinyl floor tiles or
laminate .
5. You may now need to fine tune the installation by repeating steps 2, 3 and 4 .
6. Wipe off any dust that has accumulated during shipping and clean following the directions in Part VI ( Care & Maintenance)
7. Plug the appliance into the power point. Don’t use a double adaptor or extension cord .
8. It is recommended that you let the unit for rest an hour or two before you put any wine bottles in it . This will confirm that it is
operating correctly and make the conditions appropriate for wine storage .
Congratulations! You have successfully installed your refrigerator.
DOOR LOCK
This unit comes with an optional key lock. The keys are located inside the plastic bag that contains the user manual. To lock the door,
simply reverse the operation making sure the metal pin is engaged completely. Then remove the key and place it in a secure place for
safekeeping. To unlock the door, insert the key into the lock and turn counterclockwise.
Before you move your appliance into the place where it
will operate, check that it will have adequate clearance.
Clearance is required for air circulation and too little
clearance may affect the performance of your appliance.
We recommend minimum clearances of:
NOTE:
Doors are designed to sit proud of cabinetry (not flush).
The clearances shown above are the recommended
minimum clearances. The clearance at the rear must not
exceed 75mm.
The appliance should arrive with the front levelling feet
wound up. The appliance may need to be tilted backward
at the top by about 10-15mm from vertical (see diagram
below). This will allow the door to gravitate to the closed
position. The complete closure of the door seal is reliant on
manually pushing the door closed to provide a consistent
door seal.
CAUTION
The rollers are designed for forward or backward movement
only.They are not castors. Moving the refrigerator sideways
may damage your floor and the rollers.
1. Move the appliance into its final position.
2. If the appliance is not tilting back as described earlier,
minor adjustments can be made to the two front
levelling legs by turning the feet in an anticlockwise
direction (below). This will increase the height of
the feet. If you have difficulty turning the foot, have
someone tilt the appliance back to gain better access.
If it is not tilted back enough and the levelling legs are
fully extended, additional packing might be required
(see note 4 for appropriate materials).
3. Compare the alignment of the appliance to the
surrounding cupboard. The top of the appliance should
be level from side to side (see diagram below). If
you need to adjust the level, use the levelling feet as
detailed in step 2.
4. If the appliance now rocks from one corner to the
opposite rear corner, this means that the floor is uneven.
You may need to put some packing under the ridge to
the rear of the appliance. You could use thin pieces of
solid material such as thin board, vinyl floor tiles
or laminate.
5. You may now need to fine tune the installation by
repeating steps 2, 3 and 4.
6. Wipe off any dust that has accumulated during shipping
and clean following the directions on page 17.
double adaptor or extension cord.
8. It is recommended that you let the appliance for an hour
or two (three hours for a freezer) before you put any
food in it. This will confirm that it is operating correctly
and make the conditions appropriate for food storage.
Congratulations! You have successfully installed your
refrigerator/freezer.
10 –15mm
Height adjustable
front rollers
50mm (75mm max)
30mm
30mm
Recommended
airspace
CABINET
DOOR
www.kingsbottle.com 7
OPERATION
PART IV"OPERATING YOUR REFRIGERATOR
!
Each refrigerator includes an operating panel on the front of the unit. This operating panel includes several features to operate and control the temperature of
both the LEFT and RIGHT zones of the refrigerator.
The operating panel includes the following features:
ON/OFF: Press over 3 seconds to turn the refrigerator power ON or OFF.
°C/°F: Select temperature display format Fahrenheit or Celsius.
LIGHT: Turns the interior cabinet light on or off. Light will turn OFF automatically in 10 minutes.
CAUTION:
BEFORE YOU START: The refrigerator should be placed in a location where the ambient temperature is between 32 - 100 degree Fahrenheit. If the ambient
temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may
cause interior temperatures to fluctuate.
SETTING THE TEMPERATURE CONTROL
1. Make sure power cord is connected to a properly grounded outlet.
2. Turn Power ON.
3. Each zone is independently controlled.
•LEFT Zone: The temperature setting can be adjusted between 41°F to 64°F
•RIGHT Zone: The temperature setting can be adjusted between 34°F to 64°F
4. Set the temperature of the LEFT Zone or RIGHT Zone as you desire by pushing the UP or DOWN button. When you push the two buttons for the first
time, the LED readout will show the original temperature set at previous time.
5. Once you have set the desired temperature, wait 5 seconds. The temperature shown in the both LEFT and RIGHT zone display panels will automatically
switch to show the actual temperature inside the unit. The actual temperature will always be shown until the next time you press the UP or DOWN
button to change the temperature settings.
NOTE: The desired temperatures may fluctuate depending on whether the interior light is ON or OFF, the ambient temperature, the location of unit and the
orientation of the bottles. The display is just a guide, be guided by how cold your drinks are at consumption. Remember units go into defrost mode and this
will show a higher display, it’s only for short periods and doesn’t have time to effect drink temperature. In general once unit has settled it will keep products
within 5°F ( 2°C ) of the set temp easily in temperatures up to and beyond 100°F ( 38°C ) .
LEFT :
RIGHT :
www.kingsbottle.com 8
COMPRESSOR REFRIGERATORS
OPERATION
TEMPERATURE SETTINGS FOR WINE SERVICE
1. Different varietals of wine require different temperature settings. The recommended temperature ranges for serving different varietals of wine are listed
below. Your refrigerator will indicate when you have set the LEFT/RIGHT zones to the below temperature ranges.
•Red Wines: 52-64°F
•White Wines: 44-51°F
•Sparkle Wines: 41-43°F
2. If you set the LEFT or RIGHT zone between 52-64°F, the LED light next to “RED” will light up, indicating that you are within the recommended range for
serving Red Wines.
3. If you set the LEFT or RIGHT zone between 44-51°F, the LED light next to “WHITE” will light up, indicating that you are within the recommended range
for serving White Wines.
4. If you set the LEFT or RIGHT zone between 41-43°F, the LED light next to “SPARKLE” will light up, indicating that you are within the recommended
range for serving Sparkle Wines
1. In the event of a power interruption, all previous temperature settings will be automatically saved and each compartment will return to the previous
temperature setting.
2. If the unit is unplugged, loses power, or is turned off, there will be a 6 minute delay for the compressor to restart after the unit is powered ON.
3. When you use the refrigerator. for the first time or restart the refrigerator after having been shut off for a long time, there will be a few degrees variance
between the temperature you select and the one indicated on the LED readout for the first few hours of operation. After a few hours of operation, the
temperature will normalize to the displayed temperature.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
www.kingsbottle.com 9
PART V"" LAYOUT AND STORAGE
STORAGE
!
YOUR CABINET WAS DESIGNED TO STORE A MAXIMUM NUMBER OF BOTTLES SECURELY. WE RECOMMEND THAT YOU
OBSERVE THE TIPS BELOW TO OPTIMIZE LOADING.
1. Disperse your bottles even so as not to concentrate weight in any one area. Also, be careful that your bottles do not touch either the
back of the cabinet or the step at the bottom.
2. Also make sure that bottles are not all grouped together either at the top or bottom of the cabinet.
3. A cooler that is full and has nice allowance for air movement will work more efficiently.
4. Never try to adjust shelf with bottles still on it.
TO REMOVE A ROLLING SHELF:
1. Remove all bottles
2. Pull the shelf out as far as possible
3. Never try to pull out more than one rolling shelf at a time.
4. Remove the shelf
PLEASE NOTE
Before modifying your cabinet’s original configuration in any way, be sure to ask your dealer for advice.
Important safety instructions . . . . . . . . . . . . . 3
Bar refrigerator with ice box features . . . . . . . . . 4
Bar refrigerator without ice box features . . . . . . . 5
Single door all refrigerator features . . . . . . . . . 6
Bar freezer features . . . . . . . . . . . . . . . . 7
Single door all freezer features . . . . . . . . . . . 8
Installing your new appliance . . . . . . . . . . . . 9
Ventilation around your appliance. . . . . . . . . 9
Installing your refrigerator . . . . . . . . . . . 9-10
Initial start-up . . . . . . . . . . . . . . . . . . . 10
Manual controls . . . . . . . . . . . . . . . . . . 10
Controlling the temperature. . . . . . . . . . . . 10
Using your appliance – Ice box models . . . . . . . . 11
Making ice . . . . . . . . . . . . . . . . . . 11
De-icing the ice box . . . . . . . . . . . . . . . 11
Freezer operation . . . . . . . . . . . . . . . . . 12
Reversing the ice box door opening direction . . . . . 13
Reversing the door opening direction WIM1000 &
WFM0700 . . . . . . . . . . . . . . . . . . . . 14
Reversing the door opening direction WIM1200,
WRM1300, WRM2400, WFM0900 & WFM1800 .15
Care and maintenance . . . . . . . . . . . . . . . .
Changing the light bulb . . . . . . . . . . . . . 16
General information . . . . . . . . . . . . . . . . 17
Cleaning the appliance . . . . . . . . . . . . . 17
Safety . . . . . . . . . . . . . . . . . . . . . 17
Switching off your appliance . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . 18
Warranty . . . . . . . . . . . . . . . . . . . . . 19
Congratulations and thank you for choosing our
refrigerator/freezer. We are sure you will find your new
appliance a pleasure to use. Before you use the appliance,
we recommend that you read through the relevant sections
of this manual, which provides a description of your
appliance and its functions.
To avoid the risks that are always present when you use
an electric appliance, it is important that the appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but contact
your local customer care centre.
TIPS & INFORMATION
If you find
the refrigerator is damaged or marked, you must report it
within 7 days if you wish to claim for damage/marks
under the manufacturers warranty. This does not affect
your statutory rights.
ENVIRONMENTAL TIPS
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
your local authorities and ask for the correct method
of disposal.
www.kingsbottle.com 10
MAINTENANCE
COMPRESSOR REFRIGERATORS
CLEANING YOUR REFRIGERATOR
BEFORE CLEANING: Turn off the power, unplug the appliance, and remove all items including all shelves.
•Wash the inside surfaces with warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda with a
quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
•After installation, we recommend that owners apply a thin layer of Olive Oil with a clean rag, to all exposed Stainless Steel
areas. This should then be polished in and buffed off with another clean rag to a non-oily finish. This process will aid protection against
dirt and other corrosive contaminants, by providing a temporary food-safe shield. The Olive Oil layer also makes later polishing and
removal of fingerprints easier. This process should be repeated frequently every 3-4 months. ALL stainless steel can rust, it is a myth that
stainless steel doesn’t rust.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of
times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your
contents.
VACATION TIME
Short vacations: You may leave the refrigerator operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior
thoroughly. To prevent mold growth, leave the door open slightly, blocking it open if necessary.
MOVING YOUR Refrigerator
1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable leg up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a
blanket or similar item.
ENERGY SAVING TIPS
1. The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and away from direct sunlight.
Ventilation at rear also helps a lot with energy usage, so create a positive air flow where possible, although with this range they are
designed to be fully built in.
2. When you are not using fridge during weekdays etc. it is recommended to set the temp at a higher level, so set at 64°F (18°C ) during
periods of non usage, this will not only mean less run time, it also still keeps drinks at a temp that won’t be spoiled. It saves energy also
which these days is a growing concern for most households.
3. Keep the cooler stocked, an empty cooler will run longer, believe it or not.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
PART VI"CARE AND MAINTENANCE
www.kingsbottle.com 11
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Solution
Refrigerator does
not operate
1. Not plugged in
2. The appliance is turned OFF at the control panel
3. The circuit breaker has tripped or a fuse has blown out
Press ON/OFF
Check and make sure the power plug is well connected
Ask an engineer for help
Refrigerator is not
cold enough; can
not cool down to
the preset temp.
Compressor does not start
ask an engineer for help / check the connection of the compressor
Compressor self-protected and has stopped operating
The ambient temperature is too high ( over 100°F degree)
The air venting is not smooth, check that the air duct is not blocked
Fan operates slowly or is faulty and has stopped operating.
The door is not closed completely, or the door opened too long
The compressor, or its components are faulty
Fans stop working or operate at low speed
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and whether the voltage is normal. If the voltage is normal, then the
fan should be damaged
Evaporator ices up
Turn OFF the refrigerator for one hour and open the door. The ice on the
evaporator will melt. Check the door seal for any air gaps.
Door is not closed properly
Check the door lock, shelves, or other objects, make sure door is well
closed.
Check the rubber seal for any air gaps.
Check the door hinges, make sure they are not loose
Condenser is dusty
Wash and clean the condenser
Cooling system faulty (Gas leakage or blockage)
Ask an engineer for help
Compressor starts
and stops
frequently
The door gasket does not seal properly.
Use low heat on a hair dryer to make the door seal take shape.
The sensor connection is wrong.
Read the wiring diagram to make the correct connection of sensor
The sensor is faulty.
Replace with a new sensor
The door is opened too often.
Reduce the times / frequency of door openings.
The light does not
work.
Not plugged in, or the light button is “OFF”.
Light itself faulty.
Check and make sure the light button is ON, or ask an engineer for help.
The Refrigerator
seems to make too
much noise.
The stand feet is not leveling, vibrations lead to noise
Adjust the stand feet and ensure they are level.
Copper pipe hits other objects and makes noise
Gently adjust the position of the pipe.
When the compressor shuts down or starts, it is normal for
noise from the vibrations generated by the internal moving
parts due to inertia.
Take no action
A liquid plumbing noise may come from the flow of the
refrigerators gases, which is normal. As each cycle ends, you
may hear gurgling sounds
Take no action
The door will not
close properly.
Door is blocked by the door lock, shelves, or other objects.
Remove the barrier
Door sealing rubber is deformed
Repair or replace the rubber seal
Door hinges are not loose.
Adjust and fasten the hinges.
Ice up
Outlet / suction outlet blockage
Remove the barrier
Fans stop working or operate at low speed.
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and the voltage. If the voltage is normal, the fan may be damaged.
The door gasket does not seal properly;
or door is opened too often
Use low heat on a hair dryer to make the door seal take shape.
Gas leakage or cooling system blockage
Ask an engineer for help
External cabinet
seems too hot
Ambient temperature is too high, or direct sunshine
Operating conditions need to be improved
Front grill outlet / suction outlet blockage
Remove the barrier
Fans stop working or low speed operating
Ask engineer for help, power on the refrigerator, check the fan whether
the voltage is normal or not. If the voltage is normal, the fan should be
damage
Water drop on
glass door
Ambient humidity is high
Use a soft cloth to clean the water
Door is opened too often
Reduce the times / frequency of door opening.
The door gasket does not seal properly
Use low heat on a hair dryer to make the door seal take shape.
PART VII"TROUBLESHOOTING GUIDE
www.kingsbottle.com 12
TECHNICAL DATA
PART X"" TECHNICAL DATA
PART IX"WARRANTY INFORMATION
COMPRESSOR REFRIGERATORS
!
KBUSF66BW
General.Info:
!"#"$%&'
()*+,(!-(./01(2%&345(
67893:(&7(;&743
<<(6=>>2?;(@(A,($"B:
CB:&"99"D7B(>'#3
(6E%9&F%B
;G39H3:
(A(I77J(:G39H3:K(L(M9"::(:G39H3:(@(/(I%43(:G39N(@(/(I%43(O":P3&
>3Q#34"&E43(R7B3
(SE"9(T7B3
>3Q#34"&E43(U"BM3
(23V(:%J3W(1/F)1(-"G43BG3%&X(U%MG&(:%J3W(<1F)1(-"G43BG3%&(
!9%Q"&3(>'#3
;>XYX;Y
Y7%:3(23H39(.J65
(Z1L(J6
Features:
!779%BM(;':&3Q
!7Q#43::74
!7B&479
(S%M%&"9(>G34Q7:&"D$(!7B&479
!%4$E9"DBM(-"B:
([3:
2?S(2%MG&
(69E3(2?S
S774(>'#3
(>I7F9"'34(M9"::(J774(I%&G(7B3(27IF?
;3$E4%&'(27$P
('3:
Electrical:
U"&3J(!E443B&
,*\]
U"&3J(^7I34(CB#E&
\,_"8:
U3N4%M34"B&
(U),,]
?B34M'(!7B:EQ#D7B
(/*L<(`IaGbL1G4
Dimensions:
cB%&(;%R3
L\*)d_eL<*)dSe<1*+df(.A+,_a),,Sa0A+f(QQ5
Y3&(_3%MG&
(/<L(9O(.),(PM5
Please speak to your retailer before calling us if you did not purchase your refrigerator directly from KingsBottle.
Who is covered: This warranty is extended only to the original end-user purchaser or the person receiving the product as a gift, and shall not be extended to
any other person or transferee.
Limited warranty – If your refrigerator is not operating properly, KingsBottle reserves the right to repair or replace the refrigerator. KingsBottle may request
the consumer to contact a local refrigeration company to service the refrigerator. All cost for labor and materials is covered for 3-year from the date of receipt.
If KingsBottle deems the unit not repairable, KingsBottle will use the value of your original order toward a replacement. For customer service, please e-mail us
The limited warranty does not cover: Damage due to such things as accident, misuse, abuse, mishandling, neglect, unauthorized repair or any other
cause beyond the control of the seller whether similar or dissimilar to the foregoing. Purchaser understands and acknowledges that the goods sold here are
WINE & BEVERAGE COOLERS, which house beer and other wines. Purchaser assumes all the risk of using these units, including risk of spoilage, humidity
variations, temperature variations, leaks, fires, water damage, mold, mildew, dryness and similar perils that may occur.
SPECIAL NOTE: Warranty is only honored for the unit which is purchased and used in United States of America. And, if your product was purchased at any
3rd party retailer and not directly from KingsBottle, we do not offer an extended warranty policy. You MUST contact the retailer of purchase directly. In the
event your retailer does not offer an extended warranty plan, we recommend you contact a third party warranty provider. However, regardless of point of
purchase, all KingsBottle coolers are backed by a TWO YEAR manufacturer's warranty from date of sale.
