KINGSONG KS-X1 PRO User manual

KS-X1 PRO
User
Manual

Cautions
Electric scooter is a recreational personal transporter. Before
mastering riding skills, you need to do practice. You will be
responsible for any injuries or damage caused by a rider’s
inexperience or failure to follow the instructions in this manual.
Please understand that you can reduce the risk by following all
the instructions or warnings in this manual, but you cannot
eliminate all the risks.
Please following the local traffic laws or restrictions when
riding into public areas.
Please always wear a helmet properly when riding to protect
your head, as well as other necessary protectors, such as
elbow pads, kneecap.
Please slow down the riding speed when riding on crossing,
going across the crowd, making a turn, climbing or downing a
hill, passing a school and other place that high speed may
bring damage to people.

Please do not allow kids of age below 12 to use the scooter on
pubic area. Riders under the age of 18 years old should ride
under adult supervision.
Please do not use the scooter in serious environments, to
avoid scooter
malfunction, which may cause damage to body or property,
such as Rainy, Snowfield, Grassland, Miriness, Fog, Smoke
and so on.
Please do not use the other chargers to charge E-scooter,
Only use King Song supplied charger.
Please do not charge E-scooter, if the charger or power outlet
is wet.
Please do not disassemble the scooter body or other modify
without professional person from distributors.
Please do not allow others to ride your e-scooter unless he/her
has carefully read and follow the instructions in this manual.

Contents
1. Product Details--------------------------------------------------------01
2. Features ----------------------------------------------------------------04
3. Button Usage ----------------------------------------------------------05
4. Assembly and Set-up------------------------------------------------06
5. APP Usage ------------------------------------------------------------07
6. Folding and Carrying-------------------------------------------------17
7. Adjusting the disc brake--------------------------------------------18
8. Adjust the handlebar------------------------------------------------19
9. Battery ------------------------------------------------------------------19
10. Clean and Maintenance-------------------------------------------20
11. Warranty--------------------------------------------------------------22

1. The Device & Accessories

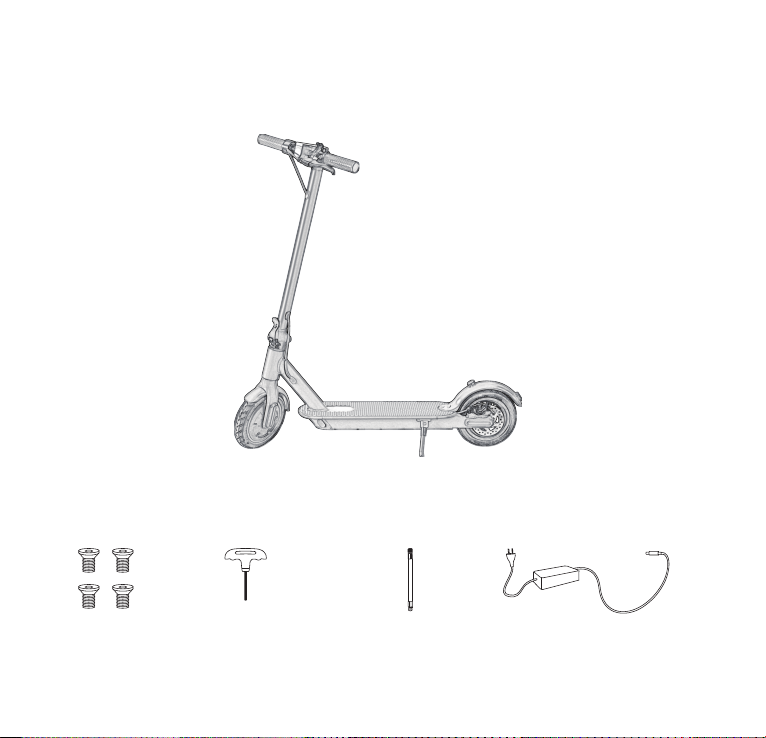

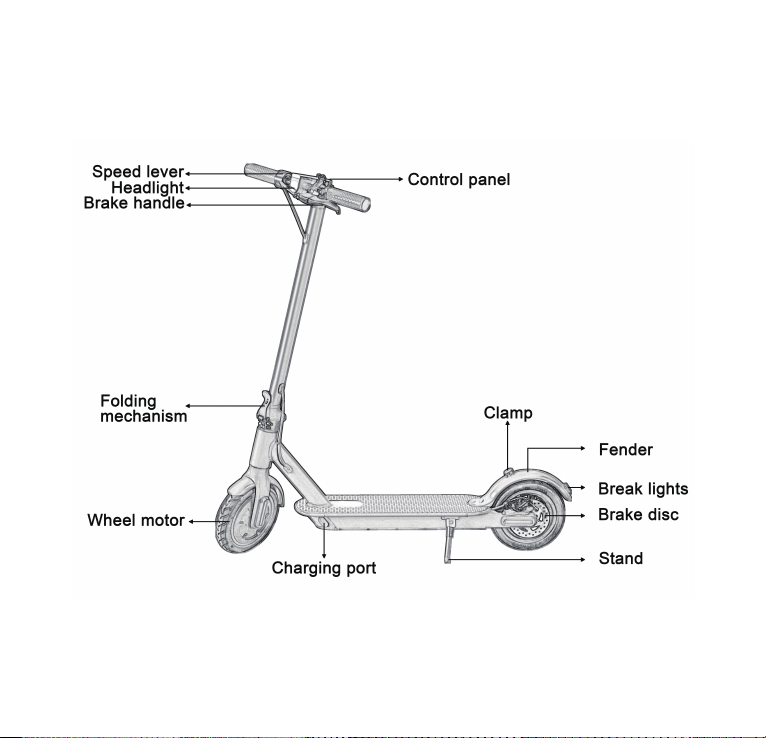

1.1 Diagram: KS-X1 PRO
Accessories
-----------------------------------------------------------------------------------
Screws Hex Wrench Valve Stem Extension Charging Adapter
01

1.2 Functions
02

1.3 Specifications
Model No
Size
Top Speed
Mileage
Gradeability
Battery Capacity
Running Condition
Storage Condition
Max Load
Charger
Charging Time
Motor
Port
Headlight
Brake Light
Applicable Height
KS-X1 PRO
8.5 inch Inflatable Tyre
30 km/h
Around 45km
Around 20°
37V, 12.8Ah
-10℃/+80℃; 0-90% Humidity
-10℃/+50℃; 0-90% Humidity
125kg
Input: 100-240V; Output: 42V/2A
Around 6hrs.
500W
Charge Port *1
4W
LED
1200-2000mm
03

Parking Mode
Cruise Control
Reminder
Accelerator
Brake
Display
Battery Display
Dimension(Unfold)
Dimension(Folded)
Net Weight
Packing List(pcs)
Kick-stand
System control
Mechanical Bell
Throttle Button
EABS+Rear Disc Brake
LED
5 Bars in monitor
1130*430*1190mm
1130*430*480mm
14kg
User Manual*1, Certificate*1, Charger*1,
Screws *4, Hex Wrench*1,
Valve Stem
Extension*1
2. Features
• Superior Aviation Aluminum Alloy.
• Real-time Temperature Monitoring, Short Circuit /
Low Voltage / Overcurrent / Overcharging Protection.
04

• Digital Speedometer Display, Easy to Read Speed.
• Real-time 5 Bars Battery Display.
• 1~3 Speed Gear, Press Button to Switch.
• Malfunction Display.
3. Button Usage

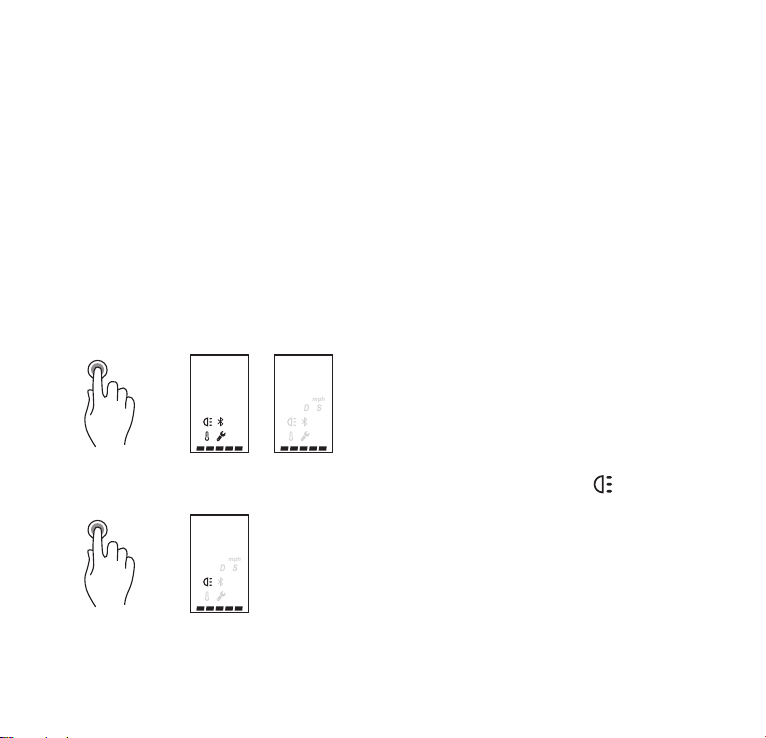

• Power ON/OFF: Long press the button for 3 seconds, all
icons are lighting, showing speed & battery.
• Headlight ON/OFF: Click the button (Headlight ON: )
00
km/h mph
ECO D S
00
km/h
mph
ECO
D
S
00
km/h
mph
ECO
D
S
05

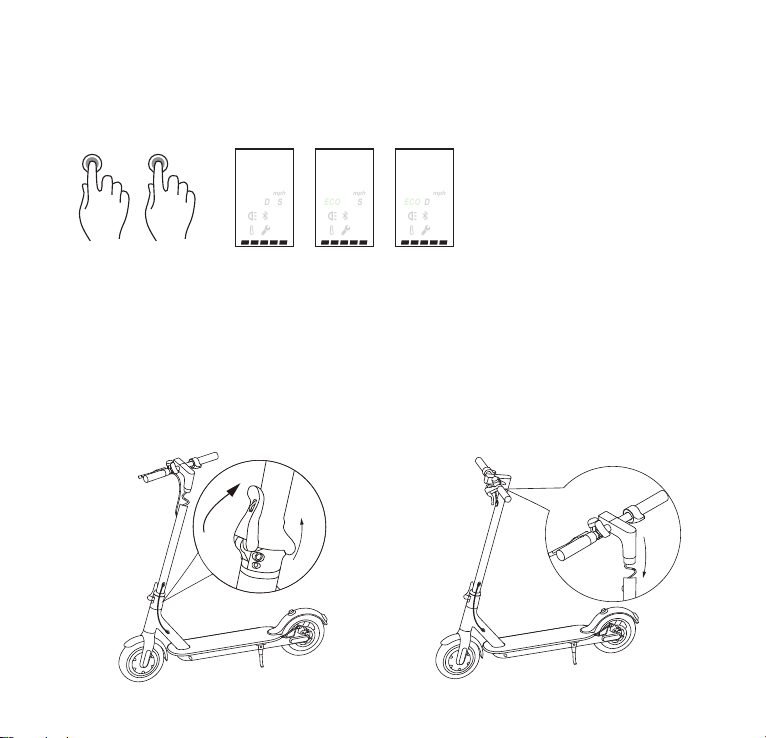

• Click the button for two times to change the speed gear from
1 to 3 levels, LED display ECO / D / S. Max speed is
increasing when LED display from ECO to S.
4. Assembly and Set-up
00
km/h
mph
ECO
D
S
00
km/h
mph
ECO
D
S
00
km/h
mph
ECO
D
S
1. Fasten the handlebar stem
on the headset, and put the
kickstand down
2. Attach the handlebar to the
stem
06

5. APP Usage
5.1 First Ride
Mobile device Requirement:
iOS 10.0 or above,
Bluetooth 4.0 or above.
Install the APP and register/login.
Android 4.3 or above,
Install the APP and register/login.
4. After the assembly, press
the power button to check if
it's working properly
3. Tighten the screws onto
both sides of the stem with
the hexagon wrench
00
km/h mph
ECO D S
07

iOS Android
Please give the corresponding permis sion
to scooter APP, to ensure the APP can
run normally in your mobile device.
Open Bluetooth/location (or GPS), Click ‘Search’ - -> Click the
corresponding model KS-X1 PRO in device list to connect.
The E-scooter will beep when APP is connected with
E-scooter.
5.2 Learn to Ride
• Step 1: Check E-scooter Status
Check the environment whether it’s safe to ride without
hurting yourself or others.
Check the battery level and remain mileage in APP.
!
08

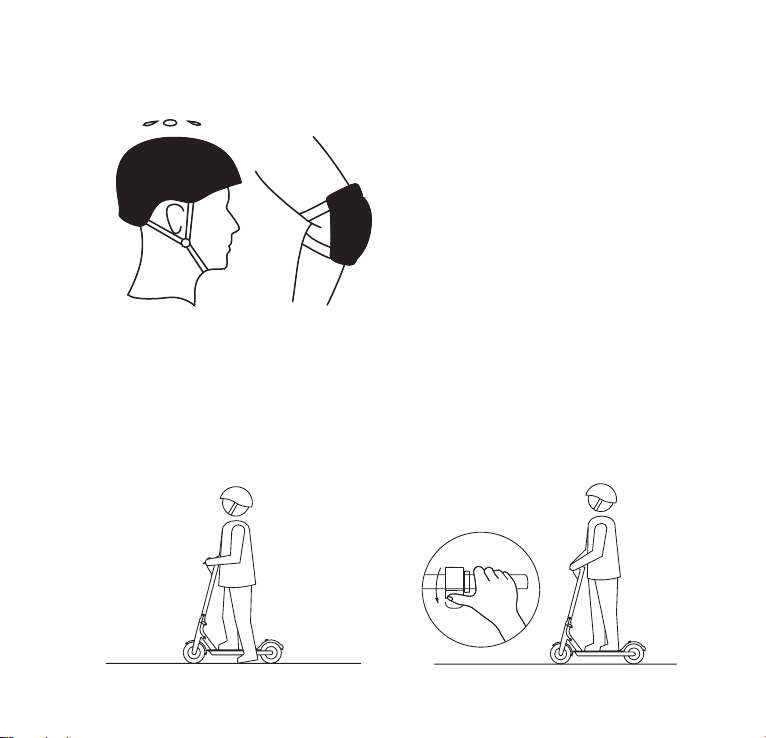

• Step 2: Wear protective equipment.
• Step 3: Try to slide with one
leg.
• Step 4: Touch the throttle
slightly and try to put two
leg on the deck.
09

• Do not ride in rainy or cross
puddles.
• Wear protective equipment.
5.3 Warnings
• Step 6: Try to use the
headlight.
• Step 5: During riding, try to
release the throttle and pull
the brake lever.
10

• Do not tread the back of the
fender.
• Do not place one foot on the
deck or on the ground when
riding.
• Ride slowly in special cases.
• Do not load over 125kg.
11

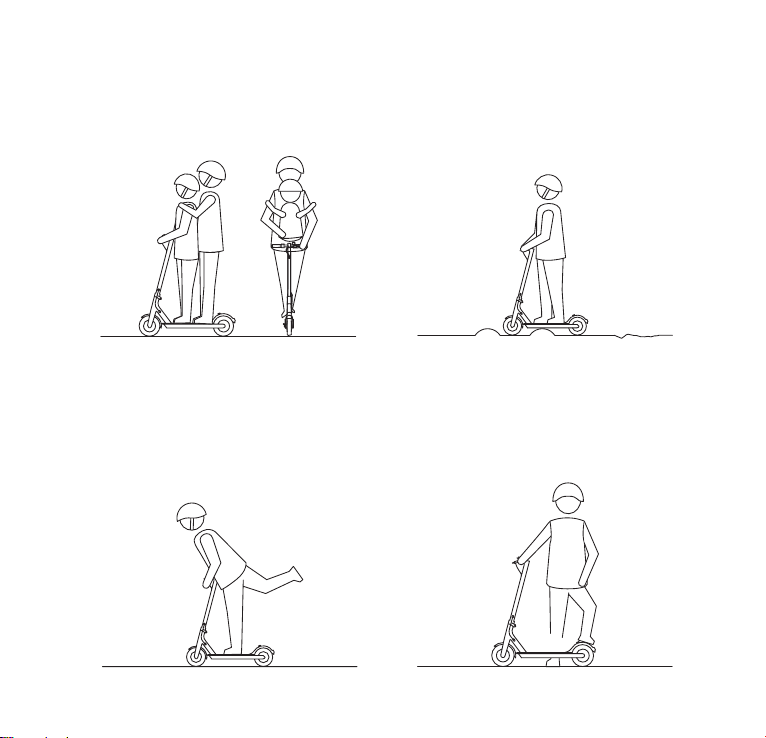

• Do not hold a child during
riding.
• Do not ride upstairs or
downstairs, or over
obstacles.
• Do not leave your hands
during riding.
• Do not touch the disc brake
12

5.4 Cruise Control
Open cruise-control in APP, while you keep the same speed,
riding for 3~5 seconds, the E-scooter will be in cruise-control
mode(running at constant speed on flat road) Please use
cruise-control only on flat road, or you will fall down on other
roads.

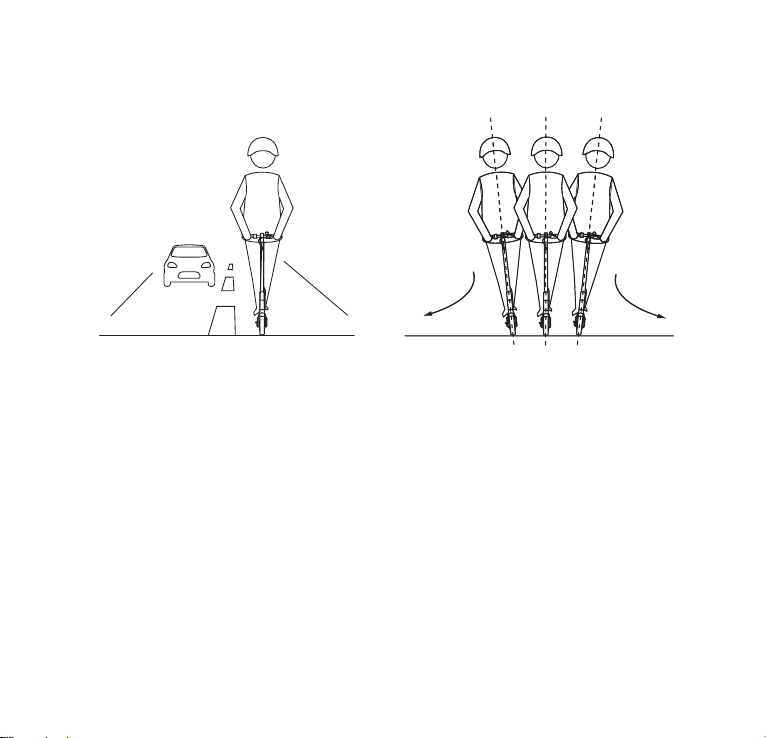

• Do not ride with sharp turn.
• Do not ride on highway or
motor vehicle road.
13

5.5 Error Description
E5 Throttle fault 1. Release the accelerator.
2. Restart.
3. Replace the accelerator.
E4 Brake system
malfunction
1. Release the brake.
2. Restart.
3. Replace the brake lever.
E3 Hall is abnormal 1. Check whether the Hall wire
plug of the motor is loose.
2. Check whether the motor cable
is damaged.
3. Replace the motor.
4. Replace the control board.
E1 Encounter obstacles
that E-scooter can’t get
over it
1. Release the accelerator and
stop braking.
2. Restart.
3. Replace the brake lever.
4. Replace the accelerator.
EO Wrong in
communication
1. Check whether the display
control board is well connected;
2. Replace the display.
3. Replace the control board.
Display Defect Description Solutions
14

H1 Motor high temperature 1. Stop riding or riding scooter at
low speed, avoiding climbing.
BP Over voltage,
emergency
1. Check whether scooter has
been fully charged, riding the
scooter at low speed, avoiding
braking suddenly when scooter
is fully charged.
2. Restart. Check if firmware has
been wrongly upgraded.
3. Replace the control board.
BH High voltage alarm 1. Check whether scooter has
been fully charged, riding the
scooter at low speed, avoiding
braking suddenly when scooter
is fully charged.
2. Restart.
3. Check if firmware has been
wrongly upgraded.
4. Replace the control board.
BL Low voltage alarm 1. Stop riding and get scooter
charged.
2. Restart.
3. Check if firmware has been
wrongly upgraded.
4. Replace the control board.
15
