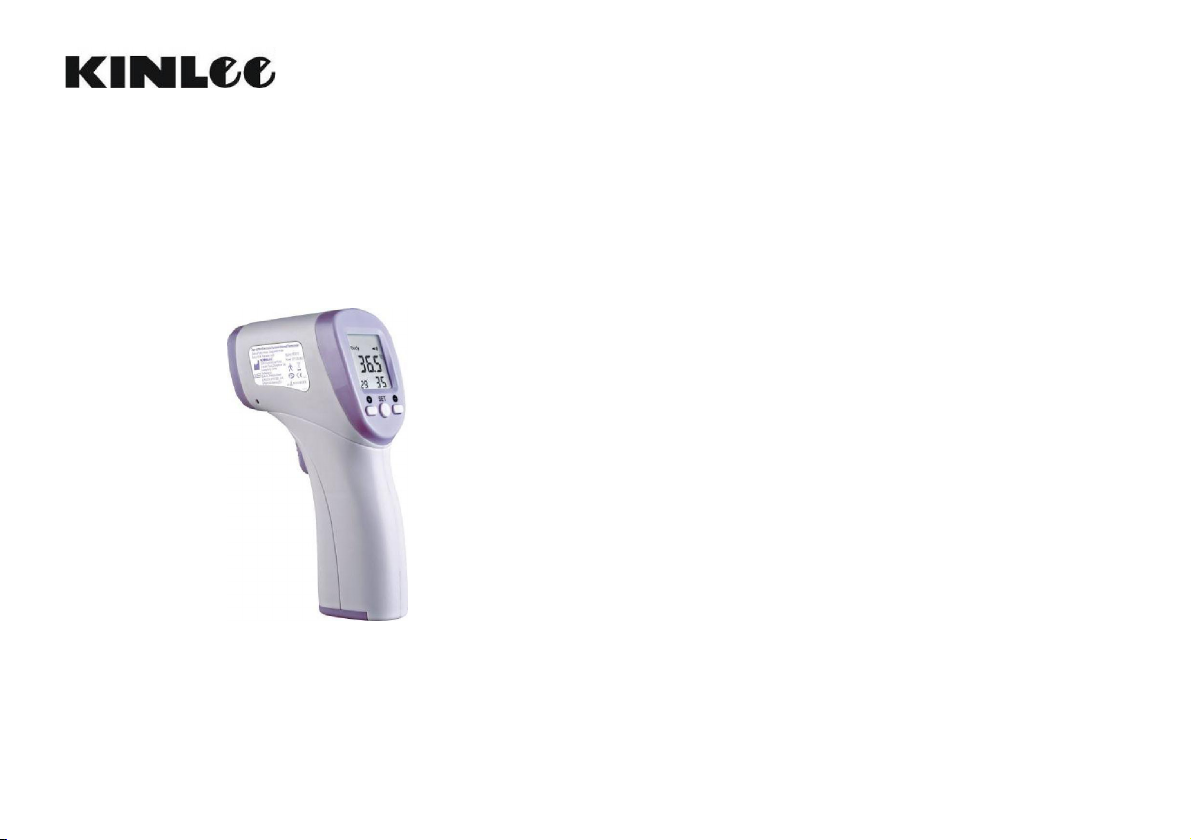

KINLEE FT3010 User manual
Non-contact Electronic Forehead
Infrared Thermometer
FT3010
User Manual
Zhongshan Jinli Electronic Weighing Equipment Co., Ltd.
Ver: 201202A
-2-
Contents
1．Foreword································································································ 3
2．Declaration of conformity········································································ 3
3．Important Safety Information ··································································3
4. Product Characteristics···········································································6
5. Technical Data······················································································· 7
6. Intended Use·························································································· 8
7. Parts Identification (As picture)·······························································9
7.1 Basic components············································································ 9
7.2 Display Indicator··············································································10
8. Operation and setting method·······························································10
8.1 Installing or replacing the batteries··················································10
8.2 Setting method··············································································· 10
8.3 Advice For The 1st Use··································································· 11
8.4 Correct measurement····································································· 12
9. Troubleshooting··················································································· 14
10. Care and Maintenance······································································· 14
11. Quality promised and service····························································· 15
12. Attachment list···················································································· 15
13. Safety classification of ME EQUIPMENT··········································· 16
.
-3-
1. Foreword
Thank you for purchasing product. FT3010 No-contact
Electronic Forehead Infrared Thermometer (here in after called the
Forehead Thermometer for short) is a thermometer which is used for
measuring the temperature of human body at forehead by the principle of
receiving infrared. According to the human body skin difference, the
measuring temperature would be different. When changing the location
from two different temperature location, before use, please put the
forehead thermometer in the same condition at least 30 minutes, so that
the forehead thermometer could be adapted to the ambient temperature. It
is mainly applied to household (consumer use). For your correctly use,
please make sure you have read this user manual. Please keep it carefully,
in case you can refer again someday.
2. Declaration of conformity
●This device fulfils the provisions of EC directive 93/42/EEC (Medical
Device Directive).
●This forehead thermometer meets requirements established in ASTM
Standard E1965-98(2009). Full responsibility for the conformance of this
product to the standard is assumed by Zhongshan Jinli Electronic
Weighing Equipment Co., Ltd
●This device has been tested and homologated in accordance with
EN60601-1-2:2007 for EMC. This does not guarantee in any way that the
device will not be affected by electromagnetic interference. Avoid using
the device in high electromagnetic environment.
3. Important Safety Information
●The warning symbol and cutline mentions in this user manual give
guidance of safety and correct method, and avoid harm to your body.
●The warning symbol and cutline as follow：

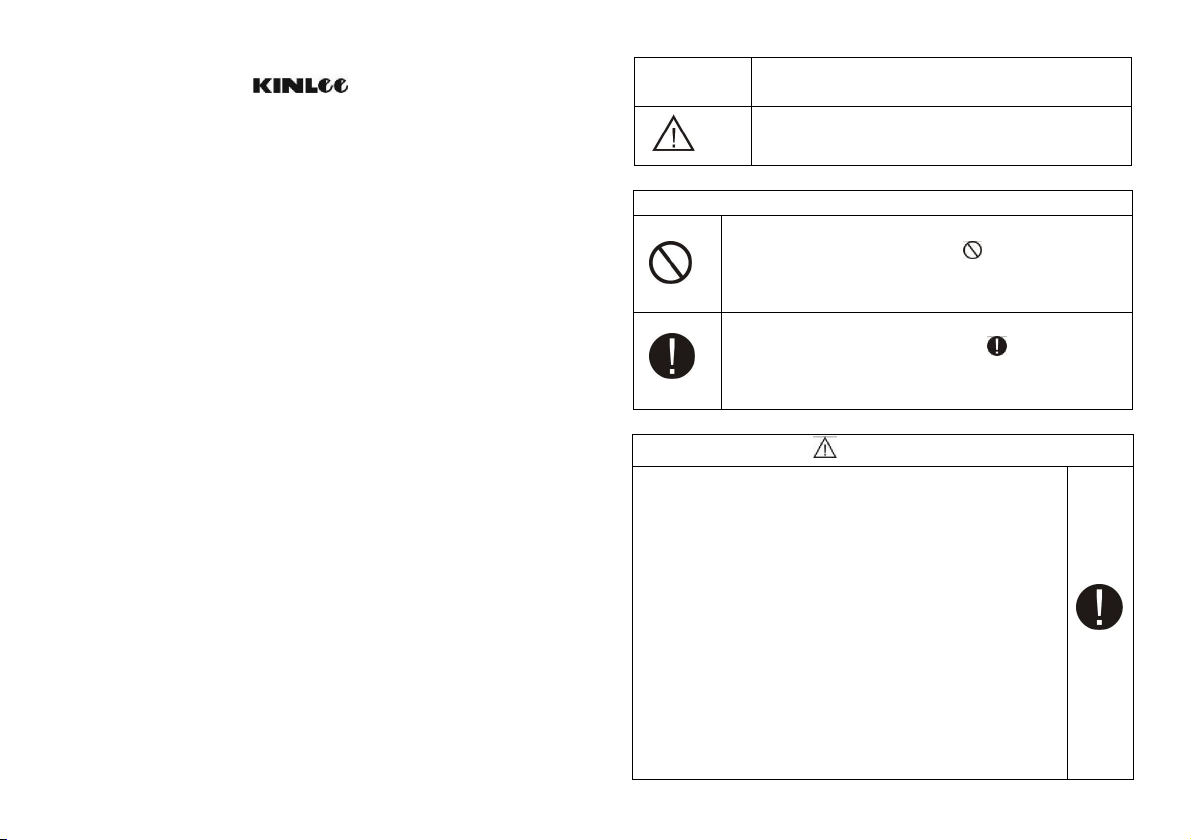

-4-
Warning
symbol Meaning
It may course harm to body or mangle article.
Cutline
Prohibit operation.
Prohibit operation can be found in or description by
words or photo nearby.
Symbol in left means “General prohibit”
Must follow operation
Must follow operation can be found in or description
by words or photo nearby.
Symbol in left means “General must follow operation”
Batteries use
● Please don’t commix new and old batteries or different
brand and type of batteries.
● Please pull out the batteries if it is not in use for a long time
(More than 3 months )
● Please set “+、-”pole correctly.
● Disobey of above operation may course batteries heat, fluid,
or blast, and therefore mangle the product.
● If battery fluid should get on your skin or clothing, please
rinse with plenty of clean water at once.
● Please don’t through batteries in fire! It may course blast.
● Disposal of discarded batteries should be in accordance
with the national regulations for the disposal of discarded
batteries.
-5-
Universality affair
Use of this thermometer is not intended as a substitute for
consultation with your physician.
There may be a risk of exasperating the state of an illness
by self-estimate.
Please do not put our products close to the charged object.
In order to avoid the possibility of electric shock.
Don't expose this thermometer to extreme temperature
conditions of ＞ 50 ℃ or ＜-20 ℃.
Do not apply a strong shock to, drop, step on, or vibrate the
main unit.
Do not drop or knock the device, and do not use if damaged.
Don't use the device beyond intended use.
Keep the device away from water and heat, including direct
sunlight.
Do not use a portable phone near the unit.·
Do not disassemble, repair, or modify the unit.·
Please use and keep this product with the standard mentions
in this manual, Otherwise, It can not measure correctly.
-6-
Meanings of Symbols
Signs Notes on the signs
Type B Applied Part
Operating instructions
Manufacturer
Prohibition of free throw
European community
Specific batch code
CE0120 CE Mark
4. Product Characteristics
● Designed for measuring the forehead temperature, with a dynamic offset
for the ambient temperature and forehead temperature.
● Exclusive use German infrared probe for temperature measurement,
with high accuracy and stable performance.
● Providing the function of sound notification of high body temperature.
● With 32 sets of measurement memories.
● LCD digital displayer with backlight.
● Fahrenheit and Celsius optional mode.
● Auto off function to save energy.
● Cute appearance and convenient operation.
-7-
5. Technical Data
Temperature : 16℃~40℃
Relative humidity : 15%~95%RH
860-1060hPa
Normal operating
conditions
Power supply : DC 3V (2 x AA LR6)
Ambient temperature: -20℃～50℃
Relative humidity (RH): 15%-95%
Transport condition
and storage
860-1060hPa
Dimension 90mm*43mm*148mm(length*width*height)
Weight (net weight)
120g (not including the batteries)
LCD display
resolution 0.1℃ (0.1℉)
Body temperature:22.0~42.9℃(71.6~109.0℉) Displayed
Temperature Range
Surface temperature : 0~100℃(32.0~212.0℉)
Maximum
Laboratory Error
1) 22.0~42.0 ℃ : 0.3℃
2) out of 22.0~42.0 ℃ :0.5℃
Power ≤50mW
Measurement time ≤ 1second
Measurement
distance 50mm~150mm
Blackbody
recommended for
verifying
The blackbody addressed in 6.1.3.3 of
E1965-98(2009)
Auto-off time 10 second
measurement data
memories 32 sets
Body temperature
Mode(adjusted)
The displayed value display body temperature
adjusted to auxiliary.
Surface
temperature
Mode(not adjusted)
The displayed value display surface
temperature (Forehead temperature or object
surface temperature)
-8-
WARNING: the performance of the instrument may be adversely affected
the following occur:
Operation outside of the specified subject temperature t.
Operation outside of the specified ambient temperature and humidity
ranges
Storage outside of the specified ambient temperature and humidity
ranges
Mechanical shock may be adversely affected performance of the
instrument.
6. Intended Use
The forehead thermometer is designed for body surface and forehead
temperature measurement for infant and adults without contact to human
body.
The forehead thermometer can also be used to measure the temperature
of a baby-bottle or bath or room temperature (by using the surface mode).
Normal Temperatures According To Measurement Method
Measurement
Method
Normal Temp ℃ Normal Temp ℉
Rectal 36.6 to 38 97.8 to 100.4
Oral 35.5 to 37.5 95.9 to 99.5
Axillary 34.7 to 37.3 94.4 to 99.1
Ear 35.8 to 38 96.4 to 100.4
The temperature of the human body varies throughout the day. It can also
be influenced by numerous external factors: age, sex, type and thickness
of skin…
-9-
Normal Temperatures According To Age
Age Temp ℃ Temp ℉
0-2 years 36.4 to 38.0 97.5 to 100.4
3-10 years 36.1 to 37.8 97.0 to 100.0
11-65 years 35.9 to 37.6 96.6 to 99.7
﹥65 years 35.8 to 37.5 96.4 to 99.5
Attention: ASTM laboratory accuracy requirements in the display of 37
to 39℃(98 to 102℉) for Skin IR thermometers is ±0.3℃（±0.5℉），
whereas for mercury in-glass and electronic thermometers, the
requirement per ASTM Standards E667-86 and 1112-86 is ±0.1℃（±
0.2℉）.
When you need to clinical accuracy characteristics and procedures,
please contact with the local distributors obtain from our company.
7. Parts Identification (As picture)

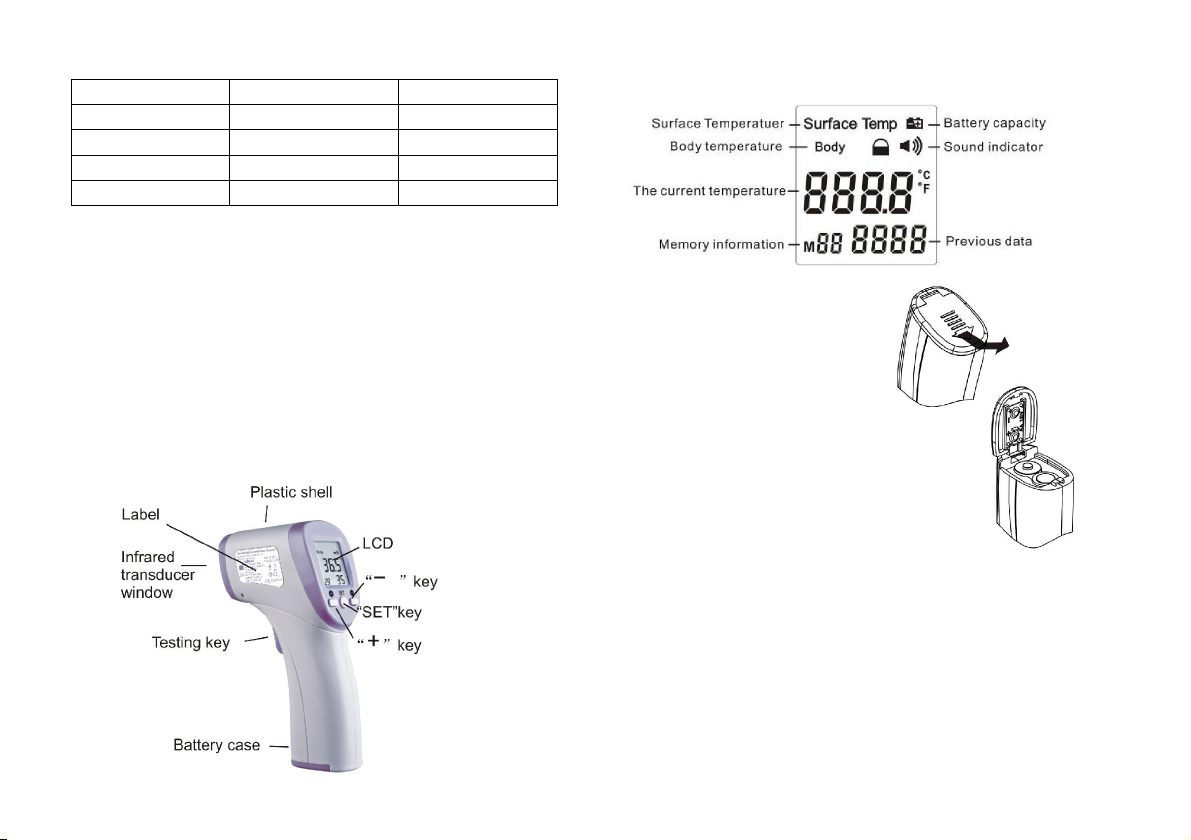

7.1 Basic components
-10-
7.2 Display
8. Operation and setting method
8.1 Installing or replacing the
batteries
a. Push the battery cover back,
open the cover from the body.
b. Insert two “AA” batteries as indicated
in the battery compartment and then replace
the battery cover.
8.2 Setting method
Keep pressing “SET” key and hold for 3
seconds into the setting mode.
8.2.1 Select measurement unit---Menu F1
Enter into setting mode, the LCD displays “F1”, press “+” key to select
“℉” unit, press “-” key to select “℃” unit.
8.2.2 Warning value setting---Menu F2【Default 37.8℃ (100.4℉)】
Enter into setting mode, short press “SET” key twice, the LCD
displays “ F2”, then press “+” key to increase the setting value
0.1℃(0.1℉), press “-” key to reduce the setting value 0.1℃(0.1℉).
-11-
8.2.3 Offset value setting---Menu F3【Default 0.0℃ (0.0℉)】
Enter into setting mode, press “SET” key triple, the LCD display “ F3”,
then press “+” key to increase the setting value 0.1℃(0.1℉), press “-”
key to reduce the setting value 0.1℃(0.1℉).
8.2.4 Sound notification setting
Enter into setting mode, press “SET” key four times, the LCD display
“ F4”, then press “+” key to turn on the sound notification function,
press “-” key to turn off the sound notification function.
8.2.5 Backlight setting---Menu F5
Enter into setting mode, press “SET” key five times, the LCD display
“ F5”, then press “+” key to turn on the backlight function, press “-” key
to turn off the backlight function.
8.2.6 Exit setting mode
Press “SET” key until shutdown.
8.3 Advice For The 1st Use
For stable and reliable results, it is essential to check the forehead
thermometer and change as needed, as follows:
8.3.1 Take the temperature of the same person using a conventional
thermometer; you will get 37.0℃（98.6℉）for instance.
8.3.2 Take the temperature of the same person using the forehead
thermometer keeping the 50 to 150 mm distance between the
thermometer and the forehead (Take care to remove any obstacle which
could alter the measurement (hair, perspiration…). If you get 37.0℃（98.6
℉）,the Non-contact body infrared Thermometer is properly set and ready
for use.
If you get a lower temperature, 36.4℃ （ 97.4℉ ） for example, your
difference is 0.6℃（1.2℉）, you should adjust the temperature on the
forehead Thermometer Body infrared Thermometer and add the difference,
i.e. 0.6℃（1.2℉）.
-12-
To do it, press the “SET” button for 3 seconds, the screen displays F1,
press “SET” button again until you get F3, press “+” button in order to add
the difference (in our example, 0.6℃（1.2℉）.
8.3.3 To check, take the temperature again using the Non-contact body
infrared Thermometer.
Caution：This setting applies only to Body mode.
8.4 Correct measurement
8.4.1 Measurement body temperature
Hold the forehead thermometer, leave one finger in front of the button,
keep transducer window at human’s forehead, leaving a distance of
50-150mm from the forehead. Press the button, and the thermometer will
start up automatically and display the measurement result, as shown in the
figure below:
8.4.2 Measurement ambient temperature.
Hold the thermometer, leave one finger in front of the button, Level the
detection window face to the place where you want to measure, and then
press button. The thermometer will start up automatically and display the
measurement result, as shown in the figure below:
-14-

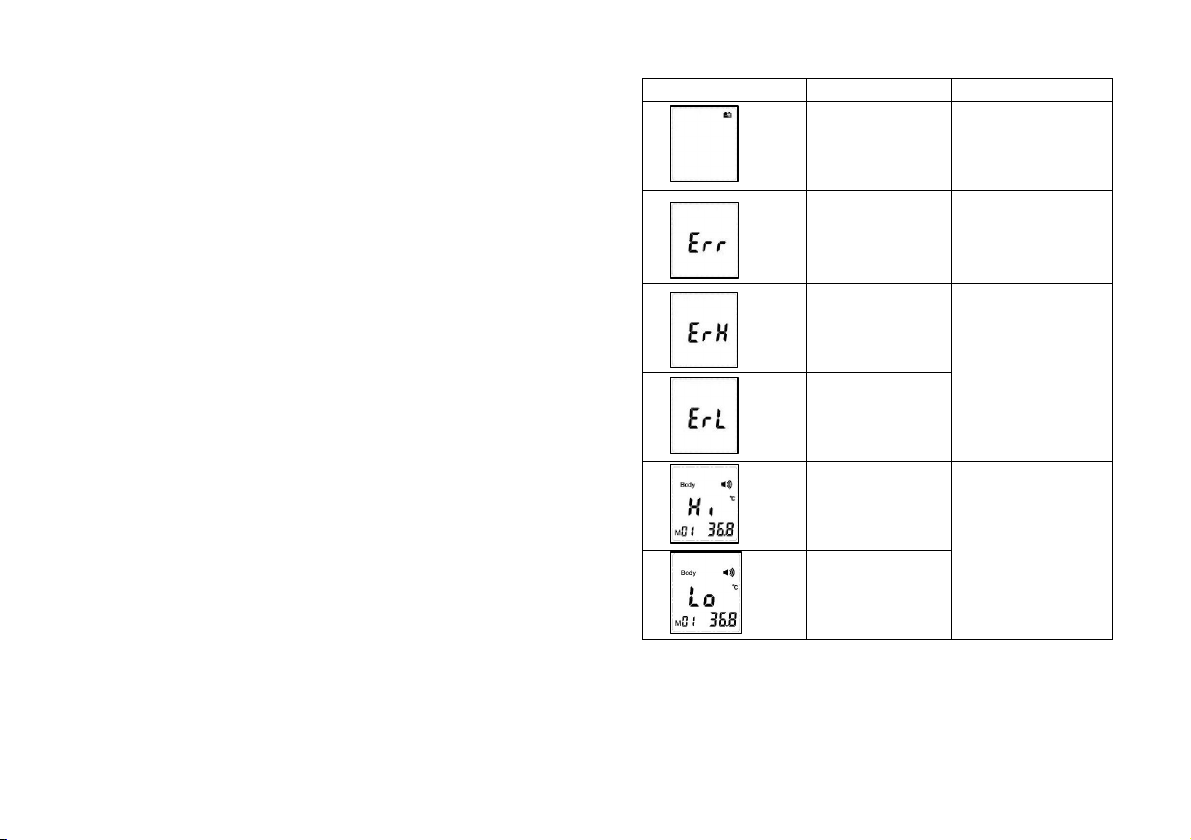

9. Troubleshooting.
Error symbol Cause Processing Method
Low battery
voltage
Exchange new
batteries
system fault Return the selling
point
Ambient
temperature too
high
Ambient
temperature too
low
Please follow user
manual user in the
Ambient
temperature.
Measuring
temperature too
high
Measuring
temperature too
low
Stop measuring
10. Care and Maintenance
● The protective glass over the lens is the most important and fragile part
of the thermometer, please take great care of it.
● Do not recharge non rechargeable batteries, do not throw in fire.
● Do not expose the thermometer to sunlight or water.
-13-
Cautions:
● After replaced the batteries or move the thermometer to a new place ,It
is suggested to lay the forehead thermometer aside at least 30 minutes
before using, so that you can measure temperature more accurately.
● If the measurement is made without an effective distance or an
deflection of the central position of the measured object, a deflection
from actual temperature may cause. It is suggested to repeat the
measurement once or more.
● While measuring, it is suggested to focus the detection window at the
forehead, and press the measurement button in front of the handle, scan
the forehead around, so that it can measure the highest and lowest
temperature of the forehead.
● It may affect the accuracy of measurements when the forehead is
covered by hair, perspiration, cap or scarf.
8.4.3 Selecting measuring body temperature or surface
temperature
Turn on the thermometer, press “SET” key to select body temperature
measurement mode or surface temperature measurement mode.
8.4.4 Data Memory
In measuring mode, press “+” or “-” key to view measurement result. “+”
key for page up, “-” key for page down. Press the “+” or “-” key and hold for
2 seconds, the result switches quickly.
-15-
●The Infrared Sensor is the most precise part, must be protected carefully.
● Clean and Disinfect the device with a cotton bud lightly moistened with
70％ alcohol.
● Do not clean the device with corrosive detergent.
● Keep the device in a dry environment, and keep it away from dust and
direct sunlight.
● The main unit is not waterproof. Be careful when handling this unit so
that no liquid (alcohol, water, or hot water) will get into the main unit.
● If the infrared sensor becomes dirty, lightly wipe it with a soft dry cloth.
● It is regular recommended to do the recalibration every two years to
ensure functioning correct.
WARNING: Do not modify this equipment without authorization
from manufacturer.
11. Quality promised and service
The guarantee time is two years after you buy the device.
Notice: If the device is broken by the non-formal used or disassemble by
you, the device can not be in the guarantee range.
Tips: Please keep the guarantee card and the buying receipt, which is very
useful when you need to amend it.
12. Attachment list
One set of Electronic Forehead Infrared Thermometer.
One set of user manual.
One set of the Warranty certificate.
2×1.5 AA Batteries(optional).
-16-
13. Safety classification of ME EQUIPMENT
Manufacturer Zhongshan JinLi Electronic Welghing Equipment
CO.,LTD.
283rd South Min’an Road, Xiaolan Town,
Zhongshan City，Guangdong, China
Contact Tel.:+86(760)22100980
Fax:+86(760)22108763
EU-representative
Wellkang Ltd
Suite B,29 Harley Street
LONDON,W1G 9QR,U.K.
www.CE-Marking.EU
Protection against
electric shock Internally powered ME equipment
Applied part Type B applied part, including the whole
forehead thermometer
Protection against
harmful ingress of
water or particulate
matter
IPX0
Mode of operation
Continuous operation
Note: Not intended to be sterilized.
Not for use in an OXYGEN RICH ENVIRONMENT
Table of contents
Other KINLEE Thermometer manuals
