Kinroad XT50QT-5 User manual

-1-

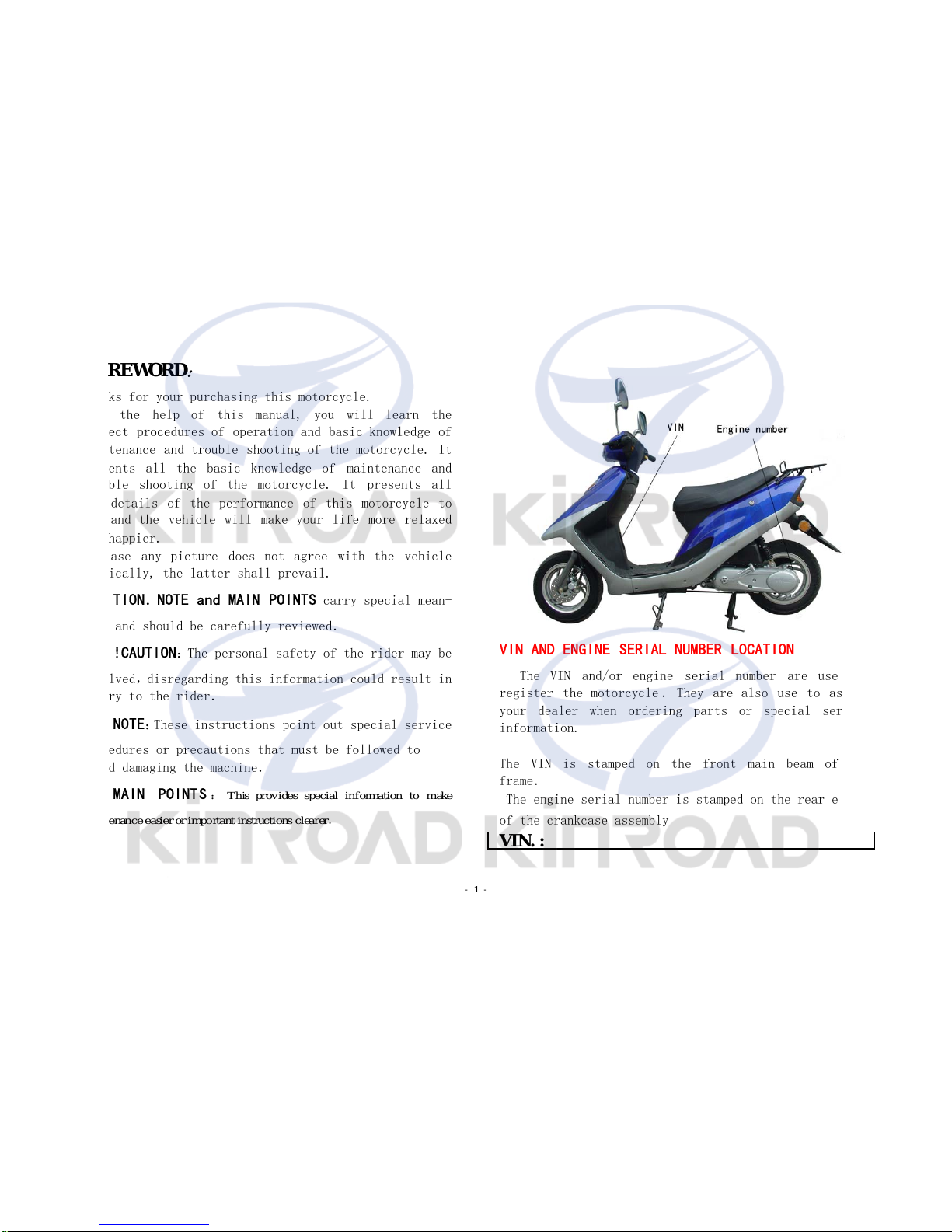

FOREWORD ：
Thanks for your purchasing this motorcycle.
With the help of this manual, you will learn the
correct procedures of operation and basic knowledge of
maintenance and trouble shooting of the motorcycle. It
presents all the basic knowledge of maintenance and
trouble shooting of the motorcycle. It presents all
the details of the performance of this motorcycle to
you and the vehicle will make your life more relaxed
and happier.
In case any picture does not agree with the vehicle
physically, the latter shall prevail.
CAUTION．NOTE and MAIN POINTS carry special mean-
ings and should be carefully reviewed．
!CAUTION：The personal safety of the rider may be
involved，disregarding this information could result in
injury to the rider．
NOTE：These instructions point out special service
procedures or precautions that must be followed to
avoid damaging the machine．
MAIN POINTS ：This provides special information to make
maintenance easier or important instructions clearer．
VIN AND ENGINE SERIAL NUMBER LOCATION
The VIN and/or engine serial number are used to
register the motorcycle ． They are also use to assist
your dealer when ordering parts or special service
information.
The VIN is stamped on the front main beam of the
frame．
The engine serial number is stamped on the rear end
of the crankcase assembly
VIN. :

-2-
Engine No.:
CONTENTS
NOTES FOR SAFE RIDING……………………………2
LOCATION OF PARTS…………………………… …4
INSTRUMENT PANEL…………………………… ……7
USING METHODS OF SWITCHES……… ……………8
USING METHODS OF TRUNK…………………………10
ADD GASOLINE AND ENGINE OIL……………………11
CORRECT DRIVING OPERATIONS……………………12
INSPECTION BEFORE RIDING………………………20
PERIODICAL INSPECTIONS…………………………23
SIMPLE MAINTENANCE METHODS …………… … 26
SPECIFICATIONS……………………………… … 30
ELECTRICAL DIAGRAM……………………… ……31
NOTESFORSAFERIDING
RIDING APPAREL
1.Loose，fancy clothing can be uncomfortable and unsafe
when riding your motorcycle ． Choose good quality
motorcycle riding apparel when riding your motorcycle．
2. most motorcycle accident fatalities are due to head
injuries. ALWAYS wear a helmet, a face shield or
goggles as well as boots, gloves and protective
clothing. so does the passenger on your motorcycle.
3. the exhaust system must be very hot while you are
riding, and even remains so after the engine operation
stops, so never touch any part of the hot exhaust

-3-
RULES FOR SAFE DRIVE
Check must be conducted before starting the engine
to prevent mishaps and damage to components.
Only the qualified person who has passed the drive
examination with a drive license is permitted to drive
the vehicle but not anybody else without a drive license.
Full preoccupation is required during drive, paying
attention to the following points to avoid any possible
hurt to you by other motorized vehicles:
Do not drive too close to other vehicles;
Never contend for lane.
Strictly observe the local traffic rules.
As driving at overspeed is the cause of many
accidents. Do not drive at a speed that the actual
situation does not permit.
Particular care should be exercised at the level
crossing of roads, entrance and exit of parking lot or
on the automobile lane.
During drive, grasp the left handlebar by the left
hand and the throttle twist grip by the right hand, with
feet on
the footrests.
MODIFICATION
any modification of the motorcycle or removal of the
original equipment may render the vehicle unsafe or
illegal
P1ease obey all the national and local equipment
regulations.
DO NOT OVERLOAD
1. Do not load on the places where they are not allowed．
2.Do not put cotton or other same items near the
engine or the exhaust pipe, When the motorcycle is in
the over-loading condition, its stability, security and
speed
will
be
affect
ed.

-4-

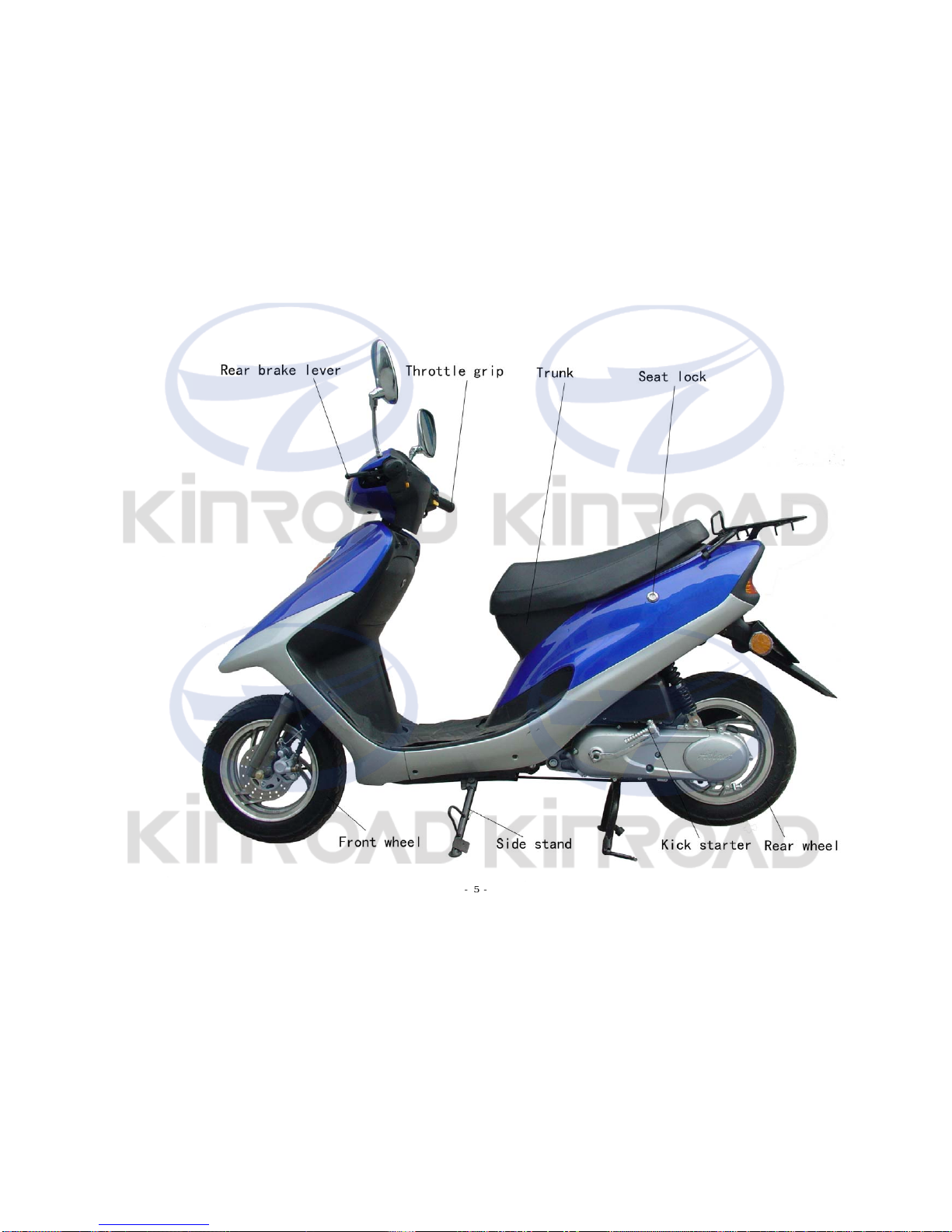

LOCATION OF PARTS

-5-

-6-
1.Ignition switch/stolen-prevention lock
2.Electric starter switch
3.Lamp switch
4.Handlebar
5.Front brake lever
6.Right mirror
7.Fuel level indicator
8.The turn signals

-7-
9.speedometer
lO.Left mirror
11.Switch to change the far and near light
12.Rear brake lever
13.Turn signals switch
l4.Horn button

-8-
INSTRUMENTPANEL
HOW TO USE THE INSTRUMENT PANEL
①SPEEDOMETER
The speedometer indicates the road speed in
kilometers per hour.
②ODOMETER
The odometer registers the total distance that the
motorcycle has been run (The minimum number is
O．1km)You should change the engine oil and check the
motorcycle periodically according to it．
③FUEL GAUGE
The‘‘E’’mark indicates the fuel tank is empty or
nearly so．
MAIN POINTS
1. The indicator will stop at E position when
the ignition switch is turned to OFF
position.
2. place the motorcycle on the center stand to
read the number of the left fuel.
④THE TURN SIGNALS
Turn the switch to“LEFT”or“RIGHT”position，the
turn signal will flash to advise the driver．
⑤THE FAR LIGHT INDICATOR
The indicator will be lit when the change light
switch turned to FAR LIGHT position．
⑥THE ENGINE OIL WARNING INDICATOR
The indicator will be lit when the engine oil
level is below the limit line on the engine oil tank

-9-

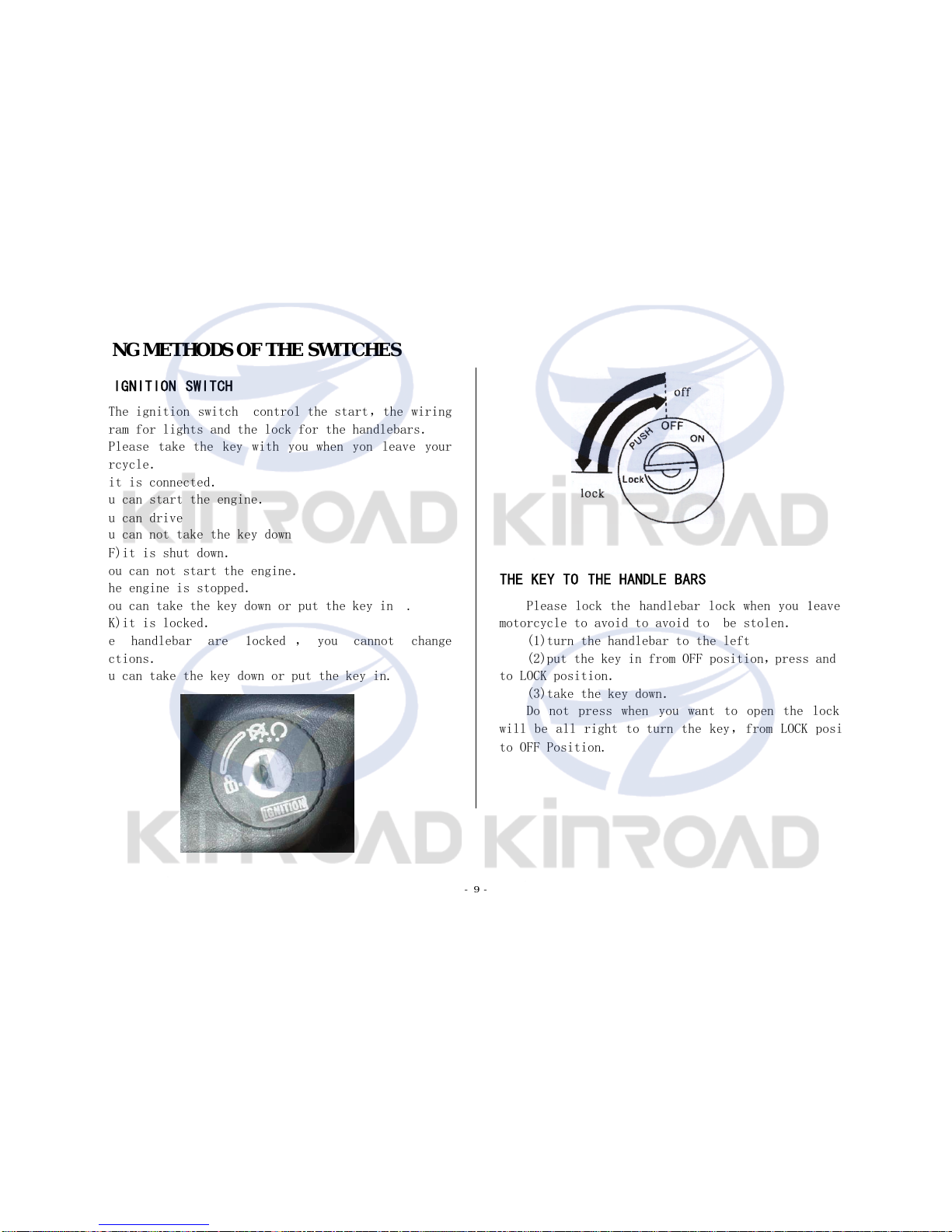

USING METHODS OF THE SWITCHES
THE IGNITION SWITCH
The ignition switch control the start，the wiring
diagram for lights and the lock for the handlebars．
Please take the key with you when yon leave your
motorcycle．
(ON)it is connected．
1.You can start the engine．
2.You can drive
3.You can not take the key down
(OFF)it is shut down．
1·You can not start the engine．
2·The engine is stopped．
3·You can take the key down or put the key in .
(LOCK)it is locked．
1.The handlebar are 1ocked ， you cannot change
directions．
2.You can take the key down or put the key in.
THE KEY TO THE HANDLE BARS
Please lock the handlebar lock when you 1eave the
motorcycle to avoid to avoid to be stolen．
(1)turn the handlebar to the left
(2)put the key in from OFF position，press and turn
to LOCK position．
(3)take the key down．
Do not press when you want to open the lock, it
will be all right to turn the key，from LOCK position
to OFF Position.

-10-
MAIN POINTS
1.If it is hard to lock，you can turn the handlebar
to the right a little and then lock it.
2.Shake the handlebars left and right to be sure
that it has been locked.
THE TURN SIGNALS
Use the turn signals when you want to turn to the
1eft or the right．
R：the right turn signal will flash．
L：the left turn signal will flash．
MIDDLE：the turn signal will not flash．
After you have finished， please turn off the turn
signals．
THE HORN BUTTON
Press the horn button，the horn will loud.
MAIN POINTS
Do not use the horn if un- necessary.
THE CHANGEABLE SWITCH FOR
THE FRONT LIGHT
Use this switch，you can change the light direction
of the front lamp．
HI：the high beam
LO：the low beam
MAIN POINTS
When there are cars before you or coming towards
you in the night, please use the LO switch．
THE START SWITCH
This Switch is to start the engine
Turn the switch to ON position and squeeze the
brake lever ． meanwhile press the starting button and
the engine will be started．
NOTE
If the engine call not be started in 3 seconds,
please use the kick starter to stare the engine to
avoid emptying the battery. Then check the starting
system.
THE FRONT LAMP SWITCH

-11-
Light switch
The front light switch has three positions,
And “●”(a white point).
When the switch is in this position, the
front head light ,tail and meter lights are
all lit up.
When the switch is in this position,the tail,
betraying and meter Lights are lit up.
“ ● ”When it is in this position. The front
illuminator, tail, betraying and meter lights are all
off.
OPEN THE TRUNK
Open the seat when you want use the trunk or put
the helmet in it.
1.put the ignition key in the lock of the seat and
turn to the right.
2.Hold the seat from the back up and open the seat.
3.Press the seat and the lock will be closed auto-
matically.
MAIN POINTS
After the engine is started by pressing the
ignition switch, you can inspect the wiring diagram
for the lights.
USING METHODS OFTHE TRUNK
NOTE
1.Hold the seat up slightly to see if the lock is
closed.
2.If you press the seat when the ignition key in
the trunk, you can not take the key out, so please pay
much attention to this.
3.Do not keep such items as cotton on any place
under the seat except the trunk.

-12-
MAIN POINTS
1.The trunk load capacity is 10kg．
2.Do not keep heat- Sensitive item in trunk when
the trunk may get hot．
3.Do not keep valuable and easily damaged items in
the trunk．
4.Keep the easily—flown items first in the
plastic bag then put them in the trunk.
5.Do not allow water to get inside when the
washing the motorcycle．
6.Do not clean the trunk with water.
ADDGASOLINEANDENGINEOIL
ADD GASOLINE
There is a gasoline tank gate at the rear part of
the seat，open it with the ignition key , take down the
cover．add unleaded gasoline with an octane rating of
90 or higher.
ENGINE OIL
Please use special 2-stroke engine oil ,it can
ensure your engine give the best performance and
decrease carbon accumulated and ensure the great
lubricating effect ． Do not need to use other
additives．Yon can use the FC class engine oil instead
according to the condition of our marketing service．
! CAUTION
for the structure and work principle are difference
between 2T and 4T engine, do not use the 4-stroke
engine oil with your engine
add the engine oil open
the seat cushion, remove
the cover of engine oil
tank,
add the engine oil and screw up
the engine oil tank cover,
put down the seat cushion and
lock.
CHANGE GEAR OIL
Change the gear oil after the first 300km and every
5000km successively or every half a year, whichever
comes first. check the capacity every 500km.pls use
SAE80W90 gear oil.
The volume of the gear oil
Full volume．O.11L

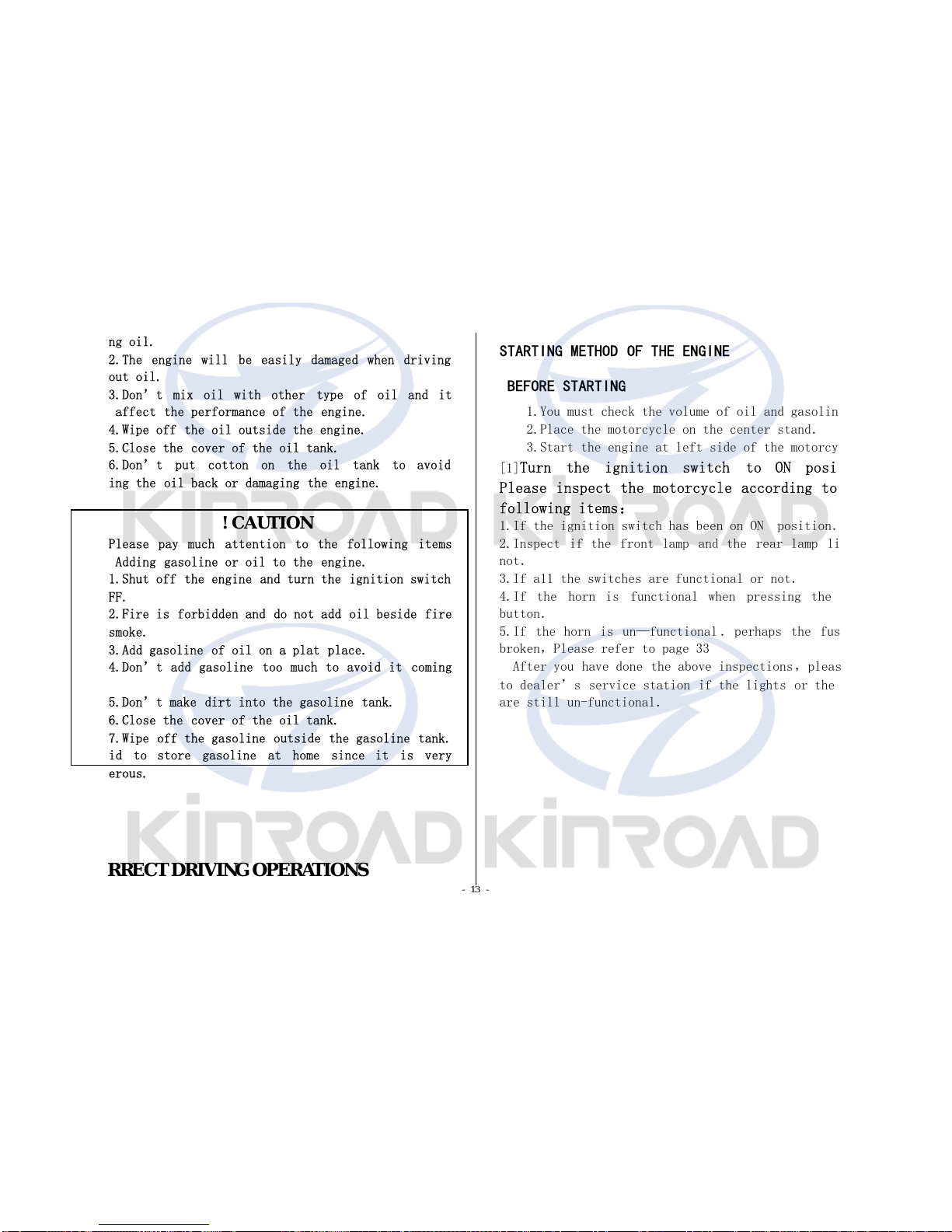

NOTE 1. Don’t fill oil prior to the FULL level when

-13-
adding oil.
2.The engine will be easily damaged when driving
without oil.
3.Don’t mix oil with other type of oil and it
will affect the performance of the engine.
4.Wipe off the oil outside the engine.
5.Close the cover of the oil tank.
6.Don’t put cotton on the oil tank to avoid
keeping the oil back or damaging the engine.
! CAUTION
Please pay much attention to the following items
when Adding gasoline or oil to the engine.
1.Shut off the engine and turn the ignition switch
to OFF.
2.Fire is forbidden and do not add oil beside fire
and smoke.
3.Add gasoline of oil on a plat place.
4.Don’t add gasoline too much to avoid it coming
out.
5.Don’t make dirt into the gasoline tank.
6.Close the cover of the oil tank.
7.Wipe off the gasoline outside the gasoline tank.
Forbid to store gasoline at home since it is very
dangerous.
CORRECT DRIVING OPERATIONS
STARTING METHOD OF THE ENGINE
BEFORE STARTING
1.You must check the volume of oil and gasoline.
2.Place the motorcycle on the center stand．
3.Start the engine at left side of the motorcycle．
[1]Turn the ignition switch to ON position
Please inspect the motorcycle according to the
following items：
1.If the ignition switch has been on ON position．
2.Inspect if the front lamp and the rear lamp lit or
not．
3.If a11 the switches are functional or not．
4.If the horn is functional when pressing the horn
button．
5.If the horn is un—functional ．perhaps the fuse is
broken，Please refer to page 33
After you have done the above inspections，please go
to dealer’s service station if the lights or the horn
are still un-functional．

-14-
[2]Hold the front and rear levers MAIN POINTS
The electric start will be un-functional if the
brake levers are not squeezed．
[3]Don’t rotate the throttle handlebar when
pressing the start button ．

-15-
MAIN POINTS
1.After the engine is ignited，please release the
start button to avoid affecting the engine．
2.To avoid empty the battery ，please use the kick
starter to start the engine after 3 seconds by the
electric start or and then check the starting system.
3.Please rotate the throttle handlebar 1/8-
1/4round and then start the engine again if you can
not ignite the engine 2 or 3 times. Return the
throttle handlebar after ignition.

-16-
[4] Preheat the engine while it is cool.
！CAUTION
Don’t preheat the engine in a close room because
of the noxious gas such as co in the waste gas.
MAIN POINTS
1.If the engine is cool ， warm it after it is
started.
2．The engine will be difficultly started when the
fuel runs out and added again or it has been stored
for a long time . At this time do not rotate the
throttle bar and start the engine for several
times． (recommend starting by the kick starter)．After
the gasoline is burnt ， water will be producted and
leave in the exhaust pipe．so in the cold areas，note
the problem of water becoming ice．
When the battery is out and can not start by the electric
starter
First confirm the following items then start again.
[1]Turn the ignition switch to ON position.
[2]Hold the rear brake lever with the left hand and
press the front part of the seat with the right hand.
[3]Kick the kick starter with the right foot.

-17-

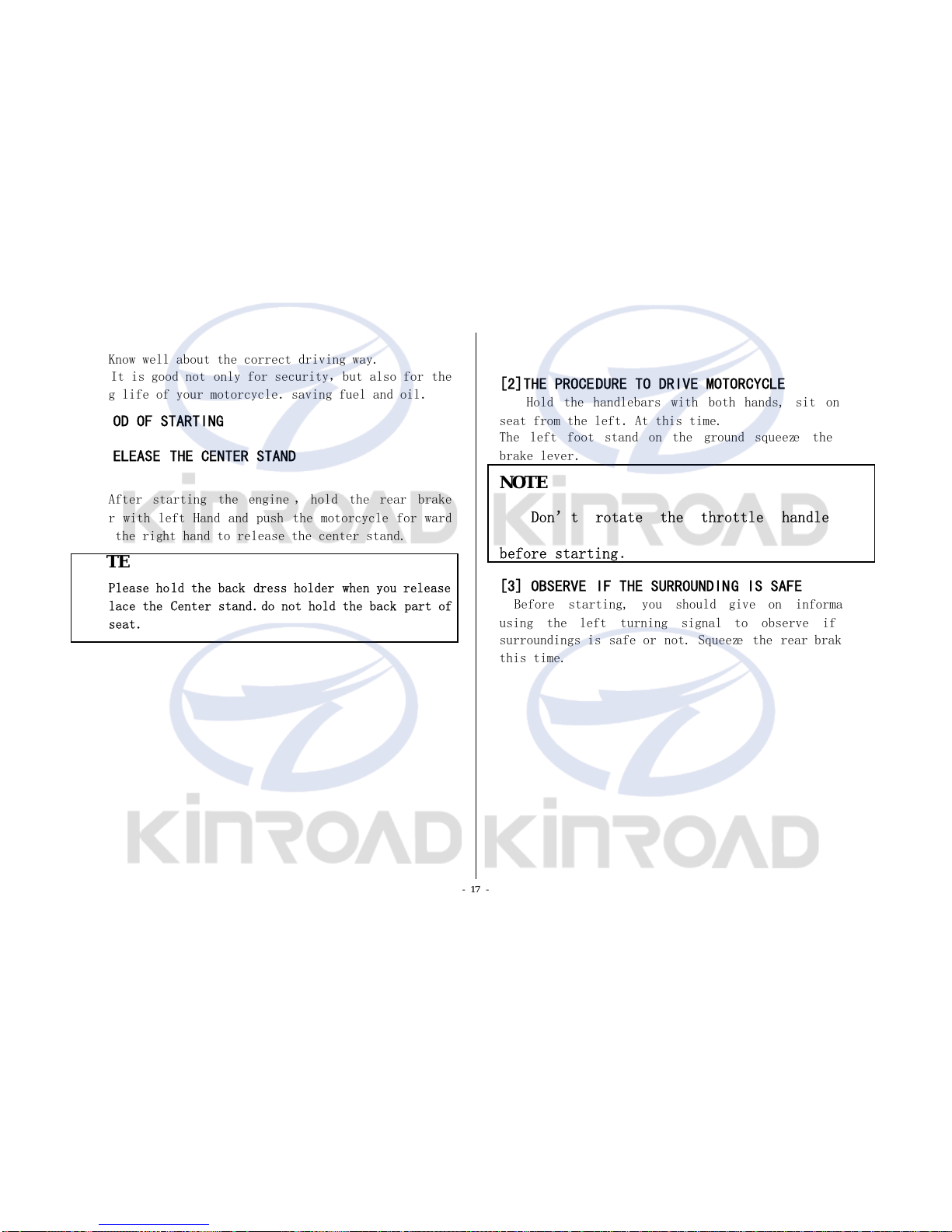

Know well about the correct driving way.
It is good not only for security，but also for the
using life of your motorcycle．saving fuel and oil．
METHOD OF STARTING
[l]RELEASE THE CENTER STAND
After starting the engine ， hold the rear brake
lever with left Hand and push the motorcycle for ward
with the right hand to release the center stand.
NOTE
Please hold the back dress holder when you release
or place the Center stand．do not hold the back part of
the seat．
[2]THE PROCEDURE TO DRIVE MOTORCYCLE
Hold the handlebars with both hands, sit on the
seat from the left．At this time.
The left foot stand on the ground squeeze the rear
brake lever．
NOTE
Don’t rotate the throttle handle bar
before starting．
[3] OBSERVE IF THE SURROUNDING IS SAFE
Before starting, you should give on information
using the left turning signal to observe if the
surroundings is safe or not. Squeeze the rear brake at
this time.

-18-

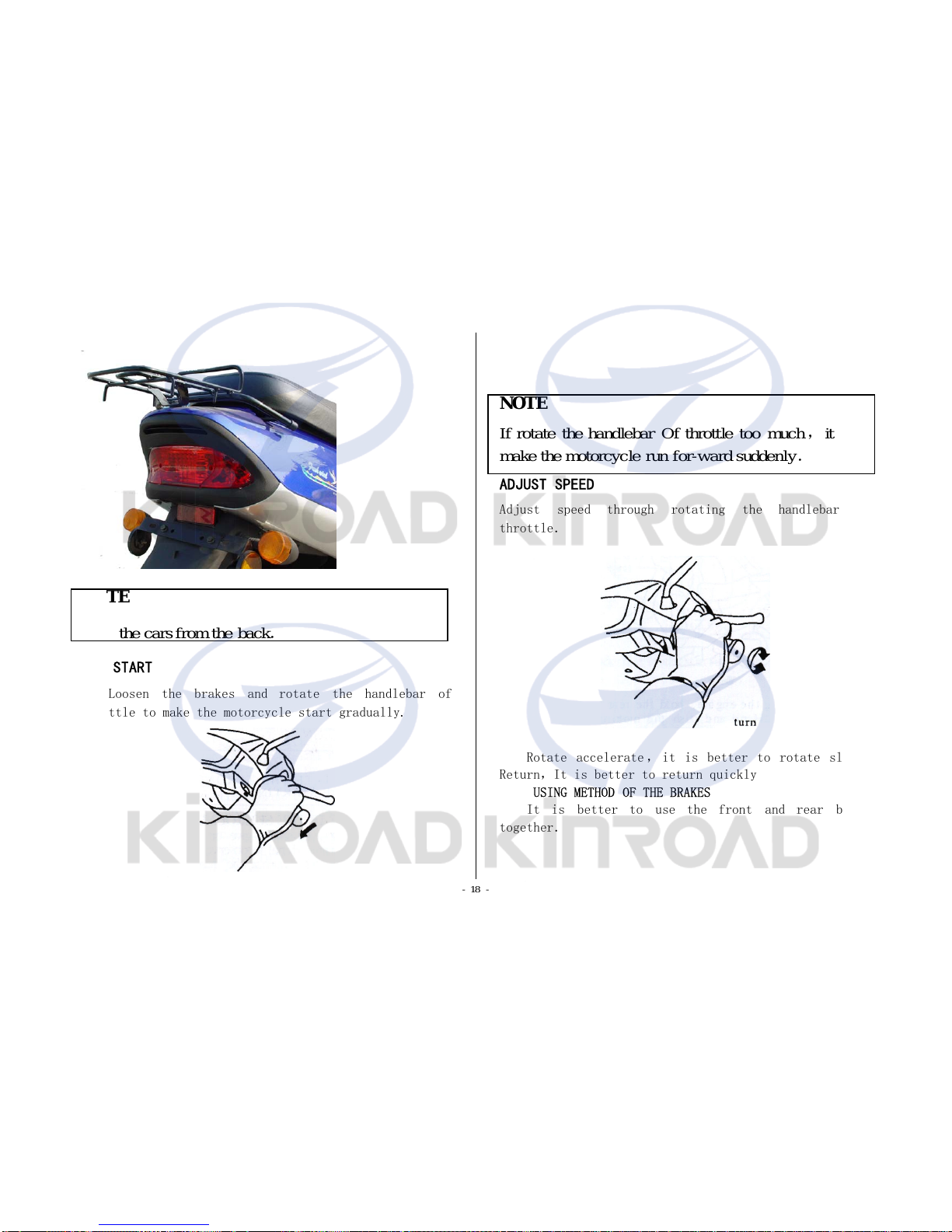

NOTE
Note the carsfrom the back．
[4] START
Loosen the brakes and rotate the handlebar of
throttle to make the motorcycle start gradually.
NOTE
If rotate the handlebar Of throttle too much ，it may
make the motorcycle run for-ward suddenly．
ADJUST SPEED
Adjust speed through rotating the handlebar of
throttle．
Rotate accelerate ， it is better to rotate slowly
Return，It is better to return quickly
USING METHOD OF THE BRAKES
It is better to use the front and rear brake
together．

-19-
1.Squeeze the brake levers after quick returning
the throttle bar.
2.Gradually shut the motorcycle and make the speed
low is the most proper way to use the brakes．
NOTE
It is very dangerous if use only the front brake
or the rear brake．It may make the motorcycle slip．
DON’T BRAKE OR TURN SUDDENLY
It is extremely dangerous to brake or turn in a
sudden, it may make the motorcycle slip or turn over
BE EXTRA SAFETY CONSCIOUS ON BAD WEATHER DAYS
Riding on bad weather days ， especially wet ones
requires extra Caution ． Braking distance double on a
rainy day ． Stay off of the painted surface marks ，
manhole covers and greasy appearing areas as they can
be especially slippery ． Use extreme Caution at
railway crossings and on metal gratings and bridges.
Whenever in doubt about road conditions，slow down!
PAY ATTENTION TO WORKING CONDITION OF
THE BRAKES AFTER WASHING OR DRIVING IN
WATER
The function Of the brake will be affected after
washing or driving in water ． Drive slowly until the
brake become normal．
CORRECT WAY TO PARK THE MOTORCYCLE
[1]give signals
First use the turn signals to inform others and
then drive to the sides of the road．

-20-

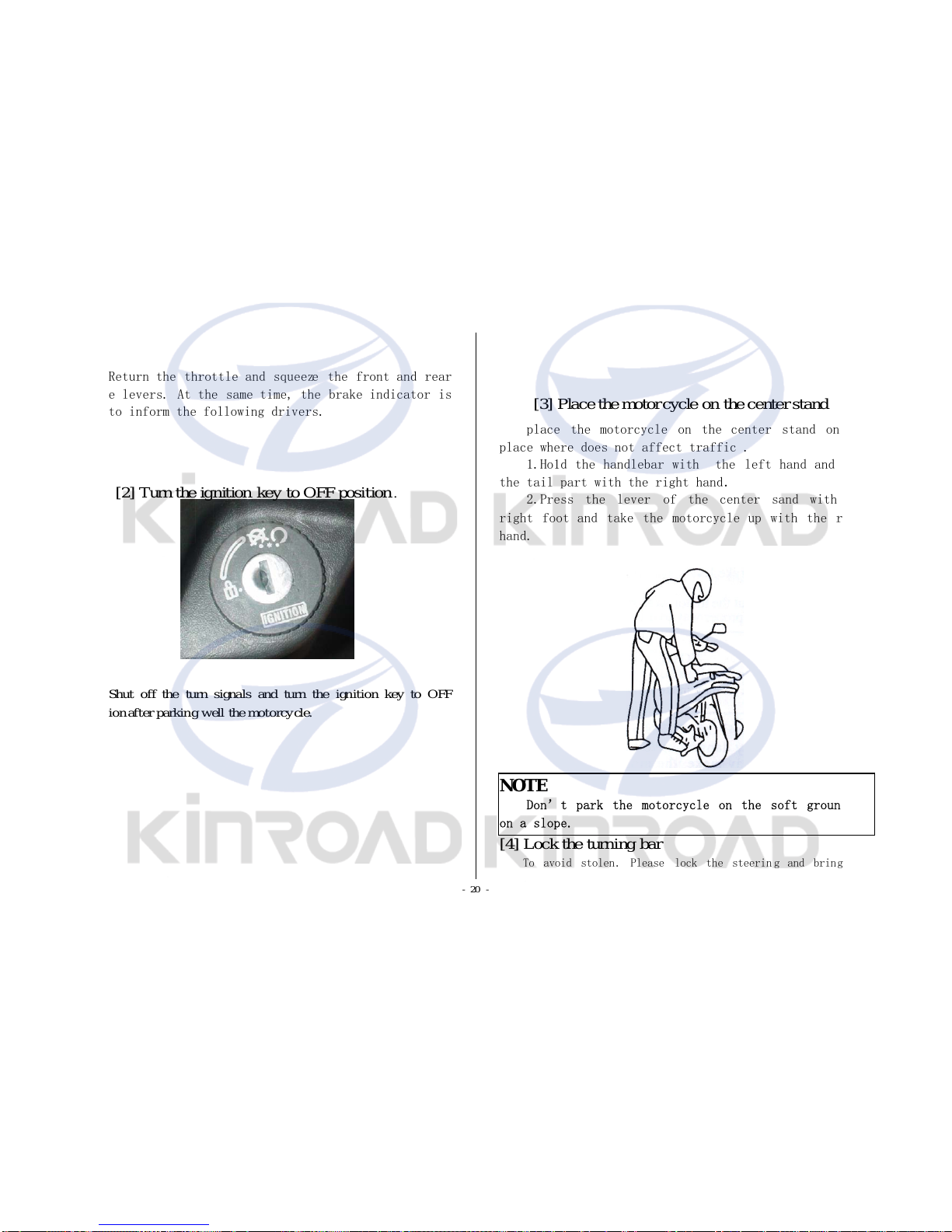

Return the throttle and squeeze the front and rear
brake levers. At the same time, the brake indicator is
lit to inform the following drivers.
[2] Turn the ignition key to OFF position .
Shut off the turn signals and turn the ignition key to OFF
position after parking well the motorcycle.
[3] Place the motorcycle on the center stand
place the motorcycle on the center stand on the
place where does not affect traffic .
1.Ho1d the handlebar with the left hand and hold
the tail part with the right hand．
2.Press the lever of the center sand with the
right foot and take the motorcycle up with the right
hand.
NOTE
Don’t park the motorcycle on the soft ground or
on a slope.
[4] Lock the turning bar
To avoid stolen. Please lock the steerin g and bring the
