Kipor Sinemaster IG2600h User manual

SINEMASTER
DIGITAL INVERTER GENERATOR
IG2600
IG2600h
WUXI KIPOR POWER CO., LTD.

12. SKETCH MAP
IG2600h
IG2600h movement state IG2600h placed state
PREFACE
Thank you for purchasing our generators.
This manual covers operation and maintenance of the IG2600, IG2600h
generator.
All information in this publication is based on the latest product information
available at the time of approval for printing.
We reserve the right to make changes at any time without notice and without
incurring any obligation.
No part of this publication may be reproduced without written permission.
This manual should be considered a permanent part of the generator and should
remain with it if it is resold.
Pay special attention to statements preceded by the following words;
Failure to properly follow these precautions can result in
property damage, serious injury or DEATH!
Read all labels and the owner's manual before operating
this generator.
Operate only in well ventilated areas. Exhaust gas
contains poisonous carbon monoxide, and can be deadly.
Always stop engine before refueling. Wait 5 minutes
before restarting.
Check for spilled fuel or leaks. Clean and/or repair before
use.
Keep any sources of ignition away from fuel tank, at all
times.
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
Indicates a possibility of personal injury or equipment
damage if instructions are not followed.
NOTE: Gives helpful information.
If a problem should arise, or if you have any questions about the generator,
consult an authorized dealer.
Our generators are designed to give safe and dependable
service if operated according to instructions. Read and
understand the Owner's Manual before operating the gen-
erator. Failure to do so could result in personal injury or
equipment damage.
The illustration may vary according to the type.
WARNING
CAUTION
WARNING
WARNING

11. SPECIFICATIONS
DC output
DC voltage
Electric circuit breaker
No. of Phase
12V-8.3A
Available
Single phase
Model IG2600/IG2600h
Rated frequency (Hz)
Rated voltage (V)
Rated current (A)
Rated speed (rpm)
Rated output (kVA)
Max output (kVA)
50
230
10
3600
2.3
2.6
60
240
9.6
Engine
Model Type KG171
Type
Displacement (Bore Stroke)
Compression ratio
Rated power (kW)
Rated rotation speed (rpm)
Ignition system
Spark plug
Starting system
Fuel
Fuel consumption (g /kW.h)
Lube oil
Single cylinder, 4 stroke, vertical, air-cooled, OHV, gasoline engine
171ml (66 55mm)
8.5:1
3.5/3600
3600
T. C. I
R6-388
Recoil starter
Automotive unleaded gasoline
450
SAE 10W30 (above CC grade)
Fuel tank capacity (L)
Continuous running time (hr) (at rated output)
Noise level(zero load~ full load) [dB(A)/7m]
Overall dimension (L W H) [mm(in)]
4.8
2.5
58-63 *
Dry weight [kg(lbs)] IG2600: 26 (57.2) IG2600h: 27.5 (60.5)
IG2600: 564 317 453(22.20 12.48 17.83)
IG2600h: 590 330 480 (23.23 12.99 18.90)
60
120
19.5
CONTENTS
1. Safety Instructions
2. Safety Label Locations
3. Component Indentificaction
4. Pre-operation Check
5. Starting the Engine
High altitude operation
6. Generator Use
7. Stopping the Engine
8. Maintenance
9. Transporting/Storage
10. Troubleshooting
11. Specifications
12. Sketch Map
1
3
4
7
10
12
13
21
23
29
31
33
34
*: The declared values shall consider uncertainties due to production variation and
measurement procedures.

Is the overload
indicator light ON?
Appliance does not operate:
Is the output indicator light ON?
NO
NO
YES
YES
YES
NO
Take the generator to an
authorized dealer.
Take the generator to an
authorized dealer.
Check the electrical appli-
ance or equipment for any
defects.
Replace the electrical
appliance or equipment
Take the electrical appli-
ance or equipment to an
electrical shop for repair
Push the reset button.
YES
No electricity at the DC receptacle:
Is DC circuit breaker tripped?
Take the generator to an
authorized dealer.
NO
1. SAFETY INSTRUCTIONS
WARNING
WARNING
WARNING
Exhaust gas contains poisonous carbon monoxide.
Never run the generator in an enclosed area.
The muffler becomes very hot during operation and
remains hot for a while after stopping the engine.
Be careful not to touch the muffler while it is hot.
Let the engine cool before storing the generator indoors.
The engine exhaust system will be heated during op-
eration and remain hot immediately after stopping the
engine.
To prevent scalding, pay attention to the warning marks
attached to the generator.
Our generators are designed to give safe anddepend-
able service if operated according to instructions.
Read and understand the Owner's Manual before op-
erating the generator. Failure to do so could result in
personal injury or equipment damage.
Be sure to provide adequate ventilation.
When installed in ventilated protection are to be
observed.

To ensure safe operation--
WARNING
WARNING
WARNING
Gasoline is extremely flammable and explosive under
certain conditions. Refuel in a well ventilated area with
the engine stopped.
Keep away from cigarette, smoke and sparks when re-
fueling the generator. Always refuel in a well-ventilated
location.
Wipe up spilled gasoline at once.
Connections for standby power to a building's electrical
system must be made by a qualified electrician and must
comply with all applicable laws and electrical codes. Im-
proper connections can allow electrical current from the
generator to back feed into the utility lines. Such back
feed may electrocute utility company workers or others
who contact the lines during a power outage, and when
utility power is restored, the generator may explode,burn
or cause fires in the building's electrical system.
Always make a pre-operation inspection before you
start the engine. You may prevent an accident or
equipment damage.
Place the generator at least 1m(3ft) away from build-
ings or other equipment during operation.
Operate the generator on a level surface.
If the generator is tiled, fuel spillage may result.
Know how to stop the generator quickly and understand
operation of all the controls.Never permit anyone to op-
erate the generator without proper instructions.
Keep children and pets away from the generator when
it is in operation.
Keep away from rotating parts while the generator is
running.
The generator is a potential source of electrical shocks
when misused; do not operate with wet hands.
Do not operate the generator in rain or snow and do not
let it get wet.
10.TROUBLESHOOTING
When the engine will not start:
Is there fuel in the tank?
Is the engine switch on?
YES
YES
YES
Is there enough oil in the engine?
Is there a spark from
the spark plug?
NO
NO
NO
NO Refill the fuel tank.
Turn the engine switch on.
Add the recommended oil.
Still no
spark
Replace the
spark plug.
Take the generator to an
authorized dealer.
WARNING
If the engine still does not
start, take the generator to
an authorized dealer.
Be sure there is no spilled
fuel around the spark pulg.
Spilled fuel may ignite.
To check:
1)Remove the spark plug cap and clean
any dirt from around the spark plug.
2)Remove the spark plug and install the
spark plug in the plug cap.
3)Set the plug side electrode on the cylin-
der head to ground.
4)Pull the recoil starter, sparks should jump
across the gap.

Oil level
Choke lever
Engine switch
Model
Hot caution
Drain Screw
Starter Grip
2. SAFETY LABEL LOCATIONS
These lables warn you of potential hazards that can cause serious injury. Read
the labels and safety notes and precautions described in this manual carefully.
If a label comes off or becomes hard to read, contact you dealer for a replace -
ment.
a. Drain all gasoline from the fuel tank into an approved gasoline container.
b. Turn the engine switch ON, and loosen the carburetor drain screw and drain the
gasoline from the carburetor into a suitable container.
c. With the drain screw loosened remove the spark plug cap, and pull the starter grip
3 to 4 times to drain the gasoline from the fuel pump.
d. Turn the engine switch to the OFF position, and tighten the drain screw securely.
5.Slowly pull the starter grip until resistance is felt. At this point, the piston is coming
3. Change the engine oil.
4. Remove the spark plug and pour about a tablespoon of clean engine oil into the
cylinder.
Crank the engine several revolutions to distribute the oil, then reinstall the spark
plug.
up on its compression stroke and both the intake and exhaust valves are closed.
Storing the engine in this position will help to protect it from internal corrosion.
Safety caution

Chock Lever Fuel Cap Lever
Fuel Filler Cap
Left Side
Maintenance
Cover
Starter Grip
Engine Switch
Control Panel
Spark Plug
Maintenance Cover
Muffler
9.TRANSPORTING/STORAGE
To prevent fuel spillage when transporting or during temporary storage, the genera-
tor should be secured upright in its normal operating position, with the engine swith
OFF. Turn the cap lever fully counterclockwise to the "OFF" position.
WARNING
WARNING
Gasoline is extremely flammable and explosive under
certain conditions.
Do not smoke or allow flames or sparks in the area.
3.COMPONENT IDENTIFICATION
When transporting the generator:
Do not overfill the tank (there should be no fuel in the
filler neck).
Do not operate the generator while it is on a vehicle.
Take the generator off the vehicle and use it in a well
ventilated place.
Avoid a place exposed to direct sunlight when putting
the generator on a vehicle. if the generator is left in an
enclosed vehicle for many hours, high temperature in-
side the vehicle could cause fuel to vaporize resulting in
a possible explosion.
Do not drive on a rough road for an extended period
with the generator on board, if you must transport the
generator on a rough road, drain the fuel from the gen-
erator beforehand.
Before storing the unit for an extended period:
1. Be sure the storage area is free of excessive humidity and dust.
2.Drain out the fuel completely.
Air exhauat hole
Air intake hole

5mm Screw
Muffler Protector
6mm Bolts
Muffler Gasket
Smart Throttle Switch
DC Receptacle
DC Circuit
Protector
AC Receptacle
Output Indicator Light
Overload Indicator
Light
Ground Terminal
Low Oil Alarm
Indicator Light
AC Receptacle AC Receptacle AC Receptacle
H Type (230V) AType (240V) AType (120V)
Control panel
WARNING
4.SPARK ARRESTER MAINTENANCE(Equipped type only)
If the generator has been running, the muffler will be
very hot. Allow it to cool before proceeding.
1.Remove the four 5mm screws, and remove the muffler protector.
2.Remove the four 6mm bolts, and remove the muffler, and the muffler gasket.
3.Check the muffler gasket replace if damaged. Reinstall the muffler gasket, the
muffler and the muffler protector in the reverse order of removal.

0.6-0.7mm
(0.024-0.028in)
Smart Throttle Switch
ON OFF
Never use a spark plug without damping resistance, or
it will cause no AC output.
5.Visually inspect the spark plug. Discard it if the insulator is cracked or chipped.
Clean the spark plug with a wire brush if it is to be reused.
6.Measure the plug gap with a feeler gauge.
The gap should be 0.6-0.7 mm (0.024-0.028in). Correct as necessary by carefully
bending the side electrode.
7.Install the spark plug carefully, by hand, to avoid cross-threading.
8.After a new spark plug has been seated by hand, it should be tightened 1/2 turn
with a wrench to compress its washer.
If a used plug is being reinstalled, it should only require 1 / 8 to 1/4 turn after being
seated.
9.Reinstall the spark plug cap on the spark plug securely.
10.Reinstall the spark plug maintenance cover.
CAUTION
The spark plug must be securely tightened.An improp-
erly tightened plug can become very hot and possibly
damage the generator.
Never use a spark plug with an improper heat range.
SMART throttle
Engine speed is kept at idle automatically when the electrical appliance is discon-
consumption while in operation.
trical appliance is connected. This position is recommended to minimize the fuel
nected and it returns to the proper speed to power of the electrical load when elec-
NOTE
OFF:
Note:Smart throttle system does not operate. Engine speed is kept over rated speed.
Smart throttle system does not operate effectively if the
electrical appliance requires the momentary electric power.
When high electrical loads are connected simultaneously,
turn the smart throttle switch to the OFF position to re-
duce voltage changes.
In DC operation, turn the smart throttle switch to the OFF
position

Spark Plug Maintenance Cover
Handle Bar
Plug Wrench
Spark Plug
-20- -10 0 10 20 30 40
0 20 40 60 80 100 F
Ambient Temperature
RECOMMENTED SPARK PLUG: R6-388 4.PRE-OPERATION CHECK
CAUTION
1. Check the engine oil level.
CAUTION
Be sure to check the generator on a level surface with
the engine stopped.
Using nondetergent oil or 2-stroke engine oil could shorten
the engine's service life.
Use high-detergent, premium quality 4-stroke engine oil, certified to meet or exceed
U.S.automobile manufacturer's requirements for API Service Classification SG, SF.
Select the appropriate viscosity for the average temperature in your area.
SAE Viscosity Grades
Loosen the cover screw and remove the left side maintenance cover. Remove the
oil filler cap, and wipe the dipstick with a clean rag. Check the oil level by inserting
the dipstick in the filler hole without screwing it in.
If the oil level is below the end of the dipstick, refill the recommended oil up to the top
of the oil filler neck.
NOTE
Running the engine with insufficient oil can cause serious
engine damage.
3.SPARK PLUG SERVICE
To ensure proper engine operation, the spark plug must be properly gapped and
free of deposits.
1.Remove the spark plug maintenance cover.
2.Remove the spark plug cap.
3.Clean any dirt from around the spark plug base.
4.Use the wrench to remove the spark plug.

Oil Filler Cap Upper Lever
Oil Filler Hole
Left Side
Maintenance
Cover
Cover
Screw
Element
Cover Screw
Air Cleaner Element
Lower Tab
Air Cleaner Cover
Air
Cleaner
Body
The Low Oil Alarm System will automatically stop the engine before the oil level
Wash your hands with soap and water after handling used oil.
WARNING
NOTE
2.AIR CLEANER SERVICE
1.Loosen the cover screw and remove the left side maintenance cover.
2.Loosen the screw of the air cleaner, and remove the air cleaner cover.
4.Soak the element in clean engine oil and squeeze out the excess oil.
5.Reinstall the air cleaner element and the cover.
6.Tighten the cover screw securely.
7.Reinstall the left side maintenance cover and tighten the cover screw securely.
3.Wash the element in a non-flammable or high flash point solvent and dry it thoroughly.
falls below the safe limit. However, to avoid the inconvenience of an unexpected
shutdown, it is still advisable to visually inspect the oil level regularly.
WARNING
2.Check the fuel level
Use automotive gasoline (Unleaded or lowleaded is preferred to minimize combus-
tion chamber deposits).
If the fuel level is low, refuel the fuel tank until the level as specified.
Never use an oil/gasoline mixture or dirty gasoline.
Avoid getting dirt, dust or water in the fuel tank.
After refueling, tighten the fuel filler cap securely.
Gasoline is extremely flammable and is explosive under
certain conditions.
Refuel in a well-ventilated area with the engine stopped
the engine is refueled or where gasoline is stored.
the upper limit mark). After refueling, make sure the tank
cap is closed properly and securely.
Be careful not to spill fuel when refueling. Spilled fuel or
area is dry before starting the engine.
Avoid repeated or prolonged contact with skin or breath-
ing of vapor. KEEP OUT OF REACH OF CHILDREN.
Do not smoke or alow flames or sparks in the area where
Do not overfill the fuel tank (there should be no fuel above
fuel vapor may ignite, If any fuel is spilled, make sure the
Note:Note:
Please dispose of used motor oil in a manner that is
compatible with the environment. We suggest you take
it in a sealed container to your local service station for
reclamation. Do not throw it in the trash or pour it on the
ground.
Do not use gasoline or low flash point solvents for
cleaning. They are flammable and explosive under cer-
tain conditions.
A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor
malfunction, service the air cleaner regularly. Service more frequently when operat-
ing the generator in extremely dusty areas.

Left Side
Maintenance
Cover
Cover
Screw
Oil Filler Cap Upper Level
Oil Filler Cap
Left Side
Maintenance
Cover
Cover
Screw
Air Cleaner Element
Lower Tab
Air Cleaner Cover
Air
Cleaner
Body
Fuel Filler Cap
OPEN
Upper Limit Mark
3.Check the air cleaner.
CAUTION
CAUTION
Turn the fuel cap lever to "OFF" position before transporting.
1.CHANGING OIL
Drain the oil while the engine is still warm to assure rapid and complete draining.
Engine oil capacity: 0.6L
1.Loosen the cover screw and remove the left side maintenance cover.
2.Remove the oil filler cap.
3.Drain dirty oil into a container thoroughly.
4.Refill with the recommended oil, and check the oil level.
5.Reinstall the left side maintenance cover and tighten the cover screw securely.
Make sure to turn the engine switch and the fuel cap
lever OFF before draining.
CAUTION
Check the air cleaner element to be sure it is clean and in good condition.
Loosen the cover screw and remove the left side maintenance cover. Press the
latch tab on the top of the air cleaner body, remove the air cleaner cover, check the
element. Clean or replace the element if necessary.
Never run the engine without the air cleaner. Rapid en-
gine wear will result from contaminants, such as dust
and dirt, being drawn through the carburetor, into the
engine.

Fuel Cap Lever
ON
ON
Engine Switch
ON
OFF
Chock Lever
START
START
8.MAINTENANCE
The purpose of the maintenance and adjustment schedule is to keep the generator
in the best operating condition.
Maintenance Schedule
EACH
USE
FIRST
MONTH
OR
10HRS
EVERY 6
MONTHS
OR
100 HRS
EVERY 3
MONTHS
OR
50HRS
EVERY
YEAR
OR
300 HRS
REGULAR SERVICE PE-
RIOD(1) Perform at every
indicated month or operating
hour interval, whichever oc-
curs first.
ITEM
Engine oil
Air cleaner
Spark plug
Spark arrester
Fuel sediment cup
Valve clearance
Fuel tank and strainer
Fuel line
Check
Change
Check
Clean
Clean-adjust
Clean
Check-adjust
Clean
Check
(2)
(3)
(3)
Every 2 years (Replace if necessary)(3)
(1) Log hours of operation to determine proper maintenance.
(2) Service more frequently when used in dusty areas.
(3) These items should be serviced by an authorized KIPOR dealer, unless the owner
has the proper tools and is mechanically proficient. See the KIPOR Shop Manual.
NOTE:
WARNING Shut off the engine before performing any maintenance.
If the engine must be run, make sure the area is well
ventilated. The exhaust contains poisonous carbon
monoxide gas.
Use genuine KIPOR parts or their equivalent. The use
of replacement parts which are not of equivalent qual-
ity may damage the generator.
CAUTION
Before starting the engine, disconnect the load from the DC terminals.

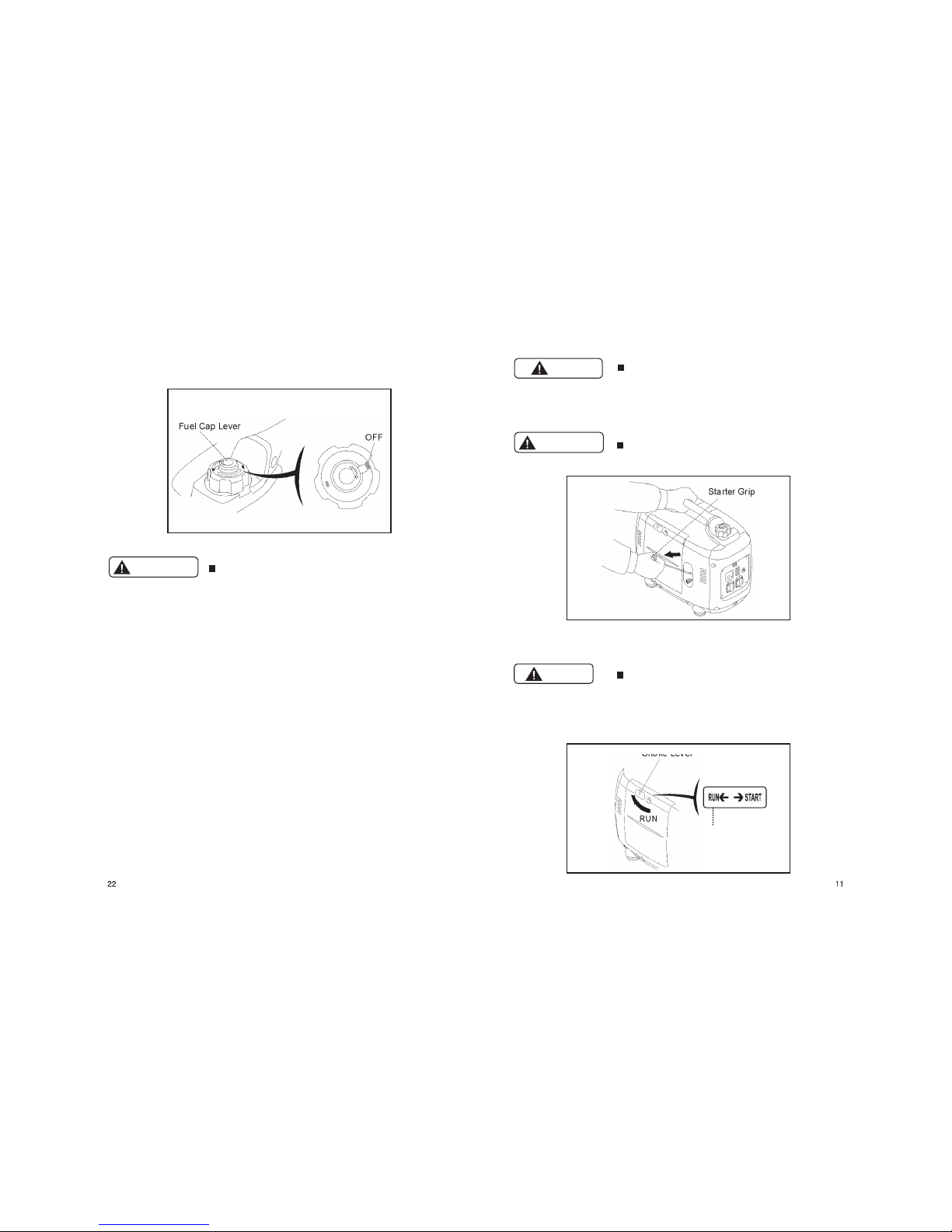

1.Turn the fuel cap lever fully clockwise to the ON position.
5.STARTING THE ENGINE
2.Turn the engine switch to the ON position.
3.Move the choke lever to the START position.

Fuel Cap Lever
OFF
Starter Grip
Choke Lever
RUN
5. Move the choke lever to the RUN position after the engine warms up.
RUN
troubleshooting
5. Move the choke lever to the RUN position after the engine warms up.
3.Turn the cap lever fully counterclockwise to the "OFF" position
CAUTION Be sure the fuel cap lever, choke and the engine
switch are "OFF" when stopping, transporting
and/or storing the generator.
CAUTION
NOTE Do not use the choke when the engine is warm or the air
temperature is high.
4.Pull the starter grip until resistance is felt, then pull the starter grip briskly toward
the arrow as shown below.
Do not allow the starter grip to snap back, Return it
slowly by hand.
NOTE If the engine stops and will not restart, check the en-
gine oil level before troubleshooting in other areas.

Plug
ON
Engine Switch
ON
OFF
7.STOPPING THE ENGINE
CAUTION
High altitude operation
At high altitude, the standard carburetor air-fuel mixture will be excessively rich.
Performance will decrease, and fuel consumption will increase.
High altitude performance can be improved by installing a smaller diameter main
fuel jet in the carburetor and readjusting the pilot screws. lf you always operate the
generator at altitudes higher than 1,500 m(5,000 feet) above sea level, have your
authorized KIPOR dealer perform these carburetor modifications.
Even with suitable carburetor jetting, engine horsepower will decrease approximately
3.5% for each 305m (1,000 feet) increase in altitude. The affect of altitude on the
horsepower will be greater than this if no carburetor modification is made.
Operation of the generator at an altitude lower than
the carburetor is jetted for may result in reduced
performance,overheating,and serious engine damage
caused by an excessively lean air/fuel mixture.
To stop the engine in an emergency, turn the engine switch to the OFF position.
1.Switch off the connected equipment and pull the inserted plug.
IN NORMAL USE:
2.Turn the engine switch to the OFF position.

,
Low oil alarm
Indicator Light
(Red)
wire between the generator's ground terminal and an
Low oil alarm system 6.GENERATOR USE
WARNING To prevent electrical shock from faulty appliances, the
generator should be grounded. Connect a length of heavy
external ground source.
Connections for standby power to a building's electrical
system must be made by a qualified electrician and must
comply with all applicable laws and electrical codes.
improper connections can allow electrical current from
the generator to backfeed into the utility lines. Such
backfeed may electrocute utility company workers or
others who contact the lines during a power outage, and
when utility power is restored, the generator may explode,
burn, or cause fires in the building's electrical system.
Limit operation requiring maximum power to 30 minutes.
For continuous operation, do not exceed the rated power.
In either case, the total wattage of all appliances con-
nected must be considered.
Do not exceed the current limit specified for any one
receptacle.
Do not connect the generator to a household circuit. This
could cause the damage to the generator or to electrical
appliances in the house.
Do not modify or use the generator for other purposes
than it is intended for. Also observe the following when
using the generator.
Do not connect generators in parallel.
Do not connect an extension to the exhaust pipe.
When an extension cable is required, be sure to use a
tough rubber sheathed flexible cable.
Limit length of extension cables; 60 m for cables if 1.
CAUTION
The Low Oil alarm system is designed to prevent engine damage caused by an
insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls
below a safe limit, the Low oil alarm system will automatically shut down the engine
(the engine switch will remain in the ON position).
5 and 100m for cabes of 2.5
Keep the generator away from other electric cables or
wires such as commercial power supply lines.
22
mm mm .

Overload Indicator
Light (Red)
Output Indicator Light (Green)
Plug
ON OFF
DC Circuit Protector
WARNING The battery gives off explosive gases; keep sparks,
flames and cigarettes away. Provide adequate venti-
lation when charging.
The battery contains sulfuric acid (electrolyte). Con-
tach with skin or eyes may cause severe burn. Wear
protective clothing and a face shield.
-If electrolyte gets on your skin, flush with water.
-If electrolyte gets in your eyes, flush with water for at
least 15 minutes and call a physician.
Electrolyte is poisonous.
-If swallowed, drink large quantites of water or milk and
follow with milk of magnecia or vegetable oil and call
a physician.
KEEP OUT OF REACH OF CHILDREN.
2.Start the engine.
The DC receptacle may be used while the AC power is in use.
An overload DC circuit will trip the DC circuit protector. If this happens, wait a few
minute before pushing in the circuit protector to resume operation.
CAUTION Substantial overloading that continuously lights the over-
load indicator light(red) may damage the generator.
Marginal overloading that temporarily lights the over-
load indicator light (red) may shorten the service life of
the generator.
Be sure that all appliances are in good working order
before connecting them to the generator. If an appli-
ance begins to operate abnormally, becomes sluggish,
or stops suddenly, turn off the generator engine switch
immediately. Then disconnect the appliance, and ex-
amine it for signs of malfunction.
3. In order to acquire both the best effect and the maximum service life of the gen-
erator. Usually, the new generator should run 20 hours under 50% load, the gen-
erator may reach the best performance.
NOTE The DC receptacle can be used while the AC power
is in use. if you use both at the same time, be sure
not to ex-ceed the total power for AC and DC.
Most appliance motors require more than their rated
watt-age for start-up.
AC applications
1.Start the engine and make sure the output indicator light(green)comes on.
2.Confirm that the appliance to be used is switched off, and plug in the appliance.

Overload Indicator Light (Red)
Output Indicator Light (Green)
Charging Cable
Output and Overload Indicators
The output indicator light(green) will remain ON during normal operating conditions.
If the generator is overloaded(in excess of 2.6kVA), or if there is a short in the con-
nected appliance, the output indicator light(greer) will go OFF, the overload indica-
tor light(red) will go ON and current to the connected appliance will be shut off.
Stop the engine if the overload indicator light (red) comes ON and investigate the
overload source.
Before connecting an appliance to the generator, check that it is in good order,
and that its electrical rating doe not exceed that of the generator. Then connect the
power cord of the appliance, and start the engine.
NOTE When an electric motor is started, both the overload
indicator light(red) and the output indicator light (green)
may go on simultaneously. This is normal if the over-
load indicator light(red) goes off after about four (4)
seconds. If the overload indicator light (red) stays on,
consult your KIPOR generator dealer.
NOTE
The DC receptacle may be used for charging 12 volt automotive-type batteries
only, the zero load voltage is 15V-30V.
In DC operation, turn the Smart throttle switch to the
OFF position.
1.Connect the charging cables to the DC receptacle of the generator and then to the
battery terminals.
WARNING To prevent the possibility of creating a spark near the
battery, connect charging cable first to the generator,
then to the battery. Disconnect cable first at the battery.
Before connecting charging cables to a battery that is
installed in a vehicle, disconnect the vehicles grounded
battery cable. Reconnect the vehicle's grounded bat-
tery cable after the charging cables are removed. This
procedure will prevent the possibility of a short circuit
and sparks if you make accidental contact between a
battery terminal and the vehicle's frame or body.
Do not attempt to start an automobile engine with the
generator still connected to the battery. The generator
may be damaged.
Connect the positive battery terminal to the positive
charging cord. Do not reverse the charging cables, or
serious damage to the generator and/or battery may
occur.
CAUTION

Earth Mark
Ground Terminal
Output Indicator Light (Green)
Overload Indicator Light (Red)
AC Receptacle
In Case of Normal Operation:
Output Indicator Light (Green)
In Case of Overload Operation
of Short-Circuit:
Overload Indicator Light (Red)
4.Switch on the equipment to be used.
in case of overload operation or when trouble occurs for the equipment being used,
the output indicator light(green) will go out, the overload indicator light(red) will light
continuously, and no power will be put out.
At this time, the engine will not stop, so that the engine must be stopped by setting
the respective engine switch to STOP.
CAUTION When equipment requiring a large starting power, like
a motor etc., is used, the overload indicator light(red)
and the output indicator light(green)may light together
for a short time (about 4 sec),but this is no abnormality.
After start of the equipment, the overload indicator light
(red) will go out and the output indicator light(green)
will stay lit.
CAUTION
2. Start each engine according to "STARTING THE ENGINE".
When the output indicator light(green)does not light and the overload indicator light
(red)lights instead, set the engine switch to STOP, stop the engine at once and then
start the engine again.
3. Confirm that the equipment to be used is switched off, and insert the plug of the
equipment to be used into the AC receptacle of unit A or unit B.
1.Connect the ground terminal.
Confirm that the use equipment to be connected is
switched off.
When the equipment to be used is switched on,it will
operate suddenly, and injuries or accidentsmay be
caused.
