Kirisun PT6500 User manual

PT6500 User’s Manual
Page 1 of 26
PT6500 User’s Manual
CONTENTS
■Unpacking and checking
Supplied accessories
■Preparation
◆Charging the battery
◆Installing/Removing the battery pack
◆Installing the antenna
◆Installing the optional speaker/microphone
◆Installing the belt clip
■Getting acquainted
■Basic Operation
■Programmable Button functions
■VOX
■Copy mode
■Whole setting
◆Time-out Timer（TOT）
◆Battery Saving
◆Low battery warning
◆Voice Annunciation of Channel Number
◆CTCSS/ DCS
■User’s resolution
◆Busy Channel Lockout（BCL）
◆Receiving squelch mode
◆DTMF signaling
◆2TONE signaling
◆Transmit start/over signaling (PTT ID)
■Problems and troubleshooting
■Major Specifications
■Status setting

PT6500 User’s Manual
Page 2 of 26

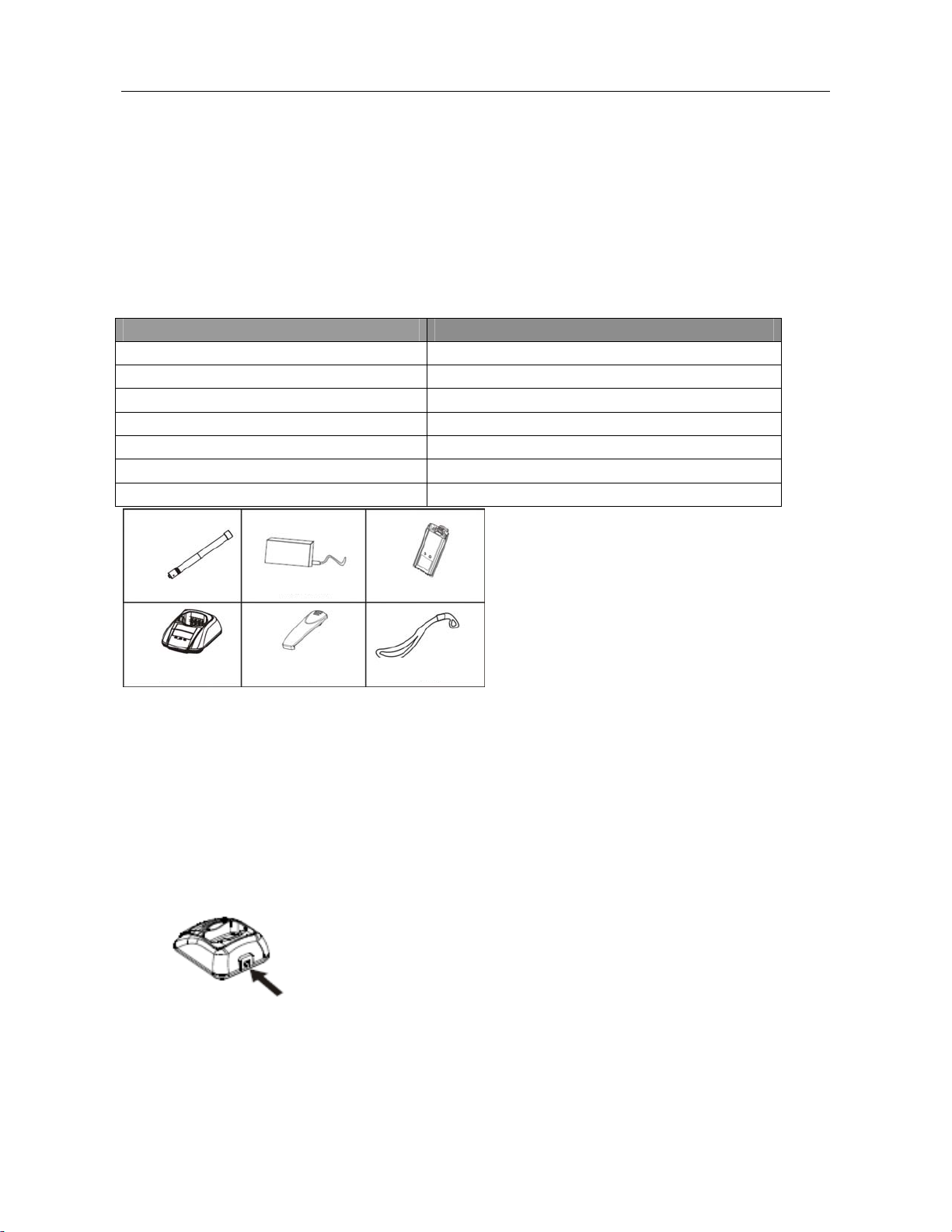

█Unpacking and checking
Unpack the transceiver carefully. We recommend that you identify the items listed in the following table
before discarding the packing material. If any items are missing or have been damaged during
shipment, please contact the dealer immediately.
Supplied accessories
Item Quantity
Antenna 1
Battery 1
Belt clip 1
Charger 1
Power adapter 1
Hand strap 1
User’s Manual 1
█Preparation
◆Charging the battery
Connect the power adapter with the battery charger. Plug the adapter into an AC wall outlet
and the indicator turns green.

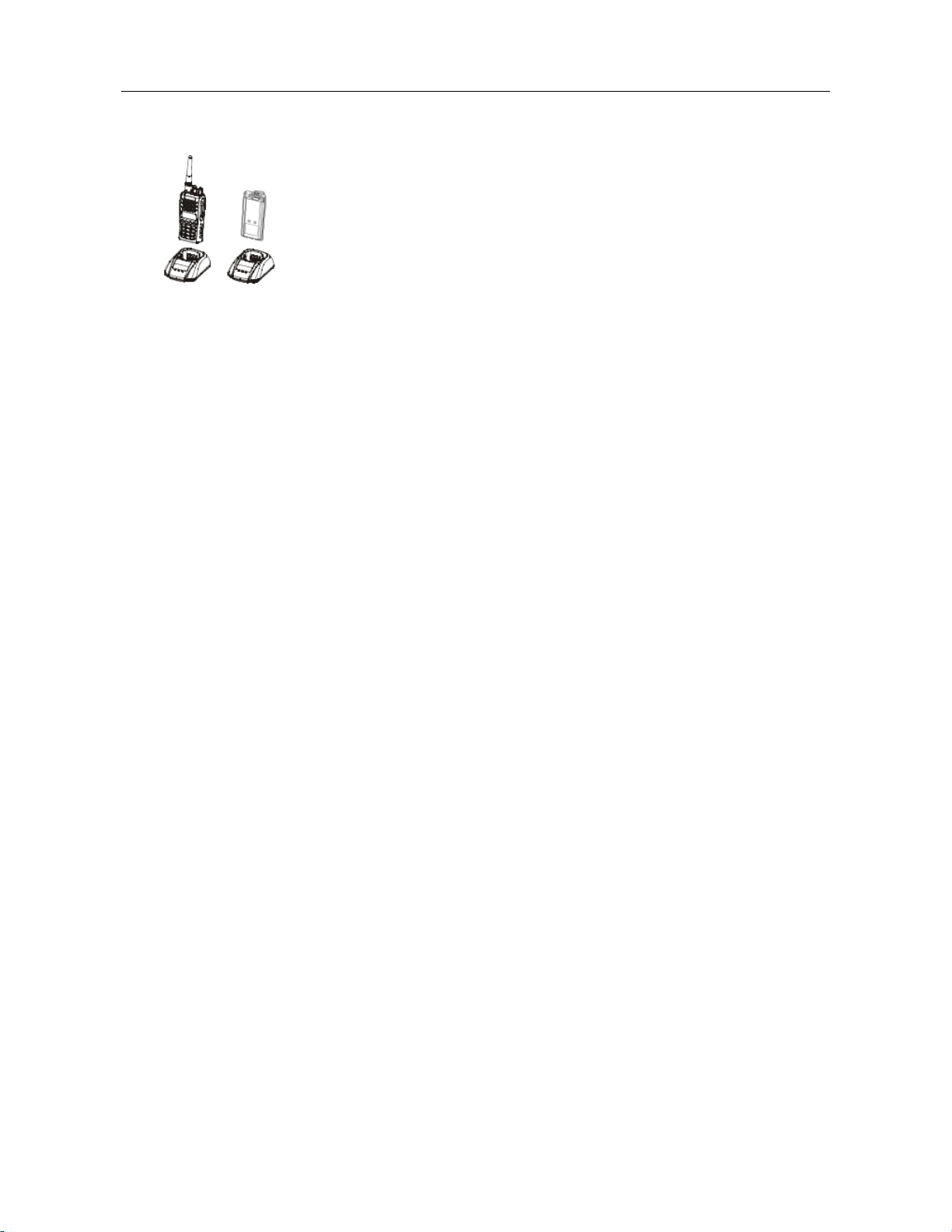

Place the battery or transceiver into the charger slot, and make sure the transceiver has
been turned off.
Make sure the battery is well connected with charger, then the indicator turns red or flashes,
then the charger gets in the state of charging automatically.
A
ntenna
P
ower a
d
a
p
te
r
B
atter
y
Ch
ar
g
e
r
B
e
l
t c
lip
H
an
d
stra
p

PT6500 User’s Manual
Page 3 of 26
When battery is fully charged the indicator turns green.
The performance will be at the best condition if you remove the battery when the green
indicator is on. Then remove the power adaptor from the wall outlet.
The charger will enter the protection mode when the yellow indicator flashes, which means
the temperature or the circuit is abnormal. Do not charge the battery at this moment, just
remove the battery and turn off the power of the charger.
Notes:
* The battery is not fully charged in the factory. Before the initial use, please charge the new
battery.
* The KB-36A Ni-MH battery/KB-36C Li-ion battery of this company is adaptable with this
machine.
* When you charge the battery the first time or after long time storage (2 months), several
times of charging is needed. Make sure the battery is charged at least once every three
months.
* Do not charge the battery again if it is charged fully or not in the low-pressure warning
mode, otherwise, its life will be shortened or it will be damaged. Remove the battery from
the charger after charging.
* When you use the KB-36A battery, and the transceiver is in the low-pressure warning
mode, recharge the battery before use. Do not power on by force, otherwise, its life will be
shortened or it will be damaged.
* There is a protection circuit in KB-36C battery, so the power will be cut off at too low
battery.

PT6500 User’s Manual
Page 4 of 26
◆Installing/Removing the battery pack
To install the battery pack:
Match the 3 bulges of the battery pack with the corresponding holes at the rear Button of
the transceiver.
To install the battery pack:
Then firmly press the battery pack downwards to lock it in place until a click is heard.
To remove the battery pack:
Use your thumb to press the belt clip, and one side of your index finger to press the release
button; and then pull the battery away from the transceiver.
Notes:
* Do not cause short-circuit or throw the battery to the fire.

PT6500 User’s Manual
Page 5 of 26
* Do not disassemble the battery by your self.
◆Installing the antenna
Screw the antenna into the connector at the top of the transceiver by holding the Button of
the antenna and turn it clockwise until secure.
◆ Installing the optional speaker/microphone
Insert the speaker/microphone plug into the jacks of the versatile connector, and fix it with
the supplied snail screw.
7
◆ Installing the belt clip
Match the grooves of the belt clip with those on the rear of the battery. Then press the
support belt clip downwards to lock it in place. Push the card by inserting your nail or tool
into the groove at the upper part of the clip to remove the belt clip.

PT6500 User’s Manual
Page 6 of 26
Getting acquainted
D
E
A
CB
G
H
F
N
J
IL
K
M
The functions of the components are as follows:
A. LED Indicator
Lights red while transmitting;
Lights green while receiving a signal.
B. Power/Volume Switch
Turn clockwise till a click is heard to switch on the radio.
Turn counterclockwise till a click is heard to switch off the radio.
Rotate to adjust the volume after turning on the radio.
C. Channel Selector
Rotate to select the channel 1-128.
D. Antenna
E. Top Button (programmable button)
It is recommended to be set as the emergency warning Button.
F. Side button 1 (programmable button)
G. PTT（PUSH-TO-TALK）:
To make a call, press and hold the PTT button, then speak into the microphone with

PT6500 User’s Manual
Page 7 of 26
normal voice.
H. Side button 2 (programmable button)

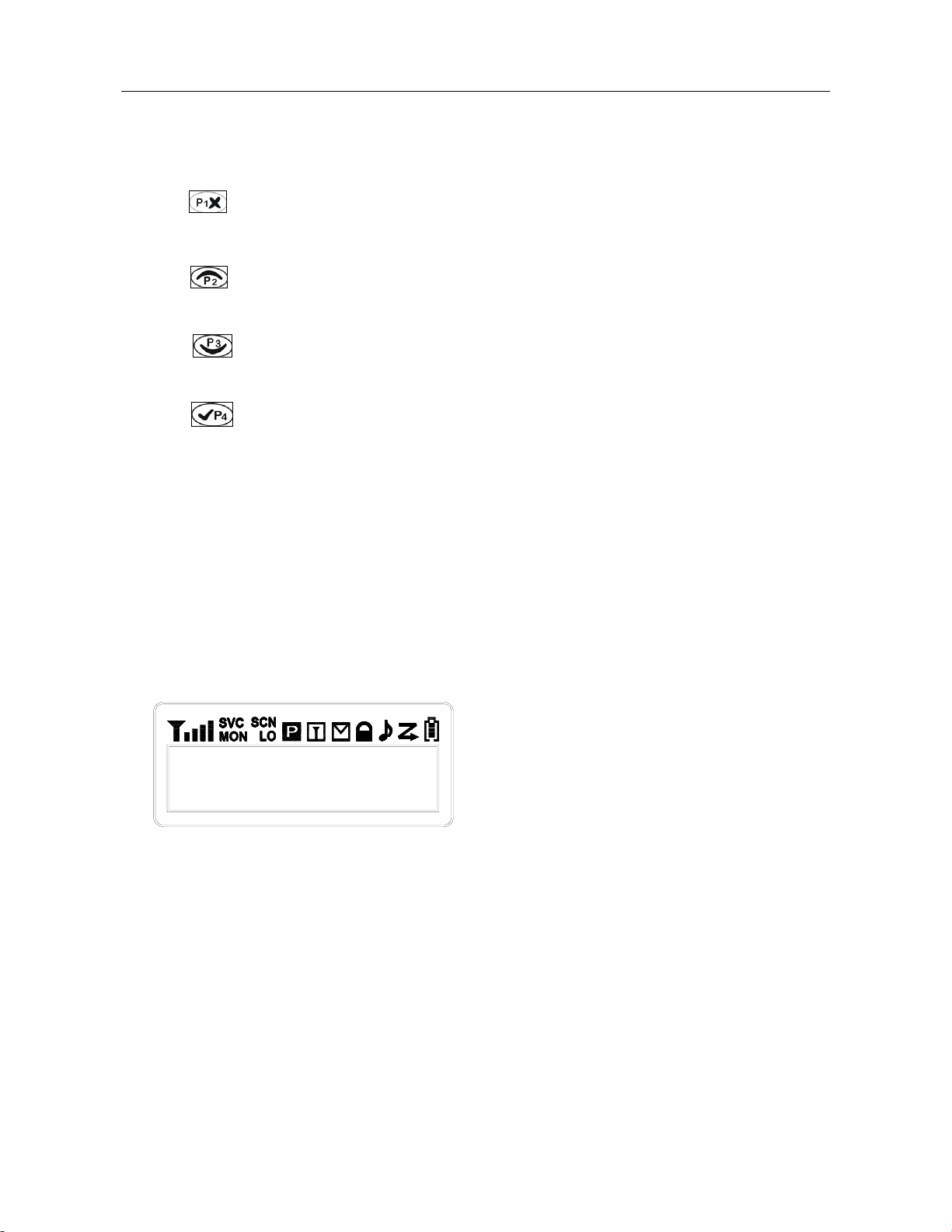

I. Button
Return and delete button in the menu.
J. Button
Select Button.
K. Button
Select Button.
L. Button
Enter and Confirm Button.
M. Numeric keypad
N. Microphone/speaker jacks
For connecting microphone/speaker.
Explanation for the screen
Basic Operation
1. Switch On
Switch on the radio by turning the Power/Volume switch clockwise
till a click is heard, then the radio will be in the state of stand by
and you will hear a beep if the dealer has set it.

PT6500 User’s Manual
Page 8 of 26
2. Adjust Volume
Press the button preset as canceling squelch to listen to the background noise and rotate
the Power/Volume switch to adjust volume.
3. Select a Channel
Rotate the channel selector to select channels. You will hear voice from the speaker while
receiving proper signals.
As shown in the above right figure:
Zone 1 is the zone of current channel (8 zones from 0 to 7).
H is the transmit power of the channel, H stands for high power, M for middle power while
L for low power.
CHANNEL 1 is the current channel (128 zones from 1 to 128).
4. Make a Call

PT6500 User’s Manual
Page 9 of 26
To make a call, press PTT, and speak in normal voice and please keep your mouth 3~4
cm away from the microphone.
5. Receive a Call
Release the PTT button to receive a call.
Your dealer can set CTCSS, DCS, 2 Tone signaling on you radio channels by PC software.
If you select a channel that has been preset with the tone signaling, you will not hear any
other calls except those from your own system.
6. Operation on menu: press “ ”button to enter the menu or confirm any contents;
press “ ” button to return to the previous menu or cancel the set. When entered the
menu, select the sub-menu with the “channel selector”, “ “or “ ”.
The menu is as follows:
O
pen
/
c
l
ose
O
pen
/
c
l
ose
O
pen
/
c
l
ose
O
pen
/
c
l
ose
L
eve
l
0
-
9
Hi
g
h
, m
iddl
e,
low
O
pen
/
c
l
ose
O
pen
/
c
l
ose
O
pen
/
c
l
ose
Cl
ose
f
or sav
i
ng
or 1:1, 1:2, 1:4
M
e
n
u
S
e
l
ect s
q
ue
l
c
h
mo
d
e
N
um
b
er
li
st
S
e
l
ect zone
S
et
R
x
FRQ
S
et
T
x
FRQ
S
et
R
x
C
tcss
S
et
T
x
C
tcss

PT6500 User’s Manual
Page 10 of 26
If can not enter that way, you have to set in PC communications;
Set back light:
1. As shown: in CH 1 , press , utilities is shown.
2. Press to enter select mode,
3. Press / , and Back Light is shown,
4. Press to select On or Off,
5. Select On or Off with / , press to confirm.
Set the squelch level:
1. As shown: in CH 1 , press , utilities is shown.
2. Press to enter select mode,
3. Press / , then Squelch Level is shown,
4. Press to select squelch level, e.g., Leve 0
5. Change the squelch level with / , then press to confirm.
Set Companding：
1．As shown: in CH 1 , press , utilities is shown.
2. Press to enter select mode,
3. Press / , and Companding is shown,
4. Press to select Companding,
5. Select On or Off by / , press to confirm.
Set saving：
1．As shown: in CH 1 , press , utilities is shown.
2. Press to enter select mode,

PT6500 User’s Manual
Page 11 of 26
3. Press / , and Save is shown,
4. Press to select Save 1：4,
5. Chang the save percentage with / , press to confirm.
Set scrambler：
1．As shown: in CH 1 , press , utilities is shown.
2. Press to enter select mode,
3. Press / , and Scrambler is shown,
4. Press to select, e.g., Scrambler Off,
5. Select On or Off by / , press to confirm.
Set key tone：
1．As shown: in CH 1 , press , utilities is shown.
2. Press to enter select mode,
3. Press / , and Key Tone is shown,
4. Press to select Off or On,
5. Select On or Off with / , press to confirm.
Set speak On mode：
1．As shown: in CH 1 , press to enter select mode,
2. Press / , and Speak Mode is shown,
3. Press to select the speak on mode,
4. Select with / , press to confirm.
Set call list：

PT6500 User’s Manual
Page 12 of 26
1．As shown: in CH 1 , press to enter select mode,
2. Press / , and Call is shown,
3. Press to select the call list,
4. Select with / , press PTT to transmit.
■Programmable Button functions
The dealer can program the 2 Side Buttons and 1 top Button with one of the following auxiliary
functions.
None
Off (“do not set the functions”)
Scan
Separate working
Contact list
Power selector
Show or hide the channel alias
Busy Channel Lockout (BCL)
Key lock
Squelch level selector
Companding
Scrambler
Battery power
Zone
Monitoring
Cancel Squelch
Emergency Alert
Back light
Rptr/Talkarnd
Express select channel 1
Express select channel 2
Call 1, 2, 3 or 4
Channel lock
Adjust display contrast

PT6500 User’s Manual
Page 13 of 26
Notes: programmable key can be set as short key or long key.
The following functions can be programmed by the dealer:
● None
Set of None。
●Scan
Press the button set as Scan to start scanning. While in scanning, the radio checks every channel (any
channel in any zone) and stops on the channel on which a signal is detected until that signal disappears.
If the delay time between signal disappearing and continuing scanning has been preset, the radio will
remain on that channel. Only when there are two channels added in the scan list and the scan function
has been activated, the radio can start scanning.
▲ It can be set as: short key: scan, long key：off.
1. Press the programmable key once to start scanning (it should be effective in the channel scan list).
2. Press once to quit.
Notes: there are 8 zones from 0 (default zone) to 7; and there can be 128 channels to the most in
each zone. There are totally 16 scan lists; you can select any scan list. Every scan list can scan
any channels in different channels (16 channels to the most).
●Separate working
Press the button set as Separate Working to start separate working. This mode is to ensure the safety
of the user while using the transceiver separately.
▲It can be set as: short key: personal working, long key：off.
1. Press the programmable key once to start personal working;
2. Press once again to quit.
Notes: the separate working is connected with the automotive checking in the programming
software, and will be effective when both are set.
●Contact list
Enter the Contact list quickly:
▲ It can be set as: short key: contact list, long key：off.
1. Press the programmable key once to enter the contact list Call

PT6500 User’s Manual
Page 14 of 26
2. Press again to enter the content interface of the contact list, e.g.: Dtmf Call
3. Select the options in the contact list with /
4. Press PTT to transmit
5. Press to quit.
Power select
Rotate the “channel selector” to enter the “power level” menu quickly. There are high, middle and low
levels.
▲It can be set as: short key: power select, long key：off.
1. Press the programmable key once, will be shown,
2. Press it again,
will be shown,
3. Press it a third time，
will be shown.
●Busy Channel Lockout (BCL)
Busy Channel Lockout can prevent you from interfering other radios that using the same channel.
Press the PTT button when the channel is busy, the radio with BCL function active will make warning
sound and prohibit transmitting. To stop the warning sound, please release the PTT button and the radio
returns to receiving mode.
▲It can be set as: short key: Busy Channel Lockout, long key：off.
1. Press the programmable key once, will be shown,
2. Select the character you need with / , e.g.:
3、Press toconfirm.
Zone 0 L
CHANNEL 1
Zone 0 M
CHANNEL 1
Zone 0 H
CHANNEL 1
BCL none
BCL none
BCL carry？
BCL carryPL？

PT6500 User’s Manual
Page 15 of 26
●Key lock
Press the key programmed as “key lock” for one second to lock/unlock the keys for the transceiver.
▲ It can be set as: short key: key lock, long key：off.
1. Press the programmable key once, will be shown,
2. Press it again, will be shown.
●Squelch level Selector
Enter the “Select squelch level” instantaneously, 0~9 levels are available with the channel selector.
▲ It can be set as: short key: Select squelch level, long key：off.
1. Press the programmable key once,
will be shown,
2. Select squelch level with / , e.g.:
3. Press to confirm.
●Companding
Enter the Companding mode when press the key programmed as “Companding”,
▲ It can be set as: short key: Companding, long key：off.
1. Press the programmable key once to open the Companding mode,
will be shown,
2. Cancel the mode by pressing it again, will be shown.
●Scrambler
Press the key programmed as “scrambler” to prevent any third party to hear you talking on the phone.
CHANNEL
CHANNEL
Level 2
Level 3
Level 4
Level 5
Zone
CHANNEL 1
Zone
CHANNEL 1

PT6500 User’s Manual
Page 16 of 26
▲ It can be set as: short key: scrambler, long key：off.
1. Press the programmable key once to open the scrambler mode,
will be shown,
2. Cancel the mode by pressing it again,
will be shown.
●Battery volume checking
Display the battery power.
▲It can be set as: short key: battery power checking, long key：off.
1. Press the programmable key once: the battery power will be shown,
2. Press again: close the display.
●Monitoring
Press the programmed as “monitor trigger” to shut up the CTCSS、DCS、2Tone and DTMF signal, and
you can listen to the signals can not be heard in normal operation, press the key again to return to
normal operation.
▲It can be set as: short key: monitor, long key：off.
1. Press the programmable key once to start monitoring, Moni Moment ON
will be shown,
2. Press again: stop monitoring, Moni Moment OFF will be shown.
●Cancel squelch
Press the key, no matter what the signal or carrier wave is (including optional signal), squelch will be
cancelled.
▲It can be set as: short key: cancel squelch, long key：off.
1. Press the programmable key once to start squelch constantly,
2. If you do not press it, the squelch will still work.
CHANNEL 1
CHANNEL 1

PT6500 User’s Manual
Page 17 of 26
●Emergency Alert
If press the top key programmed as “Emergency Alert”, you can set the warning ring according to the
programming software, or send your identity or background music to your companion or the system.
▲It can be set as: short key: emergency alert, long key：off.
1. Press the programmable key once to start alert,
2. Press it again to stop the alert.
●Back light
Turn on/off the back light.
▲It can be set as: short key: back light, long key：off.
1. Press and hold this key, the back light is on,
2. Release it to recover the normal mode.
●Rptr/Talkarnd
When press the key programmed as “Rptr/Talkarnd”, the next transmission will be at the same
frequency as at which it is received.
▲It can be set as: short key: Rptr/Talkarnd, long key：off.
1. Press the key once, Rptr/Talkarnd will be shown,
2. Press to enter,
3. Press / to select the character you need: e.g.: Repeater Mode or Talkarnd mode,
4. Press to confirm.
●Instantaneously select the channel
Shift to the channel you selected instantaneously, so that you can communicate at the channel you are
used to.
▲It can be set as: short key: instantaneously select channel 1, long key：off.
1. Press the key once to instantaneously select the channel, e.g.：CHANN 15
2. Press again to return.
●Call 1, 2, 3, or 4
Press the side button programmed as Call 1, 2, 3, or 4 to transmit the specified code stored in the

PT6500 User’s Manual
Page 18 of 26
contact list. Release “Call”button, and speak to the microphone to call with the PTT button still
pressed.
▲It can be set as: short key: Call 1, long key：off.
1. Press the key once to make a call(within the current channel), and will quit automatically after the
call.
●Voice Annunciation of Channel Number
Select or delete the voice annunciation function.
●Adjust display contrast
You can adjust the display contrast as per your need.
▲It can be set as: short key: display contrast, long key：off.
1. Press the key once, Contrast will be shown,
2. Press / to select the character you need,
3. Press to confirm.
●Manual programming
The dealer can open the manual programming rights of:
Channel frequency set, CTCSS，DCS.
Basic operations of programmable keys:
You can set the programmable keys with the “key set” in PC software, as follows:
▲It can be set as: short key: display channel frequency, channel alias and channel No., long key：off.
1. Press the key once, display the channel alias, e.g.:
,
2. Press it again, the channel frequency will be shown, e.g.:
3. Press it a third time，the channel alias will be shown, e.g.:
▲It can be set as: short key: Zone, long key：off.
1. Press the key once, Zone No will be shown,
2. Select zone No. with / ,
3. Press to confirm.
CHANNEL 1
401.66500
CH 1

PT6500 User’s Manual
Page 19 of 26
▲It can be set as: short key: channel lock, long key：off.
1. Press the key once to perform channel lock, then you can not choose the
channel, will be shown.
2. Press it again to cancel channel lock, will be shown.
■VOX
VOX function enables you to use the radio without manual operations. This function can only be set by
the dealer, and you have to be equipped with the specified earphones.
Before using VOX, you must set VOX gain level. Such setting enables the radio to identify the voice
volume. If the microphone is too sensitive, the background noise will trigger the radio to transmit. If the
microphone is not sensitive enough, it cannot receive your voice when you speak. Make sure to adjust
VOX gain level to proper sensitivity.
■Auxiliary Functions (programmed with PC)
◆ Time-out Timer (TOT)
TOT timer:
Time-out timer can prevent any caller from occupying one certain channel for an extended period of the
time.
The radio is set with a continuously transmitting limit. If the radio is continuously transmitting longer than
the time preset by the dealer, the radio will stop transmitting and warning
TOT forbidden period:
A period in which the radio is forbidden to transmit after its overtime activity.
During the period, if the PTT key is pressed, there will be a warning tone, and transmitting is forbidden.
TOT pre-warning:
The pre-warning will sound before the TOT action.
After the sound of the warning, the timer will take action when the transmitting time has gone beyond
the limit.
TOT reset:
The time delay from releasing the PTT key to the resetting of the timer is limited.
The countdown will go on if the time after releasing the PTT key is shorter than the reset time.
CHANNEL 1
CHANNEL 1

PT6500 User’s Manual
Page 20 of 26
Battery Saving
The dealer can set the type of this function by programming.
If the battery saving function is on, 10 seconds after the radio hasn't receive any signals or no operation
is being conducted, the radio enters battery saving mode. When a signal is received or any operation
occurs, it exits battery saving mode automatically.
The types include: 1：1, 1：2, 1：4 and off.
The automatic battery saving function decreases the power consumption.
Voice Annunciation of Channel Number
The dealer can turn on or turn off this function by programming.
While switching to another channel, you can hear the voice annunciation of the current channel number.
 CTCSS/ DCS
The dealer can set CTCSS/DCS tones on radio channels, which enable you to ignore (not hear) calls
from other irrelevant parties who are using the same channel.
When you receive a signal that has a tone different from the one set on your radio, you will not hear the
signal. Likewise, signals that you transmit will only be received by parties whose CTCSS/DCS tones are
the same as yours.
Note: Using a CTCSS/DCS channel doesn't mean your calls are private. If other parties' CTCSS/DCS
tones are identical with yours, they can hear your calls.
■User’s resolution
Busy Channel Lockout (BCL)
Busy Channel Lockout can prevent you from interfering other radios that using the same channel.
Press the PTT button when the channel is busy, the radio with BCL function active will make warning
sound and prohibit transmitting. To stop the warning sound, please release the PTT button and the radio
returns to receiving mode.
The dealer may provide the following two lock mode:
Carrier wave: it will be locked if there is any Carrier wave;
Carrier wave+ CTCSS/DCS：transmitting is permitted if there are matched CTCSS/DCS in the channel.
 Receiving squelch mode
The dealer may set the condition under which to turn on the speakers:
