Kirisun TP620 User manual

TP620 Digital Portable Radio Quick Instruction Manual
II

TP620 Digital Portable Radio Quick Instruction Manual
II
Quick Instruction Manual
TP620
Digital Portable Radio
We are very grateful for your purchasing KIRISUN brand two-way radios produced
by Kirisun Communications Co., Ltd.
We believe KIRISUN two-way radio, which always incorporates the latest
technology, can bring great convenience to your life and work.
We also believe that the quality and function of KIRISUN two-way radio can meet
your demands for reliable communication.

TP620 Digital Portable Radio Quick Instruction Manual
Contents
1Safety ...............................................................................................................2
2General Description ......................................................................................................3
2.1 Unpacking and Checking.........................................................................................3
2.2 Product Overview ....................................................................................................4
2.3 Preparing your product for use ................................................................................5
2.4 Installing/Uninstalling the Battery.............................................................................7
3Basic Operation ............................................................................................................8
4Making/Receiving a Call ............................................................................................. 10
5Other Functions ..........................................................................................................11
6Troubleshooting .......................................................................................................... 12

TP620 Digital Portable Radio Quick Instruction Manual
II

TP620 Digital Portable Radio Quick Instruction Manual
I
FCC
We, Kirisun Communications Co.,Ltd is located at 5-6Flrs, ROBETA Building, No.1, QiMin Road, Song Ping
Shan Area, Science&Industry Park, Nanshan District Shenzhen 518057 P.R. China.
Declare on our sole responsibility that this equipment complies with the FCC Part15 rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct. The interference by one or more of the following measures:
●Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two
conditions:
1.This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Note:” Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.”

TP620 Digital Portable Radio Quick Instruction Manual
2
1 Safety
Before using this radio, read this operating instruction carefully for safe and convenient usage.
This product can only be maintained by the professional technicians. Do not disassemble the radio by
yourself. To avoid of the problems caused by electromagnetic interference or electromagnetic
compatibility, turn off the radio in any facilities where posted notices instruct you to do so, such as hospital
and other health care facilities. And when on board an aircraft, turn off the radio if instructed to do so too.
In the vehicle with an air bag, do not place the radio in the area over an air bag or in the air bag
deployment area. Turn off the radio before entering any area with a potentially explosive atmosphere or
blasting caps.
Do not operate the radio, disassemble or charge the battery in the potentially flammable and explosive
atmosphere (such as gas station, coal gas station, etc.).
Don’t charge the battery near or close to flammable materials such as curtains, clothes and carpets.
Do not place the radio under the direct sunlight or near the area with heating devices.
Do not place the radio in the area with great dust, moisture or drips, or on the unstable surface.
Contact us or your local dealer for help if you want to redevelop or modify the radio.
Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with
your skin, a minor burn can result.
Make sure the antenna is correctly installed when using. The radio without antenna may cause damage in
the process of transmission.

TP620 Digital Portable Radio Quick Instruction Manual
3
2 General Description

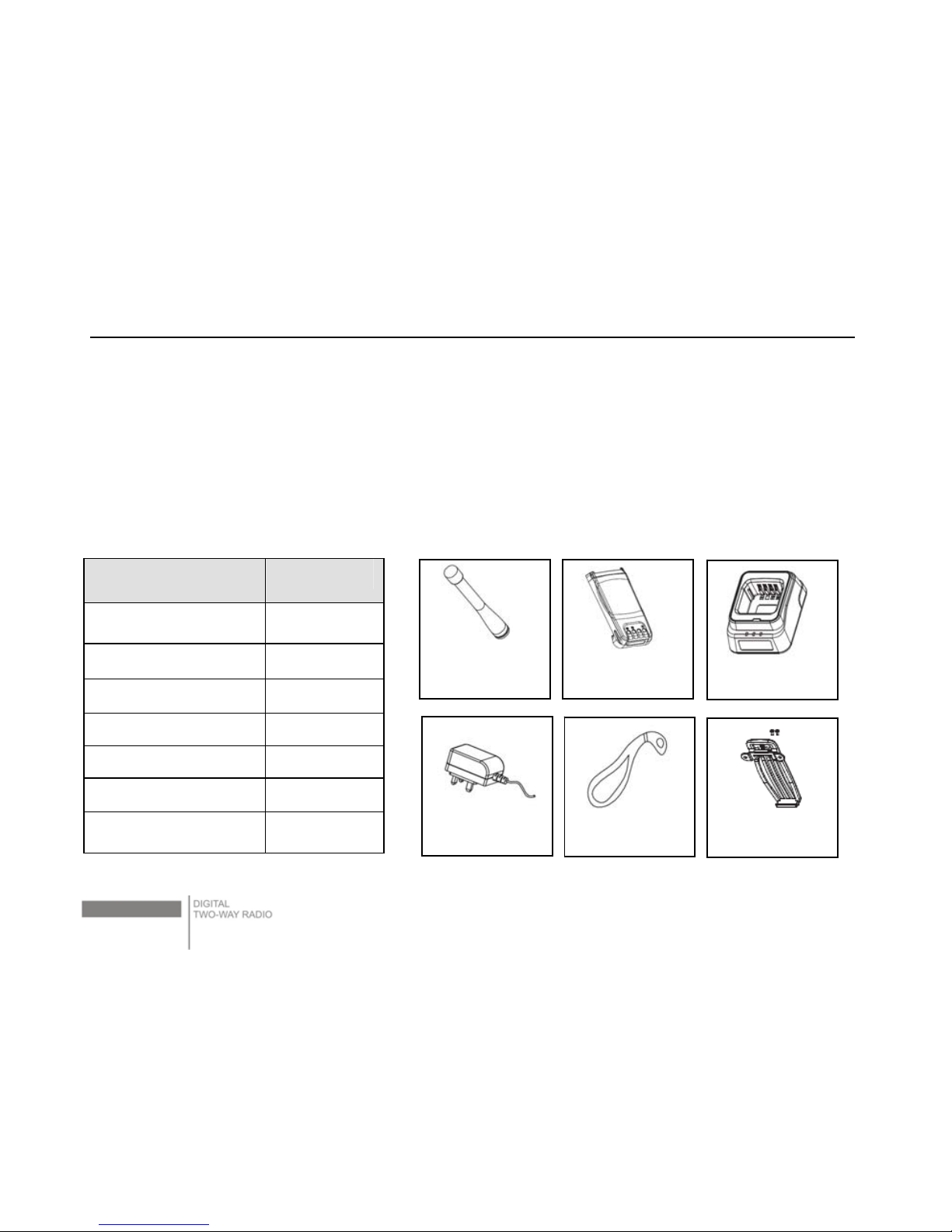

2.1 Unpacking and Checking
Standard Accessories
Please unpack carefully and check all the items listed in the following table before discarding the
packing material. If any damage or loss occurs during shipment, please contact your dealer.
Item Quantity
Antenna 1
Belt Clip 1
Charger 1
Battery 1
Hand Strap 1
Power Adapter 1
Instruction Manual 1
Battery
Antenna Charger
Hand strap
Power Adapter
Belt Clip Screws

TP620 Digital Portable Radio Quick Instruction Manual
4

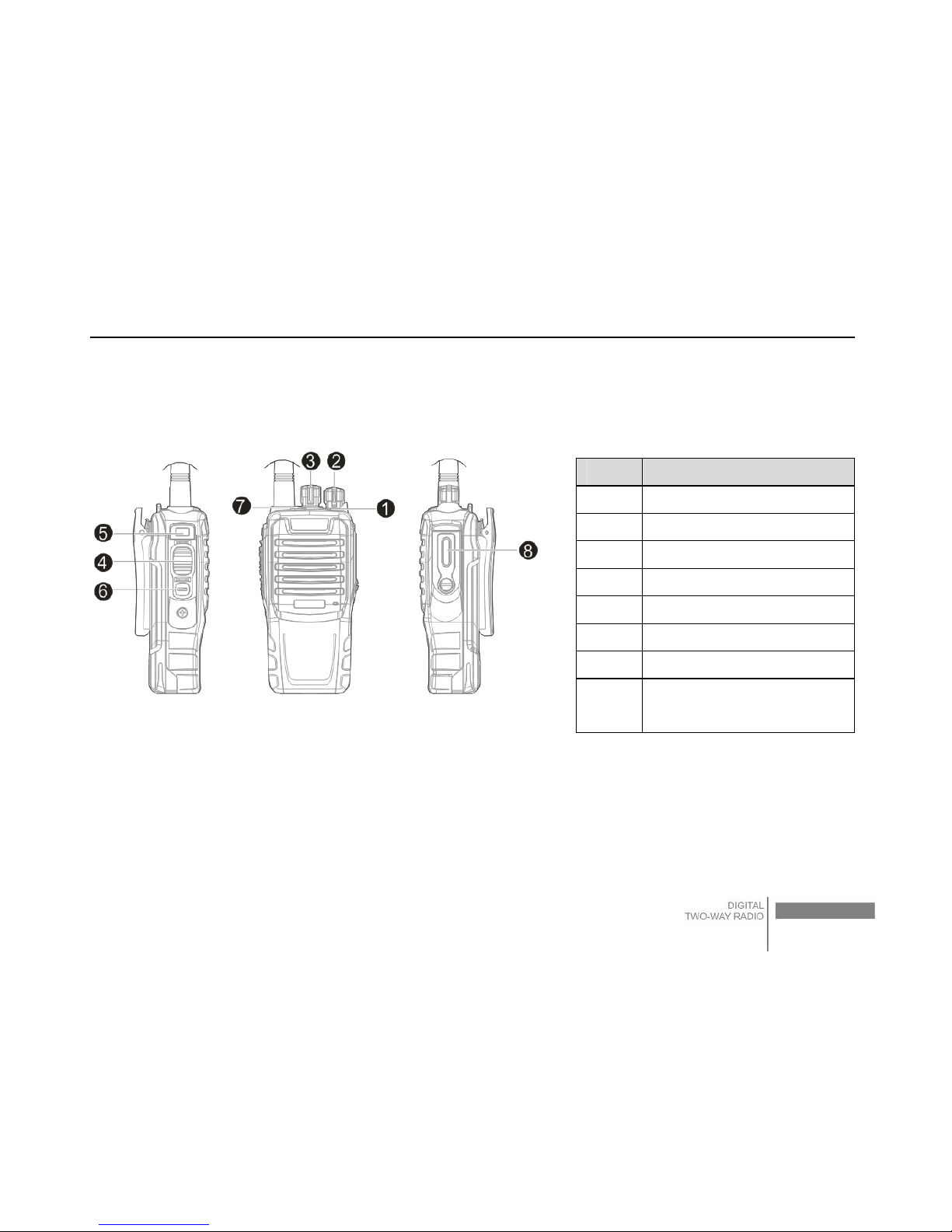

2.2 Product Overview
Identification of Buttons
No. Part Name
1 LED Indicator
2 Power/Volume Switch
3 Channel Knob
4 PTT Button
5 Side Button1
6 Side Button2
7 Top Button
8 External speaker /
microphone interface
Programmable Buttons
Authorized Dealer can program the programmable buttons as shortcuts to various radio features
( Feature List on Page 10.).Each button can be programmed for two features and can be activated
through Long Press or Short Press.

TP620 Digital Portable Radio Quick Instruction Manual
5
LED Status Indicator
The LED indicator shows the operational status of your radio.
Solid red – Radio is transmitting
Solid green– Radio is powering up or receiving a non-privacy-enabled call or data, or detecting
activity over the air.
Blinking orange–Radio is during scanning.
2.3 Preparing your product for use

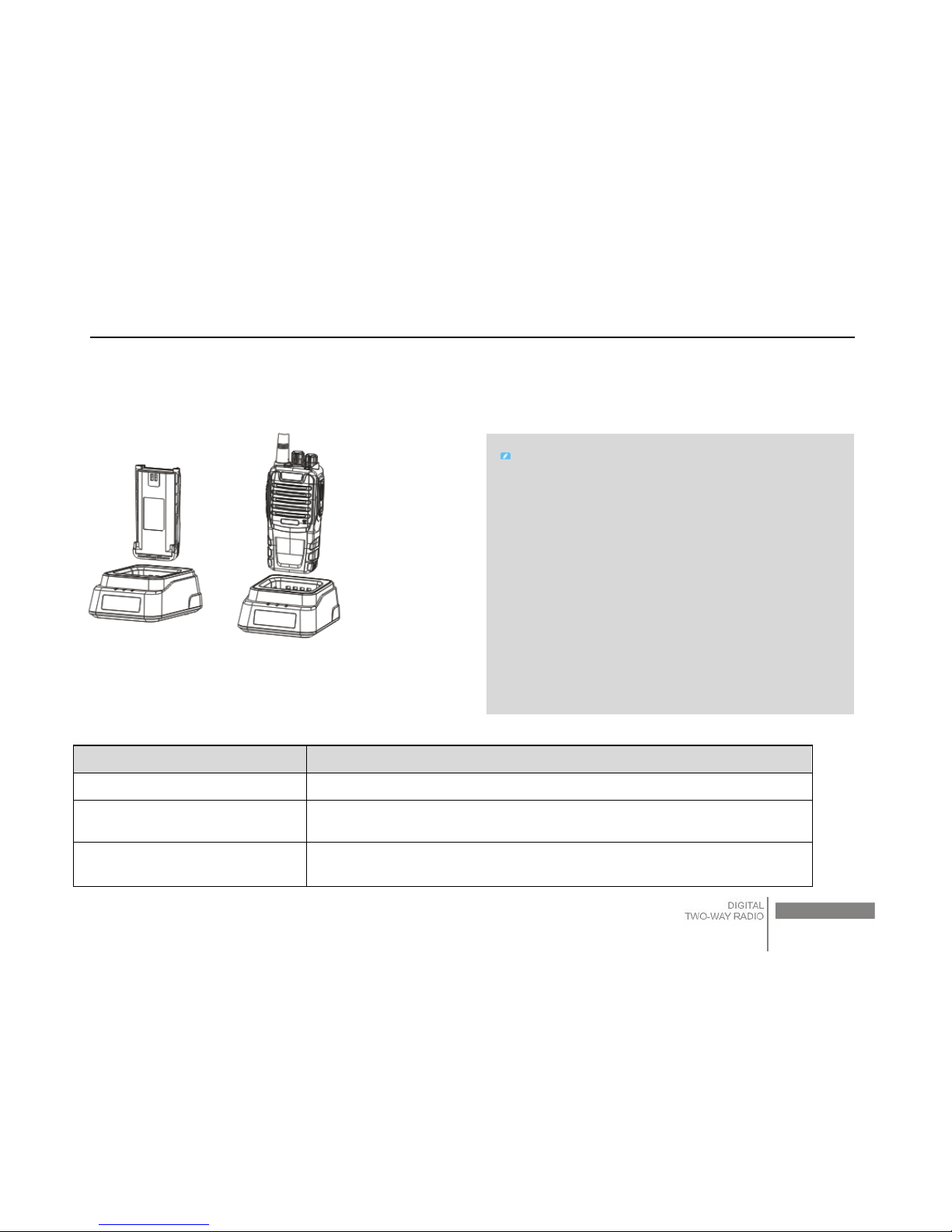

Charging the Battery
Please refer to the following steps to charge your battery.
Plug the adaptor in the rear power jack of the intelligent charger, and plug the adaptor into the
suitable AC socket. The three LED lights will flash for about one second and turn green when
everything is properly set.
Put the battery or the radio with battery into the charger, and please turn off the radio before
charging.
Note：
Short Press – Press and release quickly
Long Press – Press and hold for the programmed duration

TP620 Digital Portable Radio Quick Instruction Manual
6
Make sure the battery is properly attached to the charger. The charging begins when the red light is
on. The red light is off when the battery is fully charged，and then the green light is on, indicating the
charging is completed.
Charging LED Indicator
LED Charging Status
Yellow light flashes Abnormality in charging temperature or in the circuit.
The red LED lights The battery is in charging.
The green LED lights The battery is fully charged or standby(no load)
Note：
The yellow light flashing indicates
abnormality in charging temperature or in
the circuit, and the charger will then enter
the state of protection. During this state, do
not impose charging anymore and take out
the battery before unplugging the charger.
Please use the charger and battery
provided by Kirisun only.
