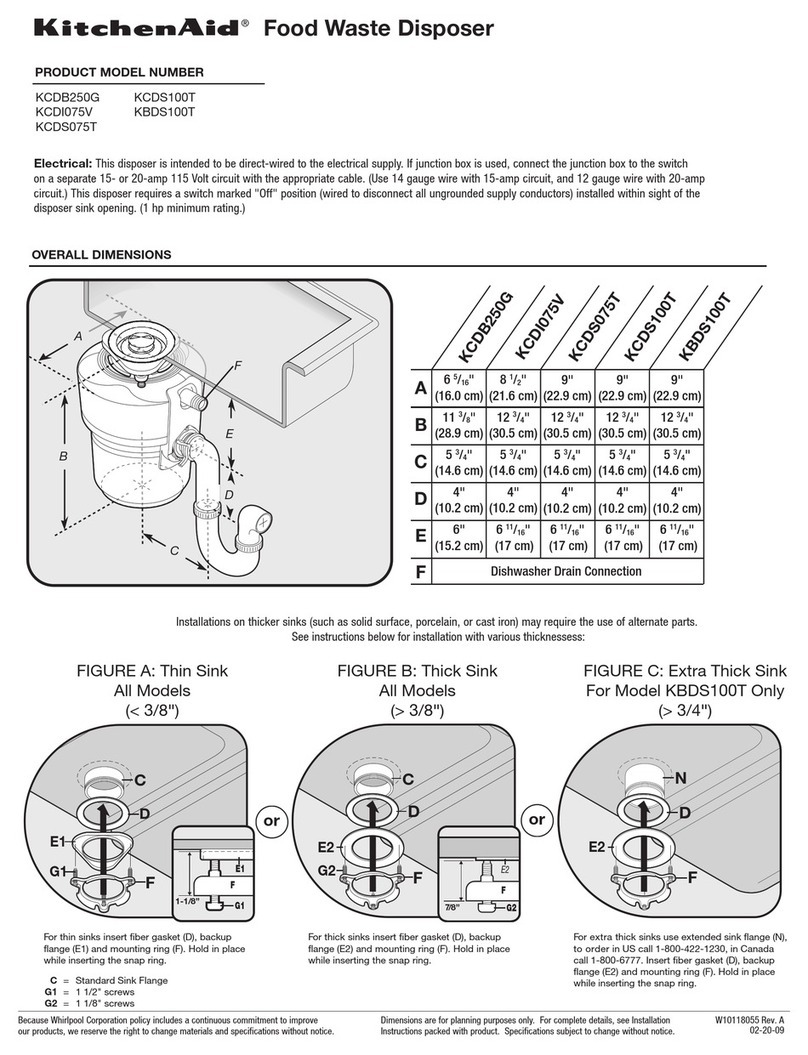

KitchenAid KCDI075V0 User manual

2009 KITCHENAID
3/4 HP − DISPOSER
MODEL:
KCDI075V0
5−09 Litho in U.S.A. (ll) (psw) Part No. W10207772 Rev. C

HOUSING AND FLANGE PARTS
2
For Model: KCDI075V0
5−09 Litho in U.S.A. (ll) (psw) Part No. W10207772 Rev. C

HOUSING AND FLANGE PARTS
3
For Model: KCDI075V0
W10207772
Illus. Part
No. No. DESCRIPTION
1 Literature
W10222147 Guide, Use & Care
W10207772 Repair Parts List
2 4211333 Gasket, Stopper
3 4211606 Gasket, Fiber
4
W10171101 Flange, Sink
5
W10171102 Ring, Backup
6 4211304 Ring, Mounting
7 4211306 Ring, Snap
8
W10171103 Screw
9 4211334 Gasket, Mounting
10 4211308 Flange, Body
11
W10222137 Mounting Assembly
12
W10171106 Cap, Trim Shell
13
W10222138 Screw
14 4211554 Body Container
15 4211337 O−Ring
16
W10222139 Insulation
17
W10222140 Trim Shell Assy
18 8174342 Clip
19 4211577 Stopper Assembly

UPPER HOUSING AND MOTOR PARTS
4
For Model: KCDI075V0
W10207772
Illus. Part
No. No. DESCRIPTION
1 N/A Plug
2 N/A Bolt, Flange
3 4211631 Shredder, Rotating
Assembly
4 N/A Slinger
5 N/A Sleeve
6 4211578 Sleeve & Seal
Kit
7
W10222141 Upper End Bell
Assembly
8 4211344 Gasket, Tailpipe
9 4211317 Tailpipe
10 4211346 Screw
11 4211345 Flange
12
W10222142 Installation Kit
13 8174333 Stator
14 4211321 Washer
15
W10222143 Shaft Assembly
16 4211322 Actuator,
Centrifugal Assy
17 8174312 Switch, Start
18 8174347 Overload
19
W10222144 Frame, Lower
End Assembly
20 4211330 Screw, Ground
21 4211326 Shield, Wire
22 8174315 Cover, Terminal
23 4211612 Screw
24 4211348 Bolt, Thru
25 8174310 Wrench
Following Parts Not Illustrated
W10211205 Disposer, Complete
