KitchenAid 5KSMMGA User manual

5KSMMGA
W11204954A_01_ENv02.indd 1 4/2/18 6:53 PM

W11204954A_01_ENv02.indd 2 4/2/18 6:53 PM

English ....................................................................... 5
Deutsch.................................................................... 15
Français.................................................................... 25
Italiano ..................................................................... 35
Nederlands .............................................................. 45
Español .................................................................... 55
Português ................................................................ 65
Ελληνικά ................................................................... 75
Svenska.................................................................... 85
W11204954A_01_ENv02.indd 3 4/2/18 6:53 PM

W11204954A_01_ENv02.indd 4 4/2/18 6:53 PM

ENGLISH
| 5
TABLE OF CONTENTS
PARTS AND FEATURES.........................................................................................6
Parts and accessories......................................................................................6
STAND MIXER ATTACHMENT SAFETY................................................................7
Important safeguards .....................................................................................7
Waste disposal................................................................................................9
USING THE METAL FOOD GRINDER ATTACHMENT .........................................9
Guide to grinding ...........................................................................................9
Assembling the Metal Food Grinder attachment ........................................10
Attaching the metal Food grinder attachment to the Stand Mixer .............10
Grinding with the Metal Food Grinder attachment .....................................11
Assembling the sausage stuffer....................................................................12
Using the sausage stuffer .............................................................................12
TIPS FOR GREAT RESULTS .................................................................................13
Helpful hints..................................................................................................13
CARE AND CLEANING .......................................................................................13
WARRANTY AND SERVICE ................................................................................14
W11204954A_01_ENv02.indd 5 4/2/18 6:53 PM

6 | PARTS AND FEATURES
PARTS AND FEATURES
PARTS AND ACCESSORIES
Food pusher
Blade
Fine grinding
plate (3 mm)
Sausage
stuffer plate
Coarse
grinding plate
(8 mm)
CollarMedium
grinding plate
(4.5 mm)
Main housing
Grind screw
Removable tray
Cleaning brush
Small sausage stuffer
tube (9.5 mm)
Large sausage stuffer
tube (19 mm)
W11204954A_01_ENv02.indd 6 4/2/18 6:53 PM

ENGLISH
STAND MIXER ATTACHMENT SAFETY | 7

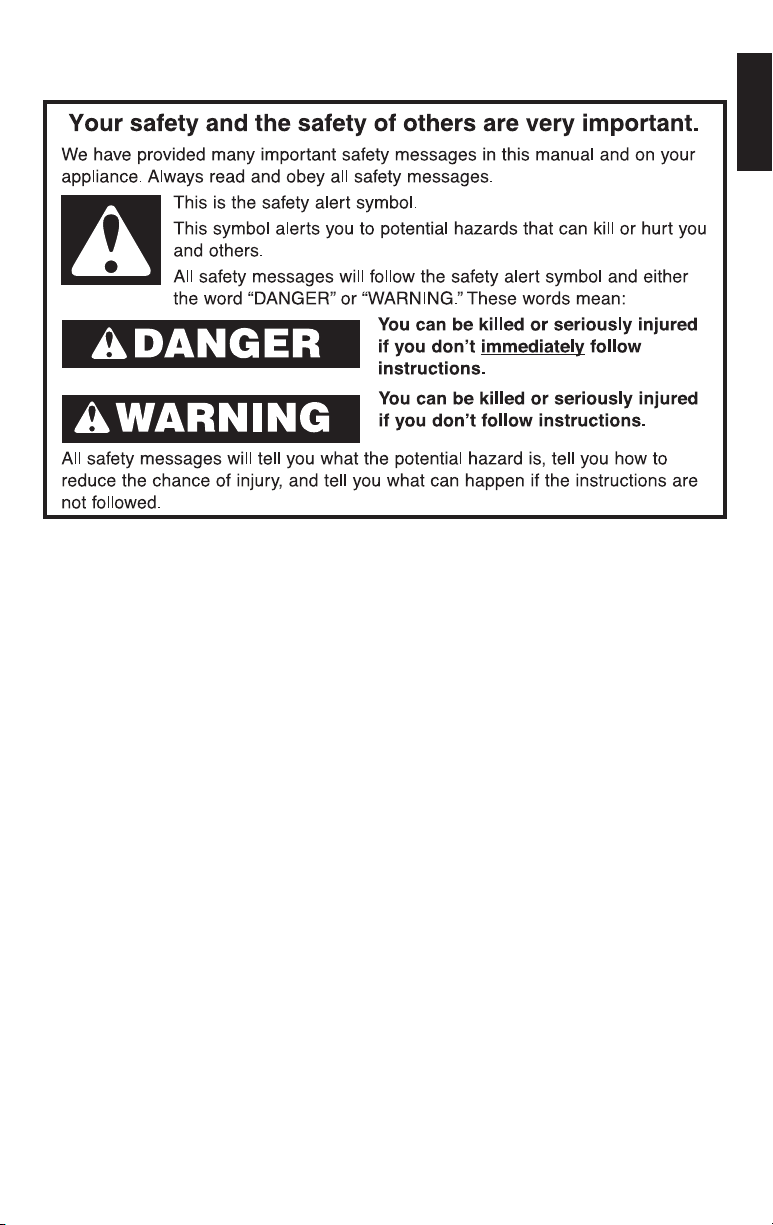

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions. Misuse of appliance may result in
personal injury.
2. This appliance is not intended for use by persons,
including children, with reduced physical, sensory,
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instructions concerning use of the appliance in a
safe way and understand the hazards involved.
3. Europe Only: Appliances can be used by persons with
reduced physical, sensory, or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
4. Europe Only: This appliance shall not be used by
children. Keep the appliance and its cord out of reach
of children.
STAND MIXER ATTACHMENT SAFETY
W11204954A_01_ENv02.indd 7 4/2/18 6:53 PM

8 | STAND MIXER ATTACHMENT SAFETY
STAND MIXER ATTACHMENT SAFETY
5. Turn the Stand Mixer OFF (and detach the Metal Food
Grinder attachment from the Stand Mixer) after each
use of the attachment and before cleaning. Make sure
motor stops completely before disassembling.
6. Avoid contacting moving parts. Keep ngers out of
discharge opening.
7. Never leave the appliance unattended while it is in
operation.
8. The use of attachments not recommended or sold by
KitchenAid may cause re, electric shock, or injury.
9. Never feed food by hand. Always use the food pusher.
10. Blades are sharp. Handle carefully.
11. Do not use ngers to scrape food away from discharge
disc while appliance is operating. Cut-type injury may
result.
12. Refer to the “Care and cleaning” section for
instructions on cleaning the surfaces in contact with
food.
13. Also see the Important Safeguards section included in
the Stand Mixer Use and Care Guide.
14. This appliance is intended to be used in household
and similar applications such as:
- staff kitchen areas in shops, ofces or other working
environments;
- farmhouses;
- by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments.
SAVE THESE INSTRUCTIONS
W11204954A_01_ENv02.indd 8 4/2/18 6:53 PM

ENGLISH
USING THE METAL FOOD GRINDER ATTACHMENT | 9
STAND MIXER ATTACHMENT SAFETY
USING THE METAL FOOD GRINDER ATTACHMENT
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol
. The various parts of the packing
must therefore be disposed of
responsibly and in full compliance
with local authority regulations
governing waste disposal.
WASTE DISPOSAL
GUIDE TO GRINDING
NOTE: None of the parts and accessories of this KitchenAid Metal Food Grinder attachment
(model 5KSMMGA) are compatible with the parts and accessories of the KitchenAid Food
Grinder attachment (models 5FGA, 5SSA, 5FT, 5FVSP, 5FVSFGA, 5KSMFPPA, 5KSMGSSA) and
vice versa.
USE THESE PARTS WITH THESE
PARTS
SUGGESTED
USES SPEED
Fine grinding plate
(3 mm) Blade
Cooked meats for spreads, hard
cheeses (e.g. Parmesan), bread
crumbs
4
Medium grinding plate
(4.5 mm) Blade Raw or cooked meats, meats for sausages 4
Coarse grinding plate
(8 mm) Blade Raw meats for burgers and chili, vegetables for salsas and sauces 4
Small sausage stuffer
tube (9.5 mm)
Sausage stuffer
plate Breakfast sausage, smaller sausages 4
Large sausage stuffer
tube (19 mm)
Sausage stuffer
plate Bratwurst, larger sausages 4
W11204954A_01_ENv02.indd 9 4/2/18 6:53 PM

10 | USING THE METAL FOOD GRINDER ATTACHMENT
ASSEMBLING THE METAL FOOD GRINDER ATTACHMENT
ATTACHING THE METAL FOOD GRINDER ATTACHMENT TO THE
STAND MIXER
USING THE METAL FOOD GRINDER ATTACHMENT
1
Insert the grind screw into the main housing. Then,
place the blade over the end of the grind screw.
The blade should t entirely inside the housing. If it
doesn’t, pull it off, turn it over, and place it again.
2 Place grinding plate over the blade, matching the
notch of the plate with the tab on the bottom of the
main housing.
3 Place the collar on the main housing, turning clockwise
by hand until secured but not tightened.
Wash all parts with warm, soapy water and dry thoroughly before use.
Tab
Notch
1 Turn the Stand Mixer off and unplug.
2
For Stand Mixers with a hinged attachment hub
cover: Flip up to open.
For Stand Mixers with a removable attachment hub
cover: Turn the attachment knob counterclockwise to
remove attachment hub cover.
W11204954A_01_ENv02.indd 10 4/2/18 6:53 PM

ENGLISH
USING THE METAL FOOD GRINDER ATTACHMENT | 11
USING THE METAL FOOD GRINDER ATTACHMENT
3
Insert the attachment shaft housing into the
attachment hub, making certain the power shaft ts
into the square hub socket. If necessary, rotate the
attachment back and forth. The pin on the attachment
housing will t into the notch of the hub rim when in
the proper position.
4 Tighten the Stand Mixer attachment hub knob
clockwise until the attachment is completely
secured to the Stand Mixer.
GRINDING WITH THE METAL FOOD GRINDER ATTACHMENT
1 Cut food into small strips or pieces sized to t into the
feed tube.
WARNING
Rotating Blade Hazard
Always use food pusher.
Keep fingers out of openings.
Keep away from children.
Failure to do so can result in amputation or cuts.
2 Turn the Stand Mixer to Speed 4 and feed food into
the feed tube using the food pusher.
W11204954A_01_ENv02.indd 11 4/2/18 6:53 PM

12 | USING THE METAL FOOD GRINDER ATTACHMENT
USING THE METAL FOOD GRINDER ATTACHMENT
1
Insert the grind screw into the main housing. Then
insert the sausage stuffer plate over the end of the
grind screw, matching the notch of the plate with the
tab on the bottom of the main housing.
2
Insert the desired sausage stuffer tube (large or small)
through the collar. Then, place the collar and tube
assembly on the main housing, turning the ring by
hand until secured but not tightened.
Tab Notch
1 Feed meat into the Metal Food Grinder attachment
before adding the sausage stuffer tube. This will
eliminate air pockets.
2 Lubricate the sausage stuffer tube and slide one casing
over the tube, leaving about 10 cm to tie off the end.
3
Turn the Stand Mixer on to Speed 4 and slowly push
the meat through the grinder. Hold the casing rmly as
it lls. If air bubbles are created during the ll process,
use a pin or needle to pop the bubble.
4 Run meat through until 10-15 cm of casing is left
unlled. Turn off the Stand Mixer and tie the remaining
end of the casing, or use a tie string.
NOTE: For segmented-type sausage (e.g., bratwurst), twist casing ends in alternating
directions at desired sausage link length.
USING THE SAUSAGE STUFFER
ASSEMBLING THE SAUSAGE STUFFER
W11204954A_01_ENv02.indd 12 4/2/18 6:53 PM

ENGLISH
CARE AND CLEANING | 13
TIPS FOR GREAT RESULTS
CARE AND CLEANING
CLEANING THE METAL FOOD GRINDER ATTACHMENT AND
ACCESSORIES
For best results, grind meat that is very cold
or partially frozen. The grinder parts can
be pre-chilled in the refrigerator or freezer
before use to maintain a cold grinding
temperature.
For more tender results, some meats can be
ground twice. However, fatty meats should be
ground only once.
To grind bread for crumbs, be sure that bread
is either oven-dried thoroughly to remove all
moisture, or not dried at all. Partially dried
bread may jam the Metal Food Grinder
attachment.
NOTE: Very hard, dense foods such as
completely dried homemade bread should
not be ground in the Metal Food Grinder
attachment. Homemade bread should be
ground fresh and then oven- or air-dried.
If using natural casings, it is recommended to
rst soak them in cold water for 30 minutes
to remove excess salt, then rinse several
times by running cold water through the
entire length of the casing. For best results
for sausage, refer also to the instructions that
came with the casings.
1 Use the cleaning brush to clean the main housing and
other accessories, including the grinding plates.
2 The following parts are dishwasher-safe, top rack only:
sausage stuffer plate, sausage stuffer tubes, cleaning
brush, and food pusher.
3
The following parts should be hand-washed only,
using warm, soapy water and drying thoroughly:
main housing, grind screw, collar, tray, grinding
plates, and blade.
HELPFUL HINTS
W11204954A_01_ENv02.indd 13 4/2/18 6:53 PM

14 | WARRANTY AND SERVICE
WARRANTY AND SERVICE
CUSTOMER SERVICE
KITCHENAID STAND MIXER ATTACHMENT WARRANTY
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT
DAMAGES.
Length of Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For:
Europe, Middle East
and Africa:
5KSMMGA
Two years full
warranty from
date of purchase.
The replacement parts
and repair labour
costs to correct
defects in materials or
workmanship. Service
must be provided by an
Authorised KitchenAid
Service Centre.
A. Repairs when Stand Mixer
Attachment is used for
operations other than normal
household food preparation.
B. Damage resulting from
accident, alterations,
misuse, abuse, or installation/
operation not in accordance
with local electrical codes.
©2018 All rights reserved. KITCHENAID and the design of
the stand mixer are trademarks in the U.S. and elsewhere.
For any questions, or to find the nearest Authorised KitchenAid Service Centre in
your country, please find our contact details below.
Number for general questions:
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorised KitchenAid Service/Customer Centre.
For more information, visit our website at:
www.KitchenAid.co.uk
www.KitchenAid.eu
W11204954A_01_ENv02.indd 14 4/2/18 6:53 PM
