6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid
PURPOSE: The purpose of this manual is to familiarize the housewares technician with the techniques
required to repair the KP (Professional), KT (Epicurean) and KD (Custom) Stand Mixers.
INDEX: PAGE NUMBER
Purpose and General Information 1
Product Specifications, Safety and Tools
Power Cord Replacement
Disassembly of Gearcase and Planetary
Component Access
Drive Train and Planetary
Worm Gear Assembly Variations
Repairs to Bowl Support and Column
Oo 0-00 5 wD
Motor Replacement
Speed Control Assembly Service
Early Domestic Wiring Diagram
Current Domestic Model Wiring Diagram
Export Model Wiring Diagram
Problem Guide
Export Model Parts Table
A on n A&A WNHD = o
KITCHENAID
6-QUART STAND MIXER
A oa
E
IMPORTANT: This Manual does NOT cover Repair Procedures for the:
K45SS - KSM90 - K5SS - KSMC50 - KSM103 - KSM110 - KSM150 - KSM151
Refer to: LIT4177310-B for Repair Procedures on these models.
GENERAL INFORMATION: (For Domestic Models Only.) These KitchenAid Units are 6 Quart Capacity
115 Volt Stand Mixer that has the following key product features:
* Heavy Duty Motor - Delivers the power to mix double batches of even heavy cookie and bread douchs
and cake batters. KP Models = 525 W. KD Models = 500 W. KT Models = 475 W.
e Heavy Duty Transmission - All metal gears are designed for many years of trouble-free operation.
e Enhanced Electronic Speed Sensor - Monitors operation to maintain precise speed regardless of loa J.
- * 10-Speed Control - Lets the user select the right speed for the mixing job, from very high to very slow stir.
e Overload TCO Control - Helps eliminate overheating. -
e Soft Start Mixing Feature - Helps Prevent ingredient "splash-out" and "flour puff" at startup.
* New Design 6 Quart Capacity Polished Stainless Steel Bowl - Big enough to handle double batches of
even heavy mixtures. Wide open design makes adding ingredients easy.
e Hinged Hub Cover - Flips up allowing easy installation of attachments - never leaves the mixer.
* New Ventilation System - Cools the entire mixer from the base through the mixer head, prolonging mixer
life.
* Unique Mixing Action - Reaches every section of the bowl to blend ingredients thoroughly - no need to
rotate the bowl.
* All Metal Construction - Broad base eliminates "mixer walk" while 5 rubber feet protect the counter and
promote stable operation.
e Clear 2-Piece Pouring Shield - New design with an enlarged chute to facilitate addition of ingre ...-..
e Ergonomically Designed Bowl Handles - Bowl and Bowl Lift Lever are contoured to comfortably ^t ti. .
hand.
e Seamless Design - No crevices or cracks to trap ingredients - makes cleanup easy.
The Product Specifications and Dimensions for the 6-Quart Stand Mixer are Listed in a separate section.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 1

MitchenAic*
7
6-Quart
Stand
Mixer
Manual
LIT4176981
© 2002 KitchenAid
PRODUCT SPECIFICATIONS - The following
‘product Specifications and Dimensions are subject to
change without notice.
Dimensions are listed in inches and (centimeters).
Weights are listed in pounds and (kilograms).
* Electrical Requirements - 115 Volts AC - 60 Hz -
Single Phase for Domestic Models. —
* Height - 16.6 inches (41.9 centimeters)
* Width - 11.3 inches (28.7 centimeters)
* Depth - 14.6 inches (37.1 centimeters)
* Cord Length - 50.8 inches (129.0 centimeters)
* Net Weight - 25.0 pounds (11.3 kilograms)
* Carton Height - 19.4 inches (49.3 centimeters)
* Carton Width - 13.3 inches (33.8 centimeters
* Carton Depth - 17.3 inches (43.9 centimeters
* Shipping Weight - 25.5 pounds (11.6 centimeters)
* Colors - Many Colors are available.
Items included with Product - The following
items are included with the product at this time:
In KP Models:
* Burnished Flat Beater * Burnished Dough Hook
* Professional Wire Whip * 2-Piece Dual Purpose
Pouring Shield.
In KD and KT Models:
.. . *OCoated Flat Beater *« Coated Dough Hook
i e Professional Wire Whip * 2-Piece Dual Purpose
‘Pouring Shield.
Replacement Warranty - If the Stand Mixer fails within
the first year of ownership, KitchenAid will arrange to
deliver an identical or comparable replacement to your
door free of charge and arrange tohavethe failed mixer
returned. For more information concerning the product
warranty contact the Customer Satisfaction Center at
[phone].
IMPORTANT SAFETY RECOMMENDATIONS
This Service Manual is written for the Professional
Service Technician who has familiarity with the
KitchenAid Stand Mixer.
Thefollowing Safety Guidelines should be adherred
to when servicing this product.
* The workplace will be dry and sanitary atall times
andall units should be inspected for cleanliness before
any work is started.
* Visually inspectthe unit requiring service in a well
luminated area.
* A mild, non-abrasive dishwashing soap solution
andclean towel can be used to wash any unit requiring
attention.
* The hands of the Service Technician should be
. clean at all times during the service procedure.
* ESD (Electo Static Discharge) protection should
be provided when servicing the electronic compo-
nents.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 ° Page2
* The work place for the stand mixer will have
properly grounded AC outlets that adhere to all Local
Electrical Codes that are applicable at the time of the
repair.
* The Stand Mixer Power Cord should always be
inspected first before testing the mixer operation.
* Do NOT run the Mixer if the Power Cord is
damaged--replace it.
* All disassembly and assembly procedures dis-
cussed in this manual should be conducted with the
unit disconnected from the AC Supply. -
* Do NOT leave the unit unattended while running
the mixer for bowl clearance or any other check.
* Always unplug the unitimmediately after conclud-
ing electrical tests.
* The Service Technician should wear Protective
Eyeware at all times when conducting a repair on the
Stand Mixer.
* Loose fitting sweaters, shirt sleeves or bracelets
should NOT be worn while servicing the Stand Mixer.
TOOLS REQUIRED - The following tools are
necessary to service the KitchenAid Stand Mixer.
*PHILLIPS SCREWDRIVERS - A Medium Size for
numerous 8-32 x 5/8" screws used in Lower Cover. A
Larger Size will be needed on the 1/4-20 x 3/4" screws
-. used to secure the Pedestal to the base. A Power
. Screwdriver is recommended for the larger screws.
* STRAIGHT SCREWDRIVER - A Medium Size for
removing the 10-24 x 1/2" Latch Bowl Spring and for
adjusting the Bowl Clearance Adjusting Cam. A small
size for removing the "C" Clip at the bottom of the Bowl
Lift Rod.
* SNAP RING PLIERS - Used to remove the (2)
Retaining Clips from the top of the Planetary Assembly
Shaft and the Agitator Shaft on the Planetary. Always
wear Safety Goggles when using Snap Ring Pliers.
e NEEDLE NOSE PLIERS - Used for removing Hall
Effect Sensor, Motor and Power Cord Leads from the
Control Board Assembly.
*DRIFT PUNCH -Usedfor removing the (2) Retain-
ing Pins from the Planetary Assembly Shaft and the
Agitator Shaft.
* SMALL HAMMER - Used for the light tapping
force required to remove the (2) Retaining Pins dis-
cussed above.
* VOLT-OHMMETER - For diagnosis a Volt-Ohm-
meter is useful in confirming continuity and an In-Line
Wattmeter is particularly helpful in confirming Trans-
mission drag problems.

KitchenAid
6-Quart Stand Mixer Manual LIT4176981
POWER CORD REPLACEMENT - Repiacing the
Power Cord on the KitchenAid Professional 6 Mixer is
an excellent way for the service technician to become
familiar with the product.
The Power Cord on this product must be replaced
if it is damaged or abused in any way.
Before you begin, review the section in this manual
on Disassembling the Gearcase and Planetary so you
will be familiar with the removal of the Trim Band and
Gearcase Motor Housing.
1. Gaining Access - Remove the Trim Band and
the Gearcase Motor Housing Screws and set these
paris aside.
The Gearcase Motor Housing is a good place to
store your fasteners.
GEARCASE
MOTOR
HOUSING
ACCESS IS ACHIEVED
WITH THE REMOVAL
OF (5) PHILLIPS
SCREWS
Always place the Gearcase Motor Housing on a
soft surface to avoid scratching the paint.
At this point you should have (1) 8-32 x 1/4 Phillips
Screw that held the Trim Band and (4) 8-32 x 5/8"
Phillips Screws that secured the Gearcase Motor Hous-
ing.
2. Clear the Deck - You will notice that the Lower
Gear Case has a total of (9) additional 8-32 x 5/8"
Phillips Screws that are used to secure the Ground
Lug, Control Assembly, Transmission Cover and Mo-
tor.
Remove all of these screws from the Lower
aearcase in the following order: (2) Control Assembly,
4) Transmission Housing, (2) Motor and (1) Power
Zord Ground Lug.
NOTE - Carefully loosen the Transmission Cover
do not remove) from the Lower Gearcase.
The Transmission Cover is packed with grease
ind itis best to keep the Cover in place after the Motor
las been removed. i
This Cover will be loosened and tipped open later
» free the Motor.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 «+
© 2002 KitchenAid
3. Control Board Leads - Using Needie Nos
Pliers, remove the Power Cord Leads from the Coniro:
Board.
4. Motor and Control Board Removal - The
Motor is still attached to the Control Board by it's leads
and by the 3-Conductor Hall Effect Cable.
lt is not necessary for you to remove these leads
when replacing the Power Cord.
TRANSMISSION
COVER
&
e» dis CÓNTROL
BOARD
| gessi erm
BIB Zo ws
LOWER SNC
GEARCASE Cea B
Sy
ACCESS TO POWER CORD REQUIRES.
THE LOWER GEARCASE TO BE
REMOVED FROM COLUMN
Carefully tip the Transmission Cover up to free the
Motor Drive, then carefully lift the Motor/ Control Board
up from the Lower Gearcase Cover and set them
aside.
5. Secure Transmission Cover - After removing
the Motor and Control Assembly, temporarily secure
the Transmission Cover by replacing the (4) 8-32 x 5/
8" Phillips Screws.
This step will allow the service technician to rotate
` the Lower Cover for access to the Power Cord and not
spill any grease.
6. Column Assembly Screws - At this point the
Power Cord is fully exposed and you can proceed with
the access by removing the (3) 1/4 - 20 x 3/4" Phillips
Screws that hold the Lower Cover to the Column.
These are larger than the 8-32 x 5/8" Screws and
will often require a power Screwdriver to be loosened.
7. Power Cord Replacement - The old Power
Cord can be freed from the Lower Cover by hand once
the Column has been removed.
Always cut the old cord into small pieces and then
dispose.
Follow these steps in reverse order after you have
positioned the new Power Cord into the Lower Cover.
CONFIRMATION - Alwaystestthe Mixerforproper
operation after replacing the Power Cord.
Page 3
N
i
EN "m

KitchenAid
6-Quart Stand Mixer Manual LIT4176981
© 2002 KitchenAid
SERVICING GEARCASE AND PLANETARY -
The Transmission Housing can be removed by
hand after the (4) 8-32 5/8" Phillips Screws have been
removed. Grasp the Transmission Housing securely
and simply lift it upward. Be careful as the Attachment
Hub Bevel Gear is in this Transmission Housing.
TRANSMISSION
<= HOUSING
Lew,
we
SE
' USE PAPER TOWELS
TO AVOID COMING
IN CONTACT WITH
GREASE
ATTACHEMENT
HUB BEVEL
GEAR
This Gear can be removed later by hand for inspec-
tion. Carefully set the Transmission on your paper
towels after inspecting it's condition.
Replace the Transmission Housing if cracks are
evident. The Hall Effect Sensor Cable should be dis-
connected from the Contro! Board so the the Board
. can be moved away from the Transmission Housing.
HALL EFFECT
SENSOR CABLE ~_
USE CARE WHEN
, REMOVING THIS
CABLE
Make sure that no grease comes in contact with the
connector at the end of the Hall Effect Sensor cable.
DRIVETRAIN TERMINOLOGY - Before Servicing
the Gearcase lets review the rotating gears that make
up the gearcase. Additional details follow for servicing
each of these gears.
e Attachment Hub Bevel Gear- This gear is located
in the Transmission Housing and can be removed by
hand from the Transmission Housing for inspection.
e Bevel Gear- This is the top gear on the Planetary
Shaft. The Bevel Gear is held to the Planetary Shaft
with a Snap-Ring. This Snap-Ring must be removed
with Snap-Ring Pliers to remove the Bevel Gear.
e Worm Follower Gear - This is the bottom gear on
the Planetary Shaft.
The Worm Follower Gear can be removed from
the Planetary Shaft afterthe Bevel Gear and Retaining
Pin are removed.
The Planetary is free to drop after the Pin is
removed.
* Worm Gear - This is an assembly that has a
"Front" and "Rear" bearing on each end of the Worm
Gear Shaft. This worm gear assembly can be lifted
from the lower gearcase after the Transmission Hous-
ing is removed.
ATTACHEMENT
HUB BEVEL GEAR
FOLLOWER
GEAR
The Technician should be aware of the three
different Worm Gear Variations that have evolved with
the product, as different replacement parts will be
required, depending on the Date Code of the unit.
See: Worm Gear Assembly Variations Section
Before removing the worm gear, notice that both
bearings are oriented so the flats of the bearing are
vertical.
c»
cu
g— PLANETARY
Sy PINION
© GEAR
e Planetary Pinion Gear - This gear is attached to
the Planetary Agitator Shaft and can be accessed by
removing a Snap Ring. Retaining Pin removal is not
needed to remove the Pinion Gear.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 ¢ Page4

KitchenAid
6-Quart Stand Mixer Manual LIT4176981
© 2002 KitchenAid
COMPONENT ACCESS - Access to the Gearcase
components is outlined as follows:
* Remove the Transmission Cover
* The entire Worm Gear assembly can be lifted by
hand once the Transmission Cover has been re-
moved.
* The Bevel Gear is held on the Planetary Shaft with
a Snap Ring that is located at the top of the Planetary
Shaft.
* This Snap Ring must be removed with Snap Ring
Pliers to gain access to the Bevel Gear.
e Carefully lift the Snap Ring off the shaft of the
Planetary.
* Once the Snap Ring is removed, the Bevel Gear
can normally be removed by hand and set on the paper
towel for later inspection.
* The Pin on the Planetary Shaft can now be
removed with a small punch and light tapping action
with a small hammer.
* After the Pin has been removed place your hand
under the Planetary and with your other hand push the
shaft down to free the shaft from the Lower Housing.
* On older Mixers or cases where abuse is sus-
pected, the technician should carefully inspect the
other Drive Train components.
TRANSMISSION -The technician should be aware
of the following changes related to the transmission.
* The Transmission Cover on models produced
from Mixer Serial Number WL17 to Present, utilize a
Transmission Cover Gasket.
* Transmission Cover Gaskets are not used on all
models. .
* Do not use a Transmission Cover Gasket on
models that did not originally utilize the gasket.
COVER
TRANSMISSION
COVER GASKET
* Transmission gears should be packed after repair
with approximately 2 ounces of #2 Grease.
* Apply the #2 Grease to the Gears—do not add
excessive grease to the inside of the Transmission
Cover.
* Torque the Phillips Screws that secure the units
Transmission Cover with equal pressure on each
astenerand follow the torqeing sequence that follows.
TN.
TRANSMISSION COVER TORQUEING - Use tl: J
following pattern when torqueing the Transmission
Cover Fasteners. 3
Looking at TOP of Transmission Cover with the
Motor to the RIGHT:
END AT #4
4 e START AT #1
s CO
x I
yt
^ ^
*
*
oa
P d ~
To
>
=-=-
Carefully inspect the condition of the fasteners and
replace if galled or damaged. - f
Be sure to use a good quality and correct siz: `
Philips Screwdriver when torqueing the fasteners.
Maintain an equal pressure at each fastener and
do NOT over tighten. :
Ld
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 ° Pages5
x
n

KitchenAid
6-Quart Stand Mixer Manual LIT4176981
© 2002 KitchenAid
DRIVE TRAIN OVERVIEW - On a mixer that is
suspected of having been abused or used under
extreme duty cycles, take particular care in inspecting
alt of the gears before beginning reassembly.
The Drive Train is lubricated with approximately 2
ounces of #2 Grease.
All gears should have a light coating of this lubri-
cant applied prior to reassembly.
Grease collected in transmission cover should be
scraped out and reapplied to the gears.
* Attachment Hub Bevel Gear - After inspection
place this gear in the Transmission Housing.
Wipe any excess lubricant from the end that pro-
trudes through the Transmission Housing.
* Bevel Gear - This is the top gear on the Planetary
Shaft. The Bevel Gear is held to the Planetary Shaft
with a Snap-Ring.
This Snap-Ring must be removed with Snap-Ring
Pliers to remove the Bevel Gear.
* Worm Follower Gear - This is the bottom gear on
the Planetary Shaft.
The Worm Follower Gear can be removed from the
l E Planetary Shaft after the Bevel Gear and Retaining Pin
are removed.
* Worm Gear - This is the assembly that has the
bearings on each end of the Worm Gear Shaft.
This assembly can be lifted from the lower gearcase
after the Transmission Housing is removed.
When reassembling, remember to replace the
Thrust Washer on the end of the Worm Section and
that both brass bearings rest in the Lower Gear Case
with the flats of the brass bearings oriented vertically.
* Bevel Gear - The Bevel Gear should be removed
from the Planetary Shaft and set on the paper towel
with the other gears.
To continue the Drive Train tear down and inspec-
tion, the Pin on the Planetary Shaft must be driven out.
Be careful when completing this step as it is pos-
sible for the Planetary assembly to fall abruptly.
Simply keep the punch in the hole of the shaft while
the Pin is being set aside. Remove the punch after you
have secured the assembly with both hands.
Carefully push down to remove it from the base.
Again have the paper towel available and keep the
, grease away from other parts of the Mixer.
Since the Planetary Assembly is removed make
your inspection and use the following two step proce-
dure if disassembly is necessary.
1. Planetary Disassembly - if you see significant
wear or damage use Snap Ring Pliers to remove the
Retaining Clip from the Agitator Shaft.
You are again reminded as in the case of the
Retaining Clip that secures the Bevel Gear, wear
Safety Goggles whenever usiing Snap Ring Pliers!
The Pinion Gear on the Agitator Shaft can then be
removed by hand.
The Retaining Pin on the Planetary Shaft must be
removed to continue your inspection.
This pin can usually be removed with hand pres-
sure as shown below.
Notice the washer under the Pin. Be sure to re-
place it correctly during reassembly.
The Agitator Shaft can now be removed from the
Agitator Assembly and inspected or replaced as nec-
essary.
2. Planetary Pinion Gear - Inspect the Agitator
Shaft and Planetary for any damage.
Make sure that the Lower Retaining Clip on the
Agitator Shaft is in good condition.
Place the Agitator Shaft into the Planetary.
The Agitator Shaft should rotate smoothly once
inside the Planetary.
Place the Thrust Washer on the shaft and then
position the Retaining Pin into the hole at the top.
The Planetary Pinion Gear has a sloton the bottom
that sets over the Retaining Pin.
Set the Planetary Pinion Gear on the shaft cen-
tered over the Retaining Pin.
Using Snap Ring Pliers, install the Retaining "C"
Clip to the top of the Agitator Shaft.
e Worm Follower Gear Removal - The Worm
Follower Gear that links to the Worm Gear Assembly
can now be lifted from the bottom of the Mixer Cover.
The Worm Gear Assembly, has two brass bear-
ings on each end and can be lifted from the Bottom
Cover with hand pressure.
The collection of Gears can be cleaned with a
benign Solvent like WD-40 and then inspected. -
Any gear showing signs of galling, nicks, cracks or
noticable wear should be replaced.
The (2) Worm Gear Assembly Bearings and Thrust
Washers should also be replaced if noticable signs of
wear are observed.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 °» Page6

KitchenAid
6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid

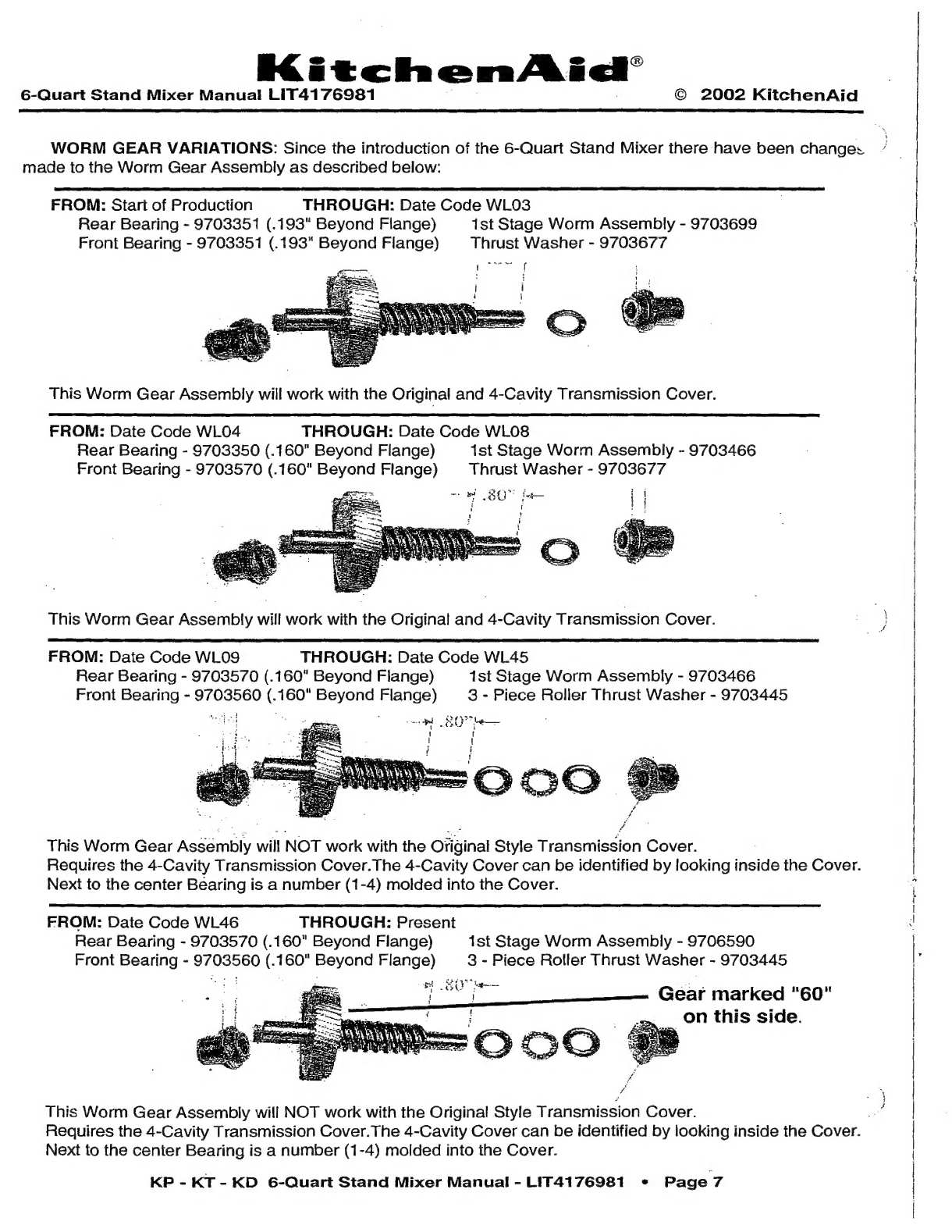

WORM GEAR VARIATIONS: Since the introduction of the 6-Quart Stand Mixer there have been change:
made to the Worm Gear Assembly as described below:
FROM: Start of Production THROUGH: Date Code WLO3
Rear Bearing - 9703351 (.193" Beyond Flange) ist Stage Worm Assembly - 9703699
Front Bearing - 9703351 (.193" Beyond Flange) Thrust Washer - 9703677
This Worm Gear Assembly will work with the Original and 4-Cavity Transmission Cover.
FROM: Date Code WLO4 THROUGH: Date Code WLO8
Rear Bearing - 9703350 (.160" Beyond Flange) ist Stage Worm Assembly - 9703466
Front Bearing - 9703570 (.160" Beyond Flange)
This Worm Gear Assembly will work with the Original and 4-Cavity Transmission Cover.
FROM: Date Code WLOS THROUGH: Date Code WL45
Rear Bearing - 9703570 (.160" Beyond Flange) ist Stage Worm Assembly - 9703466
Front Bearing - 9703560 (.160" Beyond Flange) 3 - Piece Roller Thrust Washer - 9703445
Qe
eM so Me
na
This Worm Gear Assembly will NOT work with the Original Style Transmission Cover.
Requires the 4-Cavity Transmission Cover. The 4-Cavity Cover can be identified by looking inside the Cover.
Next to the center Bearing is a number (1-4) molded into the Cover.
FROM: Date Code WL46 THROUGH: Present
Rear Bearing - 9703570 (.160" Beyond Flange) ist Stage Worm Assembly - 9706590
Front Bearing - 9703560 (.160" Beyond Flange) 3 - Piece Roller Thrust Washer - 9703445
M ROT EN
? ! l
__ on this side.
This Worm Gear Assembly will NOT work with the Original Style Transmission Cover.
Requires the 4-Cavity Transmission Cover.The 4-Cavity Cover can be identified by looking inside the Cover.
Next to the center Bearing is a number (1-4) molded into the Cover.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 7

B Fi
o
KitchenAid
6-Quart Stand Mixer Manual LIT4176981
© 2002 KitchenAid
BOWL SUPPORT and COLUMN - If service is
needed on the Bowl Support and Column the Lower
Cover should be removed from the Column.
The Motor will have to be removed to gain access
to the (3) 8-32 x 5/8" Phillips Screws that hold the
Lower Gearcase to the Column. mE
Also remove the Base from the Column and Bowl
Support Assembly.
This is accomplished by removing the (3) 1/4 -20 x
3/4" Phillips Screws from the bottom of the Base.
Remove the lower "C" Clip and the Bow! Support
can now be removed. Later models may use a lock nut
instead of a clip.
STAND MIXER BASE, BOWL SUPPORT
AND COLUMN a LIFT ARM
DRIVE PIN or
|
"C"
CLIP
——
/
/
SCREW
sow. EIU
LIFT
ROD
a
Ses
LIFT
, SPRING HANDLE
WASHER
"C" CLIP or
LOCK NUT
BOWL
SUPPORT COLUMN
_ ASSEMBLY
LATCH
SPRING
REASSEMBLY - Slide the Bowl Support onto the
Column and allign the Bowl Lift Rod through the hole
on the inside of the Bowl Support.
Position the Bowl Lift Handle so that the Bowl Lift
Rod is extended fully through the hole of the Bowl
Support.
Set the Spring on the Bowl Lift Rod, followed by the
Washer. Using Pliers, lock the "C" Clip to the end of the
Bowl Lift Rod.
Always rotate the Bowl Lift Handle to test the
operation of the Bowl Lift Arm.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 œ
PEDESTAL - The rubber feet imbedded in the
Pedestal should always be checked to insure that the
Mixer has a solid foundation with the work surface.
REPLACING BOWL AND LIFT ARM - Remove
the upper "C" Clip, then slide the Bowl Lift Rod out of
the Bowl Lift Arm.
Remove the Pin (Screw on later models).
Pull Bowl Lift Handle out until tha Arm can be
removed.
Reverse Assembly steps to reassemble the Bowl
Lift Mechanism.
FINAL INSPECTION - Before repackaging the
Stand Mixer after a Bowl Support and Pedestal Repair
check the foilowing:
* Confirm that Base, Bowl Support and Column
Assembly are soil free. Pay particular attention to the
(5) Rubber Feet imbedded in the base clean if neces-
sary with a mild soap solution.
* Checkthe tightness of ali Phillips Screws used to
fasten the Column to the Base and to the Lower Gear
case. Retighten if necessary.
NOTE: 1/4" Screws are used to attach the Base to
the Column. Use a LARGE Phillips Screwdriver.
e Confirm that both "C" Clips (or Lock Nuts) are
seated properly and are in good condition.
e Confirm the movement of the Bowl Support by
lifting the Bowl Lift Handle.
PRODUCT IDENTIFICATION - The Model and
Serial Number Identification Tag are located at the
bottom of the Stand Mixer Base.
This information should always be recorded by the
repair technicían for future reference. l
Page 8

KitchenAid
6-Quart Stand Mixer Manual LIT4176981
MOTOR REPLACEMENT - The Motor on the
KitchenAid Stand Mixer can be replaced by using the
method outlined below.
Make sure that the Mixer is disconnected from the
AC Supply before beginning the following procedure
that begins after the Trim Band and Upper Cover have
been removed.
IMPORTANT - There are (3) versions of the Lower
Gear Case that require different Motors.
HALL EFFECT T es
CABLE =
MOTOR SHAFT
SEAL
THERE ARE THREE
STYLES OF LOWER
GEAR CASES
LOWER GEAR
CASE
1. Remove the (4) 8-32 x 5/8" Phillips Screws that
secure the Transmission Cover and carefully remove
the cover and set aside.
The Transmission Cover contains Grease, so avoid
contact with the Mixer and other components!
2. Remove the (2) 8-32 x 5/8" Phillips Screws that
secure the Control Assembly to the Lower Cover.
3. Remove the (2) Black Motor Leads and the Grey
Hall Effect Cable from the Mixer Control Assembly.
4. Remove the (2) 8-32 x 5/8" Phillips Screws that
secure the Motor to the Lower Cover.
5. The Motor can now be removed for inspection or
replacement.
Be sure to remove and save the Grey Hall Effect
Sensor Cable from the original Motor for use with the
Replacement Motor.
Be sure that the Motor Shaft Seal (9706247) is in
place before setting the replacement motor into the
Base of the Transmission.
Before tightening motor screws and transmission
cover screws—push motor forward to ensure shaft
seal is seated.
Hold motor in place and tighten all screws.
© 2002 KitchenAid
6-QUART STAND MIXER
MOTOR REPLACEMENT TABLE
DOMESTIC MODELS
The correct replacement part number is
determined by the production date of the mixer.
* PRODUCTION DATE - WK08 (Production Start-up) through WK50
e LOWER HOUSING DESCRIPTION - Narrower Rib opening under Motor.
* TRANSMISSION COVER GASKET - No Gasket Used.
e PROD. IST STAGE GEAR & WORM ASSEMBLY - 9703699
* MOTOR FOR SERVICE - 9706251 or 9703571
(Requires NEW Lower Housing)
e PRODUCTION DATE - WKSI through WL03
* LOWER HOUSING DESCRIPTION - Wider Rib opening under Motor.
* TRANSMISSION COVER GASKET - No Gasket Used.
e PROD. IST STAGE GEAR & WORM ASSEMBLY - 9703699
e MOTOR FOR SERVICE - 120V (All) - 9706251
* PRODUCTION DATE - WL04 through WLI6
* LOWER HOUSING DESCRIPTION - Wider Rib opening under Motor.
* TRANSMISSION COVER GASKET - No Gasket Used
PROD. IST STAGE GEAR & WORM ASSEMBLY - 9703446
* MOTOR FOR SERVICE - 120V (All) - 9706251
* PRODUCTION DATE - WLI7 through WL45
* LOWER HOUSING DESCRIPTION - Wider Rib opening under Motor.
* TRANSMISSION COVER GASKET - Gasket adhered to Transmission Cover.
e PROD. IST STAGE GEAR & WORM ASSEMBLY - 9703446
* MOTOR FOR SERVICE - 120V (All) - 9706251
* PRODUCTION DATE - WL46 through Present
* LOWER HOUSING DESCRIPTION - Wider Rib opening under Motor.
© TRANSMISSION COVER GASKET - Gasket adhered to Transmission Cover.
PROD. IST STAGE GEAR & WORM ASSEMBLY - 9706590
* MOTOR FOR SERVICE - 120V (Professional) - 9703585
120V (Other) - 9706548
Replacement Motor part numbers for Export
Models are provided in the Export Model
Part Number Table.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 °» Page9
)

:
N
\
KitchenAid
6-Quart Stand Mixer Manual LIT4176981
© 2002 KitchenAid
SPEED CONTROL ASSEMBLY SERVICE - The
KitchenAid Stand Mixer utilizes a Solid State Speed
Control that mounts to the Lower Gearcase with (2) 8-
32 x 5/8" Phillips Screws.
This componentis not servicable or adjustable and
will have to be replaced if it fails mechanically or
electrically.
SOLID STATE
— CONTROL
BOARD
. KEEP THE SOLID
STATE CONTROL
BOARD AWAY FROM
TRANSMISSION
GREASE
TESTING THE CONTROL ASSEMBLY - The
Control Assembly should first be tested with the Mixer
in the "Off" position and disconnected from the AC
Mains.
NOTE: Before you begin this test check the condi-
tion of the Stand Mixer Power Cord and replace it if it
is damaged or defective.
e Simply move the Handle from the "Off" position
and observe each of the six speed detents.
* These should have a distinct locking action in
each of the six running positions.
* Now return the Mixer to the "Off" position and
plug it into the AC Supply.
The Mixer should not run in the "Off" position.
NOTE: The mixer must be in the "Off" position
for 5 seconds - in order to Reset.
* Carefully move the Controlto the first "Stir" speed
and confirm operation.
* Remember that ALL Speeds have a "Soft Start"
feature that automatically starts the Mixer at a slower
speed to help prevent "Splash Out".
* You should observe a slight pause as you move
' from each speed. Confirm the operation at each of the
six (Stir -2-4-6-8-10) detents of the Control.
REPLACING THE SPEED CONTROL - If replace-
ment of the Control Assembly is necessary, make sure
that the Mixer is unplugged from the AC Mains and
after removing the Motor Housing, remove the (2) 8-32
x 5/8" Phillips Screws that hold the Control Assembly
to the Lower Cover.
SOLID STATE SPEED CONTROL
BOARD CONTACTS
HALL
EFFECT H
CABLE
P5 [2]
UNSWITCHED
Lad C - ON/OFF
MOTOR 2
HERE]
P3 NEUTRAL mmm
P1 LINE mmm
P2 MOTOR 1 mum
maux] NC - ON/OFF
NOTE: Refer to the wiring
diagrams for wiring details on
specific 6-Quart Stand Mixer
models.
Check the Control Assembly wire leads first and
tighten them if a loose or broken connection is noted at
the Spade Lug Connectors.
Retest before replacing Control Board—then if the
fault persists: (Be sure unit is unplugged!)
* Verify that wire leads are identified relative totheir
position on the Control Board. (Label if necessary.)
* Using Needle Nose Pliers remove the (2) Motor
Leads, the (2) Power Cord Leads and the Hall Effect
Sensor Connector from the Circuit Board..
* Using the replacement Control Assembly,
reconnect these leads to the appropriate points on the
Circuit Board.
* Make sure that the Spade Lugs fit tightly. Mount
the new Control Assembly on the Lower Gearcase
using the (2) 8-32 x 5/8" Phillips Screws.
* Replace the Motor Housing and then repeat the
Test Procedure outlined above to confirm proper op-
eration. "E
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 ¢ Page 10

KitchenAid
6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid
Wiring Diagram
6 Quart Stand Mixer
Domestic and Canadian Models:
KP, KT, KD,
4KP, 4KT and 4KD
MOTOR
HALL
:
EFFECT
Serial
Numbers:
WKO8
-
WL45
SENSOR
ON .—
CONTROL
ES =
P3 NEUTRAL
P1 LINE
P2 MOTOR 1
C-ON/OFF =
NC - ON/OFF mmm
POWER
CORD
GROUND
CHASSIS
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 11

KitchenAid
6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid
23
J
Wiring Diagram
6 Quart Stand Mixer
Domestic and Canadian Models:
KP,
KT,
KD,
MOTOR
4KP,
4KT
and
4KD
HALL
Serial
Numbers:
WL46
-
Present
EA
ON
CONTROL
BOARD
BLACK
HALL
O
EFFECT
CABLE
»
MOTOR
2
NEUTRAL
MOTOR
1
LINE
WHITE
POWER
E
GROUND
)
CHASSIS
CORD
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 12

KitchenAid
6-Quart Stand Mixer Manual LIT4176981 o 2002 KitchenAid
Wiring Diagram
6 Quart Stand Mixer
For:
International Models:
SKP , 8KP and 9KP MOTOR
Serial Numbers: AII HALL
EFFECT
SENSOR.
ON
CONTROL
BOARD
BLACK
HALL
EFFECT
CABLE
MOTOR 2
BLACK
P4
NEUTRAL
MOTOR 1
RFI
FILTER
IN-LINE
ON/OFF CONNECTORS
SWITCH
GREEN or
GREEN YELLOW
BLACK or
BROWN
ra POWER
GROUND
CHASSIS C O R D
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 ¢ Page 13
—

KitchemA iad’
6-Quart Stand Mixer Manual LIT4176981 © 2002 KitchenAid .

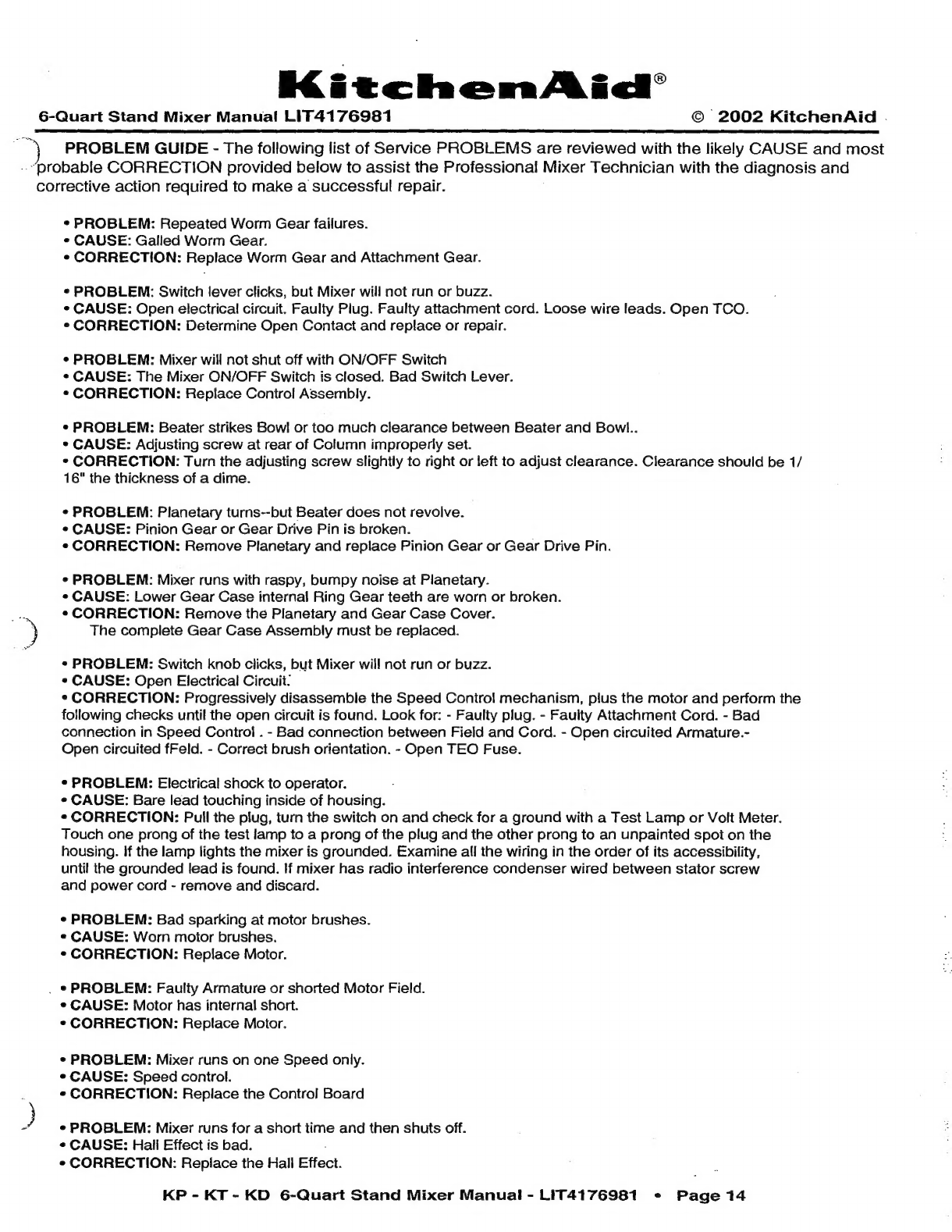

B PROBLEM GUIDE - The following list of Service PROBLEMS are reviewed with the likely CAUSE and most
- "probable CORRECTION provided below to assist the Professional Mixer Technician with the diagnosis and
corrective action required to make a successful repair.
* PROBLEM: Repeated Worm Gear failures.
* CAUSE: Galled Worm Gear.
* CORRECTION: Replace Worm Gear and Attachment Gear.
* PROBLEM: Switch lever clicks, but Mixer will not run or buzz.
* CAUSE: Open electrical circuit. Faulty Plug. Faulty attachment cord. Loose wire leads. Open TCO.
* CORRECTION: Determine Open Contact and replace or repair.
* PROBLEM: Mixer will not shut off with ON/OFF Switch
* CAUSE: The Mixer ON/OFF Switch is closed. Bad Switch Lever.
* CORRECTION: Replace Control Assembly.
* PROBLEM: Beater strikes Bow! or too much clearance between Beater and Bowl..
* CAUSE: Adjusting screw at rear of Column improperly set.
* CORRECTION: Turn the adjusting screw slightly to right or left to adjust clearance. Clearance should be 1/
16" the thickness of a dime.
* PROBLEM: Planetary turns--but Beater does not revolve.
* CAUSE: Pinion Gear or Gear Drive Pin is broken.
* CORRECTION: Remove Planetary and replace Pinion Gear or Gear Drive Pin.
e PROBLEM: Mixer runs with raspy, bumpy noise at Planetary.
* CAUSE: Lower Gear Case internal Ring Gear teeth are worn or broken.
E e CORRECTION: Remove the Planetary and Gear Case Cover.
` The complete Gear Case Assembly must be replaced.
* PROBLEM: Switch knob clicks, but Mixer will not run or buzz.
* CAUSE: Open Electrical Circuit:
* CORRECTION: Progressively disassemble the Speed Control mechanism, plus the motor and perform the
following checks until the open circuit is found. Look for: - Faulty plug. - Fauity Attachment Cord. - Bad
connection in Speed Control . - Bad connection between Field and Cord. - Open circuited Armature.-
Open circuited fFeld. - Correct brush orientation. - Open TEO Fuse.
e PROBLEM: Electrical shock to operator.
* CAUSE: Bare lead touching inside of housing.
* CORRECTION: Pull the plug, turn the switch on and check for a ground with a Test Lamp or Volt Meter.
Touch one prong of the test lamp to a prong of the plug and the other prong to an unpainted spot on the
housing. If the lamp lights the mixer is grounded. Examine all the wiring in the order of its accessibility,
until the grounded lead is found. If mixer has radio interference condenser wired between stator screw
and power cord - remove and discard.
* PROBLEM: Bad sparking at motor brushes.
* CAUSE: Worn motor brushes.
* CORRECTION: Replace Motor.
. *PROBLEM: Faulty Armature or shorted Motor Field.
* CAUSE: Motor has internal short.
* CORRECTION: Replace Motor.
* PROBLEM: Mixer runs on one Speed only.
* CAUSE: Speed control.
¢ CORRECTION: Replace the Control Board
P. e PROBLEM: Mixer runs for a short time and then shuts off.
* CAUSE: Hall Effect is bad. l
e CORRECTION: Replace the Hall Effect.
KP - KT - KD 6-Quart Stand Mixer Manual - LIT4176981 * Page 14

m
E
j
fre,
ü
ms
Di
P
KitchenAid’
6-Quart
Stand
Mixer
Manual
LIT4176981
©
6
Quart
Stand
Mixer
Export
Parts
2002 KitchenAid
VOLTS
-
COUNTRY
|
MODEL
NUMBER
|
PRODUCTION
DATE CODES
LOWER
HOUSING
DESCRIPTION
5KP2670A
WLI8
-
WL37
—
[Shorter
transmission
mounting
surface.
(.260"
to
pads.)
5KP2670A
W138
-
Present
{Shorter
transmission
mounting
surface.
(.260"
to
pads.)
230V
-
Australia
(Early)
230V
-
Australia
(Late)
30V
-
International
SKP2670E
WLI8
-
Present
[Shorter
transmission
mounting
surface.
(.260"
to
pads.)
LIOV
-
Taiwan
WEZI
-
Present
J
Shorter
transmission
|
mounting
surface.
(.260"
to
pads.)
WLI8
-
Present.
{Shorter
transmission
mounting
surface.
(260"
to
pads.)
100Y
-
Japan
TRANSMISSION
COVER
GASKET
Gasket
adhered
to
transmission
cover.
Gasket adhered to
transmission
cover.
Gasket
adhered
to
transmission
cover.
Gasket adhered to
transmission
cover.
Gasket
adhered
to
transmission cover.
CONTROL
SUB-ASSEMBLY
9703352
(230V, DNA)
9703352
(230V,
DNA)
9703352
(230V,
DNA)
9706052
(100-1
10V,
DNA)
9706052
(100-1
10V,
DNA)
PRODUCTION
1ST
STAGE GEAR
AND
WORM ASSSEMBLY
PRODUCTION &
SERVICE MOTOR
9706034
(U98
-
8
tooth)
9703446
(53 tooth Ist stage
gear)
9703446
(53
tooth Ist
stage
gear)
9706034
(U98
-
8
tooth)
9706034
(U98 - 8 tooth)
9703446
(53
tooth
Ist
stage
gear)
9706251
(U98
-
8
tooth)
9103446
(53 tooth Ist stage
gear)
9106035
(U98
-
8
tooth)
9103446
(53
tooth
Ist
stage
gear)
NOTE
-
Refer
to
Parts
Manual
for
Ordering
Information.
KP
-
KT
-
KD
6-Quart
Stand
Mixer
Manual
-
LIT4176981
>
Page
15
9703565
(2 Receptacle
Terminals)
9706064
(1
Tab and
|
Receptacle
Terminals)
9703564
(2 Receptacle
Terminals)
9706065
(I
Tab
and
|
Receptacle
Terminals)
9706050
(2
Receptacle
Terminals)
RFI
FILTER
9703582
(2
Tab
and
2
Receptcle Terminals)
9706073
(I
Tab
and
3
Receptacle
Terminals)
9703582
(2 Tab and 2
Recptecle
Terminals)
9706073
(1 Tab and 3
Receptacle
Terminals}
9703582
(2
Tab
and
2
Receptecle
Terminals)
