KITO Harrington TCK Series User manual

Owner’s Manual
AIR
POWERED
CHAINHOIST
TCKSERIES
3 Ton and 6 Ton Capacity
WARNING
© Harrington Hoists, Inc.
All Rights Reserved
Code Number and Serial Number
This equipment should not be installed, operated or
maintained by any person who has not read and understood
all the contents of this manual. Failure to read and comply
with the contents of this manual can result in serious bodily
injury or death, and/or property damage.
EFFECTIVE: April 28, 2020

2
Table of Contents
Section Page Number
1.0 Important Information and Warnings…………………………………………………………………4
1.1 Terms and Summary
1.2 Warning Tags and Labels
2.0 Technical Information…………………………………………………………………………………8
2.1 Specifications
2.2 Dimensions
2.3 Part Names
3.0 Pre-operational Procedures………………………………………………………………………...12
3.1 Air Supply System Requirements
3.2 Air Supply Capacity and Regulation
3.3 Lubrication
3.4 Filtration
3.5 Air Dryer
3.6 Piping, Hoses and Fittings
3.7 Mounting Location
3.8 Connecting Hoist to Air Supply
3.9 Mounting the Hoist
3.10 Optional Chain Container
3.11 Non-Stationary Application
3.12 Preoperational Checks and Trial Operation
4.0 Operation……………………………………………………………………………………………. 23
4.1 Introduction
4.2 Shall’s and Shall Not’s for Operation
4.3 Hoist Controls
4.4 Adjusting the Controls
4.5 Operation ofthe Load Limiter

3
Section Page Number
5.0 Inspection…………………………………………………………………………………………….28
5.1 General
5.2 Inspection Classification
5.3 Frequent Inspection
5.4 Periodic Inspection
5.5 Occasionally Used Hoists
5.6 Inspection Records
5.7 Inspection Methods and Criteria
6.0 Lubrication…………………………………………………………………………………………... 36
6.1 Air Hoist Lubrication
6.2 Load Chain Lubrication
6.3 Hooks and Suspension Components
7.0 Maintenance & Handling…………………………………………………………………………… 38
7.1 Load Limiter
7.2 Brake
7.3 Load Chain
7.4 Pendant
7.5 Load Sheave Inspection
7.6 Storage
7.7 Outdoor Installation
8.0 Troubleshooting…………………………………………………………………………………….. 47
9.0 Warranty…………………………………………………………………………………………….. 49
10.0 Parts List…………………………………………………………………………………………….. 50
10.1 Main Body
10.2 Cord Control Valve Body
10.3 Pendant Control Valve Body
10.4 Pendant Handle

4
1.0 Important Information and Warnings
1.1 Terms and Summary
This manual provides important information for personnel involved with the installation, operation and maintenance
of this product. Althoughyou may befamiliar with this or similar equipment, itis strongly recommended that you read
this manual before installing, operating or maintaining the product.
Danger, Warning, Caution and Notice - Throughout this manual there are steps and procedures that can present
hazardous situations. The following signal words are used to identify the degree or level of hazard seriousness.
!DANGER
Danger indicates an imminently hazardous situationwhich, if not avoided, will result in death or
serious injury, and property damage.
!WARNING
Warning indicates an imminently hazardous situation which, if not avoided, could result in death
or serious injury, and property damage.
!CAUTION
Cautionindicates a potentially hazardous situation which, if not avoided, may result minor or
moderate injury or property damage.
NOTICE
Notice is used to notify people of installation, operation, or maintenance information which is
important but not directly hazard-related.
NOTICE
INTENDED USE OF HOIST/TROLLEY HOIST and Owner’s Manual
The TCK hoists are intended only for vertical lifting service of freely suspended, unguided loads. In addition to lifting
service of freely suspended, unguided loads, TCK when coupled with a trolley is to be used to traverse these loads on a
single girder beam.
The TCK hoists are not intended to lift greater than rated loads, lift, support or transport people nor lift loads over people.
The TCK hoists are intended to be operated by persons who have read and understood the operation section of the
TCK owner’s manual, all warnings and are familiar with the TCK hoist controls.
!CAUTION
These general instructions deal with the normal installation, operation, and maintenance situations encountered with
the equipment described herein. The instructions should not be interpreted to anticipate every possible contingency
or to anticipate the final system, crane, or configuration that uses this equipment. For systems using the equipment
covered by this manual, the supplier and owner of the system are responsible for the system’s compliance with all
applicable industry standards, and with all applicable federal, state and local regulations/codes.
This manual includes instructions and parts information for a variety of hoist types. Therefore,all instructions and
parts information may not apply to any one type or size of specific hoist. Disregard those portions of the instructions
that do not apply.
Record your hoist’s Code and Serial Number (see Section 9) on the front cover of this manual for identification and
future reference to avoid referring to the wrong manual for information or instructions on installation, operation,
inspection, maintenance, or parts.
Use only Harrington authorized replacement parts in the service and maintenance of this hoist.

5
!WARNING
Equipment described herein is not designed for and MUST NOT be used for lifting, supporting, or transporting people,
or for lifting or supporting loads over people.
Equipment described herein should not be used in conjunction with other equipment unless necessary and/or
required safety devices applicable to the system, crane, or application are installed by the system designer, system
manufacturer, crane manufacturer, installer, or user.
Modifications to upgrade, rerate, or otherwise alter this equipment shall be authorized only by the original equipment
manufacturer.
Equipment described herein may be used in the design and manufacture of cranes or monorails. Additional
equipment or devices may be required for the crane and monorail to comply with applicable crane design and safety
standards. The crane designer, crane manufacturer, or user is responsible to furnish these additional items for
compliance. Refer to ANSI/ASME B30.17, “Safety Standard for Top-Running Single Girder Cranes”; ANSI/ASME
B30.2 “Safety Standard for Top-Running Double-Girder Cranes”; and ANSI/ASME B30.11 “Safety Standard for
Underhung Cranes and Monorails”.
If a below-the-hook lifting device or sling is used with a hoist, refer to ANSI/ASME B30.9, “Safety Standard for
Slings” or ANSI/ASME B30.20, “Safety Standard for Below-the-Hook Lifting Devices”.
Hoists, trolleys and cranes, used to handle hot molten material may require additional equipment or devices. Refer to
ANSI Z241.2, “Safety Requirements for Melting and Pouring of Metals in the Metalcasting Industry”.
Failure to read and comply with any one of the limitations noted herein can result in serious bodily injury or death,
and/or property damage.

6
!DANGER
HAZARDOUS AIR PRESSURE IS PRESENT IN THE HOIST, IN THE SUPPLY OF COMPRESSED AIR TO THE
HOIST, AND IN THE CONNECTIONS BETWEEN COMPONENTS.
Before performing ANY maintenance on the equipment, de-energize the supply of compressed air to the
equipment, and lock and tag the supply device in the de-energized position. Refer to ANSI Z244.1, “Personnel
Protection - Lockout/Tagout of Energy Sources.”
Only trained and competent personnel should inspect and repair this equipment.
NOTICE
It is the responsibility of the owner/user to install, inspect, test, maintain, and operate a hoist in accordance with
ANSI/ASME B30.16, “Safety Standard for Overhead Hoists”, OSHA Regulations. If the hoist is installed as part of a
total lifting system, such as an overhead crane or monorail, it is also the responsibility of the owner/user to comply with
the applicable ANSI/ASME B30 volume that addresses that type of equipment.
It is the responsibility of the owner/user to have all personnel that will install, inspect, test, maintain, and operate a
hoist read the contents of this manual and applicable portions of ANSI/ASME B30.16, “Safety Standard for Overhead
Hoists” and OSHA Regulations. If the hoist is installed as part of a total lifting system, such as an overhead crane, the
applicable ANSI/ASME B30 volume that addresses that type of equipment must also be read by all personnel.
If the hoist owner/user requires additional information, or if any information in the manual is not clear, contact
Harrington or the distributor of the hoist. Do NOT install, inspect, test, maintain, or operate this hoist unless this
information is fully understood.
A regular schedule of inspection of the hoist in accordance with the requirements of ANSI/ASME B30.16 should be
established and records maintained.

7
1.2 Warning Tags and Labels
The warning tag illustrated below in Figure 1-1 is supplied with each hoist shipped from the factory. If the tag is not
attached to your hoist (for pendant control, the warning tag is attached to the pendant hose; for the pull cord control, the
warning tag is attached to the up cord), order a tag from your dealer and install it. See parts list in the parts section of
this manual. Read and obey all warnings attached to this hoist. Tag is not shown actualsize.
front back
Figure 1-1 Warning Tag Attached to Hoist

8
2.0 Technical Information
2.1 Specifications
2.1.1 Product Code
2.1.2 Operating Conditions and Environment
Temperature range:
-4° to +158°F (-20° to +70°C)
Relative Humidity:
85% or less
Noise Level:
84 dba maximum @ 1 meter when lifting/lowering rated load
Supply Air:
60 to 90 pounds per square inch
Air Consumption:
30 to 90 cubic feet minute
Air Lubrication Requirements:
Minimum 10 to 15 drops per minute (0.2-0.3 cc/min) of oil
Air Filtration Requirements:
Maximum 5 micron air filter or finer
Load Limiter:
Adjustable; Factory set to 125% of rated capacity

9
Table 2-1 Hoist Specifications
Cap.
(Tons)
Product
Code
Standard
Lift
(ft)
Push
Button
Hose or
Cord
L
(ft)
Up/Down Speeds
(ft/min @ 90 psi)
Up/Down
Air Consumption Rates
(cubic ft/min @ 90 psi)
Load Chain
Diameter
(mm)
x
Chain Fall
Lines
Net
Weight
(lbs)
Weight for
Additional
One Foot
of Lift
(lbs)
No Load
w/Full Load
No Load
w/Full Load
Pendant
Model
3
TCK3000P
10
8.6
37 / 23
18 / 38
148 / 141
124 / 152
12.5 x 1
225
2.3
6
TCK6000P2
8.6
18 / 12
9 / 19
148 / 141
124 / 152
12.5 x 2
295
4.6
Cord
Model
3
TCK3000C
10
8.2
37 / 23
18 / 38
148 / 141
124 / 152
12.5 x 1
223
2.3
6
TCK6000C2
8.2
18 / 12
9 / 19
148 / 141
124 / 152
12.5 x 2
293
4.6

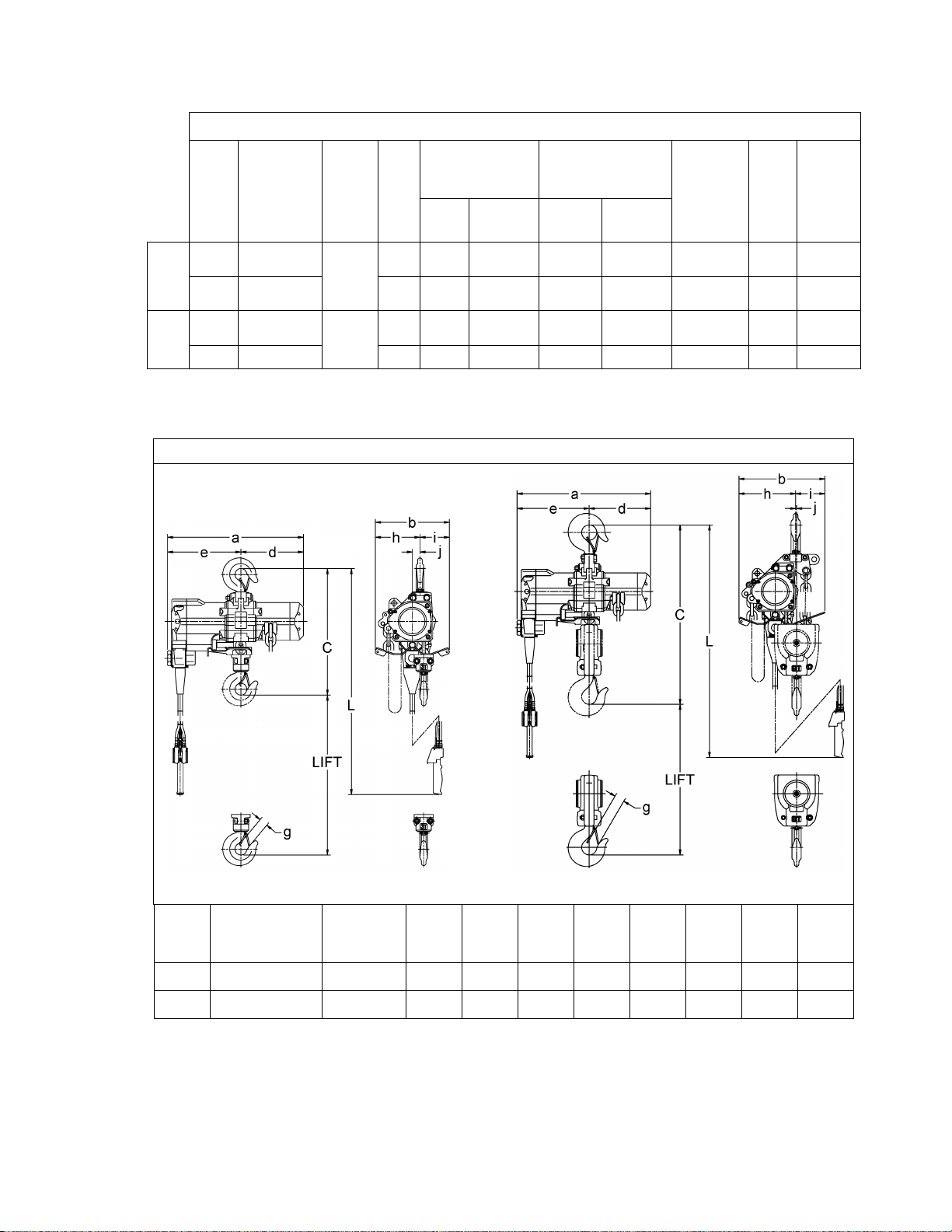

2.2 Dimensions
Table 2-2 TCK with Pendant Control Dimensions
Single Fall Hoist Double Fall Hoist
Cap.
(Tons)
Product
Code
Headroom
C
(in)
a
(in)
b
(in)
d
(in)
e
(in)
g
(in)
h
(in)
i
(in)
j
(in)
3
TCK3000P
21.1
22.7
12.4
10.4
12.2
1.3
7.4
4.9
1.3
6
TCK6000P2
30.3
22.7
14.6
10.4
12.2
1.7
9.6
5.0
3.5

10
Table 2-3 TCK with Cord Control Dimensions
Single Fall Hoist Double Fall Hoist
Cap.
(Tons)
Product
Code
Headroom
C
(in)
a
(in)
b
(in)
d
(in)
e
(in)
g
(in)
h
(in)
i
(in)
j
(in)
3
TCK3000C
21.1
22.7
12.4
10.4
12.2
1.3
7.4
4.9
1.3
6
TCK6000C2
30.3
22.7
14.6
10.4
12.2
1.7
9.6
5.0
3.5
Table 2-4 Top and BottomHook Dimension*
Units = inch
Product Code
a
b
c
d
e
f
g
h
TCK3000
2.0
1.5
1.8
1.3
2.0
2.4
1.3
5.9
TCK6000
2.3
1.6
1.9
1.6
2.6
2.8
1.7
6.8
*Refer to Section 5.7 for inspection dimensions and limits.

11
2.3 Part Names
Figure 2-1 Hoist Part Identification Diagrams TCK3000
Figure 2-2 Hoist Part Identification Diagrams TCK6000

12
3.0 Preoperational Procedures
3.1 Air Supply System Requirements
3.1.1
NOTICE
Pressure and Flow –Verify that the air supply system has capacity to supply your
air hoist with required pressure and flow. Otherwise the hoist may operate poorly or may fail to
operate. See Section 3.2.
3.1.2
!CAUTION

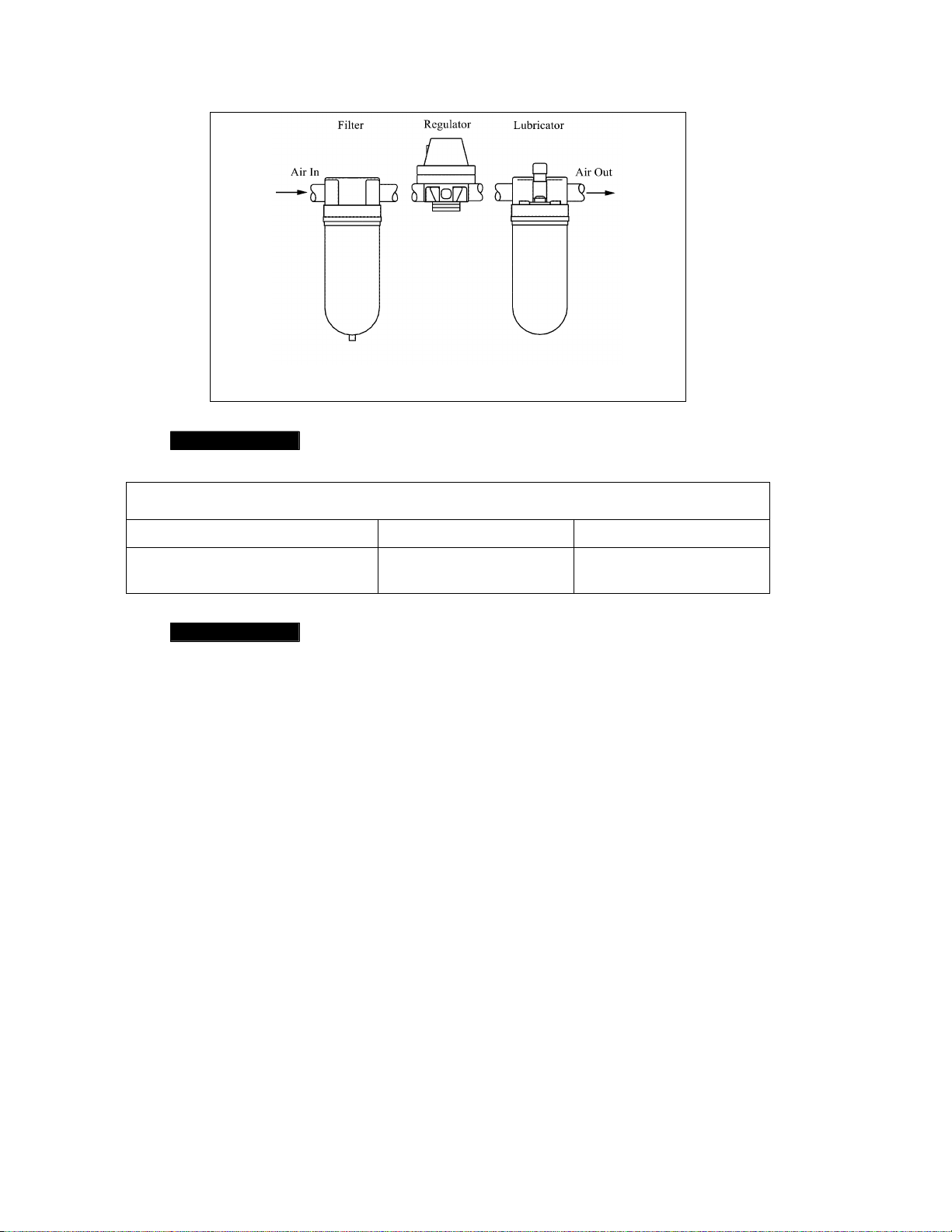

Lubrication –The hoist requires lubrication for proper operation. The oil in the air
supply is the primary source of lubrication to the hoist. Therefore, a dedicated air supply lubricator must
be used with the hoist. Refer to Section 3.3.
3.1.3
!CAUTION
Air Quality –Good air quality is essential to prevent damage to your hoist and to
ensure its proper operation. The air must be clean and free of debris such as dirt and rust. Refer to
Section 3.4 for filtration requirements. The air must also be dry; free of moisture and water. Refer to
Section 3.5.
3.2 Air Supply Capacity And Regulation
3.2.1 Capacity –The air supply system must be capable of delivering the required airflow (cfm) to the hoist
inlet port. Without the required airflow the hoist will not operate properly or may not operate at all. See
Section 2.0 for your hoists air consumption requirements. In determining if your system is capable of
supplying the required airflow, consider the following:
◼Capacity of compressor(s) and tank
◼Other air consuming equipment
◼Flow restrictions such as pipes, hoses, valves and fittings
Inadequate capacity will cause a significant drop in pressure when the hoist is operated, and could
cause poor performance or failure to operate.
3.2.2 Regulation –The hoist requires a constant supply of air at a pressure of between 60 and 90 psi. If the
air supply is not regulated or is regulated at a pressure greater than 90psi, then a regulator must be
used. The regulator may be located anywhere upline of the lubricator in the air supply to the hoist.
3.3 Lubrication
3.3.1
!CAUTION
The hoist must be supplied with its own lubricator. The lubricator must be located
as follows:
1) Best location –At the hoist inlet. In this case the lubricator can be either the mist type or drop
type.
2) Second best location –No more than 15 feet away from the hoist, at the same elevation or above
the hoist inlet. In this case the mist type lubricator must be used.
3) Third best location –No more than 15 feet away below the hoist. In this case the mist type
lubricator must be used.
3.3.2
!CAUTION
The lubricator must be set to deliver the equivalent of 10 to 15 drops of oil per
minute (0.2-0.3 cc/minute). The hoist’s exhaust will emit a fine oil mist when properly lubricated.

13
3.4 Filtration
3.4.1
!CAUTION
The air entering the hoist inlet must not contain any particulate greater than 5
microns in size. Therefore, the hoist must have a 5 micron filter in its air supply. The filter must be
upstream of the lubricator.
3.4.2 The filter servicing the hoist can also service other hoists and air consuming equipment. In this case,
the air filter must be sized for the total air consumption of the equipment it is servicing.
3.5 Air Dryer
3.5.1
!CAUTION
To prevent corrosion and hoist malfunction, employ an air dryer in the air supply
system to ensure that dry air is supplied to the hoist. If there is moisture in the air supplied to the hoist,
this moisture will cause corrosion on internal hoist components during periods when the hoist is idle
leading to hoist malfunction.
3.6 Piping, Hoses And Fittings
3.6.1
!CAUTION
System Configuration –The system should be configured as shown in Figure 3-1.
Since moisture tends to accumulate in compressed air systems, corrosion may result if the system is
not periodically drained.
◼Arrange for a drain in the air supply piping at the lowest point in the piping.
◼Periodically drain the system to remove moisture/water from the system and to prevent corrosion.
◼Filter, regulator (if equipped), and lubricator must be arranged in the order shown in Figure 3-2.
Figure 3-1 Diagram of Air Supply Configuration (Typical)

14
Figure 3-2 Typical Air Supply Filter, Regulator and Lubricator.
3.6.2
NOTICE
Piping –Pipe should be sized to accommodate the hoist airflow requirements.
Table 3-1 gives recommended pipe sizes.
Table 3-1 Air Supply Pipe and Hose Sizes
Model
Diameter of Supply Pipe
Diameter of Supply Hose
TCK3000, TCK6000
Inside diameter
1.0 inch or larger
Inside diameter
0.75 inch or larger
3.6.3
NOTICE
Hoses –The connection from the air supply system piping to the hoist must be
made with a flexible pressure hose. Due to normal line losses in air supply lines:
◼Do not use hose smaller than specified in Table 3-1, and
◼Limit the length of the hose to that specified in Figure 3-3.
◼If your application exceeds these requirements consult factory.
◼The use of “Quick Couplers” is to be avoided. Quick Couplers restrict the air flow that will affect
hoist performance.

15

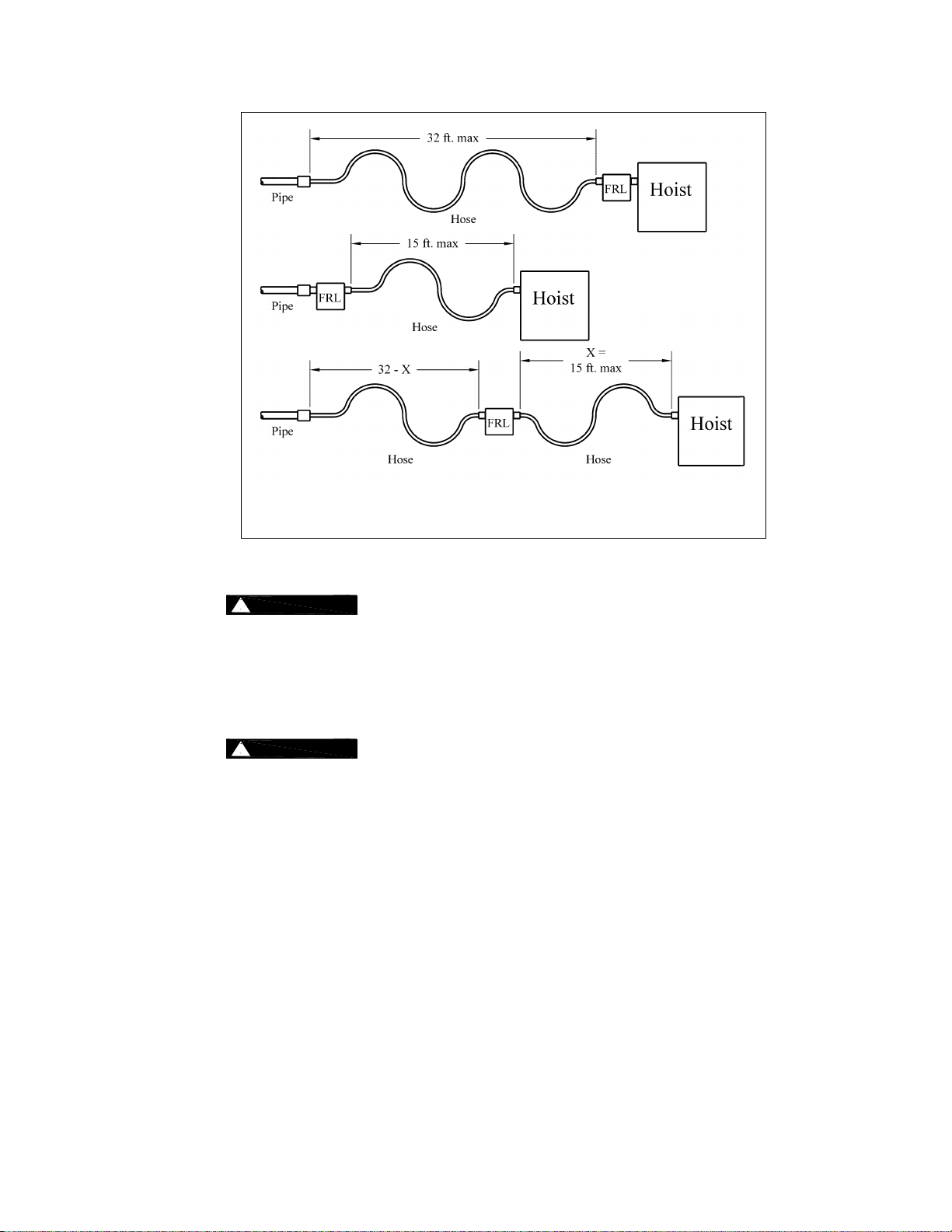

Figure 3-3 Typical Arrangements of Filter, Regulator and Lubricator and
Maximum Air Supply Hose Lengths
3.6.4
!CAUTION
Fittings –Important considerations regarding fittings in the hoist's air supply
include:
◼When connecting air supply components, remove all dirt or debris from the connecting surfaces of
the hoses, pipes, fittings, or threaded fasteners to prevent contaminants from entering the hoist.
◼Keep airflow restrictions such as quick disconnect fittings, bends, elbows, and adapters to a
minimum.
3.6.5
!CAUTION
Before connecting the hoist to its air supply line; perform the proper draining and
purging procedures to prevent contaminants or moisture from entering the hoist.
3.7 Exhaust Control
3.7.1 Some hoist applications require the hoist exhaust to be expelled outside the immediate environment.
To accommodate this need it is possible to extend the hoist exhaust to another area. Figure 3-4
describes the method to extend the hoist exhaust.

16
3.8 Mounting Location
3.8.1
!WARNING
Prior to mounting the hoist ensure that the suspension and its supporting
structure are adequate to support the hoist and its loads. If necessary consult a professional that is
qualified to evaluate the adequacy of the suspension location and its supporting structure.
3.8.1 For applications requiring a “Secondary Support” a support attachment location has been provided in
the hoist Top Hook Yoke/Hoist Body. Reference Figure 3-5.

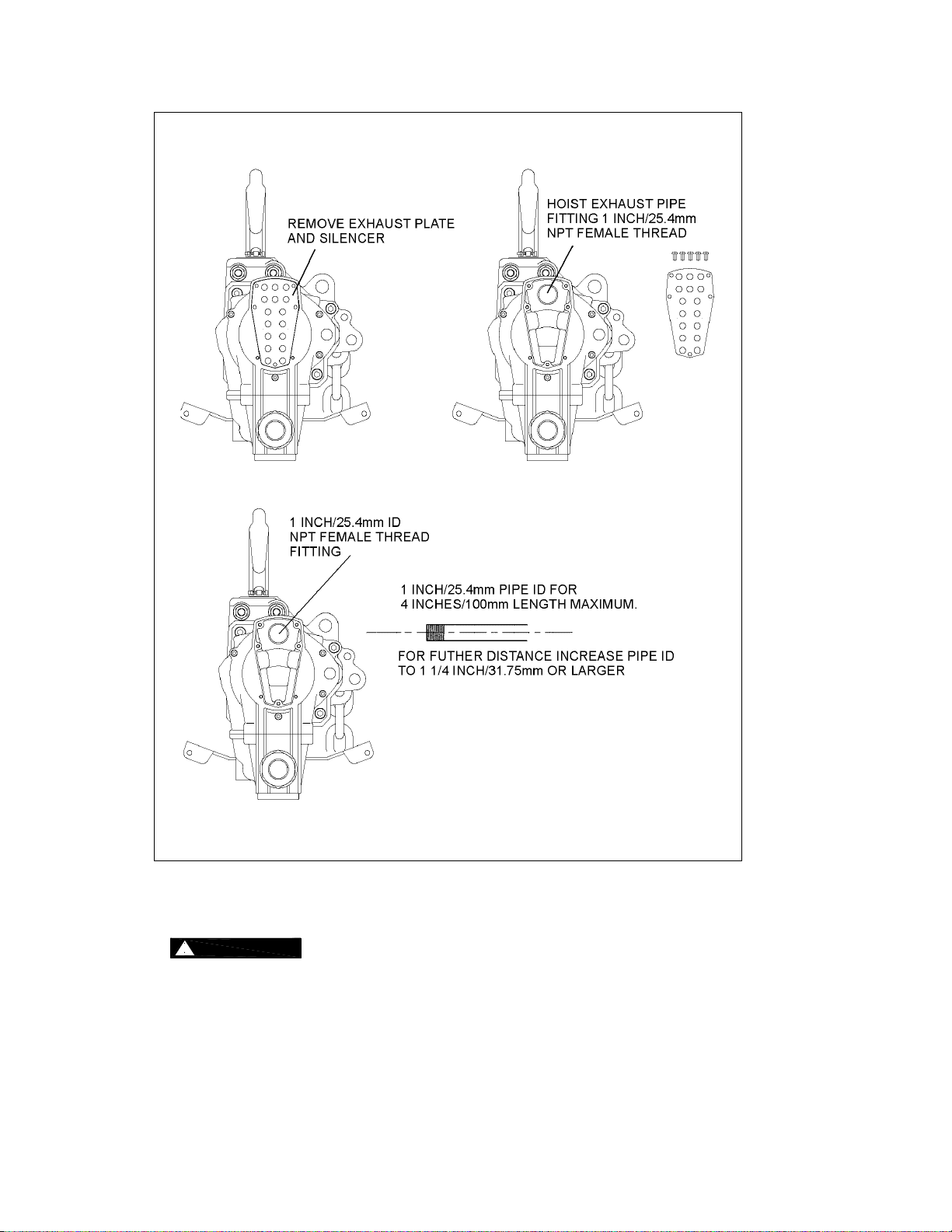

Figure 3-4 Extended Hoist Exhaust Installation

17
TCK3000
TCK6000
Figure 3-5 Hoist “Secondary Support” Configuration
3.8.3
NOTICE
See Section 7.7 for outdoor installation considerations.
3.9 Connecting Hoist to Air Supply
3.9.1
!WARNING
HAZARDOUS AIR PRESSURE IS PRESENT IN THE HOIST, IN THE SUPPLY
OF COMPRESSED AIR TO THE HOIST, AND IN THE CONNECTIONS BETWEEN COMPONENTS.
Figure 3-6 Typical Air Supply Connection
3.9.2 Shut off the air supply and stop the airflow completely. Lock out and tag out in accordance with ANSI
Z244.1 “Personnel Protection –Lockout/Tagout of Energy Sources”.
3.9.3
!CAUTION
Before connecting the air supply hose to the hoist, always purge the air hose to
clear any debris and water.
3.9.4 Apply approximately 10-15 drops (0.2-0.3 cc/min) of turbine oil (see approved lubricant under Section
6.0 Lubricants) into the hose before attaching to the hoist.
3.9.5 Make connections to air supply; reference Figure 3-6. Use a reducing adapter at the hoist valve
section for hose sizes larger than 3/4 inch NPT.
3.9.6
NOTICE
Where conditions dictate, the installation sequence can be reversed by mounting
the hoist first (Section 3.9) followed by connecting the air supply (Section 3.6).
3.10 Mounting the Hoist
3.10.1 Manual Trolley –Follow instructions in Owner’s Manual provided with the trolley.
3.10.2 Motorized Trolley –Follow instructions in Owner’s Manual provided with the trolley.

18
3.10.3 Hook Mounted to a Fixed Location –Attach the hoist’s top hook to the fixed suspension point.
3.10.4
!WARNING
Ensure that the fixed suspension point rests on the center of the hook’s saddle
and that the hook’s latch is engaged .
3.11 Optional Chain Container
3.11.1 For installation of the optional bag style chain container refer to Figure 3-7 and perform the following:
◼Make sure all end stoppers are installed correctly. See Figure 3.7 and section 7.3.
◼Torque all fasteners to the values shown.
◼Feed the chain into the chain container beginning with the free end. Take care to avoid twisting or
tangling the chain.
◼Do not use the chain container if any parts are damaged or if any fasteners/hardware are missing.

19
Figure 3-7 Optional Chain Container Installation
3.12 Non-Stationary Application
3.12.1 For applications such as rental fleets or construction sites where the hoist is moved from place-to-
place,a filter and lubricator arestill required. Consult factory for recommended methods.
3.12.1 Connections and fittings must be kept clean and care taken to prevent dirt, debris and moisture from
entering the hoist.
3.12.2 Recommended practice for removing the hoist from an installation:
◼Run the hoist briefly with well lubricated air
◼Disconnect the air supply line
◼Inject a small quantity (approximately 20 drops) of oil into the hoist’s inlet port
◼Plug the inlet port

20
3.13 Preoperational Checks and Trial Operation
3.13.1
!CAUTION
Check for the availability of required operating air pressure of between 60 PSI to
90 PSI at the hoist's inlet port before trying to operate the hoist.
3.13.2
!WARNING
Verify that the loadchain is not twisted or tangled and that the bottom hook is not
capsized prior to operating the hoist. Correct all chain irregularities before conducting the first hoist
operation. See Figures 3-8 and 3-9.
Figure 3-8 Twist in Load Chain
Figure 3-9 Capsized Hook and Chain
3.13.3
!WARNING
Confirm the adequacy of the rated capacity for all slings, chains, wire ropes and
all other lifting attachments before use. Inspect all load suspension members for damage prior to use
and replace or repair all damaged parts.
3.13.4
!WARNING
For Models TCK3000 and TCK6000verify that the chain/limit lever is operational
and can move freely in both the up and down directions. For reference see Figure 3-10.
