Kleenmaid OFS9020 Installation guide

Page 1 V 2.0

CONTENTS
Important Notes -------------------------------------------------------Page 3
Installation Instructions -----------------------------------------------Page 5
Oven Accessories -----------------------------------------------------Page 11

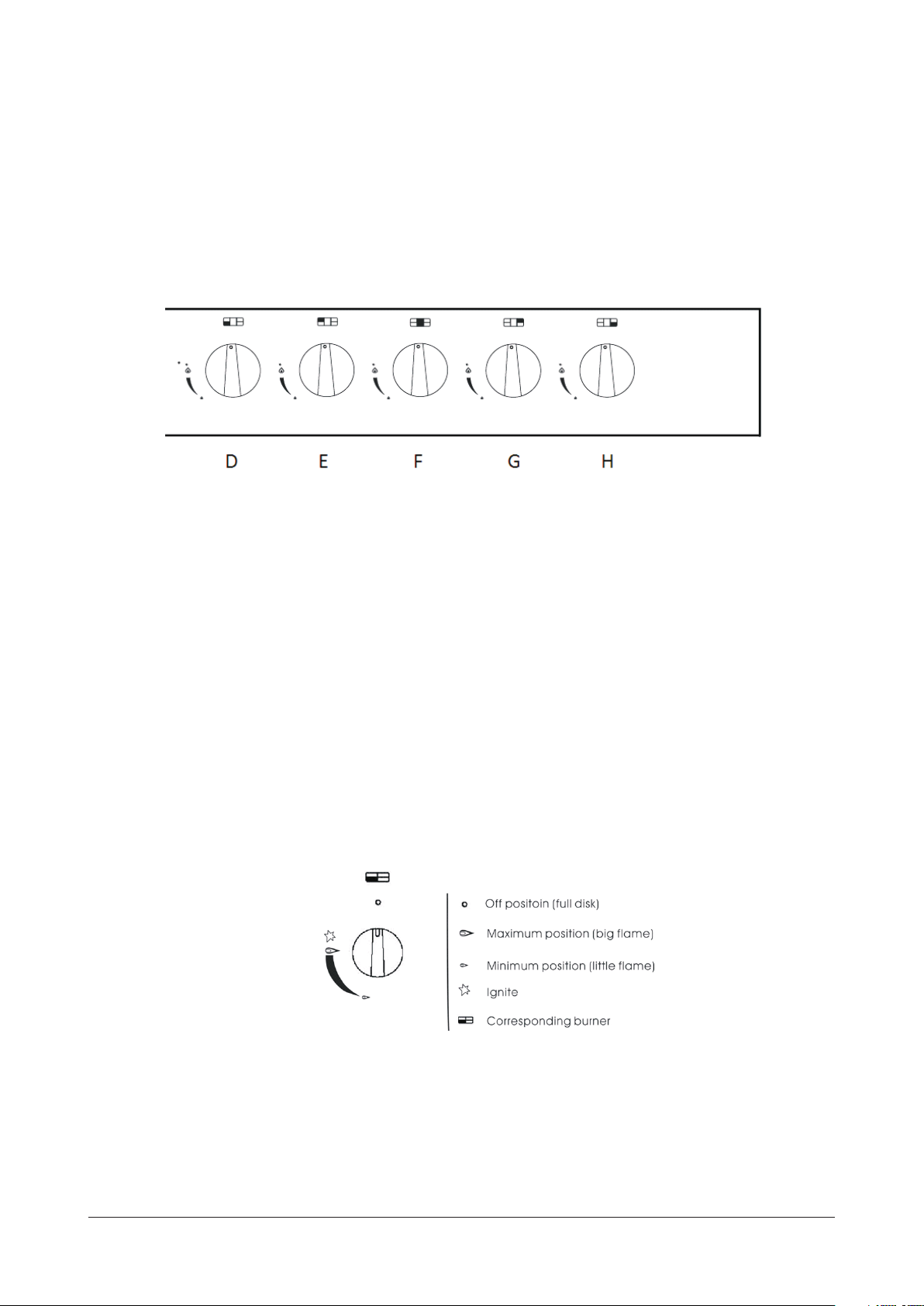

Control Panel ----------------------------------------------------------Page 12
Using the Cooktop -----------------------------------------------------Page 13
Using the Electric Oven ------------------------------------------------Page 14

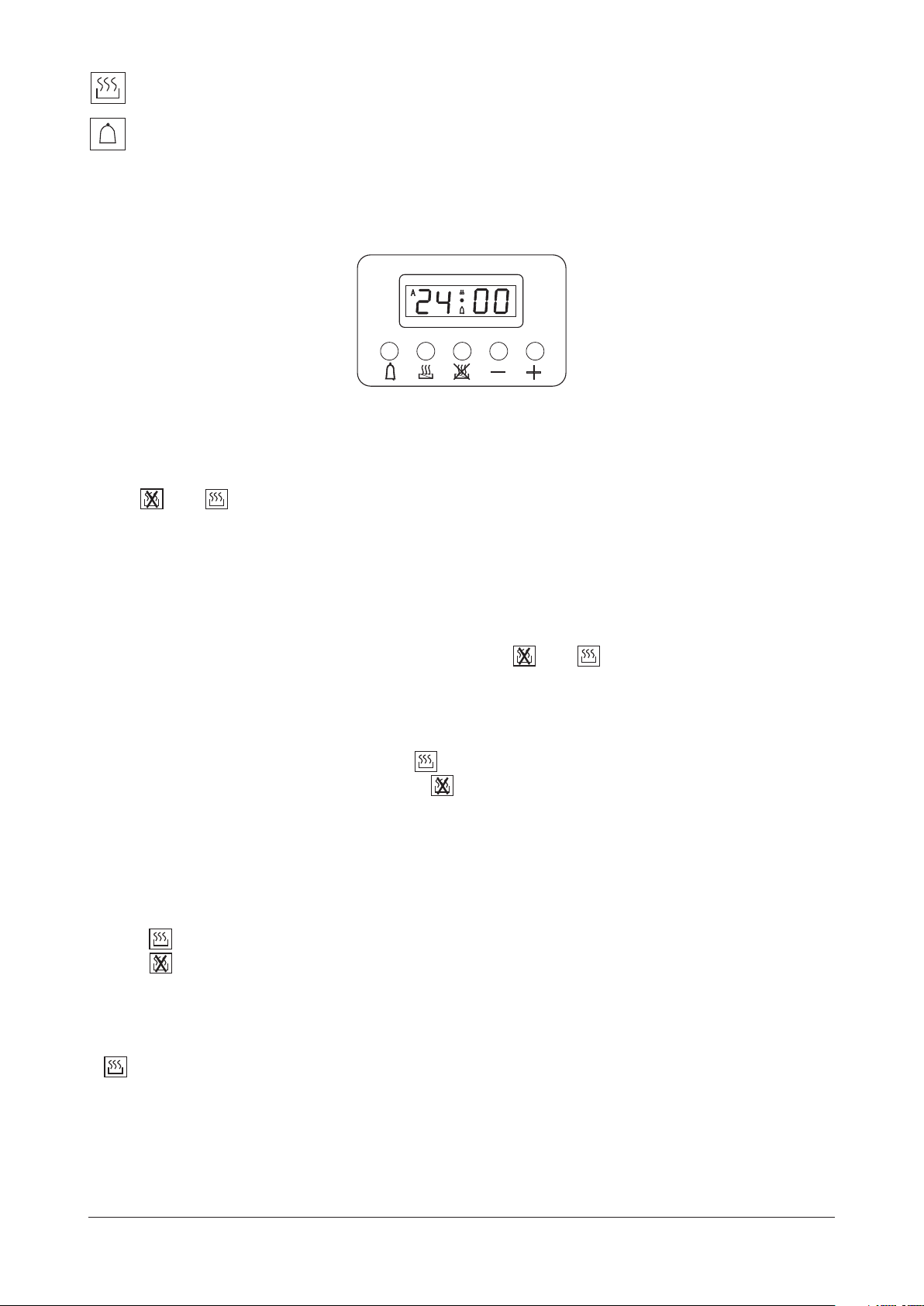

Digital Timer -----------------------------------------------------------Page 16
Oven Cooking & Cooking Time ----------------------------------------Page 18
Cleaning and Maintenance -------------------------------------------Page 21
Troubleshooting -------------------------------------------------------Page 24
Technical Data ---------------------------------------------------------Page 26
Warranty and Service -------------------------------------------------Page 27
V 2.0

Important Notes
Please keep this handbook for future reference.
●This appliance is designed to be handy for any adult to use at home. Children should be
supervised to ensure that they do not play with the appliance.
●Accessible parts may become hot during use. To avoid burns young children should be
kept away.
●This product must be connected in accordance with current gas and electrical regulations.
A fixed wiring installation is to be done only by an authorized electrician.
●
necessary with care and full attention.
●For any repairs, always contact authorized Customer Service Centre and ask for original
spare parts. Repairs by untrained people may lead to damage and void the warranty.
●The appliance must only be used for what it has been made for, that is, cooking for home
use. Any other use is considered improper and, as such, dangerous.
●The manufacturer cannot be held responsible for any harm to people or damage to things
deriving from an incorrect installation or maintenance or from an erroneous use of the
appliance.
●Once the outer wrapping and the inner wrappings of the various parts have been removed,
check and make sure that the appliance is in perfect condition. If you have any doubts, do
not use the appliance and contact authorised personnel.
●The packaging materials used (cardboard, bags, polystyrene foam, nails, etc.) must not be
left anywhere which could be easily reached by children. To safeguard the environment, all
packaging materials used are environmental friendly and recyclable.
●The electrical safety of this appliance is only guaranteed if it is correctly connected to a
good earth system, as prescribed by the electrical safety standards. The manufacturer
declines all responsibility if these instructions are not followed. Should you have any doubts
please contact authorised personnel.
●Prior to connecting the appliance, please ensure that the rating plate data corresponds to
the gas and electricity mains rating as described in “ TECHNICAL DATA”.
●If you are using a socket near the appliance, make sure that the cables of electrical
appliances that you are using do not touch the hobs and are far enough from all hot parts of
the hobs.
●Do Not spray aerosols in the vicinity of this appliance while it is in operation.
●Do Not store or use flammable liquids or items in the vicinity of this appliance.
●NOT FOR USE IN MARINE CRAFT, CARAVANS OR MOBILE HOMES.
●DO NOT MODIFY THIS APPLIANCE.
●The use of gas cooking appliance produce heat, moisture and products of combustion in
the room which it is installed. For this reason the room must be well ventilated, keeping the
natural ventilation openings free and switch on the mechanical ventilation system (suction
hood or electric fan). If the hob is used for a long time, additional aeration may be necessary,
for instance, opening up a window, or a more effective ventilation by increasing the power of
the mechanical system if there is one.
●WARNING – In order to prevent accidental tipping of the appliance, for example, kids
climbing onto the opened oven door, the stabilising means must be installed. Please refer to
installation instructions.
Authorised personnel must perform subsequent adjustments or repairs that may be
Page 3 V 2.0

●
●Do not push down the opened oven door.
●Ensure that the appliance is switched off before replacing the lamp to avoid the
possibility of electrical shock.
●Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
●Steam cleaner is not to be used.
●Fixed wiring must be protected.
●Means for disconnection must be incorporated in the fixed wiring in accordance with the
wiring rules.
●During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
●The appliance must be switched off before removing the guard and that, after cleaning,
the guard must be replaced in accordance to instructions.
●This product must not be disposed with the domestic waste. It has to be disposed at an
authorised bin for
recycling the appliances.
●This appliance is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge. Unless, they
have been given supervision or instruction regarding the use of appliance by personnel
who is responsible for their safety.
●Always make sure all the controls are off or closed when the appliance is not in use.
●When the burners are in use, do not leave them unattended. Make sure there is no kids in
the area. Check that pan handles are positioned correctly and always keep an eye on the
pan whenever oils or fats are used as they are inflammable.
●Never try to extinguish fires with water, but switch the appliance off immediately then
cover the flame with a lid or fire blanket etc.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similar qualified persons in order to avoid a hazard.
●If the range is placed on a base, measures have to be taken to prevent the appliance
slipping from the base. Refer to anti-tilt chain instructions.Do not use the oven door as a
shelf.
Do not use the oven door as a shelf.
Page 4 V 2.0

Installation Instructions
The appliance must be installed by authorised personnel in accordance to the
manufacturer ’s instructions and local regulations.
This appliance must be installed in accordance with:
AS/NZS 5601 - Gas Installations (for Australia)
NZS 5261 – Code of Practice for the Installation of Gas Burning Appliances and
Equipment (for New Zealand)
Local gas fitting regulations
AS/NZS 3000 – Electrical Installations (Wiring Rules)
Building codes
Installation environment
The gas appliance shall be installed such that the surface temperature of any nearby
combustible surface will not exceed 65°C above ambient. If there is insufficient space or
natural air flow to meet this requirement, creating an air gap between a heat shield and/or
insulating material and the combustible substrate may be effective. Care should be taken
where a combustible surface is covered by a non-combustible material. For example,
covering a combustible surface with stainless steel may not prevent heat transfer and in
some circumstances a hazardous situation could arise.
The materials used in the adjacent cabinets is to be able to withstand a temperature of 90°C
or higher. Combustible materials, such as curtains, must be at the minimum distance of

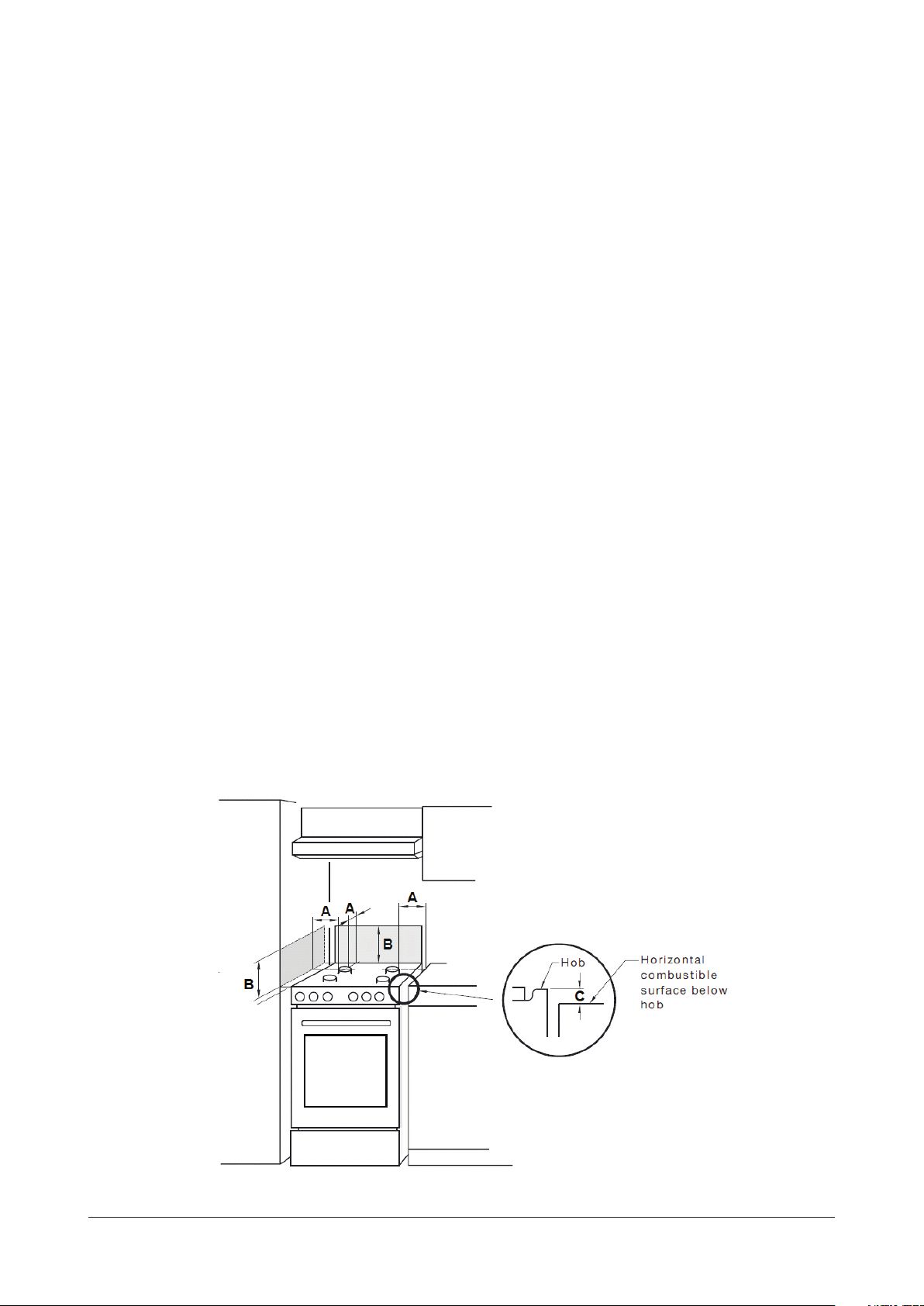

500mm. Refer to the diagram below, any vertical combustible surface, A, which is less than
200mm measured from the periphery of the nearest burner, must have either
i.B of not less than 150mm above the periphery of the nearest burner for full dimension
(width or depth) of the cooking surface area, OR
ii.C of 10mm or more.
The distance between the highest part of the highest burner of the cooker and a
i.Exhaust fan is 750mm
ii.Range hood is 600mm
Diagram below shows the requirements and product dimension.
Page 5 V 2.0

Dimension of OFS9020
Installation of the Freestanding Unit
Remove all protective plastic film (if there is any). Install the levelling feet provided and
adjust the cooker to a suitable height.
Anti-tilt chain is provided and meant to be installed to prevent the appliance from tilting
forward and damage to gas pipe. Fix the hook panel firmly on the wall at a suitable height
and place the chain over the hook.
After that, make sure the chain is taut and the cooker will not tilt forward.
WARNING: In order to prevent tipping of the appliance, this stabilizing means must be
installed. Refer to the instructions for installation.
Page 6 V 2.0
Levelling Feet

Power & Gas Connection:
THE APPLIANCE MUST BE CONNECTED IN ACCORDANCE WITH CURRENT GAS &
ELECTRICAL RULES AND REGULATIONS. INSTALLATION IS TO BE DONE ONLY BY
AUTHORISED PERSONNEL.
Gas Connection
The gas settings are listed in the data label for both NG and ULPG. Kindly ensure the correct
nozzle injectors are used for the gas supply.
Before connecting the appliance to the gas network, make sure that the gas distribution
network complies with the details stated in the data label. This appliance must be installed
in compliance with relevant gas standards and / or codes of practice applicable.

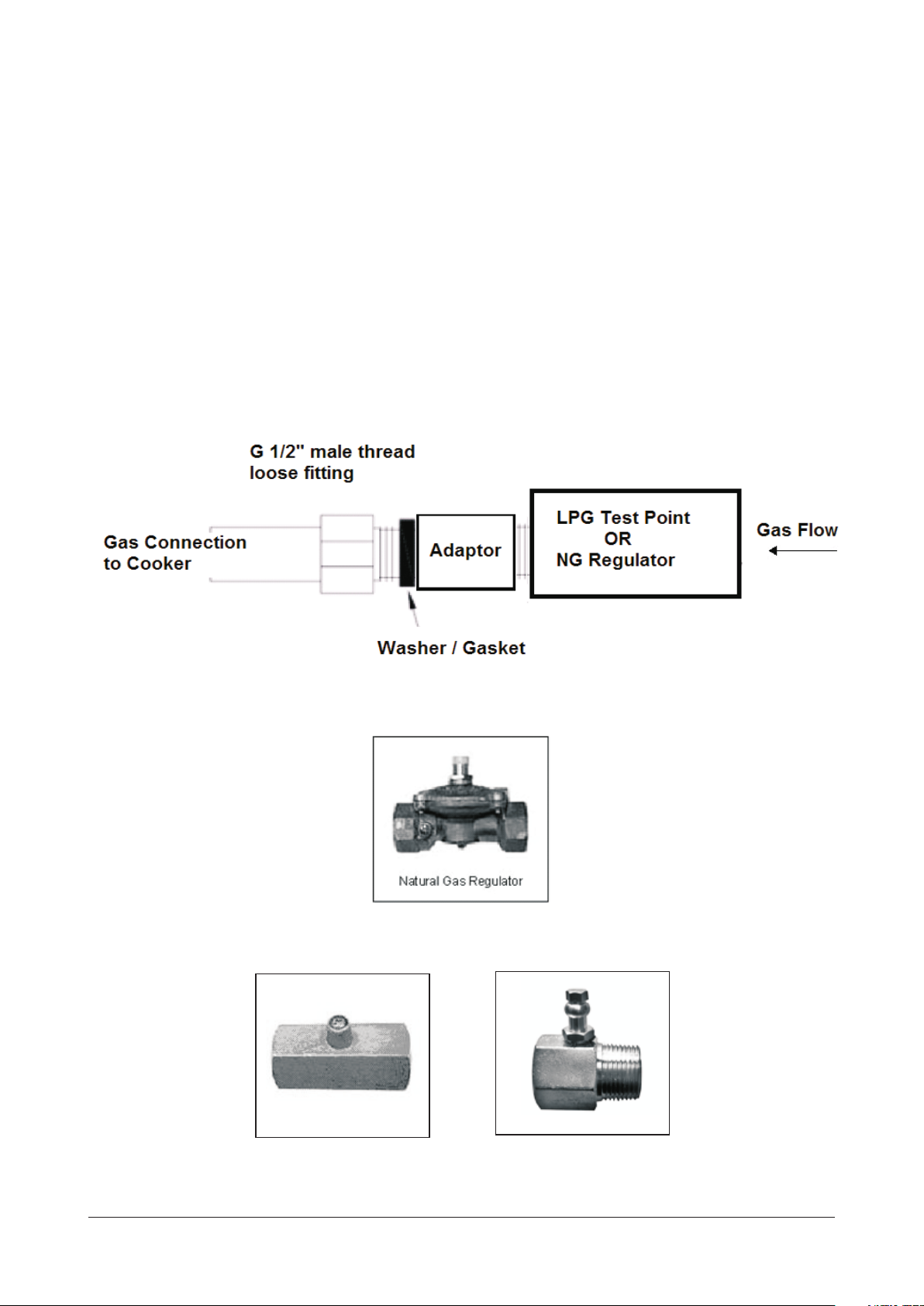

The gas connection is via a G ½” male thread loose fitting which is located at the left rear
of the cooker.
Connect the adaptor to the appliance gas connection, and check if the seals between the
adaptor and gas connection are in place and in good connection. Gasket or washer is
required for sealing mechanism.
Adaptor must be fitted on gas connection to cooker prior to assembling other components.
For NG, connect the natural gas regulator with the integral test point by using approved
gas thread tape.
For ULPG, connect the ULPG test point by using approved gas thread tape. If the supplied
adaptor has a test point fitted, ULPG test point is not required.
Ensure the supply connection point, test point and natural gas regulator adjustment screw
(for NG installation) are accessible for testing and/or adjustment when the appliance is in
the installed position.
Adaptor with test point fitted
OR
Page 7 V 2.0

There are two ways to carry out the connection to the main gas line:
A. The freestanding cooker can be connected with rigid pipe as specified in AS/NZS 5601 .
B. The cooker can be connected with a Flexible Hose, which complies with AS/NZS 1869
(AGA Approved), 10mm ID, class B or D, not more than 1.2m long and in accordance with
AS/NZS 5601. Ensure that the hose does not contact the hot surfaces of the hob, oven,
dishwasher or other appliances that may be installed underneath or next to the cooker.
WARNING: Ensure that the hose assembly is not in contact with the flue or flue outlet of the
oven. The hose should not be subjected to abrasion, kinking or permanent deformation and
should be able to be inspected along its entire length. Unions compatible with the hose
fittings must be used and connections must be tested for gas leaks. The supply connection
point shall be accessible after the appliance is installed. The fixed consumer-piping outlet
should be at approximately 150mm to the side of the cooker. The hose should be clear of the
floor when the cooker is installed.
CAUTION !!
Carry out the connection without applying any kind of stress to the appliance.
Warning: The restraint chain supplied should be anchored to the wall so that the chain
prevents strain on the hose connections when the cooker is pulled forward.
After gas connection, check for leaks using soapy solution, never a naked flame.
Setting of the gas pressure
Fit a manometer with a 6mm rubber hose to the test point on the NG regulator. Or fit the
manometer to LPG test point if ULPG connection is used.
Ignite the wok and auxiliary burner on and adjust test point pressure to 2.75kPa for ULPG
and 1.00kPa for NG. Turn the two burners off and on again and recheck the pressure if it is
the same as previously set. Adjust again if required.
Test if the cooktop operates correctly
After installation and test point setting, each burner ignition and operation must be tested
individually and with all burners operating. This testing must be done by the installer before
leaving.
Supplied Gas Conversion
Contact the manufacturer or authorised dealer for conversion. For service, please refer to
contact details in the warranty card.
Important:. Before carrying out the conversion, unplug the appliance from the gas and
power mains.
Replacing nozzles :
-Unplug the appliance from the mains to avoid possible electrical shock.
-Remove the trivets from the hob
-Remove the burner caps
-Use a 7mm tubular hex wrench to loosen the nozzles and replace them with suitable
nozzles as indicated in the diagram below.
-Remove or install regulator for NG or test point adaptor for ULPG.
Page 8 V 2.0

Burner : Small
Natural Gas
(1.0kPa)
Universal LPG
(2.75kPa)
Gas Consumption (MJ/h) 4.00 4.00
Injector Size (mm) 0.91 0.56
Burner : Medium
Gas Consumption (MJ/h) 6.70 6.70
Injector Size (mm) 1.18 0.71
Burner : Large
Gas Consumption (MJ/h) 11.50 11.50
Injector Size (mm) 1.59 0.91
Burner : Wok
Gas Consumption (MJ/h) 12.50 13.00
Injector Size (mm) 1.62 0.98
After replacing the nozzles, the installer must check and set the gas pressure and adjust the
burners flame.
Adjust the burner minimum flame height
This adjustment can only be performed by an authorised personnel.
The minimum burner flame is factory adjusted for the gas type stated on the gas type label
adjacent to the gas connection and should not require adjustment. Adjustment may be
required if the nozzles have been replaced or there are special mains pressure conditions.
The operations necessary to perform this operation are the following :
●Light the burner
●Turn the knob to the minimum position
●Take out the knob (and gasket if there is any)
●Using a suitable sized screwdriver, turn the regulation screw by the side
of the tab shaft until a small regular flame is obtained
●Put the knob back on and turn it quickly from the maximum position to
the minimum position, checking that the flame does not go off.
●Make sure the flame is regulated to sufficiently maintain heating of the safety valve
thermocouple.
Page 9 V 2.0

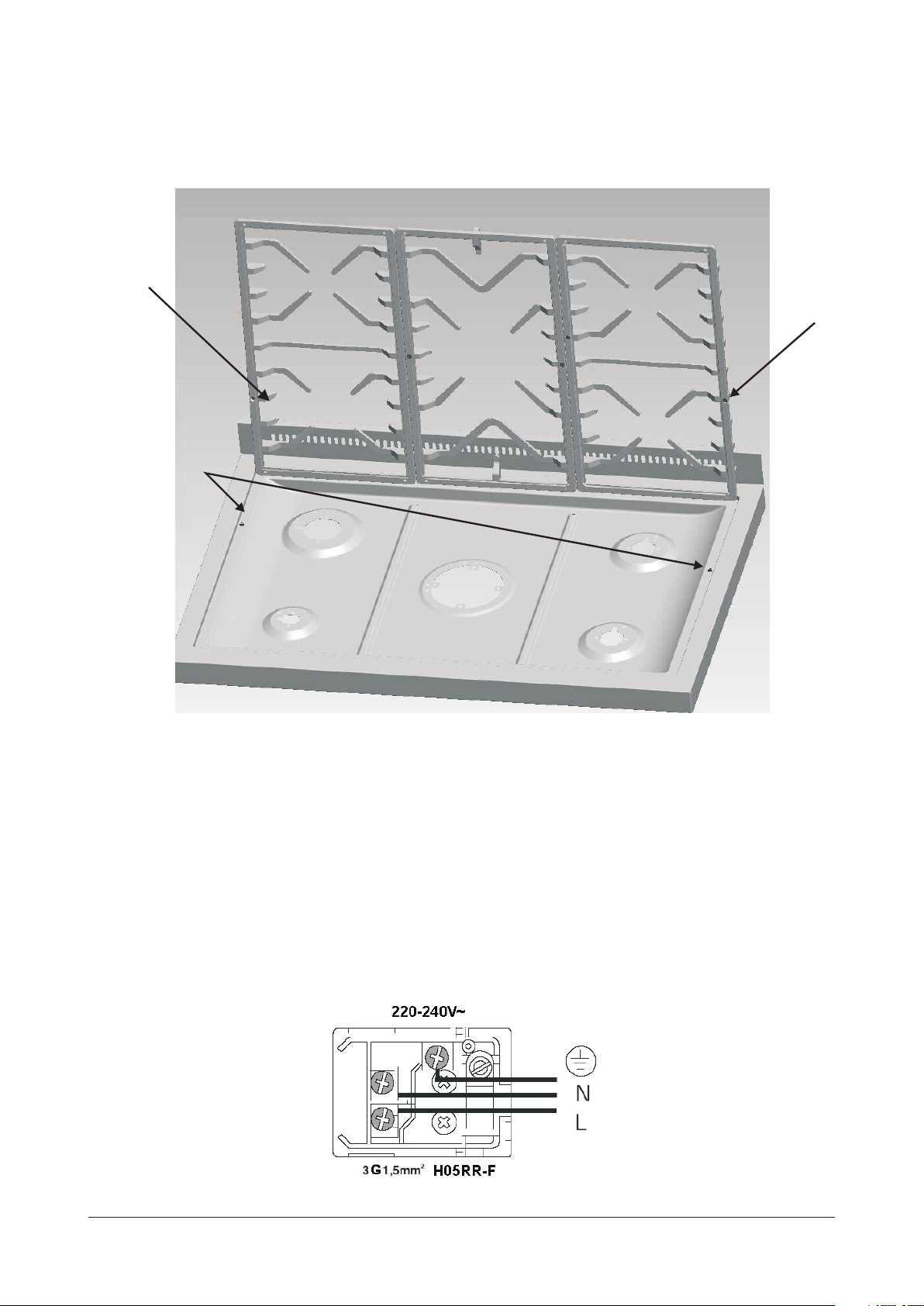

Warning!
Make sure the trivets are placed at the correct position. Take note of the 4mm high bumps at
the stainless steel panel, and match it with corresponding concavity of trivets. Trivets
reposition between different burners are not allowed. Below shows an example :
Concavity
Bumps
Concavity
Electrical Connection
WARNING: THIS APPLIANCE MUST BE EARTHED
For a direct connection to the electric network is necessary to mount a circuit breaker
before the appliance according to the electrical regulation.
Before making connection to the electrical network, check that the domestic system and
the limiter valve can take the appliance load.
The supply cord must be positioned at such point where the temperature of the point is
NOT possible to reach 50K or higher than the ambient temperature.
Means for disconnection must be incorporated in the fixed wiring in accordance with the
wiring rules.
Page 10 V 2.0

If this product is to be connected to a new or upgraded electrical installation, then it must
be connected to the supply by a supply cord fitted with:
− an appropriately rated plug that is compatible with the socket-outlet fitted to the final
subcircuit in the fixed wiring that supplies this cooking range; or
− an appropriately rated installation male connector that is compatible with the
installation
female connector fitted to the final sub-circuit in the fixed wiring that supplies this
cooking
range.
Before connecting to the mains, make sure that:
The supply system is regularly earthed, according to the regulations in force.
The isolation switch can easily be reached after the appliance is installed.
After connection to the mains, check that the supply cable does not overheat.
Never use reductions, shunts, adaptors that can cause overheating or burning.
The manufacture shall not liable for any direct or indirect damage caused by faulty
installation. The installer must ensure that the product installation and connection
complies with the local and general gas and electrical regulation in force.
Before using the electric oven, we suggest to:
Remove the special film covering the oven door glass (if there is any)
Heat the empty oven at max. temperature for 45 minutes. This is to remove any
unpleasant smell caused by working residues.
Carefully clean the internal cavity of the oven with soapy water and rinse it.
IMPORTANT!
When the oven is in operation, hot surfaces might occur at the oven door. Take note of the
“Warning! Hot Surface” sign. Make sure children do not go near the oven when it is in
use.
Oven Accessories
Model : OFS9020
1x baking tray
1x baking tray holder
1x grill insert
1x baking tray handle
2x full rack
1x user manual
1x warranty card
Page 11 V 2.0

Oven Model : OFS9020
Knob Description
A Digital Timer
B Function Rotary Switch
C Temperature Switch
D Auxiliary Burner
E Large Burner
F Wok Burner
G Medium Burner
H Medium Burner
Page V 2.012
Control Panel
A is a digital timer and it is used to control the power on/off. Other than that, oven
cooking time adjustment and program setting can be done here too. The inner cavity
light is on when the appliance is in normal working state. OFS9020 uses digital timer to
control cooking time and program setting.
Refer to Section Digital Timer for the operating instruction.
B is function control knob that allows different heating functions to suit different
cooking needs. This is for the user to choose the best cooking function for different kind
of food.
C is used to control the oven temperature and it can be adjusted from 50°C to 250°C.
When the inner cavity of the appliance reaches the preset temperature, heating element
will be off automatically. It will be on automatically again when the cavity temperature is
lower than the preset temperature.
D, E, F, G, H are gas hob control knobs.

Using the Cooktop
The burners are made to design and rating to provide the exact heat required for different
cooking style.
For each control knob, there is a printed diagram to indicate to which burner or heating
element the knob is controlling.
Automatic Electrical Ignition
The command of igniting the burner is integrated in the control knob. Press and turn the
corresponding burner knob counterclockwise until it reaches to the “Full on” position.
Automatically the ignition sparks on, and keep pressing the knob until the burners is
lighted up. Matches can be used to light the burners in blackouts.
Page V 2.013

The appliance burners are to be equipped with safety thermocouples. This thermocouple is
part of the flame failure device (FFD). A FFD is designed to stop flammable gas going to the
burner if the flame is extinguished. This is to prevent a dangerous build up of gas around
the appliance.
In the case of burners which equipped with FFD, press and turn the corresponding burner
knob counter clockwise to the “maximum“ position. Automatically the ignition sparks on,
keep pressing the knob until the burner is lighted up. After the burner is lit, keep the knob
pressed for about 10 seconds to allow the safety thermocouples to warm up. By any case
after 10 seconds and the burner fails to light up, it means the safety thermocouple is not
heated sufficiently. Repeat the process.

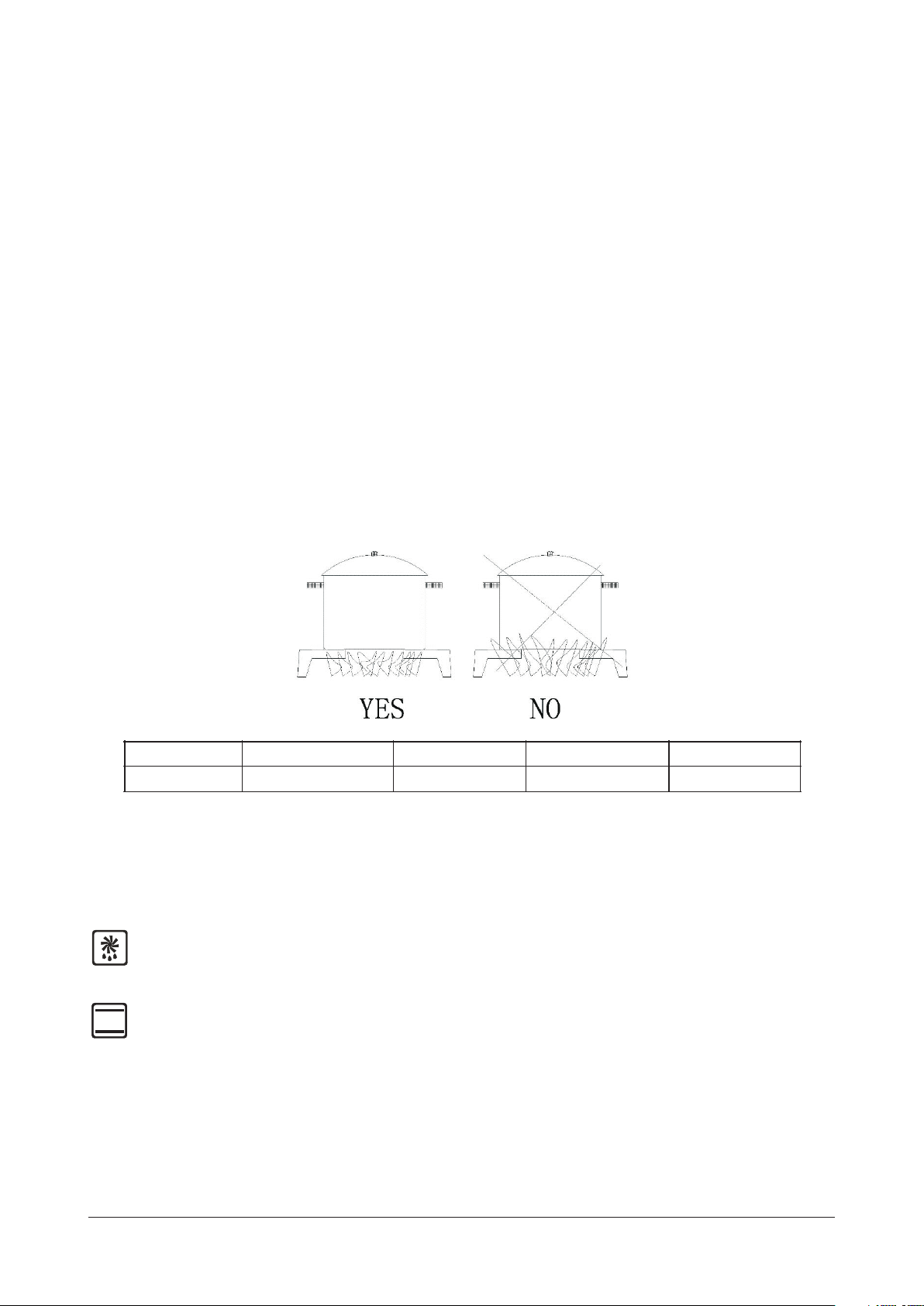

Optimum Use of the Burners
To get the maximum yield with minimum gas consumption, please keep the following
points in mind:
•Once the burner is lit, adjust the flame according to your needs.
•Use an appropriate pan and with flat bottom for each burner (see the table and figure
below).
•When the pan content starts to boil, turn the knob down to “Reduced rated position”
(small flame).
•Always put a lid on the pan.
Burners Wok Rapid Semi-Rapid Auxiliary
Ø pans in cm 22-24 20-22 16-18 10-14
Using the Electric Oven
Various cooking functions can be set by selecting different heating elements and
temperature setting.
Oven Cooking Functions
Defrosting- the fan switches on without any heating. Food defrosting time is cut by
about 1/3.
Static convection mode (conventional cooking) - heat supplied from top and bottom
heating elements. The oven must be preheated before food is placed inside. Static convection
is ideal for cooking:
-Pastry (dry-thin)
-Pizzas
-Bread
Ignition of Burners Equipped with Safety Thermocouples
Page V 2.014

Characteristics of static cooking:
-Heat supplied from above and below
-Cooking possible on one shelf only
-Low moisture removal
Bottom Heating Element + Top Heating Element + Fan
This function gives even cooking by using both top and bottom outer heating
elements with fan to help to circulate the heat evenly. By using the top heating
elements, it gives the food a golden brown finish. By putting the food to a lower shelf
will make food pastry bases crispier. To make the food brown and crusty, you can put
your food on level 1(the first shelf above the enameled floor) and / or 4 (top level).
Top Outer Heating Element + Fan
Top Outer Heating Element
Maxigrill with Bottom Heating Element
This function gives more radian heat directly by using both inner and outer top
heating elements and bottom heating element, By using the top heating elements, it
gives the food a golden brown finish. By putting the food to a lower shelf will make
food pastry bases crispier. This function is perfect for food in small quantity on shelf
level 2 and / or 3. To make the food brown and crusty, you can put your food on level
1(the first shelf above the enameled floor) and / or 4 (top level).
Fan Forced- the circular heating element and the fan come into operation and the
heat is distributed evenly to all levels of use. Various dishes can be cooked on
different shelves, naturally remembering to cook each one for the right time.
The oven must be preheated before food is placed inside.
Fan mode is ideal for cooking:
-Cakes
-Large amounts of food
-Cooking different dishes together.
Characteristics of fan cooking:
-Heat supplied from every direction
-Cooking possible on several shelves
-High moisture removal
-Defrosting possible with or without heat.
Central Grill- can be used for small amount of food (low energy consumption). Door
has to be closed at all times for grilling.
Page V 2.015

Maxigrill
times.
Ventilated Maxigrill- the action of the fan combined with the powerful action of the
two grill elements is ideal for cooking large pieces of food. Closed door grilling at all
times.
Ventilated Grill- Fan + top inner heating element. Closed door grilling at all times.
Bottom Element with Fan
The heat from below is spread evenly through the oven for slow, gentle cooking.
Bottom Element
Off
- for grilling food that occupies a large surface. Closed door grilling at all
Digital Timer
The electronic programmer is a device which groups together the following
functions:
-24 hour clock with illuminated display
-Timer (up to 23 hours and 59 Min.)
-Program for automatic beginning and end of cooking
-Program for semi-automatic cooking (either only start or only finish).
Description of buttons
Timer
Cooking time
End of cooking time
Manual position
Increment of numbers
Decrement of numbers
Description of lighted symbols
Auto (flashing) programmer in automatic position but not programmed
Auto (always lighted) programmer in automatic position with preset program
Page V 2.016

Manual cooking taking place
Timer in operation
And -Auto- (both flashing) programmer error.
Digital clock
Oven clock shows 24-hour time. Upon immediate power up of the oven or after a blackout,
three zeros will flash on the programmer panel. To set the oven clock local time please
press and buttons simultaneously, and adjust by pressing [+] and / or [-] buttons
until you have the exact hour. The regulation speed depends on the pressure applied on the
[+] [-] buttons.
Manual cooking without using the programmer
To operate the oven manually, that is without using the auxiliary programmer, it is
necessary to cancel the flashing -Auto- by pushing and buttons at the same time
to set it on manual mode.
Automatic cooking (start and finish)
1) Set the cooking duration by pressing button.
2)Set the end of cooking time by pressing button.
3)Set the temperature and cooking program by using the thermostat knob and the selector
knob.
After done with the setting, -Auto- symbol will flash, this means the oven has been
programmed.
For example: cooking lasts 45 minutes and is expected to stop at 14.00.
- Press and set to 0.45
- Press and set to 14.00
After finishes the setting, the clock hour will appear on the panel and -Auto- symbol will be
on. This means the cooking program has been entered to the programmer.
At 13.15 h. (45 minutes to 14) the oven turns on automatically. During cooking duration,
button and -Auto- are flashing.
At 14.00 h. the oven turns off automatically, a buzzer goes off until it is stopped by
pressing any function key button.
Page V 2.017

B.Set the end of cooking time
A) Set the length of cooking time by pressing the button. The oven will turn on
immediately. -AUTO- and the symbols will flash. At the end of cooking, the oven will
turn off, a buzzer will go of until it is stopped as above described.
B) Set the end of cooking time by pressing the button. The oven will turn on
immediately. -AUTO- and will flash. When the set cooking time has elapsed, the oven will
turn off and the buzzer will ring until it is stopped as above described.
The cooker program may be seen at any moment by pressing the corresponding button.
The cooking program may be cancelled at any moment by pressing the [+] [-] buttons until
zero appears on the panel. Then the oven can work manually.
Timer - Buzzer
The timer consists of a buzzer which may be set for maximum period of 23 hours and 59
min. To set the time, press the button and the [+] or [-] until you reach the desired time
on the panel. Having finished the setting, the preset time and the symbol will appear.
The countdown will start immediately and may be seen at any moment on the panel by
simply pressing the button. At the end of the set time, the symbol will turn off and
the buzzer will ring until it is stopped by pressing any key function button.
Note: Power blackout makes the clock go to zero and cancels the set programs. After a
blackout three zeros will flash on the panel and cooking need to be programmed once
again.
Oven Cooking
For perfect cooking it is necessary to pre-heat the oven to the preset cooking temperature.
Use deep containers or trays as baking-pan for roasts placed in the middle rack, to
minimum possible soling of the oven cavity from fat splashes, sauce burning and smoke
production. The table shows some examples of how to set the thermostat and the cooking
time. The cooking times vary according to the type of food, its homogeneity and volume.
Use these suggestions as a guide only.
Practical hints to save energy
The oven can be switched off some minutes before cooking end; the residual temperature
is enough to complete cooking. Open the oven door only when it is absolutely necessary; to
check the cooking phase, look through the glass door (the inner cavity light is always on).
Semi-Automatic Cooking
A.Set the length of cooking time
Page V 2.018

Pieces of general advice
The oven offers various kind of heating:
2. The fan forced heating for the cooking of cakes, biscuits and similar.
If the fan forced heating is chosen, it is recommended to take advantage of it by cooking on
more levels to prepare a complete menu, to save time and energy.
The intelligent display light
FAN FORCED heating
By this function a continuous circulation of warm air is created, suitable for the cooking on
multiple levels. The oven will reach the preset temperature in a very short time.
TRADITIONAL COOKING
It is especially suitable for the cooking of game and as well as for the cooking of bread and
sponge cakes. It is advisable to place food into the oven after preheating it, when the oven
reaches the set temperature the yellow warning light extinguishes.
GRILL COOKING (the two upper heating pipe works)
To cook with the grill, pre-heat the oven for about 5 minutes. During grill operation the heat
comes from above; and is suitable for thin cuts meat and for toasts. The table shows some
examples of cooking times and shelf positions. The cooking times vary according to the type
of food, its homogeneity and volume.
COOKING OF PASTRY
The air circulation of the oven assures an instantaneous and uniform heat distribution. More
trays can be inserted into the oven together with the pastries, taking care not to use the top
level. Together with the pastry, other foods can be cooked at the same time (fish, meat, etc.),
provided they can be cooked at the same temperature.
GRATINATING (use either the inner upper element or both inner outer upper elements)
“Gnocchi alla romana”, polenta pasticciata, rice, lasagnas, noodles and vegetables dressed
with béchamel are typical preparation for this type of cooking.
COOKING TIMES
The table shows some examples for the adjustment of the thermostat and of the cooking
time.The cooking times can vary according to the type of food, its homogeneity and volume.
1. The traditional heating for the cooking of special roasts
(the upper and lower heating element operate)
Nature of food Shelf Level Oven Temp. °C Time Minutes
General 2 220--250 Relative to Qty
Long-cooking roast 2 225--250 50--60
Fowl (duck) 1 210--250 150--180
Poultry 2 225--250 50--60
Game 1 200--225 Relative to Qty
Fish 1 180--200 20--25
Pastries 1 160--200 60--70
Page V 2.019
