Kleenmaid OFS9021 Installation guide

cooking collection
Instructions for use and warranty details
T o re g ister your warranty or m a k e a
warranty clai
m, scan t h is QR code :
Freestanding Oven
Model No.: OFS9021

Page 1
Dear Customer,
Thank you and congratulations for choosing
Kleenmaid.
Your new appliance has been designed
and meticulously tested to ensure that it
has been carefully manufactured using top
quality materials to give you years of reliable
performance.
For best results, carefully read the instructions
on how your new appliance is to be installed.
Correct installation will avoid delays and
unnecessary service call costs.
Once installation is complete, please read this
instruction manual carefully and get to know
the controls and the features of your new
Kleenmaid appliance. These simple instructions
will enable you to achieve excellent results from
the very first time you use it.
Again, congratulations and thank you for
choosing The Best You Can Own.
KLEENMAID

Page 2
CONTENTS
Important Notes ------------------------------------------------------ Page 3
Installation Instructions ----------------------------------------------Page 5
Oven Accessories ----------------------------------------------------Page 11

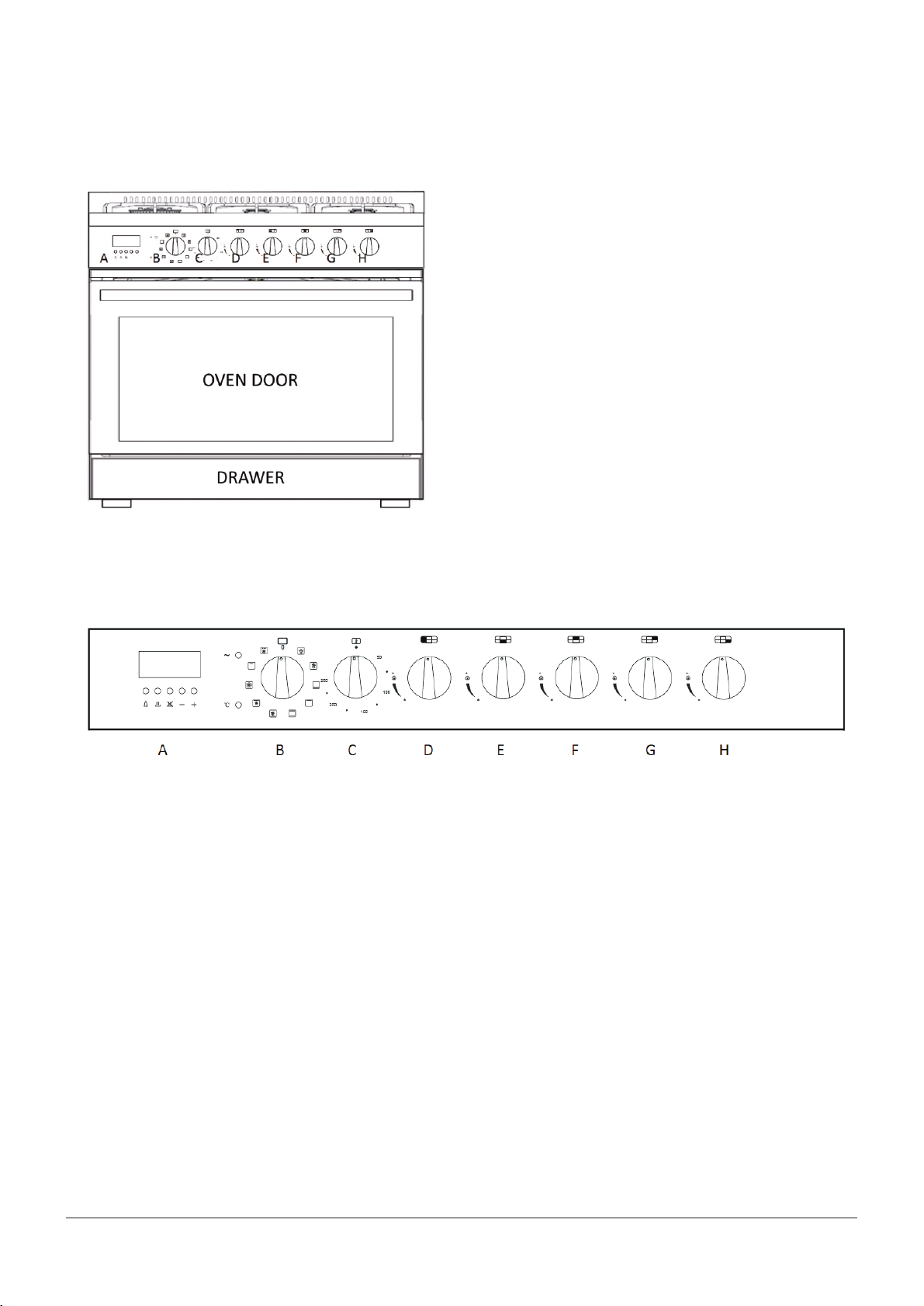

Control Panel ---------------------------------------------------------Page 12

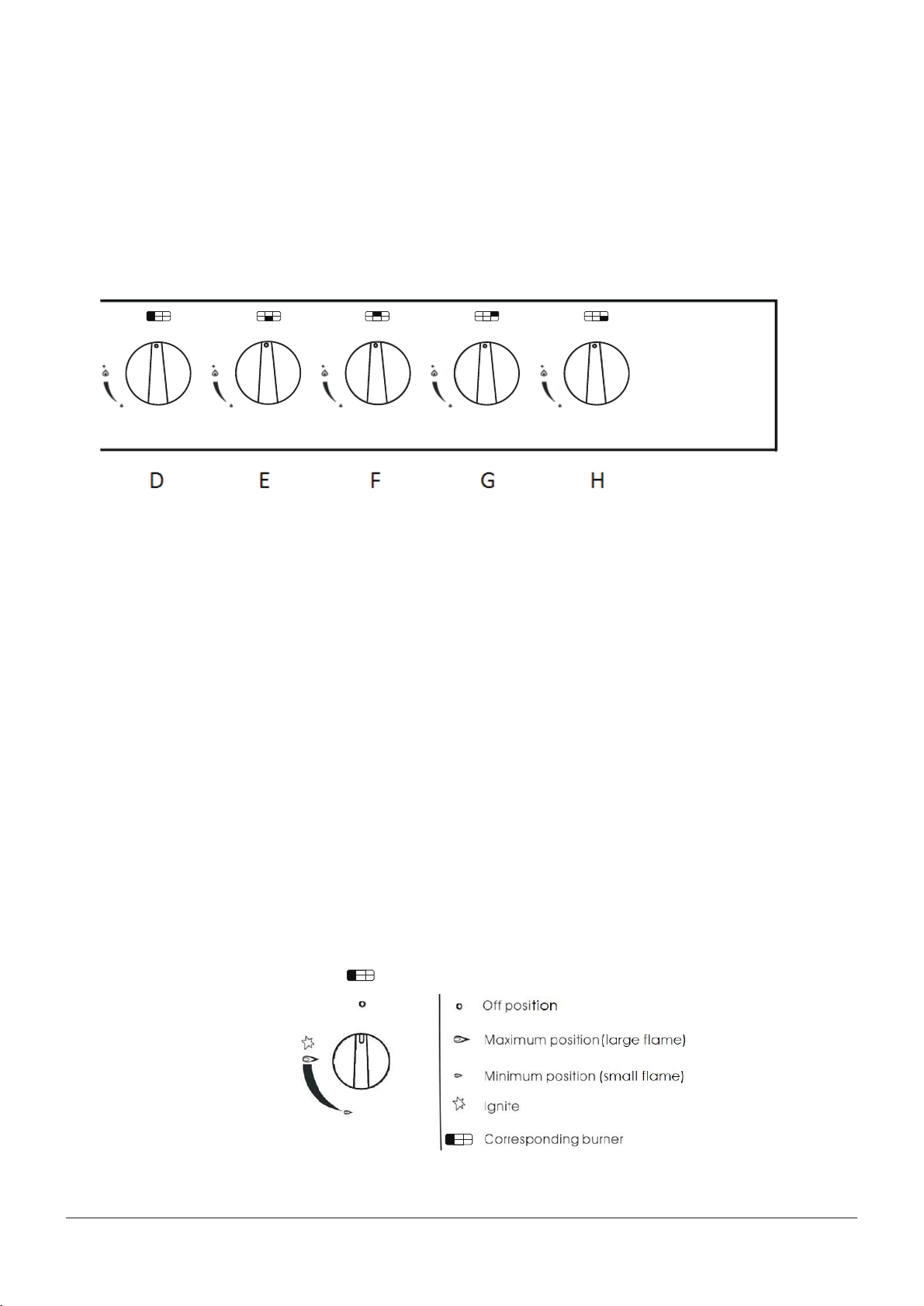

Using the Cooktop ----------------------------------------------------Page 13
Using the Electric Oven -----------------------------------------------Page 14
Digital Timer ----------------------------------------------------------Page 16
Oven Cooking & Cooking Time ---------------------------------------Page 18
Cleaning and Maintenance ------------------------------------------Page 21
Troubleshooting ------------------------------------------------------ Page 25
Technical Data ------------------------------------------------------- Page 27
Warranty and Service ----------------------------------------------- Page 28

● This appliance is designed to be handy for any adult to use at home. Children should be
Please keep this user manual for future reference. The latest version is available on our website.
See the back cover for details.
Page 3
Important Notes
supervised to ensure that they do not play with the appliance.
● Accessible parts may become hot during use. To avoid burns young children should be
kept away.
● This product must be connected in accordance with current gas and electrical regulations.
A fixed wiring installation is to be done only by an authorized electrician.
●
necessary with care and full attention.
●For any repairs, always contact authorized Customer Service Centre and ask for original
spare parts. Repairs by untrained people may lead to damage and void the warranty.
●The appliance must only be used for what it has been made for, that is, cooking for home
use. Any other use is considered improper and, as such, dangerous.
●The manufacturer cannot be held responsible for any harm to people or damage to things deriving
from an incorrect installation or maintenance or from an erroneous use of the appliance.
●Once the outer wrapping and the inner wrappings of the various parts have been removed, check and
make sure that the appliance is in perfect condition. If you have any doubts, do
not use the appliance and contact authorised personnel.
●The packaging materials used (cardboard, bags, polystyrene foam, nails, etc.) must not be
left anywhere which could be easily reached by children. To safeguard the environment, all packaging
materials used are environmental friendly and recyclable.
●The electrical safety of this appliance is only guaranteed if it is correctly connected to a
good earth system, as prescribed by the electrical safety standards. The manufacturer
declines all responsibility if these instructions are not followed. Should you have any doubts please
contact authorised personnel.
●Prior to connecting the appliance, please ensure that the rating plate data corresponds to
the gas and electricity mains rating as described in “ TECHNICAL DATA”.
●If you are using a socket near the appliance, make sure that the cables of electrical
appliances that you are using do not touch the hobs and are far enough from all hot parts of the hobs.
●DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
●DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
●NOT FOR USE IN MARINE CRAFT, CARAVANS OR MOBILE HOMES.
●DO NOT MODIFY THIS APPLIANCE.
●The use of gas cooking appliance produce heat, moisture and products of combustion in
the room which it is installed. For this reason the room must be well ventilated, keeping the natural
ventilation openings free and switch on the mechanical ventilation system (suction hood or electric fan).
If the hob is used for a long time, additional aeration may be necessary, for instance, opening up a
window, or a more effective ventilation by increasing the power of the mechanical system if there is
one.
●WARNING – In order to prevent accidental tipping of the appliance, for example, children climbing
onto the opened oven door, the stabilising means must be installed. Please refer to installation
instructions.
Authorised personnel must perform subsequent adjustments or repairs that may be

Page 4
WARNING!
DO NOT USE THIS APPLIANCE AS A SPACE HEATER
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
●The oven and its hinges and associated parts are designed to support the weight of the oven
door only, and any damage to the door or its hinges or associated parts which is caused by
excessive weight of any kind being placed onto the oven door will not be covered by warranty.
●The full cost of any warranty service call regarding damage which is assessed to be the result of
excessive weight of any kind being placed onto the oven door will be for the care of the owner.
●Children should specifically be prevented from climbing or standing on the oven door.
●The appliance should never be lifted or moved by holding the door handle, and it is
recommended that the door be removed before lifting or moving the oven.
●Do not use the oven door as a shelf.
●Do not push down the opened oven door.
●Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of
electrical shock.
●Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since
they can scratch the surface, which may result in shattering of the glass.
●Steam cleaner is not to be used.
●Fixed wiring must be protected.
●Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring
rules.
●During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
●The appliance must be switched off before removing the guard and that, after cleaning, the
guard must be replaced in accordance to instructions.
●This product must not be disposed with the domestic waste. It has to be disposed at an
authorised bin for recycling the appliances.
●This appliance is not intended for use by person (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge. Unless, they have been
given supervision or instruction regarding the use of appliance by personnel who is responsible
for their safety.
●Always make sure all the controls are off or closed when the appliance is not in use.
●When the burners are in use, do not leave them unattended. Make sure children are not in the
area.
●Check that pan handles are positioned correctly and always keep an eye on the pan
whenever oils or fats are used as they are inflammable.
●Never try to extinguish fires with water, but switch the appliance off immediately then cover
the flame with a lid or fire blanket etc.
●If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similar qualified persons in order to avoid a hazard.
●If the range is placed on a base, measures have to be taken to prevent the appliance slipping
from the base. Refer to anti-tilt chain instructions.

Page 5
Installation Instructions
The appliance must be installed by authorised personnel in accordance to the manufacturer's
instructions and local regulations.
NOTE: Before making preparations for or commencing installation, the installer should refer to
the current online version of the User Manual, which is available on the Kleenmaid website (see
back cover for details).
This appliance must be installed in accordance with:
AS/NZS 5601 - Gas Installations (for Australia)
NZS 5261 – Code of Practice for the Installation of Gas Burning Appliances and Equipment (for
New Zealand)
Local gas fitting regulations
AS/NZS 3000 – Electrical Installations (Wiring Rules)
Building codes
Installation environment
The gas appliance shall be installed such that the surface temperature of any nearby combustible
surface will not exceed 65°C above ambient. If there is insufficient space or natural air flow to meet this
requirement, creating an air gap between a heat shield and/or insulating material and the combustible
substrate may be effective. Care should be taken where a combustible surface is
covered by a non-combustible material. For example, covering a combustible surface with stainless
steel may not prevent heat transfer and in some circumstances a hazardous situation could arise.
The materials used in the adjacent cabinets is to be able to withstand a temperature of 90°C or
higher. Combustible materials, such as curtains, must be at the minimum distance of 500mm. Refer
to the diagram below, any vertical combustible surface, A, which is less than 200mm measured
from the periphery of the nearest burner, must have either
i. B of not less than 150mm above the periphery of the nearest burner for full dimension (width or
depth) of the cooking surface area, OR
ii. C of 10mm or more.
The distance between the highest part of the highest burner of the cooker and a
i. Exhaust fan is 750mm
ii. Rangehood - The safety gap between the cooker and the rangehood above must comply
with the recommendations of the rangehood manufacturer. In case of no instructions, a
minimum distance of 600mm (or other minimum distance as may be specified by AS/
NZS 5601 and interpreted by a certified installer) should apply.
Diagram below shows the requirements and product dimension.

Page 6
Chain
The anti-tilt chain is provided and is to be installed to prevent the appliance from tilting forward and
causing damage to the gas pipe. Fix the hook panel firmly on the wall at a suitable height and place the
chain over the hook. After that, make sure the chain is taut and the cooker will not tilt forward.
WARNING: In order to prevent tipping of the appliance, this stabilizing means must be
installed. Refer to the instructions for installation.
Levelling Feet
Dimension of OFS9021
Telescopic legs;
Height : min 101mm - max 144mm
Diameter : 51mm
Setback (Distance between front of oven and
front of leg) : 72mm.
Total depth of unit when door is open : 1012mm.
Note : All dimensions in mm.
Dimension tolerance : ± 2mm.
Installation of the Freestanding Unit
Remove all protective packaging.
Install the levelling feet provided and
adjust the cooker to a suitable height.

Page 7
Power & Gas Connection:
THE APPLIANCE MUST BE CONNECTED IN ACCORDANCE WITH CURRENT GAS &
ELECTRICAL RULES AND REGULATIONS. INSTALLATION IS TO BE DONE ONLY BY
AUTHORISED PERSONNEL.
Gas Connection
The gas settings are listed in the data label for both NG and ULPG. Please ensure the correct
nozzle injectors are used for the gas supply.
Before connecting the appliance to the gas network, make sure that the gas distribution
network complies with the details stated in the data label. This appliance must be installed
in compliance with relevant gas standards and / or codes of practice applicable.
The gas connection is via a G ½” male thread loose fitting which is located at the left rear
of the cooker.
Connect the adaptor to the appliance gas connection, and check if the seals between the
adaptor and gas connection are in place and in good connection. Gasket or washer is
required for sealing mechanism.
Adaptor must be fitted on gas connection to cooker prior to assembling other components.
For NG, connect the natural gas regulator with the integral test point by using approved
gas thread tape.
For ULPG, connect the ULPG test point by using approved gas thread tape. If the supplied
adaptor has a test point fitted, ULPG test point is not required.
Ensure the supply connection point, test point and natural gas regulator adjustment screw
(for NG installation) are accessible for testing and/or adjustment when the appliance is in
the installed position.
Adaptor with test point fitted
OR
Suitable ULPG gas cylinder sizes are 90kg or below

Page 8
There are two ways to carry out the connection to the main gas line:
A. The freestanding cooker can be connected with rigid pipe as specified in AS/NZS 5601 .
B. The cooker can be connected with a Flexible Hose, which complies with AS/NZS 1869
(AGA Approved), 10mm ID, class B or D, not more than 1.2m long and in accordance with
AS/NZS 5601. Ensure that the hose does not contact the hot surfaces of the hob, oven,
dishwasher or other appliances that may be installed underneath or next to the cooker.
WARNING: Ensure that the hose assembly is not in contact with the flue or flue outlet of the oven.
The hose should not be subjected to abrasion, kinking or permanent deformation and should be
able to be inspected along its entire length. Unions compatible with the hose fittings must be used
and connections must be tested for gas leaks. The supply connection point shall be accessible after
the appliance is installed. The fixed consumer-piping outlet should be at approximately 150mm to
the side of the cooker. The hose should be clear of the floor when the cooker is installed.
CAUTION !!
Carry out the connection without applying any kind of stress to the appliance.
WARNING: The restraint chain supplied should be anchored to the wall so that the chain prevents
strain on the hose connections when the cooker is pulled forward.
After gas connection, check for leaks using soapy solution, never a naked flame.
Setting of the gas pressure
Fit a manometer with a 6mm rubber hose to the test point on the NG regulator. Or fit the
manometer to LPG test point if ULPG connection is used.
Ignite the wok and auxiliary burner on and adjust test point pressure to 2.75kPa for ULPG and
1.00kPa for NG. Turn the two burners off and on again and recheck the pressure to see if it is the
same as previously set. Adjust again if required.
Test if the cooktop operates correctly
After installation and test point setting, each burner ignition and operation must be tested
individually and with all burners operating. This testing must be done by the installer before
leaving.
WARNING: THE BURNER FLAME MUST BE ADJUSTED BY THE INSTALLER. FAULTY
INSTALLATION IS NOT COVERED BY THE MANUFACTURER'S WARRANTY.
Supplied Gas Conversion
Contact the manufacturer or authorised dealer for conversion. For service, please refer to contact
details on the back cover of this manual.
Important:. Before carrying out the conversion, unplug the appliance from the gas and power
mains.
Replacing nozzles :
-Unplug the appliance from the mains to avoid possible electrical shock.
-Remove the trivets from the cooktop
-Remove the burner caps
-Use a 7mm tubular hex wrench to loosen the nozzles and replace them with suitable
nozzles as indicated in the diagram on the following page.
-Remove or install regulator for NG or test point adaptor for ULPG.

Page 9
Burner : Small
Natural Gas
(1.0kPa)
Universal LPG
(2.75kPa)
Gas Consumpon (MJ/h) 4.00 4.00
Injector Size (mm) 0.91 0.56
Burner : Medium
Gas Consumpon (MJ/h) 6.70 6.70
Injector Size (mm) 1.18 0.71
Burner : Large
Gas Consumpon (MJ/h) 11.50 11.50
Injector Size (mm) 1.59 0.91
Burner : Wok
Gas Consumpon (MJ/h) 12.50 13.00
Injector Size (mm) 1.62 0.98
After replacing the nozzles, the installer must check and set the gas pressure and adjust the burner
flame.
Adjust the burner minimum flame height
This adjustment can only be performed by authorised personnel.
The minimum burner flame is factory adjusted for the gas type stated on the gas type label
adjacent to the gas connection and should not require adjustment. Adjustment may be
required if the nozzles have been replaced or there are special mains pressure conditions.
The procedures necessary to perform this operation are the following :
● Light the burner
● Turn the knob to the minimum position
● Take out the knob (and gasket if there is any)
● Using a suitable sized screwdriver, turn the regulation screw by the side
of the tab shaft until a small regular flame is obtained
● Put the knob back on and turn it quickly from the maximum position to
the minimum position, checking that the flame does not go off.
● Make sure the flame is regulated to sufficiently maintain heating of the safety valve
thermocouple.

Page 10
Warning!
Make sure the trivets are placed at the correct position. Take note of the 4mm high bumps on the
stainless steel panel, and match with corresponding concavity of trivets. Trivets must not be
repositioned between different burners. Below is an example :
Warning!
The freestanding unit is designed without a lid or cover. Aftermarket lids or covers are not suitable.
Electrical Connection
WARNING: THIS APPLIANCE MUST BE EARTHED
For a direct connection to the electric network it is necessary to mount a circuit breaker
before the appliance according to the electrical regulation.
Before making connection to the electrical network, check that the domestic system and
the limiter valve can take the appliance load.
The supply cord must be positioned at such a point where the temperature of the point will
NOT reach 50°C, or higher than the ambient temperature.
Means for disconnection must be incorporated in the fixed wiring in accordance with the
wiring rules.
BBBBuuuummmmppppssss
CCCCoooonnnnccccaaaavvvviiiittttyyyy
CCCCoooonnnnccccaaaavvvviiiittttyyyy

Page 11
If this product is to be connected to a new or upgraded electrical installation, then it must
be connected to the supply by a supply cord fitted with:
−an appropriately rated plug that is compatible with the socket-outlet fitted to the final
subcircuit in the fixed wiring that supplies this cooking range; or
−an appropriately rated installation male connector that is compatible with the installation
female connector fitted to the final sub-circuit in the fixed wiring that supplies this cooking
range.
Before connecting to the mains, make sure that:
● The supply system is regularly earthed, according to the regulations in force.
● The isolation switch can easily be reached after the appliance is installed.
● After connection to the mains, check that the supply cable does not overheat.
● Never use reductions, shunts, adaptors that can cause overheating or burning.
The manufacturer shall not liable for any direct or indirect damage caused by faulty
installation. The installer must ensure that the product installation and connection
complies with the local and general gas and electrical regulation in force.
Before using the electric oven, we suggest to:
● Remove the special film covering the oven door glass (if there is any)
● Heat the empty oven at max. temperature for 45 minutes. This is to remove any
unpleasant smell caused by working residues.
● Carefully clean the internal cavity of the oven with soapy water and rinse it.
IMPORTANT!
When the oven is in operation the oven door may become hot. Take note of the "Warning! Hot
Surface”sign. Make sure children do not go near the oven when it is in use.
Oven Accessories
Model : OFS9021
1x baking tray
1x baking tray holder
1x grill insert
1x baking tray handle
2x wire racks
1x user manual

Page 12
Oven Model : OFS9021
Knob Description
A
B
C
D
E
F
G
H
Digital Timer
Function Selector Control
Temperature Control
Wok Burner
Auxiliary Burner
Large Burner
Medium Burner
Medium Burner
Control Panel
'A’is a digital timer. It is used to control the power on/off, oven cooking time adjustment and
program setting. The inner cavity light is on when the appliance is in a normal working state.
OFS9021 uses the digital timer to control cooking time and program setting. Refer to Section
"Digital Timer" on page 16 for the operating instructions.
'B’is the Function Selector Control that permits different heating functions to be selected
to suit different cooking needs. This allows the user to choose the best cooking function for
the food to be cooked.
'C’is the Temperature Control, used to control the oven temperature. It can be adjusted
from 50°C to 250°C. When the inner cavity of the appliance reaches the preset temperature,
the heating element switches off automatically. It will switch on again automatically when the
cavity temperature is lower than the preset temperature.
D, E, F, G, H are gas cooktop control knobs.
Storage Drawer The drawer underneath the oven has 34L internal volume, with dimensions
670(w)x 485(d) x 105(h). This is useful for storing baking trays and other cooking utensils.

Page 13
Using the Cooktop
The burners are designed and rated to provide the exact heat required for different cooking
styles.
For each cooktop control knob, there is a printed diagram to indicate which burner or heating
element the knob is controlling.
Automatic Electrical Ignition
The command to ignite the burner is integrated in the control knob. Each appliance burner
is equipped with a safety thermocouple, which is part of the flame failure device (FFD). A
FFD is designed to stop flammable gas going to the burner if the flame is extinguished.
This is to prevent a dangerous build up of gas around the appliance.
To ignite a burner, press and turn the corresponding burner knob counter clockwise to the
maximum position. Automatically the ignition sparks on. Keep pressing the knob until the
burner lights up then keep pressing the knob for about 10 seconds to allow the safety
thermocouples to warm up. If, after 10 seconds, the burner fails to light up, it means the
safety thermocouple is not heated sufficiently. Repeat the process.
Matches can be used to light the burners during blackouts.

Page 14
●Once the burner is lit, adjust the flame according to your needs.
●Use an appropriate pan and with flat bottom for each burner (see the table and figure below).
●When the pan content starts to boil, turn the knob down to minimum position (small flame).
●Always put a lid on the pan.
Burners Wok Rapid Semi-Rapid Auxiliary
Øpans in cm 22-24 20-22 16-18 10-14
Using the Electric Oven
Various cooking functions can be set by selecting different heating elements and
temperature setting.
Oven Cooking Functions
Off position
Optimum Use of the Burners
To get the maximum yield with minimum gas consumption, please keep the following points in
mind:
YES NO
Defrosting: the fan switches on without any heating. Food defrosting time is cut by about 1/3.
Oven Light.

Page 15
Pastry: Lower Heating Element
Browning: Upper Outer Heating Element
-Cakes
-Large amounts of food
-Cooking different dishes together.
Characteristics of fan cooking:
-Heat supplied from every direction
-It's possible to cook on several shelves at the same time.
-Defrosting is possible with or without heat.
Traditional Convection Cooking: Heat is supplied from upper and lower heating
elements. The oven must be preheated before food is placed inside.
Traditional convection cooking i s ideal for cooking:
-Pastry (dry-thin)
-Pizzas
-Bread
Fan Assisted Lower Element
The heat from below is spread evenly through the oven for slow, gentle cooking.
Fan Assisted Upper Outer Heating Element
Baking Fan Forced: The circular heating element and the fan distribute heat evenly to all
levels. Various dishes can be cooked on different shelves. For best results preheat the
the oven before placing food inside.
Fan Forced mode is ideal for cooking:
Central Grill: This can be used for small amount of food (lower energy consumption). The
door must be closed when grilling.
Gratin Ventilated Grill: The powerful action of the two grill elements fan combined with the
fan is ideal for cooking large pieces of food. The door must be closed when grilling.

Page 16
Digital Timer
The electronic programmer is a device which groups together the following functions:
-24 hour clock with illuminated display
-Timer (up to 23 hours and 59 Min.)
-Program for Automatic Cooking (set times for beginning and end of cooking)
-Program for Semi-automatic Cooking (set either length of cooking time or end time)
Description of buttons
Timer
Cooking time
End of cooking time
Manual position
Increment of numbers
Decrement of numbers
Description of lighted symbols
Auto (flashing) programmer in automatic position but not programmed
Auto (always lighted) programmer in automatic position with preset program
Manual cooking taking place
Timer in operation
-A- and -Auto- (both flashing) indicates an electronic programmer error.

Page 17
necessary to cancel the flashing -Auto- by pushing and buttons at the same time
to set it on manual mode.
Automatic cooking (start and finish)
button.
1) Set the cooking duration by pressing
2) Set the end of cooking time by pressing button.
3) Set the temperature and cooking program by using the Temperature Control and the Function
Selector Control.
Once setting is complete the -Auto- symbol will flash indicating the oven has been programmed.
For example: cooking lasts 45 minutes and is expected to stop at 14.00 h.
-Press and set to 0.45
-Press and set to 14.00
The clock hour will appear on the panel and -Auto- symbol will be on. This means the cooking
program has been entered to the programmer.
At 13.15 h. (45 minutes to 14) the oven turns on automatically. For the duration of the cooking time,
button and -Auto- continue flashing.
At 14.00 h. the oven turns off automatically, a buzzer sounds until it is stopped by pressing any
function key button.
Digital clock
Oven clock shows 24-hour time. Upon immediate power up of the oven or after a blackout,
three zeros will flash on the programmer panel. To set the oven clock local time please
press and buttons simultaneously, and adjust by pressing [+] and / or [-] buttons until you
have the exact hour. The adjustment speed depends on the pressure applied on the [+] [-] buttons.
Manual cooking without using the programmer
To operate the oven manually, that is without using the auxiliary programmer, it is

Page 18
A) Set the length of cooking time by pressing the button. The oven will turn on
immediately. -AUTO- and the
symbols will flash. When the set cooking time has elapsed the
oven will turn off and a buzzer will sound until it is stopped by pressing any function key button.
B) Set the end of cooking time by pressing the button. The oven will turn on
immediately. -AUTO- and
symbols will flash. When the end of cooking time is reached the oven
will turn off and the buzzer will sound until it is stopped by pressing any function key button.
The cooking program may be seen at any time by pressing the corresponding button. The cooking
program may be cancelled at any time by pressing the [+] [-] buttons until zero appears on the panel.
The oven can then be used manually.
Timer - Buzzer
The timer consists of a buzzer which may be set to sound up to a maximum period of 23 hours and 59
min. To set the time, press the button and the [+] or [-] until you reach the desired time
on the panel. When the time is set , the preset time and the symbol will appear.
The countdown will start immediately and may be seen at any time on the panel by
simply pressing the button. At the end of the set time, the symbol will turn off and
the buzzer will sound until it is stopped by pressing any key function button.
Note: A Power blackout returns the clock to zero and cancels the set programs. After a blackout
three zeros will flash on the panel and cooking need to be programmed once again.
Oven Cooking and Cooking Times
For the best results pre-heat the oven to the preset cooking temperature. Use deep containers or
trays as baking pans for roasts placed in the middle rack, to minimize possible soiling of the oven
cavity from fat splashes, sauce burning and smoke production. The table on pages 19-20 shows
some examples of how to set the temperature and the cooking time. The cooking times vary
according to the type of food, its homogeneity and volume. Use these suggestions as a guide only.
Practical hints to save energy
The oven can be switched off some minutes before the cooking end time. The residual
temperature is enough to complete cooking. Open the oven door only when it is absolutely
necessary. Look through the glass door to check cooking progress as the inner cavity light is
always on.
Semi-Automatic Cooking
A. Set the length of cooking time OR
B. Set the end of cooking time

Page 19
GENERAL ADVICE
The oven offers various kinds of heating:
FAN FORCED COOKING
With this function a continuous circulation of warm air is created, suitable for cooking on multiple
levels. The oven will reach the preset temperature in a very short time. If fan forced heating is
chosen, it is recommended to take advantage of the resulting time and energy savings by cooking
on several levels at once to prepare a complete menu.
TRADITIONAL COOKING (the upper and lower heating elements operate)
This method is especially suitable for cooking game and special roasts as well as for cooking bread
and sponge cakes. It is advisable to place food into the oven after preheating it. When the oven
reaches the set temperature the yellow warning light extinguishes.
GRILL COOKING (the two upper heating grills operate)
To cook with the grill, pre-heat the oven for about 5 minutes. During grill operation the heat
comes from above; and is suitable for thin cuts meat and for toast. The table shows some examples
of cooking times and shelf positions. The cooking times vary according to the type of food, its
homogeneity and volume.
COOKING PASTRY
The air circulation of the oven assures an instantaneous and uniform heat distribution. More trays
can be inserted into the oven together with the pastries, taking care not to use the top level. Other
foods (fish, meat, etc.) can be cooked at the same time as the pastry, provided they can be cooked
at the same temperature.
GRATINATING (use either the centre upper element or both upper elements) Pre-cooked food
and dishes with a short cooking time can be gratinated in the oven. This involves using grated
cheese, breadcrumbs and knobs of butter, or béchamel sauce, to give the food a crispy crust.
Gnocchi alla romana, polenta pasticciata, rice, lasagnas, noodles and vegetables dressed with
béchamel are typical dishes for this type of cooking.
COOKING TIMES
The table shows some examples for the adjustment of the temperature and the cooking time. The
cooking times can vary according to the type of food, its homogeneity and volume.
Nature of food Shelf Level Oven Temp.°C Time Minutes
General 2 220--250 Relative to Qty
Slow-cooking roast 2 225--250 50--60
Fowl (duck) 1 210--250 150--180
Poultry 2 225--250 50--60
Game 1 200--225 Relative to Qty
Fish 1 180--200 20--25
Pastries 1 160--200 60--70
