klimaoprema FDC25 Series User manual

1
Gradna 78A, 10430 Samobor, Croatia
[phone]
[email protected]
www.klimaoprema.hr
FDC
Installation manual
Fire protection
Issue Date: 18.8.2020

2
1. Product presentation..........................................................................................................................3
2. Dimensional range.............................................................................................................................4
3. Dimensions.......................................................................................................................................5
4. Storage and handling.........................................................................................................................8
5. Installation and implementation..........................................................................................................8
6. Control mechanism..........................................................................................................................23
7. Electrical connections......................................................................................................................25
8. Other mechanisms...........................................................................................................................26
9. Evolution of service kits....................................................................................................................28
10. Maintenance..................................................................................................................................28
table of contents

3

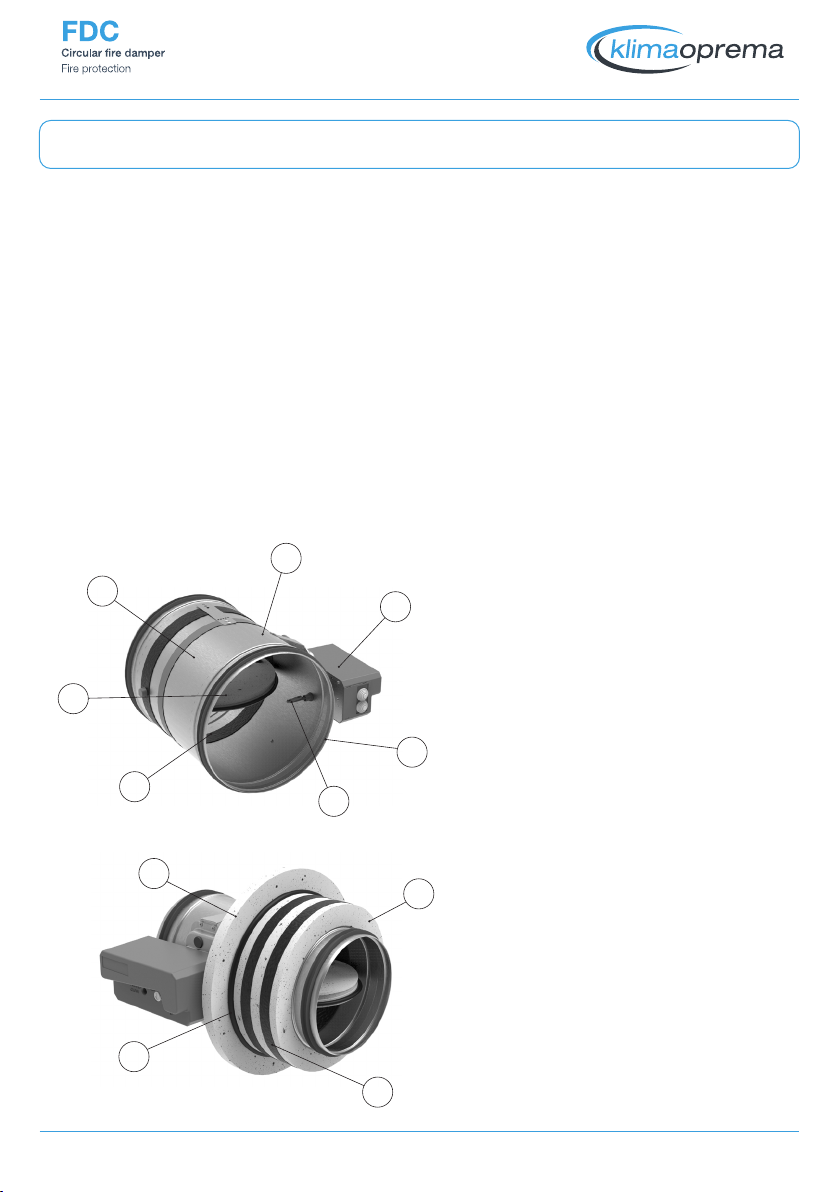

1. product presentation
Fire dampers FDC25/FDC40 are installed in ventilation ducts between fire compartments in order
to stop the spread of fire and smoke trough the duct. They have a modular (manual or magnet)
or motorized mechanism, entirely outside the wall. Casing is made out of galvanized steel sheet,
damper blade is made of special insulating material, and damper blade shaft and push rod are made
of stainless steel. Bearings are made of brass, seals of polyurethane and elastomer. The fire damper
can be equipped with a simple mechanism with thermal fuse, or with solenoid actuator mechanism
or with electric actuator mechanism..
• Tested according to EN 1366-2 up to 500 Pa
• Airtightness according to standard EN 1751 class C
• Approved for installation in a concrete wall, a concrete slab, plasterboard wall and gypsum
blocks wall
• Operating mechanism completely outside the wall
• Easy to install
• Maintenance free
1. Galvanized steel casing
2. Fire resistant damper blade
3. Control mechanism
4. Intumescent joint
5. Connection flanges
6. Product marking on the casing
7. Thermal fuse
1. Gypsum layers
2. Intumescent joint
3. Cold smoke seal
4. Boundary layer
1
3
4
5
2
6
7
1
2
3
4

4
Diameter (mm) Gross section (dm²) Netto area (dm²)
FDC25
100 0,74 0,50
125 1,17 0,87
160 1,93 1,55
200 3,05 2,56
250 4,79 4,18
300 6,18 5,74
315 7,64 6,87
FDC40
355 9,73 8,33
400 12,37 10,79
450 15,69 13,91
500 19,39 17,41
630 30,86 28,36
710 39,24 36,42
800 49,86 46,68
2. dimensional range
In decimeters:
Free area for dimensions Ø100-315 (blade 25mm) (dm²) = [(π x (Ø-3)2/4)-25 x (Ø-5)]/10 000
Free area for dimensions Ø350-800 (blade 40mm) (dm²) = [(π x (Ø-3)2/4)-40 x (Ø-5)]/10 000
In meters:
Free area for dimensions Ø100-315 (blade 25mm) (m²) = [(π x (Ø-3)2/4)-25 x (Ø-5)]/1 000 000
Free area for dimensions Ø350-800 (blade 40mm) (m²) = [(π x (Ø-3)2/4)-40 x (Ø-5)]/1 000 000
Diameter (mm) Gross section (dm²) Netto area (dm²)
FDC
Applique
100 3,30 0,50
125 3,80 0,87
160 5,11 1,55
200 6,16 2,56
250 8,55 4,18
315 12,25 6,87

5

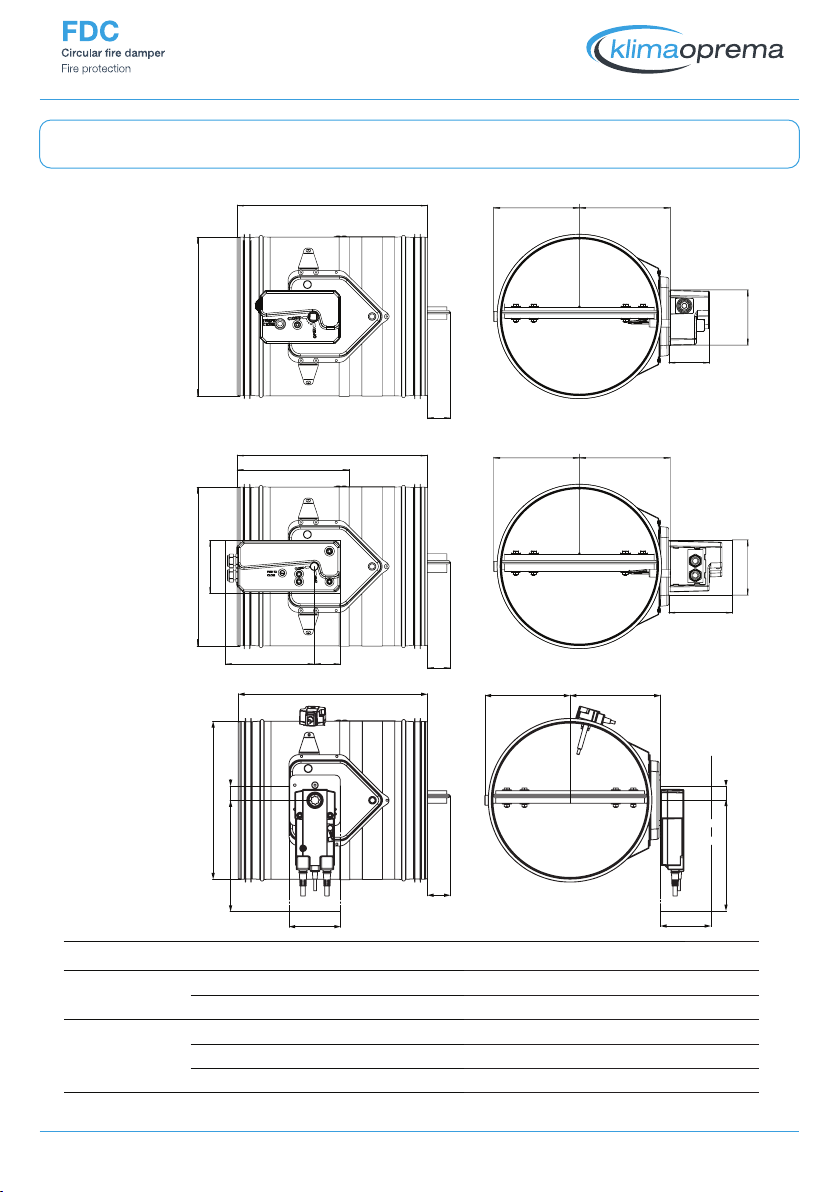

3. dimensions
380 ∅D/2+12 ∅D/2+22
220
Y
D
AC
D
∅D
E
380 ∅D/2+12 ∅D/2+22
∅D
Y
101
E
A
E
Y
D
AC ∅D
380
∅D/2+12
C
∅D/2+22
Fdc25-r
Fdc40-r
Fdc25/40 m
Product A C D E
Belimo BFL (M) 25 200 90 120
BFN (M) 25 225 100 120
Klimaoprema
-R (FDC 25) 55 150 105 150
-R (FDC 40) 55 200 105 200
-EMP (FDC 25/40) 55 200 105 200

6
∅D
380 100 45
∅D+A
(∅D/2)+80 (∅D/2)+94
(∅D/2)+80 (∅D/2)+124
380 100 45
∅D
∅D+A
45
∅D+A
380
145
∅D+160
45
∅D+A
380
145
∅D+160
(∅D/2)+80 (∅D/2)+124
380 100 45
∅D
∅D+A
∅D
380 100 45
∅D+A
(∅D/2)+80 (∅D/2)+94

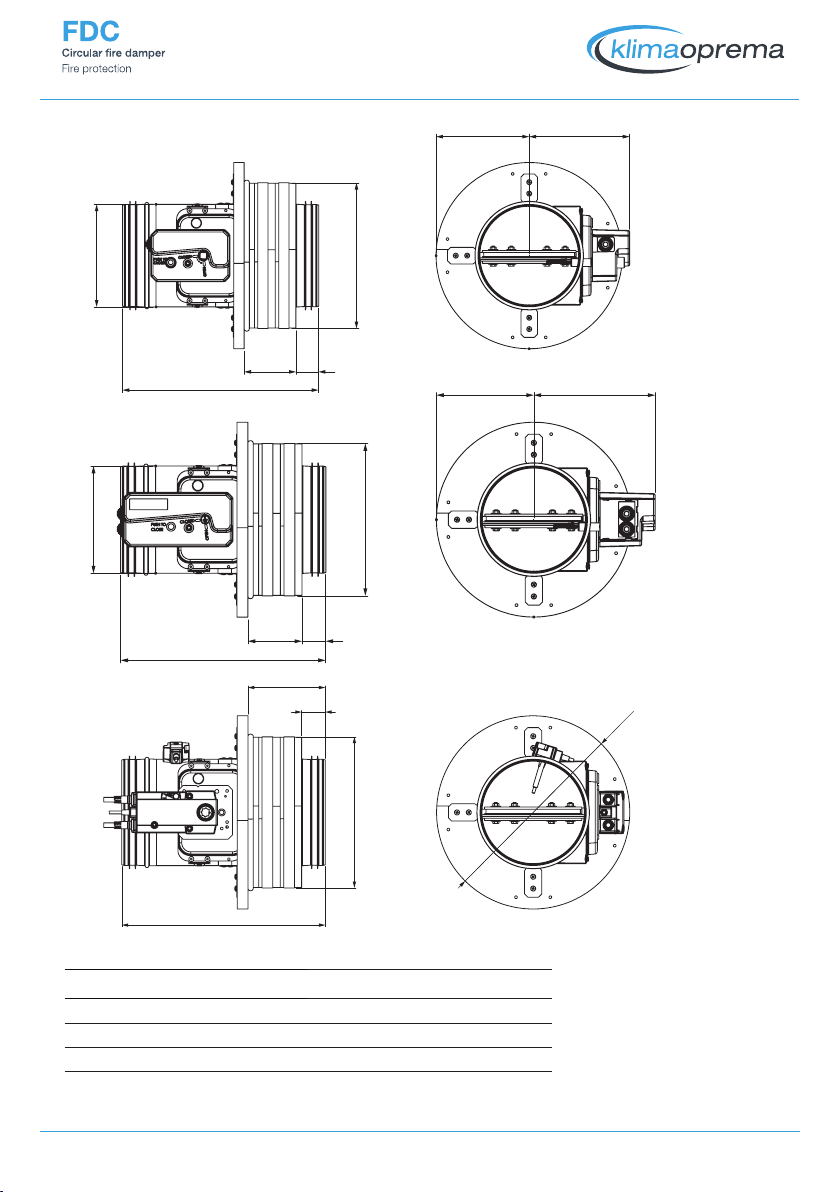

Fdc appliQue
Damper diameter ØD[mm] Applique frame diameter [mm]
100 Øn+105mm
125-180 Øn+95mm
200-315 Øn+80mm
Y = (Øn/2) - 110 (mm)
X* = (Øn/2) - 270 (mm)
*(dimension X is same as Y (blade
lenght outside of housing) but on
opposite side

7
FDC25 / FDC40-MF1 kit for “on the wall” installation
• MF1 kit is an installation subframe for quick and easy installation on the rigid and flexible walls
• made out of calcium silicate boards
• quick wall mounting with screws
• factory assembled to the fire damper
62 82
Dn
380
Dn+118
Dn+118
36
36
FDC25-R-MF1
FDC40-M-MF1
62 82
Dn
380
Dn+118
Dn+118
36
36
FDC40-R/EMS/EMP-MF1
62 82
Dn
380
Dn+118
Dn+118
36
36
FDC25-MF1-R FDC25-MF1-EMS FDC25-MF1-M
Øn[mm] 100 125 160 200 250 315 100 125 160 200 250 315 100 125 160 200 250 315
Weight
[kg] 7,10 7,58 8,63 9,38 10,96 13,17 7,40 7,88 8,93 9,68 11,26 13,47 7,40 7,88 8,93 9,68 11,26 13,47

8
4. storage and handling
As a safety element, the fire damper must be stored, handled and installed carefully. Pay attention to:
• unload in a dry area
• avoid any shocks
• do not use the damper as a workbench or scaffolding
• do not fit the small dampers in the large one
The damper must be stored in a dry place, and kept out of water and frost. It should not be
stacked beyond the original packaging. It must be properly stowed so as to prevent any damage or
deformation resulting from an impact or high humidity. It must not be exposed to direct sunlight to
prevent premature aging of the thermal fuse. Once the damper is installed, the mechanism should
be kept away from any projections (cement, paint, flocking, water, dust) that may harm its operation.
The damper must be protected against the risk of heavy condensation. The intumescent joints are
essential for the fire resistance of the damper, all mechanical actions on the refractory parts are to
be excluded. All precautions shall be taken to ensure that premature aging of the damper does not
occur before it is actually installed. The actions of wedging and caulking during the sealing of the
dampers must not cause deformations that will alter the good functioning of the damper and in
particular the closing of the blade.
5. installation and implementation
5.1 installation
• Mounting is possible with the blade axis in horizontal or in vertical position
• The installation must comply with the tests that were performed during certification, as
explained in 8.2.
• Avoid any obstruction of the moving blade by the connected ducts
• The class of air-tightness is maintained in case the installation of the damper is made in
accordance with the technical manual
• Operating temperature: 50° C max
• For indoor use only
The FDC25 / FDC40 fire damper is always tested in standardized support frames (both in a concrete
wall and in a flexible wall) in accordance with EN 1366-2: 1999 table 3/4/5. The results obtained are
valid for all similar support frames which have a thickness and / or density and / or fire resistance
similar or greater than the one of the test.
Minimum opening hole for fire damper instalation:
Damper size – ØD [mm] Opening size – A (minimum)
ØD < 160 ØD + 85
180 < ØD < 315 ØD + 75
315 < ØD < 450 ØD + 65
ØD > 450 ØD + 55

9
5.2 installation and sealing

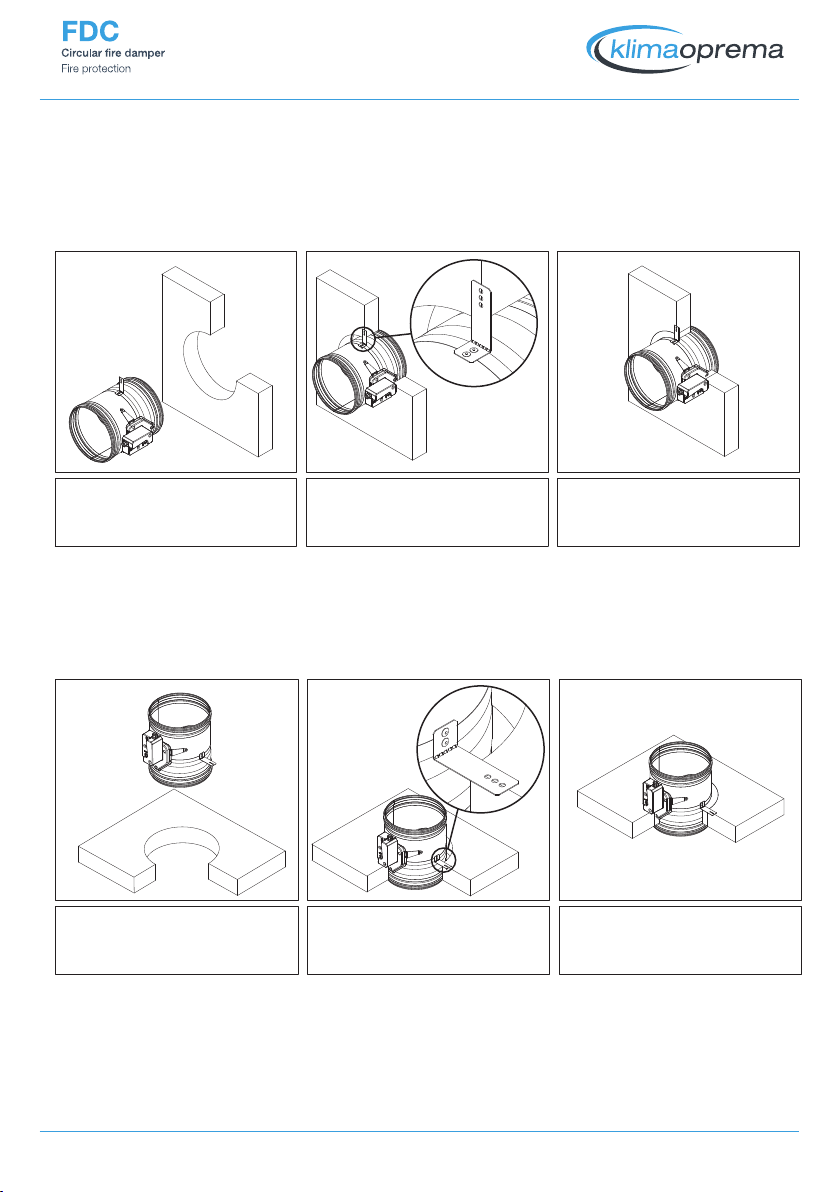

5.2.1 Concrete wall and reinforced concrete wall installation
The wall is composed of concrete blocks (minimum density of 550 kg/m³) and with a minimum thickness of
100 mm.
5.2.2 Aerated concrete ceiling installation and reinforced concrete ceiling installation
The ceiling is made of aerated concrete with a minimum density of 550 kg/m³ and a minimum thickness of
100 mm
Place the damper in an opening
according to table (on pg. 6)
Fix the damper to the wall using screws
(screw hole is 6mm in diameter)
Fill the space between the damper and
the wall with mortar
Place the damper in an opening
according to table
(on pg. 6)
Fix the damper to the slab using
screws (screw hole is 6mm in
diameter)
Fill the space between the damper and
the slab with mortar

10

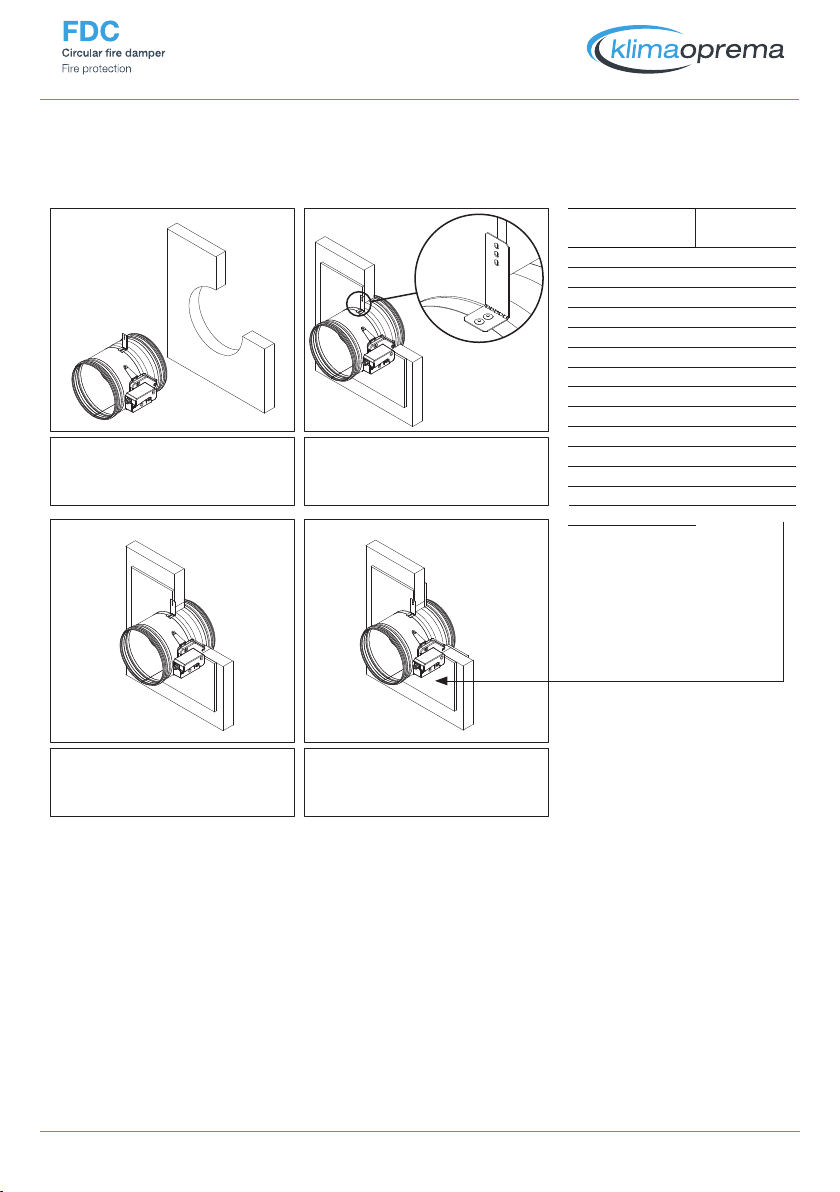

5.2.3 Gypsum blocks wall 70mm
The wall is composed of gypsum blocks (minimum density of 995kg/m³), and with minimum thickness of
70mm.
Place the damper in an opening
according to table (on pg. 6)
Fix damper and GKF gypsum boards
(12,5mm thick) to wall with screws
(screw hole is 6mm in diameter)
Fill the space between the damper and
the wall with mortar
Cover the mortar with GKF gypsum
boards (12,5 mm thick)
* The Kit is universal for all
dimensions and must be cut
to fit the specific dimensions
of the damper
Diameter of the
damper (mm) Mounting kit
100 60061429
125 60061430
160 60061431
200 60061432
250 60061433
315 60061435
355 60061436
400 60061437
450 60061438
500 60061439
560 60061440
630 60061441
710 60061442
800 60061443

11

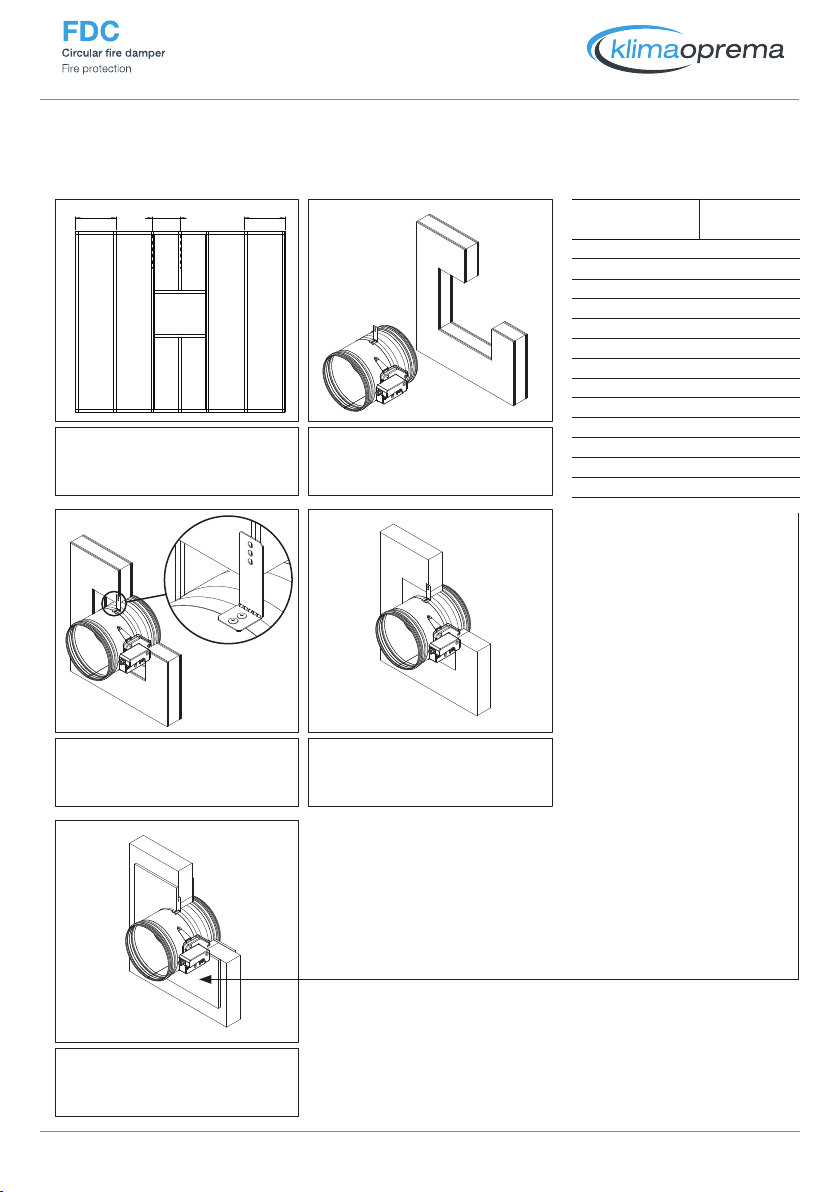

5.2.5 Flexible wall mounting (mineral wool sealing)
The wall is composed of 2x2 GKF plates, 12.5 mm thick, installed on a 48 mm wide steel construction. The
interior of the wall is filled with mineral wool of 100 kg/m³ density.
625 625
> 440
Realization of the steel
construction
Place the damper in an opening
according to table (on pg. 6)
Fix the damper to the wall using screws
(screw hole is 6mm in diameter)
Fill the space between the damper and
the wall with mineral wool (100 kg/m³
of density)
Cover the mineral wool with GKF
gypsum boards (12,5 mm thick)
* The Kit is universal for all
dimensions and must be cut
to fit the specific dimensions
of the damper
Diameter of the
damper (mm) Mounting kit
100 60061429
125 60061430
160 60061431
200 60061432
250 60061433
315 60061435
355 60061436
400 60061437
450 60061438
500 60061439
560 60061440
630 60061441
710 60061442
800 60061443

12
5.2.6 Flexible wall mounting (mortar sealing)
The wall is composed of 2x2 GKF plates (example PROMATECT 100, 12,5 mm thick), installed on a steel
construction of 48 mm width.
625 625
> 440
Realization of the steel
construction
Place the damper in an opening
according to table
(on pg. 6)
Fix the damper to the wall using
screws (screw hole is 6mm in
diameter)
Fill the space between the damper
and the wall with mortar
Cover the mortar with GKF gypsum
boards (12,5 mm thick)
* The Kit is universal for all
dimensions and must be cut
to fit the specific dimensions
of the damper
Diameter of the
damper (mm) Mounting kit
100 60061429
125 60061430
160 60061431
200 60061432
250 60061433
315 60061435
355 60061436
400 60061437
450 60061438
500 60061439
560 60061440
630 60061441
710 60061442
800 60061443

13
5.2.7 Installation in flexible wall (Weichschott)
Installation material: Fire damper FDC, Mineral wool >140kg/m³, Fire protection coating, (HILTI and PROMAT
system).
Recommended wall opening for
fire damper installation is Ø +
400mm, but openings from Ø +
80…600 mm can also be used
Insert fire damper into wall
Damper blade must be closed
during installation!
Space between casing and wall
close with two layers of mineral
wool (density 140 kg/m³ or more, 50
mm thick, coated on one side)
Connections of mineral wool seal with
intumescent fire resistant sealant (e.g.
Promastop-I or Hilti CFS-CT). Mineral
wool and damper casing must be
coated with 2 mm thick fire protection
coating

14

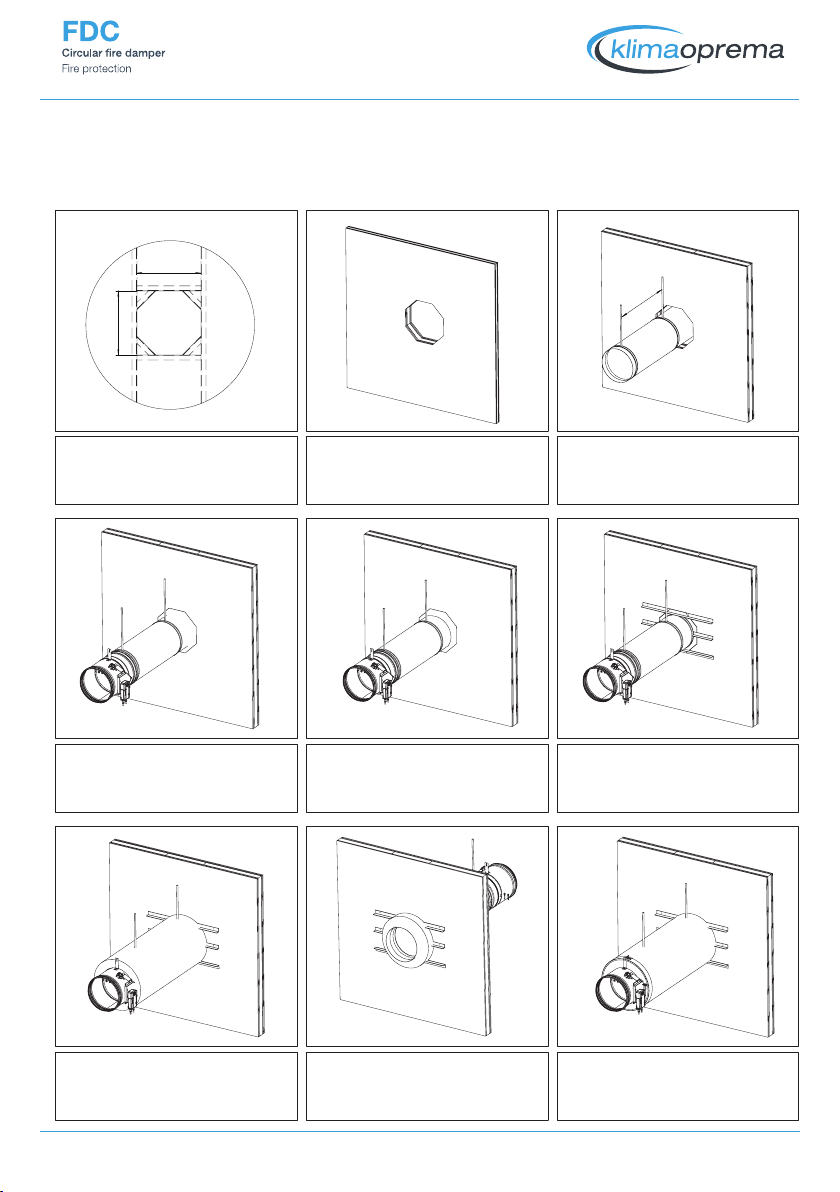

5.2.8 Installation remote from flexible/rigid wall
The wall is composed of 2x2 GFK plates, 12.5 mm thick, installed on a 48 mm wide steel construction. The
interior of the wall is filled with mineral wool of 100 kg/m³ density.
700
Øn+80
Øn+80
Arrangement of steel profiles
Place the damper in an opening
according to table (on pg. 6) (wall cover
with gypsium plates)
Place ventilation duct trough wall
(thickness of threaded rod for
suspension should be M12 or more)
Install fire damper and secure it with
self-tapping screws 4,3x10 to duct
(every 300mm)
Fill space between duct and wall with
mineral wool (Isover U protect, min. 80mm
thickness). Additionally paint wool with
Isover BSF in thickness of 1mm
Repeat the same procedure on the
other side. Place the wool on ventilation
duct in lenght of 80mm
Close installation with L profiles 30x30x-
3mm. Additionally fix profiles to duct with
self-tapping screws, and screw them to
wall with 4,5x50 screws with 200mm
distance between them
Place steel protection on place where
insulation on damper ends (80x80mm,
1mm thick metal sheet cover)
On connection wool-wall apply
glue Isover BSK in thickness of 2mm

15

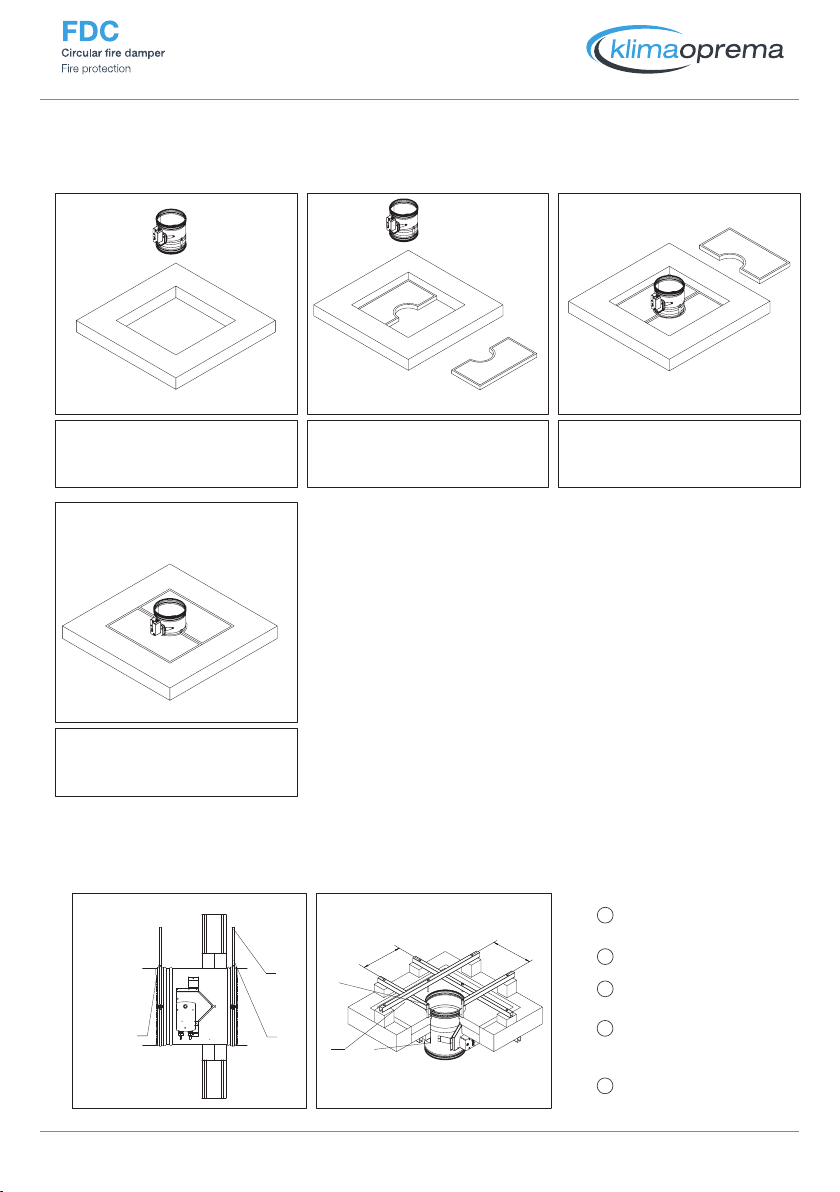

5.2.9 Installation in ceiling (Weichschott)
The ceiling is composed of aerated concrete blocks (minimum density of 550 kg/m³) and with a minimum
thickness of 100 mm.
Recommended ceiling opening
for fire damper installation is
Ø+ 400mm, but openings from
Ø + 80…600 mm can also be used
Insert fire damper into ceiling
Damper blade must be closed
during installation!
Space between casing and wall
close with two layers of mineral
wool (density 140 kg/m³ or more, 50
mm thick, coated on one side)
Connections of mineral wool should be sealed
with intumescent fire resistant sealant (e.g.
Promastop-I or Hilti CFS-CT). Mineral wool and
damper casing must be coated with 2 mm thick
fire protection coating
5.2.10 Suspension for Weichschott installation
Suspension systems are required for the dry mortarless installation of the fire damper with mineral wool in solid
walls, flexible walls and ceiling slabs. Fire dampers can be suspended from solid ceiling slabs using adequately
sized threaded rods. Load the suspension system only with the weight of the fire damper. Ducts must be
suspended separately.
1
3
2
1
45
Dn + 70
Dn + 70
Wall installation Ceiling installation Threaded rod (M10),
galvanized steel
Washer, galvanized steel
Nut, galvanized steel
Bracket, 45x30x1,5 mm,
galvanized steel
L shaped profile (50x50x1)
secured with self tapping
screw to damper housing
1
2
3
4
5

16

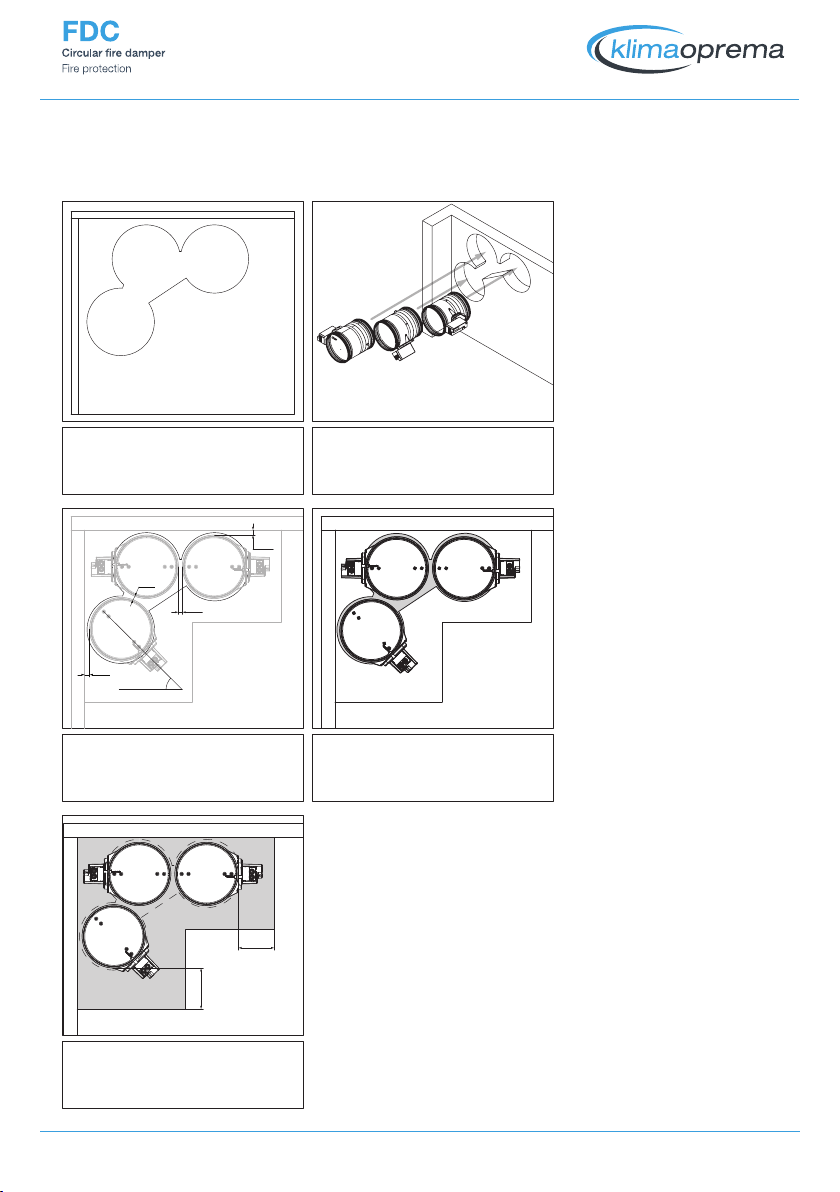

5.2.11 Installation in gypsum blocks wall 70mm
The wall is composed of gypsum blocks (minimum density of 995kg/m³), and with minimum thickness of
70mm.
30
30
30
45º
30
150
150
Prepare opening in the wall according
to dimension table (on page 6) Insert fire damper into wall
Fire damper can be installed with minimal
distance of 30 mm between wall, ceiling
or other dampers.
Cover the mortar with GKF gypsum
boards (12,5 mm thick)
Space between casing and wall
close with mortar

17
5.2.12 Installation in gypsum blocks wall 100mm
The wall is composed of gypsum blocks (minimum density of 995kg/m³), and with minimum thickness of
100mm.
30
30
30
45º
30
150
150
Prepare opening in the wall according
to dimension table
(on page 6)
Insert fire damper into wall
Fire damper can be installed with minimal
distance of 30 mm between wall, ceiling
or other dampers.
Cover the mortar with GKF gypsum
boards (12,5 mm thick)
Space between casing and wall
close with mortar

18

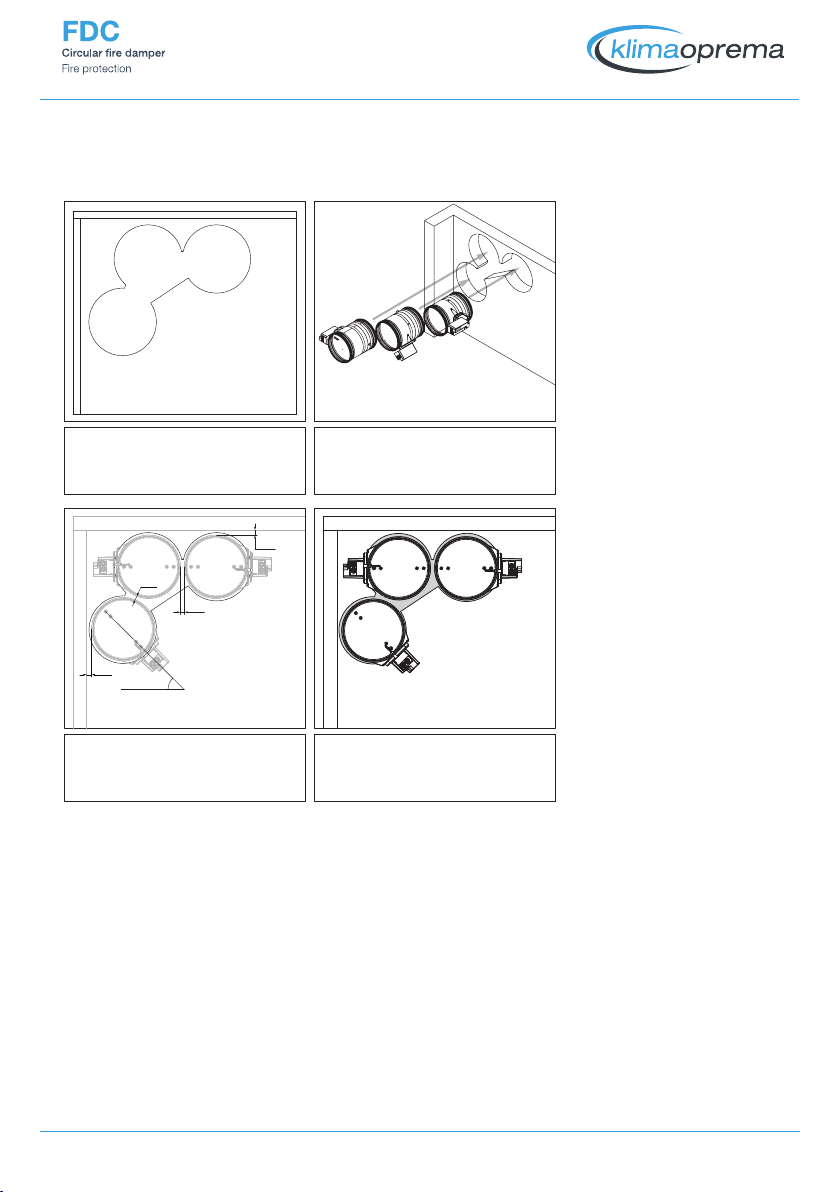

5.2.13 Installation in rigid wall 100mm
The wall is composed of concrete blocks (minimum density of 550 kg/m³) and with a minimum thickness of
100 mm.
30
30
30
45º
30
Prepare opening in the wall according
to dimension table
(on page 6)
Insert fire damper into wall
Fire damper can be installed with minimal
distance of 30 mm between wall, ceiling
or other dampers.
Space between casing and wall
close with mortar

19

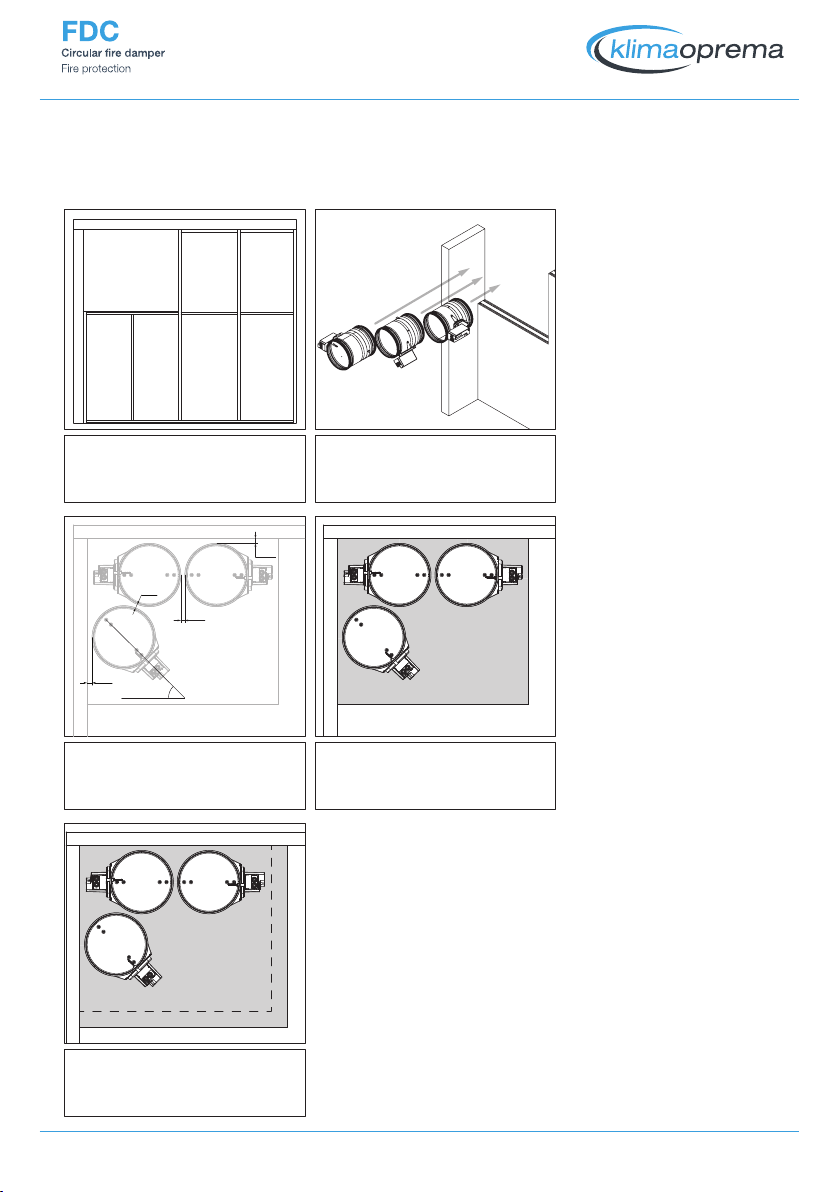

5.2.14 Flexible wall mounting
The wall is composed of 2x2 GKF plates, 12.5 mm thick, installed on a 48 mm wide steel construction. The
interior of the wall is filled with mineral wool of 100 kg/m³ density.
30
30
30
45º
30
Arrangement of steel profiles
according to drawing. Prepare opening
in the wall according to dimension
table (on page 6)
Insert fire damper into wall
Mineral wool and damper casing must
be coated with 2 mm thick fire protection
coating
Space between casing and wall
close with two layers of mineral
wool (density 140 kg/m³, 50 mm thick)
Fire damper can be installed with minimal
distance of 30 mm between wall, ceiling
or other dampers.

20

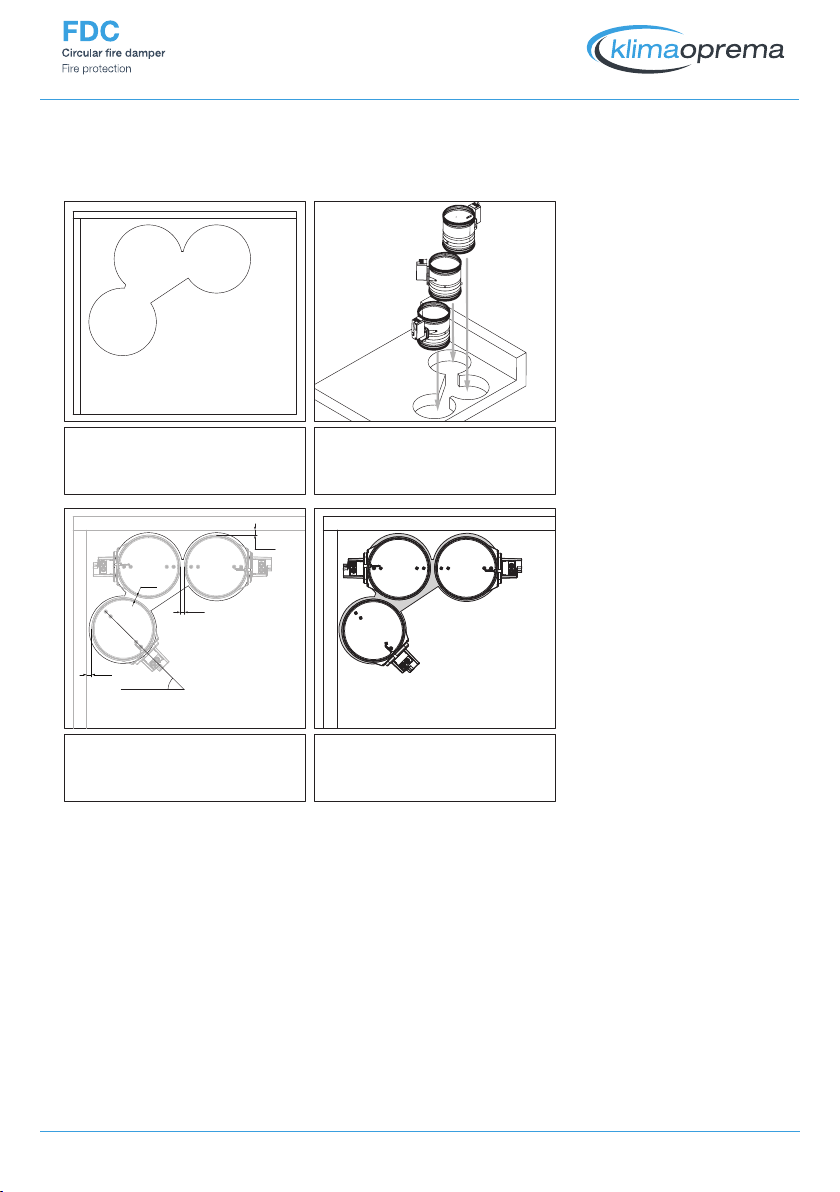

5.2.15 Installation in rigid floor 100mm
The floor is composed aerated concrete blocks (minimum density of 550 kg/m³) and with a minimum
thickness of 100 mm.
30
30
30
45º
30
Prepare opening in the wall according
to dimension table
(on page 6)
Insert fire damper into floor
Fire damper can be installed with minimal
distance of 30 mm between wall, ceiling
or other dampers.
Space between casing and wall
close with mortar
