Klimawent WPA-P-N User manual

1

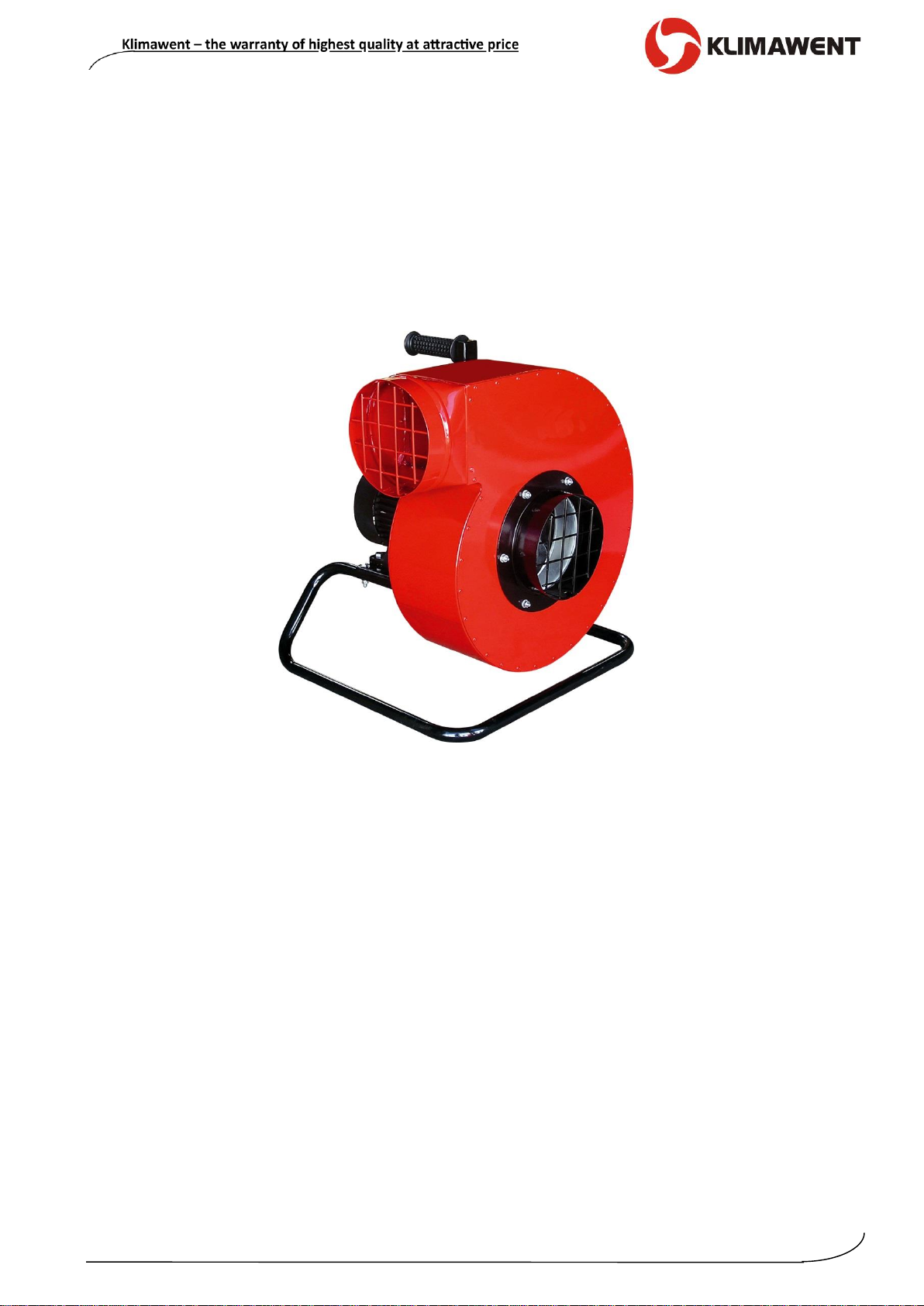

04.06.2019 portable radial fans WPA-P-N
Use and Maintenance Manual
Portable radial fans
WPA-P-N

2
portable radial fans WPA-P-N04.06.2019
Contents:
1. Introductory Remarks......................................................................... 3
2. Application ......................................................................................... 4
3. Reservations of Producer .................................................................... 4
4. Technical Data.................................................................................... 4
5. Structure and Function....................................................................... 6
6. Assembly and Start-up ........................................................................ 6
7. Operational Use .................................................................................. 8
8. Troubleshooting Guide ........................................................................ 8
9. Maintenance and Control.................................................................... 9
10. Occupational Health and Safety .......................................................... 9
11. Transport and Storage ........................................................................ 9
12. Terms of warranty .............................................................................. 9
13. Sample of Declaration of Conformity .................................................. 11

3
04.06.2019 portable radial fans WPA-P-N
1. Introductory Remarks
The purpose of the present User’s Manual is to supply User with directions within the range of
application, installation, start-up and the operational use of the WPA-P-N portable radial fans.
Installing, start up and operational use are exclusively admissible after getting acquain-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for our-
selves the revision possibility of the draft and technological changes improving their functional
features and safety.
The construction of the WPA-P-N portable radial fans meets the requirements of the current
state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th,
2009 establishing a framework for the setting of ecodesign requirements for energy-related
products /Journal of Laws L285 of 31.10.2009/

327/2011 (EU) Commission Regulation of March 30th, 2011 on implementing the 2009/125
/EC Directive of the European Parliament and of the Council with regard to ecodesign requi-
rements for fans driven by motors with an electric input power between
125W and 500 kW /Journal of Laws L90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general princi-
ples for design. Risk assessment and risk reduction”.

EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machi-
nes. Part 1: General requirements”.

EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data
and parameters”.

EN ISO 5802:2008/A1:2015-07
–
“Industrial Fans – Performance testing in situ of instal-
ling”

EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent ha-
zard zones being reached by upper and lower limbs”.

4
portable radial fans WPA-P-N04.06.2019
2. Application
WPA-P-N fans have been designed both, for air-supply ventilation and extraction ventilation of
rooms and workplaces. They can be applied for general ventilation and for local exhausts. Addi-
tionally, WPA-P-N fans can be used or drying the humid rooms by forcing the multiple air exchan-
ges.
Do not use the fan for conveying the aggressive gases or substances creating explosive atmos-
pheres with the air. In general, the fan is designed for transporting the air, of dustiness not ex-
ceeding 0,3 g/m³, without viscous impurities, aggressive contamination or compounds creating
hazard of explosion.
3. Reservations of Producer
A.
Manufacturer accepts no liability for any consequences following from the operational use
that is in contradiction to the purpose of application.
B.
It is unacceptable to install on the device structure any additional elements not belonging to
its normal construction or accessory set.
C.
Any structural changes or modification of the device, carried out by User on one’s own are
not permitted.
D.
Protect the housing from mechanical damage.
E.
The fan cannot be used for conveying the air contaminated with a mixture of flamma-
ble substances in form of gas, vapour, mist and dust that in connection with the air
create the explosive atmosphere.
F.
Do not use the fan for conveying the air containing viscous impurities that could accumulate
on the device surface, especially on the impeller.
G.
Neither use it for forwarding the air with aggressive pollutants which will destructively effect
the device structure.
H.
During operation, the maximum impeller rotations should not exceed the nominal rotations.
I.
Manufacturer is not responsible for wounds, injuries, body laceration experienced by User or
personnel during the improper operational use.
4. Technical Data
Table No.1
Table No.1
Type of the fan
Synchro-
nous
rotations
Supply
voltage
Motor
rate
Ingress
pro-
tection
Acoustic
pressure level
[dB(A)]
from distance
Maximum
volume
flow
Maximum
vacuum
Weight
[r.p.m.]
[V]
[kW]
IP
1m
5m
[m3/h]
[Pa]
[kg]
WPA-3-P-1-N
3000
230
0,25
54
69
55
1160
940
12
WPA-5-P-1-N
3000
230
0,37
54
76
62
1900
1250
18
WPA-5-P-3-N
3x400
WPA-6-P-1-N
3000
230
0,75
54
83
69
2500
1700
24
WPA-6-P-3-N
3x400
WPA-7-P-1-N
3000
230
1,1
54
86
72
3100
1800
26
WPA-7-P-3-N
3x400
WPA-8-P-3-N
3000
3x400
1,5
54
88
74
3900
2050
35
WPA-9-P-3-N
3000
3x400
2,2
54
91
77
4500
2400
44
WPA-10-P-3-N
3000
3x400
3,0
54
91
77
6200
2450
55
1.
Maximum temperature of the conveyed air is +60ºC, whereas maximum temperature within
the work zone +40ºC.
2.
Maximum dustiness of the conveyed air should not exceed 0,3 g/m3.

5
04.06.2019 portable radial fans WPA-P-N

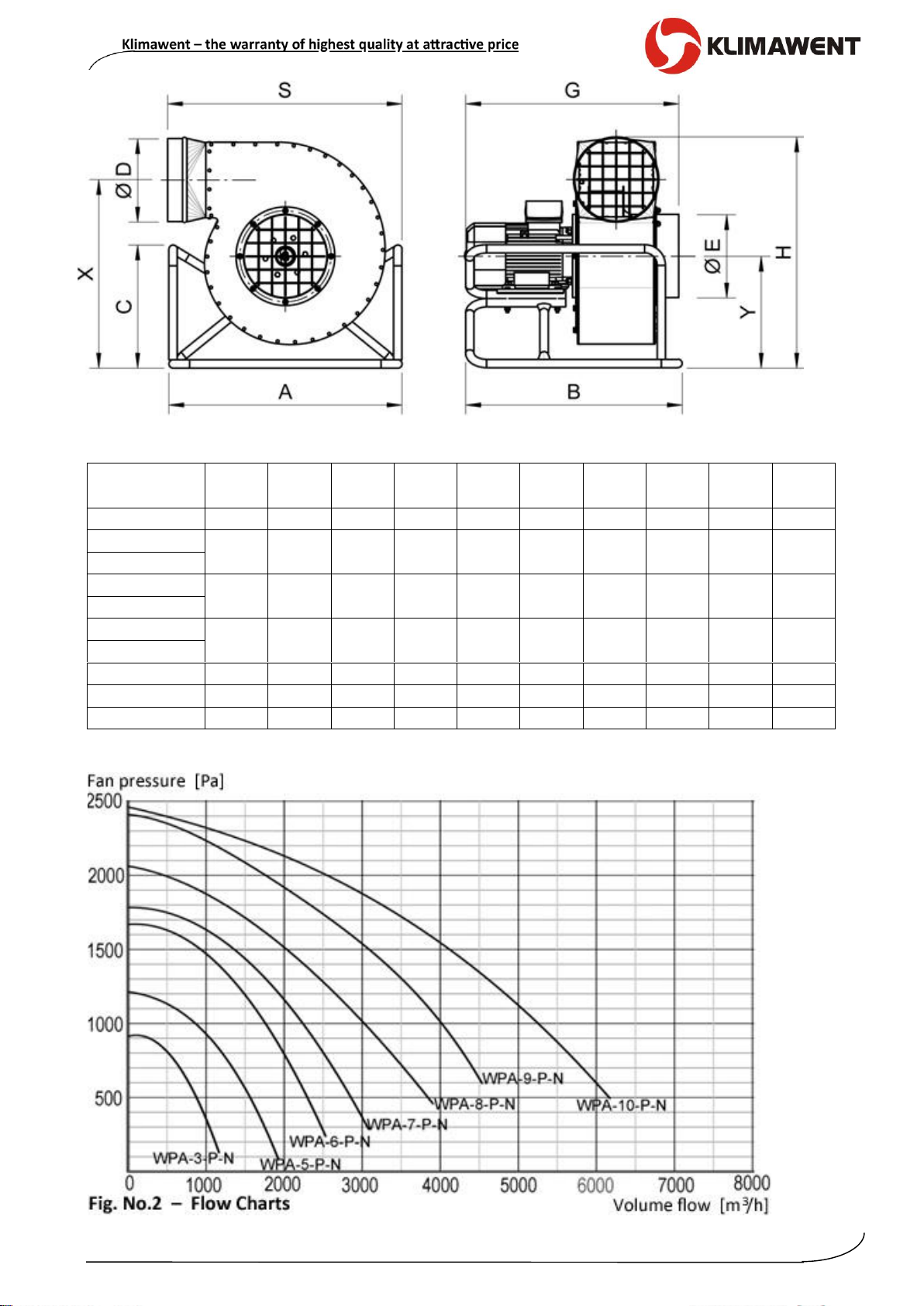

Fig. No.1 –Portable radial fans of series WPA-P-N –Structure and Dimensions
Table No.2 –Dimensions of fans
Type of the fan
A
B
C
D
E
S2)
G2)
X
Y
H2)
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[pcs]
[mm]
WPA-3-P-1-N
465
425
–1)
125
125
475
420
360
205
425
WPA-5-P-1-N
475
440
–1)
160
160
520
440
425
235
500
WPA-5-P-3-N
WPA-6-P-1-N
475
440
–1)
160
160
500
450
450
245
525
WPA-6-P-3-N
WPA-7-P-1-N
615
515
355
200
160
615
515
480
285
585
WPA-7-P-3-N
WPA-8-P-3-N
615
515
355
200
200
625
515
500
300
605
WPA-9-P-3-N
670
565
415
200
200
670
565
560
320
665
WPA-10-P-3-N
700
650
370
250
250
705
650
565
335
695
1) The construction of the framework is not equipped with a branching upwards
2) Dimension between the most distant points of the device

6
portable radial fans WPA-P-N04.06.2019
4.1
Information pertaining to energetic efficiency for fans
–according to Regulation of Committee (EU) No. 327/2011
Table No.3
Product information
requirements
WPA-
3-1
WPA-
5-1
WPA-
5-3
WPA-
6-1
WPA-
6-3
WPA-
7-1
WPA-
7-3
WPA-
8-3
WPA-
9-3
WPA-
10-3
1
Overall efficiency (%)
51
67,6
70
54,1
61,1
65,1
65,6
62,2
67
66,1
2
Measurement category
(A-D)
C
3
Efficiency category
static
4
Efficiency grade at
optimum energy efficiency
point (%)
43,9
47,9
48,1
50,6
48,7
50,5
51,4
52,2
53,3
55,9
5
Did the efficiency
calculation use VSD?
no
6
Year of manufacture
see nominal data plate
7a
Manufacturer’s name
see nominal data plate
7b
Commercial registration
number
see nominal data plate
7c
Place of manufacturing
see nominal data plate
8
Model number
see nominal data plate
9a
Rated motor power input
(kW)
0,25
0,37
0,37
0,75
0,75
1,1
1,1
1,5
2,2
3,0
9b
Flow rate at the optimum
Energy efficiency (m3/h)
700
1430
1180
1580
1250
2000
1870
2030
2230
3750
9c
Pressure at the optimum
Energy efficiency (Pa)
620
970
1000
1270
1360
1400
1400
1595
2000
1700
10
Rotations per minute at
the optimum efficiency
point (r.p.m.)
2760
2770
2790
2800
2870
2770
2870
2880
2880
2880
11
Specific ratio
1,007
12
Fan disassembly,
recycling and disposal at
the end of operational life
see the sections concerning the maintenance and recycling
13
To minimalize the
environmental impact and
ensure the optimal live
expectancy of the fan
follow maintenance instructions of the fan
14
Description of additional
items applied for
determining the energe-
tic efficiency of the fan
not supplied with the fan
5. Structure and Function
The fan consists of a steel spiral housing and a motor and a radial impeller which is directly
mounted on the motor shaft (direct drive). The structure rests on a base frame structure. The
inlet and outlet are adapted for connection of the flexible hoses, which are clamped with hose
clamps. For safety reasons, the inlet and outlet are equipped with a protective grill. The impel-
ler with profiled radial blades provides low acoustic pressure of the fan.
As standard, the fan is equipped with a motor protective switch.Each fan is energized through
a five metre long power supply cable with a plug.
6. Assembly and Start-up
The portable WPA-P-N fans can work in closed rooms (indoor application) and outside the buil-
dings. In case of outdoor application (especially for a longer time of operation) it is important
to protect the device against atmospheric factors.

7
04.06.2019 portable radial fans WPA-P-N
The appliance does not require special preparatory activities before start-up.Depending on the
purpose of application, it is important to provide suitable hoses (see Section 7 of the present
Use and Maintenance Manual) .
The device is energised through a motor protective switch (or by a motor starter). Appropriate
Connection Diagrams are shown in Fig. No.3.
Prior to the start-up, check the connection between the motor and the PE protective cable, and
the correctness of the electrical connections (the impeller rotation sense ought to be accor-
ding to the arrow on the housing, if this is the opposite, change the phase connection
sequence).
Approaching with loose clothes or putting the hand near the open inlet
of the running fan can cause hazard of accident and disability. Absolutely, do not look
into the working fan as this could cause the face injury of the operator.
In case of any activities carried out on the fan, it is important to disconnect the device
from the power supply system.
The windings ought to be connected according to the Connection Diagram on the terminal box cover
Fig. No.3 –Connection Diagram of the fans type WPA-P-N

8
portable radial fans WPA-P-N04.06.2019
7. Operational Use
In case when the portable fan is applied for local exhaust (technological extraction), connect a
hose (of adequate diameter) to the suction ferrule. Additionally, the hose must be tipped with a
suitable suction nozzle. Example application with a magnetic suction hood is illustrated in the
Photo No.1a below.

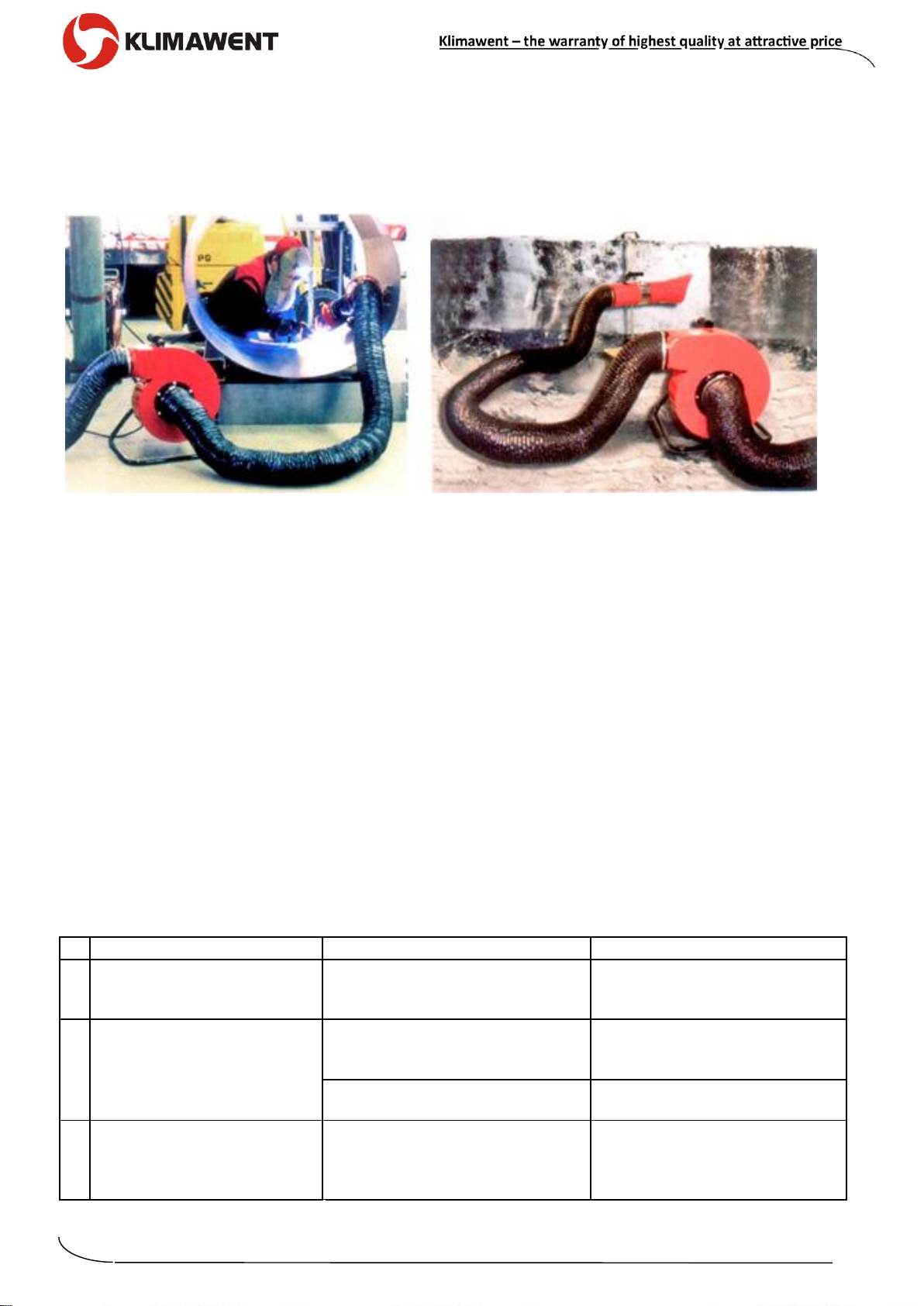

Photo 1a
Photo 1b
Portable fan working with a magnetic
hood during the welding
Portable fan used for drying a humid wall
Photo 1 –Examples of application along with the hoods
When the portable fan is applied for general ventilation, it is important to introduce a hose (into
the ventilated room), whereby the hose ought to be connected to the suction ferrule or to the out-
let fitting piece of the fan.
In case of application for drying the humid walls of a room, simply put the fan into the room and
direct the air discharge onto the humid wall. The discharge hose must be conducted outside the
room.
As another option, the portable fan can be placed outside the building (the drying air has to be
forced through an air supply hose into the humid room). Here, it is important to protect the fan
from atmospheric factors by a hood / cover. In this application, the suction nozzle can be equip-
ped with a suction stand with a directing spout nozzle (see Photo No.1b).
In case when any defective function of the device occurs (e.g. improper noises or the faulty out-
look of the device) follow steps as in Section 8.
8. Troubleshooting Guide
Table No.4
Problem
Possible reason
Corrective action
1.
Sudden and significant
Pollutants, foreign objects (being
Remove the pollutants; clean
drop in intake volume flow.
obstacle / barrier do the air flow)
the ventilation conduits.
have deposited at the inlet grill.
2.
Sudden vibrations of the fan
Obstacle objects reducing the
Disconnect the fan from the
are occurring.
air flow got stack at the impeller.
power supply system, and
remove the obstacle.
The impeller is defective.
Replace the impeller with motor
for a new one.
3.
Noisy work of the fan
Incorrect impeller rotation sense.
Change the impeller rotation
along with small volume flow.
sense by changing the phase
connection sequence
(three-phase fans only).

9
04.06.2019 portable radial fans WPA-P-N
9. Maintenance and Control
In the aspect of operational use, the fan construction guarantees its efficient function without
continuous everyday technical supervision. Nevertheless, to obtain proper function of the de-
vice and to follow the safety rules, manufacturer suggests executing technical revisions
on regular basis. During the inspection check the function of the fan and the technical state
of its elements.
Any activities related to connection to the power supply system ought
to be executed by an authorized person with electrical qualifications.
The appliance should be disconnected from the power mains (exemption from this are
activities carried out on the running fan, under strict observing the Occupational and
Health Safety rules –e.g. vibration measurement).
Prior to the maintenance on the fan, necessarily disconnect it from the power supply system
and wait until the impeller stops rotating.
Within the scope of inspection execute following activities:
●
check and tighten the mechanical and electrical connections,
●
examine the mountings of the motor and the fan, important is that the clearance between
the inlet and the impeller is even within the whole circumference.
●
remove the impurities accumulated inside the fan, eventually clean it from pollutants origin-
ating from the conveyed medium.
10. Occupational Health and Safety
Start up and the operational use is only admissible exclusively after getting acquainted
with the contents of the present Use and Maintenance Manual.
Connect the fan to the electrical wiring system, strictly according to the enclosed Connection
Diagram and the guidelines shown in Section 6 of the present Use and Maintenance Manual.
This ought to be carried out exclusively by a qualified person, and in accordance with
the valid regulations.
During the operational use, check the connection between the fan and the PE protective cable.
Any activities connected with technical revisions and repair have to be
executed necessarily after the device is disconnected from the power supply system.
11. Transport and Storage
The fans shall be transported on pallets and protected with foil. During the loading and tran-
sport the package should not be thrown neither knocked down (overturned) or charged with a
load on the top.
Do not place one package on top of another (no stacking) and,during the transport protect the
device from atmospheric factors and from damage, indents. The device ought to be stored in
dry and well ventilated rooms.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”. The war-
ranty does not comprise:
●
mechanical damage and dysfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of the opera-
tional use and the present Use and Maintenance Manual,
●
damages / malfunctions being caused during improper transport, storage or incorrect main-
tenance,

10
portable radial fans WPA-P-N04.06.2019
Infringement of the Section 3 “Reservations of Producer” of the Use and Maintenance Ma-
nual and especially modifications undertaken by User on one’s own shall cause the loss
of warranty validity.

11
04.06.2019 portable radial fans WPA-P-N
13. Sample of Declaration of Conformity
Declaration of Conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, ul. Chwaszczyńska 194
A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A.
hereby declares that the appliance:
name: portable radial fan
type/model: WPA-P-N
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May, 2006 on machinery
–amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014 on the harmonisation
of the laws of the Member States relating to the making available on the market of electrical equipment designed
for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th, 2009 establishing a
framework for the setting of ecodesign requirements for energy-related products
/ Journal of Laws L 285 of 31.10.2009 /

327/2011 (EU) Guideline of March 30th, 2011 on implementing the 2009/125/EC Directive of the European Parlia-
ment and of the Council with regard to ecodesign requirements for fans driven by motors with an electric input po-
-wer between 125W and 500 kW /Journal of Laws L No. 90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general princi-
ples for design. Risk assessment and risk reduction”.

EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machi-
nes. Part 1: General requirements”.

EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data
and parameters”.

EN ISO 5802:2008/A1:2015-07
–
“Industrial Fans – Performance testing in situ of instal-
ling”

EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent ha-
zard zones being reached by upper and lower limbs”.
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl

12
portable radial fans WPA-P-N04.06.2019
Producer:
KLIMAWENT S.A.
81-571 Gdynia, ul. Chwaszczyńska 194
tel. [phone]
fax [phone]
e-mail: [e-mail]
www.klimawent.com.pl
805W10
WPA-3-P-1-N
04.06.2019/EN
805W21
WPA-3-P-3-N
04.06.2019/EN
805W11
WPA-5-P-1-N
04.06.2019/EN
805W12
WPA-5-P-3-N
04.06.2019/EN
805W13
WPA-6-P-1-N
04.06.2019/EN
805W14
WPA-6-P-3-N
04.06.2019/EN
805W15
WPA-7-P-3-N
04.06.2019/EN
805W16
WPA-7-P-3-N
04.06.2019/EN
805W17
WPA-8-P-3-N
04.06.2019/EN
805W18
WPA-9-P-3-N
04.06.2019/EN
805W20
WPA-10-P-3-N
04.06.2019/EN
