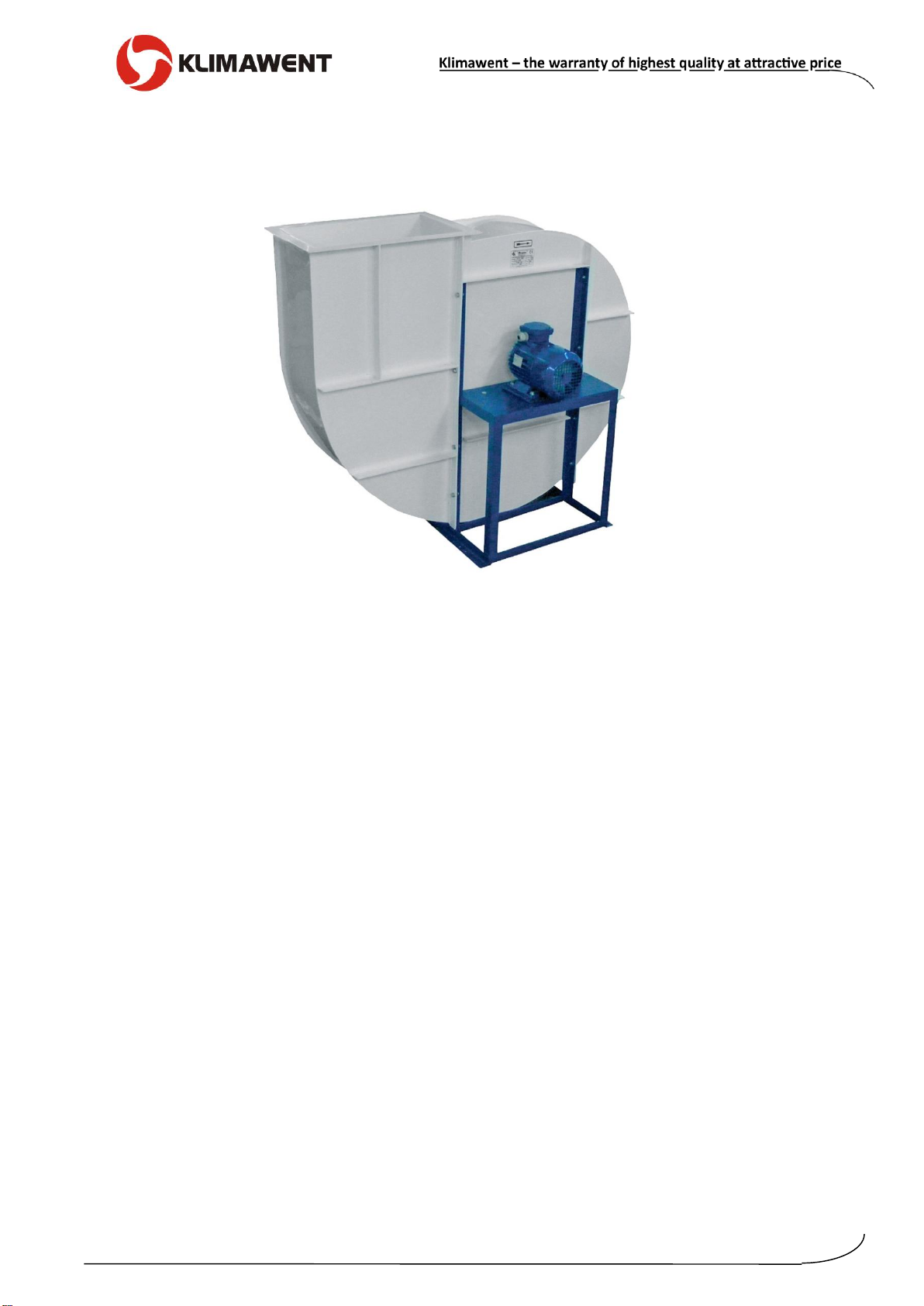

04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
Use and Maintenance Manual
Chem-proof stationary fans
WPA-CHEM
Contents:
1. Introductory Remarks...............................................................................................2
2. Application.................................................................................................................2
3. Reservations of Producer.........................................................................................3
4. Technical Data...........................................................................................................3
5. Structure and Function.............................................................................................5
6. Assembly and Start-up.............................................................................................6
7. Operational Use.........................................................................................................7
8. Troubleshooting Guide.............................................................................................7
9. Maintenance ..............................................................................................................7
10. Occupational Health and Safety ..............................................................................8
11. Transport and Storage..............................................................................................8
12. Terms of warranty.....................................................................................................8
13. Table of resistance of PVC against various substances.......................................9
14. Sample of the Declaration of Conformity..............................................................13
802W06
WPA-CHEM-160/3000
04.06.2019/EN
802W07
WPA-CHEM-200/3000
04.06.2019/EN
802W08
WPA-CHEM-250/1500
04.06.2019/EN
802W09
WPA-CHEM-300/1500
04.06.2019/EN
802W10
WPA-CHEM-400/1000
04.06.2019/EN
802W11
WPA-CHEM-500/1000
04.06.2019/EN

2
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
1. Introductory Remarks
The purpose of the present Use and Maintenance Manual is to supply User with directions wi-
thin the range of application, installation, start-up and the use of the WPA-CHEM chem-proof
stationary fans.
Installing, start up and operational use are exclusively admissible after getting acquaint-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for oursel-
ves the revision possibility of the draft and technological changes improving their functional fea-
tures and safety.
The construction of the WPA-CHEM chem-proof stationary fans meets the requirements of the
current state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of February 26th, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits. /Journal of Laws EC
L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th,
2009 establishing a framework for the setting of ecodesign requirements for energy-related pro-
ducts / Journal of Laws L 285 of 31.10.2009 /

327/2011 (EU) Regulation of March 30th, 2011 on implementing the 2009/125/EC Directive
of the European Parliament and of the Council with regard to ecodesign requirements for fans
driven by motors with an electric input power between 125W and 500 kW / Journal of Laws L
No. 90 of 06.04.2011 /
Additionally, the appliance meets following harmonized standard:
●
EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”
●
EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machines.
Part 1: General requirements”.
●
EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data and
parameters”
●
EN ISO 5802:2008/A1:2015-07
–
“Industrial Fans – Performance testing in situ of installing”
●
EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”
2. Application
WPA-CHEM chemically resistant stationary fans have been constructed for conveying the air,
contaminated with chemically aggressive media (see Table, pages 9-12) of maximum dusti-
ness 0,3 g/m3and maximum temperature up to 40ºC. On demand, are available fans of ma-
ximum temperature of the forwarded air: up to +60ºC.
These fans cannot convey explosive mixtures.They are designed for general ventilation of
rooms and are applied in ventilation systems in industry, agriculture, building construction, as
well as in public facilities such as: laboratories, store houses, hospitals, schools, canteens,
swimming pools, sewage treatment plants, etc.
The fans carry hygienic certificates issued by National Institute of Public Health of the Depart-
ment of Communal Hygiene.

3
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
3. Reservations of Producer
A.
Manufacturer accepts no liability for any consequences following from the operational use
that is in contradiction to the purpose of application.
B.
Installing of any additional elements not belonging to the normal device structure (or acces-
sory set) is not acceptable.
C.
Do not undertake any structural changes or constructional modifications on the device on
one’s own.
D.
Protect the appliance’s housing from mechanical damage.
E.
Prior to installing check the load carrying capacity of the building structure where the device
will be mounted. Unsure mounting could cause hazard to personnel/people in vicinity and
effect in damage of the device.
F.
The fan cannot be used for conveying the air contaminated with a mixture of flamma-
ble substances in form of: gas, vapour, mist and dust, that in connection with the air
could create the explosive atmosphere.
G.
Do not use the fan for conveying the air containing viscous impurities that could ac-
cumulate on the device surface, especially on the impeller.
H.
During operation, the maximum impeller rotations should not exceed the nominal rotations.
I.
Producer is not responsible for wounds, injuries, body laceration experienced by User or per-
sonnel during the improper operational use.
4. Technical Data
Table No.1
Type of the fan
Synchro-
Supply
Motor
Maximum
Maximum
Acoustic
Weight
nous
voltage
rate
Volume
vacuum
pressure level
rotations
flow
from distance
1m
5m
[r.p.m.]
[V]
[kW]
[m³/h]
[Pa]
[dB (A)]
[kg]
WPA-CHEM-160/3000
3000
3x400
0,37
1100
950
71
62
14
WPA-CHEM-200/1500
3000??
3x400
0,55
2000
900
72
63
25
WPA-CHEM-250/1500
1500
3x400
0,25
2000
350
64
56
30
WPA-CHEM-300/1500
1500
3x400
0,55
3500
530
68
59
36
WPA-CHEM-400/1000
1000
3x400
0,55
5500
400
68
59
60
WPA-CHEM-500/1000
1000
3x400
2,2
12200
720
75
66
107
1.
Ingress protection IP 55
2.
Maximum temperature of the conveyed air is +40ºC. Fans of special execution are adap-
ted for function in temperature +60ºC.
3.
Maximum dustiness of the conveyed air is 0,3 g/m3.
4.
On demand are available fans of special execution for supply voltage 1 x 230V.

4
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
Fig. No.1 –Flow charts of the fans type WPA-CHEM
Fig. No.2 –WPA-CHEM –Dimensions
Table No.2 –Dimensions of the fans type WPA-CHEM [dimensions in mm]
Type of the fan
D
a
b
h/RD 0
F
C
G
E
L
H
B
WPA-CHEM-160/3000
160
162
118
263
188
202
150
218
385
501
310
WPA-CHEM-200/3000
200
237
133
326
224
240
370
278
510
568
381
WPA-CHEM-250/1500
250
297
166
398
280
297
405
308
545
698
473
WPA-CHEM-300/1500
300
356
199
482
336
358
440
414
620
848
557
WPA-CHEM-400/1000
400
474
265
617
447
470
580
514
680
1080
728
WPA-CHEM-500/1000
500
500
315
715
500
570
640
640
730
1235
788

5
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
Fig. No.3 –Outlet configurations in fans type WPA-CHEM
5. Structure and Function
Fig. No.4 –WPA-CHEM –Structure
Impeller is a welded construction, of non-plasticised plates of polyvinylchloride. To the fan
impeller is fastened an aluminium hub that (along with the impeller) is connected with the
motor pivot. The housing is a welded construction of two parallel walls strengthened with
ribs. Between the walls is located a spiral element of the housing.
The housing is made of plates of non-plasticised polyvinylchloride. To the housing disk is
welded an inlet confusor. The housing disk is fastened disconnectably, at the front wall
of the housing (its easy dismantling provides free access to the impeller).
The inlet confusor is also extruded of a plate of non-plasticised polyvinylchloride. Induc-
tion motors on feet are applied as a drive element of the fan, whereby the motor housing
is of aluminium alloy.

6
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
The fan is efficient in horizontal application and in ambient temperature +40ºC. On demand
are delivered motors adapted for operation in ambient temperature up to +60ºC.
Both, the fan housing and motor are installed on the base. The base is a welded construc-
tion of steel angle bars.
The plate underneath the motor is made of strengthened steel sheet. In the lower part of the
base are located mounting holes to install the fan on a foundation.
The cover of the inlet and outlet protects User from accidental contact with the rotary fan ele-
ment. Covers (guards) are prepared of steel wire in a form of grill.
On demand, are delivered isolating switches, to cut off the power supply during the installing,
servicing (see catalogue card “Electrical Accessories”).
6. Assembly and Start-up
The fan is delivered in a completely assembled state. Prior to installing, examine if the deli-
vered fan was not damaged or polluted during the transport.
The hole pattern of the foundation ought to be strictly according to the distribution of suitable
holes in the fan base. Additionally, the holes placement of the inlet and outlet should be
suitable with adequate holes of the ventilation ducts. The fan must be placed strictly horizon-
tally (if the device is not levelled, use washers to obtain appropriate positioning).
Moreover, it is important to tighten up evenly the foundation screws. Ventilation ducts must
be connected in such a way, that they do not charge the inlet- and outlet flange (of the fan)
with excessive load. Therefore, use flexible connections.
Before the connection to the power supply, make sure whether the parameters of the
existing electrical installation are in accordance with the data on the nominal plate.
Otherwise, in case of inconsistency the connection cannot be executed.

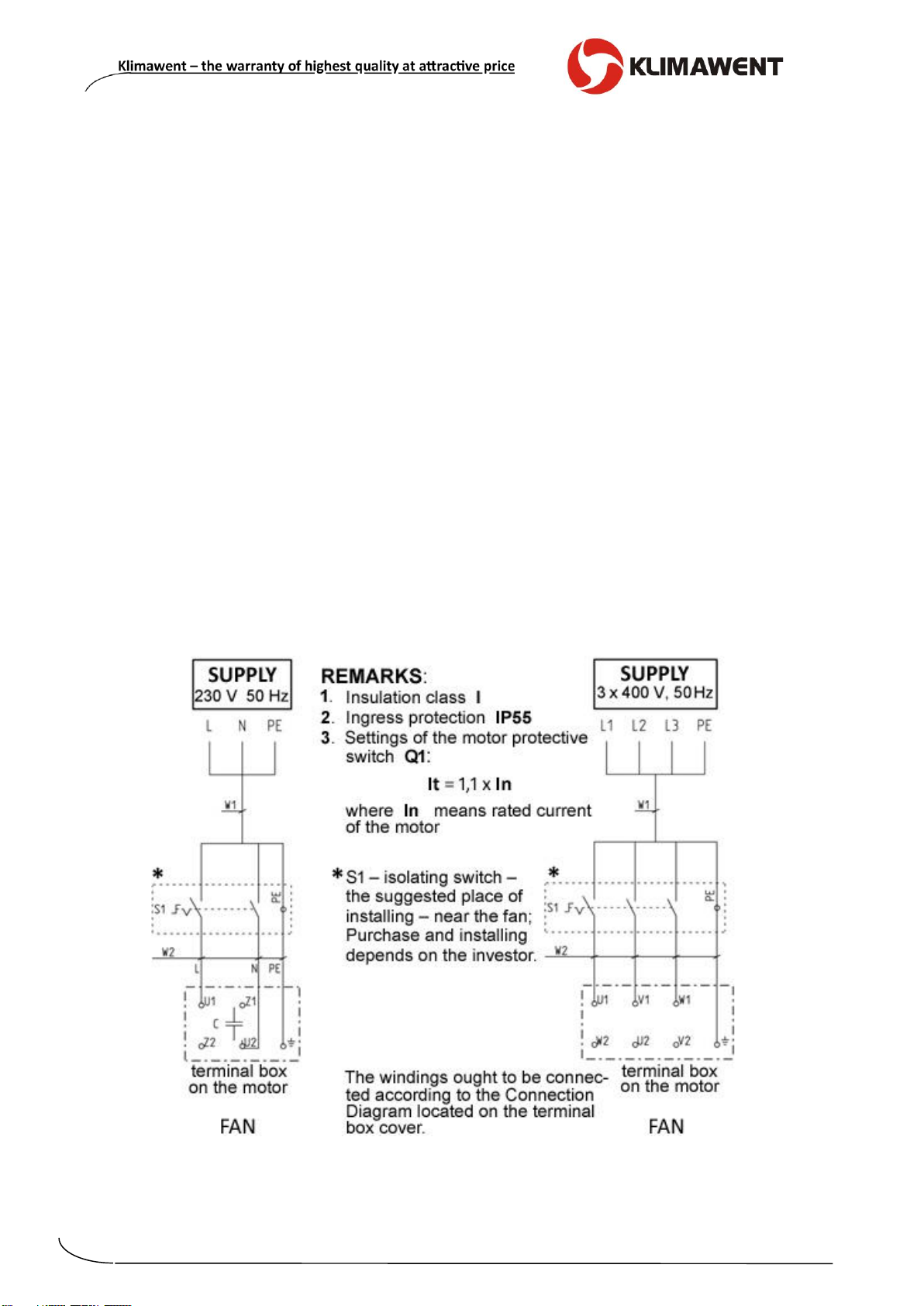

Fig. No.5 –Connection Diagram –WPA-CHEM
Connection to the electrical power system has to be executed by User on one’s own by selec-
ting the right type and the section of the supply cable, and choosing the appropriate short-
circuit- and overload protection, according to the local conditions.

7
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
Connection to the power supply system ought to be carried out aby an
authorised person with qualifications, according to the valid regulations and indications
in Fig. No.5.
Prior to the start-up, check the connection between the motor and the PE protective cable, and
the correctness of the electrical connections.
The impeller rotation sense ought to be according to the arrow on the housing, in case
of incompatibility change the phase con-nection sequence (3-phase motors only).
Before the first start-up, check the correctness of the connections between the fan and the ven-
tilation dust. Additionally, check if there are some pollutants / foreign objects (solids) in the fan
or ventilation ducting.
7. Operational Use
The construction do not require any additional maintenance after the start-up. If the place of
operational use is changed –repeat the steps according to installing and adapting the venti-
lation system to the new application and conditions (see Section 6 of the present Use and
Maintenance Manual).
In case when any symptoms of incorrect work of the device are noticed, (not typical noises
or visually), follow steps as in Section 8.
8. Troubleshooting Guide
Table No.3
Problem
Possible reason
Corrective action
1.
Significant and sudden decre-
Obstacle objects reducing the air
Clean the ventilation ducts.
ase of the intake air occurs.
flow got stack at the inlet grill.
2.
Sudden vibrations of the fan
Obstacle objects reducing the air
Disconnect the fan from
are occurring.
flow got stack within the impeller.
the power supply system,
and remove the hindrance.
The impeller is defective.
Replace the impeller with a
motor for a new one.
3.
Noisy work of the fan along
Incorrect impeller rotation sense.
Change the impeller rotation
with decreased flow efficiency.
sense by changing the phase
connection sequence
(three-phase fans only).
9. Maintenance
In the aspect of operational use, the fan construction guarantees its efficient function without
continuous routine technical supervision. Nevertheless, during the operation carry out the
routine maintenance steps.
Once a year submit the fan to technical revision –the electrical motor ought to be examined
according to the instructions of the motor manufacturer.
Every several years, check the mechanical and electrical connections. The electrical instal-
lation ought to be checked according to the standard PN-HD 60364-6 “Low-voltage electri-
cal installations –Part 6: Verification”.
Moreover, if any defective function of the unit or failure is noticed –undertake its additional
control.

8
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
Any maintenance activities ought to be performed exclusively by an au-
thorised person with qualifications and after disconnection from the power supply sys-
tem.
10. Occupational Health and Safety
Start up and the operational use is only admissible exclusively after getting acquain-
ted with the contents of the present Use and Maintenance Manual.
The fan will not constitute any hazard, under the condition that it is correctly installed to the
supporting structure or ventilation system.
Connect the fan to the electrical wiring system, strictly according to the enclosed Connection
Diagram and the guidelines shown in Section 6 of the present Use and Maintenance Manual.
This ought to be carried out exclusively by a qualified person, and in accordance with
the valid regulations.
The fan motor must be protected against the short-circuit- and overload effects. During the
operational use, check the connection between the fan and the PE protective cable.
Any technical revisions and repair should be performed, necessarily
after disconnection from the power supply system (isolating switch).
11. Transport and Storage
For the transport time, the fan should be protected against damage (indentation, crack, etc.).
Smaller fans can be forwarded in cardboard packages, whereas the larger ones –should be
placed on a pallet, protected with foil.
Use special transporting lines (ropes) attached at the pallet base or at the fan base, in order
to displace or lift the device.
The device ought to be stored in dry rooms and in areas of efficient ventilation. Do not put
one device on top of another (no stacking).
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”. The war-
ranty does not comprise:
●
mechanical damages and malfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of application
and with the present Use and Maintenance Manual,
●
any damages being caused during improper transport, storage or incorrect maintenance.
Infringement of the Clause GSection 3 “Reservations of Producer” of the present Use and
Maintenance Manual and especially modifications undertaken by User on one’s own or use
in contradiction with the purpose of application –shall result in the loss of warranty validity.

9
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
13. Table of resistance of PVC against various substances
Environment
Concentration %
400C
600C
Acetone
10
––
––
Pure amyl alcohol
+ +
o
Ethyl alcohol (ethanol)
10
+ +
+
Non-fermentative isopropyl alcohol
70 - 99
+
Methyl alcohol (methanol)
96
+ +
–
Methyl alcohol (aqueous solution)
100
+ +
+
Ammonia, aqueous solution
50
+ +
+
Potassium nitrate, aqueous solution
saturated
+ +
+ +
Sodium nitrate, aqueous solution
saturated
+ +
+ +
Calcium nitrate, aqueous solution
saturated
+ +
+ +
Benzene
100
––
––
Painter’s naphtha, mineral spirit
+ +
+
Liquid butane
100
+ +
n-butanol (butyl alcohol)
100
+ +
o
Liquid chlorine
100
––
Dry gaseous chlorine
100
––
Potassium chlorate
7,3
+ +
o
Sodium chlorate, aqueous solution
25
+ +
+ +
Ammonium chloride, aqueous solution
all
+ +
+ +
Zinc chloride
+ +
+ +
Ethylene chloride
100
––
––
Methyl chloride
100
––
––
Potassium chloride, aqueous solution
saturated
+ +
+ +
Sodium chloride, (domestic salt) aqueous solution
saturated
+ +
+ +
Sodium chloride, aqueous solution
5
+ +
+ +
Chlorobenzene
100
––
––
Cadmium cyanide
+
+
Copper cyanide
+
+
Potassium cyanide
+
+
Mercuric cyanide
+
+
Sodium cyanide
+
+
Silver cyanide
+
+
Cyclohexane
100
+ +
o
Cyclohexanol
100
+ +
–
Cyclohexanon
100
––
––
Carbon tetrachloride
100
––
––
1,4-dioxane
100
––
––
Carbon disulphide
100
––
––
Sulphur dioxide
saturated
+ +
+ +
Ethyl ether
100
––
Petroleum ether
100
+ +
+
2-etylohexanole
100
+ +
+
Phenol, aqueous solution
approx. 9
o
––
Formaldehyde
40
+ +
Formalin
10
+ +

10
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
Environment
Concentration %
400C
600C
Ammonia phosphate
all
+ +
+ +
Glycerine
100
+ +
+ +
Glycol
100
+ +
+ +
Heptane
100
+ +
Izopropanol
100
+ +
Chromium bath, technical
+ +
o
Methyl-ethyl ketone
100
––
––
Cresols
100
––
––
Accumulator acid (H2SO4)
+ +
+ +
Nitric acid
10 / 50
+ + / + +
+ +/ +
Boric acid
100
+ +
+ +
Hydrocyanic acid
+
Citric acid
saturated
+ +
+ +
Hydrofluoric acid
8 - 50
+
––
Phosphoric acid
50 / 85
+ + / + +
+ + / + +
Lactic acid, aqueous solution
90
+ +
+ +
Formic acid
10 / 50
+ + / + +
+ / +
Formic acid
98
+
Acetic acid, icy
100
o
––
Acetic acid, aqueous solution
50
+ +
–
Oleic acid
100
+ +
o
Sulphuric acid
3–50 / 96
+ / o
+ / ––
Sulphuric acid
50 /10
+ + /+ +
+ + / + +
Hydrochloric acid
35
+ +
+
Stearic acid
100
+ +
+
Oxalic acid
saturated
+ +
+ +
Acidic sodium carbonate, aqueous solution
saturated
+ +
+ +
Acidic sodium sulphate, aqueous solution
saturated
+ +
+ +
Nail lacquer
o
Lysol
–
––
White liquor (12,5% of the active chlorine)
+ +
o
Potassium lye
10 / 50
+ + / + +
+ + / + +
Potassium permanganate, aqueous solution
saturated
+ +
+
Hydrogen peroxide
30
+ +
Naphthalene
100
o
- -
Nitrobenzene
25 / 100
+ + / - -
+ + / - -
Table vinegar
+ +
+ +
Butyl acetate
100
––
––
Ethyl acetate
100
––
––
2-butoxyetyl acetate
+
Edible vegetable oil
+ +
+ +
Edible animal oil
+ +
+ +
Coconut oil
+ +
+ +
Linseed oil
+ +
+
Olive oil
+ +
+ +
Paraffin oil
100
+ +
+ +

11
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
Environment
Concentration %
400C
600C
Soybean oil
+ +
+ +
Turpentine oil
+ +
o
Transformer oil
+ +
Mineral oils (without aromatic hydrocarbons)
+ +
+
Furnace oils
+ +
o
Silicone oils
+ +
Engine oils, car oils
+ +
+
Pine oil
100
+ +
Vapours of ethoxyl amines
––
––
Vapours of chlorides
+
Vapours of ferrous chloride FeCl2
20
+
Vapours of acetic acid
+ +
Vapours of hydrochloric acid
30
+
Vapours of oxy-oxygen fatty alcohols
+
Vapours of orange oils
––
––
Vapours of poly-glycols
+
Vapours of ammonia soda (soda ash) and of caustic soda
+ +
Vapours of tio-urea
+
Vapours of aliphatic hydrocarbons
+
Gaseous ozone
+ +
Automotive fuel (normal petrol)
+ +
+
Automotive fuel (petrol super)
–
––
Automotive fuel (diesel oil)
+ +
+
Paraffin
100
+ +
- -
Beer
+ +
+ +
Brake fluid
+ +
+ +
Anti-freeze fluid (di-ethylene glycol)
+ +
+ +
Sodium hypochlorite, aqueous solution
5
+ +
Liquid propane
100
+ +
Cresol solution
–
––
Soap solution
saturated
+ +
+ +
Mercury
100
+ +
+ +
Rum
40
+ +
+ +
Potassium sulphate, aqueous solution
saturated
+ +
+ +
Sodium sulphate, aqueous solution
saturated
+ +
+ +
Sodium sulphide, aqueous solution
saturated
+ +
+ +
Sodium sulphite, aqueous solution
saturated
+ +
+ +
Hydrogen sulphide
saturated
+ +
+ +
Pitch (tar)
+ +
+ +
Lemon juice
+ +
+ +
Brine (leach)
saturated
+ +
+ +
Dry salt
+ +
+ +
Agent for dishwashing, liquid
+ +
+ +
Tetra-chlor-ethane
100
––
––
Tetra-chlorethylene (per-chlorethylene)
100
––
––
Tetra-hydrofurane
100
––
––

12
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
Environment
Concentration %
400C
600C
Sodium tio-sulphate (fixative)
saturated
+ +
+ +
Toluene
100
––
––
Chlorinated lime
+
Potassium carbonate, aqueous solution
saturated
+ +
Sodium carbonate, aqueous solution
saturated
+ +
+ +
Water
100
+ +
+ +
Chlorinated water
saturated
+
Aqua regia (nitro-hydrochloric acid)
+
Seawater
+ +
+ +
Sodium hydroxide
50
+
+
Sodium hydroxide (caustic soda)
100
+ +
+ +
+ +
resistant
+
conditionally resistant with the occurrence
hazard of tensioning stress cracks
0
conditionally resistant
–
low resistant
––
not resistant

13
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
14. Sample of the Declaration of Conformity
Declaration of conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, Chwaszczyńska 194
A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A.
hereby declares that the appliance:
name: chem-proof stationary fans
type/model: WPA-CHEM
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May, 2006 on machinery
–amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014 on the harmonisation
of the laws of the Member States relating to the making available on the market of electrical equipment designed
for use within certain voltage limits. /Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th, 2009 establishing a
framework for the setting of ecodesign requirements for energy-related products /Journal of Laws L 285 of 31.10.2009/

327/2011 (EU) Guideline of March 30th, 2011 on implementing the 2009/125/EC Directive of the European Parlia-
ment and of the Council with regard to ecodesign requirements for fans driven by motors with an electric input po-
-wer between 125W and 500 kW /Journal of Laws L No. 90 of 06.04.2011/
The appliance meets following harmonized standard:
●
EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”.
●
EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machines.
Part 1: General requirements”.
●
EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data and
parameters”
●
EN ISO 5802:2008/A1:2015-07
–
“Industrial Fans – Performance testing in situ of installing”
●
EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”.
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl

14
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
NOTES:

15
04.06.2019 CHEM-PROOF STATIONARY FAN WPA-CHEM
NOTES:

16
CHEM-PROOF STATIONARY FAN WPA-CHEM 04.06.2019
NOTES:
