Klimawent WP-xxx-D/Ex Series User manual

1
18.10.2016 Ex-proof roof fans WP-…-D/Ex
Use and Maintenance Manual
Explosion-proof roof fans
WP-…-D/Ex
ATEX mark: II 2 G c Ex e ll T3

2
Ex-proof roof fans WP-…-D/Ex 18.10.2016
Contents:
1. Introductory Remarks......................................................................... 3
2. Application ......................................................................................... 4
3. Reservations of Producer .................................................................... 5
4. Technical Data.................................................................................... 5
5. Structure and Function....................................................................... 7
6. Assembly and Start-up ........................................................................ 7
7. Operational Use .................................................................................. 9
8. Troubleshooting Guide ........................................................................ 9
9. Maintenance ....................................................................................... 10
10. Occupational Health and Safety .......................................................... 10
11. Transport and Storage ........................................................................ 11
12. Terms of warranty .............................................................................. 11
13. Sample of the Declaration of Conformity ............................................ 14

3
18.10.2016 Ex-proof roof fans WP-…-D/Ex
1. Introductory Remarks
The purpose of the present Use and Maintenance Manual is to supply User with directions
within the range of application, installation, start-up and the use of the WP-…-D/Ex
explosion proof roof fans.
Installing, start up and operational use are exclusively admissible after getting acquain-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for our-
selves the revision possibility of the draft and technological changes improving their function-
nal features and safety.
The construction of the WP-…-D/Ex explosion proof roof fans meets the requirements of
the current state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council
of May 17th, 2006 on machinery –amending the 95/16/EC (recast)
/ Journal of Laws EC L157 of 09.06.2006, page 24 /

2014/35/EC Directive of the European Parliament and of the Council of February 26th, 2014
on the harmonisation of the laws of Member States relating to the making available on the
market of electrical equipment designed within certain voltage limits
/ Journal of Laws EC L96 of 29.03.2014 /

2014/34/EC ATEX Directive of the European Parliament and of the Council of February 26th,
2014 on the harmonisation of the laws of Member States relating to equipment and
protective systems intended for use in potentially explosive atmospheres.
/ Journal of Laws EC L96 of 29.03.2014 /
The device has been constructed and produced on the basis of following harmonized standards:

PN-EN ISO 12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design –Risk assessment and risk reduction”.

PN-EN 60204-1:2010
–
“Safety of machinery –Electrical equipment of machines.
Part 1: General requirements”.

PN-EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”.

PN-EN 60079-0:2013/A11:2014
–
“Electrical appliances in areas of gas explosion risk.
Part 0: General requirements”.

PN-EN 60079-7:2010
–
“Electrical appliances for explosive gas atmospheres.
Part 7: Increased safety “e”.

PN-EN 1127-1:2011
–
“Explosive atmospheres. Explosion prevention and protection.
Basic terminology and methodology”.

PN-EN 13463-1:2010
–
“Non-electric appliances in areas of explosion risk –Part 1
–Basic concepts and requirements”.

PN-EN 14986:2009
–
“Designing of fans applied in areas of explosion hazard”

4
Ex-proof roof fans WP-…-D/Ex 18.10.2016
2. Application
WP-…-D/Ex explosion proof roof fans are intended for conveying explosive atmospheres
i.e. mixtures of flammable substances in form of gases vapours and mists with the air in
atmospheric conditions, where after the ignition the burning mass is expanding into the
entire volume of the whole mixture.
Due to their increased fan pressure they can work with local exhausts and with a ventilation
system of significant flow resistances. They can work with discharge installations of required
dynamic rise.
The fans can work in temperature range -20Cup to +40C.
They are meant for forwarding the dry air of dustiness not exceeding 0,3 g/m³.
Admissible temperature of the conveyed air amounts +60C.
According to the ATEX 2014/34/EC Directive and PN-EN 13463-1 the appliance features
level of protection:
HIGH
as appliance classified in group II, category 2; and it can work in areas where
explosive atmospheres are possible to occur. It can be applied in zones 1, 2(G).
the appliance is marked on the Ex classification board:
II 2 G c Ex e II T3
Marking of the operational conditions of the device: group / category / hazard / class.

marking for explosion proof properties of the device,

group II –the device is designed for work on-ground, in places where explosive atmospheres
occur, but this cannot be methane risk, neither carbon dust,

category 2 –the device is designed for application in areas where explosive atmospheres
are likely to occur,

gas hazard G,

“c” –refers the constructional protection,

Ex –mark of the electrical device –constructed and tested according to the European
standards for work in areas of explosion risk,

execution “e” –type of construction of the motor (a motor of increased safety)

gas explosion group II –occurring in plants on ground –the fans are constructed according
to the PN-EN 14986:2009, whereby they can be applied for gas in explosion group IIA,IIB
and hydrogen,

temperature class T3 –the temperature of any part of the device should not exceed 200ºC;
the device can be used safely in explosive atmospheres belonging to classes T1, T2, T3.

5
18.10.2016 Ex-proof roof fans WP-…-D/Ex
3. Reservations of Producer
A.
Manufacturer accepts no liability for any consequences following from the operational use
that is in contradiction to the purpose of application.
B.
Installing any additional elements not belonging to the normal device structure
(or accessory set) is not acceptable.
C.
Any structural changes or device modifications on one’s own are not permitted.
D.
Protect the appliance’s housing from mechanical damage.
E.
Before installing –it is important it examine the load carrying capability of the structural
elements of the building where the roof fan shall be installed. Unsure mounting could re-
sult in uncontrolled device detachment, its damage and hazard to people in the vicinity.
F.
Do not use the fan for conveying the air containing viscous impurities
that could deposit on the device surface, especially on the impeller.
G.
Neither use it for forwarding the air with aggressive pollutants which
will destructively effect the device structure.
H.
During operation, the maximum impeller rotations should not exceed the nominal rotations.
I.
Producer is not responsible for wounds, injuries, body laceration experienced by
User or personnel during the improper operational use.
4. Technical Data
Table No.1
Type
Synchro-
nous
rotations
[1/min]
Supply
voltage
[V]
Motor
rate
[kW]
Ingress
protect-
tion
IP
Acoustic
pressure
level
[dB(A)]
from the
INLET
from distance
Acoustic
pressure
level
[dB(A)]
from the
OUTLET
from distance
Maximum
volume flow
[m3/h]
Maximum
vacuum
[Pa]
Weight
[kg]
1m
5m
1m
5m
WP-3-D/Ex
3000
3 x 400
0,37
54
58
51
61
52
900
900
19
WP-5-D/Ex
3000
3 x 400
0,55
54
63
55
64
56
1550
1400
24
WP-7-D/Ex
3000
3 x 400
1,1
54
67
61
71
62
2200
1850
26
WP-8-D/Ex
3000
3 x 400
1,5
54
72
64
77
67
2500
2200
37
WP-9-D/Ex
3000
3 x 400
2,2
54
74
67
77
68
2800
2500
43
WP-10-D/Ex
3000
3 x 400
4,0
54
75
68
78
69
4250
2400
78
WP-11-D/Ex
3000
3 x 400
4,0
54
77
69
80
70
5000
2700
80
Noise measurement has been conducted:
–at maximum volume flow,
–at the TK silencer attached at the fan inlet (silencer length 370 mm for WP-3-E/Ex
and 1000 mmm for the other fans from the series,
1.
Maximum temperature of the conveyed air is +60ºC,
whereas maximum temperature within the work zone +40ºC.
2.
Maximum dustiness of the conveyed air should not exceed 0,3 g/m3.

6
Ex-proof roof fans WP-…-D/Ex 18.10.2016

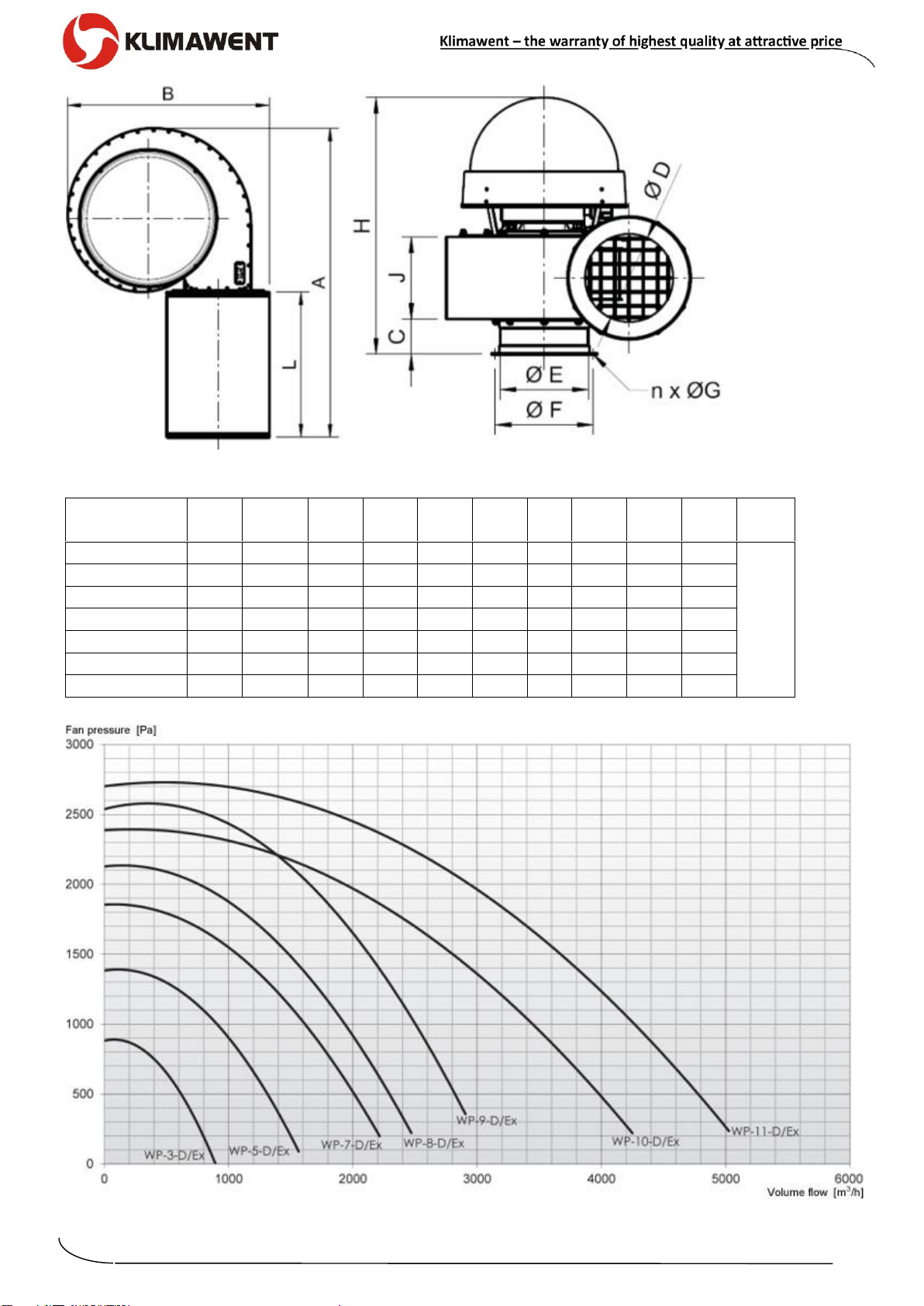

Fig. No.1 –Dimensions
Table No.2
Type
A
B
C
D
E
F
n
G
H
J
L
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
WP-3-D/Ex
840
445
50
125
125
155
6
6,5
480
130
500
WP-5-D/Ex
915
525
60
160
160
194
6
6,5
480
140
WP-7-D/Ex
965
570
60
200
160
194
6
6,5
510
155
WP-8-D/Ex
990
600
60
200
200
224
8
8,5
535
155
WP-9-D/Ex
1030
665
60
200
200
224
8
8,5
580
155
WP-10-D/Ex
1050
680
60
250
250
274
8
8,5
690
232
WP-11-D/Ex
1070
700
60
250
250
274
8
8,5
690
232
Flow charts of the fans at synchronous rotations 3000 r.p.m.

7
18.10.2016 Ex-proof roof fans WP-…-D/Ex
5. Structure and Function
The roof fan type WP-…-D/Ex has a spiral housing made of non-magnetic austenite and
stainless steel. Outside the housing, in its axis is perpendicularly fastened a flange motor
in Ex execution.
On the pivot of the motor shaft, inside the housing, is installed a radial impeller also made
of austenite, non-magnetic stainless steel.
Inlet (suction) is located in the axis of the housing spiral, opposite to the motor, whereas
the outlet (air supply) is at the end of the housing spiral.
The fan inlet and outlet are equipped with a protective grill. The fan inlet is the suction
connection in a form of double frame of steel sheet
serving for installing the fan on the place of operation, (mounting: 6 bolts M6 or 8 bolts M8
depending on the type of the fan).
The fan has to be installed on a roof base or a wall bracket. The fan outlet is equipped with
silencer made of austenitic, non-magnetic and stainless steel sheet.
ADDITIONAL EQUIPMENT –delivery on separate order:
wall brackets
silencers.
To the fan housing is fastened a protective cable to lead the electrostatic charges away.
On the motor housing is located a clamp to fasten the protective cable.
Additionally, on the motor housing is a connection box of the power supply.
The hemi-spherical aluminium hood over the motor –constitutes a protection against the
atmospheric factors.
6. Assembly and Start-up
The fans are meant for use outside the buildings (outdoor application). It is recommended
to install them on roof bases or wall brackets (it is an optional equipment and has to be
ordered separately).
The fan inlet should be connected with the installation by means of the flexible connectors
made of antistatic material. It is recommended to apply silencers at the inlet fan inlet.
User, who is executing the installing is obliged to observe strictly the resolutions of
the PN-EN ISO 13857:2010,PN-EN 60079-14:2009.
6.1. Guidelines of installing:
a/ VENTILATION INSTALLATION
Installation where the WP-…-D/Ex fans shall be mounted, should
be designed and executed according to the valid regulations and
standards taking into account the local explosion hazard.
b/ ELECTRICAL INSTALLATION
The electrical installation where the WP-…-D/Ex fans shall be
connected, should be designed and executed according to the
valid regulations and standards taking into account the local
explosion hazard.

8
Ex-proof roof fans WP-…-D/Ex 18.10.2016
–
Connection to the power supply has to be carried out by an authorised qualified person
according to the valid regulation and standards.
–
The whole ventilation installation should have correctly executed installation to lead the
electrostatic charges away. The connections of the ventilation conduits should have
electrostatic connections made of copper cable of section S = 4 mm².
–
Check if the metal conduits are correctly grounded. Additionally, important is to make
grounding of the motor housing, by connecting with the protective cable between the clamp
on the motor housing and the grounding.
6.2 Safety check before the start up:
a/
Examine if all the mechanical connections are performed correctly,
b/
Examine the connection correctness of the electrical connections, phases sequence
c/
Check the correctness of the connection between the motor and the PE protective cable.
After the start up of the motor, check the impeller rotation sense which should match the
arrow on the housing.
Fig. No.2 –Placement of the nominal data plates and the marking of the correct
impeller rotation sense
The motor overload protection ought to have such time-current characteristic providing
proper function even while the motor is disconnected from the supply voltage for the
shorter time than specified for it –“tE”, and at current that equals the starting current.
The fan is delivered in a package but with detached silencer. Prior to installing in the place of
operation, fasten the silencer at the fan outlet. The silencer has to be mounted by means of
the enclosed mounting bolts.

9
18.10.2016 Ex-proof roof fans WP-…-D/Ex
7. Operational Use
Construction of the device assures a reliable function without continuous technical supervi-
sion. It is important to check systematically the mechanical and electrical connections, the
state of grounding and also to ensure an efficient cooling for the motor.
Incorrect use of the device:
a/
forwarding the media of temperature exceeding the admissible temperature (+60C),
b/
conveying the aggressive media,
c/
forwarding the media of high dustiness or with high fraction of pollution particles,
d/
use of the fan in a place where the ambient temperature is higher then +40C.
Consequences of the incorrect use:
–
damage of the bearings,
–
damages caused by corrosion,
–
loss in balance of the rotating elements,
–
vibrations,
–
deformations,
–
damages caused by friction.
Risks which can occur due to improper use:
–
damages and other defects caused by

burst of the impeller,

break of the shaft,

fatigue crack of the material,

ignition and explosion caused by sparks.
8. Troubleshooting Guide
Problem
Possible reason
Corrective action
1.
Sudden drop of the
a.
Obstacle objects, pollutants
a.
Clean the ventilation conduit.
intake flow efficiency.
reducing the air flow
got stuck at the inlet fitting piece.
2.
Sudden vibrations
a.
Obstacle objects reducing
a.
Disconnect the fan from
of the fan occur.
the air flow got stuck
the power system,
in the impeller.
and remove the obstacle.
b.
Impeller is defective.
b.
Replace the impeller
with motor for a new.

10
Ex-proof roof fans WP-…-D/Ex 18.10.2016
9. Maintenance
Construction of the device ensures its continuous function without routine continuous everyday
technical supervision.
In order to keep the fan in continuous functional efficiency and to meet
the safety rules it is recommended to submit it to regular technical re-visions.
Checks can exclusively performed by an authorized person with
valid electrical qualifications.
During the revision follow the instructions included in the use and maintenance
manual of the motor, that constitute integrated part of the instruction of the fan.
Scope of the technical revision:
–
Systematically check cleanness of the inlet grill.
–
Periodically, check the mechanical- and electrical connections. Moreover, in case when
incorrect function of the unit is by noise or visually spotted, undertake technical revision.
–
Carry out inspection of the fan (motor –according to the recommendations of the motor
producer). Within the scope of inspection: clean the fan from the accumulated impurities.
Before the work on the fan –disconnect it from the power supply system.
Examption from this is a test to carried out on the running fan, for example
vibration measuring. In this case, especially follow the rules of Occupational Health and
Safety.
–wait until the fan impeller stops rotations.
The fan can be started again –after the safety control steps (described in Section 6 “Assembly and
-Start-up”) are carried out.
10. Occupational Health and Safety
Start up and servicing can be executed only after getting acquainted with the present Use
and Maintenance Manual. The fan shall not cause hazard provided that it is correctly installed
within the ventilation installation and mounted to the supporting structure.
Connection to the power system should be carried out strictly according to the enclosed Connec-
tion Diagram and the guidelines mentioned in the Section 6 of the present Use and Maintenance
Manual. Any works related to connection to the power supply system should be executed by a per-
son with qualifications and according to the regulations.
The fan motor ought to be protected from the short-circuit and overloads effects. During operation
check the connection between the fan and the PE protective cable.
Any revisions and repair should be carried out exclusively after the fan is
connected from the power supply line.

11
18.10.2016 Ex-proof roof fans WP-…-D/Ex
11. Transport and Storage
WP-3-D/Ex, WP-5-D/Ex, WP-7-D/Ex, WP-8-D/Ex and WP-9-D/Ex, are placed in cardboard,
on the surface of which is written their weight.
Whereas the big fans: WP-10-D/Ex, WP-11-D/Ex are simply placed on pallets. During the
loading and transport the packing should not be thrown or knocked down. Do not put any load
on top of the package.
The packages should not be placed one on top of another and protect them against atmosphe-
ric factors and damage. The devices should be transported in packages to the place of storage
and installing.
The fans have to be stored in rooms of following properties:
–
without dustiness, gases and vapours and other substances of aggressive properties and
without chemical exhalations that could have destructive effect on the insulation elements,
constructional elements of the motor and the fan,
–
maximum relative humidity should not exceed 80% at the temperature +20C,
–
the ambient temperature should range from –20C to +40C,
–
there should not be any vibrations.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”.
The warranty does not comprise:
●
mechanical damage and dysfunctions caused by User,
●
damages of the fan caused by lack of the current protections –i.e. short-circuit- and
overload protections,
●
device failures caused during use which was in contradiction with the purpose of ope-
rational use and the present Use and Maintenance Manual,
●
damages being effected during improper transport, storage or incorrect maintenance.
Infringement of the Section 3 “Reservations of Producer” of the Use and Maintenance
Manual and especially modifications undertaken by User on one’s own shall cause the
loss of warranty validity.

12
Ex-proof roof fans WP-…-D/Ex 18.10.2016

13
18.10.2016 Ex-proof roof fans WP-…-D/Ex
Supply 3x400/50Hz
Type of the fan
Execution
Synchro-
nous ro-
tations
Motor rate
Current
Time t /s/E
Producer
/min-1/
/kW/
/A/
T3
T4
WP-3-D/Ex
II 2G EExe II T3
3000
0,37
1,0
18,2
BESEL
WP-5-D/Ex
II 2G EExe II T3
3000
0,55
1,4
12,0
BESEL
WP-7-D/Ex
II 2G EExe II T3
3000
1,1
2,4
7,2
BESEL
WP-8-D/Ex
II 2G EExe II T3
3000
1,5
3,5
10,0
INDUCTA
WP-9-D/Ex
II 2G EExe II T3
3000
2,2
4,7
5,0
INDUCTA
WP-10-D/Ex
II 2G EExe II T3
3000
4,0
7,5
8,0
INDUCTA
WP-11-D/Ex
II 2G EExe II T3
3000
4,0
7,5
8,0
INDUCTA

14
Ex-proof roof fans WP-…-D/Ex 18.10.2016
13. Sample of the Declaration of Conformity
Declaration of conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, Chwaszczyńska 194
A person, authorized for issuing the technical documentation:
hereby declares that the appliance:
name: Explosion proof roof fan
type/model: WP-…-D/Ex
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May, 2006 on machinery –
amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014 on the harmonisation
of the laws of the Member States relating to the making available on the market of electrical equipment designed
for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/

2014/34/EC ATEX Directive of the European Parliament and of the Council of February 26th, 2014 on the har-
monisation of the laws of Member States relating to equipment and protective systems intended for use in
potentially explosive atmospheres. / Journal of Laws EC L96 of 29.03.2014 /
The device has been constructed and produced on the basis of subsequent standards:

PN-EN ISO 12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design –Risk assessment and risk reduction”.

PN-EN 60204-1:2010
–
“Safety of machinery –Electrical equipment of machines.
Part 1: General requirements”.

PN-EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”.

PN-EN 60079-0:2013/A11:2014
–
“Electrical appliances in areas of gas explosion risk.
Part 0: General requirements”.

PN-EN 60079-7:2010
–
“Electrical appliances for explosive gas atmospheres.
Part 7: Increased safety “e”.

PN-EN 1127-1:2011
–
“Explosive atmospheres. Explosion prevention and protection.
Basic terminology and methodology”.

PN-EN 13463-1:2010
–
“Non-electric appliances in areas of explosion risk –Part 1
–Basic concepts and requirements”.

PN-EN 14986:2009
–
“Designing of fans applied in areas of explosion hazard”
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl

15
18.10.2016 Ex-proof roof fans WP-…-D/Ex
NOTES:

16
Ex-proof roof fans WP-…-D/Ex 18.10.2016
Producer:
KLIMAWENT S.A.
81-571 Gdynia, ul. Chwaszczyńska 194
tel. [phone]
fax [phone]
e-mail: [e-mail]
www.klimawent.com.pl
808W49
WP-3-D/Ex
18.10.2016/EN
808W50
WP-5-D/Ex
18.10.2016/EN
808W51
WP-7-D/Ex
18.10.2016/EN
808W52
WP-8-D/Ex
18.10.2016/EN
808W53
WP-9-D/Ex
18.10.2016/EN
808W54
WP-10-D/Ex
18.10.2016/EN
808W55
WP-11-D/Ex
18.10.2016/EN
