04.06.2019 roof radial fans WPA-D-N
Use and Maintenance Manual
Roof radial fans
WPA-D-N

2
roof radial fans WPA-D-N 04.06.2019
Contents:
1. Introductory Remarks......................................................................... 3
2. Application ......................................................................................... 3
3. Reservations of Producer .................................................................... 4
4. Technical Data.................................................................................... 4
5. Structure and Function....................................................................... 8
6. Assembly and Start-up ........................................................................ 9
7. Operational Use .................................................................................. 10
8. Troubleshooting Guide........................................................................ 10
9. Maintenance and Control.................................................................... 10
10. Occupational Health and Safety .......................................................... 10
11. Transport and Storage ........................................................................ 11
12. Terms of warranty .............................................................................. 11
13. Sample of Declaration of Conformity .................................................. 12

3
04.06.2019 roof radial fans WPA-D-N
1. Introductory Remarks
The purpose of the present User’s Manual is to supply User with directions within the range of
application, installation, start-up and the operational use of the WPA-D-N roof radial fans.
Installing, start up and operational use are exclusively admissible after getting acquain-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for our-
selves the revision possibility of the draft and technological changes improving their functional
features and safety.
The construction of the WPA-D-N roof radial fans meets the requirements of the current state
of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of February 26th, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th,
2009 establishing a framework for the setting of ecodesign requirements for energy-related
products /Journal of Laws L285 of 31.10.2009/

327/2011 (EU) Commission Regulation of March 30th, 2011 on implementing the 2009/125
/EC Directive of the European Parliament and of the Council with regard to ecodesign requi-
rements for fans driven by motors with an electric input power between
125W and 500 kW /Journal of Laws L90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general princi-
ples for design. Risk assessment and risk reduction”.

EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machi-
nes. Part 1: General requirements”.

EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data
and parameters”.

EN ISO 5802:2008/A1:2015-07
–
“Industrial Fans – Performance testing in situ of instal-
ling”

EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent ha-
zard zones being reached by upper and lower limbs”.
2. Application
WPA-D-N roof fans have been designed for general ventilation and for local ventilation applica-
tions. They are installed outside the rooms (outdoor application)on roof bases or wall brackets.
As they feature increased fan pressure, they are efficient in application in installations with local
exhausts.
They fans are designed for conveying the air of dustiness not exceeding 0,3 g/m3, without viscous
impurities, aggressive contamination or compounds creating hazard of explosion.

4
roof radial fans WPA-D-N 04.06.2019
3. Reservations of Producer
A.
Manufacturer accepts no liability for any consequences following from the operational use
that is in contradiction to the purpose of application.
B.
It is unacceptable to install on the device structure any additional elements not belonging to
its normal construction or accessory set.
C.
Any structural changes or modification of the device, carried out by User on one’s own are
not permitted.
D.
Protect the housing from mechanical damage.
E.
Prior to installing check the load capacity of the building structure where the device will be
mounted. Unsure mounting could cause risk to personnel / people in vicinity and effect in
damage of the device.
F.
The fan cannot be used for conveying the air contaminated with a mixture of flamma-
ble substances in form of gas, vapour, mist and dust that in connection with the air
create the explosive atmosphere.
G.
Do not use the fan for conveying the air containing viscous impurities that could accumulate
on the device surface, especially on the impeller.
H.
Neither use it for forwarding the air with aggressive pollutants which will destructively effect
the device structure.
I.
During operation, the maximum impeller rotations should not exceed the nominal rotations.
J.
Manufacturer is not responsible for wounds, injuries, body laceration experienced by User or
personnel during the improper operational use.
4. Technical Data
Table No.1
Type of the
Synchro-
Supply
Motor
Ingress
Acoustic
Maximum
Maximum
Weight
fan
nous
voltage
rate
protec-
pressure level
volume
vacuum
rotations
tion
from distance
flow
IP
1m
5m
[1/min]
[V]
[kW]
[dB (A)]
[m³/h]
[Pa]
[kg]
WPA-5-D-1-N
3000
230
0,37
54
73/67*
59/53*
1900
1250
23
WPA-5-D-3-N
3x400
WPA-6-D-1-N
3000
230
0,75
54
78/75*
64/61*
2500
1700
28
WPA-6-D-3-N
3x400
WPA-7-D-1-N
3000
230
1,1
54
81/74*
67/60*
3100
1800
30
WPA-7-D-3-N
3x400
WPA-8-D-3-N
3000
3x400
1,5
54
82/78*
68/64*
3900
2050
36
WPA-9-D-3-N
3000
3x400
2,2
54
86/82*
72/68*
4500
2400
45
WPA-10-D-3-N
3000
3x400
3,0
54
87/81*
73/67*
6200
2450
58
WPA-11-D-3-N
3000
3x400
5,5
54
91/88*
77/74*
8050
2950
77
WPA-13-D-3-N
3000
3x400
7,5
54
95/90*
81/76*
10800
3300
98
*
Noise measurement has been carried out –with the additional TK L=500 mm silencer instal-
led at the fan inlet.
1.
Maximum temperature of the conveyed air is +60ºC, whereas maximum temperature within
the work zone +40ºC.
2.
Maximum dustiness of the forwarded air should not exceed 0,3 g/m3.

5
04.06.2019 roof radial fans WPA-D-N
Fig. No.1 –Fans of series WPA-D-N with a horizontal silencer –Structure, dimensions
Table No. 2 –Dimensions of the WPA-D-N fans with horizontal silencer
Typ
A
B
C
D
E
F
n
G
H
J
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[pcs]
[mm]
[mm]
[mm]
WPA-5-D-1-N
905
525
60
160
160
194
6
7,0
495
140
WPA-5-D-3-N
WPA-6-D-1-N
915
550
60
160
160
194
6
7,0
495
140
WPA-6-D-3-N
WPA-7-D-1-N
965
570
60
200
160
194
6
7,0
535
155
WPA-7-D-3-N
WPA-8-D-3-N
990
600
60
200
200
224
234
246
8
6
8
9,0
7,0
9,0
540
155
WPA-9-D-3-N
1030
665
60
200
200
224
234
246
8
6
8
9,0
7,0
9,0
620
155
WPA-10-D-3-N
1045
675
80
250
250
274
8
9,0
700
232
WPA-11-D-3-N
1065
695
80
250
250
274
8
9,0
750
232
WPA-13-D-3-N
1430
830
90
315
315
344
8
9,0
790
258

6
roof radial fans WPA-D-N 04.06.2019

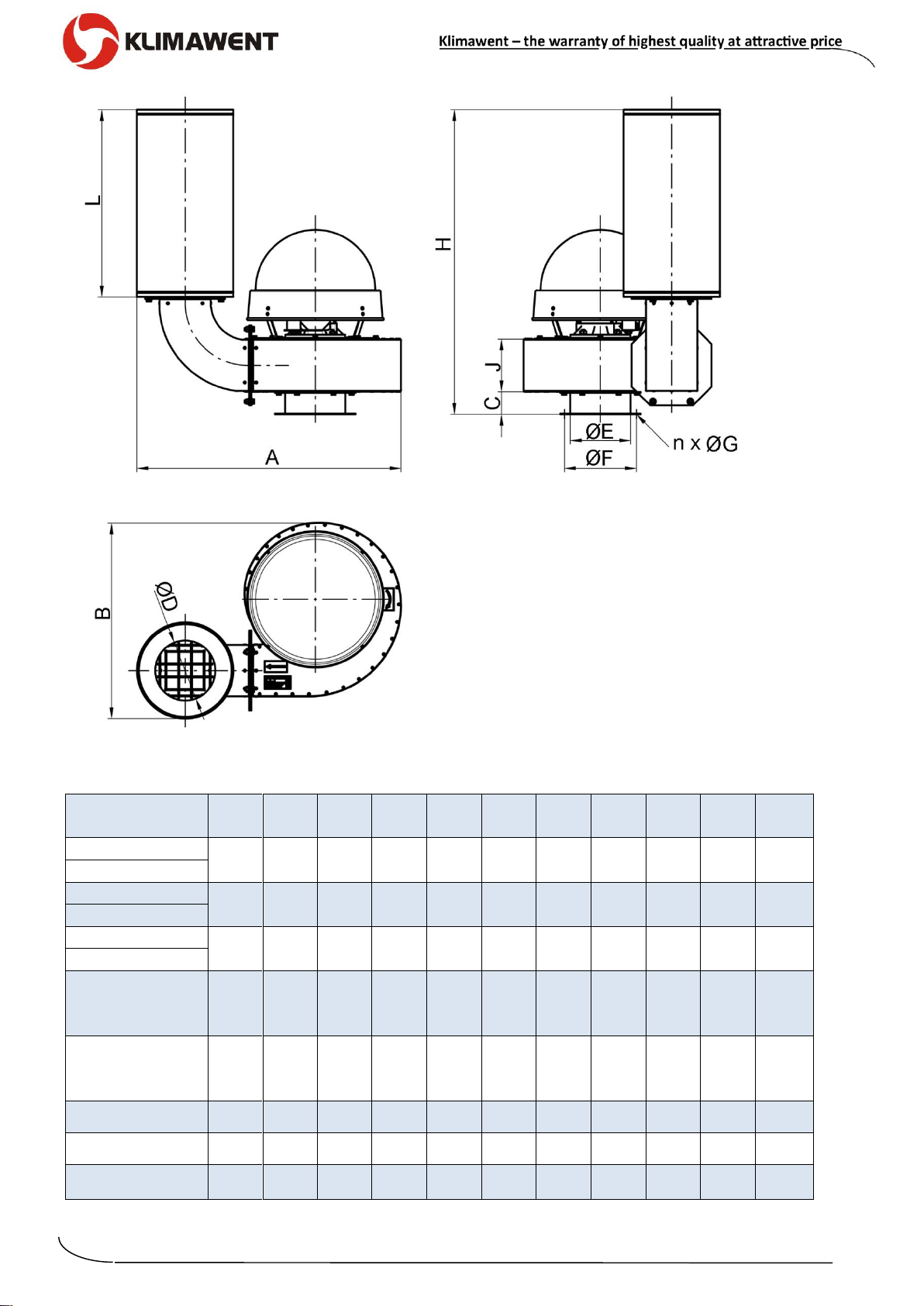

Fig. No.2 –Fans of series WPA-D-N with a vertical silencer –Structure, dimensions
Table No. 3 –Dimensions of the WPA-D-N fans with vertical silencer
Type of the fan
A
B
C
D
E
F
n
G
H
J
L
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[pcs]
[mm]
[mm]
[mm]
[mm]
WPA-5-D-1-N
705
525
60
160
160
194
6
7,0
815
140
500
WPA-5-D-3-N
WPA-6-D-1-N
715
550
60
160
160
194
6
7,0
815
140
500
WPA-6-D-3-N
WPA-7-D-1-N
815
570
60
200
160
194
6
7,0
840
155
500
WPA-7-D-3-N
WPA-8-D-3-N
840
600
60
200
200
224
234
246
8
6
8
9,0
7,0
9,0
840
155
500
WPA-9-D-3-N
880
665
60
200
200
224
234
246
8
6
8
9,0
7,0
8,0
840
155
500
WPA-10-D-3-N
960
675
80
250
250
274
8
9,0
940
232
500
WPA-11-D-3-N
980
695
80
250
250
274
8
9,0
940
232
500
WPA-13-D-3-N
1225
830
90
315
315
344
8
9,0
1300
258
500

7
04.06.2019 roof radial fans WPA-D-N
Table No.4 –Specification of types of elbows for fans with vertical outlet
Type of the fan
Elbow
Type of the elbow
Weight [kg]
WPA-5-D-N
KL-160-WPA
1,8
WPA-6-D-N
KL-160-WPA
1,8
WPA-7-D-N
KL-200-WPA
2,4
WPA-8-D-N
KL-200-WPA
2,4
WPA-9-D-N
KL-200-WPA
2,4
WPA-10-D-N
KL-250-WPA
7,5
WPA-11-D-N
KL-250-WPA
7,5
WPA-13-D-N
KL-315-WPA
12,6
Fig. No.3 –Flow Charts

8
roof radial fans WPA-D-N 04.06.2019
4.1
Information pertaining to energetic efficiency for fans
–according to Regulation of Committee (EU) No. 327/2011
Table No.5
Product information
requirements
WPA-
5-1
WPA-
5-3
WPA-
6-1
WPA-
6-3
WPA-
7-1
WPA-
7-3
WPA-
8-3
WPA-
9-3
WPA-
10-3
WPA-
11-3
WPA-
13-3
1
Overall efficiency (%)
67,6
70
54,1
61,1
65,1
65,6
62,2
67
66,1
67,1
65,3
2
Measurement category
(A-D)
C
3
Efficiency category
static
4
Efficiency grade at
optimum energy efficiency
point (%)
47,9
48,1
50,6
48,7
50,5
51,4
52,2
53,3
55,9
56,9
59,4
5
Did the efficiency
calculation use VSD?
no
6
Year of manufacture
see nominal data plate
7a
Manufacturer’s name
see nominal data plate
7b
Commercial registration
number
see nominal data plate
7c
Place of manufacturing
see nominal data plate
8
Model number
see nominal data plate
9a
Rated motor power input
(kW)
0,37
0,37
0,75
0,75
1,1
1,1
1,5
2,2
3,0
5,5
7,5
9b
Flow rate at the optimum
Energy efficiency (m3/h)
1430
1180
1580
1250
2000
1870
2030
2230
3750
4250
6800
9c
Pressure at the optimum
Energy efficiency (Pa)
970
1000
1270
1360
1400
1400
1595
2000
1700
2376
2440
10
Rotations per minute at
the optimum efficiency
point (r.p.m.)
2770
2790
2800
2870
2770
2870
2880
2880
2880
2900
2930
11
Specific ratio
1,007
12
Fan disassembly,
recycling and disposal at
the end of operational life
see the sections concerning the maintenance and recycling
13
To minimalize the
environmental impact and
ensure the optimal live
expectancy of the fan
follow maintenance instructions of the fan
14
Description of additional
items applied for
determining the energe-
tic efficiency of the fan
not supplied with the fan
5. Structure and Function
The fan consists of a steel spiral housing, motor and an aluminium radial impeller (directly instal-
led at the motor pivot). The profiled impeller blades provide low acoustic performance of the fan.
The inlet is equipped with a flange to install the fan on a roof base or on a wall bracket. Typical
feature of the fan is a silencer fastened at the fan outlet of the spiral housing. It is possible to

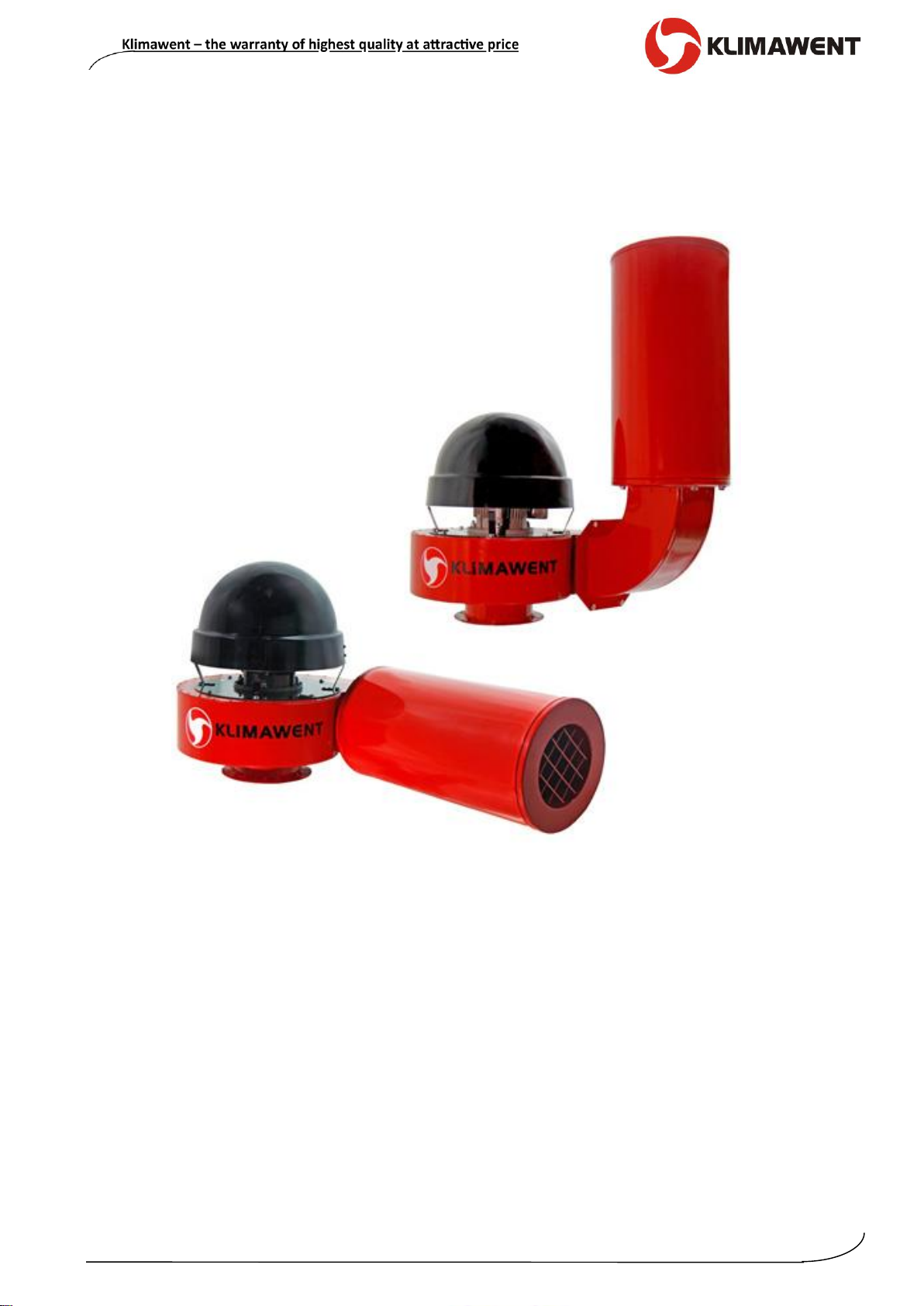

install the silencer horizontally or vertically (see Fig. No.1, No.2). The version with the vertical
silencer must have introduced an additional elbow at the outlet and then the silencer (see Fig.
No.2).
For safety reasons, the inlet and outlet are equipped with protective grills. It recommended to
install TK silencers at the fan inlet (for details see acoustic data in the Table No.1).
On demand, we deliver isolating switches (safety switches) to cut off the power supply before
starting the installing and servicing activities.

9
04.06.2019 roof radial fans WPA-D-N
ADDITIONAL EQUIPMENT –delivery on separate order:
●
motor protective switches WS –with short-circuit- and overload protection,
●
isolating switches (safety switches),
●
wall brackets,
●
silencers.
6. Assembly and Start-up
The appliance can work outside the industrial rooms (outdoor application). Manufacturer sug-
gests installing the fan on the roof base or on a wall bracket (delivery on separate order).
Before the connection to the power supply system, make sure if the parameters of the
existing electrical installation are corresponding the data on the nominal plate. In case
of inconsistency the connection cannot be executed.
Connection to the electrical power system has to be executed by User on one’s own by selec-
ecting the right type and section of the supply cable, and choosing the appropriate short-circuit-
and overload protection, according to the local conditions.
Connection to the power supply has to be carried out by an authorized
person with qualifications, according to the valid regulations and information placed in
Fig. No.4.
Before the start-up, check the connection between the motor and the PE protective cable, and
the correctness of the electrical connections. The impeller rotation sense ought to be accor-
ding to the arrow on the housing, in case of incompatibility change the phase connection
sequence.

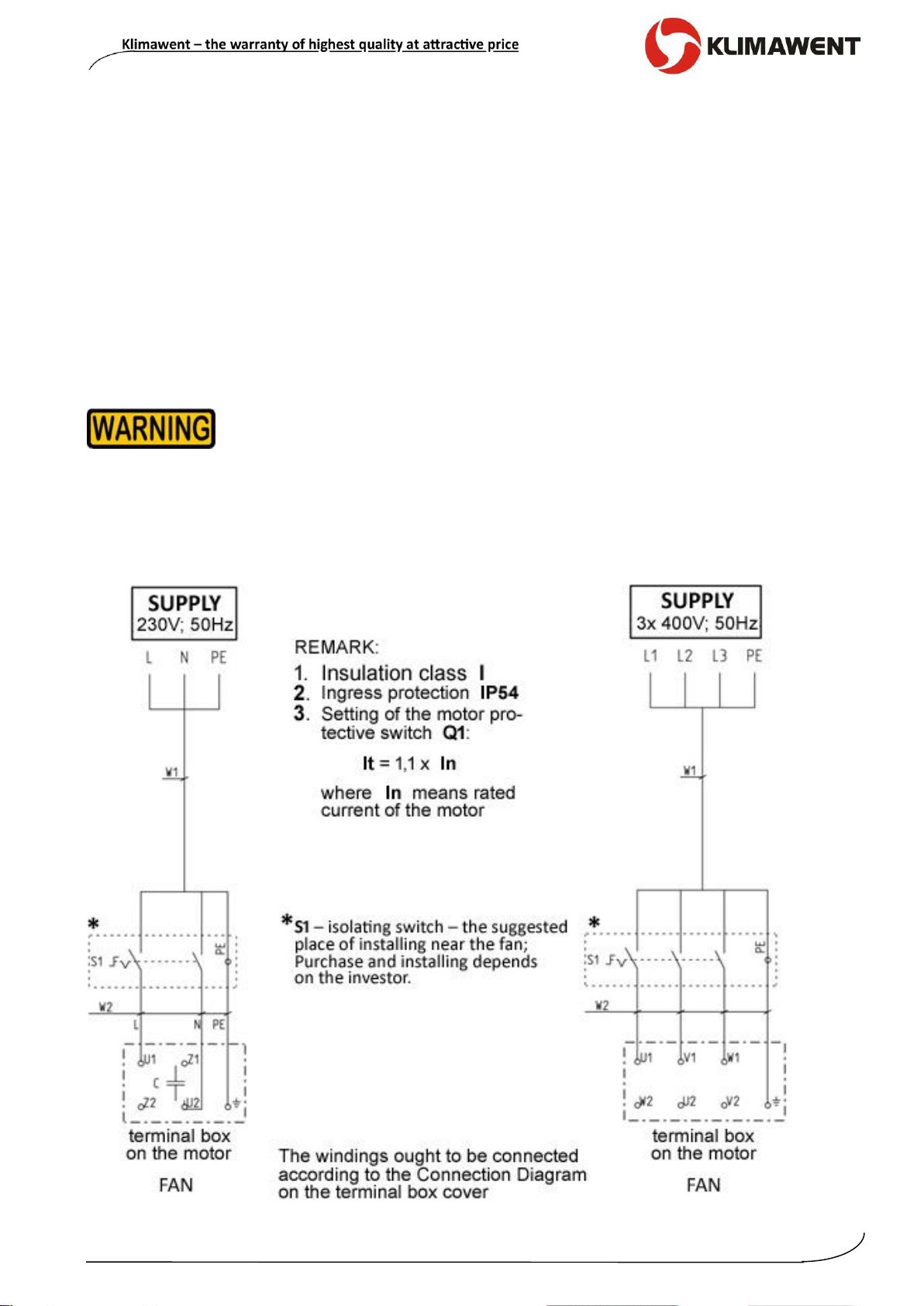

Fig. No.4 –Connection Diagram –WPA-D-N

10
roof radial fans WPA-D-N 04.06.2019
7. Operational Use
Construction of the device guarantees a reliable function without continuous technical supervi-
sion after the start-up. If the place of operational use is changed –repeat the steps mentioned
in Section 6, according to the installing and adapting the ventilation system to the new applica-
tion and conditions.
8. Troubleshooting Guide
Table No.6
Problem
Possible reason
Corrective action
1.
Sudden and significant
Pollutants, foreign objects (being
Remove the pollutants;
drop in intake volume flow.
obstacle / barrier do the air flow)
clean the ventilation conduits.
have deposited at the inlet grill.
2.
Sudden vibrations of the fan
Obstacle objects reducing the
Disconnect the fan from the
are occurring.
air flow got stack at the impeller.
power supply system, and
remove the obstacle.
The impeller is defective.
Replace the impeller with motor
for a new one.
3.
Noisy work of the fan
Incorrect impeller rotation sense.
Change the impeller rotation
along with small volume flow.
sense by changing the phase
connection sequence
(three-phase fans only).
9. Maintenance and Control
In the course of operational use, the fan construction guarantees its efficient function without
continuous routine technical supervision. Nevertheless, remember to carry out systematic mainte-
nance steps.
Once a year, submit the fan and the motor to technical revision –the electrical motor ought to
be examined according to the instructions of the motor manufacturer.
Every several years,examine the mechanical and electrical connections. The electrical instal-
lation system ought to be checked according to the standard PN-HD 60364-6 “Low-voltage elec-
trical installations –Part 6: Verification”.
Moreover, if any defective function of the unit or failure is noticed –undertake its additional con-
trol. Constantly, keep the inlet grills in clean conditions.
Any maintenance activities should be executed exclusively by an autho-
rised person with qualifications, and necessarily after disconnection from the power sys-
tem.
10. Occupational Health and Safety
Start up and the operational use are only admissible exclusively after getting acquain-
ted with the contents of the present Use and Maintenance Manual.The fan will not cause
hazard under the condition that it is firmly mounted to the supporting structure or to the venti-
lation system. Connect the fan to the electrical wiring system, strictly according to the enclo-
sed connection diagram and to the guidelines shown in Section 6 of the present Use and Main-
tenance Manual. This ought to be carried out exclusively by an authorized person with
qualifications, and in accordance with the valid regulations.
During the operational use, check the connection between the fan and the PE protective cable.
Any technical revisions and repair have to be executed, necessarily after
disconnection from the power supply system (isolating switch).
