Klimawent WPA-3-P-1-N User manual

1
27.09.2016 Portable radial fans WPA-P-N
Use and Maintenance Manual
Portable radial fans
WPA-P-N

2
Portable radial fans WPA-P-N 27.09.2016
Contents:
1. Introductory Remarks......................................................................... 3
2. Application ......................................................................................... 4
3. Reservations of Producer .................................................................... 4
4. Technical Data.................................................................................... 5
5. Structure and Function....................................................................... 8
6. Assembly and Start-up ........................................................................ 8
7. Operational Use .................................................................................. 10
8. Trouble Shooting Guide ...................................................................... 11
9. Maintenance ....................................................................................... 11
10. Occupational Health and Safety .......................................................... 12
11. Transport and Storage ........................................................................ 12
12. Terms of warranty .............................................................................. 12

3
27.09.2016 Portable radial fans WPA-P-N
1. Introductory Remarks
The purpose of the present User’s Manual is to supply the Purchaser and the future User
with directions within the range of application, installation, start-up and the operational use
of the WPA-P-N portable radial fans.
Therefore, installing, start up and operational use are exclusively admissible after
getting acquainted with the contents of the User’s Manual.
With regard to continuity of work carried on improvement of our products, we reserve for
ourselves the revision possibility of the draft and technological changes improving their
functional features and safety. In case when improper function and faults are by noise or
visually spotted, and they cannot be fixed on one’s own, contact the manufacturer or
representative.
The construction of the WPA-P-N portable radial fans meets the requirements of the current
state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council
of October 21th, 2009 establishing a framework for the setting of ecodesign requirements
for energy-related products / Journal of Laws L 285 of 31.10.2009 /

327/2011 (EU) Guideline of March 30th, 2011 on implementing the 2009/125/EC Directive
of the European Parliament and of the Council with regard to ecodesign requirements
for fans driven by motors with an electric input power between 125W and 500 kW
/Journal of Laws L No. 90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

PN-EN ISO 12100:2012
–
“Safety of machinery. Basic concepts, general principles for
design. Risk assessment and risk reduction”.

PN-EN 60204-1:2010
–
“Safety of machinery. – Electrical equipment of machines.
Part 1: General requirements”.

PN-EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data
and parameters”.

PN-EN ISO 5802:2008
–
“Industrial Fans – Performance testing in situ of installing”.

PN-EN ISO 13857:2010
“Safety of machinery. Safe distances to prevent hazard
zones being reached by upper and lower limbs”.

4
Portable radial fans WPA-P-N 27.09.2016
2. Application

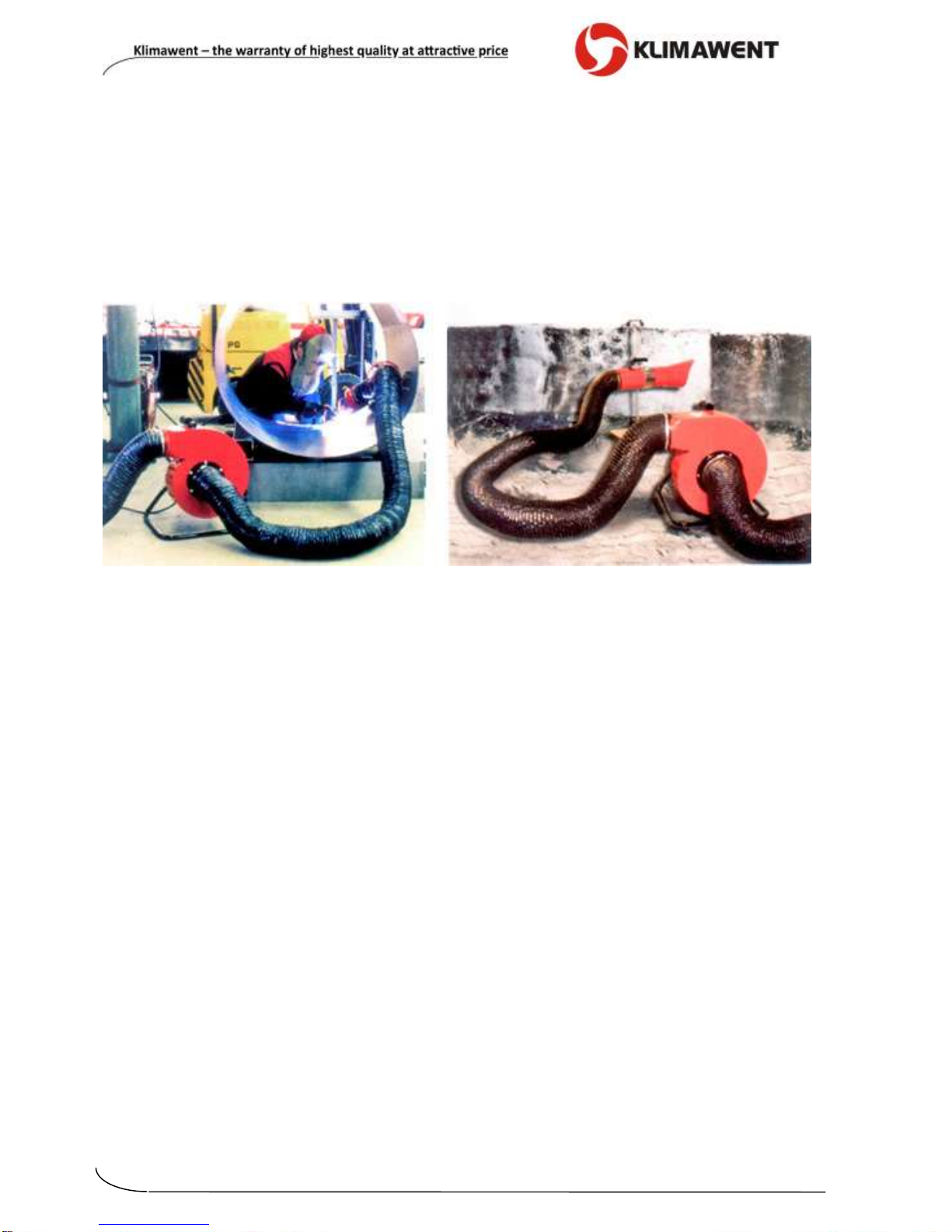

WPA-P-N portable radial fans have been designed for air-supply ventilation or extraction
ventilation of rooms and workplaces. They can be applied for general ventilation and for local
exhausts. Additionally, WPA-P-N fans can be used or drying the humid rooms by forcing the
multiple air exchanges.
Do not use the fan for conveying the aggressive gases or substances creating explosive
atmospheres with the air.
In general, the fan is designed for transporting the air, of dustiness not exceeding 0,3 g/m³,
without viscous impurities, aggressive contamination or compounds creating hazard of explosion.
3. Reservations of Producer
A.
Manufacturer is not liable for any consequences following from the operational use that is in
contradiction to the purpose of application.
B.
Do not install any additional elements not belonging to the normal device structure or
accessory set.
C.
Any structural changes or device modifications on one’s own are not permitted.
D.
Protect the appliance’s housing from mechanical damage.
E.
The fan cannot be used for conveying the air contaminated with a mixture
of flammable substances in form of gas, vapour, mist and dust that
in connection with the air create explosive atmosphere.
F.
Do not use the fan for conveying the air containing viscous impurities that could
accumulate (build up) on the device surface, especially on the impeller.
G.
Neither use the fan for forwarding the air with aggressive pollutants which will destructively
effect the device structure.
H.
During the use, the maximum impeller rotations should not exceed nominal rotations.
I.
Producer is not responsible for wounds, injuries, body laceration experienced by User
or personnel during the improper operational use.

5
27.09.2016 Portable radial fans WPA-P-N
4. Technical Data
Table No.1 –Technical data for the subsequent types of fans
Type of the fan
Synchronous
rotations
Supply
voltage
Motor
rate
Ingress
pro-
tection
Acoustic
pressure level
[dB(A)]
from distance
Maximum
volume
flow
Maximum
vacuum
Weight
[r.p.m.]
[V]
[kW]
IP
1m
5m
[m3/h]
[Pa]
[kg]
WPA-3-P-1-N
3000
230
0,37
54
69
55
1160
940
16
WPA-5-P-1-N
3000
230
0,55
WPA-5-P-3-N
3x400
WPA-6-P-1-N
3000
230
0,75
54
83
69
2500
1700
24
WPA-6-P-3-N
3x400
WPA-7-P-1-N
3000
230
1,1
54
86
72
3100
1800
26
WPA-7-P-3-N
3x400
WPA-8-P-3-N
3000
3x400
1,5
54
88
74
3900
2050
35
WPA-9-P-3-N
3000
3x400
2,2
54
91
77
4500
2400
44
WPA-10-P-3-N
3000
3x400
3,0
54
91
77
6200
2450
55
1.
Maximum temperature of the conveyed air is +60ºC,
whereas maximum temperature within the work zone +40ºC.
2.
Maximum dustiness of the conveyed air should not exceed 0,3 g/m3.
Fig. No.1 –Fan of the WPA-P-N series –Structure, dimensions

6
Portable radial fans WPA-P-N 27.09.2016
Table No. 2 –Dimensions of fans
Type of the fan
A
B
C
D
E
S2)
G2)
X
Y
H2)
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[pcs]
[mm]
WPA-3-P-1-N
465
425
–1)
125
125
475
425
365
215
430
WPA-5-P-1-N
475
440
–1)
160
160
520
440
425
235
475
WPA-5-P-3-N
WPA-6-P-1-N
475
440
–1)
160
160
500
450
450
245
525
WPA-6-P-3-N
WPA-7-P-1-N
615
515
355
200
160
615
515
480
285
585
WPA-7-P-3-N
WPA-8-P-3-N
615
515
355
200
200
625
515
500
300
605
WPA-9-P-3-N
670
565
415
200
200
670
565
560
320
665
WPA-10-P-3-N
700
650
370
250
250
705
650
565
335
695
1) The construction of the framework is not equipped with a branching upwards
2) Dimension between the most distant points of the device
Fig. No.4 –Flow charts

7
27.09.2016 Portable radial fans WPA-P-N
4.1
Product requirements pertaining to fans –according to Regulation of
Committee (EU) No. 327/2011
Product information
requirements
WPA-
3-1
WPA-
5-1
WPA-
5-3
WPA-
6-1
WPA-
6-3
WPA-
7-1
WPA-
7-3
WPA-
8-3
WPA-
9-3
WPA-
10-3
1
Overall efficiency (%)
51
67,6
70
54,1
61,1
65,1
65,6
62,2
67
66,1
2
Measurement category
(A-D)
C
3
Efficiency category
static
4
Efficiency grade at
optimum energy efficiency
point (%)
43,9
47,9
48,1
50,6
48,7
50,5
51,4
52,2
53,3
55,9
5
Did the efficiency
calculation use VSD?
no
6
Year of manufacture
see nominal data plate
7a
Manufacturer’s name
see nominal data plate
7b
Commercial registration
number
see nominal data plate
7c
Place of manufacturing
see nominal data plate
8
Model number
see nominal data plate
9a
Rated motor power input
(kW)
0,25
0,55
0,55
0,75
0,75
1,1
1,1
1,5
2,2
3,0
9b
Flow rate at the optimum
Energy efficiency (m3/h)
700
1430
1180
1580
1250
2000
1870
2030
2230
3750
9c
Pressure at the optimum
Energy efficiency (Pa)
620
970
1000
1270
1360
1400
1400
1595
2000
1700
10
Rotations per minute at
the optimum efficiency
point (r.p.m.)
2760
2770
2790
2800
2870
2770
2870
2880
2880
2880
11
Specific ratio
1,007
12
Fan disassembly,
recycling and disposal at
the end of operational life
see the sections concerning the maintenance and recycling
13
To minimalize the
environmental impact and
ensure the optimal live
expectancy of the fan
follow maintenance instructions of the fan
14
Additional items
not supplied with the fan

8
Portable radial fans WPA-P-N 27.09.2016
5. Structure and Function
The fan consists of a steel spiral housing and a motor and a radial impeller which is directly
mounted on the motor shaft (direct drive). The inlet and outlet are adapted for connection
of the flexible hoses, which are clamped with hose clamps.
For safety reasons, the inlet and outlet are equipped with a protective grill.
The impeller with profiled radial blades provides low acoustic pressure of the fan.
As standard, the fan is equipped with a motor protective switch. Each fan is energized
through a five metre long power supply cable with a plug.
6. Assembly and Start-up
The portable WPA-P-N fans can work in closed rooms (indoor application) and outside the
buildings. In case of outdoor application (especially for a longer time of operation) it is
important to protect the device against atmospheric factors.
The appliance do not require special preparation before start-up. Depending on the purpose
of application, it is important to provide suitable hoses (see Section 7 of the present Use and
Maintenance Manual) .
The device is energised through a motor protective switch (or by a motor starter).
Appropriate connection diagrams are shown in Fig. No.3.
Prior to the start-up, check the connection between the motor and the PE protective cable,
and the correctness of the electrical connections (the impeller rotation sense ought to
be according to the arrow on the housing, if this is the opposite, change the phase
connection sequence).
own. It is important to select the right type and section of the supply cable, and choose
the appropriate short-circuit- and overload protection, according to the local conditions.
Approaching with loose clothes or putting the hand near the open inlet
of the running fan can cause hazard of accident. Do not look into the working fan as
this could cause the face injury of User.
In case of any activities carried out on the fan, it is important to disconnect the device
from the power supply system.

9
27.09.2016 Portable radial fans WPA-P-N
The windings ought to be connected according to the Connection Diagram
on the terminal box cover.
Fig. No.3 –Connection Diagram of the fans type WPA-P-N

10
Portable radial fans WPA-P-N 27.09.2016
7. Operational Use
In case when the portable fan is applied for local exhaust (technological extraction), connect
a hose (of adequate diameter) to the suction ferrule. Additionally, the hose must be tipped
with a suitable suction nozzle.
Example application with a magnetic suction hood is illustrated in the Photo No.1a below.
Photo 1a
Photo 1b
Portable fan working with a magnetic
hood during the welding
Portable fan used for drying a humid wall
Photo 1 –Examples of application along with the hoods
When the portable fan is applied for general ventilation, it is important to supply a hose
(into the ventilated room), whereby the hose ought to be connected to the suction ferrule or
to the outlet ferrule of the fan.
In case of application for drying the humid walls of a room, simply put the fan into the room
and direct the air discharge onto the humid wall. The discharge hose must be conducted
outside the room.
As another option, the portable fan can be placed outside the building (the drying air has to
be forced through an air supply hose into the humid room). Here, it is important to protect
the fan from atmospheric factors by a hood. In this application, the suction nozzle
can be equipped with a suction stand with a directing spout nozzle (see Photo No.1b).
Construction of the device guarantees a reliable function without continuous technical
supervision after the start-up.
In case when any defective function of the unit occurs (e.g. improper noises or the faulty
outlook of the device) follow steps as in Section 8.

11
27.09.2016 Portable radial fans WPA-P-N
8. Trouble Shooting Guide
Problem
Possible reason
Corrective action
1.
Sudden and significant
Pollutants, foreign objects (being
Remove the pollutants;
drop in intake volume flow.
obstacle do the air flow) have
clean the ventilation conduits.
deposited at the inlet grill.
2.
Sudden vibrations of the fan
Obstacle objects reducing
Disconnect the fan from
are occurring.
the air flow got stack at the
the power supply system,
impeller.
and remove the obstacle.
The impeller is defective.
Replace the impeller with
motor for a new one.
3.
Noisy work of the fan
Incorrect impeller rotation sense.
Change the impeller rotation
along with small volume flow.
sense by changing the phase
connection sequence
(three-phase fans only).
9. Maintenance
In the aspect of operational use, the fan construction guarantees its efficient function
without continuous everyday technical supervision. Nevertheless, to obtain proper function
of the device and to follow the safety rules, manufacturer suggests executing technical
revisions on regular basis.
During the inspection check the function of the fan and the technical state of its elements.
Any maintenance activities should be executed exclusively
by an authorised person and after disconnection from the power system.
(the exemption from this are activities carried out on the running fan, under strict
observing the Occupational and Health Safety rules –e.g. vibration measure-ment).
Before the maintenance on the fan, necessarily disconnect it from the power supply system
and wait until the impeller stops rotating.
Within the scope of inspection execute following activities:
●
check and tighten the mechanical and electrical connections,
●
examine the mountings of the motor and the fan, important is that the clearance between
the inlet and the impeller is even within the whole circumference.
●
remove the impurities accumulated inside the fan, eventually clean it from pollutants
originating from the conveyed medium.
During the maintenance activities follow strictly the rules of Occupational Health and Safety,
in order not to cause hazard to workers.

12
Portable radial fans WPA-P-N 27.09.2016
10. Occupational Health and Safety
Start up and the operational use is only admissible exclusively after getting acquainted
with the contents of the present Use and Maintenance Manual.
Connect the fan to the electrical wiring system, strictly according to the enclosed connection
diagram and the guidelines shown in Section 6 of the present Use and Maintenance Manual.
This ought to be carried out exclusively by a qualified person, and in accordance with the
valid regulations.
During the operational use, check the connection between the fan and the PE protective cable.
Any technical revisions and repairs have to be executed necessarily
after disconnection from the power system.
11. Transport and Storage
The fans shall be transported on pallets and protected with foil.
During the loading and transport the package should not be thrown neither knocked down
or charged with a load on the top. Do not place one package on top of another and (during
the transport) protect the device from atmospheric factors and from damage, indents.
The device ought to be stored in dry and well ventilated rooms.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”.
The warranty does not comprise:
●
mechanical damage and dysfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of
operational use and the present “Use and Maintenance Manual”,
●
damages being effected during improper transport, storage or incorrect maintenance.
Infringement of the Section 3 “Reservations of producer” of the User’s Manual and
especially modifications undertaken by User on one’s own shall cause the loss of
warranty validity.

13
27.09.2016 Portable radial fans WPA-P-N

14
Portable radial fans WPA-P-N 27.09.2016
NOTES:

15
27.09.2016 Portable radial fans WPA-P-N
NOTES:

16
Portable radial fans WPA-P-N 27.09.2016
Producer:
KLIMAWENT S.A.
81-571 Gdynia, ul. Chwaszczyńska 194
tel. [phone]
fax [phone]
e-mail: [e-mail]
www.klimawent.com.pl
805W10
WPA-3-P-1-N
27.09.2016/EN
805W21
WPA-3-P-3-N
27.09.2016/EN
805W11
WPA-5-P-1-N
27.09.2016/EN
805W12
WPA-5-P-3-N
27.09.2016/EN
805W13
WPA-6-P-1-N
27.09.2016/EN
805W14
WPA-6-P-3-N
27.09.2016/EN
805W15
WPA-7-P-3-N
27.09.2016/EN
805W16
WPA-7-P-3-N
27.09.2016/EN
805W17
WPA-8-P-3-N
27.09.2016/EN
805W18
WPA-9-P-3-N
27.09.2016/EN
805W20
WPA-10-P-3-N
27.09.2016/EN
