Klimawent WPA-5-D-N/Ex User manual

1
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
Use and Maintenance Manual
Explosion-proof roof fans
WPA-D-N/Ex
Contents:
1. Introductory Remarks......................................................................................................... 2
2. Application........................................................................................................................... 3
3. Reservations of Producer................................................................................................... 3
4. Technical Data..................................................................................................................... 4
5. Structure and Function....................................................................................................... 7
6. Assembly and Start-up ....................................................................................................... 7
7. Operational Use.................................................................................................................10
8. Troubleshooting Guide.....................................................................................................11
9. Maintenance ......................................................................................................................11
10. Occupational Health and Safety.......................................................................................11
11. Transport and Storage......................................................................................................12
12. Terms of warranty.............................................................................................................12
13. Sample of the Declaration of Conformity ........................................................................13
808W09
WPA-5-D-N/Ex
04.06.2019/EN
808W10
WPA-6-D-N/Ex
04.06.2019/EN
808W11
WPA-7-D-N/Ex
04.06.2019/EN
808W12
WPA-8-D-N/Ex
04.06.2019/EN
808W13
WPA-9-D-N/Ex
04.06.2019/EN
808W14
WPA-10-D-N/Ex
04.06.2019/EN

2
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
1. Introductory Remarks
The purpose of the present Use and Maintenance Manual is to supply User with directions wi-
thin the range of application, installation, start-up and the use of the WPA-D-N/Ex explosion-
proof roof fans.
Installing, start up and operational use are exclusively admissible after getting acquaint-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for oursel-
ves the revision possibility of the draft and technological changes improving their functional fea-
tures and safety.
Construction of the WPA-D-N/Ex explosion-proof roof fans meets the requirements of the current
state of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of February 26th, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/

2014/34/EC ATEX Directive of the European Parliament and of the Council of February 26th,
2014 on the harmonisation of the laws of Member States relating to equipment and protective
systems intended for use in potentially explosive atmospheres.
/ Journal of Laws EC L96 of 29.03.2014 /
Additionally, the appliance meets following harmonized standard:
●
EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”.
●
EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machines.
Part 1: General requirements”.
●
EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”.
●
EN 80079-0:2013/A11:2014
–
“Electrical appliances in areas of gas explosion risk. Part 0:
General requirements”.
●
EN 60079-7:2016-02
–
“Electrical appliances for areas of gas explosion hazard.
Part 7: Increased safety construction “e”.
●
EN 1127-1:2011
–
“Explosive atmospheres. Explosion prevention and protec-
tion. Basic terminology and methodology”.
●
EN ISO 80079-36:2016-07
–
“Explosive atmospheres –Part 36: Non-electrical equip-
ment for explosive atmospheres. Methodology and requi-
rements.
●
EN ISO 80079-37:2016-07
–
“Explosive atmospheres –Part 37: Non-electrical equip-
ment for explosive atmospheres. Non-electrical types of
protection. Constructional safety “c”, supervised ignition
“b”, immersion in a liquid “k”.
●
EN 14986:2017-02
–
“Designing of fans applied in areas of explosion hazard”
●
ISO 14694:2003+AMD1:2010
–
“Industrial fans – Guidelines on the quality of balancing
and the vibration level.
●
ISO 14695:2008/AC:2017-10
–
“Industrial fans –Methods of measurements of vibration
of fans.

3
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
2. Application
WPA-D-N/Ex explosion-proof roof fans are intended for use in areas of explosion risk, where
explosive atmosphere, (i.e. mixture of flammable substances in form of gas and vapour with
the air, whereby after ignition –in atmospheric conditions –the burning mass would expand
within the whole non-burning mixture) is likely to occur. The fans have been constructed for
application within temperature range -20 up to 40C. The forwarded air must be dry, of dus-
tiness not exceeding 0,3 g/m3, without viscous, aggressive contaminants and of maximum
temperature +60C.
Increased fan pressure guarantees their application in systems with local exhausts and filte-
ring units, and additionally in ventilation ductings of significant flow resistances.
According to the 2014/34/EC ATEX Directive and EN ISO 80079-36 the device carries the
level of protection: “HIGH” –as a device classified for Group II, Category 2, and it can
work in areas where explosive atmospheres are likely to occur. The fan can be applied
in zones 1, 2(G).

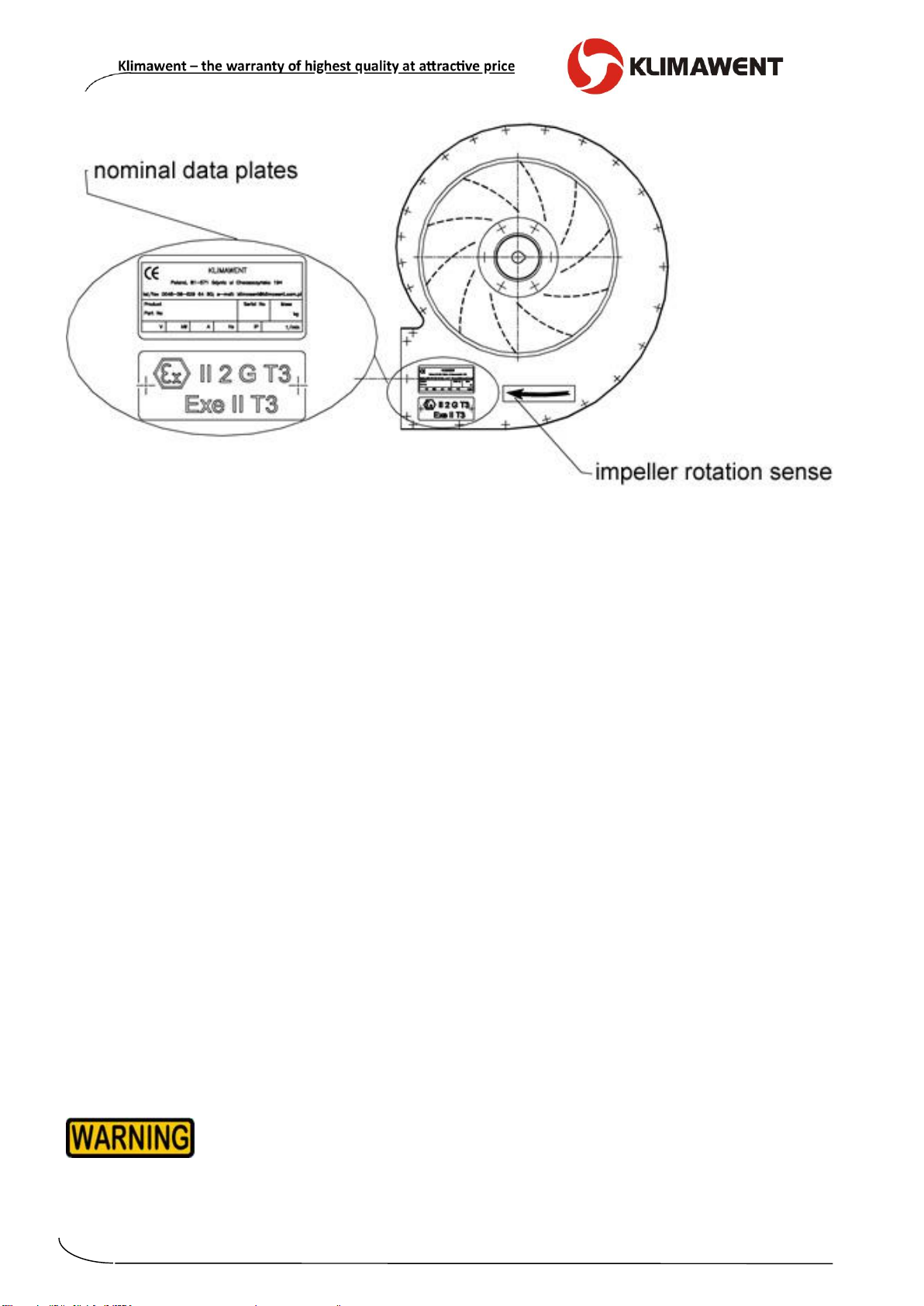

The appliance is marked on the nominal data plate:
II 2 G c Ex e II T3
Marking of the operational conditions of the device:group / category / hazard / class.

marking for explosion proof properties of the appliance,

group II –the device is designed for on-ground work, in factories, in areas of explosion
hazard, but this cannot be methane (firedamp)hazard neither carbon dust occurrence,

category 2 –the device is designed for application in areas where explosive atmosphe-
res are likely to occur,

gas hazard G,

“c” –a sort of protection against ignition –constructional protection,

Ex –mark of the electrical device –constructed and tested according to the European Stan-
dards for work in areas of explosion hazard,

execution “e” –type of construction of the motor (a motor of increased safety)

gas explosion group II –occurring in on-ground factories –the fans are constructed accor-
ding to the PN-EN 14986:2009, whereby they can be applied for gases in explosion groups
IIAand IIB and hydrogen,

temperature class T3 –the surface temperature of any part of the appliance should not ex-
ceed 200ºC (during the normal operation). The device can be used safely in explosive at-
mospheres belonging to temperature classes T1, T2, T3.
3. Reservations of Producer
A.
Manufacturer accepts no liability for any consequences following from the operational use
that is in contradiction to the purpose of application.
B.
Installing of any additional elements not belonging to the normal device structure (or acces-
sory set) is not acceptable.
C.
Do not undertake any structural changes or constructional modifications on the device on
one’s own.
D.
Protect the appliance’s housing from mechanical damage.
E.
Prior to installing check the load carrying capacity of the building structure where the device
will be mounted. Unsure mounting could cause hazard to personnel/people in vicinity and
effect in damage of the device.
F.
Do not use the fan for conveying the air containing viscous impurities that
could deposit (build up)on the device surface, especially on the impeller.
G.
Neither use it for forwarding the air with aggressive pollutants which will
destructively effect the device structure.

4
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
H.
During operation, the maximum impeller rotations should not exceed the nominal rotations.
I.
Manufacturer is not responsible for wounds, injuries, body laceration experienced
by User or personnel during the improper operational use.
4. Technical Data
CAUTION: As standard, in case of the WPA series of fans, are installed motors adapted
for use in vertical position with their shafts downwards:
-IMV1 [IM3011]in application with flange motors
-IMV15 [IM2011/IM2111]in application with flange-feet motors.
Installing of motors in another position than vertical is possible exclusively on demand
of customer.
Table No.1
*
noise has been measured with the applied silencer TK L=500 mm installed at the fan inlet
**
weigh of the fan „a/ b”:
a–with horizontal outlet
b–with vertical outlet
1.
max temperature of the forwarded air is +60ºC; maximum temperature in the work zone +40ºC;
2.
max dustiness of the forwarded air should not exceed 0,3 g/m3.

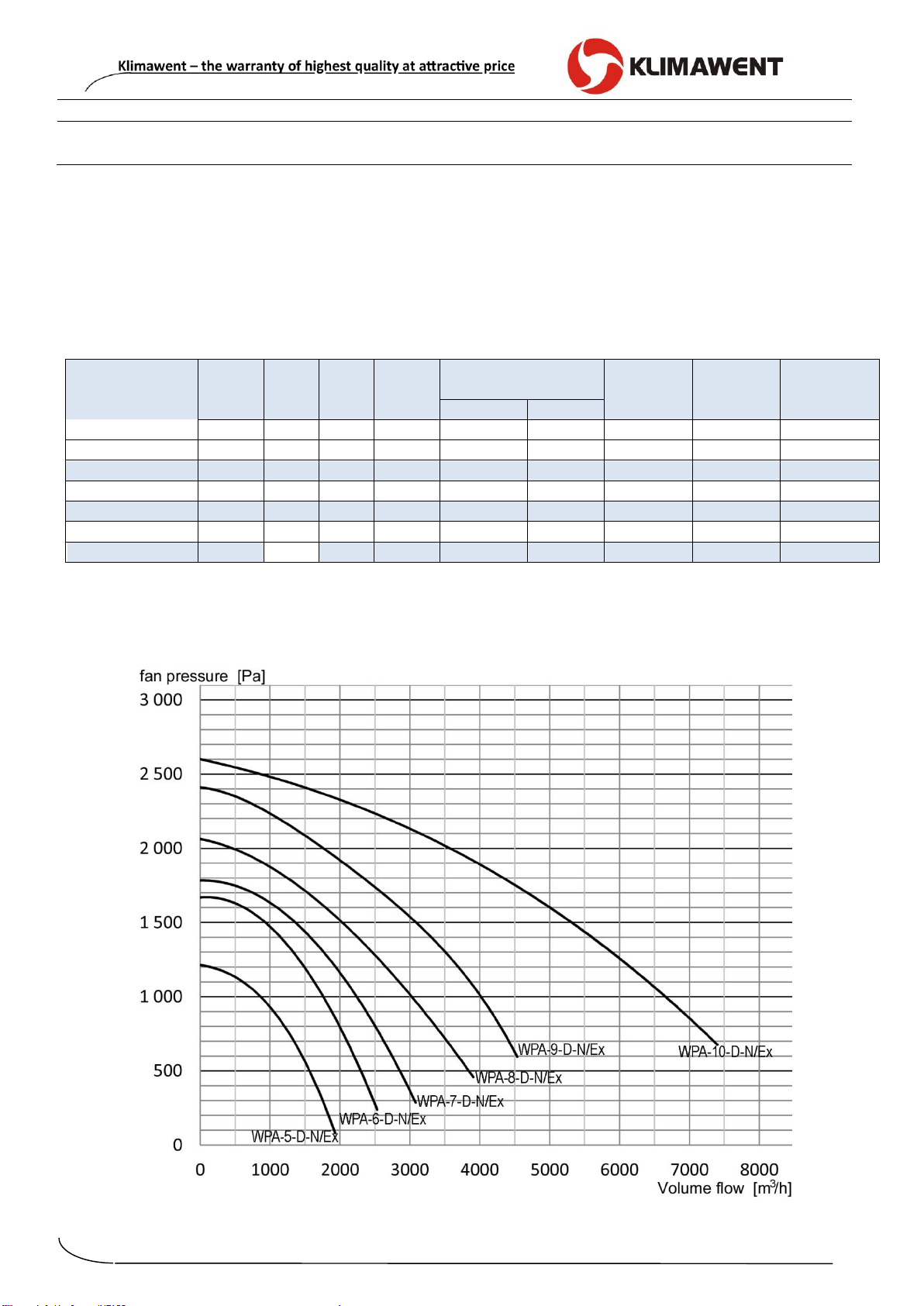

Fig. No.1 –WPA-D-N/Ex –Flow charts
Type
Synchro-
nous
rotations
Supply
voltage
Motor
rate
Ingress
protect-
tion
Acoustic pressure level
[dB(A)] from distance
Maximum
volume flow
Maximum
vacuum
Weight**
1m
5m
[1/min]
[V]
[kW]
1m
5m
[m3/h]
[Pa]
[kg]
WPA-5-D-N/Ex
3000
3x400
0,55
56
73 / 67*
59 / 53*
1900
1250
25 / 26,8
WPA-6-D-N/Ex
3000
3x400
0,75
56
78 / 75*
64 / 61*
2500
1700
26 / 27,8
WPA-7-D-N/Ex
3000
3x400
1,1
56
81 / 74*
67 / 60*
3100
1800
31 / 33,4
WPA-8-D-N/Ex
3000
3x400
1,5
56
82 / 78*
68 / 64*
3900
2050
38 / 40,4
WPA-9-D-N/Ex
3000
3x400
2,2
56
86 / 82*
72 / 68*
4500
2400
42 / 44,4
WPA-10-D-N/Ex
3000
3x400
4,0
56
87 / 81*
73 / 67*
7400
2600
74 / 81,5

5
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
Fig. No.2 –WPA-D-N/Ex with horizontal outlet
Table No.2 –WPA-D-N/Ex with horizontal outlet –Dimensions
Type
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
n
[pcs]
G
[mm]
H
[mm]
J
[mm]
WPA-5-D-N/Ex
905
525
60
160
160
194
6
6,5
500
140
WPA-6-D-N/Ex
915
550
60
160
160
194
6
6,5
500
140
WPA-7-D-N/Ex
965
570
60
200
160
194
6
6,5
535
155
WPA-8-D-N/Ex
990
600
60
200
200
224
234
246
8
6
8
9,0
6,5
9,0
535
155
WPA-9-D-N/Ex
1030
665
60
200
200
224
234
246
8
6
8
9,0
6,5
9,0
605
155
WPA-10-D-N/Ex
1050
675
100
250
250
275
8
9,0
720
232

6
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
Fig. No.3 –WPA-D-N/Ex with vertical outlet
Table No.3 –WPA-D-N/Ex with vertical outlet –Dimensions
Type
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
F
[mm]
n
[pcs]
G
[mm]
H
[mm]
J
[mm]
WPA-5-D-N/Ex
700
525
60
160
160
194
6
6,5
810
140
WPA-6-D-N/Ex
715
550
60
200
160
194
6
6,5
815
155
WPA-7-D-N/Ex
815
570
60
200
160
194
6
6,5
840
155
WPA-8-D-N/Ex
840
600
60
200
200
224
234
246
8
6
8
9,0
6,5
9,0
840
155
WPA-9-D-N/Ex
880
665
60
200
200
224
234
246
8
6
8
9,0
6,5
9,0
840
155
WPA-10-D-N/Ex
960
675
100
250
250
275
8
9,0
960
232
Table No.4 –Specification of types of elbows for fans with vertical outlet
Type of the fan
Elbow
Type of the elbow
Weight [kg]
WPA-5-D-N
KL-160-WPA
1,8
WPA-6-D-N
KL-160-WPA
1,8
WPA-7-D-N
KL-200-WPA
2,4
WPA-8-D-N
KL-200-WPA
2,4
WPA-9-D-N
KL-200-WPA
2,4
WPA-10-D-N
KL-250-WPA
7,5

7
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
5. Structure and Function
The fan consists of a spiral steel housing, Ex motor, aluminium radial impeller (directly instal-
led on the motor shaft) and a steel sheet motor hood. The impeller blades feature a shape
of an aeroplane wing and they provide low noise level. The fan inlet is equipped with a flange
to install the fan on a roof base or on a wall bracket.
Typical feature of the fan is the silencer, fastened at the outlet of the spiral housing.
For safety reasons, both inlet and outlet are equipped with a protective grill. It is recommended
to install the TK silencers at the fan inlet (see acoustic data in Table No.1).
ADDITIONAL EQUIPMENT –delivered on separate order:
■ roof bases or wall brackets
■ silencers
The fan housing is equipped with a protective cable to dissipate the electrostatic charges away.
There is a terminal for the protective cable on the motor housing. Additionally, there is located
a terminal box for supply. Hemispheric motor hood is of aluminium sheet and protects from at-
mospheric factors / weather conditions.
6. Assembly and Start-up
The appliance can work outside the industrial rooms (outdoor application). Manufacturer sug-
gests installing the fan on the roof base or on a wall bracket (as an element of optional equip-
ment constructed upon separate documentation).
The inlet- and outlet connection fitting pieces ought to be fastened to the ventilation system
by means of flexible connectors (of antistatic material). The way of fastening of the connections
depends on the established technologies of the system execution and should be specified at
the site of installing. User performing the assembly is strictly responsible for full compli-
ance with the provisions of EN ISO 13857.
6.1. Guidelines of installing:
a/
VENTILATION SYSTEM –to which the WPA-D-N/Ex fan will be connected,
must be designed and executed in accordance with the valid regulations and
standards –according to the local conditions of explosion risk.
b/
SUPPLY SYSTEM - to which the WPA-D-N/Ex fan shall be connected must be
designed and executed in accordance with the valid regulations and standards
–according to the local conditions of explosion risk.
–
Prior to connection, make sure if the parameters of the hitherto existing electrical supply sys-
tem, are in accordance with the parameters on the nominal plate. Otherwise, the connection
steps cannot be executed.
–
Any steps of connection activity can be carried out by an authorised person with qualification
–according to the valid regulations and standards.
–
The whole ventilation system must have the efficient performed installation dissipating the
electrostatic charges. Any joints / connections between ventilation sections should have
electrostatic connections made of protective cable.
–
Check if the metal ducts are grounded correctly. Additionally, provide the grounding to the
motor housing, by joining the protective cable with the contact on the motor housing.

8
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
Fan
Motor rate
[kW]
Current
[A]
Motor type
Cable
W1, W2
G-Y protective
cable W3, W4
WP-5-D-N/Ex
0,55
1,4
SKh 71-2B; 3x400V; 50 Hz
2720 r.p.m.; IMV1; BESEL
should be
selected
by User
H05V-K 1G6
WP-6-D-N/Ex
0,75
1,8
SKh 80-2A; 3x400V; 50 Hz;
2760 r.p.m.; IMV1; BESEL
WP-7-D-N/Ex
1,1
2,4
SKh80-2B; 3x400V; 50 Hz;
2780 r.p.m.; IMV1; BESEL
WP-8-D-N/Ex
1,5
3,5
SKh 90S-2; 3x400V; 50 Hz;
2850 r.p.m.; IMV1; INDUKTA
WP-9-D-N/Ex
2,2
4,7
SKg 90L-2; 3x400V; 50 Hz;
2860 r.p.m.; IMV1; INDUKTA
WP-10-D-N/Ex
4,0
7,5
SKg 112M-2; 3x400V; 50 Hz
2875 r.p.m.; IMV1; INDUKTA
Caution: The steel plate for current-equilibrating connections
–as in the Fig. No 1012-017078 of mechanical documentation
–referring the fans WPA-10-D-N/Ex; WPA-10-E-N/Ex.
Caution:
1. Supply voltage: 3x400V; 50Hz
2. Continuous work S1
3. Ingress protection IP56
4. Ambient temperature: -20ºC up to +40ºC
5. Insulation class F
6. To the fan housing connect the grounding cable
of length 400mm, ended with a KOI terminal.
7. Installations and devices for use in areas of
explosion risk –should be executed according to
–arrangements of the 2014/34/EC ATEX Directive,
–valid regulations and standards.
*
S1 isolating switch –in Ex execution. It is suggested to install
it near the fan. The application of the isolating switch is not
obligatory and depends on the decision of Investor.
Cables W1, W2 have to be selected by Investor, with reference
to the fan motor rate, cable length, outline of the cable, voltage
drop.
W3, W4 are cables for local equilibrating connections of cross-
section 6mm2, length 300 mm, ended with adequately selected
eye terminals, designed for connection to the fan fitting pieces.
CAUTION: The motor windings must be connected according
to the data on the nominal data plate of the motor and the
connection diagram (placed on the terminal box of the motor).

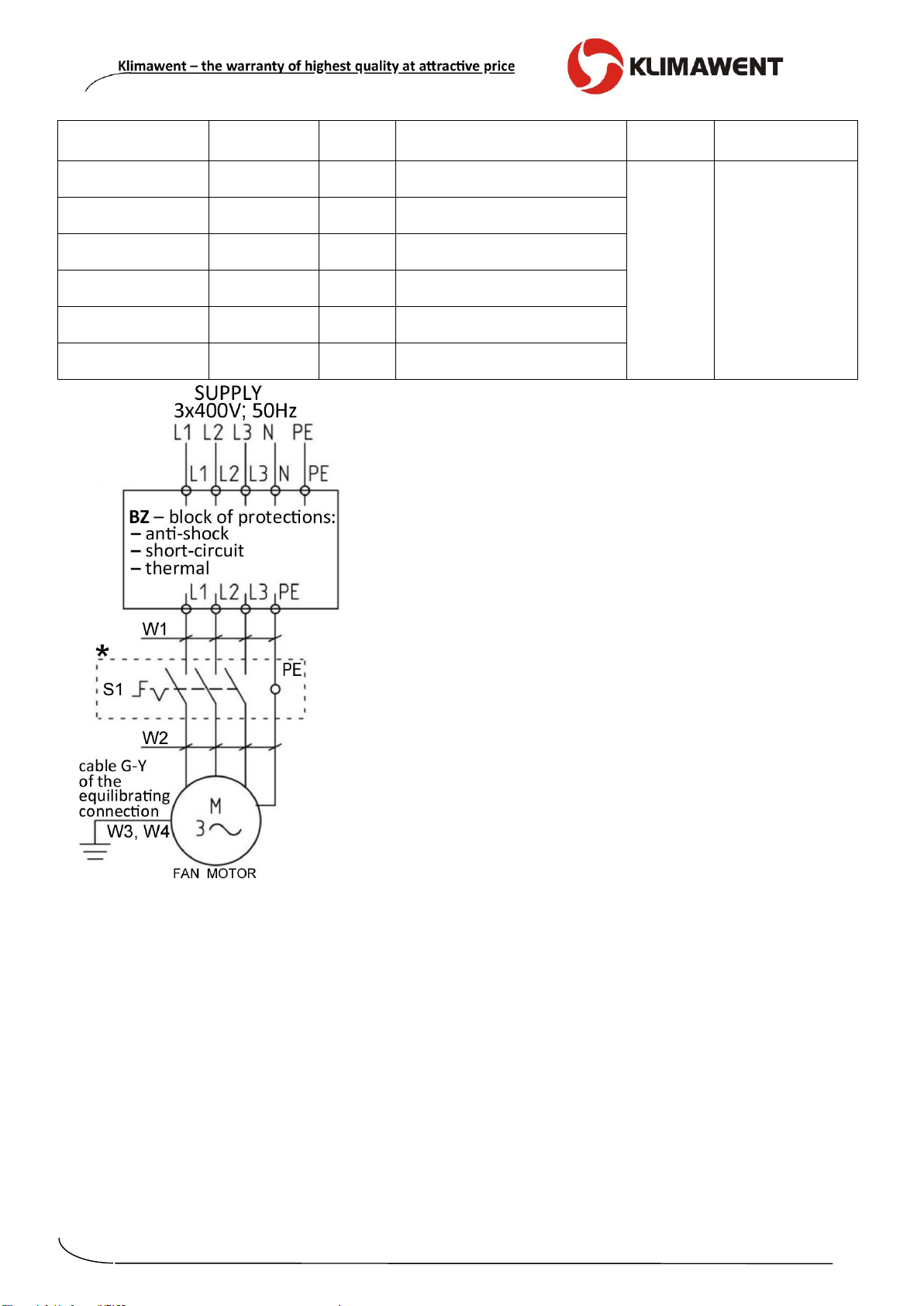

Fig. No. 4 –Connection diagram of the fan WPA-D-N/Ex

9
04.06.2019 explosion-proof roof fan WPA-D-N/Ex

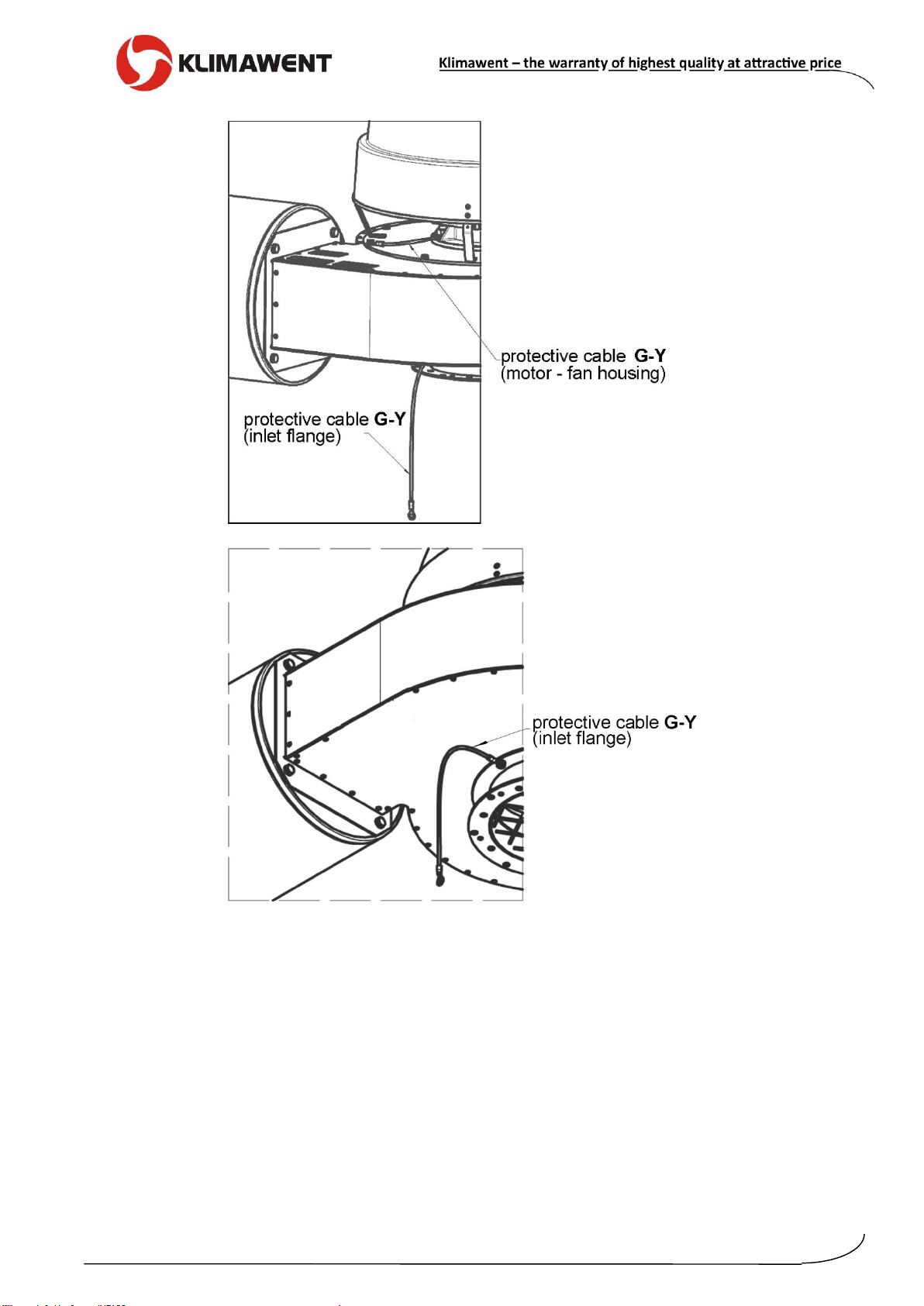

Fig. No.5 –Placement of the protective cables
6.2. Safety control before the start-up:
a/
check if all the mechanical connections are carried out correctly
b/
check the correctness of electrical connections and phase sequence
c/
examine the correctness of the connection between the motor and PE protective cable
After the device is started up –check if the impeller rotation sense is according to the arrow
on the housing.

10
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
Fig. No.6 –Placement of the nominal data plates and the impeller rotation arrow
7. Operational Use
Construction of the device assures reliable function without continuous routine technical super-
vision. Periodically, it is important to check systematically the mechanical and electrical
connections, the state of grounding and also to provide efficient cooling to the motor.
For incorrect function is considered:
a/
forwarding the media exceeding the admissible temperature +60C
b/
conveying aggressive media
c/
conveying the media of high dustiness or with high pollution particles content,
d/
use of the fan in areas where the ambient temperature exceeds +40C.
Consequences of incorrect use:
a/
damage of bearings
b/
damages caused by corrosion
c/
loss in balance of the rotating elements
d/
vibrations
e/
deformations
f/
damages caused by friction
Risks which can occur due to improper use –damages or other defects caused by:
●
burst of the impeller
●
break of the shaft
●
fatigue crack of the material
●
ignition and explosion caused by sparks
In case when any symptoms of incorrect device function (noise increase, vibrations, reduced
flow efficiency) are noticed, the device should be disconnected from the power system, and
thoroughly revised (with reference to the reason of disturbance during the operation).
According to 2014/34/EC Directive, in case of any repair or replacement
of a spare part –put a notice on an additional plate and in the enclosed documentation
(a register of repair activities, etc.). This is the duty of User!

11
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
A list of frequent functional disturbances and ways of their elimination, is exposed below.
8. Troubleshooting Guide
Table No.4
Problem
Possible reason
Corrective action
1.
Significant, sudden decrease
Pollutants, objects reducing the
Clean the ventilation
of intake air volume.
air flow deposited at the inlet grill.
conduits.
2.
Sudden vibrations of the
Obstacle objects got stuck
Disconnect the fan from
fan occur.
within the impeller.
the power system,
and remove the obstacle.
The impeller is faulty.
Replace the impeller and
the motor for new.
3.
It is not possible to switch
Fade of one of the phases
Adjust to gain the correct
on the fan.
or low voltage.
voltage.
The protective block activated.
Adjust the correct settings
of protections.
9. Maintenance
To obtain correct functional performances and to meet the safety rules, it is recommended
submit the fan to technical revision in regular periods of time.During the revision take
into account the function of the device as well as the technical state of its elements.
Technical revisions on the fan must be executed by a qualified person with
adequate authorization. Additionally, the fan necessarily should by discon-
nected from the power supply system.
Within the scope of technical revision carry out following steps:
–
as a routine, keep clean the inlet grill
–
periodically, examine and tighten up the mechanical- and electrical connections; moreover
when defective function is by noise or visually spotted –undertake the revision of the as-
sembly.
–
execute the revision of the fan (motor –according to the instructions of its manufacturer).
Within the scope of maintenance, clean the fan from deposited impurities.
Before any activities carried out on the fan it is important to:
Before the start-up, follow subsequent steps:
–
Disconnect the fan from the power supply. Exemption from this are
activities that must be executed at the running fan, i.e. vibration mea-
surements (especially here are important safety regulations).
–
Wait until the fan impeller stops rotating.
The fan can be restarted after the control steps, (described in Section 6 “Assembly and Start
-up”), are carried out.
10. Occupational Health and Safety
Start-up and the operational use of the fan are admissible after getting acquainted with
the contents of the present Use and Maintenance Manual. The fan shall not cause any ha-
zard under the condition it is correctly and firmly installed on the roof base or other structural
element of the building.
Any installation activities related to the power supply system, have to be carried out strictly ac-
cording to the enclosed Connection Diagram and in accordance with the instructions given in
Section 6 of the present Use and Maintenance Manual.

12
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
Connection to the power supply system ought to be carried out by an au-
thorised person with qualifications, according to the being in force regulations.
The fan motor should be equipped with protection against short-circuit and overload effects.
In the course of operational use, examine the fan connection to the PE protective cable.
Any revision activity and repair must be executed after the fan is disconnec-
ted from the power supply system.
Approaching with “loose garment/clothing” or putting the hand towards the
open inlet of the running fan can cause hazard of accident and severe disabi-
lity.
11. Transport and Storage
Fans: WPA-5-D-N/Ex, WPA-6-D-N/Ex, WPA-7-D-N/Ex and WPA-8-D-N/Ex ,WPA-9-D-N/Ex
are wrapped in foil and in cardboard packages. On the package surface is written its weight.
Whereas, large fans as WPA-10-D-N/Ex are solely wrapped in foil and placed on pallet.
During loading re-loading and transport, the device neither should be thrown nor knocked down.
Do not put any load on top of the device. It is inadmissible to put one device on top of another
(stacking). During the transport protect them from atmospheric factors / weather conditions and
from mechanical damage. The fan must be stored in dry rooms and areas of efficient ventilation.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”. The war-
ranty does not comprise:
●
mechanical damages and malfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of application
and with the present Use and Maintenance Manual,
●
any damages being caused during improper transport, storage or incorrect maintenance.
Infringement of the Clause GSection 3 “Reservations of Producer” of the present Use and
Maintenance Manual and especially modifications undertaken by User on one’s own or use
in contradiction with the purpose of application –shall result in the loss of warranty validity.

13
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
13. Sample of the Declaration of Conformity
Declaration of conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, Chwaszczyńska 194
A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A.
hereby declares that the appliance:
name: Explosion-proof roof fans
type/model: WPA-D-N/Ex
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th, 2006 on machinery –amen-
ding the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of February 26th, 2014 on the harmonisation of the
laws of the Member States relating to the making available on the market of electrical equipment designed for use within
certain voltage limits. /Journal of Laws EC L96 of 29.03.2014/

2014/34/EC ATEX Directive of the European Parliament and of the Council of February 26th, 2014 on the harmonisation of
the laws of Member States relating to equipment and protective systems intended for use in potentially explosive atmosphe-
res. / Journal of Laws EC L96 of 29.03.2014 /
The appliance meets following harmonized standard:
●
EN ISO-12100:2012
–
“Safety of machinery – Basic concepts, general principles for design. Ha-
zard assessment and risk reduction”.
●
EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machines. Part 1: Gene-
ral requirements”.
●
EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard zones from be-
ing reached by upper and lower limbs”.
●
EN 80079-0:2013/A11:2014
–
“Electrical appliances in areas of gas explosion risk. Part 0: General re-
quirements”.
●
EN 60079-7:2016-02
–
“Electrical appliances for areas of gas explosion hazard. Part 7: Increased
safety construction “e”.
●
EN 1127-1:2011
–
“Explosive atmospheres – Explosion prevention and protection. Basic ter-
minology and methodology”.
●
EN ISO 80079-36:2016-07
–
“Explosive atmospheres – Part 36: Non-electrical equipment for explosi-
ve atmospheres. Methodology and requirements.
●
EN ISO 80079-37:2016-07
–
“Explosive atmospheres – Part 37: Non-electrical equipment for explosi-
ve atmospheres. Non-electrical types of protection. Constructional safety
“c”, supervised ignition “b”, immersion in a liquid “k”.
●
EN 14986:2017-02
–
“Designing of fans applied in areas of explosion hazard”
●
ISO 14694:2003+AMD1:2010
–
“Industrial fans –Guidelines on the quality of balancing and the vibration
level.
●
ISO 14695:2008/AC:2017-10
–
“Industrial fans – Methods of measurements of vibration of fans.
The appliance is marked on the nominal data plate:
II 2 G c Ex e II T3
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl

14
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
NOTES:

15
04.06.2019 explosion-proof roof fan WPA-D-N/Ex
NOTES:

16
explosion-proof roof fan WPA-D-N /Ex 04.06.2019
NOTES:
