Knight Agile Boost Desk User manual

knightgroup.co.nz
Tools Required: Powered Screwdriver
Assembly Instructions
Agile Boost Desk
Digital Handset

Page 1
Assembly Instructions
knightgroup.co.nz
Page 1
Assembly Instructions
Please carefully read the assembly manual and direction for use prior to installment, use and maintenance of the desk frame to
gain a complete understanding of its contents. It provides you with important information about the safety, use, installation and
maintenance of the desk.
WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS REGARDING
THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS BODILY INJURY.
SAFETY
• The desk must be used in a safe manner. Inappropriate use may cause damage to the table and/or cause bodily harm to the
user or persons nearby.
• Do not tamper with electrical components as this may lead to serious bodily harm.
• Only connect the electric desk frame to the prescribed mains power voltage
• Do not use the desk frame to lift people.
• Retain this operation manual & pass it on to any future owner.
USAGE
• The height-adjustable desk is designed for use in dry work environments only.
• Desk is height adjustable so that it can be set to the user’s most ergonomic working height. The user should seek professional
help to establish their optimum working height.
• The desk has been designed as a devise to elevate the users work surface and associated office peripherals. Do not use the
desk frame for any other purposes than that which it has been designed for. Any other use is at user’s own risk!
• Do not crawl, lie or move around under the desk frame, and do not sit or stand on the desk frame.
• CHILDREN should only use the desk when supervised by adults.
• In the event of the occurrence of jarring sounds during operation, STOP using the desk and please contact the dealer.
• Liability: The manufacturer accepts under no circumstances warranty claims or liability claims for damages arising from
improper use or handling of the desk frame other than that described in this operation manual.
SET UP AND INSTALLATION
• Assemble the desk frame according to the assembly instructions.
• To prevent possible scratches or damage, assemble the product on a soft surface such as a blanket, carpet or packaging.
• Place the desk in a safe distance from window frames, radiators, furniture etc. so that persons cannot become trapped.
• Level the desk with the adjustable feet ensuring that the desk is stable.
• Check that no cables can get jammed.
• Connect the desk to the 110 or 230 VAC power outlet.
• The desk is now ready for use.
Important
Agile Boost Desk
DESK TECHNICAL DATA
• Height Range: 700 - 1115mm (Height measurements includes worktop)
• Speed: 22mm/s
• Max Static Load Weight: 80kg
• Input Voltage: 100-240V
• Duty Cycle: 10% MAX 2min on 18min off

Page 2
Assembly Instructions
knightgroup.co.nz
Agile Boost Desk
Parts:
Tools:
1x LEFT LEG
10x M6x12 8x M8x30 10x ST5.0x23*4x ST4.2x161x HANDSET1x CONTROL BOX 1x POWER CORD
1x RIGHT LEG
3x HEX KEYS
M2.5 M4 M5
*Supplied when purchased with worktop.
1x HEX BAR2x FEET
Recommended
2-person Step
1
1
7
2
8
1x LONG RAIL
4 5 6
2x SIDE FRAME
3
9
5
5
2
3
4
6
78
9
3

Page 3
Assembly Instructions
knightgroup.co.nz
Page 3
Assembly Instructions
Step 1
Step 2
Agile Boost Desk
Loosen screws in long rail and adjust length, fix left and right end of long rail to legs using M6x12 and
M4 hex key.
M4
4x M6x12
Attach side frames to left and right leg using M6x12 screws and M4 hex key.
M5
M4
Loosen
M5
M5
Loosen
6x M6x12

Page 4
Assembly Instructions
knightgroup.co.nz
Page 4
Assembly Instructions
Step 3
Step 4
Agile Boost Desk
Loosen grub screws on hex bar and insert from A, adjust the length and connect other end to B.
8x M8x30
M5
Fix bases to left and right legs using M8x30 screws and M5 hex key.
Loosen
M2.5
A
B

Page 5
Assembly Instructions
knightgroup.co.nz
Page 5
Assembly Instructions
10x M6x12
Step 5
Step 6
Agile Boost Desk
Adjust long rail and hex bar length to suit worktop, then fix worktop to frame using ST5.0x23 wood screws.
Tighten
M2.5
M5
Tighten
Tighten long rail screws and hex bar grub screws.
10x ST5.0x23
Worktop Length
1200mm 1125mm
1500mm 1425mm
1800mm 1470mm

Page 6
Assembly Instructions
knightgroup.co.nz
Page 6
Assembly Instructions
Step 7
Agile Boost Desk
2x ST4.2x16
2x ST4.2x16
Attach control box with ST4.2x16 screws on right hand side on front side of long rail and connect cable.
Step 8
Attach digital handset with ST4.2x16 screws on right hand side on front edge of worktop and connect cable to
control box.

Page 7
Assembly Instructions
knightgroup.co.nz
Page 7
Assembly Instructions
Step 9
Agile Boost Desk
Plug power cord into control box.
Step 10
Plug desk into correct power supply and follow digital handset instructions to setup your desk.

Page 8
Assembly Instructions
knightgroup.co.nz
Page 8
Assembly Instructions

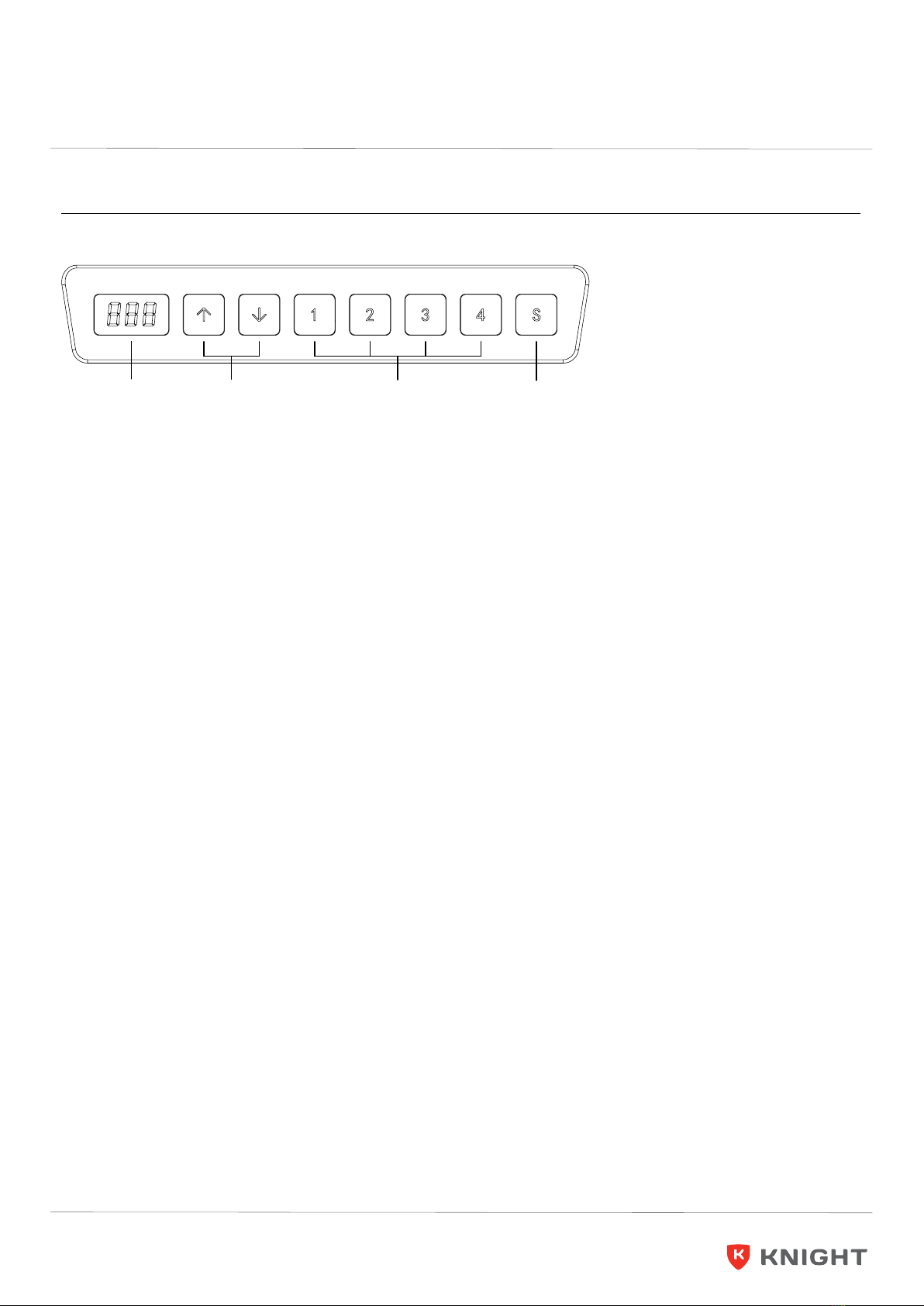

Digital Handset
Agile Boost Desk
The whole handset surface is a button panel. If there is no press
within 30 seconds, the screen is locked and 1/2/3/4/S keys are locked
correspondingly, press the Up or Down buttons first, handset can
then be used when the display screen lights up.
OPERATION
• Display screen - Shows current height of desk
• Up & down button - Push and hold button to adjust desk height
until you reach optimum height.
• Memory button - After setting the memory desk height, desk will
auto adjust to the chosen setting.
• How to set memory buttons - Click the “S” key when running to a
specific point. The display screen displays “S-” and “-” flashes. At this
time, press “1-4” button to store the position to the corresponding
label, the memory height is successfully saved. Press 1/2/3/4, the
desk will move to the saved memory height automatically.
• Set button (S) - Press the “S” key when memory and internal
parameters need to be set.
INITIALIZATION
1. When “RST” is on the display screen, press the “DOWN” button
until the desk frame reaches its lowest point. After hearing the
“di” sound and desk frame rebounds, initialization is completed.
(P.S. The button cannot be released during this operation,
otherwise the initialization will fail).
2. Forced initialization: Press the “DOWN” button until the desk
frame reaches its lowest point, then release the button and press
it again for about 5 seconds until hear the “di” sound and desk
frame rebound, and the initialization is completed.
3. Restore the factory settings: When controller is changed or the
parameters need to be restored to the factory settings, press the
“DOWN” and “Up” buttons simultaneously, you will hear the first
“di” sound after about 5 seconds and second “di” sound after 10
seconds. When the display screen shows “RST”, please operate
refer to Step 1 above.
SAFETY FUNCTION
When the desktop is on the rise or down, encountered reverse
resistance,the desk will rebound.
ERROR CODES
E1, E6, E7 = Power fault
Change power.
E2 = Synchronous height over 1cm
Implement the initialization Step 1.
E4 = Handset fault
Unplug and replug the cable of handset.
E5 = Anti-collision alert
Rebound reminder, normal condition.
E8 = Desktop sloping
Check the desktop.
E11, E21 = Motor defect
Inspect the motor wire.
E12, E22 = Controller fault
Exchange the controller.
E14~E17, E24~E27 = Motor fault
Change motor.
E18, E28 = Overload protection
There is too much weight on desk. Lighten load, power off and restart.
HOT = Overtime power protection
Automatic recovery, stop using for 20 minutes.
Display
Screen
Memory
Buttons
Set
Button
Up & down
Buttons

Page 9
Assembly Instructions
knightgroup.co.nz
Agile Boost Desk
Reset original status: Press “UP” and “DOWN” for 10 seconds until
you hear a beep sound, now the system into factory default data.
Limited height setting: Press “UP” and “DOWN” buttons for 5
seconds until you hear a beep sound, limited height setting success.
(minimum limited height < 96, maximum limited height > 97).
Lock and unlock: Press “UP” and “S” button for 5 seconds, screen
display “LOC”, system locked up, Press “DOWN” and “S” button for 5
seconds, screen display “LOC” turn to number, system unlocked.
Pressing “S” key for 5 second until digital screen display shows
“S-1”, press “UP” or “DOWN” key to choose the below.
S-1 = Metric and inch display
Select “up” & “down” buttons to navigate to selection
0 - Metric
1 - Inch
Press “S” to make selection and save.
S-2 = Gyroscope anti collision sensitivity
Select “up” & “down” buttons to navigate to selection
0 - Shut down
1 - The most insensitive
8 - The most sensitive
Press “S” to make selection and save.
S-3 = Sensitivity of upwards anti collision
Select “up” & “down” buttons to navigate to selection
0 - Shut down
1 - The most insensitive
8 - The most sensitive
Press “S” to make selection and save.
S-4 = Sensitivity of downwards anti collision
Select “up” & “down” buttons to navigate to selection
0 - Shut down
1 - The most insensitive
8 - The most sensitive
Press “S” to make selection and save.
S-5 = Basic height setting
Use “up” & “down” buttons to adjust the basic height.
S-6 = “S” button height operation choose
Select “up” & “down” buttons to navigate to selection
0 - Long pressing desk running, hands off desk stop running
1 - Click desk running, second click to stop running
Press “S” to make selection and save.
S-7 = Operation duty recycle
Select “up” & “down” buttons to navigate to selection
0 - Indicate shutting 2min/18 min duty recycle, controller under
temperature protection
1 - Indicate start 2min/18min
Press “S” to make selection and save.
S-8 = Select desk surface decline sensitivity
Select “up” & “down” buttons to navigate to selection
0 - Shut down
1 - 0.5°
2 - 1.0°
3 - 1.5°
4 - 2.0°
5 - 2.5°
6 - 3.0°
7 - 3.5°
8 - 4.0°
Press “S” to make selection and save.
Advanced Function Settings
