KOBE IS2136SQB Troubleshooting guide

KOBE Brand Range Hood
Model No. / N
os
de modèles / Modelo No.
IS2136SQB
IS2142SQB
IS-21 SERIES – 18” HEIGHT
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
MANUEL D'INSTALLATION
ET MODE D'EMPLOI
INSTRUCCIONES DE INSTALACIÓN
Y MANUAL DE OPERACIÓN

[ENGLISH]..................................................................................................................................1
[FRENCH].................................................................................................................................22
[SPANISH]................................................................................................................................43

1
[ENGLISH]
[ENGLISH][ENGLISH]
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.....................................................................................2
COMPONENTS OF PACKAGE...................................................................................................4
INSTALLATION...........................................................................................................................5
OPERATION INSTRUCTIONS....................................................................................................9
MAINTENANCE........................................................................................................................10
SPECIFICATIONS ....................................................................................................................12
MEASUREMENTS & DIAGRAMS.............................................................................................13
PARTS LIST..............................................................................................................................14
CIRCUIT DIAGRAM..................................................................................................................16
TROUBLE SHOOTING.............................................................................................................17
DISCLAIMER............................................................................................................................18
WARRANTY .............................................................................................................................19
PRODUCT REGISTRATION.....................................................................................................21
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

2
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING : TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING
WARNINGWARNING
WARNING : TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF ARANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

3
What to Do In The Event Of a Range Top Grease Fire
• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN – You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.
• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.

4

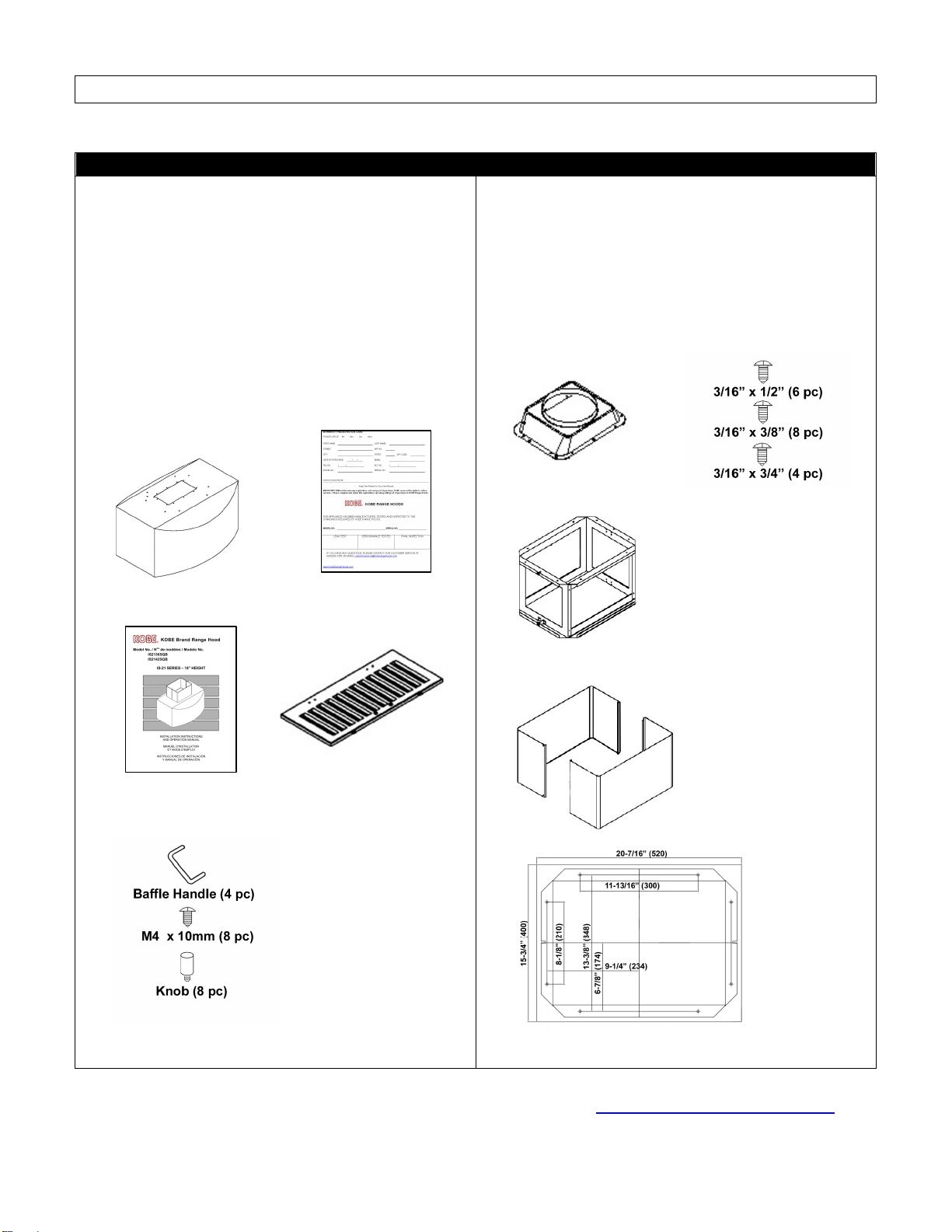

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
RANGE HOOD BOX
(Box 1 of 2)
DUCT COVER
BOX
(Box 2 of 2)
 KOBE Range Hood – 1
 Warranty Registration Card –1
 Instructions Manual – 1
 Baffle Filter
-4 (36” & 42”)
 Screw Package –1
 
 

 Ducting Transition –1
 Screw Package –1
 Support Frame – 1
 Duct Cover – 1
 Mounting Template – 1




- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT (626-775-8880).

5
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

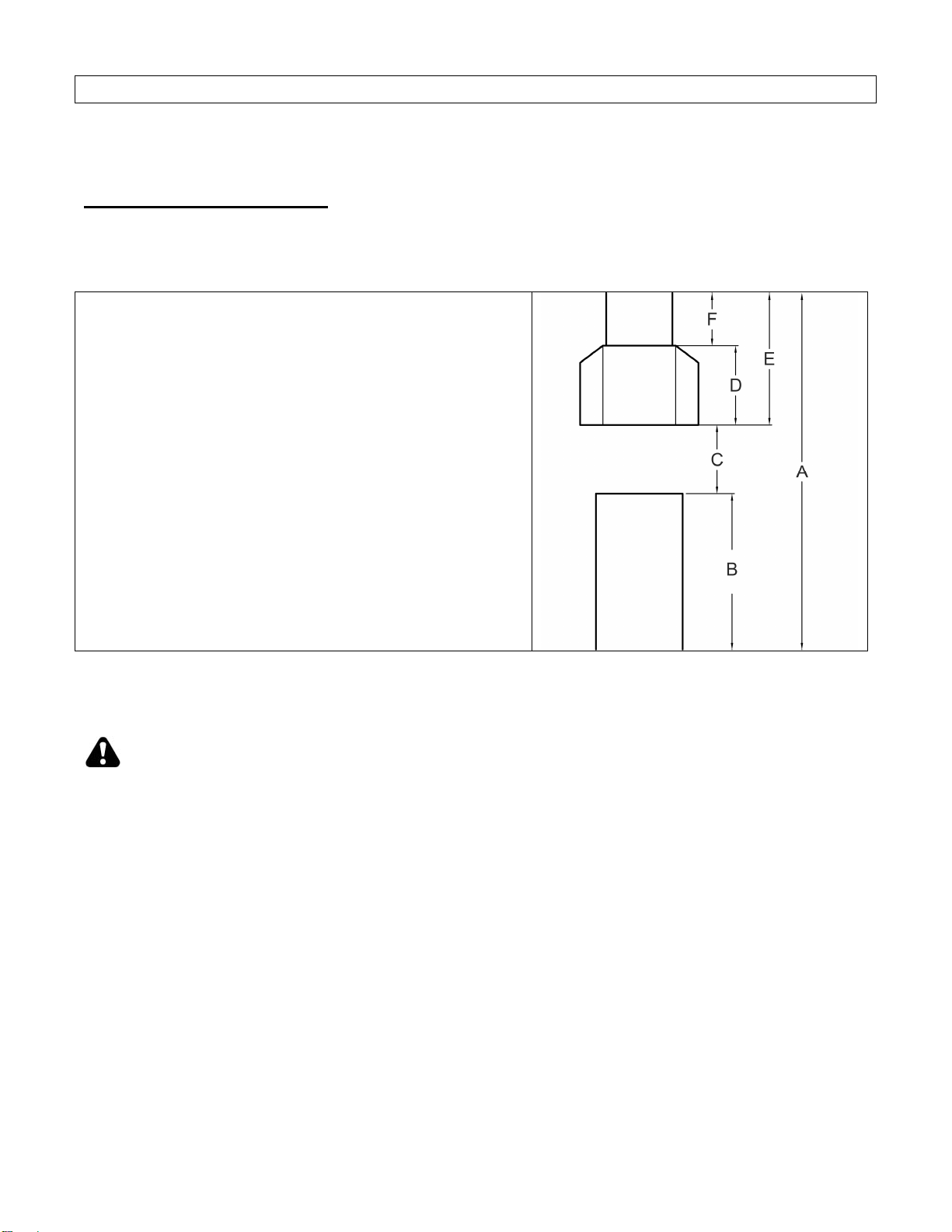

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C =
Preferred Height of Counter Top to
Hood Bottom
(Recommended 30” to 36”)
D = Height of Hood
E = Height of the Hood Installation
[A - (B+C)]
F = Height of Duct Cover
[E – D]
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS
NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

6
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.

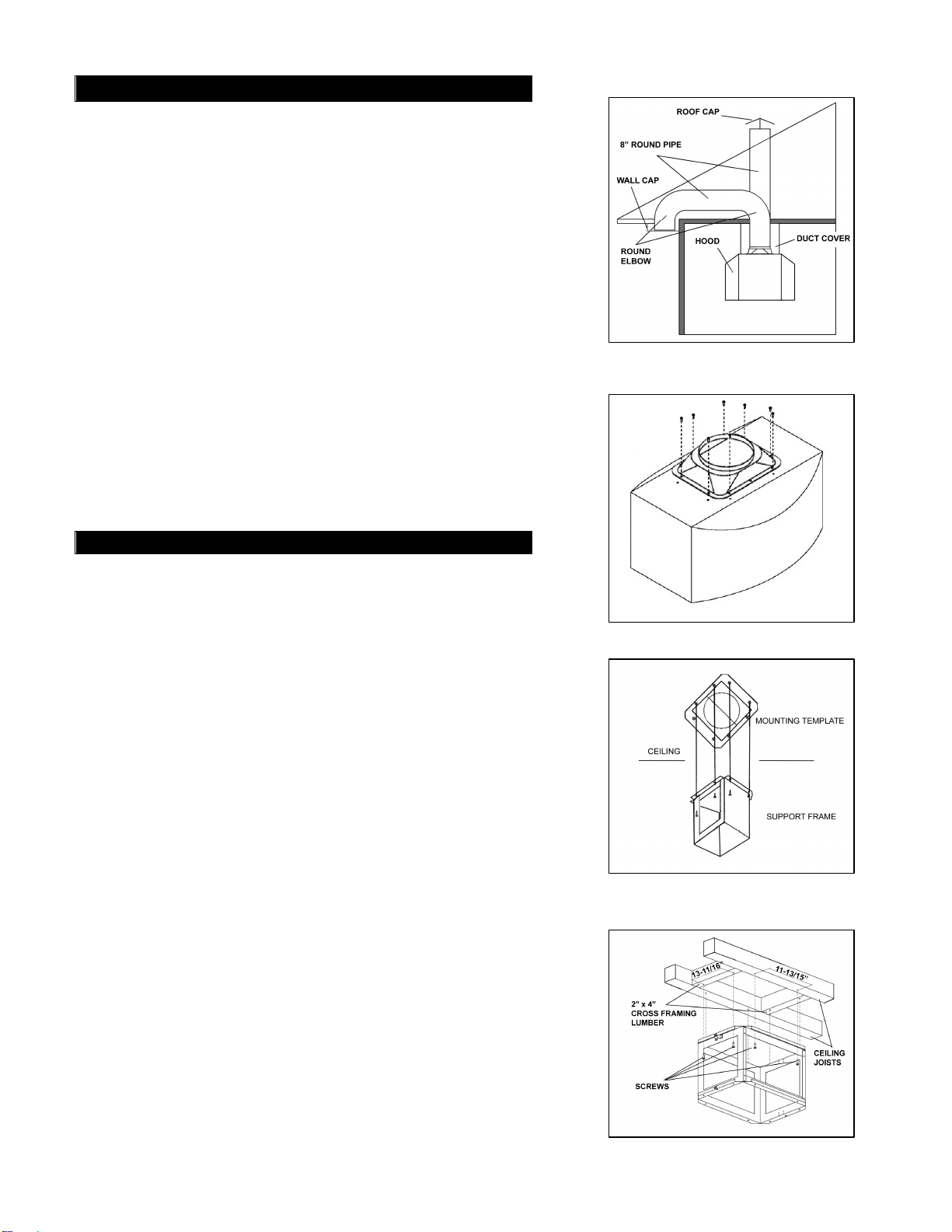

 Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 1.
 A straight, short venting run will allow the hood to
perform more efficiently.
 Try to avoid as many transitions, elbows, and
long run as possible. This may reduce the
performance of the hood.
 Temporary wire the hood to test for proper
operation before installing.
 Important: Peel any protective film off the hood.
 Use duct tape to seal the joints between pipe
sections.
 Attach ducting transition to hood exhaust with six
(3/16” x 1/2”) screws (included). Refer to Figure
2.
Hood Installation
1. Mark centerlines of cook top or range on ceiling
above. Use centerlines marked on ceiling to
position the mounting template as shown in
Figure 3.
2. Remove and save template. Cut and remove
ceiling drywall. Install 2” x 4” cross framing
lumber (not provided) between ceiling joists.
Refer to Figure 4. Consult a professional if you
have difficulty or your installation is unique.
3. Finish the ceiling surface. Be sure to mark the
location of the ceiling joists and cross framing,
or replace the mounting template in the position
of the ceiling joists & cross framing.
4. Attach the support frame to the ceiling and
securely fasten to the joists and cross framing
with eight screws (not provided) as shown in
Figure 4. Make sure screws are driven into
center of joists and cross framing for maximum
support.
Figure 1
Figure 2
Figure 3
Figure 4

7

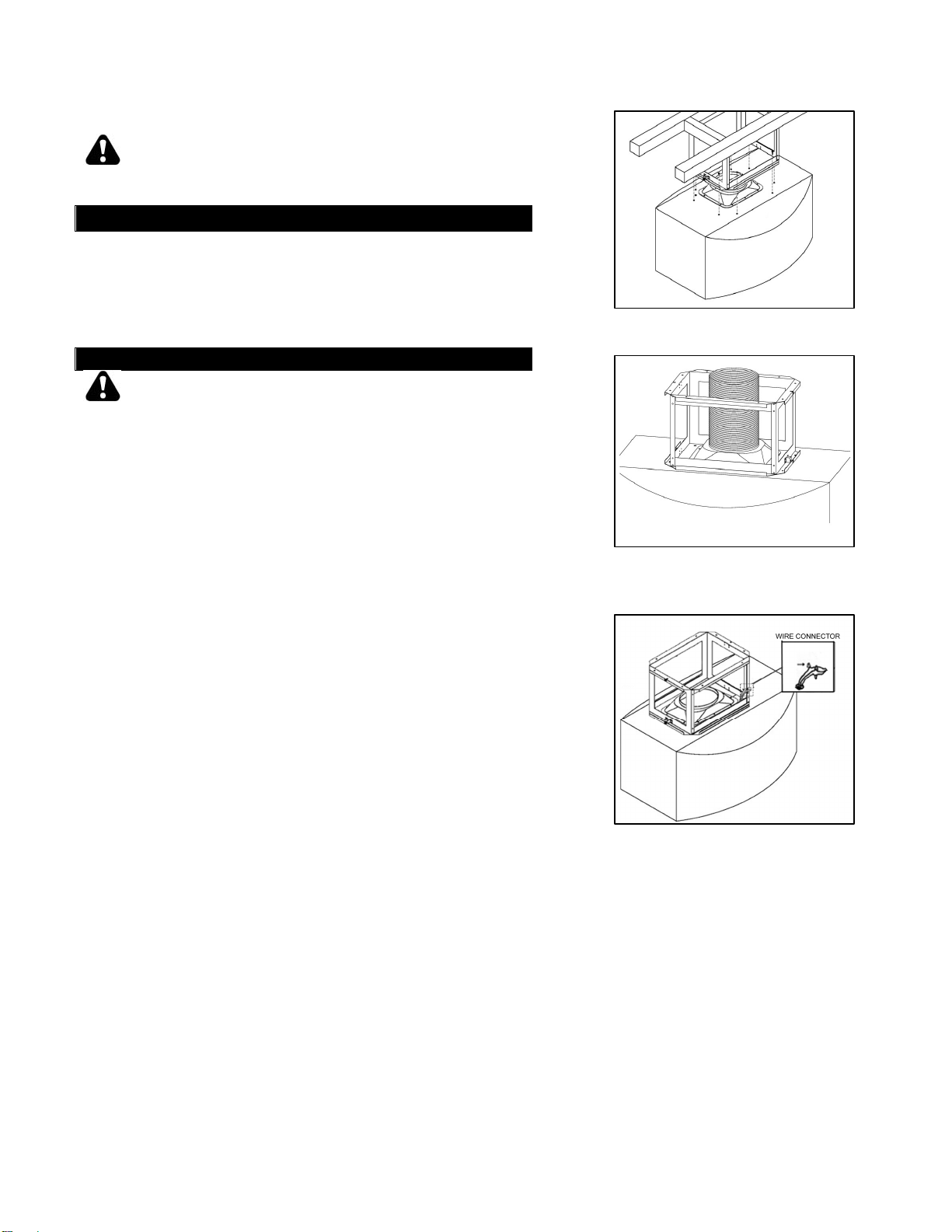

5. Use eight 3/16” x 3/8” screws (provided) to secure
hood to support frame. Make sure to tighten screws
securely. Refer to Figure 5.
CAUTION: MAKE SURE HOOD IS SECURE
BEFORE RELEASING.
Ductwork Installation
6. Use 8” round steel pipe (follow building codes in your
area) to connect the ducting transition on the hood to
the ductwork above. Use duct tape to make all joints
secure and air tight. Refer to Figure 6.
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD
MUST BE PROPERLY GROUNDED. MAKE SURE
THIS IS DONE BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE NATIONAL
AND LOCAL ELECTRICAL CODES. BEFORE
CONNECTING WIRES, SWITCH POWER OFF AT
SERVICE PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
7. Connect the electrical wires.
- Connect three wires (black, white and green) to
house wires and cap with wire connectors.
Connect according to color: black to black, white
to white, and green to green as shown on Figure
7.
- If necessary to hide the electrical wire
connections, push wires back into the wiring box.
Access the wire connections underneath the
hood. Make sure wires do not slip between motor
or any moving parts to prevent any damage.
Figure 5
Figure 6
Figure 7

8
Duct Cover Installation
8. Use four 3/16” x 3/4” screws (provided) to attach
duct cover to support frame. Refer to Figure 8 & 9.
Install Accessories
9. Place baffle filters underneath the hood. Refer to
Figure 10.
Final Assembly
10. Turn power ON in control panel. Check all lights and
fan operation.
11. Make sure to leave this manual for the homeowner.
Figure 8
Figure 9
Figure 10

9
OPERATION INSTRUCTIONS
This KOBE hood is equipped with two rotary controls with powerful centrifugal squirrel cage,
baffle filters, and bright 12-volt 20-watt halogen lights.

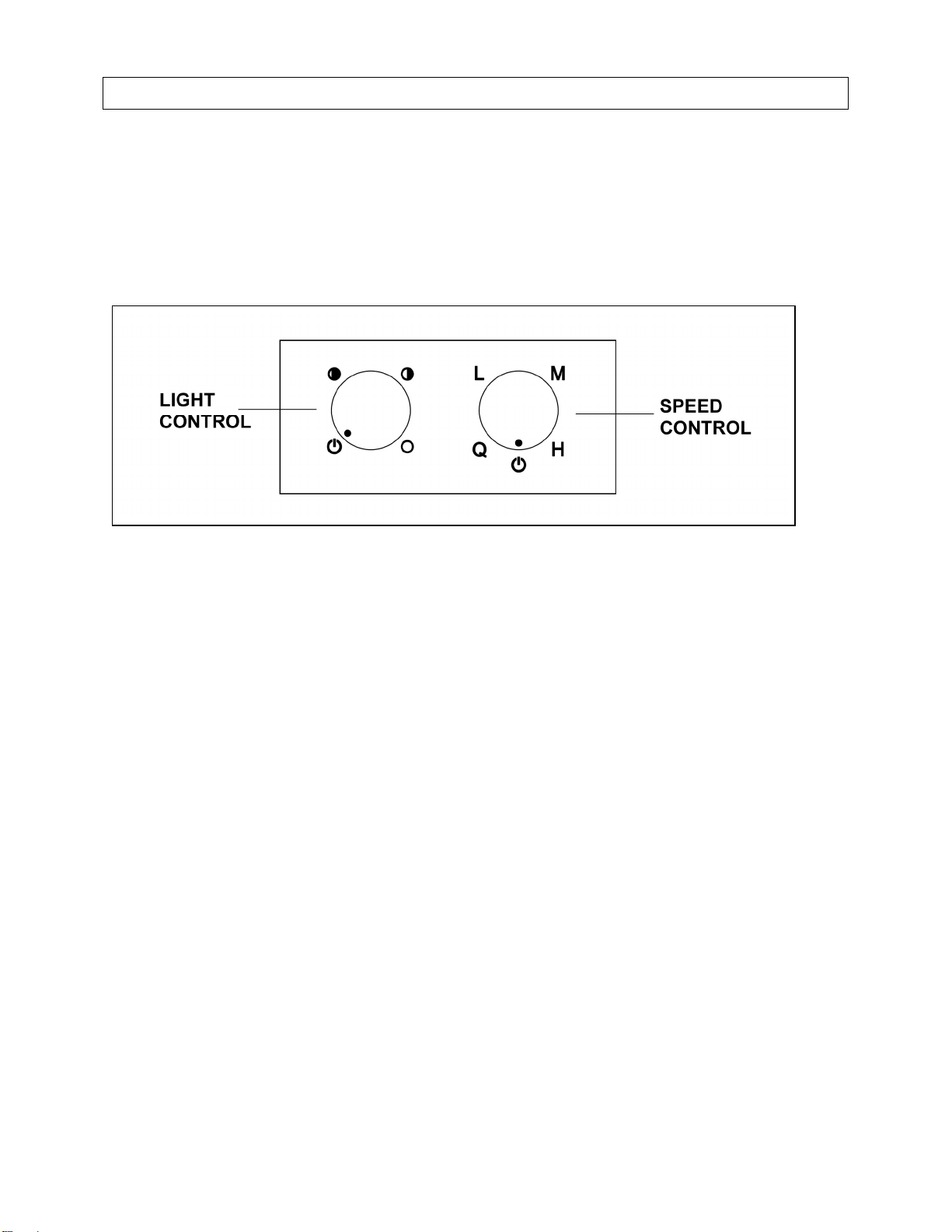

The two rotary controls are Light Control & Speed Control. Refer to Figure 11.
Figure 11
Note: For best results, turn hood to QuietMode™ prior to preparation or cooking to
establish airflow in the kitchen. Adjust speed as needed.
•Rotate the Speed Control clockwise to cycle from QuietMode

, Low, Medium,
High, and Off; and rotate counterclockwise to cycle from High, Medium, Low,
QuietMode

, and off
•Rotate the Light Control Clockwise to turn halogen light cycle from different
light setting.

10
MAINTENANCE
For the optimal level of operation, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
*** Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the
surface of the hood. Avoid getting cleaning solution onto or into the control panel.
Follow directions of the stainless steel cleaner. Caution: Do not leave on too long as
this may cause damage to hood finish. Use soft towel to wipe off the cleaning
solution, gently rub off any stubborn spots. Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the
surface and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain
in contact with stainless steel for extended periods. Many of these compounds contain
chemicals, which may be harmful. Rinse with water after exposure and wipe dry with a
clean lint free cloth.
To Clean Baffle Filters
CAUTION: DRAIN BAFFLE FILTERS BEFORE OIL WILL OVERFLOW.
1. Remove the baffle filters.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into
place.
(Note: Baffle Filters are top rack dishwasher safe.)

11
Replacing Light Bulb
CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL.


 

 

 


1. Make sure all controls are off, and range hood is unplugged.
2. Place the flat-headed screwdriver into the groove of the halogen light glass covering and
the housing. 


3. Pop out the halogen light glass covering. 


4. Gently pull out the defective light bulb and discard. Light bulbs should be 12V 20W
maximum. 


5. Using a cloth, hold the new light bulb and push securely into light socket.
6. Return halogen light glass cover to the housing. 


7. Turn range hood ON to test for operation.

12
SPECIFICATIONS
MODEL / SIZE
IS2136SQB / 36”
IS2142SQB / 42”
COLOR
Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
IS2136SQB – 340W / 3.0A
IS2142SQB – 340W / 3.0A
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
DESIGN
18-Gauge Seamless / Satin Finish
FAN TYPE
: CENTRIFUGAL
Squirrel Cage
EXHAUST
Top Transition Rectangular to 8” Round
CONTROLS
Rotary Control
HALOGEN LIGHTS
12V 20W x 4
HOOD DIMENSION
(W x D x H) (IS2136SQB) 35-3/4” x 26-7/8” x 18”
(IS2142SQB) 41-3/4” x 26-7/8” x 18”
Duct Cover Dimension
(W x D x H)
1)
Original Kit
-
Duct Cover:
Model No.: IS21DC: 19-3/4” x 15” x 12”
HOOD WEIGHT (lbs)
Net
Gross
(IS2136SQB)
80.0 108.0
(IS2142SQB)
88.0 119.0
(IS21DC)
16.0 22.0
SPEED
QuietMode



Low
Medium
High
Air Capacity (cfm)*
400 600 800 1000
Sone
1.4* 3.5 7.0 8.0
*In House Test Static Pressure “0”. One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

13
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are
estimated.

14
PARTS LIST
MODEL NO.:
IS2136SQB
IS2142SQB
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1 Ducting Transition FA-12001-0506-01 (B001-2)
2 Hood Casing IS2136SQB B101-5436-02
IS2142SQB B101-5442-02
3 Halogen Light Unit (12V 20W Max.) C1-0403-0101
4 Valve Stem C1-0405-0404-B
5 Control Frame C1-0207-5200-A
6 Motor FA-12001-0302-01 (B001-4.5)
7 Capacitor Panel IS2136SQB C1-0201-5436
IS2142SQB C1-0201-5442
8 Knob C1-0405-0400-A
9 Capacitor FA-12001-0401-01
10 Transformer Light C1-0402-0120-80A
11 Support Frame C1-0203-5400-12A
12 Duct Cover IS21DC 12-54000-012-51
13 Baffle Filter B101-5400-15
14 Bottom Casing B101-5442-09
B
LOWER ASSEMBLY
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
6-1 Screws (3/16” x 1/2”) B001-4.1
6-2 Left Locknut B001-4.3
6-3 Left Squirrel Cage B001-4.4
6-4 Right Squirrel Cage B001-4.6
6-5 Right Locknut B001-4.7
6-6 Air Chamber B001-4.8
6-7 Safety Screen FA-12001-0602-01 (B001-4.2)

15
MODEL NO.:
IS2136SQB
IS2142SQB

16

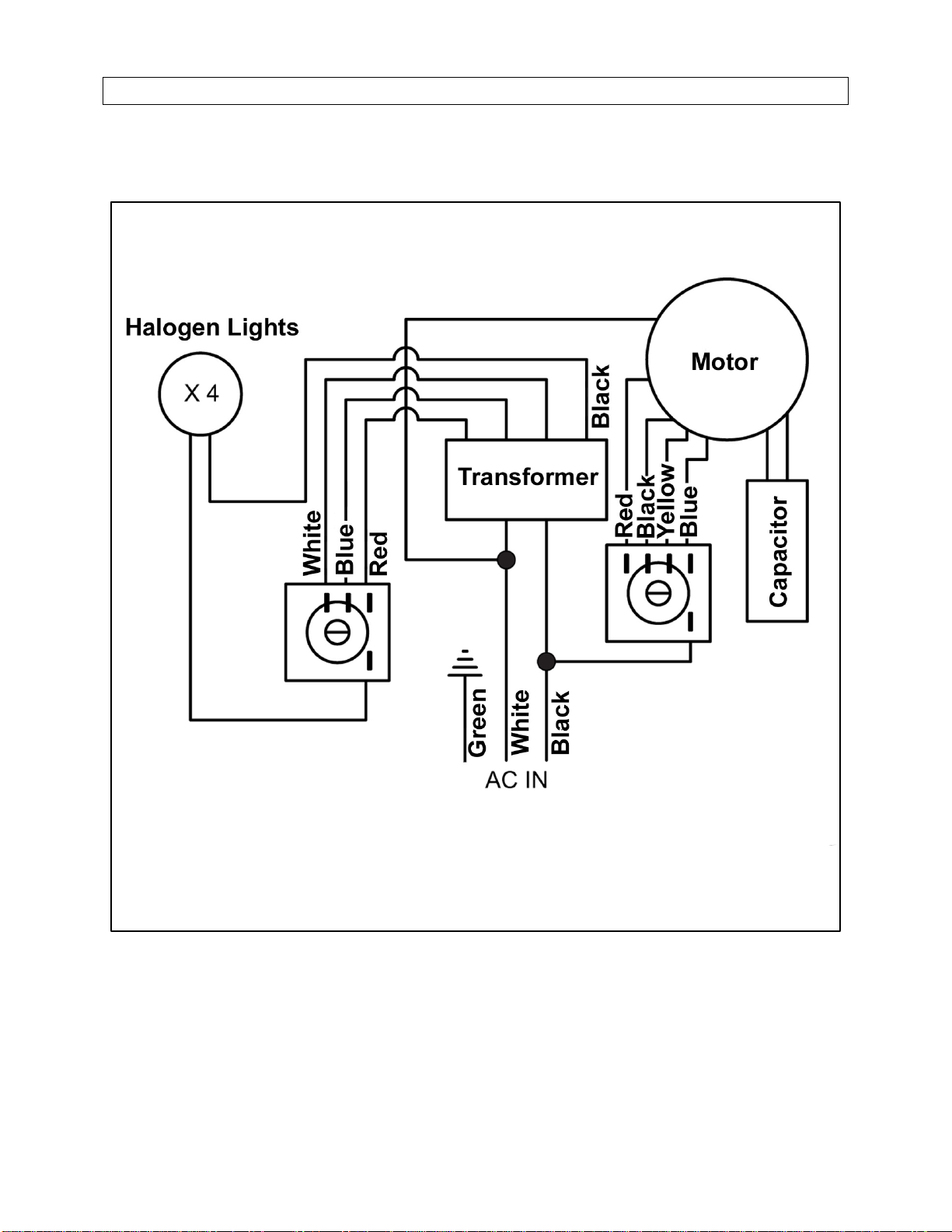

CIRCUIT DIAGRAM
MODEL NO.:
IS2136SQB
IS2142SQB

17
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After Installation,
both motors and
lights are not
working.
The power is not on. Make sure the circuit breaker and the unit’s power is
ON. Use a voltage meter to check the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control panel and processor board
wiring are disconnected. Check wire continuity from control panel to processor board.
The motor transformer is defective. Check the power input and power output on the
motor transformer.
If it’s needed, replace the motor transformer.
The control panel and processor board is
defective. Replace the control panel or processor board.
Lights are
working, but
motor(s) is not.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
The control panel or processor board is
defective.
Replace the control panel or processing board.
The range
hood is
vibrating.
The blower system is not secure. Tighten the turbine impeller/squirrel cage and air
chamber.
The turbine impeller/squirrel cage is
not balanced.
Replace the turbine impeller/squirrel cage.
Hood is not secured in place. Check the installation of hood, tighten the
mounting bracket.
The motor is
working, but
the lights are
not working.
Halogen Light bulb(s) is defective. Try placing the trouble light bulb(s) to a working
socket, if the bulb(s) still doesn’t work; replace
the halogen light bulb(s).
The light wiring(s) is loose. Check wire continuity from processor board to
light transformer to halogen light housing(s).
Light transformer is defective. Check power input and power output on the light
transformer. If it’s needed, replace the light
transformer.
The control panel or processor board is
defective.
Replace the control panel or processing board.
The range
hood is not
venting out
correctly.
The range hood is installed outside of
the manufacture recommended
clearance.
Adjust the clearance between the range hoods
and cook top to 27” to 30”. For Island range
hood and professional series range hood, the
clearance between the range hoods and cook
top is 30” to 36”.
There is no make-up air inside the
house.
Open the window to enhance the performance
of the range hood by creating a sufficient make-
up air.
Obstacle blocking the pipe work. Remove all obstacles from the duct work.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the
manufacture suggestion.
Cold air is
coming into the
home.
The pipe connection is not properly
sealed.
Check the pipe installation.

18
DISCLAIMER
1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY.
NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST
NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT
YOUR CLAIM.
Upon acceptance of items, owner assumes responsibility for its safe arrival. Report
damages to the carrier and file a claim immediately. Failure to do so may result in the denial
of your claim. The carrier will furnish you with necessary forms for filing a claim.
DAMAGES CAUSED DURING TRANSIT ARE NOT COVERED UNDER OUR
WARRANTY.
2. PLEASE INSPECT CONTENTS OF PACKAGE(S) CAREFULLY UPON RECEIVING!
We must be notified in writing of any damages and/or missing parts within the allocated days
upon your receipt of package(s). Contact your local KOBE dealer or distributor or call KOBE
for the time limit.
CLAIMS WILL NOT BE ACCEPTED AFTER THE ALLOCATED DAYS.
NOTE: ITEMS WERE THOROUGHLY TESTED AND CAREFULLY PACKED IN OUR
FACTORY BEFORE SHIPPING.
3. Products must be returned in good working condition with ALL original parts and
documentation packed in ALL original cartons, fillers and shipping cartons. A restocking fee
of 25% will be charged for all approved return(s).
EXCHANGES OR RETURNS MAY NOT BE ACCEPTED IF ANY PACKAGING IS
MISSING.
4. MAKE SURE TO INSPECT THE HOOD FOR DAMAGES AND DEFECTS BEFORE
INSTALLATION. Appearance flaws of the hood found after installation and not affecting
hood performance is not covered under our warranty for returns or exchanges. Service
visits not covered under warranty will carry a service charge.
A) Before Installation: Return for exchange or refund (please see above for
acceptable returns).
B) After Installation: NO exchange or refund.
