KOCOM KIV-212 Instruction Manual

KIV-212, KIV-D212 Users Manual for Operation and Installation
Communication and monitoring by front door camera
Interactive call and communication between house and guardroom
Inner line call and communication within the house
Communication with lobby phone and door open function
Monitoring of lobby
For both single house and multi house (Apartments)
KIV-212 : AC type
KIV-D212 : DC type
COLOR HANDS-FREE
VIDEO PHONE
Thank you very much
for purchasing KOCOM
video doorphone
please read this manual
thoroughly to ensure
correct usage, before
operating
KIV-212 / KIV-D212 08 03
This manual is based on the date as shown in the right and specifications
are subject to change without notice for quality improvement
PRODUCT
MODEL
DATE PURCHASED
WARRANTY PERIOD
AGENCY ADDRESS

KOCOM Warranties the original p rchaser of this prod ct as follows.
1) This product is produced under strict quality control and inspection procedures
2) If this product breaks down during proper use as a result of product defect, KOCOM
will repair it within one year from date of purchase free of charge
3) The following cases will be subject to charge, even during warranty period:
a Breakdown during transport, or through careless treatment, by consumer
b Breakdown cause by unauthorized repair, or system modification
c Breakdown caused by natural disaster or power disorder
Warranty
Warranty Card
To receive after-Sale service, have the following ready
when yo contact o r branches.
1 Name of the product
2 Model number of the product
3 The area of problem
4 Phone number and address at
which you can be contacted

Do not throw used-up battery into fire places, which may cause fire and explosion

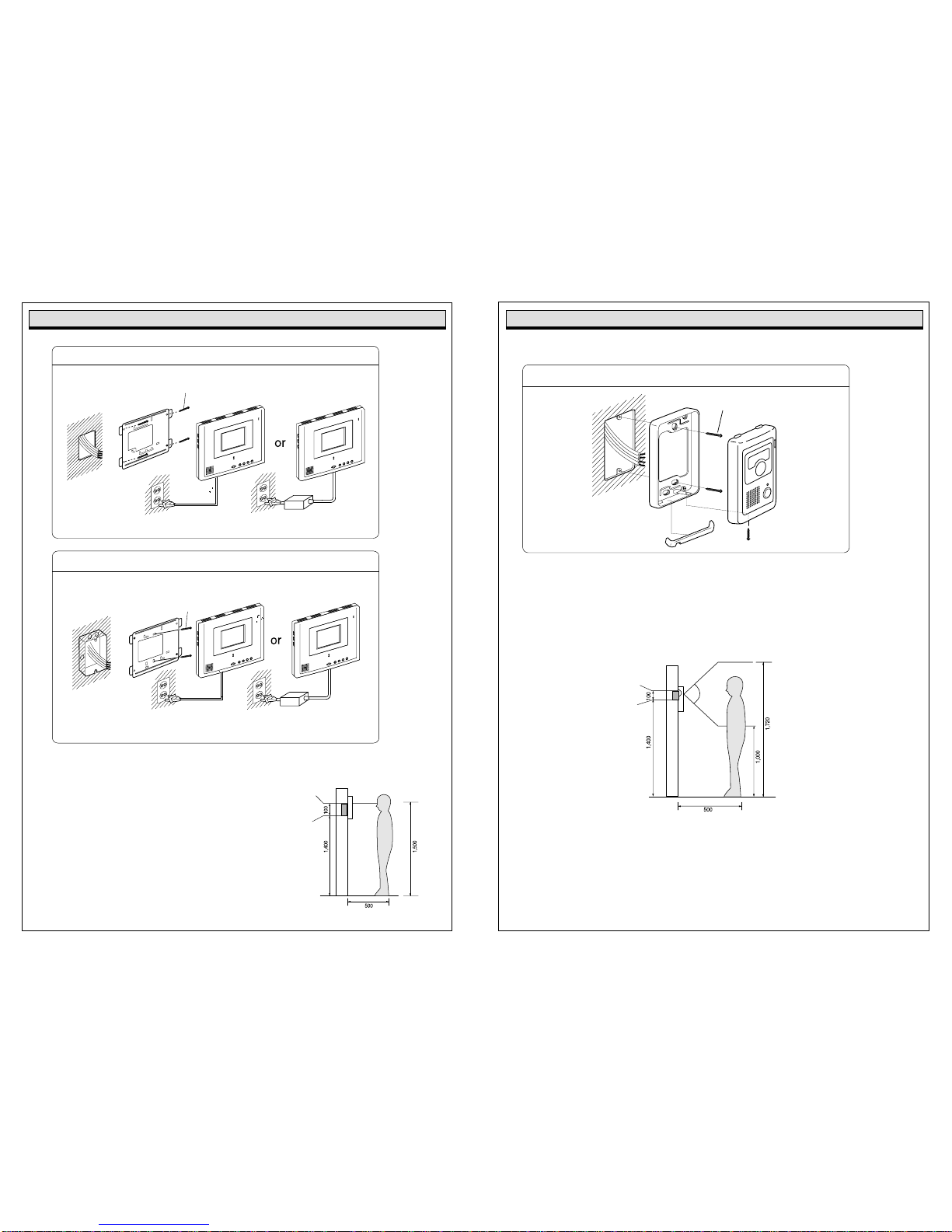

Cautions for installation
The relevant law obliges users to have a qualified electrician carry out wiring work for power supply Work by disqualified
persons may cause fire and electric shock
Wiring work for communication cables needs techniques and experiences For this type of wiring work, please consult to your
local sales agent
According to the standard for electric work and other relevant regulations, install communication cables at the place away
from power cables The failure to install cables separately may cause fire, electric shock and communication troubles
Do not install the product on rolling table or sloping place
Dropping or falling may cause damage on your product
In installation, avoid the place exposed to tremor or shocks, which may cause damages on your product
Even if your product is waterproof, do not install it slanted place of water leakage, which may cause a short circuit
For the product of wall-mounting type with fixing pegs, keep it safely
Fixing pegs may cause injury of user
Install the product of wall-mounting type carefully not to drop from the wall Dropping due to earthquake or tremors may
cause injury of user
When installing the product on the wall, consider the thickness and material of the wall
Dropping in use may cause injury of user
Cautions for Use
Do not put heavy thing on the product Dropping or falling due to heavy things on it may cause injury of user
Cautions for Repairs and Maintenance
Clean the dust inside the product regularly Failure to clean the dust for long time may cause fire For inspection and cleaning
of the inside of product, please contact your local sales agent
When putting your hands into the inside of equipment, be sure that plug is already detached form an outlet or circuit-breaker is
turned off
Be careful not to expose the product to benzene, thinner or hot water
Do not expose detergent directly to the product in a way of spaying, etc
Moving equipment, be sure that the plug is detached from an outlet
For equipment whose cables are connected to terminals, please contact your local sales agent or qualified electrician
When replacing old fuse with new one, do not directly touch it with bare hands
Use insulated tools or contact A/S center
Cautions
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
Warnings for disposal
�Read this cautions carefully and keep it within easy reach of you
�For right installation, read this cautions thoroughly Please install the product according to its specifications
�This Cautions for Safety may include items that are not contained in specifications of the product that consumer
purchases
�Reading this cautions, use the product in a right manner For further information, please contact our A/S center
About Symbol
A variety of symbols are used in this Cautions for Safety and your products to guide you to use products in a right
and safe manner and to prevent possible risks for users and other persons and damages to their property The meaning
of each symbol is as follows After fully aware of meaning of each symbol, read the following cautions
This symbol means that wrong handling or ignorance of matters that this symbol indicates
may cause serious injury or even death of user
This symbol means that wrong handling or ignorance of matters that this symbol indicates
may cause serious injury or property damage of user
This symbol means the matter that user should not do at nay event
This symbol means that user should follow the instructions
Symbols on Drawing
This symbol means that contents (high voltage, electric shock, warnings, etc ) to which user
should pay attention are included
This symbols means that a certain action is not permitted Specific points not permitted are
depicted around this symbol (for example, in the left drawing, disassembly is not permitted )
This symbol means instructions or is used to force user to do a certain action Specific
instructions are depicted on the drawing
(for example, the left drawing instructs user to detach power plug from an outlet)
Cautions for Safety
Warnings
Cautions
For safe use, please stick to the following cautions
Warnings
12

�This product is only for home Do not the product for industrial or military use
�Do not handle the equipment with wet hand, which may cause electric shock
�Do not place wet or metallic materials on equipment Water leakage or intrusion of metallic materials may cause fire and
electric shock
�Do not block the ventilating opening of equipment or put alien substances into it, which may cause fire and electric shock
�Do not use battery that is not designated or mix new battery with old ones Insert batteries to fit their polarity Explosion or
leakage of battery may cause fire and injury of user
�When visitor's image or voice is not displayed on screen or not sounded from speaker, please check his/her identity before
opening the door and contact our A/S center
�Do not use equipment when lighting is expected or strokes It may cause fire and electric shock
�Do not open rear cover, cabinet and cover of equipment It may cause electric shock
�Do not modify power cable or pull it with excessive strength, which may cause fire and electric shock
�Do not modify equipment It may cause fire and electric shock
�Call signal may cause damage on user's hearing ability
Cautions for Abnormality
�When power cable is broken (exposure of core or short-circuit), do not fail to replace broken cable with new one Failure to
replace broken power cable may cause fire and electric shock
�When detecting any abnormalities in equipment (communication is not available, images do not be displayed on screen, calling
is not available, or abnormal sound is heard), immediately detach plug from an outlet, or turn off circuit breaker or detach
batteries from equipment (in case that equipment has no plug) before requesting repairs to sales agent or A/S center Keeping
connection to power supply may cause fire and electric shock
�When alien substances go into equipment, immediately detach plug from an outlet, or turn off circuit breaker or detach batteries
from equipment (in case that equipment has no plug) before requesting repair to sales agent or A/S center
�In the case of smoke or smell of unknown origin from equipment, keeping use it may cause fire and electric shock Detach
plug from an outlet, or turn off circuit breaker or detach batteries from equipment (in case that equipment has no plug) and be
sure to check no more smoke or smell from equipment before requesting repair to sales agent or A/S center Since personal
repairing work by user may serious accidents In any case, do not repair equipment with your own hand
�When dropping equipment or breaking its cabinet, detach plug from an outlet, or turn off circuit breaker or detach batteries
from equipment (in case that equipment has no plug) before requesting repair to sales agent or A/S center Keeping use
equipment may cause fire and electric shock
�Avoid direct exposure to sunlight and store equipment at the place free from dust and high temperature as you can High
temperature of equipment may cause fire and electric shock
Warnings Warnings
Cautions for Use
�Do not install the product at bathroom or at the place near a washing machine, or at other humid places It may cause fire or
electric shock
�Do not install the product at the place near a dresser, humidifier or heater Also avoid the place exposed to spark, heat or
humidity All of them may cause fire and electric shock
�Do not install the product at the place exposed to dust, metals and harmful gas such as hydrogen sulfide gas, all of which
may cause fire and electric shock
�Do not install the product at the place exposed to water and chemicals This may cause fire and electric shock
�Do not scratch, break or arbitrarily process power cable, which may cause fire and electric shock Putting a heavy thing on a
cable, heating it or pulling it may cause impairment on it
�Do not place power cable at the place near heating equipment It may cause damage of cable's clothing material, which
result in fire ad electric shock When detaching plug from an outlet, do not pull power cable
�Damages on power cable may cause fire and electric shock When detaching plug from an outlet, please hold the plug
tightly
�Do not detach plug from an outlet with wet hand I may cause electric shock
�When using the existing wiring, be sure of the suitability of it to the product and install the product Failure to this caution
may cause fire
�When moving equipment, be sure that plug is detached from an outlet and communication cable is disconnected Damage
on cables may cause fire
�Voltage other than prescribed rated voltage is not permitted, which cause fire and electric shock
�Do not use power terminal of product's main body in other equipment than prescribed ones It may cause fire and short-
circuit
�In wiring work, use the designated wiring materials
Wiring work using other materials than designated ones may cause fire
�The equipment without waterproof marking shall not be installed at the place water leaks It may cause electric shock and
short circuit
�When working, be sure that power is disconnected Failure to disconnect power may cause electric shock
�Be sure that the power cable is connected and earths according to designated method Failure to connection and earth may
cause fire
�Do not connect power to other terminals than designated ones
�It may cause fire and electric shock
�When building a system with the product, do not connect the product other equipment than designated one It may cause
fire
�When installing A/C switch, do work after removing the substance that may cause short circuit or electric shock
�Before installing or providing A/S service, be sure that the power is disconnected
Cautions for Use
34

Home Auto: KHV-444/454/446/456
- Do not insert any metallic materials into the inside of fuse cover It may cause electric shock
- Do not close ear to speaker Abrupt call or signal may give harmful effects on user's hearing
- After turning power on and off, check again that input contents are saved correctly Otherwise, data may be missed when auto-signal mode operates
- Use a standard detector Non-standardized detectors are likely to cause fire due to excessive voltage or current
- Please install motion detector at a place easily detect the motions of subjects When detector is installed at a wrong place or obstacles block the front
side of detector, it cannot work well
- When setting night guard mode, be sure that detector should be connected well
- Sufficiently charge the battery of wireless handset before using it Be careful that children should not throw battery Be sure to close battery cover
(When children throw or disassemble battery, it may cause serious accidents)
- Be careful that the polarity of the product matches to that of guardroom communication cable When polarity is reversed, it may cause abnormal
operations of the product or apartment system as a whole
4-Line Related Products: KVM-604, 624, 524RG, 524G, 524GS, 520, KCV-346/356
- In wiring work, be careful that wirings should keep away from the wall-mounting pegs or other furniture at regular interval Contact of wiring with
wall-mounting pegs, etc may cause short-circuit, electric shock and fire (it is applied to all products with wall-mounting pegs)
- Use the prescribed standard wirings Non-standardized wirings may give adverse effects on operation of product
(it is applied to both video phone and CCTV)
CCTV Camera
- Do not install at noisy places
- Do not install at the place exposed to electromagnetic waves
Excessive electromagnetic waves may cause continuous noise on screen and mechanical troubles
- When installing camera outdoor, please put it in the outdoor case Otherwise, when it rains, the camera may be broken or operate incorrectly
- Install the product at well-ventilated places
- Do not use the product for medical or military uses
- Do not install the product at humid places It may cause reduction of the product's durability as well as fire and electric shock
- When lens is stained with alien substances, clean it with soft cloth to prevent the damages on it
- Install the product out of reach of children
System for Multi-unit Housing
- In installation, be careful that other wiring or metallic substances should not contact to the system for multi-unit housing
- In installation, be careful that alien substances should not go into the system
- Before installation, be fully aware of wiring specifications of each model
- In installation, be sure that the length and dimension of wiring meet the requirement prescribed in installation manual
- Excessive strength and external shock may cause mechanical breakdowns of equipment
- Do not arbitrarily open the case of the product
(When user opens the case arbitrarily, KOCOM may reject to provide A/S service)

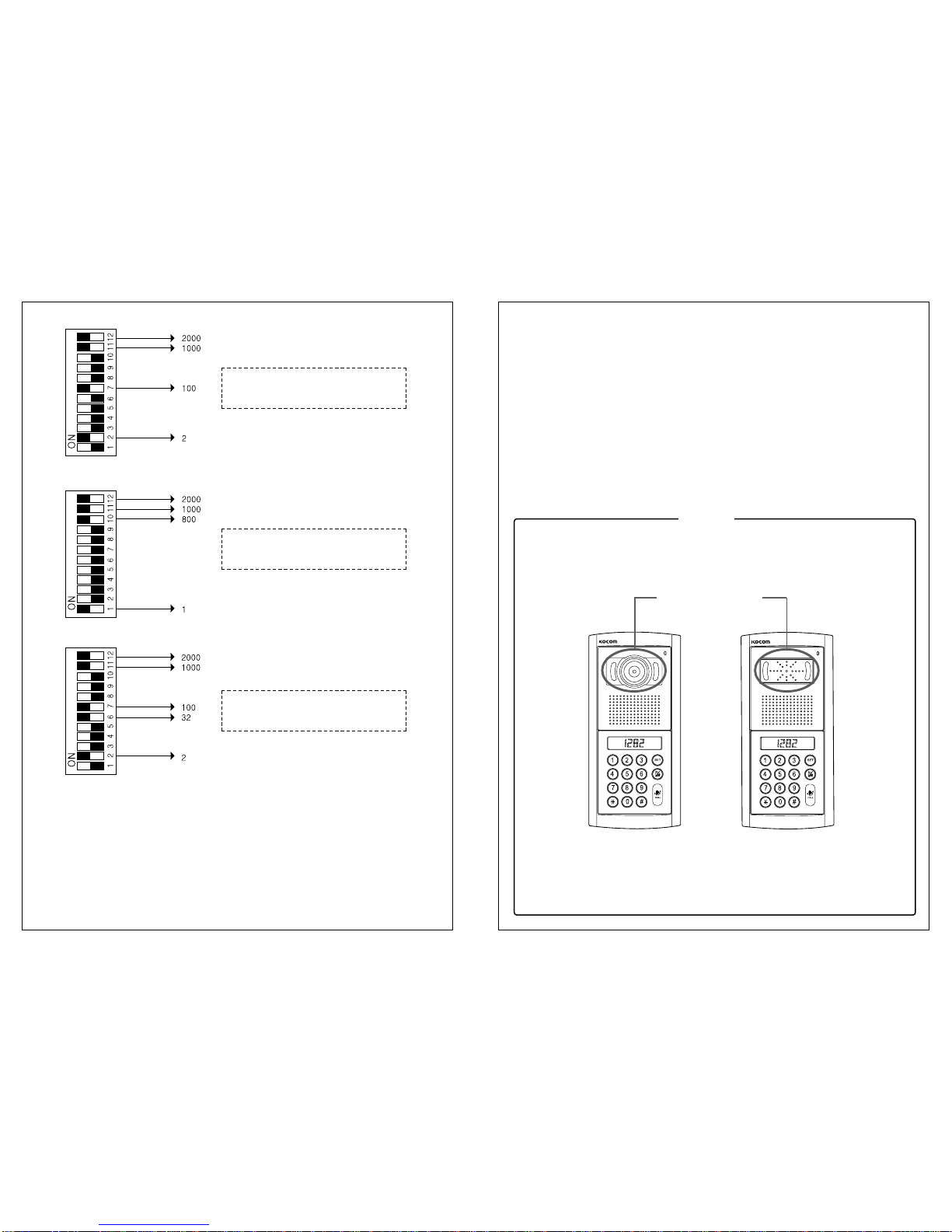

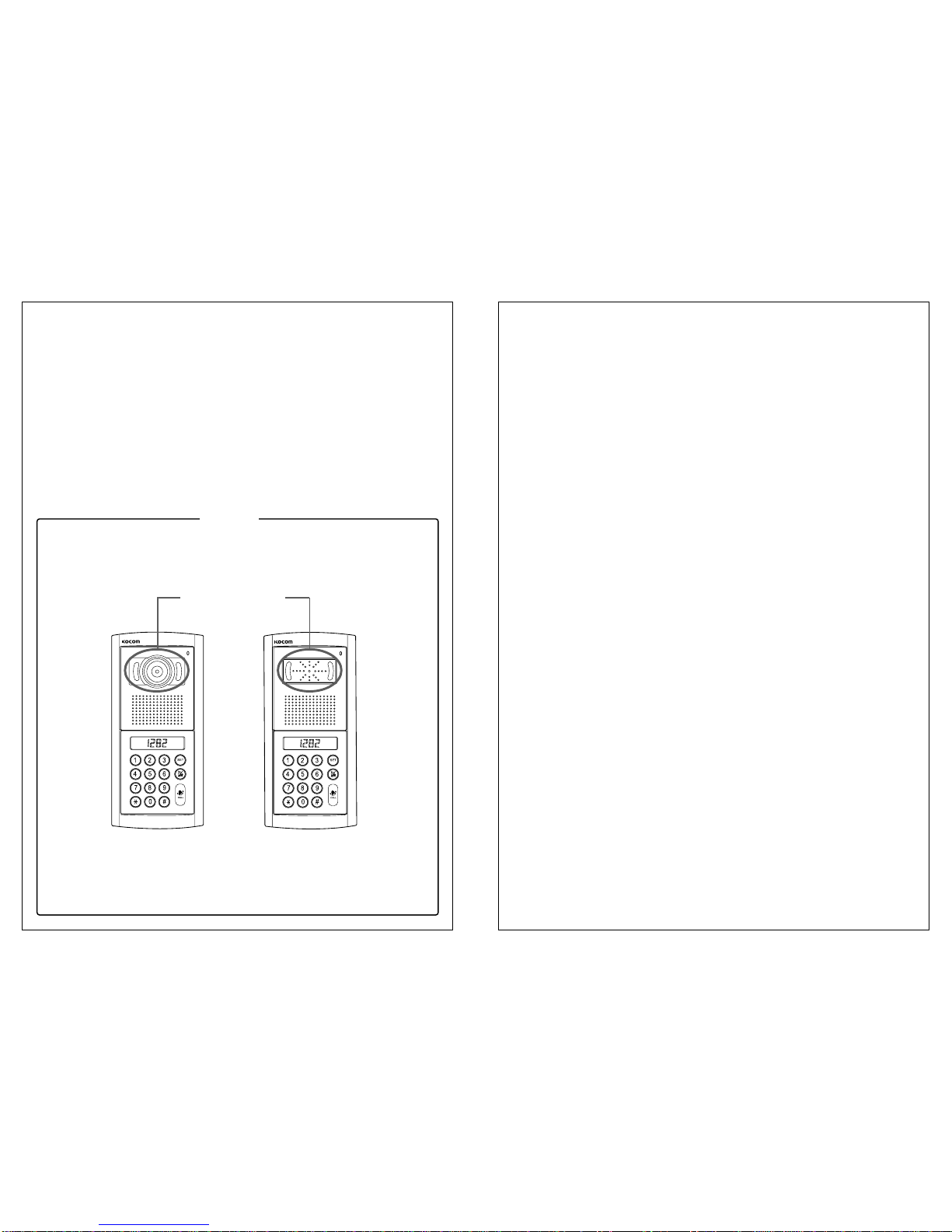

Lobby Phone: KLP-(100, 104, 108, 112), KLP-(P100, P104, P108, P112), KDP-(100, 104, 108, 112),
KLP-(C100, C104, C108, C112)
- A stroke of lighting or strong shock may give fatal and adverse effects on system Thus, do not fail to ground the system
- For registration of household password, please refer to user manual of the concerned product (it is applied to ten-key lobby phone products
[KLP-100, KLP-P100, KDP-100 and KLP-C100])
Relay : KVS-104P
- A relay can support up to four households
- In the case of over four householders, additional relays are needed
Video Amplifier : KHU-102P
- In installation, follow the specification for Video in/output
Video Phone
- In assembling the product, be careful that wall-mounting pegs should not contact with wirings
- In connection of cables, strip its insulation off as much as necessary (Excessive stripping off its insulation may cause short circuit)
- Be careful that signal cables should not be wired with A/C wiring (it may cause poor display quality)
- Do not drop handset (its damage or short-circuit due to drop may make communication impossible)
- When connecting wires to terminals, use standard screwdriver (otherwise, screws may loosen, which will result in disconnection of wiring)
- Do not clean CRT screen with wet towel or cloth When water penetrates into the product, it may cause short-circuit
Do not fail to clean it with dry towel or soft cloth
- Do not install camera at the place where water penetrates or leaks Penetration or leakage of water may cause electric shock or short circuit
Safety Instructions, Warnings, and Cautions of Each System
- This equipment is electronically precision equipment, so do not arbitrarily disassemble it
- In installation of the product, do not fail to follow the specifications (specifications offered by KOCOM)
- Do not touch the product with alien materials (for example, sticker, magnet, opener, metal chopstick, etc )
or insert them into the product (it may cause reduction of the product's durability and harmful results to user as well)
- In the rainy season, water is likely to penetrate into the product along the wiring Thus, U-type finishing is recommended
as a desirable method of end part finishing
56

Component’’ s Name
B
E
N
Z
E
N
E
T
H
I
N
N
E
R
5 inch LCD 
Identifying visitors
Preca tions for Operation
Keep away from humidifier and
stove High temperature and
humidity can cause breakdown
When cleaning, never use wet
hands, volatile benzene or paint
thinner
Keep picture clear by cleaning
camera window frequently with
soft cloths
As this device consists of
electronic precision
components, and high voltage
is generated internally, do not
attempt to disassemble
Do not drop monitor or door
camera, and avoid strong
impact
Keep away from devices
generating strong magnetic field
(TV, Speaker, etc ) (Picture can
be disturbed or blurred and
breakdown can result)
Installation Preca tions
 Monitor and camera must be installed away from direct
light and counter light
 Camera must be installed at a place free from rain
 Standard height of monitor must be 1,450mm~1,500mm
from ground, centered around brawn tube
 Camera should be installed on the wall in which cement
is completely dry
 If installed during winter season at temperature below
-5, condensation might be generated inside monitor and
camera due to temperature difference between indoors
and outdoors To prevent breakdown due to such
condensation, connection should be made in 2 hours or
more after installation
 Do not install monitor and camera in locations subject to
direct heating as harmful gases may subsequently be
emitted in significant amounts
Stopping up pipe as above minimizes
temperature difference between indoors and outdoors, and
also eliminates moisture and condensation on door camera
window
Stop up P V C pipe using
adiabatic substances, to
prevent air circulation
MIC : Sending the voice to lobby phone,
guard phone, camera and other equipment
connecting to in-house line
Power LED
Communication Button
When receiving the call signal from interlocked
outside equipment, user can communicate with
it after pressing this button
Guardroom/Lobby Button 
Speaker 
Door Open Button : Pressing this button
while communicating, user can
automatically open the front door and
common gate
In-house Line Button :
Used in inner line call and communication
Front Door Button :
When receiving the call signal from front door,
user can communicate with front door after
pressing this button
Power Switch 
Communication LED
Contrast control switch 
Brightness control switch 
Color tone control switch 
 Volume control switch
KC-C60 Camera & KC-MC35 Metal Pinhole Camera
 C-Mic
To communicate with Monitor
 Speaker
When visitor calls, the voice from monitor
comes out of the speaker
 Call B tton
By pressing the button, the related
house will be called
 Camera Lens
Clear picture quality realized
by adopting image sensor
 Power Lamp
To check power ON/OFF status
※Option
78
Main Line Port from Lobby phone:
A Port used when multi-home wiring is needed
For further information, see the instruction sticker
or installation specifications
Front Door Opener Port:
A Port connecting to front door opener
Power Cord: AC 100V - 240V
Camera 2 Port
A Port connecting to in-house camera
Camera1 Port
A Port connecting to in-house camera
House No setting switch
Power Cord: DC 17V2V
DC INPUT(DC 17V2V)
KIV-212 KIV-D212

KC-C60 S rface-mo nting Door Camera Installation
※Before installation, do not fail to shut the piping
Standard Height of Door Camera
Standard height of the door camera is 1,400mm 1,450mm from the bottom of
one camera to the floor
In case that the height of Door camera exceeds the range of min 1,250mm1,550mm,
it is impossible to control the screen picture with only the lens angle,
and therefore, be careful of the height of camera installation
(unit:mm)
Door Camera Installation
Bottom base of
One hall Box
Surface mount
Basic Installation method of Monitor
When system is attached to 1 rectangular switch box
Standard height monitor
Standard height of monitor is ranged 1,450 ~ 1,500
from bottom to the center of monitor screen
For installation, avoid the places where there is any
excessive humidity,magnetic force, dangerous
chemicals, direct ray of sun, and any places near a
heater which can cause break down
Monitor Installation
(unit:mm)
Bottom of
1 Rectangular
switch box
Center of monitor
Straight Ahead Installation
Screw
Wall
910
Wall
Wall hanger panel
for fixing Monitor
Screw
Wall hanger panel for
fixing Monitor
Screw
1 Rectangular
switch box

Prod ct Specifications
AC 100V - AC 240V (Stand-by: Min 4 8W, Operation: Max 19W)
DC +12 8V
Call Signal (Electronic Tone Sound)
User can monitor situations of front door camera using "Front Door" button on monitor
By pressing "Guard/Lobby" button for about 5 seconds, users can monitor lobby situations
(This function is available only in lobby phones adopting TEN-KEY [KLP-100 series] mode)
When pressing call button on outdoor camera, call signal rings
Explanation for melody type of front door camera :
- Camera 1 : ‘Ding-Dong~’ 2times
- Camera 2 : ‘Ddiriri~’ 8times
Hands-free System (DSP)
In calling from front door camera, image maintains for about 30 seconds
While communicating, image maintains for about 3 minutes
Front Door Camera: 4-wire Polarity IV 0 65mm or more
Main line: VOICE1/VOICE2/DATA(3-line) Polarity IV 0 8mm or more
Power (+/GND) (2-line) Polarity IV 1 2mm or more
For video line, coaxial cable is used - COAXIAL 5C-2V
237(W) X 199(H) X 39(D) mm
Front Door Camera: When 0 65mm cable is used, 30m
Main Line Communication Line: When IV 0 8Фis used, 300m
Monitor: 0 C ~ 50 C
Power So rce
Voltage of Operating Power
Lobby / G ardroom / In-ho se Call Signal
Monitoring of Front Door Camera
Lobby Phone's Lobby
Monitoring F nction
Call Method
Comm nication Method
Image Maintenance Time
N mber of Wiring
Dimensions
Comm nication Distance
G aranteed Operation Temperat re

KC-C60, KC-MC35 Front Door Camera

KIV-212 Monitor / KIV-D212 Monitor
Component
Monitor Accessories
Camera
Monitor Components
①A Wall Hanger Frame
②Wall Hanger
Fixing Screws
③Wiring Lines of Camera 1 & 2
Blue (Power)
Yellow (GND)
Red (Voice)
White (Video)
Gray (+17V)
Violet (GND)
Blue (Voice)
Green (Voice)
Yellow (Video Input)
Orange (Data)
Red (In-house Line)
Brown (Data in-house line)
Black (Video Output)
④Wiring Lines of Multi-home Main Line
Front Door Camera Components
①Camera Main Frame Supporter
Monitor
②Screws for fixing camera
to main frame supporter
③Screws for fixing cabinet
body on the wall
④Upward adjusting supporter
for lens angle
Power So rce
Ambient temperat re
Angle of pict re
Min. Ill mination
Lens
Dimension
DC12V ±1V(Power from monitor)
-10~ 50
Diagonal 120。
0 1Lux(LED ON)
F:2 0, f=3 0mm
95(W) X 127(H) X 34(D)mm
CAMERA (KC-C60) Metal Pinhole Camera (KC-MC35)
Diagonal 90。
F:3 5, f=3 8mm
95(W) X 127(H) X 33(D)mm
11 12

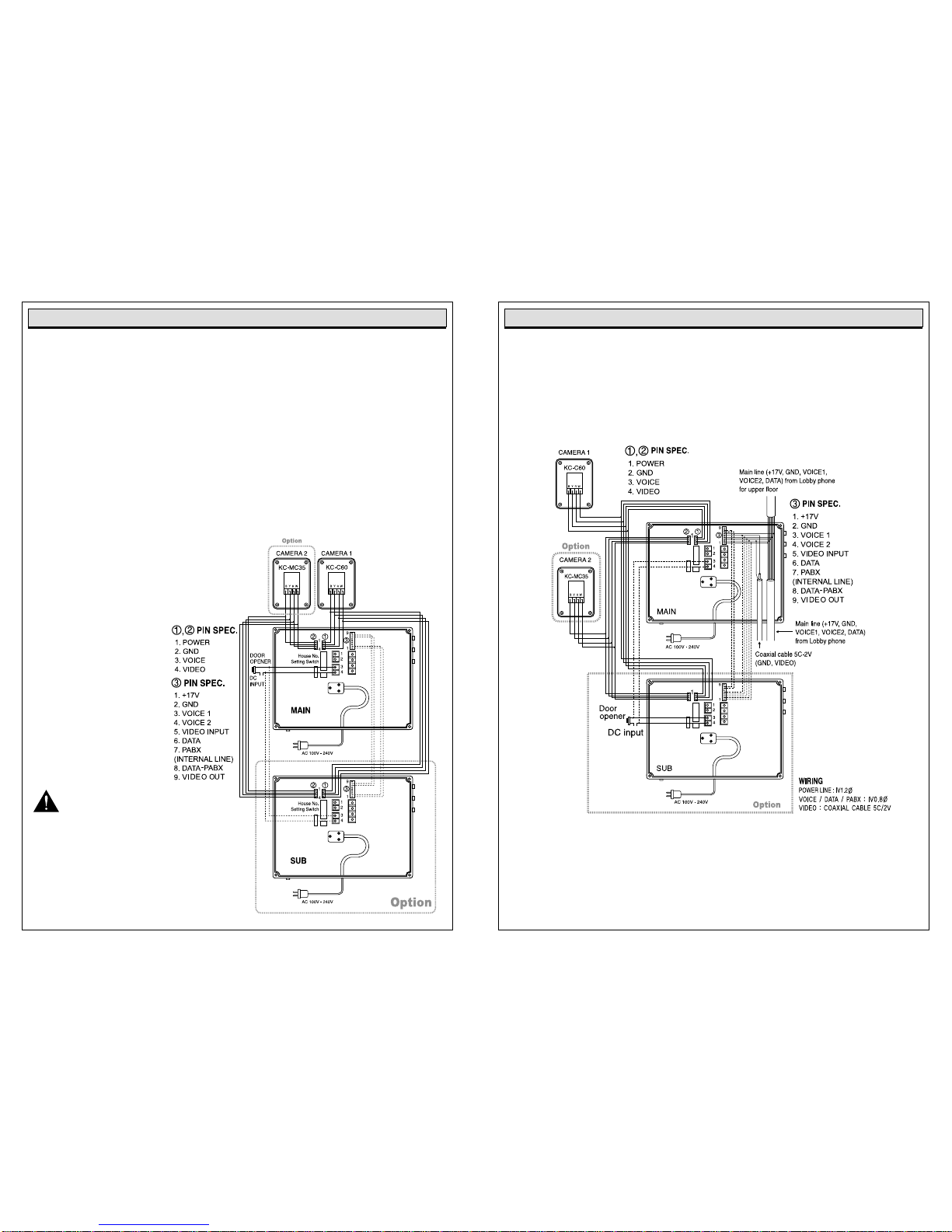

Wiring Diagram Wiring Diagram
 Wiring for single house without lobby phone connection
Ca tions
1 Pin No 1, 2, 7 & 8 in Main Line Port should be connected between main and sub monitor for internal
call and communication
2 For the connection with KIP-603, please refer to the wiring diagram in multi houses (apartment) in next
3 In extention with KIP-603 (Audio phone), it is not available to make conversation with front door camera
4 The DIP switch in sub unit should be set as “0”
Ca tions
- Door lock connection
Only one door lock should be installed and connected to the monitor for front door open (single house use)
If 2 door locks are installed in parallel connection, these 2 doors will be open at same time
- Front door camera connection
Be careful in camera connection to the camera ports As the camera ports have different 2 call sounds,
if camera 1 is connected to the camera port 1 in main monitor and to the camera port 2 in sub monitor,
main monitor and sub monitor have different 2 call sounds And camera 1 has 2 different call back tones, too
- Call so nds : Camera 1 - ‘Ding~Dong~’ 2 times
Camera 2 - ‘Ddiriri~’ 8 times
Precautions for Wiring
As incorrect wiring may cause the devices non-operation
or poor communication quality, please carefully
conduct wiring work
When connecting a wiring chord to a terminal, loosen
screw, insert the end of the chord into the bottom part of
screw, and tighten the screw
When fixing wiring chord, use stapler not to cause damage
to the chord
When using existing wiring, please be cautious not to
cause disconnection and short-circuit
 Wiring for multi houses (apartment) using KLP-C100 series Lobby phone
- Video phone to Video phone wiring in a house
Ca tions
1 Pin No 6 (data line) in Main Line Port is not connected in sub video phone
2 Pin No 1, 2, 3, 4, 5, 7 & 8 in Main Line Port are used in a form of parallel connection between
main monitor and sub monitor
3 The DIP switch in sub unit should be set as “0”
Ca tions
- Door lock connection
Only one door lock should be installed and connected to the monitor for front door open (single house use)
If 2 door locks are installed in parallel connection, these 2 doors will be open at same time
- Front door camera connection
Be careful in camera connection to the camera ports As the camera ports have different 2 call sounds,
if camera 1 is connected to the camera port 1 in main monitor and to the camera port 2 in sub monitor,
main monitor and sub monitor have different 2 call sounds And camera 1 has 2 different call back tones, too
- Call so nds : Camera 1 - ‘Ding~Dong~’ 2 times Camera 2 - ‘Ddiriri~’ 8 times
13 14

Communication between front door camera and audio phone is unavailable

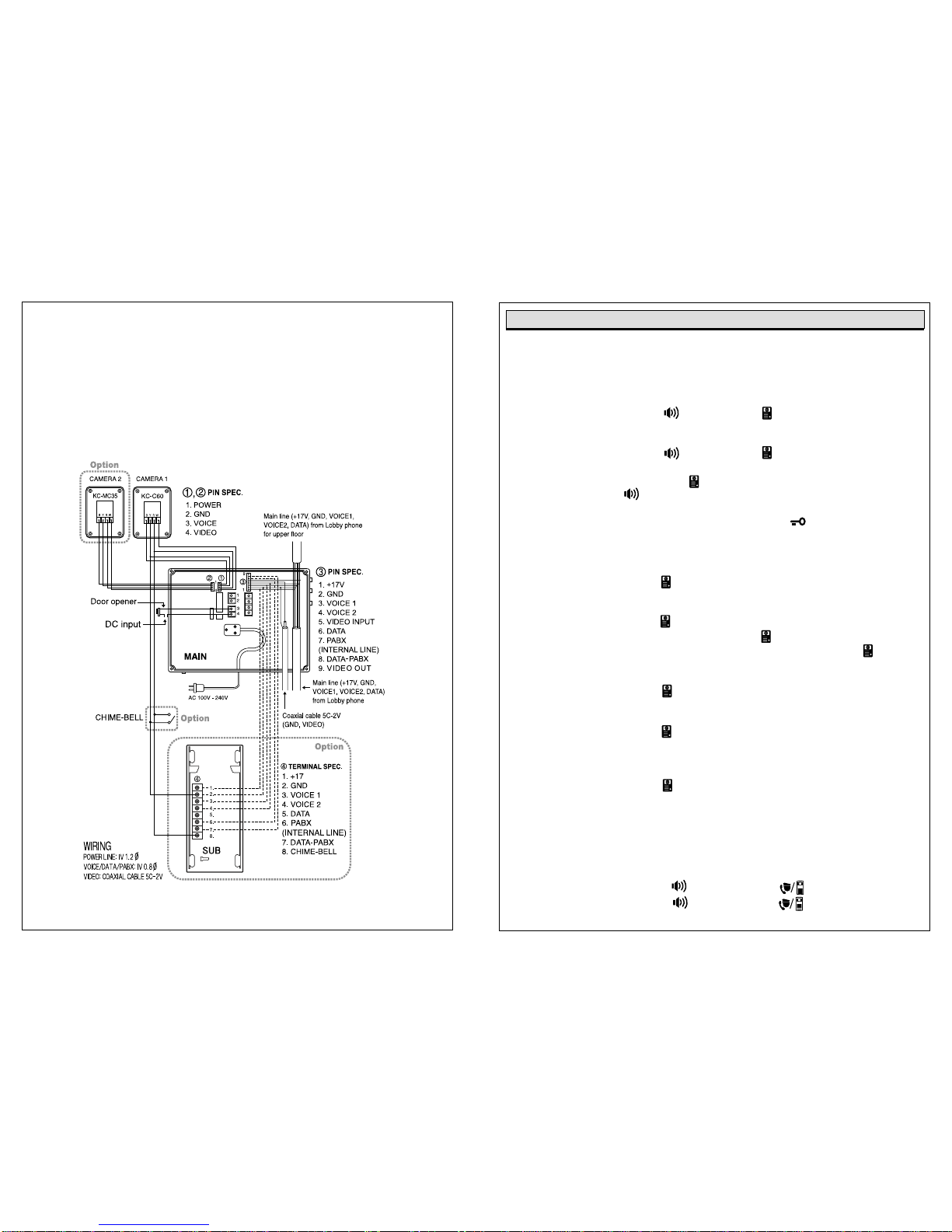

 Wiring for multi houses (apartment) using KLP-C100 series Lobby phone
- Video phone to Audio phone wiring in a house
Cautions
1 Terminal No 5(data line) in sub audio phone is not connected from Pin No 6(data line) of main
monitor
2 Pin No 1, 2, 3, 4, 7 & 8 in Main Line Port (Monitor) are used in a form of parallel connection
between main monitor and sub audio phone (1, 2, 3, 4, 6, 7)
3 In extention with KIP-603 (Audio phone), it is not available to make conversation with the front
door camera
4 The DIP switch in sub unit should be set as “0”
Instr ctions for Operation
 Functional Descriptions

Comm nication with front door when a visitor comes :
When a visitor presses the call button of front door camera,
1 Call signal rings at home monitor and its screen is automatically turned on to display a visitor
2 If pressing communication button or front door button on the front side of videophone,
user can communicate with the visitor at front door
(The monitor screen will be automatically faded out after 30 seconds)
3 If pressing communication button or front door button again after communication with
the visitor, user can end the communication (and screen is also faded out) If user wants to keep
communicating, press front door button again to connect to front door camera and then press
communication button
By doing so, monitor screen is turned on and user can keep communicating with the visitor (While
communicating with the visitor, if user presses the door open button , house front door
will be opened )

Monitoring of Front Door Sit ations
1 Monitoring for Camera 1
- If pressing the front door button once on the monitor, the image from camera 1 port is displayed
on the monitor screen
2 Monitoring for Camera 2
- If pressing the front door button once on the monitor, the image from camera 1 port is displayed
on the monitor screen And if pressing the front door button once again, the image from
camera 2 port is displayed on the monitor screen Then, if pressing the front door button once
again, the monitor screen is turned off
3 In case only one camera is installed
- If pressing the front door button , the image is displayed on the monitor screen
If pressing once again, there will be no image displayed on the monitor screen
- In case camera 1 is connected to the camera port 2 at the back of the monitor
If pressing the front door button once, there is no image displayed and then if pressing once
again, the image from camera port 2 is displayed In this case, if you change the camera 2 port to
1 port, it will work in normal
4 In case two cameras are installed
- If pressing the front door button once, the image from camera 1 is displayed and if pressing
once again, the image from camera 2 is displayed If pressing one more, the monitor
screen is turned off
- Cautions : Be careful for wrong connection between cameras and camera ports

Call from G ardroom - How to comm nicate
1 If the guard calls to the house, tone sound rings and both communication and guard/lobby LED flicker
at the front side of videophone
2 When user presses communication or guard/lobby button , communication begins
3 When user presses communication or guard/lobby button again, communication is ended
15 16


Call to g ardroom - How to comm nicate
1 When user presses guard/lobby button , call signal rings and the button's LED is turned on
to call guardroom phone
2 If handset is picked up in guardroom phone, communication begins (for up to 3 minutes)
3 If hanging up the handset in guardroom or pressing communication or guard/lobby button
on videophone, and communication will be automatically ended

Call from lobby phone - How to comm nicate
1 When a call from lobby phone, both communication and guard/lobby buttons flicker
(tone sound rings for 30 seconds)
2 Press communication or guard/lobby buttons , and communication will be
available (communication lasts for 3 minutes)
3 Press door open button on videophone while communicating with lobby phone to operate
common gate opener
4 Press either communication or guard/lobby button to end communication

Monitoring of Lobby (Common Gate) Sit ations
1 If pressing the guard/ lobby button around 3 sec on the monitor for about 3sec, the image
from lobby phone (common gate camera) is displayed on the monitor screen
But in case the lobby phone (common gate camera) or guardroom phone is busy, the image from
lobby phone (common gate camera) is not displayed
2 After 8 sec of lobby (common gate) monitoring, the monitor screen is automatically turned off
3 In house, the users can see the image and hear the voice from the lobby phone (common gate camera)
for 8 sec
4 This lobby (common gate) monitoring function is only available with 10 key type of KLP-100,
KLP-P100 & KLP-C100 lobby phone (common gate camera)
Comm nication is available only when options are installed. If options are not installed,
only tone so nds rings.
Call from In-ho se Line (When options are installed)
1 When internal call signal, in-house line LED at the front side of videophone flickers
2 Press either communication or in-house line button to start communication
(LED keeps On-mode)
3 Communication is available for up to 3 minutes When 3 minutes pass, communication is automatically
ended
4 Press either communication or in-house line to end communication
Internal Call sing In-ho se Line (When options are installed)
1 When user presses in-house line button , the button's LED flicker and a call signal is sent to
extended unit
2 Press communication or in-house line button on extended unit to begin
communication (communication maintains for 3 minutes)
3 Press communication or in-house line button to end communication
Users can control chime volume by adjusting 3-level volume switch on videophone
In all functions, call maintenance time is set for 30 seconds After 30 seconds, call signal and images
return to stand-by mode
All communications maintains for 3 minutes After 3 minutes, communication automatically
returns to stand-by mode
 Instructions for Operation
Model: (KLP-100 / KLP-P100 / KLP-C100), F nctional Specifications

Call to ho se
When a visitor calls to house using lobby phone, press house number
> Pressing call button, call sound rings and house is called
> If the house responds to the call, communication is available for 3 minutes
(Pressing door open button during the communication, opener installed with common gate is opened )
> When communication is ended, device returns to standby mode

Call from lobby phone to g ardroom
Pressing 0and call button on the lobby phone, guardroom is called and lobby phone ID is displayed
in guardroom phone
> Communication with guardroom maintains (for 3 minutes) When communication is ended,
device returns to standby mode

Password Change
(Password change function is only available during the call with house )
Pressing # # 0 0 #during the call with house, - - - - is displayed
Input new password and press button
e g) When register passward as ‘1111’ (It should be 4 digits)

Door open sing lobby phone with password
Pressing house number + # + password + #designated by the house, door is automatically opened
when the user from house number “0101” opens common gate with passward
e g) Press house number 0101, #, passward and # in order
[Lobby Phone's Direct-B tton Call F nction]
Model : KLP-104, 108, 112, KLP-P104, P108, P112, KLP-C104, C108, C112
To call to ho se, press ho se n mber sing lobby phone's key pad.
Tone sound rings and call signal is sent to the house
Pressing the call button again while calling, calling is cancelled No separate cancel button is offered
If called house is communicating with extended other lobby phones or guardroom phone,
busy signal sounds and device immediately returns to stand-by mode
▷▷Operation of Door Opener While Comm nicating with Ho se
1 Pressing door open button during the communication with house, common gate is opened
(Door Opener Specification: Within DC 12V 300mA)
※Functional specifications may be changed according to the specifications of installed products
(Stand-by) (House Number) (Call state) (Communication state) (Stand-by)
(Stand-by) (Guard Master Number) (Call state) (Communication state) (Stand-by)
(Communication state) (Password input mode) (Hold) (Password) (# Button)
(Stand-by) (House Number) (# Button) (Password) (# Button) (Releasing common gate)
17 18

19 20













DIP Switch Setting at House Interphone and Video Phone
■OLD MODE : 
















  
  
  

21 22
















 

 



















DIP Switch Setting at House Interphone and Video Phone
■NEW MODE : It is available to set from No. 1~1599.




























23 24











 

 




25 26
