Kogan KAPR14COOKA User manual

14-IN-1 6L MULTIFUNCTION
PRESSURE COOKER
KAPR14COOKA

1. Read instructions before first use.
2. Do not use the pressure cooker for a purpose other than the one for which it is
intended. This appliance is for household use only. Do not use outdoors.
3. This appliance is not intended for use by persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
4. This appliance shall not be used by children. Keep the appliance and its power
cord out of reach of children.
5. Do not let children near the pressure cooker when in use. Children should be
supervised to ensure that they do not play with the appliance.
6. This appliance is intended to be used in household and similar applications such
as:
-Staff kitchen areas in shops, office and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-Bed and breakfast type environments.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent similarly qualified persons in order to avoid a hazard.
8. Turn off and unplug the appliance before cleaning, maintenance or relocation and
whenever it is not in use.
9. Do not immerse any part of the appliance in water or other liquid.
10. The pressure regulator allowing the escape of steam should be checked regularly
to ensure that it is not blocked.
11. The container must not be opened until the pressure has decreased sufficiently.
12. The heating element surface is subject to residual heat after use: do not touch.
13. The appliance is not intended to be operated by means of an external timer or a
separate remote-control system.
14. Do not put the pressure cooker into a heated oven.
15. Use extreme care when moving the pressure cooker while it is pressurised. Do not
touch hot surfaces. Use the handles and knobs. If necessary, use protective
clothing and gloves.
16. Never force open the pressure cooker. Do not open before making sure that its
internal pressure has completely dropped.
17. Never use your pressure cooker without adding water or food or it can become
severely damaged.
SAFETY AND WARNINGS

18. Do not fill the cooker beyond 2/3 of its capacity. When cooking foodstuffs which
expand during cooking, such as rice or dehydrated vegetables, do not fill the cooker
to more than half of its capacity.
19. Use the appropriate heat source(s) according to the instructions for use.
20. After cooking meat with skin (e.g. ox tongue) which may swell under the effect of
pressure, do not prick the meat in which the skin is swollen; you might be scalded.
21. When cooking doughy food, gently shake the cooker before opening the lid to avoid
food ejection.
22. Never use the pressure cooker in its pressurised mode for deep or shallow frying of
food.
23. Do not tamper with any of the safety systems beyond the maintenance instructions
specified in the instructions for use.
24. Only use parts provided or recommended by Kogan.com.
Safety Precautions
To avoid personal injury and property loss, be sure to observe the following safety
precautions.
Meanings of the marks:
Means “Forbidden”
General warning
Do not disassemble
Do not touch with
wet hands
Do not touch
Do not spray water
Means “Mandatory”
Must observe
Remove
power plug
Note:
•Death or serious injury may result if the warning items are disobeyed.
•Physical injury or property damage may result if the caution items are disobeyed.

Warning
Use 220-240V~ power outlet
•Failure to use AC 220-240V~ electricity
can cause fire or electric shock.
•There exists a danger of fire if a faulty
socket is used.
Do not use this appliance with others
connected to the same socket
•A socket of more than 10A rated current
with grounding wire shall be used alone.
•If shared with other electrical appliances,
the socket may cause abnormal heat
and result in fire.
It is strictly prohibited to use other lids
•It is strictly prohibited to use other lid for
heating and in the switching on process,
the use of non-original lid is not allowed
as this may cause electric shock or safety
hazards.
Warning
Stop using if the power cord is damaged
•If the power cord is damaged, stop using
it and contact Kogan.com.
Do not insert foreign objects
•It is prohibited to insert metal shavings,
needles and other foreign matter in the
gap as this may cause electric shock or
movement anomalies.

Place the appliance in a location out of
reach of infants
•Place the appliance in a location out of
reach of infants to avoid electric shock
and scalding.
Modification is prohibited
•Modification or repair by non-
professionals is prohibited.
•Violation may cause a fire or electric
shock.
•Repair or replacement of parts shall be
made in a designated service centre.
Products may not be immersed or sprinkled
in water
•Doing so, this could cause electric shock
and electrical short circuits.
Warning on Opening the lid
•When the electric pressure cooker is not operating, there is no pressure in the
pot and the float valve is down.
•When the electric pressure cooker is operating, pressure in the cooker rises and
the float valve rises: do not open the lid before the pressure has been
completely released.
•If it is difficult to open the lid, do not force it open; otherwise, it may cause
scalding or physical injury.
Warning
Check periodically
•Be sure to check periodically the cover and
exhaust valves to ensure that they are not
blocked.
•Do not cover the exhaust valve with heavy
object or replace it with other objects.

Caution
Never pull the plug with a wet hand
•Pull the power plug with a wet hand may
cause electric shock.
When pulling the plug, you must pinch the
plug
•When pulling the plug, you must pinch the
plug.
•Do not pull the power cord; otherwise, it will
damage the cord, causing electric shock
and short circuit.
Unplugging when not in use
•Otherwise, it may produce leakage, fire or
failure.
During operation, never move your hands close
to the exhaust port.
•While cooking, never move your hands too
close to the exhaust port to avoid burns.
•During cooking, do not cover the vent with
a cloth and other items.
When the cooker is working, do not touch the
lid
•When the cooker is working, do not touch
the lid as it will be very hot; otherwise, it
may possibly cause scalding.
Observe the maximum level indicator
•The total amount of food and water cannot
exceed the Max level indicator; otherwise,
food may be cooked unfamiliar or cause
malfunction.

Only use the dedicated pot
•When there is foreign object on the bottom
of pot and heating plate surface, remove
the foreign object before use; otherwise, it
may cause overheating and work
abnormalities etc.
Do not put the inner pot on other appliance for
heating
•The inner pot may develop a deformation
or fault if used with another heating
appliance
When moving the product, hold the handle of
cooker body
•When moving the product, do not directly
hold the handle of the lid to avoid lid
dropping.
Do not use in the following locations.
• Do not use in unstable locations;
• Do not use in locations near water and fire;
• Do not use near walls and furniture;
• Do not use in locations exposed to direct sunlight and oil splatter;
• Do not approach the stove to avoid fire.

No
Description
No
Description
1
Exhaust valve handle
11
Exhaust valve (note)
2
Upper cover handle
12
Seal ring bracket
3 Seal ring 13 Seal gate (note)
4 Internal side of lid 14 Block proof cover
5 Water box (note) 15 Inner pot
6
Housing cover
16
Outer pot
7
Control box
17
Cooker body handle
8 Base 18 Cooker body
9 Exhaust opening 19 Power cord socket
10 Float valve
OVERVIEW

Before Use
Before first use, remove all accessories from the cooker body and read all instructions and
warnings fully.
Clean the inner pot before every use and ensure the ventilation is clear.

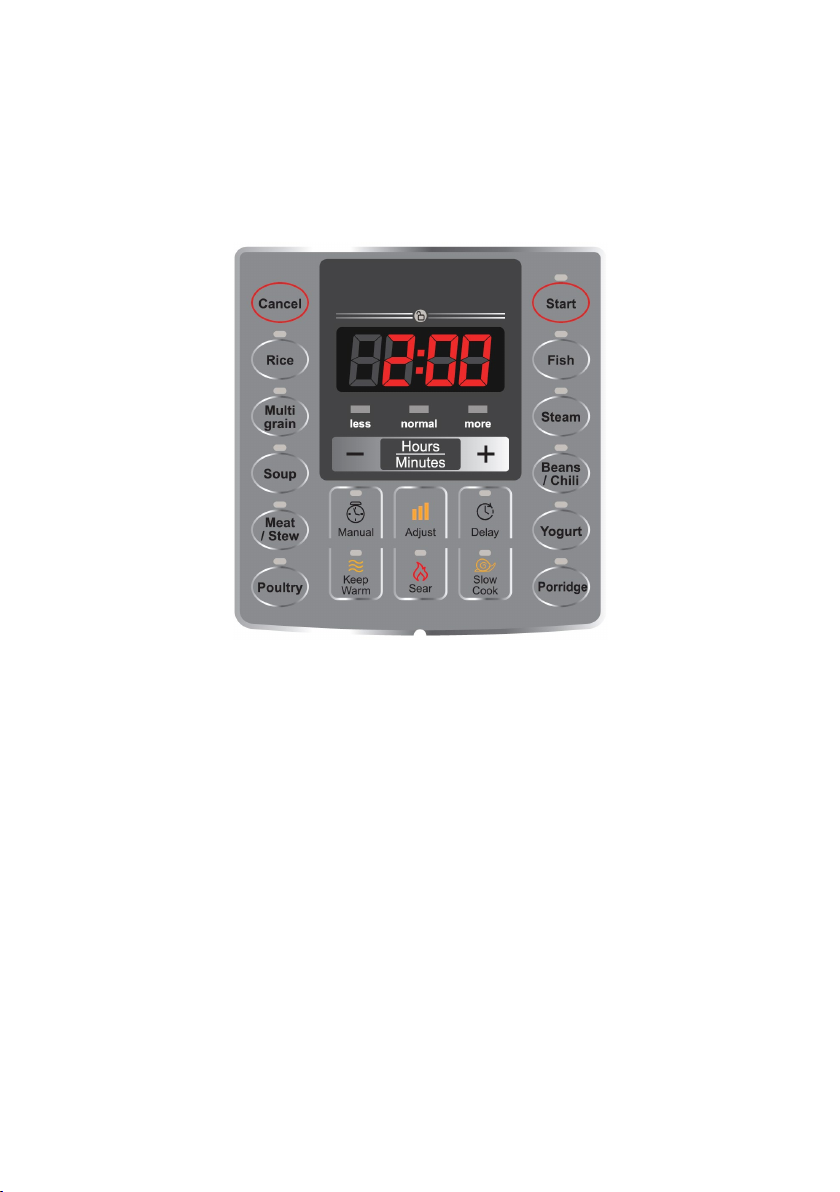

Control Panel
Delay Timer Function
Set the time for cooking by pressing the “+”/“-” button.
OPERATION
Display Screen
Start Button
Menu Function Panel
“+” Button
Adjust Button
“-” Button

Disassembly and Installation of Block-Proof Cover
1. Check if the seal ring and block proof cover are correctly installed in the upper cover
before every use.
2. After use, please clean the seal ring and around of block proof cover for avoiding
jamming the cover, keep it clean to avoid bad odour.
Disassembly and Installation of Seal Ring
1. Do not pull the seal ring, otherwise, the distorted seal ring may influence the seal
and pressure effect.
Install
Press it down to install
Pull out and up to
disassemble
Black
Proof
Cover
Seal ring
Pull out and upwards
to disassemble

2. Do not use if damaged: instead contact Kogan.com to arrange a repair.
Cooking Preparation
1. Open the lid correctly
Holding the handle of upper cover, turn anticlockwise about 30°C to align the arrow marks
on the lid and body and lift.
2. Ensure the parts and accessories of lid are installed securely
Ensure the floater valve and exhaust valve are clear and confirm the sealing ring and block
proof cover are installed securely.
Install
Press it down to install

3. Remove the inner pot and add food and water
•Observe the MAX indicator marked on the inner pot.
4. Insert the inner pot into the cooker
•Wipe to clean the external surface of inner pot.
•Turn the inner pot to ensure good contact with the heating plate.
5. Safely close the lid
•Before closing the lid, ensure the sealing ring is secure.
•Holding the handle of upper cover, turn clockwise about 30°C to align the arrow
marks on the body with the lock symbol on the lid.
MAX
Usable Capability

6. Seal the exhaust valve
•Turn the exhaust valve closed to create pressure. For manual exhaust, turn it to the
exhaust positinon.
•Ensure the floater valve drops down before turning on.
Sealing schematic diagram
Exhaust schematic diagram
Function Selection
1. Turn on. If the buttons are inoperable, check the lid is closed properly.
2. Select the required function: press the function button to select function and press
the “+”/“-” button to adjust the cooking time.
3. Press one function button, 10 seconds later or press the “Start” button, the electric
pressure cooker starts to select the program of corresponding function. 10 seconds
after selecting the function, the electric pressure cooker starts working.
4. After cooking, the cooker may automatically enter into the keep warm state. After
cooking, the indicator of corresponding function lights off, the keep warm indicator
lights on, the cooker makes sound and enters into the keep warm state. Under the
standby state, press the “Keep Warm” button, 10 seconds later or press the “Start”
button, the keep warm and start indicator lights on, the cooker makes sound and
enters into the keep warm state.
Tips:
•Under any state, press the “Cancel” button to cancel the current operation state
and return to standby state.
•A low clunking sound is normal during operation
•When cooking a small amount of food, the inner pot may be lifted when opening
the lid: shake it gently to detach.
Opening the Lid
Tu r n o f f o r remove power plug. Then, to Quickly open the lid (solid food only):
Turn the exhaust valve to the exhaust position until the float valve drops down.
To open the lid normally (recommended)
Allow the electric pressure cooker to cool until the float valve drops down.

Functions
Function
Operation Guidelines
Cancel
Under any state, press “Cancel” button to cancel the current work
state and return to standby state.
Warm
Under standby state, press “Warm” button to enter into keep
warm state. “Warm” indicator light is on and the digital screen
shows “OH”. 1 hour later the screen will show “1H” and 2 hours later
it will show “2H”.
Sear
Under standby state, press “Sear” button, the indicator light is on
and the digital screen shows default working time. 10 seconds later
if no buttons is pressed or press “Start” button, the product
automatically starts countdown and enters to standby state when
it finishes working.
Slow Cook
Under standby state, press “Slow Cook” button, the indicator light
is on and the digital screen shows default working time. Press “+”
or “-” button to adjust the working time. 10 seconds later if no
button is pressed or press “Start” button, the product
automatically starts cooking. The digital screen starts countdown
and the unit enters to keep warm state when it finishes working.
Manual
1. Under standby state, press “Manual” button, the
indicator light is on and the digital screen shows default
working time. Press “+” or “-” button to adjust the pressure
working time. 10 seconds later if no button is pressed or
press “Start” button, the product automatically starts
cooking. The digital screen starts countdown as soon as
the pressure rise to working pressure. Enters into warm
when it finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
Rice
1. Under standby state, press “Rice” button, the indicator
lights on and the digital screen shows default working
time. Press “+” or “-” button to adjust the working time. 10s
later if no button is pressed or press “Start” button, the
product automatically starts cooking. The digital screen
starts countdown as soon as the pressure rise to working
pressure. Enters into warm when it finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit

starts delay time countdown. When the countdown
reaches to the end, the program starts working.
Multigrain
1. Under standby state, press “Multigrain” button, the
indicator lights on and the digital screen shows default
working time. Press “+” or “-” button to adjust the working
time. 10 seconds later if no button is pressed or press
“Start” button, the product automatically starts cooking.
The digital screen starts countdown as soon as the
pressure rise to working pressure. Enters into warm when
it finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
3.
Adjust:
Before the program start, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.
Soup
1. Under standby state, press “Soup” button, the indicator
lights on and the digital screen shows default working
time. Press “+” or “-” button to adjust the working time. 10
seconds later if no button is pressed or press “Start”
button, the product automatically starts cooking. The
digital screen starts countdown as soon as the pressure
rise to working pressure. Enters into warm when it finishes
working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
3.
Adjust:
Before the program starts, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.
Meat/Stew
1. Under standby state, press “Meat/Stew” button, the
indicator lights on and the digital screen shows default
working time. Press “+” or “-” button to adjust the working
time. 10 seconds later if no button is pressed or press
“Start” button, the product automatically starts cooking.
The digital screen starts countdown as soon as the
pressure rises to working pressure. Enters into warm when
it finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.

3. Adjust: Before the program starts, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.
Poultry
1. Under standby state, press “Poultry” button, the indicator
lights on and the digital screen shows default working
time. Press “+” or “-” button to adjust the working time. 10
seconds later if no button is pressed or press “Start”
button, the product automatically starts cooking. The
digital screen starts countdown as soon as the pressure
rises to working pressure. Enters into keep warm when it
finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
3.
Adjust:
Before the program starts, you can press “Adjust”
button to Change the food flavour for “Less” or “normal”
or “more”.
Fish
1. Under standby state, press “Fish” button, the indicator
lights on and the digital screen shows default working
time. Press “+” or “-” button to adjust the working time. 10
seconds later if no button is pressed or press “Start”
button, the product automatically starts cooking. The
digital screen starts countdown as soon as the pressure
rises to working pressure. Enters into keep warm when it
finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
3.
Adjust:
Before the program starts, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.
Steam
1. Under standby state, press “Steam” button, the indicator
light is on and the digital screen shows default working
time. Press “+” or “-” button to adjust the working time. 10
seconds later if no button is pressed or press “Start”
button, the product automatically starts cooking. The
digital screen starts countdown as soon as the pressure
rises to working pressure. Enters into warm when it
finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.

3. Adjust: Before the program starts, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.
Beans/Chilli
1. Under standby state, press “Beans/Chilli” button, the
indicator light is on and the digital screen shows default
working time. Press “+” or “-” button to adjust the working
time. 10 seconds later if no button is pressed or press
"Start" button, the product automatically starts cooking.
The digital screen starts countdown as soon as the
pressure rise to working pressure. Enters into warm when
it finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
3.
Adjust:
Before the program starts, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.
Yogurt
1. Under standby state, press “Yogurt” button, the indicator
lights on and the digital screen shows default working
time. Press “+” or “-” button to adjust the working time. 10
seconds later if no button is pressed or press “Start”
button, the product automatically starts cooking.
“Yogurt” and “Start” indicator lights are on. The digital
screen starts countdown and the unit enters to standby
state when it finishes working.
Porridge
1. Under standby state, press “Porridge” button, the
indicator lights on and the digital screen shows default
working time. Press “+” or “-” button to adjust the working
time. 10 seconds later if no button is pressed or press
“Start” button, the product automatically starts cooking.
The digital screen starts countdown as soon as the
pressure rises to working pressure. Enters into warm when
it finishes working.
2.
Preset cooking:
Before the program starts, press “Delay”
button. The screen shows the preset beginning time.
Press “+” or “-” to adjust the delay time. Then press
“Hours/minutes” button to change Hour and minute. 10
seconds after setting or press “Start” button, the unit
starts delay time countdown. When the countdown
reaches to the end, the program starts working.
3.
Adjust:
Before the program starts, you can press “Adjust”
button to change the food flavour for “Less” or “normal”
or “more”.

Keep Warm Function
1. After cooking, the electric pressure cooker automatically enters into the keep warm
state; Under keep warm state, keep warm indicator lights on;
2. Under standby state, you may also press the “Keep Warm” button to enter keep
warm function;
3. Keep warm temperature is 60°C - 80°C.

Environment
•Periodically clean the cooker and remove oil and dirt if it is stored on the table.
•Put the electric pressure cooker at least 30cm away from other kitchen appliances.
Clean After Use
1. Clean after each use.
2. Before cleaning and maintenance, unplug the power cord until the product cools.
3. Remove the lid and inner pot, clean with detergent first, then rinse well with water
and wipe dry with a soft cloth.
4. Clean the internal side of the lid with water, the seal ring, block proof cover, exhaust
valve core and float valve can be removed for washing, timely and correctly install
them after washing and then dry the internal side of lid with cloth.
5. Wipe and clean the cooker body with a rag do not soak the cooker body in water or
spray water to it.
Note:
1. Exhaust valve: Pull out the exhaust valve from the lid. Clean the internal side of the
exhaust valve and float valve of the lid with brush and cloth at least once a month.
2. Sealing gate: Please remove oil and dirt from the sealing gate with detergent and
brush. The remained oil and dirt in it may appear in yellowish. After washing, it may
recover to the original colour as stainless steel. It is suggested to clean the sealing
gate once in every 2 months.
3. � Water box: After cooking, the steam may stay in the water box of the external pot
as water. Water in the box should be removed for avoiding bad odours, please
clean it with clean cloth.
Stainless inner pot
Do not use it to store acidic or preserved foods for a long period. Do not keep warm for longer
than 2 hours.
4. Do not use a metal shovel or other hard tool; otherwise it will damage the inner surface of
pot.
Note: The inner pot’s finish may discolour after sustained use or scrubbing. This is normal
and won't influence the function of the product.
CLEANING & CARE

Capacity
5.7L
Power Supply
~220-240V
Rated Power
1000W
Size of Inner Pot
8.66"
Working
Pressure 80kPa
Issue Possible Cause Steps to Resolve
Difficult to close the lid Sealing ring not installed
properly
Position the sealing
ring well
The floater valve clamps the
push rod
Lightly push the
push rod
Difficult to open the lid Float valve is in the popped-up
position
Press the float valve
lightly with a
chopstick.
Pressure exists inside the cooker Open the lid after
the pressure is
completely
released.
Steam leaks from the lid Sealing ring installed improperly Install the sealing
ring as required
Food debris attached to the
sealing ring
Clean the sealing
ring
Sealing ring damaged Replace the sealing
ring
The lid is not closed correctly Close the lid
correctly
SPECIFICATIONS
TROUBLESHOOTING
