Kogan KA45CICEMKA User manual

45KG COMMERCIAL ICE
CUBE MAKER
KA45CICEMKA

2
Safety & Warnings 3
Components List 6
Overview 9
Installation 13
Before First Use 16
Operation 19
Cleaning & Care 22
Specifications 27
Troubleshooting 28
Wiring Diagram 31
Dimensions/Connections 32
Notes 33

3
•WARNING: Risk of fire/flammable materials used. Refer to the local
environmental authority regarding disposal of the appliance due to its flammable
blowing gas.
•WARNING: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
•When using electrical appliances, basic safety precautions should be followed to
reduce the risk of fire, electric shock and injury to persons or property. Read all
instructions before using any appliance.
•WARNING: Risk of fire / flammable materials, take care to avoid causing a fire by
igniting flammable material.
•WARNING: Children should be supervised to ensure that they do not play with the
appliance.
•WARNING: This appliance is intended to be used in household and similar
applications such as:
oStaff kitchen areas in shops, offices, and other working environments
oFarmhouses and by clients in hotels, motels, and other residential type
environments
oBed and breakfast type environments
oCatering and similar non-retail applications
•Use this appliance only for its intended purpose as described in this user guide.
SAFETY & WARNINGS
WARNING:
•Installation must be conducted by a licensed plumber subject to
the requirements of the applicable regulatory authority, the
National Construction Code Volume Three – Plumbing Code of
Australia, associated reference standards as applicable at the
time and WMTS-105: 2016, and AS/NZS 3500.1: 2021. This is not
limited to any other plumbing components and appropriate
backflow device. Contact help.Kogan.com if requiring further
assistance.
•If for any reason this appliance requires service, it is strongly
recommended that a certified technician perform the service.

4
•This icemaker must be properly installed in accordance with the installation
instructions before it is used.
•This unit must be positioned so that the plug is accessible.
•Do not run cord over carpeting or other heat insulators.
•Do not cover the cord.
•Keep cord away from high traffic areas and do not submerge in water. No other
appliance should be plugged into the same outlet and be sure that the plug is fully
inserted into the outlet.
•It is not recommended to use an extension cord as it may overheat and cause a risk
of fire. If an extension cord must be used, use one with a minimum size of 1.5 mm2
rated no less than 16A/250V~ with a plug.
•If the power cord is damaged, cease use immediately and contact help.Kogan.com
for support.
•Disconnect the power cord from the outlet when not in use for an extended period.
•Disconnect the power cord from the outlet before cleaning or servicing the appliance.
•Never unplug this unit by pulling on the power cord. Always grasp the plug firmly and
pull straight out from the outlet.
•Do not use this unit outdoors.
•Keep the unit away from direct sunlight and make sure that there is at least 15 cm of
space around all sides of the appliance. Keep ventilation openings in the appliance
enclosure or in the built-in structure clear of obstructions.
•Never tip over the unit. Doing so will cause the unit to make abnormal noises, affect
the size of the ice cubes, and may cause water leakage from the unit.
•If the unit is brought in from outside in the winter, give it a few hours to warm up to
room temperature before plugging it in.
•Do not use liquids other than water to make the ice cubes.
•Do not clean your ice maker with flammable fluids. The fumes can create a fire
hazard or explosion.
•WARNING: Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstructions.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: This appliance must be earthed. A 220-240V/50Hz earthed power
supply must be used.
•WARNING: Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process or ice harvesting process, other than those recommended by the
manufacturer.
•WARNING: Do not use any other type of electrical appliance inside the icemaker.

5
•WARNING: Do not locate multiple portable socket-outlets or portable power supplies
at the rear of the appliance.
Important:
The wires in this mains lead are coloured in accordance with the following code:
•Green and yellow: Earth
•Blue: Neutral
•Brown: Live
As the colour of the wires in the mains lead of the appliance may not correspond with the
coloured markings identifying the terminal in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug
which is marked with the letter E, G or by symbol or coloured green or green-and-
yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the
letter N.
The wire which is coloured brown must be connected to the terminal which is marked with
letter L.

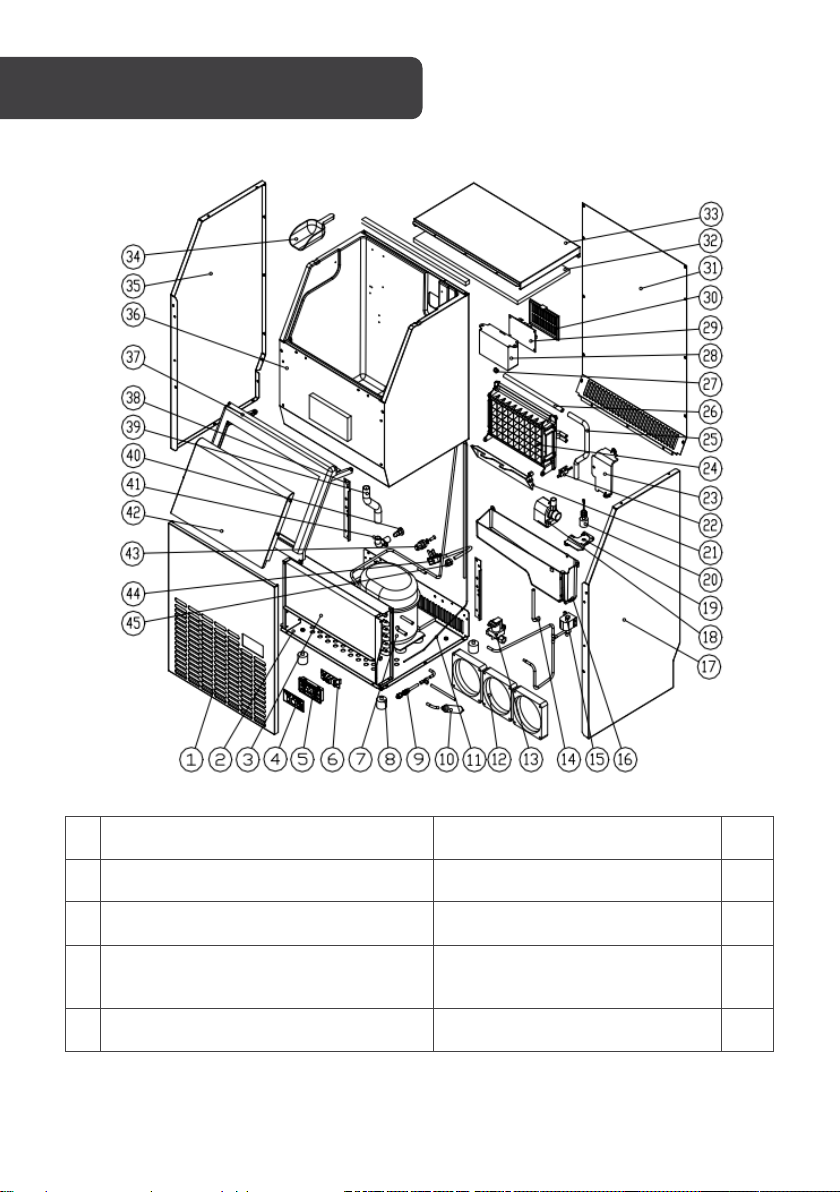

6
No
Parts Name Material Qty
1 Front panel Stainless steel 1
2 Bottom plate Zinc-plated steel board 1
3 Condenser Copper tube and aluminium fin 1
4 Operation panel paper PET 1
COMPONENTS LIST

7
5 Operation panel PCB box ABS 1
6 Operation panel PCB Electrical and Electronic parts 1
7 Compressor AC220-240V, 50Hz 1
8 Adjustable foot ABS and bolts 4
9 Service valve Copper 1
10 Dry filter Copper 1
11 Capillary Copper 1
12 DC fan DC12V, Electrical parts 3
13 Water inlet valve DC12V Electrical parts 1
14 Water drainage pipe of the water tank Silicone pipe 1
15 Ice-harvesting Electro-magnetic valve AC220V/50Hz, Electrical parts 1
16 Water tank ABS 1
17 Right side plate Cold-rolled steel with powder
painting or 430 stainless steel 1
18 Water circulation pump AC220-240V,50Hz, Electrical
parts 1
19 Cover of the water tank ABS 1
20 Water level detecting switch DC5V, Electrical parts 1
21 Ice-full detecting plate ABS 1
22 Magnetic control switch DC5V, Electrical parts 1
23 Cover board on the right side of the
evaporator ABS 1
24 Evaporator and its frame
Copper plated with nickel and ABS
frame 1
25 Water supplying pipe Silicone pipe 1

8
26 Water dividing pipe, with nine holes ABS 1
27 Cap of the water dividing pipe Silicone 1
28 Electrical PCB box ABS, fire-retardant 1
29 Main control PCB PCB, Electrical parts 1
30 Cover of the main control PCB ABS, fire-retardant 1
31 Rear plate Zinc-pated steel 1
32 Insulation sponge of the top cover PE 1
33 Top cover Stainless steel 1
34 Ice shovel ABS 1
35 Left side plate Cold-rolled steel with powder
painting or 430 Stainless steel 1
36 Foaming inner cabinet & Ice storing bin HIPS and Cyclopentane foaming 1
37 Door frame ABS 1
38 Back strength plate Zinc-plated steel 1
39 Water outlet pipe of the inner cabinet Silicone pipe 1
40 Water drainage cap Rubber 1
41 Water drainage port ABS 1
42 Door ABS 2
43 Water inlet port PP 1
44 Power cord Electrical parts 1
45 Clipper of the power cord PP, fire-retardant 1
46 Wiring Electrical parts 1

9
Main Unit Construction
1 Top cover
2 Door
3 Ice-making & water tank
assembly
Including ice-making evaporator, water tank, water pump
and some detecting parts
4 Front panel
5 Operation panel
6 Air outlet Keeps the air circulate smoothly, hot air will blow out
when unit running.
7 Water draining port Normal plugged with the cap. To drain the water, unplug
the cap and connect the white drainpipe.
8 Water inlet port for water
supply Use to connect the water supply pipe.
Accessory:
2 meters long and white colour water drainpipe, water quick connector of the water
faucet, Ø6.35mm diameter, white colour water supply pipe (3 meters long)
OVERVIEW

10
Ice-making and its water tank parts
A Water dividing pipe Water will flow out from the nice holes. If no water flows out,
can be disassembled and cleaned.
B Evaporator (ice-making module)
C Ice full detecting board Use to detect the inner cabinet is full of ice or not and to
check the ice-harvest process is completed.
D Water tank
E Water supplying pipe
F Cover board on the right side of the evaporator
G Water level switch installing plate
H Water drainpipe of the
water tank
When ice-making, this pipe should be clamped in the slot of
the water tank wall. When draining, this pipe should be
pulled out.
I Water pump
J Water level detecting switch

11

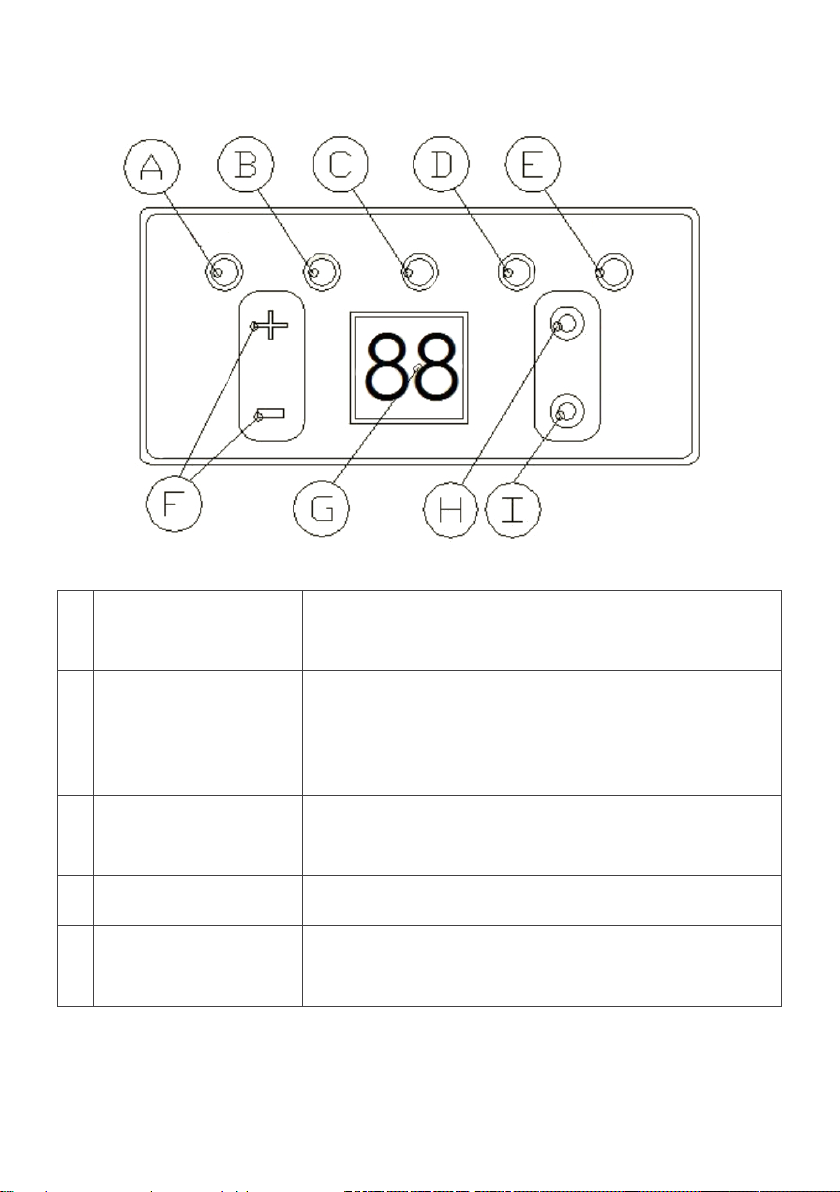

Operation Panel
A “ADD WATER” light
•Flashing: Unit has sufficient water supply.
•Solid light: Absence of water in unit.
B “TIMER” light
•On: Unit currently has a timer set.
•When the unit is turned off, can set with the ON-
TIMER; and when the unit is on, can set with OFF-
Timer.
C “ICE” light
•Solid light: Unit is making ice
•Flashing: Unit is in the ice-harvesting process.
D “FULL” light •On: Unit is full of the ice cube
E “CLEAN” light
•Solid light: Water pump is cleaning.
•Flashing light: Water pump cleaning is finished.
Add Water Timer Ice Full Clean
ON/OFF
Timer
Clean

12
F “+”, “-” button
•Used to adjust the ice-making process duration period.
The default setting is zero, pressing the “+” or “-” will
change the time in one-minute increments.
•Used to adjust the delay period of the timer. The
default setting is zero, pressing the “+” or “-” will
change the time in one-minute increments. .
G “88” digital window
•Solid light: Normal condition, displays ambient
temperature.
•Flashing light: Time left in of each process (ice-making
cycle, self-cleaning program, etc.).
H “ON/OFF” button
•When the unit is off, press this button to turn on the
unit.
•During the Self-cleaning program or normal ice-
making state, press this button to turn off the unit.
•If the unit is set with the Timer, press this button to
cancel the Timer setting.
•When the unit is making the ice cube, press this button
for more than 5 seconds, the unit will switch to ice
harvesting.
I “TIMER CLEAN” button
•Quick press: To enter the Timer setting program.
•Press and hold this button for more than 5 seconds, to
enter the cleaning program.

13
Unpacking Your Ice Maker
1. Remove the exterior and interior packaging. Check if all the accessories, including the
user guide, ice scoop, water inlet pipe, 4 into 2 ways water quick connector, and the
water draining pipe are included. If any parts are missing, double check the
packaging and then contact help.Kogan.com for support.
2.Remove any tape from the door and inner cabinet, ice scoop, etc. Clean the inner
cabinet & ice scoop with damp cloth.
3.Put the ice maker on a level and flat surface, without direct sunlight and other
sources of heat (i.e.: stove, furnace, radiator). Make sure that there is at least 20cm
gap between the air outlet and the obstacles and at least 5cm between Left/Right
side and the wall.
4.Allow 4 hours for the refrigerant fluid to settle before plugging the ice maker in.
5.The appliance must be positioned so that the plug is easily accessible.

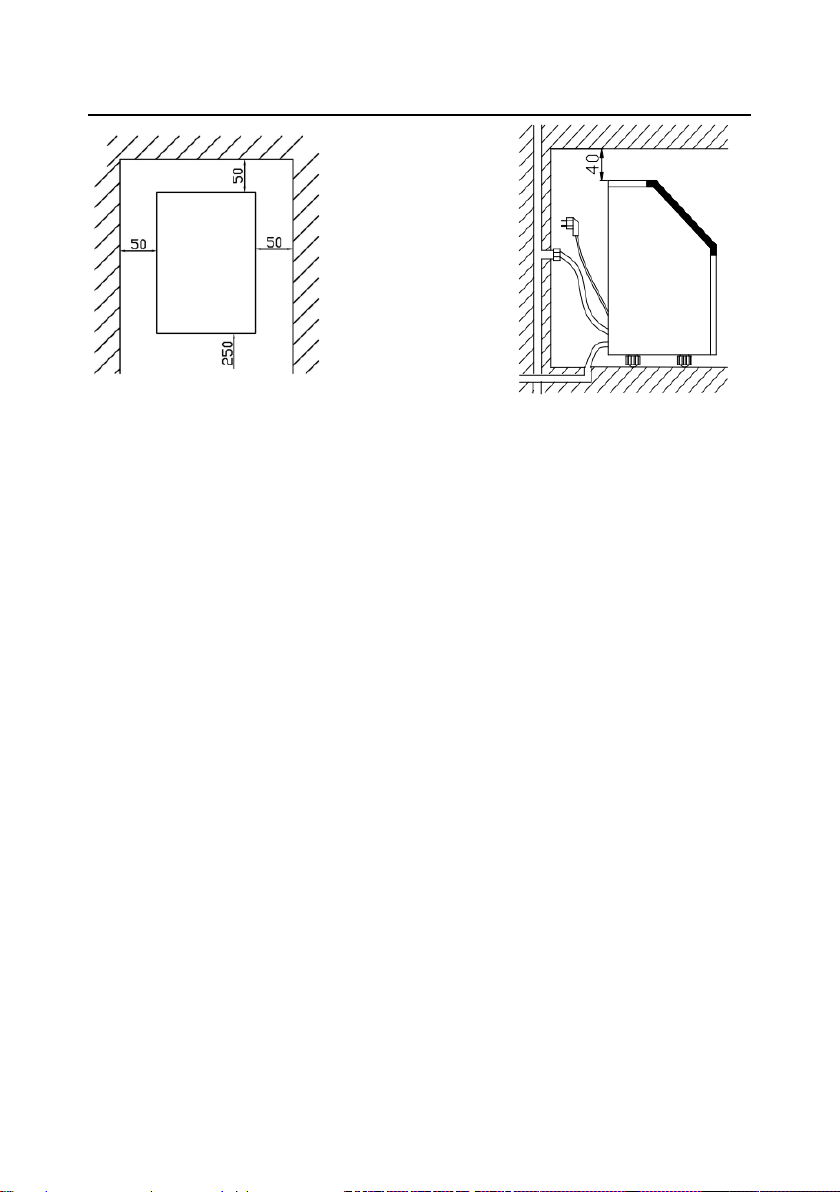

Installation Location Requirements
•This unit is not for outdoor use. Keep the proper room temperature and inlet water
temperature according to specification table. Failure to do so will affect the ice
making performance.
•This unit should not be located near any sources of heat.
•The unit should be located on a firm & level foundation at normal countertop height.
•There must be at least 5cm clearance at rear side for connection and 25cm
clearance in front to open the door and keep good air circulation.
•Do not put anything on the top of the ice maker.
INSTALLATION
WARNING: Connect to potable water supply only. Ensure only drinking
water is used in this appliance.

14
To ensure proper ventilation for your ice maker, the front of the unit must be completely
unobstructed (at least 20cm free space). Allow at least 15cm clearance at the rear and 5cm
at top and sides for proper air circulation. The installation should allow the ice maker to be
pulled forward for servicing if necessary.
When installing the ice maker under a counter, follow the recommended spacing
dimensions shown above. Place electrical and water supplies and drain fixtures in the
recommended locations as shown. Choose a well-ventilated area with temperatures above
10°C and below 32°C. This unit must be installed in an area protected from the elements,
such as wind, rain, water spray or drips.
The ice maker requires a continuous water supply with a pressure between 1-8 Bar. The
temperature of the water supply to the ice maker should be between 5–25°C for optimal
operation.
Side View (mm)
Top view (1:10) (mm)

15
Electrical Requirements and Connections
Warning: This unit must be earthed.
•Ensure the power cord is plugged into a grounded wall outlet. There may be an
electrical shock hazard otherwise.
•Never remove the ground prong.
•Use a separate power supply or receptacle. Never use an adapter.
•Never use an extension cord.
•Failure to follow these instructions can result in death, fire or electrical shock.
Before you move your ice maker into its final location, it is important to make sure you have
the proper electrical connection.
It is recommended that a separate circuit, serving only your ice maker, be provided. Use
receptacles that cannot be turned off by a switch or pull chain. If the supply cord or plug to
be replaced, it should be done by a qualified service engineer.
This appliance requires a standard 220-240V, 50Hz electrical outlet with good grounding.
Recommended grounding method
For your personal safety, this appliance must be properly grounded. This appliance is
equipped with a power supply cord having a grounding plug. To minimize possible shock
hazard, the cord must be plugged into a mating grounding-type wall receptacle, grounded
in accordance with the National Electrical Code and local codes and ordinances. If a
mating wall receptacle is not available, it is the personal responsibility of the customer to
have a properly grounding wall receptacle installed by a qualified electrician.

16
Cleaning Your Ice Maker
Before using your ice maker, it is strongly recommended to clean it thoroughly.
1. Open the door.
2.Clean with diluted detergent, warm water and a soft cloth.
3.Repeatedly clean the water contacting inner parts. You can remove the Water
drainpipe from the water tank to drain the cleaned water in the water tank, then next
to clean inner ice-storing cabinet.
4.Once all inner parts are clean, drain out all of the water from the water drain port
located at rear of the appliance. Ensure the water drainpipe is reinstalled to the water
tank and the cap of the unit water drain port, otherwise, the unit will not function
normally.
5.The outside of the ice maker should be cleaned regularly with a mild detergent
solution and warm water.
6.Dry the interior and exterior with a clean, soft cloth.
Water Connection for the Ice Maker
Important: Be sure to only use the new hose-sets supplied with the appliance to connect to
water mains. Old hose-sets should never be reused.
BEFORE FIRST USE
Note:
It is highly recommended to discard the ice cubes made by the first ice making cycle
after cleaning.

17
Connect the water supplying hose to the unit:
1. First remove the tape on the water inlet port for water supply (B) located at the rear
of the unit, using a finger on your other hand press the clipper out.
2.Insert the one end of the white-water hose into the water inlet port and push inward
completely. Reinstall the clipper. The water hose connection is now complete.

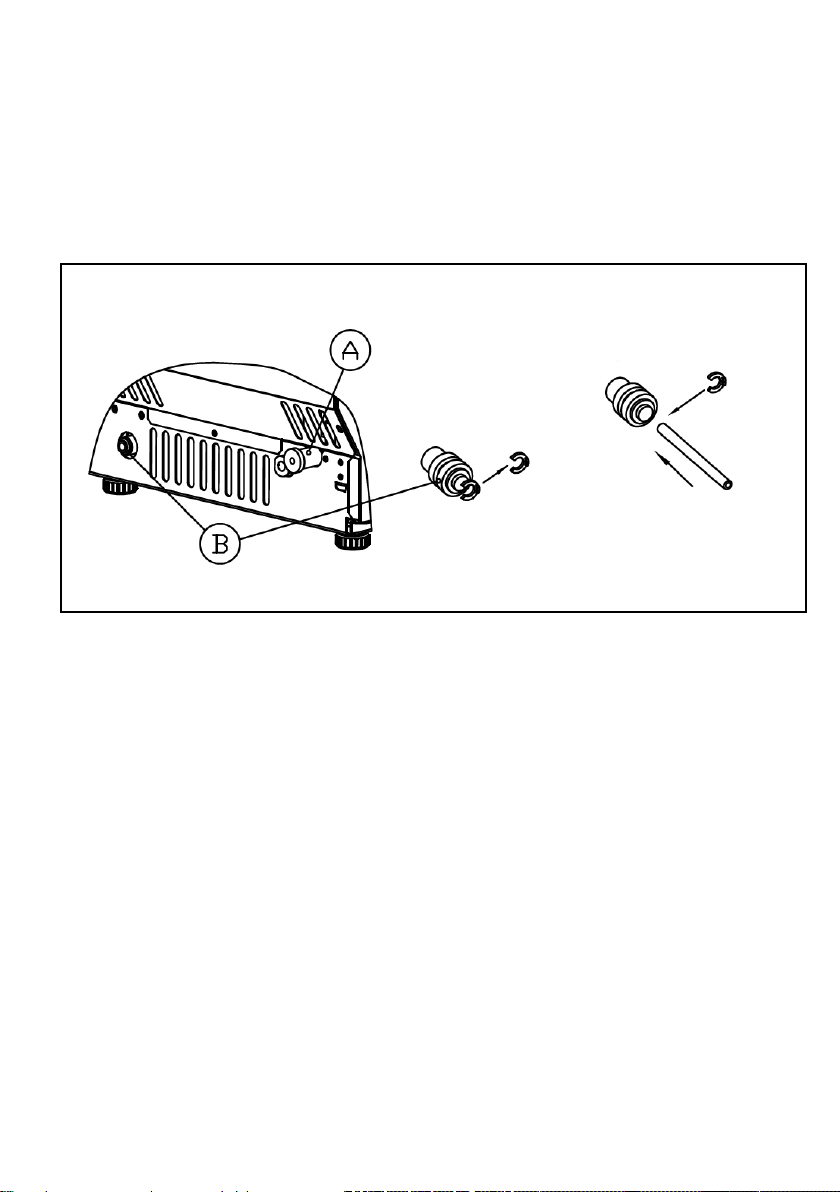

Unit Rear View
Connecting the water drainpipe
Pull out the black water drainage cap (A) and connect the white drainage pipe. The other
end of this pip should be routed to the main water drainage pipeline.
Step 1: Remove the tape
and clipper
Step 2: Insert the water
hose and re-install clipper
Water inlet port
4. Re-install the
clipper
2. Remove the clipper 3. Insert White water
hose (accessory)
1. Remove tape

18
Connect the water hose to the water faucet of the water main supply system
1. Install the supplied water quick-connector to the water faucet.
2.Remove the clipper from the water quick-connector, insert the other end of the water
hose into this quick-connector port completely, then reinstall the clipper.
Note: The water faucet should be supplied by the customer.
Important: The water pressure of main water supply system must be 0.04-0.6 MPa.
Step 1:
Quick connector & the water faucet
Step 2:
Screw the Quick connector on the water
faucet by the screw thread & remove the
clipper
Step 3:
Insert the water hose completely
Step 4:
Install back the clipper
Remove the
clipper first
Push inwards

19
1. After water pipe connecting is completed, plug in the main power supply plug. Then
press “ON/OFF” button on the control panel to begin the ice making cycle，and the
“ICE” light will be turn.
The digital window will display the ambient temperature normally. When the digits
begin to flash, it will display the remaining time to complete the ice making cycle.
The compressor, fan motor and water pump will run during the ice making process.
2.Each ice making cycle will take approximately 11 to 20 minutes, depending on the
ambient temperature and the water temperature. The initial ice-making cycle may
take little longer.
3.When the ice-making process is over, the unit will switch to the ice-harvest process.
During the ice-harvest process, the “ICE” light will flash and the compressor will still
run.
At same time the system will detect the water level, if the water level is lower than
the setting position. The “ADD WATER” light will start to flashing, open the water
inlet electro-magnetic valve to supply the water to water tank and the floating ball of
the water level detecting switch in the tank will raise. Continue filling the water until
the “ADD WATER” light turns off.
When the ice-harvest finishes, the Ice-full detecting plate will rotate downward once,
then return to the original position and enter into the next ice-making process.
When the unit is full of the ice it will stop making the ice automatically.
4.When the “Full” indicator is on, the unit stops running. If you remove any ice, the unit
will start to make the ice cube again. But it will restart only after 3 minutes of the
compressor running.
5.During the ice-making process, press the “+” or “-” button to adjust the ice-making
process duration.
Automatic self-cleaning program
Start the self-cleaning program:After connecting all the water pipes, connect the main
power supply plug, then press “TIMER CLEAN” button on control panel for more than 5
seconds to enter the self-Cleaning program. The “CLEAN” light will always be on during
this period, the digit window will indicate the left time, the water pump runs for 8 minutes
and stops for 3 minutes. The total duration time is 30 minutes for one self-cleaning
program. When the water pump stops, the water will return to the water tank
automatically.
Cancelling the self-cleaning program: It takes about 30 minutes to complete one self-
cleaning program. When the program is over, the system will be in off-state automatically.
You can press the “ON/OFF” button on control panel to cancel the self-cleaning.
OPERATION

20
Off-Timer and ON-Timer Setting
How to set the ON-Timer: When the unit is in off-state, press the “TIMER/CLEAN” button
to set the ON-Timer. The “TIMER” light will turn on, the number in digital window will flash
to display the setting delay time. During the number flashing, press “+”, “-” button to
change the delay time of the timer. Five seconds after setting, your desired setting will be
remembered.
How to cancel the ON-Timer: Press the “TIMER/TIMER” button, the number in digital
window will flash to display the present delay time of your ON-Timer and press this button
once again to cancel the Timer setting, the “TIMER” light will turn off. Alternatively pressing
the “ON/OFF” button will cancel the ON-TIMER setting.
How to set the OFF-Timer: When the unit is ON, press the “TIMER/CLEAN” button to set
the OFF-Timer. The “TIMER” light will turn on, the number in digital window will flash to
display the setting delay time. During the number flashing, press “+”, “-” button to change
the delay time of the timer. Five seconds after setting, your desired setting will be
remembered.
How to cancel the OFF-Timer: Press the “TIMER/TIMER” button, the number in digital
window will flash to display the present delay time of your OFF-Timer and press this button
once again to cancel the Timer setting, the “TIMER” light will turn off. Alternatively pressing
the “ON/OFF” button will cancel the ON-TIMER setting.
