USER GUIDE
45 BOTTLE DUAL ZONE
WINE FRIDGE
(KAM45BWCDZA)

2
CONTENTS
THIS USER GUIDE COVERS THE FOLLOWING MODELS
Kogan 45 Bottle Dual Zone Wine Fridge - Stainless Steel (KAM45BWCDZA)
Safety and warnings ................... 03 - 04
Product overview...................................05
Installation......................................06 - 07
Operation..........................................08 - 11
Adjusting........................................... 12 - 14
Cleaning & maintenance.............. 15 - 16
Troubleshooting.......................................17
Specifications.......................................... 18

3
Thank you for buying this Kogan product. Please read all safety instructions before using
your fridge or freezer.
• This appliance is only intended for use within a domestic environment only.
• If the supply cord is damaged, it must be replaced by Kogan.com or an authorised service
agent on Kogan.com’s behalf.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
• The appliance must be unplugged aer use and before carrying out user maintenance on
the appliance.
• WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure
clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
• WARNING: When positioning the appliance, ensure the power cord is not trapped or
damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
• Do not use extension cords or ungrounded, （two prong（ adapters.
Children:
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the appliance.
Unpacking:
• During transportation, protective packaging was used to protect the appliance against any
damage. Aer unpacking, please dispose of all elements of packaging in a way that will
not cause damage to the environment.
• CAUTION: During unpacking, the packaging materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of children.
Risk of Fire:
• If the refrigerant circuit should become damaged. Avoid open flames and sources of
ignition. Disconnect the appliance from the mains power. Thoroughly ventilate the room in
which the appliance is situated for several minutes.
SAFETY AND WARNINGS
WARNING: RISK OF FIRE / FLAMMABLE MATERIALS

4
Disposing:
• Old appliances should not simply be disposed of with normal household waste, but should
be delivered to a collection and recycling centre for electric and electronic equipment. A
symbol shown on the product, the instruction manual or the packaging shows that it is
suitable for recycling.
• Materials used inside the appliance are recyclable and are labelled with information
concerning this. By recycling materials or other parts from used devices you are making a
significant contribution to the protection of our environment.
• Information on appropriate disposal centres for used devices can be provided by your local
authority
SAFETY AND WARNINGS (cont’d)

5
PRODUCT OVERVIEW
1
2
3
1 Temperature control panel
2 Shelves
3 Glass door

6
INSTALLATION
SELECTING A SUITABLE LOCATION
Before using the unit, remove all packaging materials including bottom
cushions, foam pads, and tapes inside the cooler. Remove the protective
film on the door and the cooler body.
When selecting a position for your unit, ensure the floor is flat and firm, and
the room is well ventilated. Avoid placing your unit near a heat source (ie,
oven, radiator, or hot water system). Avoid direct sunlight as it may increase
the electrical consumption. Extreme cold temperatures may also cause the
unit to not perform correctly. This unit is not designed for use in a garage or
outdoors. Do not drape the unit with any covering.
When installing the unit, ensure that 10cm of free space is allowed to the
left, right and rear of the unit, and 30cm at the top. This will allow cold air to
circulate around the unit and improve the efficiency of the cooling process.
1a. Door space requirements
The unit’s door must be able to open fully
as pictured (1a).
Figure 1a
1b. Levelling the unit
When selecting a position for your unit, ensure the
floor is flat and firm. Ensure that the feet all touch the
ground before use.
Figure 1b

7
POWER SOURCE AND GROUNDING
It’s recommended to use the cooler on its own dedicated power outlet for
both convenience and safety. The power outlet must be grounded.
Important! If the supply cord is damaged, it must be replaced by
Kogan.com or an authorised service agent on Kogan.com’s behalf. Cease
use and ensure the appliance is completely disconnected from the power
supply.
Before using your unit
• The cooler should sit for half an hour before connecting power when it
is first started.
• Important! Before plugging in your cooler, you must check that you
have a power outlet which is compatible with the plug supplied on the
appliance lead.
• Do not connect cooler to electronic energy saving plug or DC-to-AC
converter (ie, solar energy system, ship grid).
• Do not use when the power cord is damaged or the plug is worn.
• Do not alter the power cord under any circumstances, so as to ensure
safe use.
• Do not put flammable, explosive, volatile and highly corrosive items in
the cooler to prevent damages to the product or fire accidents.
• Do not place flammable items near the cooler to avoid fires.
• Water droplets or frost will be generated on back side of wine cooler
when compressor is running, which is decided by function of cooler.
Wiping out frost or water droplets is not needed as the back will wipe
them out automatically. The defrosted water will be collected into
drain tank, then inflow into water disposal pan above the compressor
and vaporized.
Noise from your fridge
• You may notice that your cooler makes some unusual noises. This is
completely normal for refrigerators and freezers, and the noises are
caused by the circulation of the refrigerant liquid within the cooling
system.

8

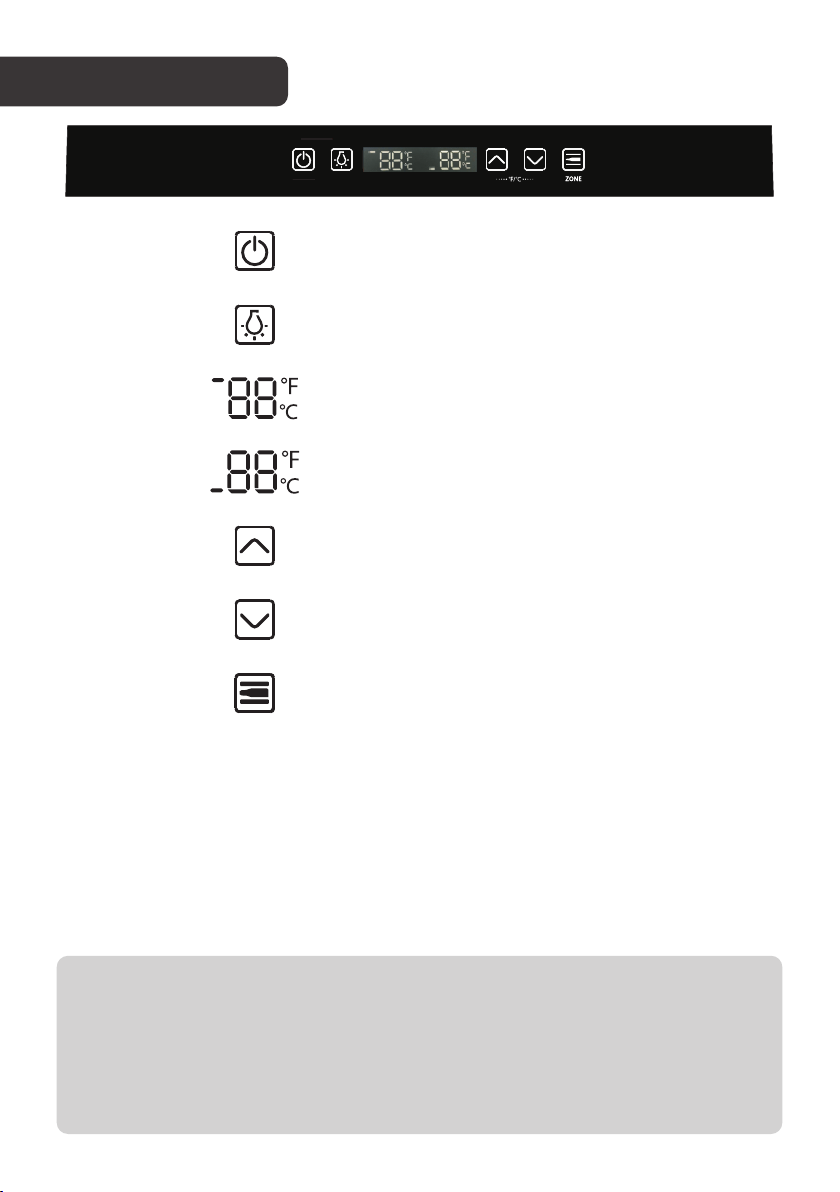

Standby button
Light button
Upper zone temperature
Lower zone temperature
Temperature increase button
Temperature decrease button
Upper/lower zone
function conversion button
Display control
In the case of initial power-up, the whole screen will display relevant
information for 3s, and the start-up tone will sound, followed by
enabling of normal operation display.
Digital display area will display the fault code in the case of failure and
the set temperature of the corresponding refrigeration chamber in the
case of no failure.
NOTE
This wine cooler can be controlled by gently touching buttons on the glass
touchscreen. The display panel should be prevented from scratching by
sharp objects, and kept away from high-intensity magnetic field and high-
humidity environments. If not, normal setting and operation of the wine
cooler may be affected.
OPERATION

9
Standby function
Long-press the standby button for 5s to enter/exit the standby mode.
Light
The internal lamp will be on when open the cooler door, and will be off
when close the cooler door. Users also can turn on/off the internal lamp
by pressing the light button. Once the light button is activated, the
internal lamp will not be controlled by actions of door opening/closing.
Temperature setting
Pressing the button once, the set temperature increases 1°.
Pressing the button once, the set temperature drops 1°.
The temperature setting range of the upper zone is 5~14°C (41~57°F),
and the temperature setting range of lower zone is 10~18°C (50~64°F),
all temperature settings take effect automatically after 30 seconds.
Convert Centigrade (°C) to Fahrenheit (°F)
Long press and simultaneously for 5 second to switch between
Centigrade and Fahrenheit.
Temperature difference between upper and lower zone
The set temperature of the upper zone must always be lower than the
set temperature of the lower zone. The difference between them should
be in the scope of 2~8°C.
If the temperature of upper zone is 10°C, the temperature range of lower
zone should be 12~18°C
If the set temperature of upper zone is 11 °C, the temperature setting
range of lower zone should be 13~18°C
If the set temperature of lower zone is 12 °C when the user adjusts the
set temperature of upper zone from 10°C to 11°C, the set temperature of
lower zone will change to 13°C automatically.
List of fault codes:
Code Description Code Description
E1 Temperature sensor error
of upper zone E6 Communication failure
E2 Temperature sensor error
of lower zone E9 Failure of circulating temperature

10

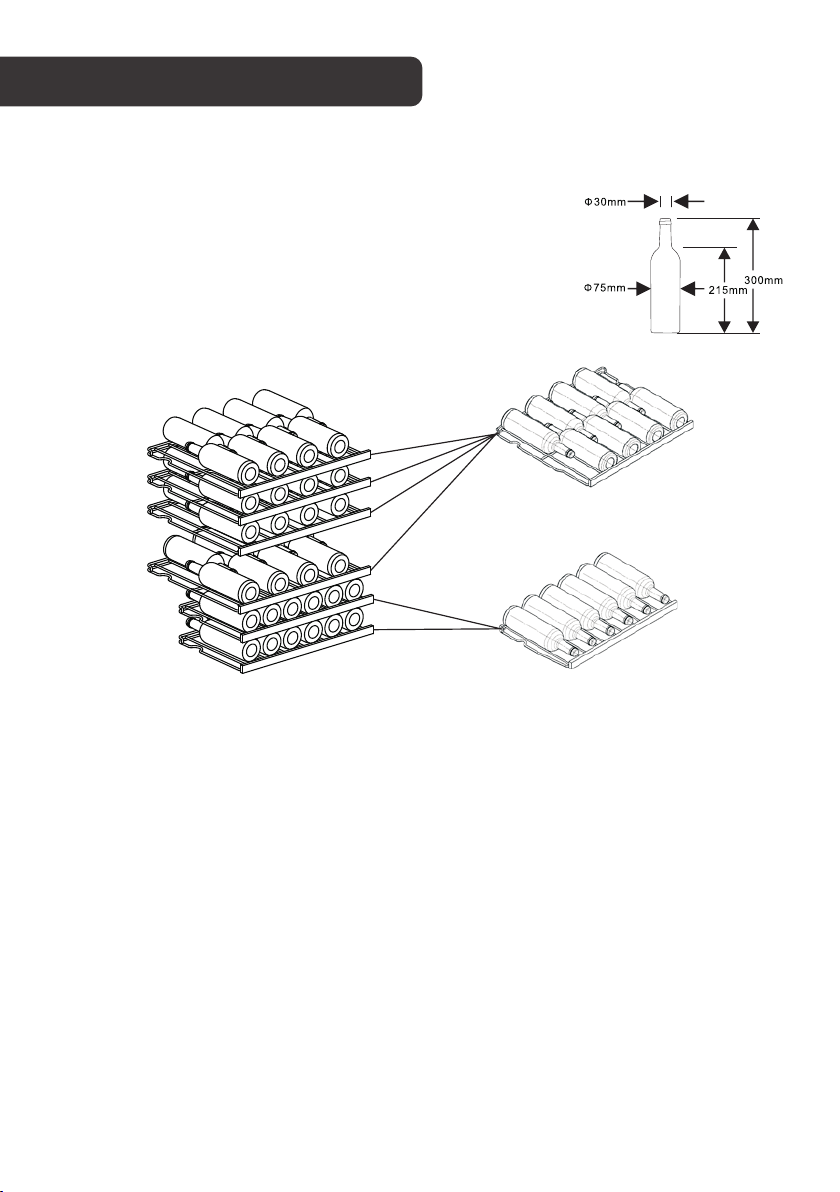

Bottle arrangement
• In order to maintain good air circulation in the cooler, do not let bottles
touch the back side of wine cooler.
• The capacity for bottle storage in the wine
cabinet is based on the following marked bottle
size. Oversized bottles, or other bottles with
different shapes and sizes, may have impact on
the number of bottle storage in the wine cabinet.
Tips for wine storage
• Do not store bottled wine by box or case in cooler.
• The cork of the old bottle shall always be soaked in the wine when
putting into wine cooler. Air space is not allowed between wine and
cork.
• Open-type bottle shelf is helpful, as it does not cut off air circulation.
The air moisture that condensed on bottle can be dried out swiftly.
• Some wines shall be left to sit before drinking. For example, put pink-
red wine onto the table 2-5 hours before drinking and red wine 4-5
hours, for it to reach suitable serving temp. White wine, however, can
be served right on the table. Sparkling winbe shall always be stored in
cooler and taken out only before drinking.
• Please notice that wine’s temperature is always lower than ideal
serving temp, as the temperature will immediately rise 1 to 2°C when
pouring into wine glass.
OPERATION (cont’d)

11
Recommended serving temperature
The wine’s taste depends on right pouring temperature, making
considerable difference to its flavour. See below for a general guide to
recommended serving temperatures.
Energy saving advice
• The cooler shall be placed in room dry and ventilated. The cooler
cannot be put under direct sunlight or next to heat source (such as
radiator, stove, etc.) and a suitable insulation board shall be applied if
necessary.
• Try to shorten opening time of cooler’s door.
Wine Serving temperature
Bordeaux red 18°C
Louis Family dry red wine/Barcia 17°C
Burgundy red 16°C
Port 15°C
Young Burgundy red 14°C
Young red wine 12°C
Young Beaujolais/
all white wines with little residual sugar 11°C
Old white wines/Chardonnay 10°C
Sherry 9°C
Young white wines from late vintage 8°C
White wines Loire/Entre-deux-Mers 7°C

12

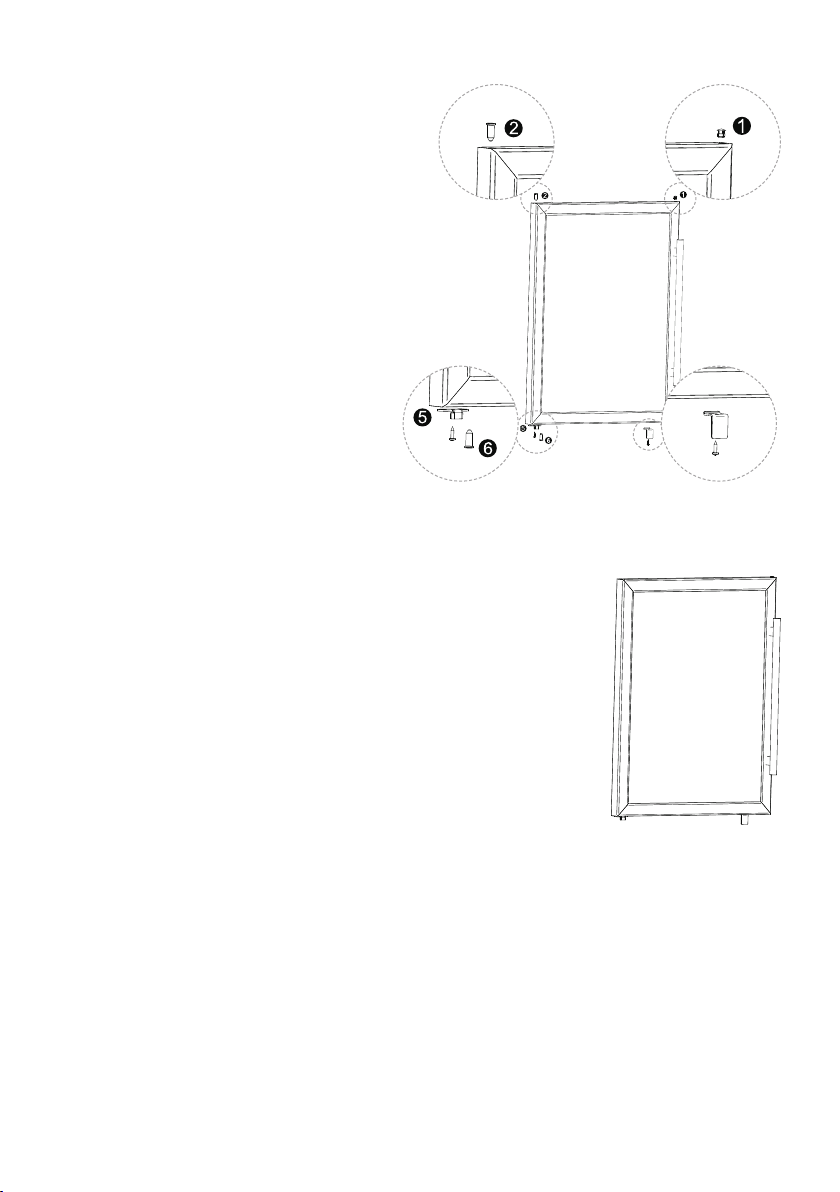

2. Reversing the door swing
a. Dismantle the shaft hole cap (1) and
the upper sleeve (2) of the upper
part of the glass door assembly, and
dismantle screws (3), the door light
switch block (4), the door stopper (5)
and screws, and the lower sleeve (6)
of the lower part of the assembly.
TOOLS REQUIRED
Phillips head screwdriver, flat-blade
screwdriver, and hexagonal spanner.
NOTE
Ensure unit is unplugged and empty.
Figure 2b
b. Rotate the door assembly 180 degrees.
Figure 2a
ADJUSTING

13
Figure 2c
Figure 2d
c. Exchange the position of the
upper sleeve (2) and the shaft
plug (1), and move the door
stopper (5) and the lower
sleeve (6) from the lower right
to the lower left.
d. Assemble the sleeves, the shaft hole cap,
the stopper and the switch block. Following
this, you’re ready to replace the door on the
unit.

14
3. Door handle install
a. Place the handle on the glass door via the two bolts. Ensure the
holes in the door handle are facing downwards.
b. Using an Allen key, tighten the door in place.
c. Installation is complete.
TOOLS REQUIRED
Allen key
Figure 3a Figure 3cFigure 3b
ADJUSTING (cont’d)

15
CLEANING AND MAINTENANCE
WARNING! To avoid an electric shock, always unplug your fridge
before cleaning.
Cleaning the inner cabinet
• Caution: Before using any cleaning products, please read and follow
the manufacturer’s instructions and warnings to avoid any damage to
your fridge or personal injury.
• Dusts behind the wine cooler and on the ground shall be regularly
cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there is no debris.
• Clean the door gasket with a soft cloth dampened with soapy water or
diluted detergent.
• The interior of the wine cooler should be cleaned regularly to avoid
odour.
• Please turn off the power before cleaning, remove drinks ,shelves, etc.
• Use a soft cloth or sponge to clean the inside of the wine cooler, with
two tablespoons of baking soda and a quart of warm water. Then rinse
with water and dry with a soft cloth. After cleaning, open the door and
let it dry naturally before turning on the power.
• For areas that are difficult to clean in the wine cooler (such as
narrow sandwiches, gaps or corners), it is recommended to wipe
them regularly with a soft rag, soft brush, etc. and when necessary,
combined with some auxiliary tools (such as pipe cleaners) to ensure
no contaminants or bacteria accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as
these may cause odours in the interior of the wine cooler or cause
contamination.
• Clean the shelves with a soft cloth dampened with soapy water or
diluted detergent. Then rinse with water and dry with a soft cloth or dry
naturally.
• The wooden wine rack should not be directly immersed in liquid to
prevent cracking or mould after moisture. The wooden wine rack is
cleaned with a dry soft cloth. The heavily contaminated wooden wine
rack should be cleaned with a soft cloth that has been wrung out, and
dry naturally.

16
• Wipe the outer surface of the wine cooler with a soft cloth dampened
with soap water, detergent, etc., and then wipe dry. Do not rub or
scratch the surface of the glass door to prevent the door from being
broken or scratched.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives(such
as toothpastes), organic solvents (such as alcohol, acetone, banana
oil, etc.), boiling water, acid or alkaline items, which may damage the
wine cooler surface and interior. Boiling water and organic solvents
such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid
short circuits or affect electrical insulation after immersion. Water
should not soak the operating control elements and lighting system on
the glass door.
Cleaning tips
• Condensation may appear on the outside of the unit. This may be
due to a change in room temperature. Wipe of any moisture residue.
If the problem continues, please contact a qualified technician for
assistance.
Disposal
• Old units still have some residual value. An environmentally friendly
method of disposal will ensure that valuable raw materials can be
recovered and used again. The refrigerant used in your unit and
insulation materials require special disposal procedures. Ensure
that none of the pipes on the back of the unit are damaged prior to
disposal. Up to date information concerning options of disposing of
your old unit and packaging from the new one can be obtained from
your local council office.
• When disposing of an old unit break of any old locks or latches and
remove the door as a safeguard.
CLEANING AND MAINTENANCE (cont’d)

17
Cooler isn’t operating
• Check that the cooler is plugged in
and connected to power.
• Check whether voltage is too low.
• Check that a fuse hasn’t blown or
circuit tripped.
Cooler is making strange odour
• Ensure that the interior is clean.
Refer to cleaning instructions.
Cooler compressor is continuously
running
• It is normal for the cooler compressor
to operate for longer periods of time
when the ambient temperature is
higher (ie. Summer).
• Do not overstock the cooler with too
many wine bottles.
• Try to minimise the frequency of the
door opening.
Illuminating light does not work
• Ensure the cooler is connected to
power.
• Check that the globe hasn’t blown.
The cooler door doesn’t close
properly
• Ensure that bottles aren’t preventing
the door from closing.
• Ensure that the cooler is completely
level and positioned correctly.
• Ensure the cooler door gaskets/seals
are clean.
The cooler is making loud noises
• It’s normal for the cooler to make
noises when refrigerant coolant is
being circulated.
• Check that the cooler is correctly
levelled.
For our full FAQ and troubleshooting guide,
head online to help.kogan.com
BASIC TROUBLESHOOTING

18
Capacity
Volume 137L
Dimensions
Dimensions (W x D x H): 595 x 606.5 x 870mm
Weight 51kg
Hardware
Compressor Type PZ65H1A
Power
Current 0.6A
Energy Consumption 197kWh per year
Voltage 220-240V/50Hz
Note:
• Design and specifications are subject to change without notice.
• Weight and dimension shown are approximate.
SPECIFICATIONS

19
NOTES

Need more information?
We hope that this user guide has given you the
assistance needed for a simple set-up. For the
most up-to-date guide for your product, as well
as any additional assistance you may require,
head online at help.kogan.com
