Kogan KASBR21DETB User manual

1
2.1CH 100W Detachable Soundbar with
Wireless Subwoofer
KASBR21DETB
Quick Start Guide
Table of Contents
Safety & Warnings............................................................................................................................................. 2
Overview ...............................................................................................................................................................4
Installation ............................................................................................................................................................ 5
Operation..............................................................................................................................................................8
Specification.......................................................................................................................................................13
Troubleshooting ............................................................................................................................................... 14
In The Box........................................................................................................................................................... 14

2
Safety & Warnings
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton.
The safety precautions enclosed reduce the risk of fire, electric shock and injury when
correctly adhered to follow all instructions and take notice of all warnings to reduce the
risk of fire or electric shock.

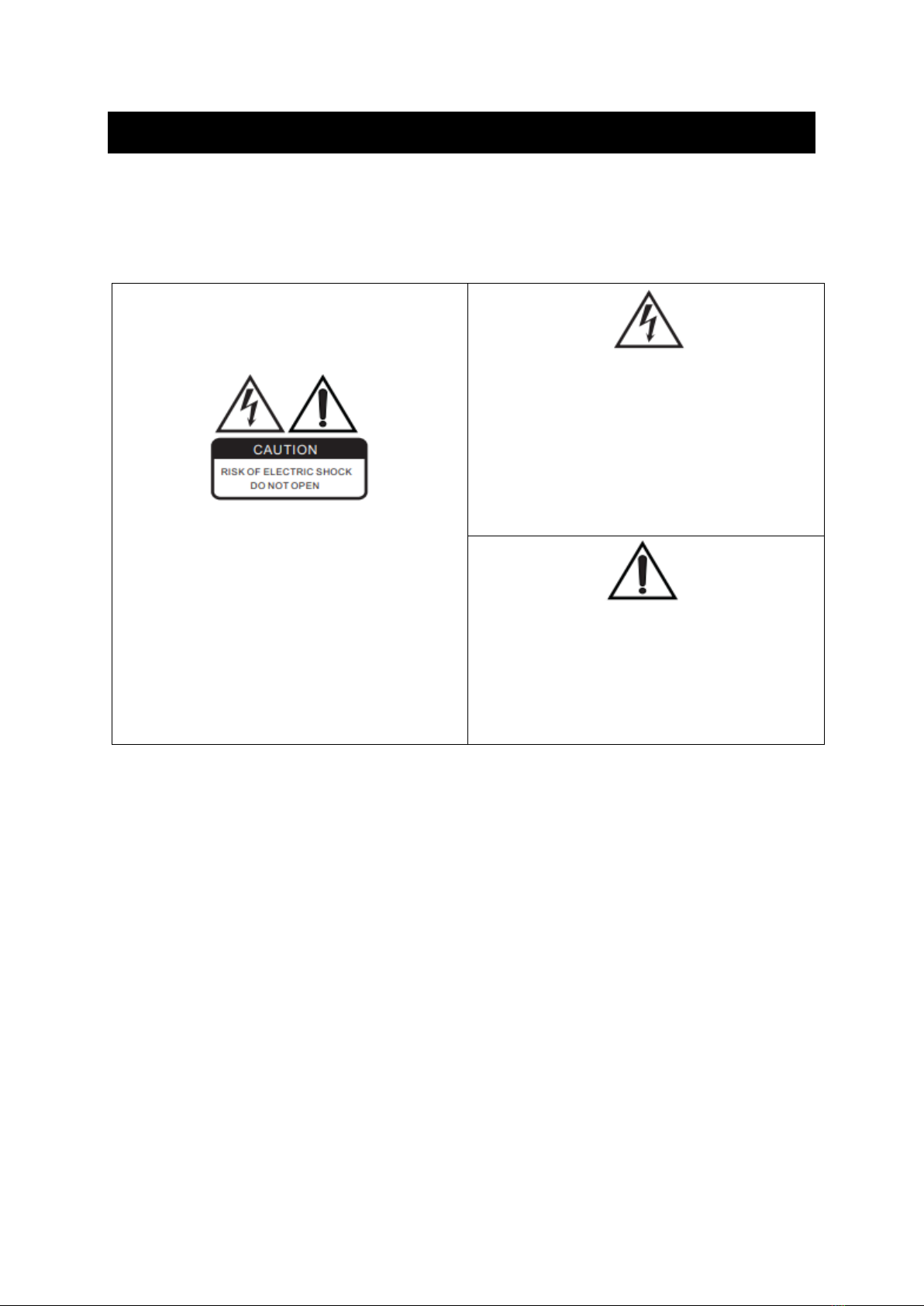

Important Warnings and Cautions!
To r e d uce the risk of electric shock, do not
remove the cover (or back).
This unit contains no user-serviceable parts
inside. Refer all servicing to qualified
service personnel only.
The lightning flash with an arrowhead
symbol within an equilateral triangle is
intended to alert you to the presence of
non-insulated dangerous voltage within the
product's enclosure that may be of enough
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is tended to alert you to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
Electrical safety and cord handling
•Protect from moisture: Do not expose this equipment, the power supply cord
and plug to rain or moisture. Do not use it anywhere near water or where water
splashes or drips, such as in a wet basement or near a swimming pool. Do not
touch the power plug with wet hands.
•Voltage: Before connecting this equipment to the mains power supply, make
sure your outlet voltage corresponds to the voltage stated on the appliance
rating label.
•Main power connection: When connecting this equipment to the mains power
supply, only use the cord and plug supplied. Align the plug properly and insert
it fully. Do not overload the power outlet.
•Damaged cord: When the power cord is damaged, it must be replaced by the
manufacturer or similarly qualified personnel in order to avoid a hazard.
•Protect the power cord: Do not let the cord hang over the edges of a table or
counter or touch any hot surface. Do not allow anything to rest on or roll over
the power cord. Run any cords so no one steps on or trips over them. Do not
run the cord near heat-producing appliances such as radiators or stoves.
•Disconnect: Switch off and unplug the unit during lightning storms and when it
is not going to be used for a while. Grasp the plug, not the cord, when
disconnecting.
•Disconnect device: This equipment must be unplugged for complete
disconnection from the mains power supply. Ensure the mains plug remains
readily accessible for disconnection.

3
•Class II equipment: This equipment is a Class II or double insulated electrical
appliance. It has been designed in such a way that it does not require a safety
connection to electrical earth.
Usage conditions and restrictions
•Instructions: Follow the instructions in this manual when installing and
adjusting this equipment. Only adjust those controls that are covered in this
instruction manual, as improper adjustment of other controls may result in
damage. If this happens, unplug the equipment and contact Kogan support.
•Location: When using the equipment, make sure to place it:
▪In a well-ventilated area, keeping a clearance of at least 20cm above and
5cm on each side of the unit to ensure proper ventilation.
▪Away from heat sources such as radiators, heat registers, stoves or other
equipment (including amplifiers) that produce heat.
▪Away from areas with high temperatures, high humidity or direct sunlight.
▪Away from excess dirt and dust.
▪Away from open windows and any place where water or metal objects may
get into the equipment and damage it.
▪Away from strong magnetic fields.
•Accessories: Only use attachments/accessories specified by the manufacturer
or sold with the apparatus. Use of the soundbar with accessories that are not
recommended in this manual may cause injury or damage and will void the
warranty.
•Usage restriction: The equipment is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
•Children: Supervise young children to ensure that they do not play with the
equipment. Close supervision is always necessary when an appliance is used by
or near children.
•Protect the equipment: Prevent metal objects falling onto the equipment. Do
not place heavy objects on top of the equipment or step on it. Do not place
objects filled with water (such as vases) or naked flame sources (such as
candles), on or near the equipment. If liquid or metal parts enter the system,
unplug the power cable immediately and call After Sales Support centre to
arrange a service before further use.
•Ventilation: Openings on the cabinet are provided for ventilation and to protect
the unit from overheating. To ensure proper operation, do not cover them with
things such as newspapers, tablecloths, curtains etc.
•Cleaning: Unplug the equipment from the power outlet before cleaning. Clean
the equipment only with a clean, dry or slightly damp cloth. Do not use liquid or
aerosol cleaners or volatile solvents.
•Service: If you experience any fault with the product, contact Kogan Support.
Servicing is required when the apparatus has been damaged in anyway, such as
when the power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the unit, it has been exposed to rain or moisture, does
not operate normally or has been dropped.
•Note: Any mishandling or non-compliance with these instructions will void the
product's warranty.

4
Overview
Part list:
1. NFC (Near Field Communication) Sensor.
2. Speakers.
3. Power button/Mode: Press to turn on while in Standby mode. Press to select
your preferred input source. Press and hold to put it in Standby mode.
4. PAIR : Press to select the play or pause function (in Bluetooth/USB mode only).
5. LED Indicators.
•Red indicator: in STANDBY mode
•Red indicator flashing: in COAXIAL mode
•White indicator flashing: in LINE mode
•Green indicator lights up: in OPTICAL mode
•White indicator lights: in HDMI(ARC) mode
•Green indicator flashing: in USB mode
•Blue indicator flashing: in Bluetooth mode
•Blue indicator lights: in Bluetooth pairing mode
•Indicator flashes: adjust the volume/select a preset sound effect
6. VOL+ : Increase volume. Skip to the next track. (Bluetooth/USB mode only)
VOL-: Decrease volume. Skip to the previous track. (Bluetooth/USB mode only)
7. Remote control sensor.
8. Stand.
9. LINE in socket.
10. COAXIAL S/PDIF socket.
11. OPTICAL S/PDIF socket.
12. DC power socket.
13. HDMI (ARC) socket.
14. USB port.

5
Installation
This soundbar unit can be used either as a single soundbar or as 2-piece tube speakers.
Installation options include:
Option A:
Two tube speakers installed on stands
Option B:
Single soundbar mounted horizontally with rubber feet
Option C:
Single soundbar wall-mounted

6

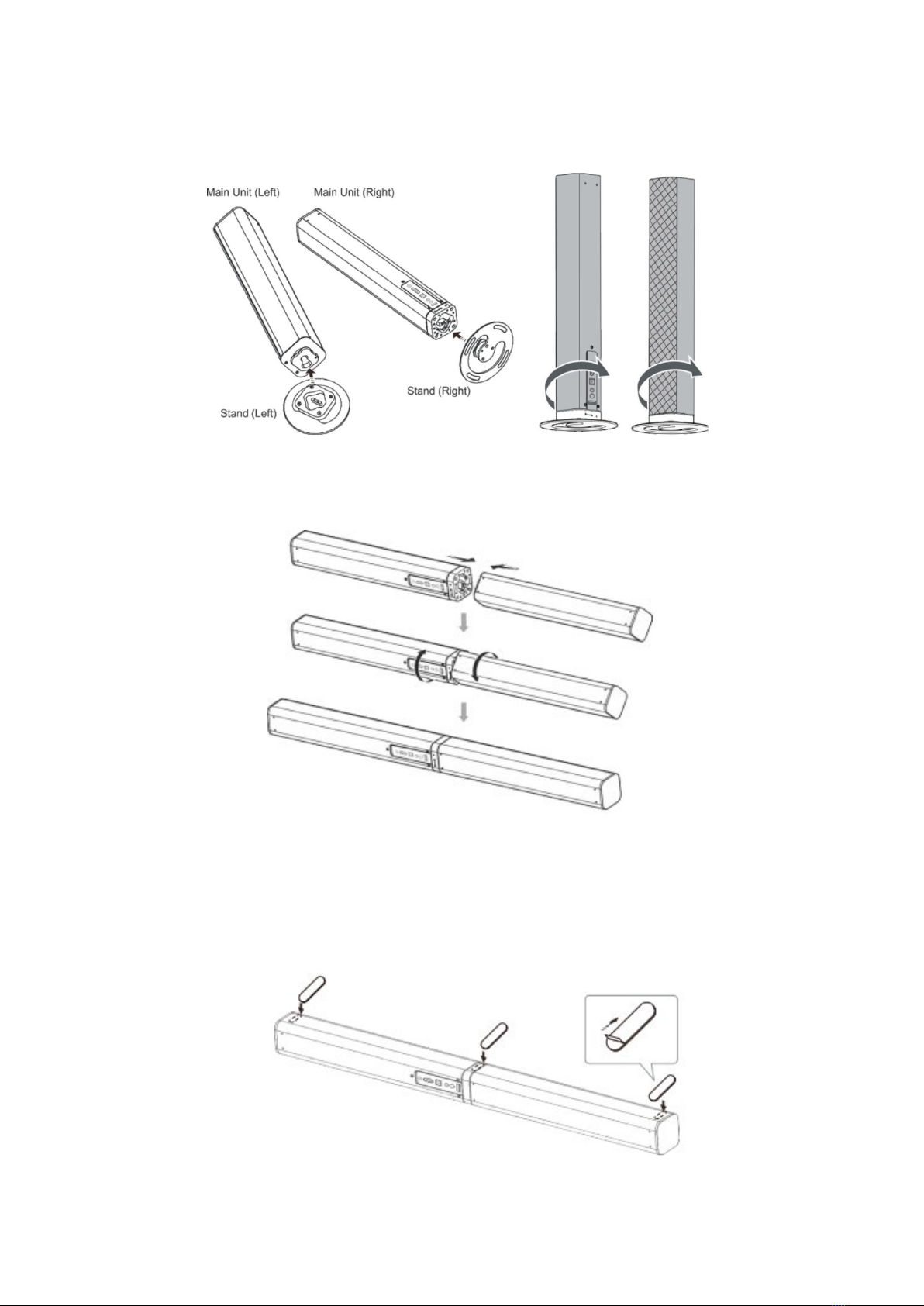

Stand mounting (if using option A)
Attach a stand to each of the two separate pieces and twist to secure, as illustrated below.
Horizontal mounting
Align the two separate pieces and twist to secure, as illustrated below;
Rubber feet installation (If using option B)
You can extend the height of the unit, if required. To do so, attach the supplied rubber feet
as follows.
•Ensure the surface of the soundbar is clean prior to attaching the rubber feet.
•Turn the unit upside down.
•Remove the backing paper from the rubber feet.
•Stick the rubber feet to the bottom of the unit, as illustrated below

7

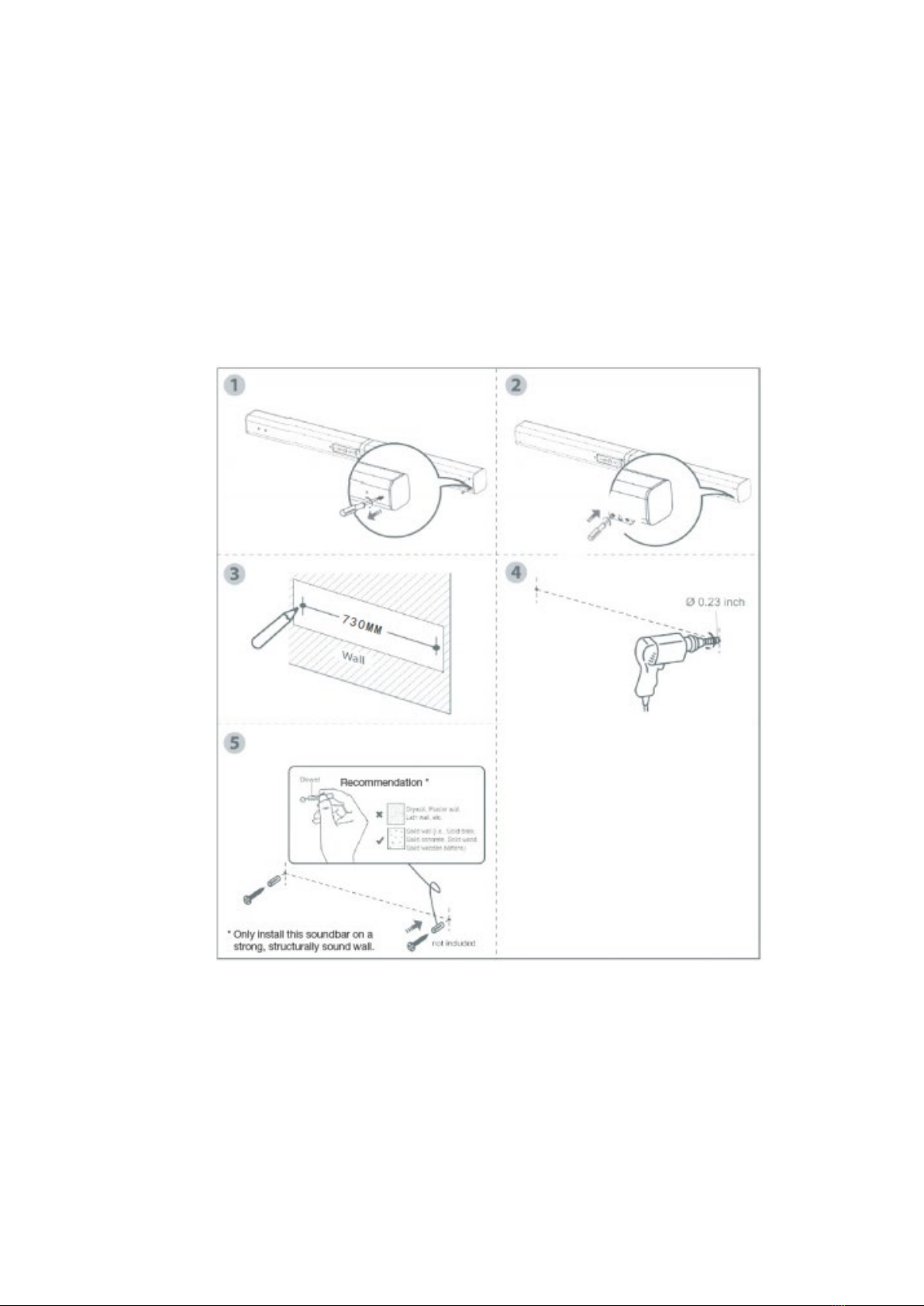

Wall mounting (if using option C)
Wall-mounted installation must be carried out by qualified personnel only. Incorrect
assembly can result in severe personal injury and property damage. (If you intend to install
this product by yourself, you must check for installations such as electrical wiring and
plumbing, which may be hidden inside or behind the wall.)
•It is the installer’s responsibility to verify and confirm that the wall will safely
support the total load of the unit and wall brackets.
•Additional tools (not included) are required for the installation.
•Do not over-tighten screws.
•Use an electronic stud finder to check the wall type before drilling and
mounting.

8
Operation
General operation standby/ON
•When you first connect the main unit to the mains socket via the AC adapter,
the main unit will be in Standby mode.
•Press the POWER button on the unit or on the remote control to switch the unit
ON.
•Press and hold the POWER button again to switch the unit back to Standby
mode. The power indicator will light up red.
•Disconnect the AC adapter from the mains socket if you want to switch the unit
OFF completely.
•When there is no input signal (or weak input signal) in HDMI (ARC), LINE,
Optical and Bluetooth mode (Stop or Pause) for more than 15 minutes, the unit
will automatically switch to Standby mode.
Mode selection
•Press the MODE button repeatedly on the unit or the button on the remote
control to switch between HDMI (ARC), LINE, USB, Optical, Coaxial and
Bluetooth modes.
•In coaxial optical mode: The status Indicator flash Red
•In LINE mode: The status Indicator flash White
•In USB mode (when USB drive is connected): The status Indicator flash Green
•In HDMI (ARC) mode: The White status Indicator lights
•In optical mode: The status Indicator lights up Green
•In Bluetooth mode: The status Indicator flash Blue
Volume adjustment
•Press the VOL+/VOL- buttons on the unit or on the remote control to adjust the
volume.
•If you wish to turn the sound off, press the MUTE button on the remote control.
Press this button again or press the VOL+/VOL- buttons to resume normal
listening.
•While adjusting the volume, the status indicator flashes quickly.
•If you press the VOL+ or VOL- button, the status indicator flashes once.
Preset sound effect selection
•Press the EQ button on the remote control to select between preset equalisers
standard, movie (recommended for viewing movies) and music (recommended
for listening to music).

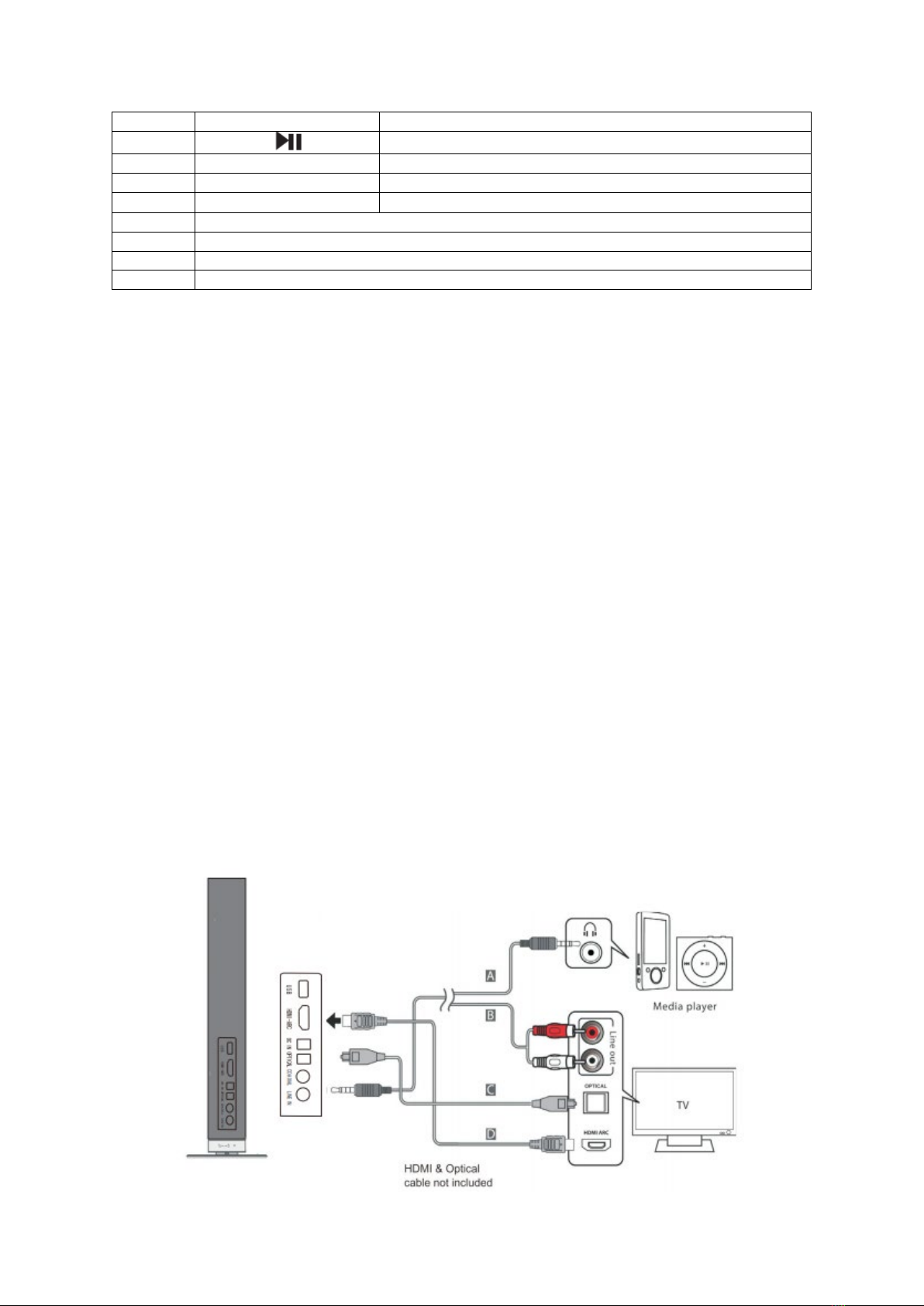

HDMI (ARC) / LINE / Optical/Coaxial Operation
•Ensure that the unit is connected to a TV or audio device.
•While in ON mode, Press the MODE button repeatedly on the unit or on the
remote control to select HDMI (ARC), LINE or Optical, Coaxial mode.
•Operate your audio device directly for playback features.
•Press the VOL +/- button to adjust the volume to your desired level.
Tip: When in optical mode, if there is no sound coming out of the unit and the green light
flashes fast, make sure the audio setting of your source player (e.g. DVD player, game
player, TV) is set to PCM with optical output.
Playing Bluetooth enabled devices
You can listen to tracks from a media device if connected to the unit via Bluetooth wireless
technology.

9
Pairing Bluetooth enabled devices
The first time you connect your Bluetooth device to this player, you need to pair your
device to this player.
1. During ON mode, press the MODE button repeatedly on the unit or the remote
control to select Bluetooth mode. The blue indicator will flash slowly, indicating
that the system has entered pairing mode.
2. Activate your Bluetooth enabled device and select the search mode.
“KASBR21DETB” will appear on your Bluetooth device list.
3. Select “KASBR21DETB” from the pairing list. The blue indicator will light up
solidly if pairing succeeds.
4. To disconnect the Bluetooth function, switch to another function on the unit or
disable the function from your Bluetooth enabled device. The blue indicator will
flash slowly.
Important notes
•The operational range between this player and Bluetooth device is
approximately 8m (without any object between the Bluetooth enabled device
and the unit). Any obstacle between the devices can reduce the operational
range.
•Before you connect a Bluetooth enabled device to this unit, ensure you know
the device's capabilities. Compatibility with all Bluetooth devices is not
guaranteed.
•If the signal strength is weak, your Bluetooth receiver may disconnect, but it will
re-enter pairing mode automatically.
Tips
•The player will also be disconnected when your device is moved beyond the
operational range.
•If you want to reconnect your device to this player, place it within the
operational range.
•If the device is moved beyond the operational range, when it is brought back,
please check if the device is still connected to the player.
•If the connection is lost, follow the instructions above to pair your device to the
player again.
Music playback from Bluetooth enabled device
1. Pair and connect your Bluetooth enabled device with the soundbar.
2. Play audio on your Bluetooth enabled device.
3. Use the remote control to control playback.
Important notes
•To stream audio via Bluetooth wireless technology, the playback device should
support A2DP (Advanced Audio Distribution Profile).
•To use the playback buttons (Previous/Next, Vol+/-, Play/Pause) on the remote
control, the playback device should support AVRCP (Audio Video Remote
Control Profile).

10
NFC (Near Field Communication) Operation
Pair your NFC enabled mobile device directly with this unit with just a single tap.
1. Activate NFC on your mobile device.
2. Switch the soundbar to Bluetooth mode.
3. Tap the mobile device on the NFC icon of the unit.
4. Confirm the Bluetooth connection.
5. To disconnect, tap the mobile device on the NFC icon of the unit to disconnect or
disable NFC from your mobile device.
NOTE: This NFC function only works with mobile devices that support NFC technology.
Tips
•Some NFC enabled mobile devices cannot pair directly with the unit via NFC. In
such a case, please try either one of the solutions below:
•Please download the App “Tap-and- Pair” from Google Play Store and install.
•Pair with the unit manually first, then touch again on the NFC sensing area.
Remote Control
1
Power Switch the unit between on and standby mode.
2
MUTE
Mute or resume the sound.
3 VOL-/VOL+ Decrease/Increase the volume level
4 In Bluetooth or USB mode, skip to the previous/next
1

11
audio file.
5
In Bluetooth or USB mode, start or pause playback.
6
Replay
Replay of single track and all tracks.
7
Mode
Select the input source mode.
8
EQ
Select a preset sound effect.
9
Optical Mode
10
HDMI(ARC) Mode
11
Coaxial Mode
12
Bluetooth Mode
Using the remote control
•The remote control has a range of up to 6 metres from the soundbar. Point the
remote control directly towards the sensor at the front of the soundbar.
•Make sure no obstacles are blocking its path. The remote control will not
operate if its path is blocked.
•Handle the remote control with care. Do not drop, apply shock or step on the
remote control. Do not spill the water on the unit.
•Do not use the remote control while simultaneously operating a remote control
of any another unit, which may result in interference.
•If the remote control is operated near other products which generate infrared
rays, or if other remote control devices using infrared rays are used near the
unit, it may operate incorrectly. Conversely, the other products may operate
incorrectly due to interference.
•If you do not intend to use the remote control for an extended period (more
than a month), remove the battery to prevent possible damage from battery
leakage and corrosion.
Battery precautions
•Do not use any other battery than specified.
•Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
•Do not carry or store batteries with other metallic objects. Doing so could
cause batteries to short-circuit, leak or explode.
•Do not expose the battery to excessive heat such as sunshine, fire or the like.
•Do not attempt to short-circuit, disassemble or throw batteries into a fire.
•Never recharge a battery unless it is confirmed to be a rechargeable type.
•Dispose of batteries promptly and properly, observing any local hazardous
waste regulations. Do not burn or bury them.
Controls and Connections

12
1. LINE Socket
Use the supplied RCA to 3.5mm audio cable to connect the TV’s audio output
sockets to the AUX socket on the unit.
2. Optical/COAXIAL socket
Remove the protective cap from the OPTICAL/COAXIAL socket, then connect an
OPTICAL/COAXIAL cable (not included) to the TV's OPTICAL/COAXIAL OUT
socket and the OPTICAL/COAXIAL socket on the unit.
TIP: If no sound is coming out of the soundbar and the indicator light flashes fast,
make sure the audio setting of your source player, (e.g. DVD player, game player,
TV) is set to PCM with optical output.
3. HDMI (ARC) socket
The ARC (Audio Return Channel) function allows you to send audio input from an
ARC-compliant TV to an ARC-compliant audio device (e.g. soundbar) without the
need for an additional audio cable connection.
To enjoy the ARC function, make sure the soundbar main unit’s HDMI (ARC) socket
is connected via HDMI cable (not included) to the HDMI (ARC) socket of your ARC-
compliant TV. Then just use your TV remote control to adjust the volume output
(VOL+/-and MUTE) of the connected audio device.
Note
•Your TV must support the HDMI-ARC and the HDMI-ARC must be set to ON.
•The setting method of HDMI-ARC may differ depending on the TV for details
about ARC functions, please refer to the TV's instruction manual.
•Make sure the HDMI cable you use can support the ARC function.
USB port
This soundbar can play audio files that are stored on a USB stick. Connect your USB stick
(not included) to the USB socket for playback.
Power connection
•Before connecting the AC adapter ensure you have completed all other
connections.
•Risk of product damage. Ensure that the power supply voltage corresponds to
the voltage printed on the back or the underside of the AC adapter.
•Connect the adapter to the main unit and a mains socket.
Wireless Subwoofer
Pair the wireless subwoofer with the main unit automatic pairing.
The subwoofer and soundbar will automatically pair when both units are plugged into the
mains sockets and turned on. No cable is needed for connecting the two units.
•The subwoofer should be within 8m of the soundbar in an open area.
•If a TV or an external device is connected, the main unit and the subwoofer will
switch on automatically when the TV or the external device is switched on.

13
Specifications
AC adapter
-input power rating
AC 100
-240V 50/60Hz
AC adapter
-output power rating
DC 19V 1.5A(sou
ndbar)
AC adapter
-output power rating
DC 19V 2.5A(su
bwoofer)
Soundbar
-standby power consumption
<
0.5W
Subwoofer
-power consumption
100W RMS
Remote control operation range
-
distance,
angle
6m
, 30 degrees
Soundbar and
Subwoofer operation
range
-distance
8
m
Bluetooth pairing operation range
-
distance
8
m
Soundbar
-Rated power output
10W/Ch.
x4, 4ohm, THD=10%
Subwoofer
-Rated power output
60W,
4ohm, THD=10%
S/N Ratio
(Analogue Input)
65dB
Separation
(1kHz)
65dB
Bluetooth pairing name
KASBR21DETB
Bluetooth version
5.0
Bluetooth profiles
A2DP
(Advanced Audio Distribution Profile)
A2DP
( Audio Video Remote Control Profile)
USB power rating
5V 0.5a
Media code i
s supported in USB mode
Mp3
Distance between 2 wall mounting points
730mm
Dimensions
(W x H x D)-Soundbar 86.5cmx6cmx6.1cm (when L&R speakers are
joined together)
Dimensions
(W x H x D)-Subwoofer
47cmx14.1cmx26cm
Weight
-Soundbar
1.65kg
Weight
-Subwoofer
4kg

14
Troubleshooting
This appliance contains no user-serviceable parts. If it suffers any failure or damage, cease
usage and contact Kogan Support after consulting the Troubleshooting section of this
manual.
Problem
Solution
No power
Ensure that the AC adapter of the apparatus is properly
connected.
Ensure that there is power at the AC outlet.
Press the POWER
button to turn the unit on.
Remote
control does not work
Reduce the distance between the remote control and the
unit.
Insert the battery with its polarities (+/-) aligned as
indicated. Please check the battery is installed correctly.
Replace the battery.
Aim the remote control
directly at the sensor on the front
of the unit.
No response from the unit
Disconnect and reconnect the AC adapter, then turn the
unit on again.
Unable to find the soundbar in
the Bluetooth device list when
pairing
Ensure you have paired the unit
with your Bluetooth
enabled device.
Ensure the Bluetooth function is activated on your
Bluetooth enabled device.
No connection be
tween the
main unit and the Subwoofer
Ensure the main cables of the main unit and the subwoofer
are both connected
securely to the mains power socket.
In The Box
Main Soundbar Unit
(left/right)
Subwoofer
Stand x2
AC Power Adapter (Soundbar
19V1.5A)
AC Power Adapter
(Subwoofer 19V2.5A)
3.5mm Line Cable
Rubber Feetx3
Wall-mounting screw
(rubber column) x2
Remote Control
User manual is subject to change without notice. For the latest version of your user manual, please
visit https://www.kogan.com/usermanuals/
