Kogan KAMOPSTM11J User manual

11-IN-1 STEAM MOP
KAMOPSTM11J

• Read all instructions before using the appliance and retain for reference.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
• Do not use outside of indoor household use as described in this manual.
• Do not use with an extension cord unless necessary and if so, ensure it is suitably
rated and it is handled safely as is the product's power cord.
• Do not allow the power cord to be exposed to water, heat, direct sunlight or
overhang where it can be pulled or otherwise be damaged or pose a hazard.
• To r e d u c e t h e l i k e l i h o o d o f c i r c u i t o ve r l o a d , DO NOT operate another high wattage
appliance on the same circuit as this unit.
• Always set the steam adjustment dial to "Off" position before plugging or
unplugging the appliance.
• Any appliance is electrically live even when switch is off. To reduce risk of electrical
shock:
o Always unplug power cord immediately after using.
o Do not place or store unit where it can fall or be pulled into a sink or tub.
o Do not place in, or drop into water or other liquid.
o If unit falls into water, immediately unplug power cord. Do not reach into
the water.
• Do not use the unit where aerosol-based products are being used or where oxygen
is being administered.
• Steam can cause injury or damage. Take care where steam is directed, especially
when powering on the appliance and using steam on surfaces for the first time.
• Burn can occur from touching hot metal parts, hot water, or steam. Do not touch
Steam Nozzle or attempt to connect accessories while unit is in use.
• Use caution when emptying the water tank after use, as the water in unit may be
hot.
SAFETY & WARNINGS
WARNING: To r e d u c e t h e r i s k o f f i r e , e l e c t r i c a l s h o c k , o r i n j u r y, t h e
following basic safety precautions should always be followed when
using an electrical appliance.

• It is not recommended that this unit be used on unsealed floor. Use care when
steaming floors that may be warped or damaged by heat and moisture, and limit
use of this unit on these types of surfaces.
• Steaming unsealed floor surfaces such as hardwood is not recommended and may
result in warping or damage to the surface.
• Always allow the appliance to cool completely (at least 5 minutes) before storing.
Follow instructions in the Cleaning & Care section of this user guide.
• This appliance contains no user-serviceable parts. If it suffers any failure or
damage, cease use and contact help.kogan.com before further use.

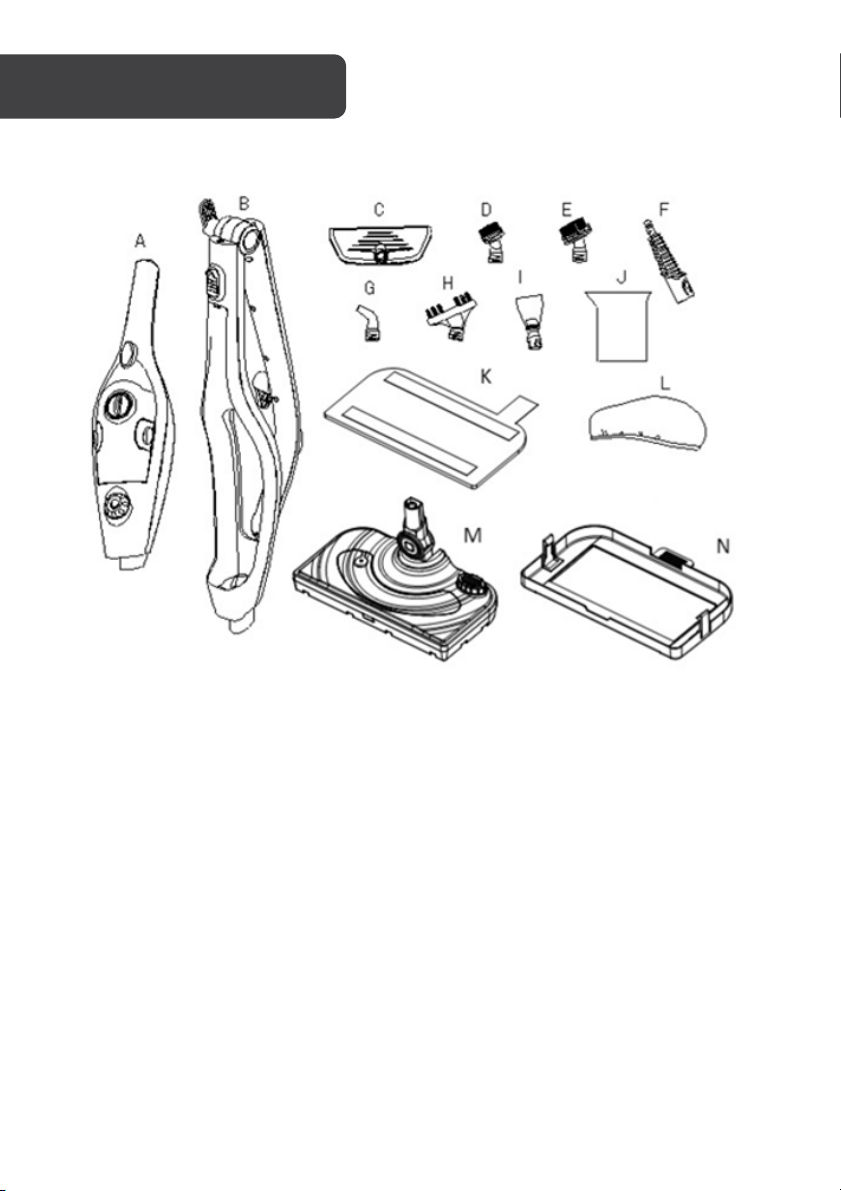

A
Steam unit
H
Grout tool
B
Main body
I
Scraper tool
C
Window tool
J
Measuring cup
D
Small brush
K
Microfiber pad
E
Medium brush
L
Garment steamer cloth
F
Accessory adaptor
M
Mop head
G
Angled nozzle
N
Carpet gilder
COMPONENTS

Accessory
Suggested Use
Window/Garment
Steaming Tool
Shower glass doors, mirrors, glass,
removing soap scum and grime.
Garment tool for taking wrinkles out
of garments, steaming draperies,
tablecloths and more.
Brushes
Hard-wearing for use on hard sealed
surfaces. Always test before use.
Use the metal (wire bristle) brushes
for hard to clean surfaces such as
barbecue grills, oven racks, tyre
wheels, etc. Do not use these
brushes on anything that the wire
bristles may scratch or damage.
Angle Nozzle
For small areas requiring delicate
attention to detail, this fine/detail
nozzle is ideal.
Grout Tool
Wide, straight brushes to tackle grout
on tiled floors and surfaces. Lifts
embedded dirt from between tiles
and grouting.
Scraper To o l
Suitable for scraping dried residue or
getting into narrow corners.
Garment Steamer
Cloth
For use when steaming garments,
draperies, tablecloths, etc.
Microfiber Pad
For general cleaning of hard floors
and refreshing carpets.
ACCESSORIES

1
Handle Release Button
10
Indicator
2
Handle
11
Water Inlet
3
Cord Holder
12
Steam Control Knob
4
Steam Button
13
Water Ta n k C a p
5
Mop Head Spindle
14
Water Tank Button
6
Lock Catch
15
Water Tank
7
Steam Unit
16
Floor Brush Water Tank
8
Power Cord
17
Foot Button
9
Power Switch
OVERVIEW

This steam mop has been tested to ensure performance and safety. When assembling your
steam mop for the first time you may notice some residual water inside of the unit.
Before starting any assembly procedures, ensure the appliance is switched off, unplugged
and it has cooled down with minimal to no water inside.
Handle
• Press the handle release button and unfold the handle as shown below.
• To f o l d t h e h a n d l e , p r e s s t h e h a n d l e r e l e a s e b u t t o n a n d g e n t l e l o w e r t h e h a n d l e
down to its original position.
ASSEMBLY
WARNING: Ensure the handle release button is pressed whenever
folding or unfolding the handle. Do not force the handle as this
may cause damage.

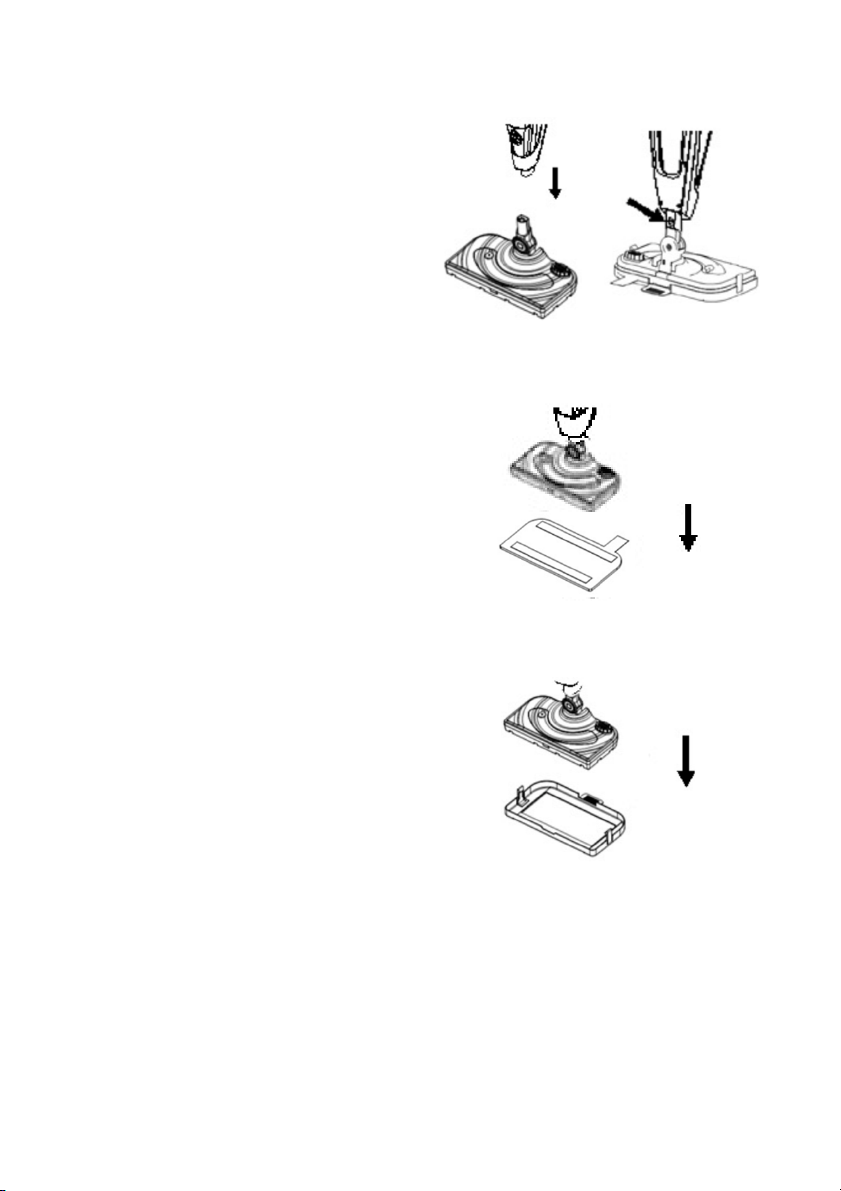

Attaching the Mop Head
• Slide the bottom of the main body
onto the mop head until it clicks into
place.
• To r e m o ve t h e m o p h e a d , press the
release button on the rear of the mop
head spindle and pull the mop head
away from the main body.
Attaching a Cleaning Pad
Lower the mop head onto a micro-fibre
cleaning pad, ensure a strong bond is
made.
Attaching Carpet Gilder
Lower the mop head onto the carpet gilder,
until it is firmly in place.

Filling the Water Tank
Method one:
• Ensure the steam mop is turned off and unplugged from the outlet.
• Unscrew the water tank cap and use the measuring cup to fill the water tank with
360ml of water.Do not over fill the water tank. Hold the main body level while
filling.
• Replace the cap, ensuring it is pushed down firmly to create a tight seal.
Method two:
• Remove the water tank from the steam unit.
• Unscrew the water tank cap and fill the water tank using a tap. Do not over fill the
water tank. Hold the main body level while filling.
• Replace the cap, ensuring it is pushed down firmly to create a tight seal.
• Re-install the water tank to the steam unit until it clicks into place.
OPERATION
Notes:
In order to significantly reduce mineral build-up and prolong the life of the device, use of
distilled or de-mineralized water in the unit is highly recommended.

Starting the Steam Mop
• Make sure the device has been filled with water before turning on. Do not run dry.
• Plug the power cord into a power outlet and switch on.
• The indicator light will turn red on each side of the water tank and the steam mop
will begin preheating. If the indicators do not illuminate, refer to the
"troubleshooting" section for more details.
It will take approximately 25 seconds for preheating. Once the steam mop is ready
to use the water tank will glow blue.
Note: If power is interrupted during the preheating phase, when the steam mop is
turned on again it will repeat the preheating phase.
• A full water tank will run for approximately 20 minutes. When the water level runs
low, the indicator will glow red and begin flashing.
• Press and hold the steam button to release steam.
• Direct the outlet (with any connected nozzle or accessories) toward the surface you
wish to steam while holding the steam button. To stop flow of steam, release the
button.
• Increase the level of steam by turning steam control knob clockwise
• Tu r n t h e s t e a m c o n t r o l k n o b counter-clockwise to reduce the amount of steam.
Note:
Before storing the steam mop, remove the water tank before turning off the
power and then let the product run for a while, until there is no steam.

Hand-held Mode
• Press the lock catch to release the steam unit from the main body.
• Attach the accessory adaptor to the steam unit, until it locks into place.
• Attach the required accessory according to your need. Ensure the arrow indicators
are aligned, then turn counter-clockwise, until it locks into place.

IMPORTANT: Allow the steamer to completely cool down before performing any
maintenance or troubleshooting checks.
Maintenance
This product contains no user serviceable parts. Do not attempt to repair it yourself. Any
servicing that requires disassembly other than cleaning must be performed by a qualified
appliance repair technician.
Cleaning the Microfiber Pads
• Machine washable on "warm" setting using a mild detergent.
• For best results, lay flat to dry after cleaning.
• Do not use bleach or fabric softener when washing the microfibre cleaning pads.
Storage
• After the steamer is used, turn power off and then unplug the power cord.
• Remove the water tank and empty any residual water in the tank.
• Clean the external surface with a dry cloth.
• Remove the cleaning pad and wash it so that it will be ready for next use.
• Secure power cord in place using the cord holder.
• Press the handle release button and fold the handle.
• Store the product in a clean and dry area out of reach of children.
CLEANING & CARE

Use this troubleshooting guide as a first step to resolve any problems you may be
experiencing. If your problem persists, contact help.Kogan.com for support.
Problem
Possible Cause
Solution
Reduced steam or no
steam
Water tank may be empty
Fill water into the water tank
Steam nozzle may be blocked
Clean steam nozzle
There is no power to the unit
Make sure unit is plugged in
Didn't press steam button
Press steam button
Steam control knob set to ‘MIN’.
Tu r n s t e a m c o n t r o l k n o b
clockwise
Unit will not turn on
Power cord not plugged in
Plug cord into a power outlet
Internal fuse is blown
Contact help.Kogan.com
Disposal
This marking indicates that this appliance should not be disposed with other
household wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.
TROUBLESHOOTING

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
