Kogan KAMOPSTM10J User manual

10-IN-1 STEAM MOP
KAMOPSTM10J

2
Safety & Warnings
3
Components
6
Overview
7
Accessories
8
Assembly
9
Filling the Water Tank
11
Operation
12
Cleaning & Care
14
Specifications
16
Troubleshooting
17
Notes
18

3
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions listed below may result in electric shock, fire and/or serious injury.
Warning: When using electrical appliances, basics safety precautions, including the
following, should always be followed to reduce the risk of fire, electric shock, personal injury
and material damage.
• Read this user guide carefully before using the appliance and retain it for future
reference.
• The intended use is described in this guide. The use of any accessory or
attachment or the performance of any operation with this appliance other than
those recommended in this guide may present a risk of personal injury.
Using your appliance
• Do not direct steam at people, animals, electrical appliances or electrical outlets.
• Do not immerse the appliance in the water or other liquids.
• Do not leave the appliance unattended. Ensure children are supervised during
operation.
• Do not leave the appliance connected to an electrical outlet when not in use.
• Never pull the power cord to disconnect the appliance from the outlet. Keep the
power cord away from sources of heat, oil and sharp edges.
• Do not handle the steam mop with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord
around sharp corners or expose cord to heated surfaces.
• Do not use appliance in an enclosed space filled with vapor given off by oil-based
paint thinner, some moth-proofing substances, flammable dust or other explosive
or toxic vapours.
• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or
other delicate, steam-sensitive materials.
• Do not use on any unsealed hard floor surfaces. Additionally, on surfaces that have
been treated with wax, the sheen may be removed by the heat and steam action.
It is always recommended to test an isolated area of the surface to be cleaned
before proceeding. We also recommend that you check the use and care
instructions from the floor manufacturer.
• Never put de-scaling, aromatic, alcoholic or detergent products into the steam
mop, as this may damage it or make it unsafe for use.
SAFETY & WARNINGS

4
• If the circuit breaker activates while using the steam function, cease use
immediately and contact help.Kogan.com for support (beware of the risk of
electrical shock).
• The appliance emits extremely hot steam to sanitize the area of use. This means
that the steam head and cleaning pads get extremely hot during use.
• Always wear suitable shoes when using your steam mop and when changing the
accessories. Do not wear slippers or open-toed footwear.
• The lid may become hot during use.
• Care should be taken when using this appliance. Do not touch any parts which
may become hot during use.
• Do not use when micro-fibre cleaning pad does not install correct.
Safety of other:
• This appliance can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance.
• If the power cord is damaged, cease use immediately and contact
help.Kogan.com for support (beware of the risk of electrical shock).
Warning: Danger of scalding
• The plug must be removed from the power outlet before cleaning or performing
any maintaining on the appliance.
• The steam must not be directed towards equipment containing electrical
components, such as the interior of ovens.
• The appliance has to be unplugged after use.
• The appliance should be used only after assembling. The appliance should not be
used without handle.
• The appliance shall not be left unattended while it is connected to the supply
mains.
• The appliance is not to be used if it has been dropped, or if there are visible signs of
damage or if it is leaking.

5
Residual risks:
Additional residual risks may arise when using the appliance which may not be included in
the enclosed safety warnings. These risks can arise from misuse, prolonged use, etc.
Even with the application of the relevant safety regulations and the implementation of
safety devices, certain residual risks cannot be avoided. These include:
• Injuries caused by touching any moving parts.
• Injuries caused by touching any hot parts.
• Injuries caused when changing any parts or accessories.
• Injuries caused by prolonged use of the appliance. When using any appliance for
prolonged periods ensure you should take regular breaks.

6
A
Steam Unit
I
Grout Tool
B
Handle tube
J
Scraping Tool
C
Handle
K
Measuring cup
D
Window tool
L
Microfibre pad
E
Small Brush
M
Garment steamer Cloth
F
Medium Brush
N
Mop head
G
Accessory Adaptor
O
Carpet Gilder
H
Angle nozzle
COMPONENTS

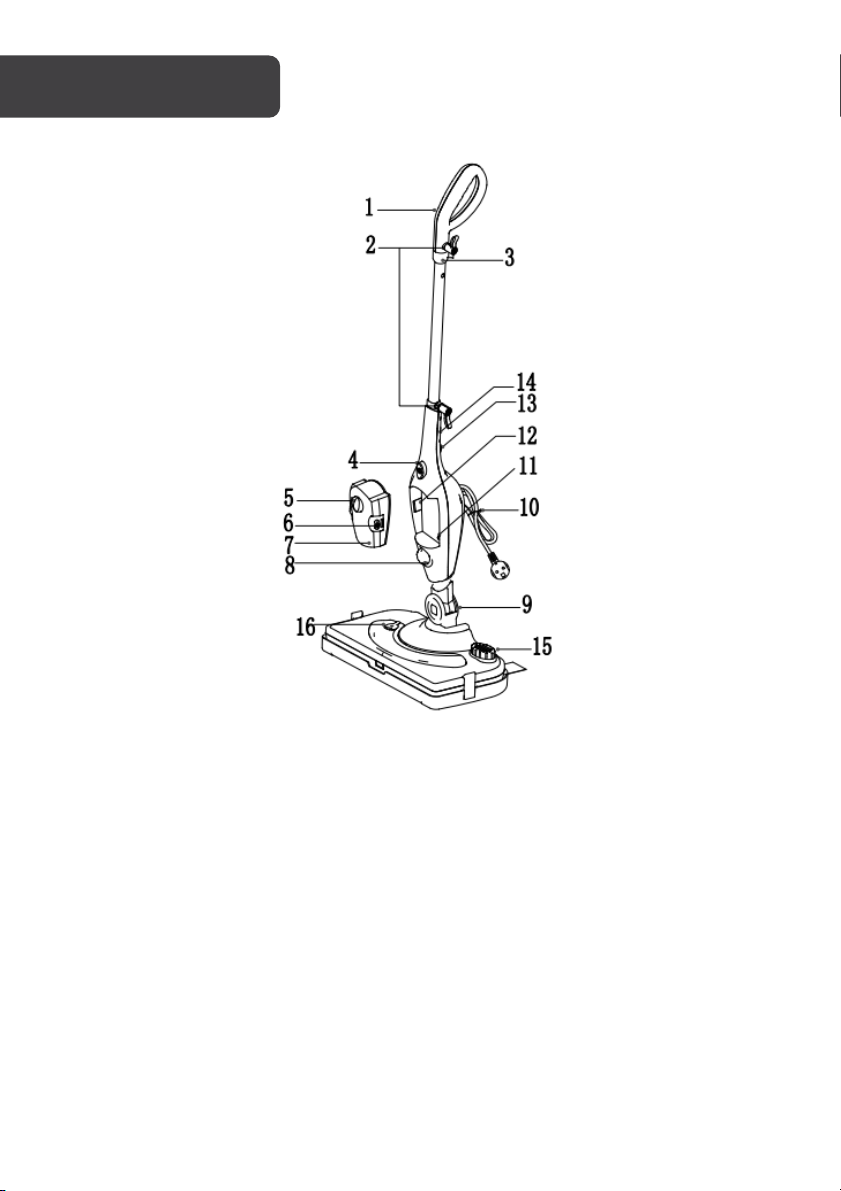

7
1
Handle
9
Mop head spindle
2
Cord holder
10
Power cord
3
Tube
11
Water inlet
4
Lock catch
12
Indicator
5
Water tank cap
13
Steam button
6
Water tank button
14
Handle tube button
7
Water tank
15
Detergent spray pedal
8
Steam control knob
16
Detergent inlet
OVERVIEW

8
Accessory
Suggested use
Window/Garment
Steaming Tool
Shower glass doors, mirrors,
glass, removing soap scum and
grime.
Garment tool for taking wrinkles
out of garments, steaming
draperies, tablecloths and more.
Brushes
Hard-wearing for use on hard
sealed surfaces. Always test
before use.
Use the metal (wire bristle)
brushes for hard to clean
surfaces such as barbecue grills,
oven racks, tyre wheels, etc. Do
not use these brushes on
anything that the wire bristles
may scratch or damage.
Angle Nozzle
For small areas requiring
delicate attention to detail, this
fine/detail nozzle is ideal.
Grout Tool
Wide, straight brushes to tackle
grout on tiled floors and
surfaces. Lifts embedded dirt
from between tiles and grouting.
Scraper To o l
Suitable for scraping dried
residue or getting into narrow
corners.
Garment Steamer
Cloth
For use when steaming
garments, draperies,
tablecloths, etc.
Microfiber Pad
For general cleaning of hard
floors and refreshing carpets.
ACCESSORIES

9
This steam mop has been tested to ensure performance and safety. When assembling your
steam mop for the first time you may notice some residual water inside of the unit.
Before starting any assembly procedures, ensure the appliance is switched off, unplugged
and it has cooled down with minimal to no water inside.
Attaching the handle
• Insert the handle into the tube until it clicks into place.
• Attach the lower tube to the steam unit until it clicks into place.
• Push the button to remove the handle tube for easy storage.
ASSEMBLY

10
Attaching the steam head
• Slide the bottom end of steam unit into the mop head spindle until it clicks into
place.
• The mop head can be removed from the steam unit by pressing the salient point
on the mop head spindle.
Attaching a cleaning pad
• Microfibre cleaning pad is to be placed at
the bottom of mop head.
• To remove the pad, place the front of
your shoe onto the cleaning pad removal
tab and press down firmly.
Attaching carpet gilder
• Ensure microfibre cleaning pad is fitted before
the carpet glider.
• Attach carpet gilder by clipping into place on
the steam head and applying vertical
pressure, until it clicks into place (4a).
• To remove the carpet glider, place the front of
your shoe onto the cleaning pad removal tab
and press down firmly, the carpet gilder will
remove from steam head.

11
Method one
Open the water tank cap, use the measuring cup to fill with 330mL of water, then close the
water tank cap.
Method two
Remove the water tank from main body, open the water tank cap, and fill the water tank
from water faucet. When done, replace the water tank cap, then install the water tank into
main body until it clicks into place.
FILLING THE WATER TANK

12
Starting the Steam Mop
• Make sure the device has been filled with water before turning on. Do not run dry.
• Plug the power cord into a power outlet and switch on.
• The indicator light will turn red on each side of the water tank and the steam mop
will begin preheating. If the indicators do not illuminate, refer to the
"troubleshooting" section for more details.
It will take approximately 25 seconds for preheating. Once the steam mop is ready
to use the water tank will glow blue.
Note: If power is interrupted during the preheating phase, when the steam mop is
turned on again it will repeat the preheating phase.
• A full water tank will run for approximately 20 minutes. When the water level runs
low, the indicator will glow red and begin flashing.
• Press and hold the steam button to release steam.
• Direct the outlet (with any connected nozzle or accessories) toward the surface you
wish to steam while holding the steam button. To stop flow of steam, release the
button.
• Increase the level of steam by turning steam control knob clockwise
• Tu r n t h e s t e a m c o n t r o l k n o b counter-clockwise to reduce the amount of steam.
OPERATION
Note:
Before storing the steam mop, remove the water tank before turning off the
power and then let the product run for a while, until there is no steam.

13
Hand-held Mode
• Press the lock catch to release the steam unit from the main body.

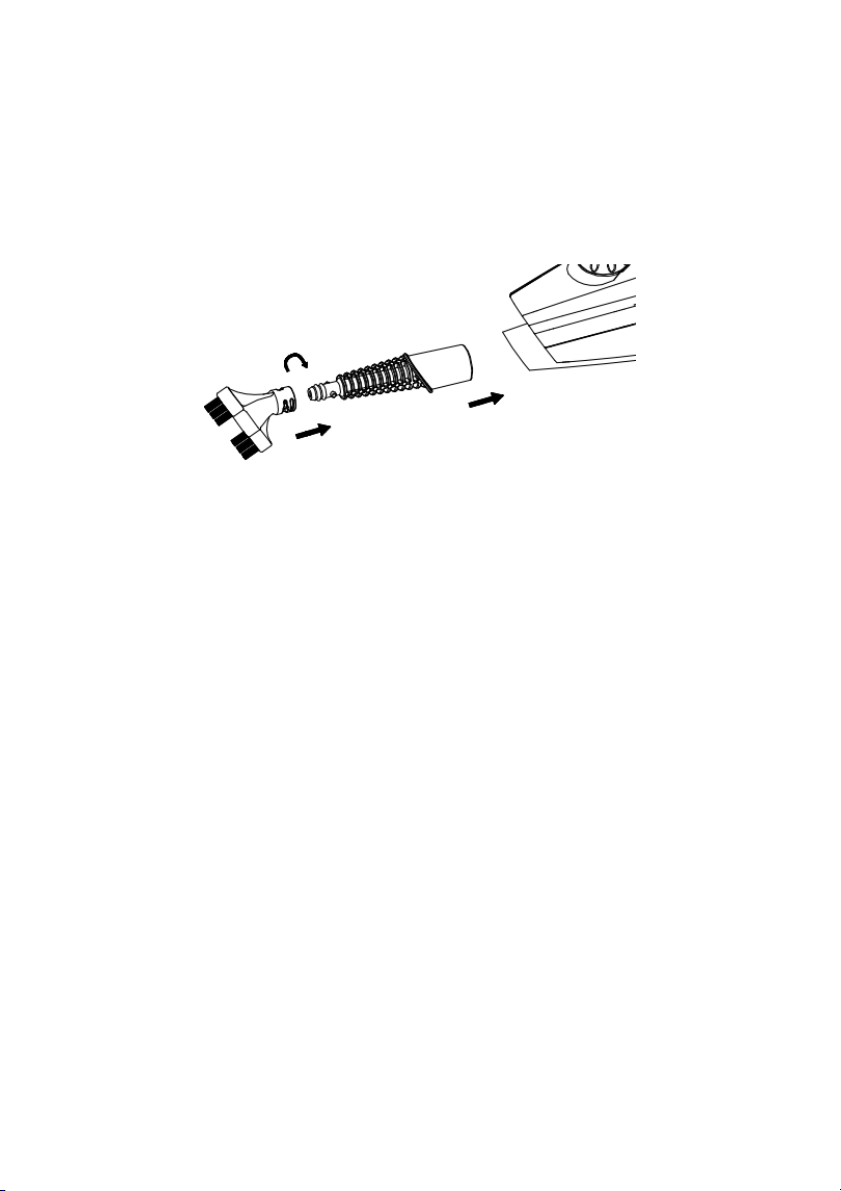

• Attach the accessory adaptor to the steam unit, until it locks into place.
• Attach the required accessory according to your need. Ensure the arrow indicators
are aligned, then turn counter-clockwise, until it locks into place.

14
Ensure that the product is powered off and unplugged before cleaning the appliance.
Empty the water tank after use every time and clean the water tank.
How to decalcify the water tank interior
To clean calcium deposits that builds up inside the water tank, add one or two tablespoons
of white vinegar to water tank and then shake the contents. Let it sit for several hours, then
pour away the solution and rinse with clean water.
Cleaning procedure to remove scale.
If your steam mop outputs steam more slowly than usual, or no steam, you may need to
remove lime scale. Lime scale can develop over time on the metal parts and greatly affect
steam mop performance.
It is necessary to remove lime scale on regular basis every 25-50 times you use a full tank of
water, or at least once a month, especially in areas with hard water.
The frequency of lime scale removal depends upon the hardness of you tap water and how
often you use the steam mop.
By using cleaning solution
1. Prepare a solution of 1/3 white vinegar and 2/3 tap water and add to the water
tank.
2. Secure and position the unit to ensure steam released is aimed away from the floor
or surrounding objects and surface. Plug the unit in, turn the unit ON by pressing
the power switch and allow the unit to produce steam unit the vinegar/water
solution in used up.
3. Repeat the above procedure as many times as necessary unit a normal steam flow
rate is achieved.
4. Fill the water tank with fresh water and rinse ours.
5. Fill the water tank with fresh water, attach to the unit and releasee steam through
the system unit the water tank is empty.
CLEANING & CARE
WARNING: Do not immerse the appliance in water.
WARNING: Don't leave the appliance during the lime scale removal
process and/or while in use

15
Notice:
Perform a test cleaning on a suitable isolated area after each lime scale removal to ensure
that there is no debris left in the system.
This product contains no serviceable parts. Do not try to repair it by yourself. Any servicing
that requires disassembly other than cleaning must be performed by a qualified appliance
repair technician.
All servicing should be done by an authorised service representative.
Cleaning Microfiber Pad
• Machine washable on "warm" setting. Always use a mild detergent.
• For best care results, lay flat to dry.
• Important: Allow the steamer to fully cool down before performing any
maintenance or troubleshooting checks.
• Important: Never use bleach or fabric softener when washing the microfiber
cleaning pad.
Storage
• After the steamer is used, turn power off and then unplug the power cord.
• Take out the water tank and empty the residual water in the tank and clean the
external surface with a dry cloth. Until the steam mop cools down, clean
appliances.
• Remove the cleaning pad and wash it so that it will be ready for next use.
• Store product in a protected, dry area. Keep water funnel and measuring cup for
future use.
• Keep out of reach of children.
Notes:
After cleaning, take out the water tank before cutting off the power and then let the
product work for a while, until there is no steam. It can make pipe without water, good
to store.

16
Rated voltage
220-240V
Rated frequency
50Hz
Output power
1500W (+5%, -10%)
water tank capacity
350ML
Waterproof level
IPX4
SPECIFCATIONS

17
Use troubleshooting guide as a first step to resolve any problems you may be experiencing.
All servicing should be done by an authorised service representative.
Problem
Possible reason
Possible solution
Reduced steam or
no steam
Water tank may be empty
Fill water into the water tank
Steam nozzle may be blocked
Clean steam nozzle
There is no power to the unit
Make sure unit is plugged in
Did not press steam button
Press steam button
Steam control Knob is in MIN.
Turn steam control knob
clockwise
Unit will not turn on
Blown fuse or breaker
Replace fuse or reset breaker in
home
Power cord not plugged in
Plug cord into a working circuit
Internal fuse is blown
Contact with customer service
Disposal
This marking indicates that this appliance should not be disposed with other
household wastes. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources.
TROUBLESHOOTING
WARNING: To reduce risk of personal injury-unplug steamer before
servicing and allow to cool

18

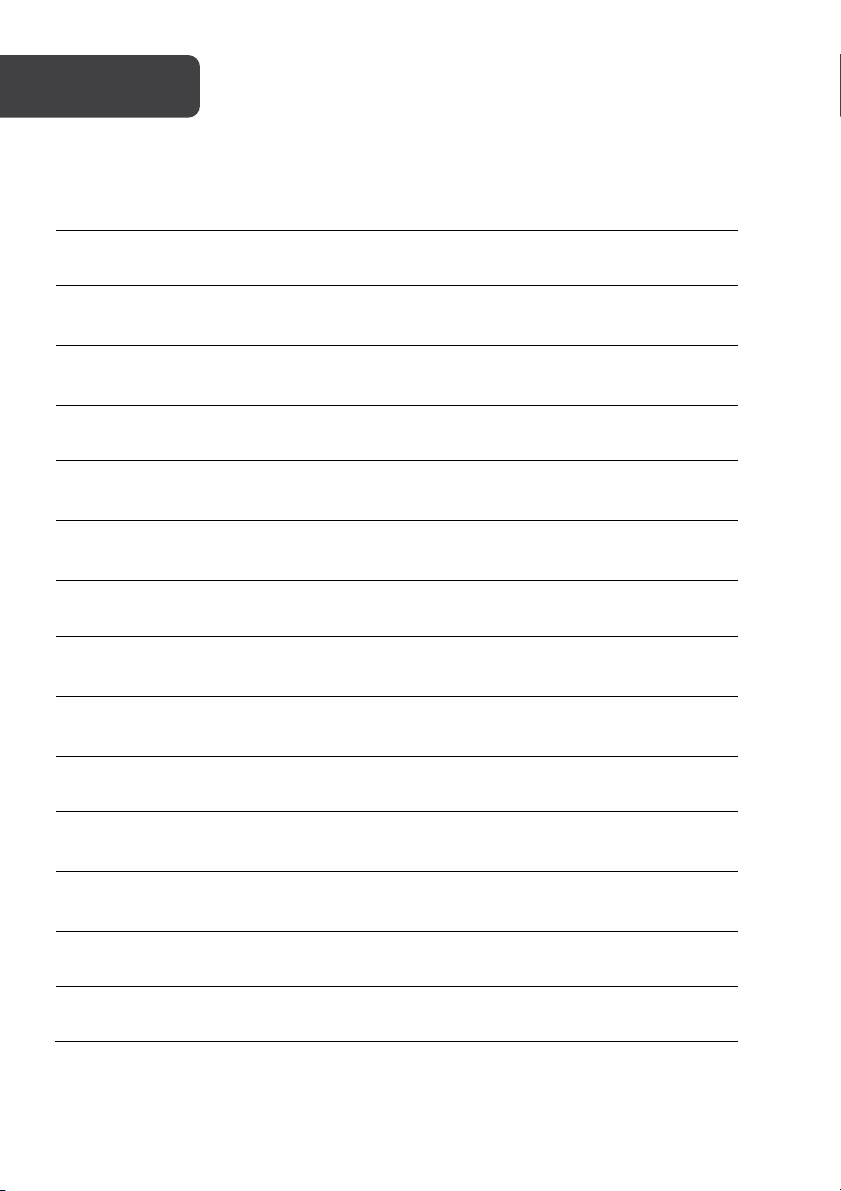

NOTES

19

20
Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
